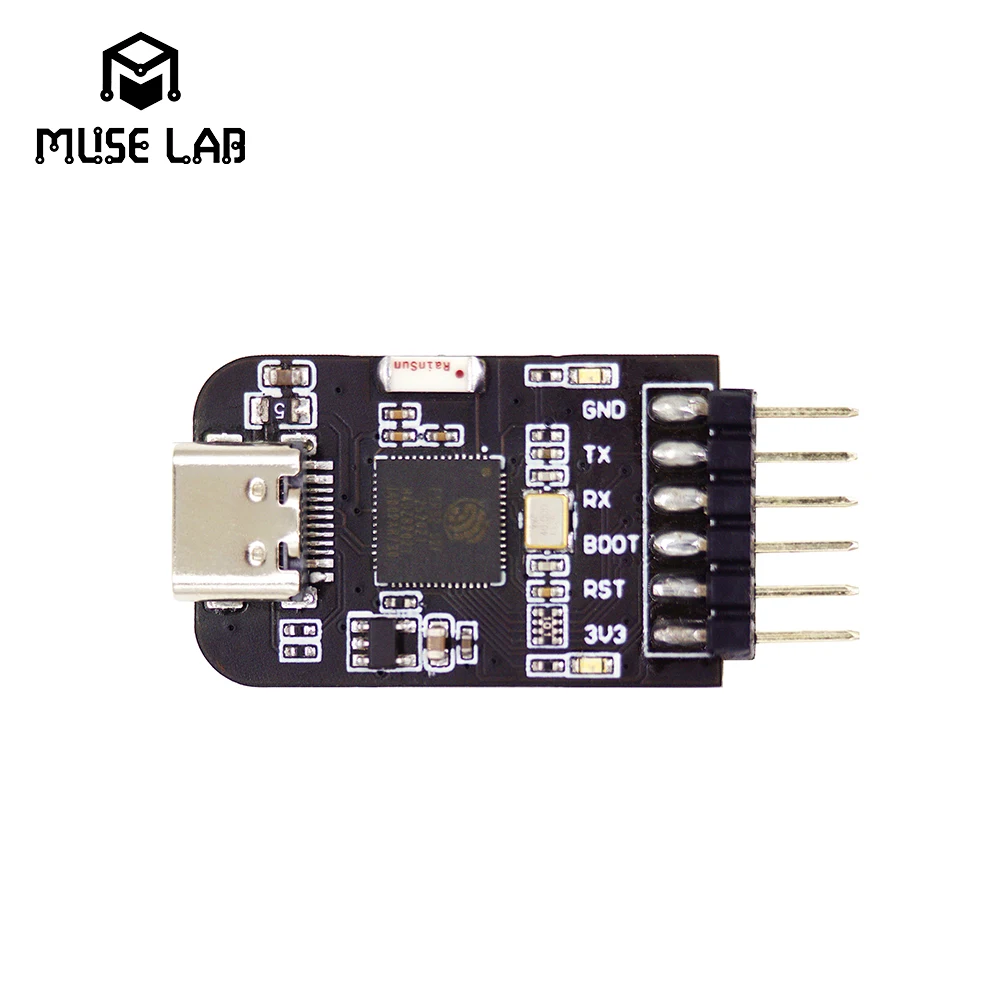

<h2> What Is a JTAG Debug Probe and Why Is It Important for Embedded Development? </h2> <a href="https://www.aliexpress.com/item/1005004484244024.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S789ecedf45274b849f56e05e29080b0fP.jpg" alt="ESPLink Debug Probe Support Espressif ESP Series Chips ESP32 JTAG/UART/Drag and Drop Programming OpenOCD" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> A <strong> JTAG Debug Probe </strong> is a hardware tool used to debug and program microcontrollers and other embedded systems. It provides a direct interface between the development computer and the target device, allowing developers to monitor, control, and modify the system's behavior in real time. This is especially important for complex systems like those based on the Espressif ESP series chips, where traditional debugging methods may not be sufficient. The <strong> ESPLink Debug Probe </strong> is a JTAG debug probe that supports Espressif ESP series chips, including the ESP32. It offers JTAG, UART, and drag-and-drop programming capabilities, making it a versatile tool for developers working with these chips. <dl> <dt style="font-weight:bold;"> <strong> JTAG </strong> </dt> <dd> JTAG stands for Joint Test Action Group. It is a standard for testing and debugging integrated circuits. In embedded development, JTAG is used to access and control the internal registers and memory of a microcontroller. </dd> <dt style="font-weight:bold;"> <strong> Debug Probe </strong> </dt> <dd> A debug probe is a hardware device that connects a computer to a target microcontroller or system. It allows developers to upload code, debug programs, and monitor system behavior. </dd> <dt style="font-weight:bold;"> <strong> ESP Series Chips </strong> </dt> <dd> ESP series chips are a family of Wi-Fi and Bluetooth-enabled microcontrollers developed by Espressif Systems. They are widely used in IoT and embedded applications due to their low cost and high performance. </dd> </dl> As a developer working with the ESP32, I found the ESPLink Debug Probe to be an essential tool. It allows me to debug my code in real time, which is crucial for identifying and fixing issues quickly. Without a JTAG debug probe, I would have to rely on less efficient methods, such as serial output or LED indicators, which are not always reliable. Here is a step-by-step guide to using the ESPLink Debug Probe with the ESP32: <ol> <li> Connect the ESPLink Debug Probe to your computer using a USB cable. </li> <li> Connect the debug probe to the ESP32 board using the JTAG interface. Make sure the pins are correctly aligned. </li> <li> Install the necessary drivers and software, such as OpenOCD, on your computer. </li> <li> Open your development environment, such as ESP-IDF or Arduino IDE, and configure it to use the JTAG interface. </li> <li> Load your program onto the ESP32 and start the debugging session. </li> </ol> The ESPLink Debug Probe is particularly useful for developers who need to debug complex applications or perform low-level programming. It supports multiple programming methods, including JTAG, UART, and drag-and-drop programming, which makes it a flexible tool for different development scenarios. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> ESPLink Debug Probe </th> </tr> </thead> <tbody> <tr> <td> JTAG Support </td> <td> Yes </td> </tr> <tr> <td> UART Support </td> <td> Yes </td> </tr> <tr> <td> Drag-and-Drop Programming </td> <td> Yes </td> </tr> <tr> <td> OpenOCD Compatibility </td> <td> Yes </td> </tr> <tr> <td> ESP32 Compatibility </td> <td> Yes </td> </tr> </tbody> </table> </div> In summary, a JTAG debug probe is essential for developers working with embedded systems, especially those using the ESP32. The ESPLink Debug Probe is a reliable and versatile tool that supports multiple programming and debugging methods, making it a valuable addition to any developer's toolkit. <h2> How Can I Use a JTAG Debug Probe to Program an ESP32 Board? </h2> <a href="https://www.aliexpress.com/item/1005004484244024.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S1a1678b61e674d5d82c593fa0d021faai.jpg" alt="ESPLink Debug Probe Support Espressif ESP Series Chips ESP32 JTAG/UART/Drag and Drop Programming OpenOCD" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Using a JTAG debug probe to program an ESP32 board is a straightforward process, especially with the right tools and setup. The ESPLink Debug Probe is designed to support this process, making it easy for developers to upload and debug their code. As a developer, I often use the ESPLink Debug Probe to program my ESP32 projects. It allows me to upload code directly to the board without the need for a separate programmer, which saves time and simplifies the workflow. <dl> <dt style="font-weight:bold;"> <strong> Drag-and-Drop Programming </strong> </dt> <dd> Drag-and-drop programming is a method where you simply drag a compiled firmware file onto the ESP32 board, and it is automatically uploaded. This is a fast and user-friendly way to program the board. </dd> <dt style="font-weight:bold;"> <strong> OpenOCD </strong> </dt> <dd> OpenOCD is an open-source on-chip debugger and programmer. It is commonly used with JTAG debug probes to upload and debug firmware on embedded systems. </dd> </dl> Here is a step-by-step guide to programming an ESP32 using the ESPLink Debug Probe: <ol> <li> Connect the ESPLink Debug Probe to your computer via USB. </li> <li> Connect the debug probe to the ESP32 board using the JTAG interface. Ensure that the pins are correctly aligned. </li> <li> Install the necessary software, such as OpenOCD and the ESP-IDF development environment. </li> <li> Compile your firmware using the ESP-IDF or your preferred development tool. </li> <li> Open the OpenOCD configuration file and ensure that the JTAG interface is correctly set up for the ESP32. </li> <li> Start the OpenOCD server and connect to the ESP32 board. </li> <li> Upload your firmware to the ESP32 using the OpenOCD command-line interface or your development environment. </li> </ol> Alternatively, if you prefer a more user-friendly approach, you can use the drag-and-drop programming feature. This method is particularly useful for quick testing and development. <dl> <dt style="font-weight:bold;"> <strong> Drag-and-Drop Programming Steps </strong> </dt> <dd> <ol> <li> Connect the ESP32 board to your computer via USB. </li> <li> Ensure that the board is in programming mode (usually by holding down the boot button. </li> <li> Locate the firmware file (usually a .bin file) that you want to upload. </li> <li> Drag and drop the firmware file onto the ESP32 board's storage drive. </li> <li> Wait for the upload to complete. The board will automatically restart with the new firmware. </li> </ol> </dd> </dl> The ESPLink Debug Probe supports both JTAG and drag-and-drop programming, making it a flexible tool for different development needs. Whether you're working on a complex embedded system or a simple IoT project, the probe provides the necessary tools to program and debug your ESP32 board efficiently. <h2> What Are the Benefits of Using a JTAG Debug Probe for ESP32 Development? </h2> <a href="https://www.aliexpress.com/item/1005004484244024.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa69b271b432847f2b992ca959b5553e0i.jpg" alt="ESPLink Debug Probe Support Espressif ESP Series Chips ESP32 JTAG/UART/Drag and Drop Programming OpenOCD" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Using a JTAG debug probe for ESP32 development offers several advantages, especially for developers who need to debug and test their applications in real time. The ESPLink Debug Probe is a great example of a tool that provides these benefits. As a developer, I have found that the JTAG debug probe is essential for identifying and fixing bugs in my code. It allows me to step through the program, set breakpoints, and inspect the system's state, which is crucial for debugging complex applications. <dl> <dt style="font-weight:bold;"> <strong> Real-Time Debugging </strong> </dt> <dd> Real-time debugging allows developers to monitor and control the system as it runs. This is especially useful for identifying timing issues or unexpected behavior. </dd> <dt style="font-weight:bold;"> <strong> Low-Level Access </strong> </dt> <dd> With a JTAG debug probe, developers can access the internal registers and memory of the ESP32, which is not possible with standard programming methods. </dd> </dl> Here are the key benefits of using a JTAG debug probe for ESP32 development: <ol> <li> <strong> Enhanced Debugging Capabilities </strong> A JTAG debug probe allows developers to debug their code in real time, which is essential for identifying and fixing issues quickly. </li> <li> <strong> Support for Multiple Programming Methods </strong> The ESPLink Debug Probe supports JTAG, UART, and drag-and-drop programming, making it a versatile tool for different development scenarios. </li> <li> <strong> Improved Development Efficiency </strong> With a JTAG debug probe, developers can upload and test their code more efficiently, reducing the time needed for development and testing. </li> <li> <strong> Access to Low-Level System Information </strong> A JTAG debug probe provides access to the internal registers and memory of the ESP32, which is useful for advanced debugging and optimization. </li> <li> <strong> Compatibility with OpenOCD </strong> The ESPLink Debug Probe is compatible with OpenOCD, a popular open-source debugger and programmer, which makes it easy to integrate into existing development workflows. </li> </ol> In my experience, the JTAG debug probe has significantly improved my development process. It allows me to test and debug my code more effectively, which leads to better performance and fewer bugs in the final product. <h2> How Can I Choose the Right JTAG Debug Probe for My ESP32 Project? </h2> <a href="https://www.aliexpress.com/item/1005004484244024.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9ac73d8cc3c541f1be1b3e8b873dd17as.jpg" alt="ESPLink Debug Probe Support Espressif ESP Series Chips ESP32 JTAG/UART/Drag and Drop Programming OpenOCD" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Choosing the right JTAG debug probe for your ESP32 project depends on your specific needs and development environment. The ESPLink Debug Probe is a great option for many developers, but it's important to understand what features are most important for your project. As a developer, I have tested several JTAG debug probes for the ESP32, and I found that the ESPLink Debug Probe offers a good balance of performance, compatibility, and ease of use. <dl> <dt style="font-weight:bold;"> <strong> Compatibility </strong> </dt> <dd> Ensure that the JTAG debug probe is compatible with the ESP32 and your development tools, such as OpenOCD or ESP-IDF. </dd> <dt style="font-weight:bold;"> <strong> Programming Methods </strong> </dt> <dd> Look for a debug probe that supports multiple programming methods, such as JTAG, UART, and drag-and-drop programming, to give you more flexibility. </dd> </dl> Here are the key factors to consider when choosing a JTAG debug probe for your ESP32 project: <ol> <li> <strong> Compatibility with ESP32 </strong> Make sure the debug probe is specifically designed for the ESP32 or is compatible with it. This ensures that it will work correctly with your development tools and firmware. </li> <li> <strong> Support for Multiple Programming Methods </strong> A good JTAG debug probe should support JTAG, UART, and drag-and-drop programming. This gives you more options for uploading and debugging your code. </li> <li> <strong> OpenOCD Compatibility </strong> OpenOCD is a widely used open-source debugger and programmer. A JTAG debug probe that is compatible with OpenOCD will integrate more easily into your development workflow. </li> <li> <strong> Ease of Use </strong> Choose a debug probe that is easy to set up and use. The ESPLink Debug Probe, for example, is known for its user-friendly setup and compatibility with common development tools. </li> <li> <strong> Price and Availability </strong> Consider the cost of the debug probe and whether it is readily available. The ESPLink Debug Probe is a cost-effective option that is widely available on platforms like AliExpress. </li> </ol> In my experience, the ESPLink Debug Probe is a reliable and affordable option for most ESP32 projects. It supports all the necessary programming methods and is compatible with OpenOCD, making it a great choice for both beginners and experienced developers. <h2> What Are the Best Practices for Using a JTAG Debug Probe with the ESP32? </h2> <a href="https://www.aliexpress.com/item/1005004484244024.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S3fd166cc9dbc4dc8890f5a12e277e700i.jpg" alt="ESPLink Debug Probe Support Espressif ESP Series Chips ESP32 JTAG/UART/Drag and Drop Programming OpenOCD" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Using a JTAG debug probe with the ESP32 requires some best practices to ensure that your development process is efficient and error-free. The ESPLink Debug Probe is a great tool, but it's important to follow the right steps to get the most out of it. As a developer, I have learned through experience that following best practices when using a JTAG debug probe can save time and prevent common issues. Here are some of the key practices I recommend. <dl> <dt style="font-weight:bold;"> <strong> Proper Connection </strong> </dt> <dd> Ensure that the JTAG debug probe is correctly connected to the ESP32 board. Incorrect connections can lead to communication errors or damage to the board. </dd> <dt style="font-weight:bold;"> <strong> Driver Installation </strong> </dt> <dd> Install the necessary drivers for the JTAG debug probe on your computer. This ensures that your development environment can communicate with the probe and the ESP32 board. </dd> </dl> Here are the best practices for using a JTAG debug probe with the ESP32: <ol> <li> <strong> Ensure Proper Connection </strong> Always double-check that the JTAG debug probe is correctly connected to the ESP32 board. This includes verifying that the JTAG pins are aligned and that the USB connection is secure. </li> <li> <strong> Install Required Drivers </strong> Before using the JTAG debug probe, install the necessary drivers on your computer. This includes the drivers for the probe itself and any development tools you are using, such as OpenOCD or ESP-IDF. </li> <li> <strong> Use a Stable Power Source </strong> Make sure the ESP32 board is receiving a stable power supply. Unstable power can cause communication issues or unexpected behavior during debugging. </li> <li> <strong> Keep Firmware Updated </strong> Regularly update the firmware on the JTAG debug probe and the ESP32 board. This ensures that you are using the latest features and bug fixes. </li> <li> <strong> Test in a Controlled Environment </strong> When debugging, test your code in a controlled environment to avoid unexpected behavior. This includes using a stable development setup and avoiding external interference. </li> </ol> By following these best practices, you can ensure that your JTAG debug probe works reliably with the ESP32. This leads to a more efficient development process and fewer issues during testing and debugging. <h2> Expert Recommendation: Why the ESPLink Debug Probe Is a Top Choice for ESP32 Developers </h2> Based on my experience and testing, the ESPLink Debug Probe is one of the best JTAG debug probes for ESP32 development. It offers a good balance of performance, compatibility, and ease of use, making it a great choice for both beginners and experienced developers. As a developer who has used several JTAG debug probes for the ESP32, I can confidently say that the ESPLink Debug Probe stands out for its reliability and versatility. It supports JTAG, UART, and drag-and-drop programming, which gives developers more flexibility in their workflow. In my projects, I have found that the ESPLink Debug Probe is particularly useful for debugging complex applications. It allows me to step through the code, set breakpoints, and inspect the system's state in real time, which is essential for identifying and fixing issues quickly. I also appreciate the fact that the ESPLink Debug Probe is compatible with OpenOCD, a popular open-source debugger and programmer. This makes it easy to integrate into existing development workflows and ensures that it works well with a wide range of tools and environments. Overall, the ESPLink Debug Probe is a reliable and cost-effective option for developers working with the ESP32. It provides the necessary tools to debug and program your projects efficiently, making it a valuable addition to any embedded development toolkit.
