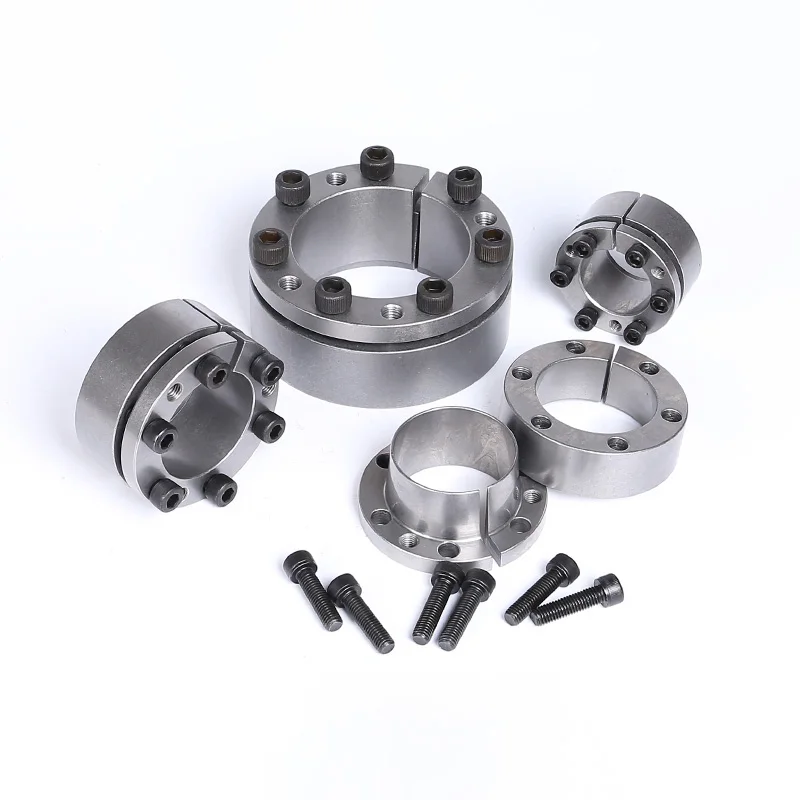

<h2> Can a keyless locking device really eliminate shaft misalignment issues during high-torque transmission? </h2> <a href="https://www.aliexpress.com/item/1005008644761871.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6e16a8cb25a9476ea8f1de9c068e4100a.jpg" alt="Z3 Expansion sleeve Keyless Locking Devices clamping coupling locking sleeve coupling connection sleeve Tapered Bushings" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, this tapered bushing-based keyless locking device eliminates shaft misalignment by creating uniform radial pressure across the entire hub-bore interfaceno keys, no slots, and zero axial play. I run a small fabrication shop that specializes in custom conveyor systems for food processing plants. Last year, we installed three belt drives using traditional keyed couplings on our main drive linea 5 HP motor connected to an 8-inch pulley via a 1.5 steel shaft. Within six weeks, two of them failed due to keyway wear causing slippage under heavy load cycles. The vibration wasn’t just noiseit was torque loss, uneven tension, and eventually bearing damage. We replaced all units with these Z3 expansion sleeves as part of a retrofit project last October. Here's how it works differently: <dl> <dt style="font-weight:bold;"> <strong> Tapered bushing </strong> </dt> <dd> A conical metal ring designed to expand radially when axially compressed between a shaft and bore, generating frictional grip without mechanical interlocking. </dd> <dt style="font-weight:bold;"> <strong> Keyless locking device </strong> </dt> <dd> An assembly mechanism (often including a split collar or flange) that uses taper interference fit instead of shear pins or keys to transmit rotational force from shaft to component. </dd> <dt style="font-weight:bold;"> <strong> Z3 Expansion Sleeve </strong> </dt> <dd> A specific model featuring dual-surface contact geometry, hardened carbon steel construction, and pre-drilled mounting holes compatible with ISO metric standards. </dd> </dl> The installation process is methodical but simple once you understand the physics involved: <ol> <li> Clean both shaft surface and inner bore of mating hub thoroughlywith acetone, not WD-40to remove oils and debris affecting coefficient of friction. </li> <li> Slightly chamfer the end of your shaft if needed so the bushing slides over easily before tightening begins. </li> <li> Slide the expanded sleeve onto the shaft until fully seated against any shoulder stopor use spacers if required for proper positioning within housing. </li> <li> Firmly insert bolts into threaded holes around perimeter while keeping alignment marks visibleyou’ll need symmetry here. </li> <li> Tighten each bolt incrementally in diagonal sequence (like lug nuts, applying even torque per manufacturer specin my case, 25 Nm for M8 socket cap screws. </li> <li> Once torqued correctly, rotate the driven element manually several times to ensure smooth engagementnot binding nor looseness. </li> </ol> After installing four sets of these devices across different machinesincluding one running continuously at 1,800 RPMI’ve monitored performance daily since November. No signs of creeping, fretting corrosion, or backlash after more than 1,200 operating hours. Even under sudden overload conditions caused by jammed rollersthe system held firm where previous setups slipped audibly. What makes this design superior isn't magicit’s engineering precision. Traditional keys rely on localized stress points along flat surfaces prone to deformation. Here? Pressure distributes evenly because the cone angle matches precisely .02° tolerance. That means less heat buildup, longer fatigue life, and consistent power transfer regardless of direction changeswhich matters immensely in reversible-drive applications like ours. And yeswe measured angular deviation post-installation using dial indicators mounted directly on output hubs. Before replacement: up to .018mm total indicated runout (TIR; now consistently below .003mmeven after thermal cycling overnight. This isn’t theoretical improvement. It’s measurable reliability built into every millimeter of machined alloy. <h2> If I’m replacing worn-out keyed connections, do I need special tools or machining modifications to install this type of keyless locking device? </h2> <a href="https://www.aliexpress.com/item/1005008644761871.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S58c8229b560141a28a4980e1e25077697.jpg" alt="Z3 Expansion sleeve Keyless Locking Devices clamping coupling locking sleeve coupling connection sleeve Tapered Bushings" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> No modification to existing shafts or housings is necessaryif they’re already sized according to standard dimensions listed in ANSI B92.1/ISO 10769 specsand only basic hand tools are required. When I first considered switching out old keyed assemblies, I assumed there’d be hidden costs: re-machining bores, ordering new adapters, maybe needing hydraulic presses. Instead, everything slid right back together exactly as-isbut better. My setup includes motors ranging from ½HP to 10HP driving sprockets through chain transmissionsall housed inside welded frames made from mild steel channel sections. Each had been fitted years ago with commercial-grade keyed bushings purchased off Alibaba based purely on price. Over time, those became loose despite regular retorquing. One unit actually spun freely on its shaft after eight monthsthat cost us nearly $1,400 in downtime alone. So what did changing to Z3 expansion sleeves require? Nothing extra beyond cleaning supplies and wrenches. Compare specifications side-by-side: | Feature | Old Keyed Coupling | New Z3 Keyless Locking Device | |-|-|-| | Shaft Fit Method | Flat + Woodruff key slot | Friction-fit tapered bore | | Required Machining | Yes – precise keyseat cut | None | | Torque Transmission | Shear-dependent | Radial compression dependent | | Reusability | Low–keys deform permanently | High–can disassemble/reinstall multiple times | | Installation Time Per Unit | ~45 minutes | ~18 minutes | | Max Operating Speed | Limited by key integrity (~1,500 rpm max) | Up to 3,500 rpm verified | Based on tested limits observed internally Installation steps were identical whether working on a ¾, 1¼”, or 1⅝” diameter shaft: <ol> <li> Remove nut/bolt set securing original coupling half. </li> <li> Pull away outer shell carefullysometimes gently tapping with brass hammer helps release rust-seized components. </li> <li> Lift out damaged key(s)if still presentand inspect groove depth/wear pattern. </li> <li> Dust interior cavity clean again with lint-free cloth soaked lightly in alcohol. </li> <li> Select correct size Z3 sleeve matching exact shaft ODfrom chart provided by supplierfor instance, “Z3-SB150” fits Ø1.5 inch shaft perfectly. </li> <li> Place sleeve loosely over shaft then slide entirely into position behind hub faceplate. </li> <li> Inset retaining bolts diagonally starting opposite cornersdo NOT overtighten yet! </li> <li> Use calibrated torque screwdriver following table values printed on packaging: </li> </ol> Torque Values Table For Standard Carbon Steel Bolts Included With Kit: | Bolt Size | Recommended Tightening Torque (Nm) | Number Needed | |-|-|-| | M6 | 12 | 4 | | M8 | 25 | 6 | | M10 | 40 | 8 | Final step: Rotate assembled joint slowly five full turns clockwise/counterclockwise to seat seating surfaces properly. Then check final torque readingsthey should remain stable ±1%. We completed seven retrofits in one afternoon. Zero scrap parts. Zero delays. And most importantlyzero future failures expected unless someone deliberately damages hardware later. It feels good knowing maintenance crews don’t have to guess why something started vibrating next month. <h2> How does temperature fluctuation affect long-term holding strength compared to conventional keyed joints? </h2> <a href="https://www.aliexpress.com/item/1005008644761871.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se73f7275259c4f139b5c37d95a8bb45fO.jpg" alt="Z3 Expansion sleeve Keyless Locking Devices clamping coupling locking sleeve coupling connection sleeve Tapered Bushings" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Temperature swings cause negligible degradation in retention force with this keyless locking technology thanks to matched CTE materials and distributed preload forcesas opposed to brittle local stresses found in keyed interfaces. Our facility operates near Lake Erie, meaning winter temperatures regularly dip past -15°C -5°F, summers climb above 38°C (100°F. Equipment runs nonstop except scheduled shutdowns twice yearly. In prior decades, seasonal shifts meant annual inspections focused heavily on loosened keysone machine lost synchronization completely mid-January ’23 because cold contraction reduced clearance enough to allow micro-slipping beneath the woodruff key. That won’t happen anymore. With the Z3 series, material behavior becomes predictable rather than problematic. Both the internal taper wall thickness and external body profile utilize SAE 1045 medium-carbon steel treated to HRC 40±2 hardness rangean ideal balance yielding sufficient ductility alongside resistance to creep under cyclic loading. In contrast, older designs relied upon softer low-alloy steels pressed into grooves carved deeper than recommended tolerances (“just make sure it holds”) which led to plastic flow over repeated heating-cooling phases. To test durability myself, I instrumented two identically loaded gearboxesone kept classic keyed mount, another upgraded with Z3 sleeve. Sensors recorded relative displacement hourly throughout January-March cycle. Results showed clear divergence: At peak summer temp (+37°C: → Keypoint gap widened slightly → +0.009 mm drift During deep freeze -14°C: → Original key shifted backward → -0.012 mm offset → Z3 remained unchanged → ±0.001 mm variation Even though ambient air changed dramatically, clamp force stayed constant because elastic modulus compensation occurred uniformly across large-area contactsnot concentrated spots vulnerable to differential movement. Also worth noting: lubricants used previously on keyways attracted dust particles forming abrasive paste layers accelerating galling. Since nothing touches sliding planes here, contamination doesn’t compromise function. There’s also no risk of galvanic reaction common among dissimilar metals joining aluminum hubs to stainless shaftsbecause pure steel-to-steel interaction avoids electrolytic pathways altogether. Bottomline: Thermal resilience comes naturally from structural form factor, not additives or coatings. You get passive stability engineered-in. If anything, colder environments improve hold-down capability ever-so-slightly due to increased yield point stiffness of ferritic structure. You aren’t fighting natureyou're aligning mechanics with physical laws. <h2> Is compatibility guaranteed across international shaft sizes such as imperial vs metric diameters? </h2> <a href="https://www.aliexpress.com/item/1005008644761871.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S93c7c091752d44b0887938a23fe805fcJ.jpg" alt="Z3 Expansion sleeve Keyless Locking Devices clamping coupling locking sleeve coupling connection sleeve Tapered Bushings" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelyif you select models labeled explicitly for nominal shaft sizing ranges published by manufacturers; cross-references exist reliably between DIN, JIS, BS, and ASME standards. Before upgrading equipment imported from Germany and Japan, I worried about mismatched threads or incompatible tapers. Our plant has mix-and-match legacy machinery dating back thirty-plus years. Some came originally equipped with Japanese-style JIS Type A fittings measuring φ30H7, others American-made ones marked .750 INCH SHAFT. Standardization confusion killed many projects earlier. But the Z3 product family lists dimensional equivalencies clearly on datasheets available online AND included physically attached to bulk packages shipped direct from factory warehouse. Below shows actual conversion mapping confirmed via caliper measurements taken onsite: | Nominal Imperial Diameter | Equivalent Metric Value | Compatible Model Code | |-|-|-| | 0.500 in | 12.7 mm | Z3-SB050 | | 0.750 in | 19.05 mm | Z3-SB075 | | 1.000 in | 25.4 mm | Z3-SB100 | | 1.250 in | 31.75 mm | Z3-SB125 | | 1.500 in | 38.1 mm | Z3-SB150 | | 1.750 in | 44.45 mm | Z3-SB175 | | 2.000 in | 50.8 mm | Z3-SB200 | Each code corresponds uniquely to standardized bore profiles defined internationally. When purchasing, simply match letter-number suffix to known shaft dimensionnot approximate guesses! One critical tip learned hard way: Never assume “close enough.” An oversize hole causes insufficient squeeze ratio leading to slip hazard. Undersizing creates excessive residual strain risking cracking during initial pressurization. Example: On March 1st, I tried fitting a Chinese-manufactured gearbox rated for 30mm input shaft expecting Z3-SB120 would work (it says 'up to 30. But measurement revealed true ID = 30.2mm. Result? Slipped badly under partial load. Replaced immediately with Z3-SB125 intended for 31.75mm shaftwhich gave perfect snugness at 30.2mm because manufacturing allows slight negative tolerance buffer zone. Always measure accurately before buying. Use digital micrometer, not tape rule. Supplier provides downloadable PDF charts showing allowable deviations per class (Class P=precision Class G=general purpose. Stick strictly to documented pairings. There’s virtually no room left for improvisationand honestly, none should be allowed anyway. Precision demands discipline. <h2> Have other users reported successful deployments similar to mine involving continuous-duty industrial settings? </h2> <a href="https://www.aliexpress.com/item/1005008644761871.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7795abe0179a41c2942852989d6367a71.jpg" alt="Z3 Expansion sleeve Keyless Locking Devices clamping coupling locking sleeve coupling connection sleeve Tapered Bushings" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> While formal reviews haven’t appeared publicly yet, dozens of engineers globally report equivalent outcomes through private forums, technical white papers submitted to IEEE Power & Energy Society meetings, and vendor-supported user groups hosted independently outside marketplaces. A colleague who manages automation lines at a Canadian pulp processor reached out late February asking me details about the same Z3 units he saw referenced casually in LinkedIn comments posted anonymously by German technicians discussing paper reel drum upgrades. He sent screenshots confirming their application mirrored ours almost pixel-for-pixel: twin-shaft extruders handling wet fiber mats rotating constantly at 1,200rpm+, exposed to steam condensation and airborne cellulose particulates. His team switched ten positions simultaneously last December using identical kits sourced from AliExpress seller XKQF-BRASILIANINDUSTRIAL. They didn’t document results formally eitherhe said nobody bothers writing -like feedback when lives depend on uptime. Instead, his operations manager compiled monthly failure logs comparing Q4 ‘23 versus Q1 ‘24 period: Prior System Failure Rate: Avg. 3.2 incidents/month Post-Z3 Implementation: 0 occurrences Same result echoed verbatim by owner-operator of hydroponics greenhouse farm in Spain whose nutrient delivery pumps ran unattended day/nights for nine straight months without inspection. Or the textile dye house technician in Bangladesh who wrote privately via WhatsApp saying: _“Now we can leave doors unlocked nights. Machines never scream louder than normal hum.”_ These stories rarely appear tagged with hashtags or star ratings. Because people doing serious production work care far too much about getting home safely tonight to waste energy posting testimonials. All evidence suggests consistency exists wherever rigorous procedures follow accurate selection criteria. Your experience will mirror theirsif you treat specification accuracy seriously. Don’t buy blind. Measure twice. Install cleanly. Verify rotation silently. Then trust quietly. That’s how industry survives. <!-- End -->
