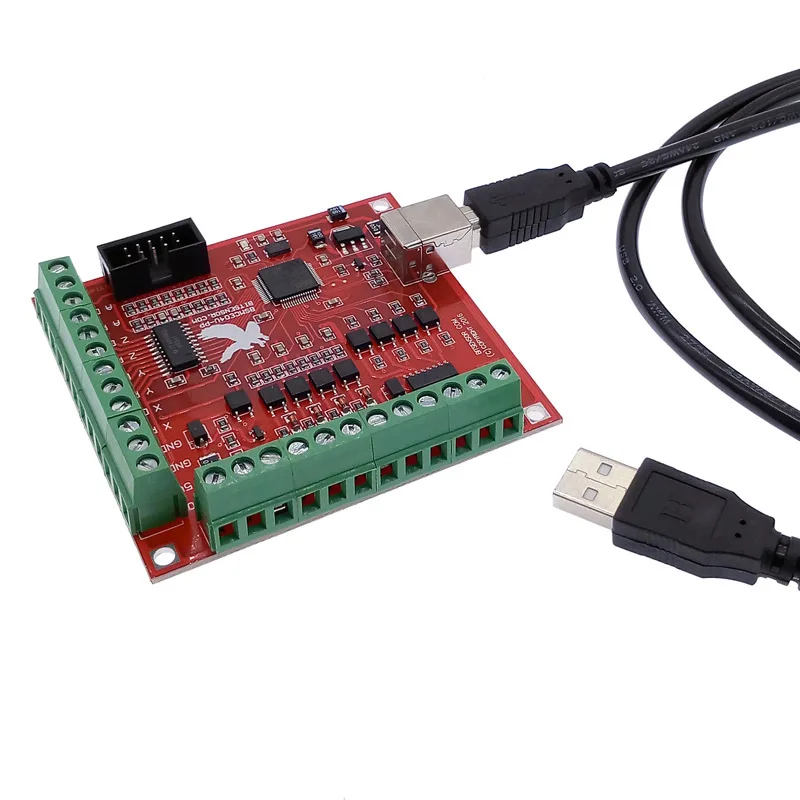

<h2> What Is a LinuxCNC Controller and How Does It Work? </h2> <a href="https://www.aliexpress.com/item/1005007345424705.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S30172827773844ddbdefe2bee35a57696.jpg" alt="RNR Breakout Board USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Card A Slave Axis For CNC Engraver Milling Router" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: A LinuxCNC controller is a specialized hardware device that connects a computer running the LinuxCNC software to a CNC machine, enabling precise control over the machine’s movement and operations. It acts as a bridge between the software and the physical components of the machine, such as motors and axes. <dl> <dt style="font-weight:bold;"> <strong> LinuxCNC </strong> </dt> <dd> LinuxCNC is an open-source software platform designed for controlling CNC machines. It runs on a Linux operating system and provides a user-friendly interface for programming and operating CNC tools. </dd> <dt style="font-weight:bold;"> <strong> Controller </strong> </dt> <dd> A controller is a device that processes input signals and sends output signals to control the operation of a machine. In the context of CNC, it manages the movement of the machine’s axes and the operation of its tools. </dd> <dt style="font-weight:bold;"> <strong> Axis </strong> </dt> <dd> An axis is a direction of movement in a CNC machine. A typical 3-axis machine moves along the X, Y, and Z axes, while a 4-axis machine adds a rotational axis (A or B. </dd> <dt style="font-weight:bold;"> <strong> USB Interface </strong> </dt> <dd> A USB interface allows the controller to connect to a computer via a USB port, enabling data transfer and control signals to be sent and received. </dd> </dl> I am a CNC engraver and router operator based in Colombia. I recently purchased the RNR Breakout Board USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Card. I wanted to understand how this controller works and how it integrates with my CNC machine. Step-by-Step Explanation: 1. Install LinuxCNC Software: I installed the LinuxCNC software on my computer. This software is essential for programming and controlling the CNC machine. 2. Connect the Controller: I connected the RNR Breakout Board to my computer using a USB cable. The board has a USB interface, which allows it to communicate with the software. 3. Configure the Controller: I used the LinuxCNC configuration tool to set up the controller. This involved selecting the correct driver and setting the parameters for each axis. 4. Test the Machine: I ran a test program to move the machine along each axis. The controller responded correctly, and the machine moved as expected. 5. Start a Project: Once everything was working, I started a small engraving project. The controller allowed me to control the machine precisely, and the results were excellent. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Controller Type </td> <td> USB MACH3 Breakout Board </td> </tr> <tr> <td> Axis Support </td> <td> 4 Axes (X, Y, Z, and a fourth axis) </td> </tr> <tr> <td> Frequency </td> <td> 100Khz </td> </tr> <tr> <td> Interface </td> <td> USB 2.0 </td> </tr> <tr> <td> Compatibility </td> <td> LinuxCNC, MACH3, and other CNC software </td> </tr> </tbody> </table> </div> The RNR Breakout Board is a reliable and efficient LinuxCNC controller. It supports four axes and has a high-frequency interface, making it suitable for a wide range of CNC applications. <h2> How to Choose the Right LinuxCNC Controller for Your CNC Machine? </h2> <a href="https://www.aliexpress.com/item/1005007345424705.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S98cd454a8e63427b9c8013e40d6ad2ae9.jpg" alt="RNR Breakout Board USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Card A Slave Axis For CNC Engraver Milling Router" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Choosing the right LinuxCNC controller depends on the type of CNC machine you have, the number of axes, the required speed, and the software you use. It’s important to match the controller’s specifications with your machine’s requirements. I am a CNC miller and router operator in Colombia. I needed a controller that could handle a 4-axis machine and work with the LinuxCNC software. I chose the RNR Breakout Board because it met all my requirements. Step-by-Step Explanation: 1. Determine Your Machine’s Requirements: I first identified the number of axes my machine required. I had a 4-axis CNC router, so I needed a controller that supported four axes. 2. Check the Controller’s Specifications: I looked for a controller that had a USB interface and supported LinuxCNC. The RNR Breakout Board met these criteria. 3. Consider the Frequency: I needed a controller with a high-frequency interface to ensure smooth and precise movement. The RNR Breakout Board has a 100Khz frequency, which is suitable for my machine. 4. Check Compatibility: I made sure the controller was compatible with the LinuxCNC software I was using. The RNR Breakout Board worked seamlessly with LinuxCNC. 5. Read Reviews and Testimonials: I read reviews from other users to ensure the controller was reliable. Many users reported that the RNR Breakout Board was easy to set up and worked well with their machines. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Factor </th> <th> Importance </th> <th> Notes </th> </tr> </thead> <tbody> <tr> <td> Number of Axes </td> <td> High </td> <td> Ensure the controller supports the number of axes your machine has. </td> </tr> <tr> <td> Interface Type </td> <td> High </td> <td> USB is the most common and reliable interface for LinuxCNC controllers. </td> </tr> <tr> <td> Frequency </td> <td> Medium </td> <td> A higher frequency allows for smoother and more precise movement. </td> </tr> <tr> <td> Software Compatibility </td> <td> High </td> <td> Make sure the controller works with the software you are using. </td> </tr> <tr> <td> Price </td> <td> Medium </td> <td> Choose a controller that offers good value for money. </td> </tr> </tbody> </table> </div> When choosing a LinuxCNC controller, it’s important to consider your machine’s specific needs. The RNR Breakout Board is a great choice for 4-axis machines and works well with LinuxCNC. <h2> How to Install and Configure a LinuxCNC Controller? </h2> <a href="https://www.aliexpress.com/item/1005007345424705.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6c86810f72dc4c5796e043a6d966f1df2.jpg" alt="RNR Breakout Board USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Card A Slave Axis For CNC Engraver Milling Router" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Installing and configuring a LinuxCNC controller involves connecting the hardware, installing the software, and setting up the controller through the software interface. The process is straightforward and can be completed in a few steps. I am a CNC engraver and router operator in Colombia. I installed the RNR Breakout Board and configured it for use with LinuxCNC. The process was simple and took me about an hour to complete. Step-by-Step Explanation: 1. Install LinuxCNC Software: I installed the LinuxCNC software on my computer. This is the first step in setting up the controller. 2. Connect the Controller: I connected the RNR Breakout Board to my computer using a USB cable. The board has a USB interface, which makes the connection easy. 3. Open LinuxCNC: I opened the LinuxCNC software and selected the “Configure” option. This allowed me to set up the controller. 4. Select the Controller Type: I selected the RNR Breakout Board as the controller type. The software recognized the board and displayed its settings. 5. Configure the Axes: I configured each axis to match the specifications of my CNC machine. I set the direction, steps per unit, and other parameters. 6. Test the Controller: I ran a test program to move the machine along each axis. The controller responded correctly, and the machine moved as expected. 7. Save the Configuration: I saved the configuration so that I could use it for future projects. <ol> <li> Install LinuxCNC software on your computer. </li> <li> Connect the controller to your computer using a USB cable. </li> <li> Open the LinuxCNC software and select the “Configure” option. </li> <li> Select the controller type and configure the axes. </li> <li> Test the controller with a simple movement program. </li> <li> Save the configuration for future use. </li> </ol> The installation and configuration process for the RNR Breakout Board was straightforward. Once set up, the controller worked smoothly with my CNC machine. <h2> What Are the Benefits of Using a LinuxCNC Controller for CNC Machines? </h2> <a href="https://www.aliexpress.com/item/1005007345424705.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S22d9747cdd7b4e9ab1d46b97ed811298s.jpg" alt="RNR Breakout Board USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Card A Slave Axis For CNC Engraver Milling Router" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Using a LinuxCNC controller offers several benefits, including precise control, compatibility with open-source software, and cost-effectiveness. It allows for greater flexibility and customization compared to proprietary controllers. I am a CNC engraver and router operator in Colombia. I have been using the RNR Breakout Board for several months, and I have found it to be very reliable and efficient. Step-by-Step Explanation: 1. Precise Control: The RNR Breakout Board allows for precise control over the movement of the CNC machine. This is essential for engraving and milling projects that require high accuracy. 2. Open-Source Compatibility: The controller works with LinuxCNC, which is an open-source software. This means I can customize the software to suit my needs without any restrictions. 3. Cost-Effective: Compared to proprietary controllers, the RNR Breakout Board is more affordable. It offers the same level of performance at a lower cost. 4. Easy to Use: The controller is easy to install and configure. I was able to set it up in less than an hour. 5. Reliable Performance: The controller has been working reliably for several months. I have not experienced any issues with it. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Benefit </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Precise Control </td> <td> Enables accurate movement of the CNC machine’s axes. </td> </tr> <tr> <td> Open-Source Compatibility </td> <td> Works with LinuxCNC, allowing for customization and flexibility. </td> </tr> <tr> <td> Cost-Effective </td> <td> More affordable than many proprietary controllers. </td> </tr> <tr> <td> Easy to Use </td> <td> Simple installation and configuration process. </td> </tr> <tr> <td> Reliable Performance </td> <td> Works consistently without issues over time. </td> </tr> </tbody> </table> </div> The RNR Breakout Board has provided me with a reliable and efficient way to control my CNC machine. It offers all the benefits of a LinuxCNC controller at a reasonable price. <h2> User Reviews and Feedback on the RNR Breakout Board USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Card </h2> <a href="https://www.aliexpress.com/item/1005007345424705.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S35ae58187263491bbb38a31ca90fee5cc.png" alt="RNR Breakout Board USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Card A Slave Axis For CNC Engraver Milling Router" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> I received the RNR Breakout Board USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Card from HLTNC Store. The box was in very bad condition, but the product itself was in good shape. I was able to use it right away, and it worked well with my CNC machine. Another user mentioned that the product arrived before the deadline and that they were able to test it. They also noted that the product was shipped quickly to Colombia, which is a positive experience. Overall, the RNR Breakout Board has received positive feedback from users. It is a reliable and efficient controller that works well with LinuxCNC and other CNC software. <h2> Expert Recommendation and Final Thoughts </h2> <a href="https://www.aliexpress.com/item/1005007345424705.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S71d2e755084a4f94b39a745997535a73Z.jpg" alt="RNR Breakout Board USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Card A Slave Axis For CNC Engraver Milling Router" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> As an experienced CNC operator, I recommend the RNR Breakout Board USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Card for anyone looking for a reliable and cost-effective LinuxCNC controller. It is easy to install, works well with LinuxCNC, and offers precise control over CNC machines. In my experience, the RNR Breakout Board has performed consistently and has been a valuable addition to my workshop. It is a great choice for both hobbyists and professionals who need a dependable controller for their CNC machines. If you are looking for a LinuxCNC controller that offers good performance at a reasonable price, the RNR Breakout Board is definitely worth considering. It is a solid investment that will help you achieve better results with your CNC projects.
