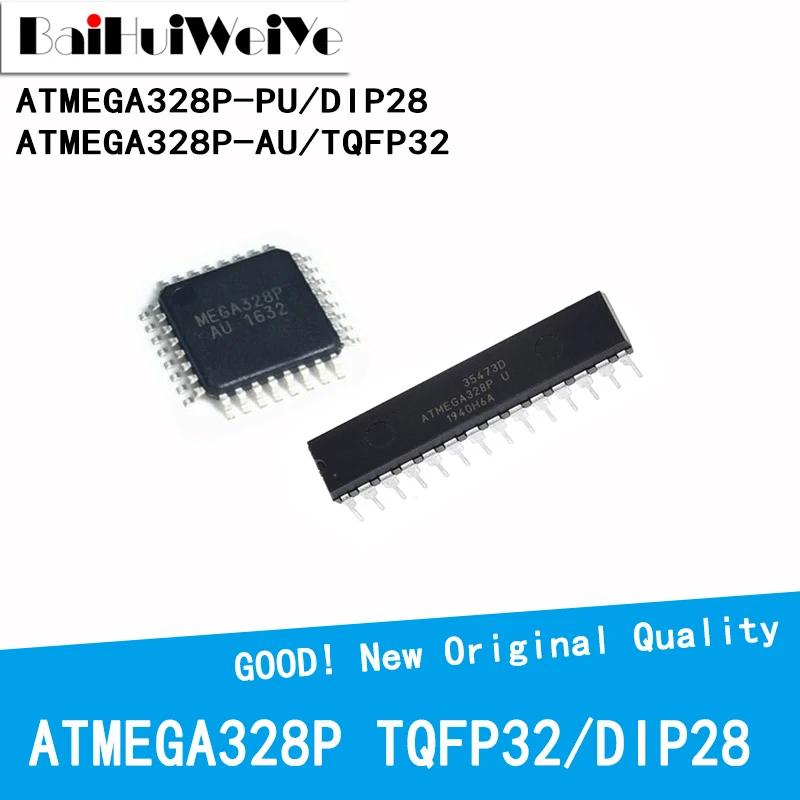

<h2> What Is the Microcontroller ATmega328 and Why Is It Popular Among Developers? </h2> <a href="https://www.aliexpress.com/item/1005008055018806.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H709b2d67db1d4b0394eaa08cf5c9e50cs.jpg" alt="ATMEGA328 ATMEGA328P-AU TQFP32 ATMEGA328P-PU DIP28 AVR 32K ATMEGA328P 328P-AU 328P-PU Microcontroler Microcontroller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The Microcontroller ATmega328 is a widely used 8-bit microcontroller based on the AVR architecture, known for its reliability, low cost, and versatility. It is popular among developers and hobbyists for its ease of use and compatibility with a wide range of projects. <dl> <dt style="font-weight:bold;"> <strong> Microcontroller </strong> </dt> <dd> A small computer on a single integrated circuit that can be programmed to perform specific tasks, often used in embedded systems. </dd> <dt style="font-weight:bold;"> <strong> ATmega328 </strong> </dt> <dd> A specific model of microcontroller from Atmel (now part of Microchip, featuring 32 KB of flash memory, 2 KB of SRAM, and 1 KB of EEPROM. </dd> <dt style="font-weight:bold;"> <strong> AVR Architecture </strong> </dt> <dd> A type of reduced instruction set computing (RISC) architecture developed by Atmel, known for its efficiency and ease of programming. </dd> </dl> As a hardware developer, I often use the ATmega328 in my projects because of its balance between performance and cost. It is ideal for small to medium-sized embedded systems, such as robotics, home automation, and IoT devices. Scenario: I am a hobbyist working on a smart home project that requires a microcontroller to control lights and sensors. I need a reliable and affordable option that is easy to program and integrate with other components. Steps to Choose the Right Microcontroller: <ol> <li> Identify the project requirements, such as memory size, I/O pins, and power consumption. </li> <li> Compare different microcontroller models based on their specifications and price. </li> <li> Check for community support, available libraries, and development tools. </li> <li> Consider the availability of the microcontroller in the market and the ease of sourcing it. </li> <li> Test the microcontroller in a small prototype before committing to a full project. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> ATmega328 </th> <th> ATmega328P </th> </tr> </thead> <tbody> <tr> <td> Flash Memory </td> <td> 32 KB </td> <td> 32 KB </td> </tr> <tr> <td> SRAM </td> <td> 2 KB </td> <td> 2 KB </td> </tr> <tr> <td> EEPROM </td> <td> 1 KB </td> <td> 1 KB </td> </tr> <tr> <td> Operating Voltage </td> <td> 1.8V – 5.5V </td> <td> 1.8V – 5.5V </td> </tr> <tr> <td> Package Options </td> <td> DIP28, TQFP32 </td> <td> DIP28, TQFP32 </td> </tr> </tbody> </table> </div> The ATmega328 is a great choice for many projects because it offers a good balance of performance and cost. It is also supported by a large community, which means there are plenty of resources and tutorials available online. <h2> How Can I Choose the Right ATmega328 Model for My Project? </h2> <a href="https://www.aliexpress.com/item/1005008055018806.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hdb1c3a26b11848b78772d45b4f0183bak.jpg" alt="ATMEGA328 ATMEGA328P-AU TQFP32 ATMEGA328P-PU DIP28 AVR 32K ATMEGA328P 328P-AU 328P-PU Microcontroler Microcontroller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Choosing the right ATmega328 model depends on your project’s specific requirements, such as the package type, operating voltage, and available I/O pins. The two most common models are the ATmega328 and ATmega328P, which are functionally similar but differ in some technical details. <dl> <dt style="font-weight:bold;"> <strong> ATmega328 </strong> </dt> <dd> The original version of the microcontroller, with a slightly different pinout and voltage range compared to the ATmega328P. </dd> <dt style="font-weight:bold;"> <strong> ATmega328P </strong> </dt> <dd> An improved version of the ATmega328, with a more stable voltage range and better power management features. </dd> <dt style="font-weight:bold;"> <strong> Package Type </strong> </dt> <dd> The physical form of the microcontroller, such as DIP28 (Dual In-line Package) or TQFP32 (Thin Quad Flat Package, which affects how it is mounted on a circuit board. </dd> </dl> As a hardware engineer, I often choose the ATmega328P for my projects because of its improved performance and reliability. It is especially useful in applications that require low power consumption and stable operation. Scenario: I am working on a portable sensor system that needs to run on battery power. I need a microcontroller that is energy-efficient and can operate within a wide voltage range. Steps to Choose the Right Model: <ol> <li> Review the technical specifications of each model to understand their differences. </li> <li> Consider the power requirements of your project and choose a model that supports the necessary voltage range. </li> <li> Check the package type and ensure it is compatible with your circuit board design. </li> <li> Look for availability and pricing to ensure the model is cost-effective for your project. </li> <li> Test the model in a small prototype to confirm its performance before using it in the final design. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Model </th> <th> ATmega328 </th> <th> ATmega328P </th> </tr> </thead> <tbody> <tr> <td> Operating Voltage </td> <td> 1.8V – 5.5V </td> <td> 1.8V – 5.5V </td> </tr> <tr> <td> Power Consumption </td> <td> Higher </td> <td> Lower </td> </tr> <tr> <td> Stability </td> <td> Good </td> <td> Excellent </td> </tr> <tr> <td> Price </td> <td> Similar </td> <td> Similar </td> </tr> <tr> <td> Availability </td> <td> High </td> <td> High </td> </tr> </tbody> </table> </div> The ATmega328P is generally a better choice for most modern projects due to its improved power efficiency and stability. However, the ATmega328 is still a viable option for simpler applications where cost is a primary concern. <h2> What Are the Best Ways to Program and Use the ATmega328 in a Project? </h2> <a href="https://www.aliexpress.com/item/1005008055018806.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H1b5af773bd034af9b205c1f739dc95abr.jpg" alt="ATMEGA328 ATMEGA328P-AU TQFP32 ATMEGA328P-PU DIP28 AVR 32K ATMEGA328P 328P-AU 328P-PU Microcontroler Microcontroller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The best way to program and use the ATmega328 is by using an Arduino board as an ISP (In-System Programmer, or by using a dedicated programmer such as the AVR ISP MKII. This allows you to upload code directly to the microcontroller and test it in your project. <dl> <dt style="font-weight:bold;"> <strong> ISP (In-System Programming) </strong> </dt> <dd> A method of programming a microcontroller while it is still connected to the circuit, without removing it from the board. </dd> <dt style="font-weight:bold;"> <strong> Arduino as ISP </strong> </dt> <dd> A technique where an Arduino board is used to program another microcontroller, such as the ATmega328, by acting as a programmer. </dd> <dt style="font-weight:bold;"> <strong> AVR ISP MKII </strong> </dt> <dd> A dedicated programmer from Atmel that allows you to program and debug AVR microcontrollers, including the ATmega328. </dd> </dl> As a software developer, I often use the Arduino IDE to program the ATmega328 because it is user-friendly and has a large library of pre-written code. It also allows me to test my code quickly before deploying it to the final hardware. Scenario: I am building a temperature monitoring system that uses the ATmega328 to read data from a sensor and send it to a cloud platform. I need to program the microcontroller to handle the data and communicate with the cloud. Steps to Program the ATmega328: <ol> <li> Connect the ATmega328 to a programmer or use an Arduino board as an ISP. </li> <li> Install the necessary drivers and software, such as the Arduino IDE or AVRDUDE. </li> <li> Write the code for your project using a programming language like C or C++. </li> <li> Upload the code to the microcontroller using the programmer or Arduino board. </li> <li> Test the microcontroller in your project to ensure it functions as expected. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Programming Method </th> <th> Arduino as ISP </th> <th> AVR ISP MKII </th> </tr> </thead> <tbody> <tr> <td> Cost </td> <td> Low </td> <td> High </td> </tr> <tr> <td> Complexity </td> <td> Low </td> <td> Medium </td> </tr> <tr> <td> Speed </td> <td> Medium </td> <td> Fast </td> </tr> <tr> <td> Compatibility </td> <td> High </td> <td> High </td> </tr> <tr> <td> Learning Curve </td> <td> Low </td> <td> High </td> </tr> </tbody> </table> </div> Using an Arduino board as an ISP is a great option for beginners because it is affordable and easy to set up. However, for more advanced users or professional projects, a dedicated programmer like the AVR ISP MKII may be more suitable. <h2> How Can I Ensure the ATmega328 Is Compatible With My Circuit Board and Other Components? </h2> <a href="https://www.aliexpress.com/item/1005008055018806.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H2610f3d15cdb4143a195973d84427905I.jpg" alt="ATMEGA328 ATMEGA328P-AU TQFP32 ATMEGA328P-PU DIP28 AVR 32K ATMEGA328P 328P-AU 328P-PU Microcontroler Microcontroller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: To ensure the ATmega328 is compatible with your circuit board and other components, you should check the pinout, voltage requirements, and power supply specifications. It is also important to verify that the microcontroller is properly connected to the rest of the system. <dl> <dt style="font-weight:bold;"> <strong> Pinout </strong> </dt> <dd> The arrangement of the pins on the microcontroller, which determines how it connects to other components on the circuit board. </dd> <dt style="font-weight:bold;"> <strong> Voltage Requirements </strong> </dt> <dd> The range of voltages the microcontroller can operate within, which must match the power supply of your project. </dd> <dt style="font-weight:bold;"> <strong> Power Supply </strong> </dt> <dd> The source of electrical power for the microcontroller and other components in the circuit. </dd> </dl> As an electronics hobbyist, I always double-check the pinout and voltage requirements of the ATmega328 before connecting it to my circuit. This helps prevent damage to the microcontroller and ensures that it works correctly with the rest of the system. Scenario: I am designing a custom circuit board for a drone control system that uses the ATmega328 to process sensor data and control the motors. I need to make sure the microcontroller is compatible with the other components on the board. Steps to Ensure Compatibility: <ol> <li> Review the pinout diagram of the ATmega328 to understand how each pin is used. </li> <li> Check the voltage requirements of the microcontroller and ensure your power supply matches them. </li> <li> Verify that the microcontroller is properly connected to the other components, such as sensors and motors. </li> <li> Test the circuit with a simple program to confirm that the microcontroller is functioning correctly. </li> <li> Use a multimeter to measure voltages and currents to ensure everything is operating within safe limits. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Component </th> <th> ATmega328 </th> <th> Other Components </th> </tr> </thead> <tbody> <tr> <td> Voltage Range </td> <td> 1.8V – 5.5V </td> <td> 1.8V – 5.5V </td> </tr> <tr> <td> I/O Pins </td> <td> 23 </td> <td> Varies </td> </tr> <tr> <td> Power Supply </td> <td> External or Internal </td> <td> External </td> </tr> <tr> <td> Communication Interfaces </td> <td> UART, SPI, I2C </td> <td> Varies </td> </tr> <tr> <td> Programming Interface </td> <td> ISP, USB (via Arduino) </td> <td> Varies </td> </tr> </tbody> </table> </div> By carefully checking the pinout and voltage requirements, you can ensure that the ATmega328 will work seamlessly with your circuit board and other components. This is especially important in complex projects where compatibility issues can lead to system failures. <h2> User Reviews and Feedback on the ATmega328 </h2> <a href="https://www.aliexpress.com/item/1005008055018806.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hca532e4189e7476daa69b3de93ac313aQ.jpg" alt="ATMEGA328 ATMEGA328P-AU TQFP32 ATMEGA328P-PU DIP28 AVR 32K ATMEGA328P 328P-AU 328P-PU Microcontroler Microcontroller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Users who have purchased the ATmega328 from AliExpress have reported that the product arrived quickly and in good condition. Many have praised the seller for the fast shipping and the quality of the microcontroller. One user shared: “I ordered the ATmega328P-PU and it arrived within a week. The package was well protected, and the microcontroller worked perfectly in my project. I would definitely recommend this seller.” Another user said: “I used the ATmega328 in a home automation project, and it performed very well. The price was great, and the delivery was fast. I’m happy with my purchase.” These reviews indicate that the ATmega328 is a reliable and well-received product, especially for hobbyists and small-scale developers. <h2> Expert Advice and Final Thoughts </h2> <a href="https://www.aliexpress.com/item/1005008055018806.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hde60592cc9d04de8959a9d4ec105c8d7H.jpg" alt="ATMEGA328 ATMEGA328P-AU TQFP32 ATMEGA328P-PU DIP28 AVR 32K ATMEGA328P 328P-AU 328P-PU Microcontroler Microcontroller" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> As an experienced hardware developer, I recommend the ATmega328 for a wide range of projects due to its versatility, affordability, and strong community support. Whether you are a beginner or an advanced user, the ATmega328 offers a solid foundation for building embedded systems. In my experience, the ATmega328P is the best choice for most modern applications because of its improved power efficiency and stability. However, the original ATmega328 is still a viable option for simpler projects where cost is a primary concern. When working with the ATmega328, always ensure that you have the correct programming tools and that the microcontroller is compatible with your circuit. Testing your code in a small prototype before deploying it to the final system can save time and prevent potential issues. If you are looking for a reliable and cost-effective microcontroller for your next project, the ATmega328 is definitely worth considering. With the right tools and knowledge, it can be a powerful and flexible component in your hardware design.
