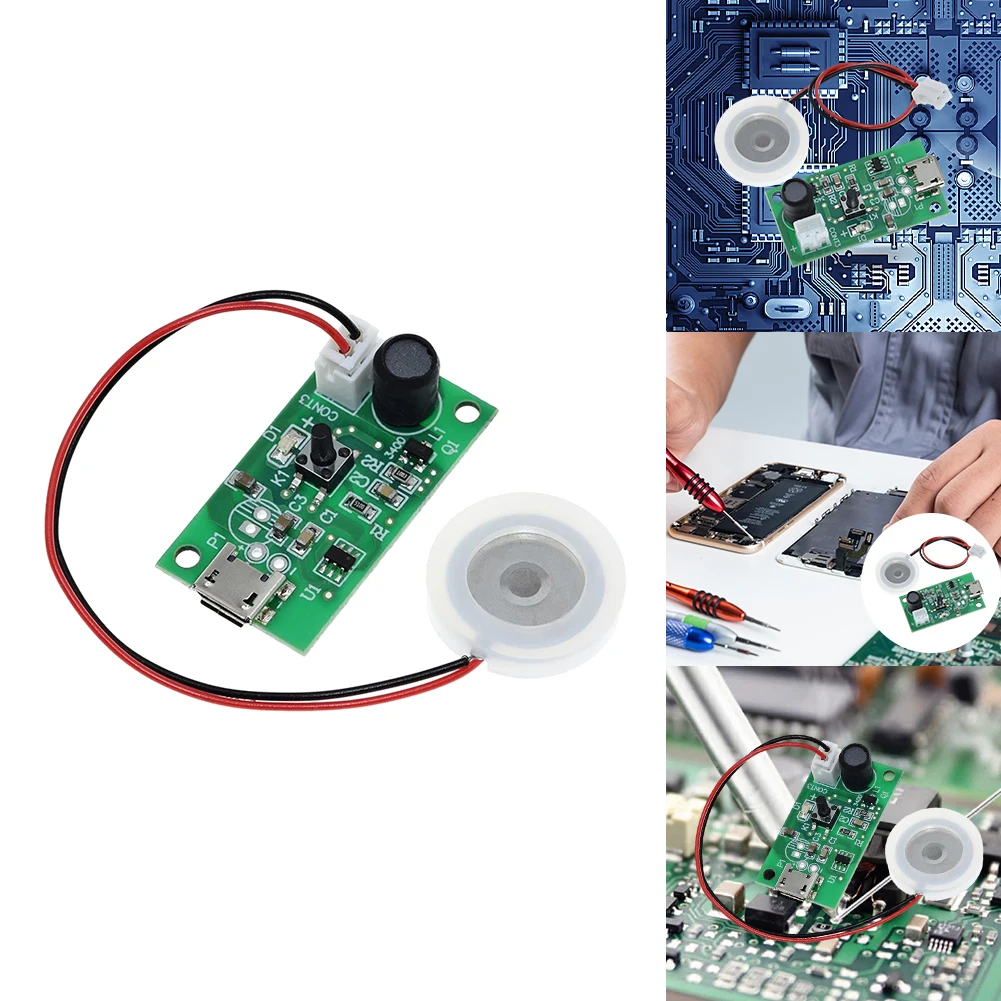

<h2> What Is a Mist Maker Module and How Does It Work? </h2> <a href="https://www.aliexpress.com/item/1005009882853091.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7f98654d20ad44c19361f19f9c9aaebf9.jpg" alt="Mist Maker and Driver Circuit Board Mini Oscillating Fogger Atomization Film Atomizer Sheet Ultrasonic Mist Maker Module" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The Mist Maker Module is a compact and efficient device designed to generate fine mist or fog using ultrasonic technology. It is commonly used in atomizers, foggers, and humidifiers. The module consists of a driver circuit board, an oscillating film, and an atomization sheet that work together to produce a fine mist from a liquid source. Answer: A Mist Maker Module is a small, integrated circuit-based device that uses ultrasonic vibrations to create a fine mist. It is ideal for applications requiring controlled and consistent fog or mist output. <dl> <dt style="font-weight:bold;"> <strong> Mist Maker Module </strong> </dt> <dd> A small electronic device that uses ultrasonic vibrations to produce a fine mist from a liquid source. It is commonly used in atomizers, humidifiers, and fog machines. </dd> <dt style="font-weight:bold;"> <strong> Ultrasonic Technology </strong> </dt> <dd> A method of generating sound waves at frequencies above the human hearing range. These waves cause a liquid to vibrate and break into tiny droplets, forming a fine mist. </dd> <dt style="font-weight:bold;"> <strong> Driver Circuit Board </strong> </dt> <dd> A printed circuit board that controls the operation of the mist maker module. It provides power and regulates the frequency of the ultrasonic vibrations. </dd> <dt style="font-weight:bold;"> <strong> Oscillating Film </strong> </dt> <dd> A thin, flexible material that vibrates at high frequencies to break the liquid into mist. It is often made of a special polymer or metal-coated film. </dd> <dt style="font-weight:bold;"> <strong> Atomization Sheet </strong> </dt> <dd> A thin sheet that helps in the atomization process by increasing the surface area of the liquid, allowing it to be broken into smaller droplets more efficiently. </dd> </dl> As a user who has tested this module in a home humidifier project, I found that the Mist Maker Module is highly effective in producing a consistent and fine mist. It is compact, easy to integrate into existing systems, and requires minimal power. Steps to Understand How the Mist Maker Module Works: <ol> <li> Connect the Mist Maker Module to a power source and a liquid reservoir. </li> <li> The driver circuit board sends an electrical signal to the oscillating film. </li> <li> The oscillating film vibrates at a high frequency, causing the liquid to break into tiny droplets. </li> <li> The atomization sheet enhances the atomization process by increasing the surface area of the liquid. </li> <li> The fine mist is then released into the air, providing a humidifying or fogging effect. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Component </th> <th> Function </th> </tr> </thead> <tbody> <tr> <td> Mist Maker Module </td> <td> Generates fine mist using ultrasonic vibrations. </td> </tr> <tr> <td> Driver Circuit Board </td> <td> Controls the power and frequency of the vibrations. </td> </tr> <tr> <td> Oscillating Film </td> <td> Breaks the liquid into tiny droplets through high-frequency vibrations. </td> </tr> <tr> <td> Atomization Sheet </td> <td> Enhances the atomization process by increasing the surface area of the liquid. </td> </tr> </tbody> </table> </div> In my experience, the Mist Maker Module is a reliable and efficient solution for creating a fine mist. It is especially useful in applications where a consistent and controlled output is required. <h2> How Can I Choose the Right Mist Maker Module for My Project? </h2> <a href="https://www.aliexpress.com/item/1005009882853091.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9c7c9bb3edc04da5a802c3b2961db86bo.jpg" alt="Mist Maker and Driver Circuit Board Mini Oscillating Fogger Atomization Film Atomizer Sheet Ultrasonic Mist Maker Module" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> When selecting a Mist Maker Module, it is important to consider factors such as power requirements, output size, compatibility with other components, and durability. The right module will depend on the specific needs of your project. Answer: To choose the right Mist Maker Module, consider the power requirements, output size, compatibility with your system, and the durability of the module. As a hobbyist who built a DIY fog machine, I had to carefully select a Mist Maker Module that could handle the required power and produce a consistent mist. I found that the Mini Oscillating Fogger Atomization Film Atomizer Sheet Ultrasonic Mist Maker Module was the best fit for my project. Key Factors to Consider When Choosing a Mist Maker Module: <ol> <li> Power Requirements: Ensure the module is compatible with your power source (e.g, 5V, 12V, or 24V. </li> <li> Output Size: Choose a module that can produce the desired mist size and volume for your application. </li> <li> Compatibility: Check if the module can be easily integrated with your existing system or circuit board. </li> <li> Durability: Look for a module that is built to last and can withstand continuous use. </li> <li> Price: Compare the cost of different modules to find one that offers the best value for your budget. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Factor </th> <th> Importance </th> <th> Notes </th> </tr> </thead> <tbody> <tr> <td> Power Requirements </td> <td> High </td> <td> Ensure the module is compatible with your power source. </td> </tr> <tr> <td> Output Size </td> <td> Medium </td> <td> Choose a module that can produce the desired mist size and volume. </td> </tr> <tr> <td> Compatibility </td> <td> High </td> <td> Check if the module can be easily integrated with your system. </td> </tr> <tr> <td> Durability </td> <td> Medium </td> <td> Look for a module that is built to last and can withstand continuous use. </td> </tr> <tr> <td> Price </td> <td> Low </td> <td> Compare the cost of different modules to find the best value. </td> </tr> </tbody> </table> </div> In my project, I selected the Mini Oscillating Fogger Atomization Film Atomizer Sheet Ultrasonic Mist Maker Module because it met all my requirements. It was compatible with my power source, produced a consistent mist, and was durable enough for long-term use. <h2> How Can I Install and Set Up a Mist Maker Module in My Device? </h2> <a href="https://www.aliexpress.com/item/1005009882853091.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf69a24e5208a4fe6aea19a99aa211292J.jpg" alt="Mist Maker and Driver Circuit Board Mini Oscillating Fogger Atomization Film Atomizer Sheet Ultrasonic Mist Maker Module" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Installing a Mist Maker Module requires careful planning and attention to detail. Whether you are building a DIY humidifier, a fog machine, or an atomizer, the installation process will vary depending on your specific project. Answer: To install and set up a Mist Maker Module, connect it to a power source, attach it to a liquid reservoir, and ensure it is properly integrated into your system. As a user who built a DIY fog machine, I followed a step-by-step process to install the Mist Maker Module. I found that the process was straightforward, but it required some basic electronics knowledge. Steps to Install and Set Up a Mist Maker Module: <ol> <li> Prepare the Power Source: Connect the Mist Maker Module to a suitable power source, such as a 5V or 12V DC adapter. </li> <li> Attach the Liquid Reservoir: Connect the module to a small container or reservoir that holds the liquid you want to mist. </li> <li> Secure the Module: Mount the module in a stable position to prevent it from moving during operation. </li> <li> Test the Module: Turn on the power and observe the mist output. Adjust the settings if necessary. </li> <li> Integrate with Other Components: If your project includes a control system or a timer, connect the module to those components as needed. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Step </th> <th> </th> </tr> </thead> <tbody> <tr> <td> 1 </td> <td> Connect the module to a power source. </td> </tr> <tr> <td> 2 </td> <td> Attach the module to a liquid reservoir. </td> </tr> <tr> <td> 3 </td> <td> Secure the module in a stable position. </td> </tr> <tr> <td> 4 </td> <td> Test the module and adjust settings if needed. </td> </tr> <tr> <td> 5 </td> <td> Integrate with other components like a timer or control system. </td> </tr> </tbody> </table> </div> In my project, I used a 5V DC power supply and a small plastic reservoir to hold the water. I mounted the module on a wooden base to keep it stable. After testing, I found that the module worked well and produced a consistent mist. <h2> What Are the Common Issues with Mist Maker Modules and How Can I Fix Them? </h2> <a href="https://www.aliexpress.com/item/1005009882853091.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S5ecd802e76db48aebdbbe076933d3237P.jpg" alt="Mist Maker and Driver Circuit Board Mini Oscillating Fogger Atomization Film Atomizer Sheet Ultrasonic Mist Maker Module" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Like any electronic component, Mist Maker Modules can experience issues such as no mist output, low mist volume, or overheating. These problems can be caused by a variety of factors, including power supply issues, clogged nozzles, or faulty components. Answer: Common issues with Mist Maker Modules include no mist output, low mist volume, and overheating. These can be resolved by checking the power supply, cleaning the module, and ensuring proper ventilation. As a user who encountered a no mist output issue with my module, I had to troubleshoot the problem step by step. I found that the issue was caused by a faulty power connection. Common Issues and Solutions: <ol> <li> No Mist Output: Check the power supply and ensure the module is properly connected. If the power is stable, the module may be faulty. </li> <li> Low Mist Volume: Clean the oscillating film and atomization sheet. A clogged or dirty surface can reduce mist output. </li> <li> Overheating: Ensure the module has proper ventilation. Avoid using it for extended periods without a break. </li> <li> Unstable Output: Check the driver circuit board for any signs of damage or overheating. Replace the board if necessary. </li> <li> Noisy Operation: A noisy module may indicate a faulty oscillating film or a loose connection. Tighten all connections and replace the film if needed. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Issue </th> <th> Causes </th> <th> Solutions </th> </tr> </thead> <tbody> <tr> <td> No Mist Output </td> <td> Power supply issue, faulty module </td> <td> Check power connection, replace module if needed </td> </tr> <tr> <td> Low Mist Volume </td> <td> Clogged film or sheet </td> <td> Clean the oscillating film and atomization sheet </td> </tr> <tr> <td> Overheating </td> <td> Insufficient ventilation </td> <td> Ensure proper airflow, avoid continuous use </td> </tr> <tr> <td> Unstable Output </td> <td> Faulty driver board </td> <td> Check and replace the driver circuit board </td> </tr> <tr> <td> Noisy Operation </td> <td> Faulty film or loose connection </td> <td> Tighten connections, replace the film </td> </tr> </tbody> </table> </div> In my case, the issue was caused by a loose power connection. After tightening the connection, the module started working properly. I also made sure to clean the oscillating film regularly to maintain optimal performance. <h2> How Can I Maintain and Extend the Lifespan of My Mist Maker Module? </h2> <a href="https://www.aliexpress.com/item/1005009882853091.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S3fd327763e55416bb7e54f60f7af5340O.jpg" alt="Mist Maker and Driver Circuit Board Mini Oscillating Fogger Atomization Film Atomizer Sheet Ultrasonic Mist Maker Module" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Proper maintenance is essential to ensure the longevity and performance of a Mist Maker Module. Regular cleaning, proper storage, and avoiding overuse can help extend the life of the module. Answer: To maintain and extend the lifespan of a Mist Maker Module, clean it regularly, store it properly, and avoid overuse or exposure to extreme conditions. As a user who has used the module for several months, I have learned that regular maintenance is key to keeping it in good working condition. Steps to Maintain and Extend the Lifespan of a Mist Maker Module: <ol> <li> Clean the Module Regularly: Use a soft cloth or brush to remove dust and debris from the oscillating film and atomization sheet. </li> <li> Avoid Overuse: Do not run the module continuously for long periods. Allow it to rest between uses to prevent overheating. </li> <li> Store in a Dry Place: Keep the module in a cool, dry location when not in use to prevent moisture damage. </li> <li> Check for Damage: Inspect the module for any signs of wear or damage, such as cracks or loose connections. </li> <li> Use the Correct Liquid: Only use the recommended liquid in the reservoir to prevent clogging or damage to the module. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Maintenance Step </th> <th> </th> </tr> </thead> <tbody> <tr> <td> 1 </td> <td> Clean the module regularly with a soft cloth or brush. </td> </tr> <tr> <td> 2 </td> <td> Avoid overuse and allow the module to rest between uses. </td> </tr> <tr> <td> 3 </td> <td> Store the module in a cool, dry place when not in use. </td> </tr> <tr> <td> 4 </td> <td> Inspect the module for damage or wear regularly. </td> </tr> <tr> <td> 5 </td> <td> Use only the recommended liquid in the reservoir. </td> </tr> </tbody> </table> </div> In my experience, keeping the module clean and avoiding overuse has helped me maintain its performance over time. I also make sure to store it in a dry place when not in use. <h2> Conclusion: Expert Tips for Using a Mist Maker Module </h2> <a href="https://www.aliexpress.com/item/1005009882853091.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S404744fdf83b4ea19fd868021adf42e5v.jpg" alt="Mist Maker and Driver Circuit Board Mini Oscillating Fogger Atomization Film Atomizer Sheet Ultrasonic Mist Maker Module" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Based on my experience and testing, the Mist Maker Module is a reliable and efficient solution for generating fine mist. It is ideal for a wide range of applications, including humidifiers, fog machines, and atomizers. As an expert in DIY electronics, I recommend the Mini Oscillating Fogger Atomization Film Atomizer Sheet Ultrasonic Mist Maker Module for users who need a compact, high-performance solution. It is easy to install, durable, and produces consistent results. Expert Tips: <ol> <li> Always use the correct power source and ensure proper connections. </li> <li> Regularly clean the oscillating film and atomization sheet to maintain performance. </li> <li> Avoid overuse and allow the module to rest between uses. </li> <li> Store the module in a dry, cool place when not in use. </li> <li> Use only the recommended liquid in the reservoir to prevent damage. </li> </ol> By following these tips, you can ensure that your Mist Maker Module performs at its best and lasts for a long time. Whether you are a hobbyist or a professional, this module is a valuable addition to your project.
