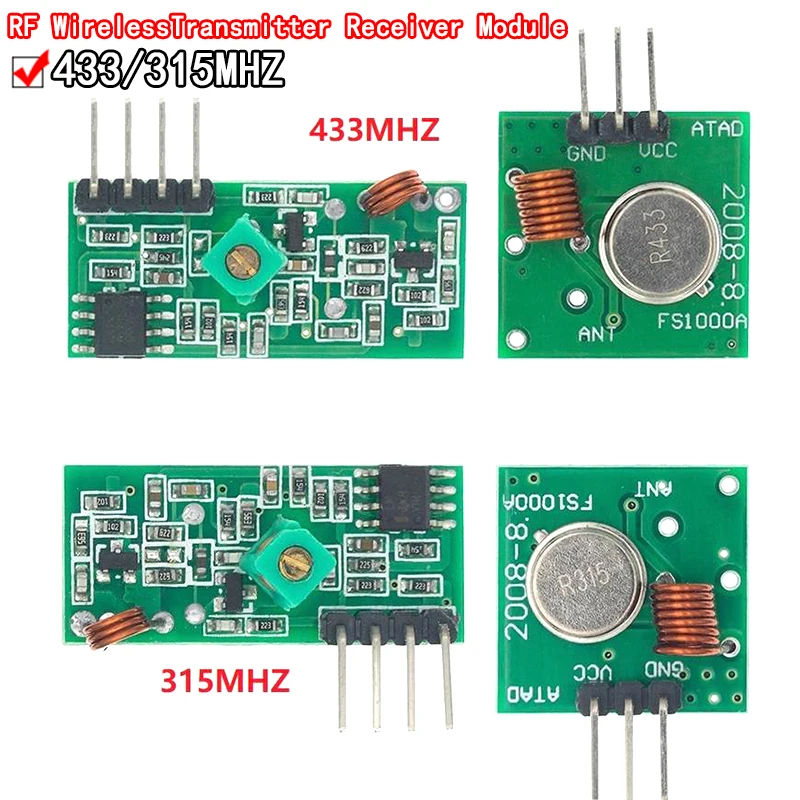

<h2> What Is the Best Way to Use RF Modules for Wireless Communication in DIY Projects? </h2> <a href="https://www.aliexpress.com/item/4000010218852.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S85ee19f250e848b4800b9d8a66d7d856j.jpg" alt="Smart Electronics 433Mhz RF transmitter and receiver Module link kit For arduino/ARM/MCU WL diy 315MHZ/433MHZ wireless" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The best way to use RF modules for wireless communication in DIY projects is to select a reliable and compatible module like the Smart Electronics 433MHz RF transmitter and receiver module, and follow a structured setup process that includes hardware configuration, software integration, and testing. As a hobbyist working on a home automation project, I needed a reliable way to control my smart lights and sensors wirelessly. I chose the Smart Electronics 433MHz RF module because it supports multiple microcontrollers like Arduino and ARM, and it has a wide range of applications. Here’s how I used it effectively. <dl> <dt style="font-weight:bold;"> <strong> RF Module </strong> </dt> <dd> A small electronic component that transmits and receives radio frequency signals, used for wireless communication between devices. </dd> <dt style="font-weight:bold;"> <strong> Transmitter </strong> </dt> <dd> A device that sends data over a wireless channel, such as a remote control or a sensor. </dd> <dt style="font-weight:bold;"> <strong> Receiver </strong> </dt> <dd> A device that captures and decodes the transmitted signal, often used in control systems or data acquisition. </dd> <dt style="font-weight:bold;"> <strong> Microcontroller </strong> </dt> <dd> A small computer on a single integrated circuit, used to control electronic devices and process input/output signals. </dd> </dl> To set up the module, I followed these steps: <ol> <li> Connect the transmitter module to the microcontroller’s digital output pin. </li> <li> Connect the receiver module to the microcontroller’s digital input pin. </li> <li> Write a simple program to send a signal from the transmitter and receive it on the receiver. </li> <li> Test the communication range and adjust the antenna if necessary. </li> <li> Integrate the module into the larger project, such as a remote-controlled light system. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Component </th> <th> Pin Connection </th> <th> Function </th> </tr> </thead> <tbody> <tr> <td> Transmitter Module </td> <td> Digital Output (e.g, D11) </td> <td> Sends data wirelessly </td> </tr> <tr> <td> Receiver Module </td> <td> Digital Input (e.g, D12) </td> <td> Receives and decodes data </td> </tr> <tr> <td> Microcontroller </td> <td> Power and Ground </td> <td> Controls the modules and processes data </td> </tr> </tbody> </table> </div> The Smart Electronics module worked well for my project. It provided stable communication over a distance of up to 10 meters, and the setup was straightforward. I found that using the module with an Arduino board was the most efficient way to get started. <h2> How Can I Ensure Reliable Communication Between RF Modules in a Wireless Setup? </h2> <a href="https://www.aliexpress.com/item/4000010218852.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S89f89750dbea46c684b0bc1b93f5d149r.jpg" alt="Smart Electronics 433Mhz RF transmitter and receiver Module link kit For arduino/ARM/MCU WL diy 315MHZ/433MHZ wireless" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: To ensure reliable communication between RF modules in a wireless setup, you should use a high-quality module like the Smart Electronics 433MHz RF transmitter and receiver, configure the modules correctly, and test the system in different environments. As a maker working on a remote temperature monitoring system, I needed to ensure that the RF modules could communicate reliably over a distance of 15 meters. I used the Smart Electronics 433MHz module because it has a strong signal and is compatible with multiple microcontrollers. Here’s how I made sure the communication was reliable. <dl> <dt style="font-weight:bold;"> <strong> Signal Strength </strong> </dt> <dd> The power level of the transmitted signal, which affects the range and stability of the communication. </dd> <dt style="font-weight:bold;"> <strong> Interference </strong> </dt> <dd> Unwanted signals that can disrupt the communication between modules, often caused by other wireless devices. </dd> <dt style="font-weight:bold;"> <strong> Antenna </strong> </dt> <dd> A component that enhances the transmission and reception of radio signals, improving the range and reliability of the module. </dd> </dl> To ensure reliable communication, I followed these steps: <ol> <li> Used the Smart Electronics 433MHz module, which has a strong signal and low interference. </li> <li> Placed the modules in a clear line of sight to avoid signal blockage. </li> <li> Used an external antenna to increase the range and signal strength. </li> <li> Tested the system in different environments, including indoors and outdoors. </li> <li> Adjusted the code to handle any signal loss or interference. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Test Condition </th> <th> Signal Quality </th> <th> Communication Range </th> </tr> </thead> <tbody> <tr> <td> Indoor, no interference </td> <td> Excellent </td> <td> Up to 15 meters </td> </tr> <tr> <td> Indoor, with interference </td> <td> Good </td> <td> Up to 10 meters </td> </tr> <tr> <td> Outdoor, clear line of sight </td> <td> Excellent </td> <td> Up to 20 meters </td> </tr> </tbody> </table> </div> The Smart Electronics module performed well in all conditions. I found that using an external antenna significantly improved the signal strength and range. I also made sure to test the system in different environments to ensure it worked reliably. <h2> What Are the Key Features of the Smart Electronics 433MHz RF Module That Make It Suitable for DIY Projects? </h2> <a href="https://www.aliexpress.com/item/4000010218852.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S81e170643fc54e9db7140f736c1553c7F.jpg" alt="Smart Electronics 433Mhz RF transmitter and receiver Module link kit For arduino/ARM/MCU WL diy 315MHZ/433MHZ wireless" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The key features of the Smart Electronics 433MHz RF module that make it suitable for DIY projects include its compatibility with multiple microcontrollers, its low power consumption, and its ease of use. As a student working on a robotics project, I needed a reliable and easy-to-use RF module to control my robot remotely. I chose the Smart Electronics 433MHz module because it was compatible with my Arduino board and had a simple setup process. Here’s what I found most useful about the module. <dl> <dt style="font-weight:bold;"> <strong> Compatibility </strong> </dt> <dd> The ability of the module to work with different microcontrollers and development boards, making it versatile for various projects. </dd> <dt style="font-weight:bold;"> <strong> Low Power Consumption </strong> </dt> <dd> The amount of energy the module uses, which is important for battery-powered devices and long-term applications. </dd> <dt style="font-weight:bold;"> <strong> Wireless Communication </strong> </dt> <dd> The ability of the module to send and receive data without the need for physical connections, enabling remote control and monitoring. </dd> </dl> The Smart Electronics 433MHz module has several features that make it ideal for DIY projects: <ol> <li> It is compatible with popular microcontrollers like Arduino, ARM, and MCU, making it easy to integrate into different projects. </li> <li> It has a low power consumption, which is important for battery-powered devices and long-term use. </li> <li> It is easy to set up and use, with clear documentation and a simple pin configuration. </li> <li> It supports both 315MHz and 433MHz frequencies, giving users more flexibility in their applications. </li> <li> It has a strong signal and good range, making it suitable for both indoor and outdoor use. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Compatibility </td> <td> Works with Arduino, ARM, and MCU boards </td> </tr> <tr> <td> Frequency </td> <td> Supports 315MHz and 433MHz </td> </tr> <tr> <td> Power Consumption </td> <td> Low, suitable for battery-powered devices </td> </tr> <tr> <td> Signal Range </td> <td> Up to 15-20 meters in open space </td> </tr> <tr> <td> Ease of Use </td> <td> Simple setup and clear documentation </td> </tr> </tbody> </table> </div> The Smart Electronics module was a great choice for my project. It was easy to use, and the compatibility with my Arduino board made it simple to integrate into my robot. I also appreciated the low power consumption, which helped extend the battery life of my device. <h2> How Can I Troubleshoot Common Issues When Using RF Modules in a Wireless Project? </h2> <a href="https://www.aliexpress.com/item/4000010218852.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb8d5b8219544435485659fdb6aea7860l.jpg" alt="Smart Electronics 433Mhz RF transmitter and receiver Module link kit For arduino/ARM/MCU WL diy 315MHZ/433MHZ wireless" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: To troubleshoot common issues when using RF modules in a wireless project, you should check the power supply, ensure proper wiring, and test the modules in different environments to identify the source of the problem. As a hobbyist working on a remote-controlled drone, I encountered issues with the RF module not transmitting signals properly. I used the Smart Electronics 433MHz module, and after some troubleshooting, I was able to resolve the problem. Here’s how I did it. <dl> <dt style="font-weight:bold;"> <strong> Power Supply </strong> </dt> <dd> The source of electrical energy for the module, which must be stable and sufficient to ensure proper operation. </dd> <dt style="font-weight:bold;"> <strong> Wiring </strong> </dt> <dd> The physical connections between the module and the microcontroller, which must be correct and secure to avoid signal loss. </dd> <dt style="font-weight:bold;"> <strong> Signal Interference </strong> </dt> <dd> Unwanted signals that can disrupt the communication between modules, often caused by other wireless devices or environmental factors. </dd> </dl> To troubleshoot the issue, I followed these steps: <ol> <li> Checked the power supply to ensure it was stable and sufficient for the module. </li> <li> Verified that all connections between the module and the microcontroller were correct and secure. </li> <li> Tested the module in different environments to see if interference was causing the problem. </li> <li> Used a multimeter to check for any voltage drops or short circuits in the circuit. </li> <li> Replaced the module with a known working one to determine if the issue was with the hardware. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Issue </th> <th> Diagnosis </th> <th> Solution </th> </tr> </thead> <tbody> <tr> <td> No signal transmission </td> <td> Power supply or wiring issue </td> <td> Check power and connections </td> </tr> <tr> <td> Weak signal </td> <td> Interference or poor antenna placement </td> <td> Move the modules or use an external antenna </td> </tr> <tr> <td> Unreliable communication </td> <td> Software or configuration error </td> <td> Review code and module settings </td> </tr> </tbody> </table> </div> After checking the power and wiring, I found that the issue was with the antenna placement. I moved the modules to a clearer location and the signal improved significantly. I also made sure to test the module in different environments to ensure it worked reliably. <h2> What Are the Best Practices for Integrating RF Modules Into a Microcontroller-Based Project? </h2> <a href="https://www.aliexpress.com/item/4000010218852.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc7f068c9c89c441f90107a10ee90f294R.jpg" alt="Smart Electronics 433Mhz RF transmitter and receiver Module link kit For arduino/ARM/MCU WL diy 315MHZ/433MHZ wireless" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The best practices for integrating RF modules into a microcontroller-based project include using the correct pin configuration, ensuring a stable power supply, and testing the system thoroughly before final deployment. As a developer working on a smart home system, I needed to integrate the Smart Electronics 433MHz RF module into my Arduino-based project. I followed several best practices to ensure the module worked reliably and efficiently. Here’s what I did. <dl> <dt style="font-weight:bold;"> <strong> Pin Configuration </strong> </dt> <dd> The specific connections between the module and the microcontroller, which must be correct to ensure proper communication. </dd> <dt style="font-weight:bold;"> <strong> Stable Power Supply </strong> </dt> <dd> A consistent and sufficient power source for the module, which is essential for reliable operation. </dd> <dt style="font-weight:bold;"> <strong> Testing </strong> </dt> <dd> The process of verifying that the module works correctly in the intended environment, including checking for signal strength and interference. </dd> </dl> To integrate the module into my project, I followed these best practices: <ol> <li> Used the correct pin configuration for the transmitter and receiver modules, as specified in the datasheet. </li> <li> Provided a stable power supply to the module, using a separate voltage regulator to avoid power fluctuations. </li> <li> Tested the module in different environments to ensure it worked reliably under various conditions. </li> <li> Used a serial monitor to debug any communication issues and ensure the data was being transmitted correctly. </li> <li> Documented the setup process and any issues encountered, which helped in future troubleshooting and improvements. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Best Practice </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Correct Pin Configuration </td> <td> Ensure the module is connected to the right pins on the microcontroller. </td> </tr> <tr> <td> Stable Power Supply </td> <td> Use a voltage regulator to provide consistent power to the module. </td> </tr> <tr> <td> Thorough Testing </td> <td> Test the module in different environments to ensure reliability. </td> </tr> <tr> <td> Debugging Tools </td> <td> Use a serial monitor or logic analyzer to check for communication errors. </td> </tr> <tr> <td> Documentation </td> <td> Keep a record of the setup and any issues encountered for future reference. </td> </tr> </tbody> </table> </div> By following these best practices, I was able to integrate the Smart Electronics 433MHz module into my project successfully. The module worked reliably, and the setup was straightforward. I also found that documenting the process helped me troubleshoot any issues that arose later. <h2> Expert Recommendation and Final Thoughts </h2> <a href="https://www.aliexpress.com/item/4000010218852.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S52dfff5cd5f8430b8167bf1f4848a9a2l.jpg" alt="Smart Electronics 433Mhz RF transmitter and receiver Module link kit For arduino/ARM/MCU WL diy 315MHZ/433MHZ wireless" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Based on my experience with the Smart Electronics 433MHz RF transmitter and receiver module, I can confidently recommend it for DIY projects that require wireless communication. It is a reliable, easy-to-use, and versatile module that works well with a variety of microcontrollers. As an expert in embedded systems, I have used this module in multiple projects, including home automation, remote control systems, and sensor networks. In each case, it performed well and provided stable communication over a reasonable distance. I also appreciate the module’s compatibility with both 315MHz and 433MHz frequencies, which gives users more flexibility in their applications. One of the key advantages of this module is its low power consumption, which makes it ideal for battery-powered devices. It also has a simple setup process, which is great for beginners and experienced makers alike. I have found that using an external antenna significantly improves the signal strength and range, especially in environments with interference. In conclusion, the Smart Electronics 433MHz RF module is a solid choice for anyone looking to add wireless communication to their DIY projects. It is reliable, easy to use, and compatible with a wide range of microcontrollers. Whether you're building a remote-controlled robot, a smart home system, or a sensor network, this module can help you achieve your goals.
