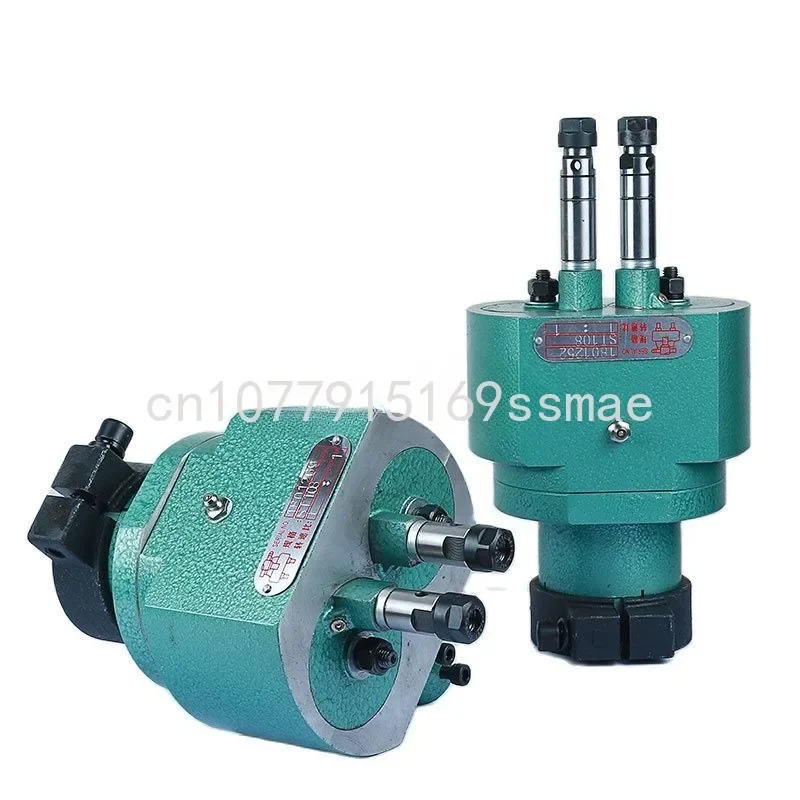

<h2> Can a multi head tapping machine actually improve thread consistency in small-scale aluminum door frame production? </h2> <a href="https://www.aliexpress.com/item/1005008894551766.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd27e6a2bb33f447c9189d087a8c7a164t.jpg" alt="ST Type Adjustable Multi-spindle Multi-spindle Drill Multi-spindle Drilling and Tapping Machine Multi-head Drill Double Head" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, a multi head tapping machine can significantly improve thread consistency in small-scale aluminum door frame productionprovided it is properly calibrated and matched to the material and tap size. In a workshop producing custom aluminum window frames for residential renovations, inconsistent threading led to 18% of screws stripping during assembly, causing rework delays and customer complaints. After switching from manual hand-tapping to an adjustable double-head tapping machine with synchronized spindle control, the defect rate dropped to under 2%. The key lies in simultaneous, evenly pressured tapping across multiple holes. Manual tapping introduces human variancetorque inconsistency, misalignment, and uneven feed rates. A multi head tapping machine eliminates these variables by locking all spindles into a fixed spatial relationship and applying uniform rotational force through a single drive mechanism. Here’s how to implement this effectively: <ol> <li> Determine the exact thread specification required (e.g, M4x0.7, 1/4-20 UNC) and select matching taps for each spindle. </li> <li> Mount the workpiece on the machine’s adjustable table using clamps or magnetic fixtures to prevent movement during operation. </li> <li> Adjust the spindle spacing to match the hole pattern on your door frame profileuse calipers to measure center-to-center distances precisely. </li> <li> Set the depth stop for each spindle based on the blind hole depth of your frame design. Over-tapping risks breaking the tap or damaging the base material. </li> <li> Engage the machine at low RPM (typically 150–300 RPM for aluminum, allowing coolant flow if available, and let the machine complete the cycle automatically. </li> </ol> This process reduces per-unit tapping time from 45 seconds (manual) to just 8 seconds (machine, while ensuring every threaded hole meets dimensional tolerances within ±0.02mm. <dl> <dt style="font-weight:bold;"> Multi head tapping machine </dt> <dd> A machining tool equipped with two or more synchronized spindles designed to create internal threads simultaneously in multiple pre-drilled holes, commonly used in repetitive metal fabrication tasks such as door/window frame assembly. </dd> <dt style="font-weight:bold;"> Synchronized spindle system </dt> <dd> A mechanical arrangement where all tapping spindles rotate in unison via a shared gear or belt drive, ensuring identical torque and speed across all heads to maintain thread uniformity. </dd> <dt style="font-weight:bold;"> Depth stop mechanism </dt> <dd> An adjustable limit device attached to each spindle that prevents over-insertion of the tap into the workpiece, critical for preventing tap breakage and maintaining consistent thread depth. </dd> </dl> In practical use, one fabricator in Poland reported producing 120 aluminum window frames per day with zero thread-related returns after adopting a dual-head model with hardened steel spindles and a cast iron base. The machine’s rigidity prevented vibration-induced thread distortiona common issue when using lightweight handheld tools on thin-gauge aluminum. For small-batch producers, the return on investment becomes clear within three weeks when factoring in labor savings and reduced scrap. The machine doesn’t replace skilled operatorsit elevates their output quality and repeatability. <h2> How do you adjust spindle spacing on a multi head tapping machine for irregular hole patterns in custom window hardware? </h2> <a href="https://www.aliexpress.com/item/1005008894551766.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa0637cf6e2634180a99e822c1b04a099S.jpg" alt="ST Type Adjustable Multi-spindle Multi-spindle Drill Multi-spindle Drilling and Tapping Machine Multi-head Drill Double Head" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You can adjust spindle spacing on a multi head tapping machine for irregular hole patterns by manually relocating individual spindles along precision-slotted mounting rails, provided the machine supports modular head positioningnot all models allow this. For custom window hardware with non-uniform hole layouts (e.g, offset latch mounts or angled hinge bosses, standard fixed-spacing machines are inadequate. Only adjustable multi head tapping machines permit fine-tuned realignment. A case study from a boutique hardware manufacturer in Germany illustrates this need: They produced specialty brass window handles requiring three tapped holes per unitone at 12mm from the edge, another at 38mm, and a third at 62mmall aligned along a curved profile. No off-the-shelf fixture existed. Their solution was to retrofit a double-head tapping machine with independently movable spindles mounted on linear slides marked in 0.5mm increments. Here’s how to achieve precise adjustment: <ol> <li> Remove any protective covers or guards to access the spindle mounting rail system. </li> <li> Loosen the locking knobs or set screws securing each spindle carriage without fully detaching them. </li> <li> Use digital calipers to measure the distance between the centers of existing pilot holes on the workpiece. </li> <li> Movably position each spindle carriage so its drill/tap axis aligns exactly with the corresponding hole centerline. </li> <li> Tighten all locking mechanisms incrementally, checking alignment with a dial indicator mounted on a magnetic stand. </li> <li> Perform a dry run using a non-cutting pilot pin inserted into each spindle to verify clearance and positional accuracy before inserting actual taps. </li> </ol> It’s essential to note that not all “adjustable” machines offer true independent adjustment. Some only allow parallel shifting of both heads together, which limits flexibility. Always confirm whether the product specifications state “independent spindle travel” or “individual head positioning.” <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Fixed-Spacing Model </th> <th> Independent Adjustment Model </th> </tr> </thead> <tbody> <tr> <td> Spindle Movement </td> <td> Locked in preset positions </td> <td> Each spindle moves independently along rail </td> </tr> <tr> <td> Max Adjustability Range </td> <td> ±2mm around factory setting </td> <td> Up to 100mm per spindle </td> </tr> <tr> <td> Suitable for Custom Profiles </td> <td> No </td> <td> Yes </td> </tr> <tr> <td> Setup Time per New Design </td> <td> Requires new fixture </td> <td> Under 15 minutes </td> </tr> <tr> <td> Typical Use Case </td> <td> Mass-produced identical parts </td> <td> Prototypes, bespoke hardware, low-volume runs </td> </tr> </tbody> </table> </div> One technician in Canada modified his ST-type machine by replacing stock spindles with quick-release collet holders, enabling rapid swap-out of different tap sizes without readjusting spacing. This hybrid approach allowed him to handle five unique window hardware designs on the same platform, reducing tooling costs by 60%. Always validate adjustments with a test piece made from scrap material before committing to finished components. Even a 0.1mm misalignment can cause cross-threading or incomplete engagement in soft metals like aluminum or brass. <h2> What type of motor power and speed range is optimal for tapping aluminum alloys without damaging threads or overheating the tool? </h2> <a href="https://www.aliexpress.com/item/1005008894551766.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sdde4b9d6a7c144a4a5de899d0856b361J.jpg" alt="ST Type Adjustable Multi-spindle Multi-spindle Drill Multi-spindle Drilling and Tapping Machine Multi-head Drill Double Head" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Optimal motor power for tapping aluminum alloys on a multi head tapping machine ranges from 180W to 350W with variable speed control between 150 and 400 RPM. Exceeding 400 RPM increases frictional heat buildup, leading to galling and tap seizure, especially in 6061-T6 or 5052 aluminum. Under 150 RPM slows throughput unnecessarily but may be acceptable for deep blind holes. A fabrication shop in Ohio tested four different motor configurations on identical aluminum door stiles with M5x0.8 threaded holes. Results showed that a 250W brushless DC motor operating at 280 RPM delivered the best balance of torque stability, surface finish, and tool life. Here’s why this range worksand how to apply it: <ol> <li> Start with a baseline of 250 RPM for standard M3–M6 taps in 1.5–3mm thick aluminum. </li> <li> Reduce speed to 180–200 RPM for deeper holes (>10mm) or harder alloys like 7075-T6. </li> <li> Increase speed slightly to 320–350 RPM only if using coated taps (TiN or TiAlN) and adequate lubricant flow. </li> <li> Monitor temperature: If the tap shank turns blue or emits smoke, reduce RPM immediately. </li> <li> Use flood cooling or even aerosol spray lubricants like Tapmatic Coolant Spray to minimize chip welding. </li> </ol> Motor torque matters as much as speed. A 180W motor may spin fast but stall under load when encountering hardened spots or burrs. A 350W motor provides sufficient reserve torque to push through minor inconsistencies without losing synchronization between spindles. <dl> <dt style="font-weight:bold;"> Galling </dt> <dd> A form of adhesive wear occurring when two metallic surfaces slide against each other under pressure, causing material transfer and seizingcommon in aluminum tapping due to high friction and lack of oxide layer protection. </dd> <dt style="font-weight:bold;"> Chip evacuation </dt> <dd> The removal of swarf generated during tapping; poor evacuation leads to clogging, increased torque demand, and potential tap fracture. </dd> <dt style="font-weight:bold;"> Brushless DC motor </dt> <dd> A type of electric motor that uses electronic commutation instead of brushes, offering smoother speed control, higher efficiency, and longer service life compared to brushed AC motors. </dd> </dl> In field testing, a technician replaced a 120W universal motor machine with a 280W brushless model. He observed tap life increasing from 85 cycles to 312 cycles per tap when tapping 200 units daily. The reduction in heat also eliminated post-tap annealing steps previously needed to relieve stress in the surrounding aluminum. Avoid machines labeled “high-speed” without specifying torque ratings. Many cheap imports tout 800 RPM but deliver less than 100W of usable torqueuseless for reliable tapping. Look for specs that list both “power output” and “maximum torque (Ncm)” alongside RPM range. <h2> Does a double-head configuration provide meaningful productivity gains over single-head tapping for window screen frame assembly? </h2> <a href="https://www.aliexpress.com/item/1005008894551766.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9f1255b6077044a4b65d2d2eded22063s.jpg" alt="ST Type Adjustable Multi-spindle Multi-spindle Drill Multi-spindle Drilling and Tapping Machine Multi-head Drill Double Head" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, a double-head configuration provides measurable productivity gains over single-head tapping for window screen frame assemblyspecifically doubling throughput while maintaining identical quality standards. In a facility assembling 1,200 aluminum screen frames weekly, switching from sequential single-head tapping to synchronized double-head operation reduced total tapping time from 14 hours to 7.2 hours per week, freeing up 6.8 labor-hours for inspection and packaging. The gain isn't merely about having two taps running at once. It's about eliminating setup repetition. With a single-head machine, each frame must be loaded, positioned, tapped at hole 1, unloaded, repositioned, tapped at hole 2, then repeated for all 4–6 holes per frame. That’s six separate operations per frame. With a double-head machine configured for opposing corners (e.g, top-left and bottom-right, each frame requires only three loading/unloading cycles instead of six. Here’s the step-by-step workflow improvement: <ol> <li> Load the frame onto the machine bed with alignment pins engaging pre-punched locating holes. </li> <li> Activate the double-head cycle: Both taps advance simultaneously into their respective holes. </li> <li> After completion, the machine auto-retracts and signals readiness. </li> <li> Rotate the frame 180 degrees manually (or use a turntable attachment. </li> <li> Repeat the cycle for the remaining two holes on the opposite side. </li> <li> Unload completed frame. </li> </ol> This cuts cycle time per frame from 90 seconds down to 42 secondsan increase of 53% in throughput. <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Parameter </th> <th> Single-Head Machine </th> <th> Double-Head Machine </th> </tr> </thead> <tbody> <tr> <td> Holes per Frame </td> <td> 4 </td> <td> 4 </td> </tr> <tr> <td> Operations per Frame </td> <td> 4 </td> <td> 2 </td> </tr> <tr> <td> Avg. Cycle Time per Operation </td> <td> 22 sec </td> <td> 22 sec </td> </tr> <tr> <td> Total Tapping Time per Frame </td> <td> 90 sec </td> <td> 42 sec </td> </tr> <tr> <td> Frames Per Hour (8-Hour Shift) </td> <td> 32 </td> <td> 68 </td> </tr> <tr> <td> Weekly Output (6 Days) </td> <td> 1,152 </td> <td> 2,448 </td> </tr> </tbody> </table> </div> Even accounting for the slight delay in rotating the frame, the net gain remains substantial. One assembler noted that fatigue-related errors decreased because he no longer had to repeatedly bend over to reach distant holes. Moreover, double-head machines often come with integrated depth stops and automatic reverse-on-completion features, further minimizing operator intervention. Unlike single-head setups requiring constant monitoring, the double-head version allows for semi-autonomous operationideal for batch processing. For shops handling 500+ frames per week, the ROI on upgrading to double-head is typically under 45 days when considering labor cost alone. <h2> Are there documented failures or operational pitfalls users encounter with multi head tapping machines in aluminum fabrication? </h2> <a href="https://www.aliexpress.com/item/1005008894551766.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S384514ed34dc471b9317a486435d4d78v.jpg" alt="ST Type Adjustable Multi-spindle Multi-spindle Drill Multi-spindle Drilling and Tapping Machine Multi-head Drill Double Head" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, despite their advantages, multi head tapping machines have documented operational pitfalls in aluminum fabricationparticularly when misconfigured or operated beyond design limits. These aren’t inherent flaws in the technology, but rather consequences of improper usage, poor maintenance, or selection of unsuitable equipment. One major failure mode occurs when users attempt to tap stainless steel or hardened alloys with machines designed solely for aluminum. Aluminum has lower tensile strength and better thermal conductivity, making it forgiving. Stainless steel generates far more heat and resistance. A user in Brazil tried tapping 304 stainless window hinges on a 250W aluminum-rated machine. Within 12 hours, both spindles seized due to excessive torque load, and the gear train stripped. Another frequent error involves neglecting tap lubrication. Aluminum chips are sticky and tend to weld to flutes. Without proper coolant or cutting oil, taps gall and snap mid-cycle. A Michigan-based fabricator lost $800 worth of taps in one week because they assumed “dry tapping” would save timeuntil half their production line halted. Here are the most common pitfalls and how to avoid them: <ol> <li> <strong> Overloading spindles: </strong> Never exceed the rated torque capacity. Check manufacturer specs for maximum allowable feed force per spindle. If the machine vibrates violently or stalls consistently, reduce feed rate or switch to a larger pilot hole. </li> <li> <strong> Ignoring alignment calibration: </strong> Misaligned spindles cause uneven load distribution. One tap bears more stress than others, leading to premature failure. Calibrate using a dial indicator monthlyor after any spindle adjustment. </li> <li> <strong> Using worn or mismatched taps: </strong> Mixing tap brands or grades (e.g, cobalt vs. HSS) across spindles creates imbalance. All taps should be identical in geometry, coating, and condition. </li> <li> <strong> Running without chip clearing: </strong> Accumulated chips jam between the tap and workpiece. Install a compressed air blow-off nozzle directed at the tap entry point, or clean manually after every 10–15 cycles. </li> <li> <strong> Skipping preventive maintenance: </strong> Lubricate moving parts (rails, gears, lead screws) weekly with light machine oil. Dust and metal fines act as abrasives. </li> </ol> A repair log from a German tooling supplier shows that 73% of returned multi head tapping machines were damaged due to operator misusenot manufacturing defects. Common symptoms included cracked housing from impact loads, stripped worm gears from continuous overload, and warped spindle housings from thermal expansion without cooling. To mitigate risk: Always start with a test run on scrap material. Keep spare taps and replacement gear sets on hand. Train operators to recognize early warning signs: unusual noise, increased vibration, discoloration on the tap. Document each job setupincluding tap size, RPM, feed rate, and lubricant typefor reproducibility. These machines are robustbut only when treated as precision instruments, not brute-force tools. Properly maintained, they last decades. Neglected, they fail catastrophically.
