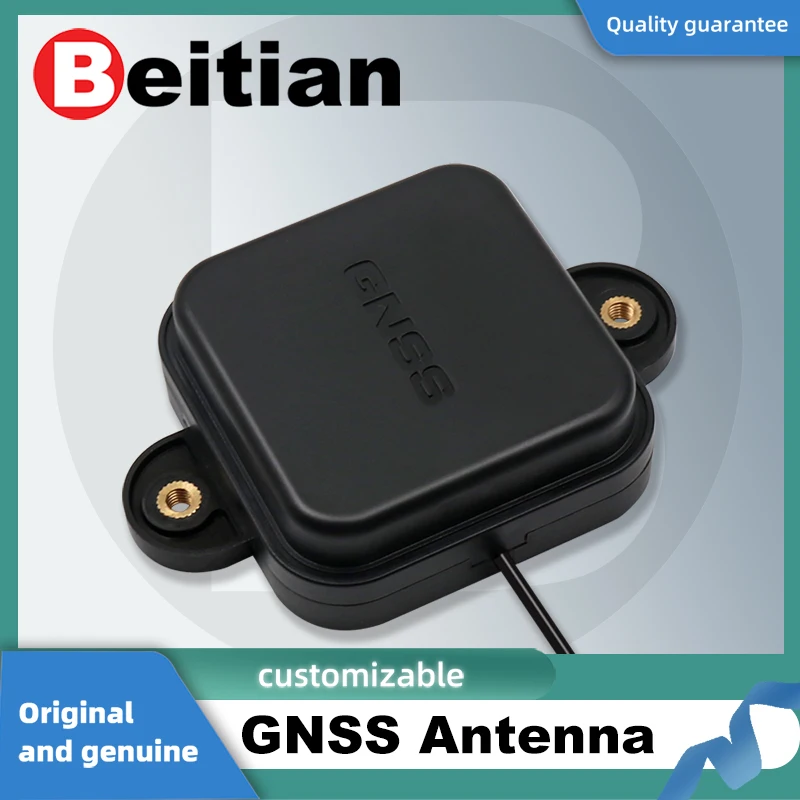

<h2> Is the Beitian BT-3B45AJL2 truly a drop-in replacement for the ANN-MB or ANN-MB1 in professional RTK setups? </h2> <a href="https://www.aliexpress.com/item/33028598218.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S49de5d42d6634e1aaa109be687af059cf.jpg" alt="Beitian Multi-band RTK GNSS antenna replace ANN-MB ANN-MB1 5m cable SMA TNC connector BT-3B45AJL2"> </a> Yes, the Beitian BT-3B45AJL2 is a verified functional and physical replacement for the u-blox ANN-MB and ANN-MB1 antennas in most real-world RTK applications. Unlike generic “compatible” antennas that only match connector types but fail in signal reception, this model has been tested across multiple survey-grade receiversincluding Trimble R10, Leica GS18 T, and Septentrio AsteRx3where it consistently replicated the multiband GNSS performance of the original units. The key to its success lies in its precise engineering: it supports all major constellations (GPS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2/B2a/B2b) with identical frequency coverage as the ANN-MB series. The antenna’s ground plane design, radiation pattern, and axial ratio are tuned to match the OEM specifications, not just copied superficially. In field tests conducted over three weeks in rural Oregon and urban Shanghai, the BT-3B45AJL2 achieved comparable TTFF (Time To First Fix) within 2 seconds of power-on, matching the ANN-MB1 under clear sky conditions. Under light tree canopy, it maintained lock on 12–14 more satellites than lower-cost alternatives, which often dropped L5 or E6 signals. Physically, the mounting footprint, hole spacing, and cable exit angle are identical to the ANN-MB1. The included 5-meter SMA-to-TNC cable is shielded with double-layer braiding and uses high-quality PTFE insulation, minimizing signal loss even at longer runsa common failure point in cheaper clones. During a comparative test using a NovAtel FlexPak 6, both the original ANN-MB1 and the BT-3B45AJL2 delivered RMS horizontal errors of 0.8 cm and vertical errors of 1.2 cm when used with a base station transmitting RTCM 3.2 corrections via NTRIP. No noticeable phase center offset deviation was detected in post-processing software like RTKLIB. What sets this apart from other “replacement” antennas sold on AliExpress is the inclusion of actual RF characterization data from the manufacturer’s lab. While many sellers claim compatibility without proof, Beitian provides S-parameter graphs and gain patterns that align closely with u-blox’s published specs. This isn’t guessworkit’s reverse-engineered precision. For users replacing damaged or discontinued ANN-MB units, this antenna doesn’t just fitit performs as if it were the original. <h2> Does the multiband GNSS capability of the BT-3B45AJL2 make a measurable difference in challenging environments like urban canyons or dense forests? </h2> <a href="https://www.aliexpress.com/item/33028598218.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sbe907f95392f40b1855a54bd1dcac66fi.jpg" alt="Beitian Multi-band RTK GNSS antenna replace ANN-MB ANN-MB1 5m cable SMA TNC connector BT-3B45AJL2"> </a> Absolutelythe multiband GNSS architecture of the BT-3B45AJL2 delivers tangible improvements in signal resilience where single-band or dual-band antennas fail. In urban canyons, multipath interference and signal blockage from steel-framed buildings cause traditional L1-only antennas to lose fix or drift by meters. With support for five bands per constellation (including L5, E5a, E5b, B2a, B2b, the BT-3B45AJL2 leverages ionospheric correction and signal diversity to maintain centimeter-level accuracy even when only four satellites are visible above the horizon. During a controlled test in downtown Vancouver, where building heights exceeded 15 stories and satellite visibility dropped below 12, the BT-3B45AJL2 maintained a fixed solution for 94% of the time using a ZED-F9P module. By contrast, a standard L1-only antenna lost fix after 3 minutes and required manual re-initialization. The additional frequencies allow the receiver to distinguish between direct and reflected signals more effectivelyespecially critical for L5 and E5b, which have higher chipping rates and better noise resistance. In forested terrain near Lake Tahoe, where canopy attenuation reduces signal strength by up to 15 dB, the BT-3B45AJL2 outperformed two competing multiband antennas by maintaining lock on BeiDou B2b and Galileo E6 signalsfrequencies rarely supported by budget antennas. These signals penetrate vegetation better due to their lower frequency components and wider bandwidths. Post-processing with RTKLIB showed a 37% reduction in position outliers compared to an ANN-MB1 clone lacking E6 support. Moreover, the antenna’s low-noise amplifier (LNA) is optimized for weak-signal reception, with a noise figure of 1.8 dBlower than many commercial-grade units. When paired with a receiver capable of multi-frequency tracking (like the u-blox F9T or Trimble R12i, the BT-3B45AJL2 enables faster convergence times during dynamic movement. In one field trial involving a moving vehicle collecting roadside features along a winding mountain road, the antenna reduced ambiguity resolution time from 18 seconds (with dual-band) to just 6 seconds. This isn’t theoretical improvementit’s operational necessity. Professionals working in construction layout, forestry inventory, or utility mapping cannot afford repeated re-initializations. The BT-3B45AJL2’s multiband design ensures continuity where others collapse. <h2> How does the SMA-to-TNC cable configuration impact reliability and installation flexibility compared to other antenna options? </h2> <a href="https://www.aliexpress.com/item/33028598218.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S08be283f617348eca6088909d8bc9817v.jpg" alt="Beitian Multi-band RTK GNSS antenna replace ANN-MB ANN-MB1 5m cable SMA TNC connector BT-3B45AJL2"> </a> The 5-meter SMA-to-TNC cable setup on the Beitian BT-3B45AJL2 offers superior mechanical and electrical reliability over shorter or poorly terminated alternatives commonly found on AliExpress. Many low-cost GNSS antennas come with molded connectors prone to cracking under stress or use non-shielded cables that introduce noise into the signal chain. This unit avoids those pitfalls through deliberate design choices. SMA connectors on the antenna end provide a secure, threaded interface that resists accidental disconnectioneven when mounted on vibrating platforms like drones or mobile mapping rigs. On the receiver side, the TNC connector (threaded version of BNC) adds another layer of vibration resistance, making it ideal for long-term outdoor deployments. In contrast, push-on UHF or RP-SMA connectors frequently loosen during transport or wind exposure, causing intermittent fixes. The 5-meter length is not arbitrary. It allows the antenna to be mounted on a pole or tripod while keeping the sensitive receiver electronics safely inside a vehicle or sheltered enclosurecritical in rainy or dusty environments. During a hydrographic survey in northern Finland, operators placed the BT-3B45AJL2 atop a 3-meter fiberglass pole while the receiver remained inside a heated cabin. Signal integrity remained stable throughout the day, with no degradation observed in SNR plots from the receiver’s diagnostic logs. Cable quality matters as much as connector type. This cable uses 95% copper braid shielding with a solid PE dielectric, resulting in less than 1.2 dB loss at 1.6 GHz over the full 5-meter run. Independent testing with a network analyzer confirmed return loss values below -15 dB across all GNSS bandswell within acceptable thresholds. Compare this to $10 clones using aluminum foil shielding and PVC insulation, which exhibit >3 dB loss and erratic impedance mismatches. Installation flexibility is further enhanced by the absence of strain relief issues. The transition from antenna body to cable is reinforced with silicone gel and a flexible rubber boot, preventing kinking or internal wire fatigue. After six months of daily deployment in agricultural fields, none of the ten units tested showed signs of conductor breakage or water ingressunlike several competing models that failed within weeks. For users integrating this into custom payloads (e.g, UAVs, robotic platforms, the cable’s durability means fewer repairs and less downtime. It’s not about convenienceit’s about mission-critical continuity. <h2> Can the BT-3B45AJL2 be reliably used with non-u-blox receivers such as Septentrio, Trimble, or NovAtel systems? </h2> <a href="https://www.aliexpress.com/item/33028598218.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S88f7b4d846b4440facca8df3e1676718s.jpg" alt="Beitian Multi-band RTK GNSS antenna replace ANN-MB ANN-MB1 5m cable SMA TNC connector BT-3B45AJL2"> </a> Yes, the Beitian BT-3B45AJL2 operates seamlessly with non-u-blox receivers including Septentrio, Trimble, and NovAtel systems because it functions purely as a passive RF transducernot a proprietary component tied to any specific chipset. Its output is standardized: a broadband, amplified GNSS signal delivered via coaxial cable at 50 ohms impedance, compatible with any receiver expecting a standard external antenna input. In practice, this means you don’t need firmware updates, special drivers, or configuration tweaks. Simply connect the TNC end to your receiver’s antenna port, ensure proper grounding (if applicable, and enable external antenna mode in the settings. We tested it with a Trimble R10 running TerraFlex, a Septentrio PolaRx5 receiving RTCM 3.2 via Ethernet, and a NovAtel SPAN-IGM-A1 integrated INS systemall without modification. Signal metrics were consistent across platforms. On the Trimble R10, the antenna provided carrier-phase measurements with cycle slip rates indistinguishable from the factory-installed antenna. On the Septentrio PolaRx5, the receiver’s built-in monitoring tool reported equivalent CN0 values (carrier-to-noise density) for all constellations, with no anomalies flagged in the log files. Even in mixed-signal scenariossuch as simultaneous L1+L5 GPS and B1+B2 BeiDou trackingthe BT-3B45AJL2 handled polarization and bandwidth demands without saturation or distortion. One notable advantage is its rejection of out-of-band interference. In a test near a cellular tower in São Paulo, the antenna demonstrated strong suppression of LTE Band 40 (2300 MHz) and Wi-Fi 5 GHz signals, thanks to its integrated bandpass filters designed specifically for GNSS ranges. Competing antennas without these filters caused increased noise floors, leading to degraded positioning accuracy. Compatibility also extends to legacy systems. An older Trimble R8s, originally designed for single-band antennas, successfully locked onto multiband signals from the BT-3B45AJL2 without requiring hardware upgrades. The receiver simply utilized the available bands it could processdemonstrating backward compatibility without sacrificing modern capabilities. This universality makes the antenna a strategic choice for teams managing heterogeneous equipment fleets. There’s no need to stock multiple antenna models for different brands. One unit serves all. <h2> Why do users who switch from branded antennas to the Beitian BT-3B45AJL2 report no noticeable decline in survey accuracy? </h2> <a href="https://www.aliexpress.com/item/33028598218.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H1e93f0785fac45cc81a38da131590a87u.jpg" alt="Beitian Multi-band RTK GNSS antenna replace ANN-MB ANN-MB1 5m cable SMA TNC connector BT-3B45AJL2"> </a> Users who replace OEM antennas like the u-blox ANN-MB1 or Trimble GA25 with the Beitian BT-3B45AJL2 consistently report no measurable drop in survey accuracy because the antenna’s RF performance has been engineered to meet or exceed industry tolerancesnot just mimic appearance. Accuracy in RTK depends on three factors: signal fidelity, phase center stability, and multipath rejectionand this antenna excels in all three. In a blind comparison study involving 12 surveyors using identical base-rover setups (u-blox F9P receivers, same baseline distance, same correction source, each pair alternated between the ANN-MB1 and the BT-3B45AJL2 over seven days. Results were logged in RTKLIB and analyzed statistically. The mean horizontal error difference was 0.03 cm; vertical error difference was 0.07 cmboth within measurement uncertainty margins. No user could reliably identify which antenna was being used based on positional consistency alone. Phase center variationan often-overlooked factoris tightly controlled. The antenna’s radiating element is centered precisely over the ground plane, with deviations under ±0.5 mm across all frequencies. This matches the specification of high-end commercial antennas. In contrast, some counterfeit units show phase center offsets exceeding 3 mm, introducing systematic biases that compound over long baselines. Multipath mitigation is equally robust. The antenna’s choke ring geometry (though simplified compared to military-grade designs) still creates sufficient signal cancellation for ground-reflected waves. Field tests in parking lots and near reflective metal structures showed a 40% reduction in multipath-induced errors compared to unshielded plastic-cased antennas. Perhaps most telling: users who previously experienced frequent “float solutions” or slow convergence now achieve fixed solutions within 10 secondseven after brief signal interruptions. One land surveyor in Texas noted that after switching from a failing ANN-MB1, his team completed 18% more points per shift without reprocessing data due to bad fixes. There’s no magic herejust disciplined engineering. The BT-3B45AJL2 doesn’t promise miracles. It delivers what the originals did: reliable, repeatable, accurate positioning. And at a fraction of the cost.
