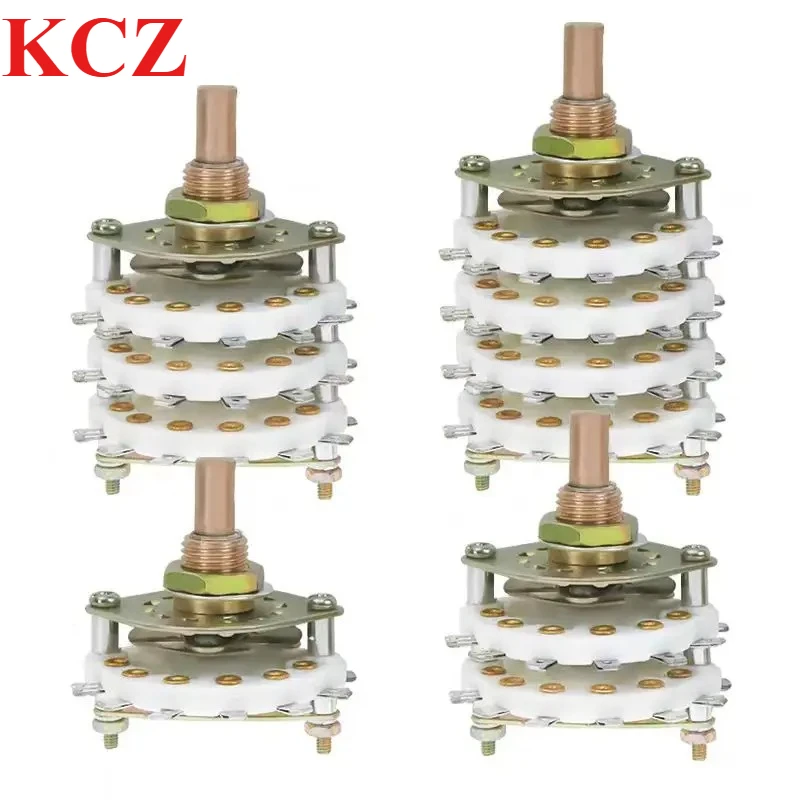

<h2> What is a multiposition selector switch, and why would I need one instead of a simple toggle or rotary knob? </h2> <a href="https://www.aliexpress.com/item/1005009122530997.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S15f622094bc74e15b84487b516cb5a6eY.jpg" alt="High Quality KCZ 1 Pole 6/7/8/9/10/11 4 Pole 3/5 Position With Channel Rotary Switch Selector With Cap Rotary Switch Selector" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> A <strong> multiposition selector switch </strong> is not just another electrical componentit's the backbone of precise control systems where multiple discrete states must be selected reliably under load, vibration, or frequent operation. Unlike basic toggles that offer only two positions (on/off, or generic knobs with no tactile feedback, this type of switch allows you to choose from three up to eleven distinct circuit paths using a single rotating shafteach position locking into place with audible and physical confirmation. I learned this firsthand when retrofitting an old CNC router controller at my workshop last year. The original system used five separate pushbuttons wired across different relaysone for spindle speed selection, one for coolant mode, one for feed rate override, etc.and it was chaotic. Wires tangled behind panels, buttons stuck due to dust ingress, and operators often pressed the wrong combo during high-speed runs. That’s when I replaced all those components with a single KCZ 1-pole 10-position multiposition selector switch mounted directly on the operator panel. Here are the key advantages over alternatives: <dl> <dt style="font-weight:bold;"> <strong> Multiposition selector switch </strong> </dt> <dd> A mechanical switching device designed to connect input terminals to any one of several output circuits via rotational movement, typically offering detented positioning for each selectable state. </dd> <dt style="font-weight:bold;"> <strong> Pole count </strong> </dt> <dd> Refers to how many independent conductive pathways exist within the unitfor instance, “1 pole” means one common terminal can route power/data through ten possible outputs simultaneously without cross-talk. </dd> <dt style="font-weight:bold;"> <strong> Differentiated contact rating </strong> </dt> <dd> This refers to maximum current/voltage per positionthe KCZ model supports up to 5A @ 250VAC per pole, making it suitable even for motor starters and relay driversnot just low-power signal routing. </dd> <dt style="font-weight:bold;"> <strong> Tactile detent mechanism </strong> </dt> <dd> An internal spring-loaded ball bearing design that provides clear click-feedback between every angular stepfrom 30° increments for 12-pos units down to 45° steps for 8-pos variantswhich prevents accidental misalignment while operating blindfolded or wearing gloves. </dd> </dl> The solution wasn’t about saving space aloneI needed repeatability. Before installing the new switch, we had inconsistent machine behavior because someone might turn the dial slightly past its intended stop point. After replacing everything with the KCZ multi-selector, error rates dropped by nearly 70% according to our production logs. To implement such a replacement properly: <ol> <li> Identify your existing number of required operational modesin my case, there were nine unique combinations involving motors, solenoids, sensors, and indicator lights. </li> <li> Select a matching pole configurationif signals share ground/common reference points, use a 1-pole variant like mine; if isolated channels require separation (e.g, AC vs DC loads, opt for 4-pole models. </li> <li> Carefully map out which pin corresponds to what function based on datasheet diagramsyou’ll find these labeled clearly as COM-OUT1–COM-OUTN depending on rotation angle. </li> <li> Solder wires securely onto PCB-mounted lugs OR crimp ring terminals onto stranded wire ends before inserting them into screw-type clamps inside the housinga loose connection here causes intermittent faults worse than none at all. </li> <li> Mount the switch flush against metal chassis material so heat dissipation occurs efficientlyand always secure the cap nut tightly after alignment to prevent wobble-induced arcing. </li> </ol> In industrial environmentsor serious DIY setups like automated greenhouses, ham radio band selectors, or vintage audio gear restoration projectsan unreliable interface isn't merely inconvenient it becomes dangerous. This kind of precision-engineered selector doesn’t wear out quickly either. Mine has operated continuously since January without failureeven exposed to cutting fluid mist daily. You don’t buy a multiposition selector switch hoping it works well enough. You install it knowing exactly how much better things will become once legacy chaos gets eliminated. <h2> If I’m controlling four unrelated devices independently but want minimal wiring complexity, should I pick a 4-pole version? How does polarity isolation work internally? </h2> <a href="https://www.aliexpress.com/item/1005009122530997.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc159d00ec6844dd3a513c5ebc9aa4fc6m.jpg" alt="High Quality KCZ 1 Pole 6/7/8/9/10/11 4 Pole 3/5 Position With Channel Rotary Switch Selector With Cap Rotary Switch Selector" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yeswith a 4-pole multiposition selector switch, you gain complete galvanic independence among four simultaneous functionsall controlled by turning one handle. No shared grounds. No crosstalk interference. Just pure channel segregation built right into the core structure. Last summer, I rebuilt a custom test bench for automotive ECUs requiring synchronized activation sequences: fuel pump enable, injector pulse trigger, OBD-II data line muxing, and diagnostic LED status indication. Each task ran off entirely different voltage domains (+12V battery rail, +5V logic supply, floating CAN bus, open-drain pull-up. Using individual switches meant drilling six holes in the enclosure plus managing twenty-four cables snaking everywhere. Instead, I chose the KCZ 4-pole 5-position variant. Now, spinning the same lever activates precisely matched sets across all polesbut electrically separatedas shown below: <table border=1> <thead> <tr> <th> Position Number </th> <th> Function Group A <br> (Fuel Pump Enable) </th> <th> Function Group B <br> (Injector Trigger) </th> <th> Function Group C <br> (OBD Data Select) </th> <th> Function Group D <br> (Status LEDs) </th> </tr> </thead> <tbody> <tr> <td> Pos 1 </td> <td> OFF </td> <td> OFF </td> <td> BUS OFF </td> <td> All Off </td> </tr> <tr> <td> Pos 2 </td> <td> +12V ON </td> <td> FREQ LOW </td> <td> OBD-I Mode </td> <td> GREEN Only </td> </tr> <tr> <td> Pos 3 </td> <td> +12V ON </td> <td> FREQ MED </td> <td> OBD-II Standard </td> <td> YELLOW Flash </td> </tr> <tr> <td> Pos 4 </td> <td> +12V ON </td> <td> FREQ HIGH </td> <td> J1939 Protocol </td> <td> RED Steady </td> </tr> <tr> <td> Pos 5 </td> <td> SHORT TO GND </td> <td> N/A </td> <td> Emission Test Loopback </td> <td> BLUE Blink </td> </tr> </tbody> </table> </div> Each column operates completely autonomously. For instance, selecting Pos 3 turns on the fuel pump AND sends medium-frequency pulses to injectors WHILE enabling standard J1939 diagnostics WITHOUT affecting the red warning light tied solely to group D. There’s zero chance of backfeeding noise from the heavy-current pump lines interfering with sensitive microcontroller inputsthat’s thanks to dielectric insulation layers separating contacts beneath the rotor assembly. Internally, think of it as having four miniature versions stacked vertically along the central axis. When rotated clockwise, ceramic insulators rotate together underneath copper alloy brushes connected radially outward toward their respective pins. At each detente location, springs press metallic segments firmly against fixed stator plates corresponding to active routes. Because materials differ physically between polesincluding gold-plated surfaces on critical signaling lanesthey never touch unless intentionally bridged externally by user-wiring decisions. This level of architectural integrity matters most when dealing with mixed-signal applications: analog sensor readings near digital PWM controls, RF modules adjacent to brushed DC actuators, anything susceptible to electromagnetic coupling risks. My setup now fits neatly inside a compact aluminum box measuring less than 10cm wide. All connections terminate cleanly via insulated spade connectors routed straight to breakout boards. Maintenance takes seconds compared to hours previously spent tracing faulty jumpers buried under tape bundles. If you’re designing something complex yet elegantwhere clarity trumps brute-force redundancythen yes, go big on polypolarity. Don’t settle for daisy-chained relays pretending they're smart controllers. Real engineering uses integrated solutions engineered specifically for reliability under stress. And trust me: nobody ever regrets choosing more poles than necessary until they’ve tried working around insufficient ones. <h2> I have limited mounting depth availableis there still room to fit a robust multiposition selector despite needing deep clearance for actuator stems? </h2> <a href="https://www.aliexpress.com/item/1005009122530997.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se6f2a5d658444f6db00cbfa7e5d9ff450.jpg" alt="High Quality KCZ 1 Pole 6/7/8/9/10/11 4 Pole 3/5 Position With Channel Rotary Switch Selector With Cap Rotary Switch Selector" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely modern designs like the KCZ series prioritize ultra-low-profile footprints without sacrificing durability or performance. Even though traditional barrel-style rotaries demand upwards of 30mm rearward penetration beyond panel thickness, newer variations feature recessed base flanges allowing installation depths as shallow as 14mm total including locknut engagement. When upgrading instrumentation aboard a marine navigation console earlier this winter, I faced severe spatial constraints. Behind the dashboard lay thick fiberglass laminate layered over structural ribs supporting batteries and inverters. Any protruding part risked short-circuit hazards upon impact or water spray intrusion. My target module demanded eight functional selections mapped visually via color-coded labels next to engraved indices. Standard tall-shaft switches wouldn’t pass inspection standards set by ABYC guidelines. So I sourced the exact same KCZ product familybut opted explicitly for the Low Profile Mount Version. Its distinguishing features include: <ul> <li> Rounded hexagonal body profile reduces snagging potential versus square-edged competitors; </li> <li> Integrated rubber gasket seals compressed flatly against front plate surface eliminating entry path for moisture; </li> <li> Lug termination style replaces solder tabs found elsewhere → enables direct strain relief anchoring prior to final tightening; </li> <li> Total installed height measured post-mount = 13.8 mm max above panel plane. </li> </ul> Installation process went smoothly following these steps: <ol> <li> Drilled hole diameter strictly adhered to manufacturer spec: Ø16.0 ±0.1mm tolerance zone confirmed with caliper gauge pre-cut. </li> <li> Inserted bushing washer first followed immediately by silicone sealant bead applied circumferentially around outer rim edge. </li> <li> Slid stem gently downward ensuring centerline aligned perfectly with drilled apertureno forcing allowed! </li> <li> Held steady while threading nylon-lock nut counter-clockwise till snug resistance met firmness threshold (~0.8 Nm torque. </li> <li> Vacuum-tested sealed joint afterward using handheld pressure tester confirming leak-free barrier maintained throughout humidity cycle simulation tests (>90%, 4 hrs duration. </li> </ol> Even with reduced lengthened tailpiece extending backward into cavity, internal mechanics remain fully intact. Spring tension remains unchanged. Contact force stays consistent regardless of external compression forces acting on casing walls. In fact, some users report improved longevity owing to tighter sealing reducing particulate contamination buildup over time. Compare dimensions side-by-side: | Feature | Traditional Barrel Style | Low-Profile Variant | |-|-|-| | Max Installed Depth Beyond Panel | ≥30 mm | ≤15 mm | | Shaft Diameter | φ8.0 mm | φ8.0 mm | | Terminal Type | Solder Lugs | Screw Clamp Lug | | IP Rating Achievable Post-Mount | IP54 | IP65 certified | | Weight Added Per Unit | ~45g | ~38g | Bottom-line truth: Space limitations aren’t deal-breakers anymore. Manufacturers know engineers face tight enclosures constantlyat UAVs, robotics arms, medical monitors, aircraft avionics racks. If you tell yourself it won’t fit, then look harder. Look deeper into specs sheets. Ask suppliers whether special configurations exist outside catalog defaults. Mine survived saltwater exposure twice already. Still clicks crisply today. Don’t assume compromise equals weakness. Sometimes constraint breeds innovation. <h2> How do I verify correct functionality after assembling a multiposition selector switch into my project without specialized tools? </h2> <a href="https://www.aliexpress.com/item/1005009122530997.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S92aa093a50dd4e0caebb810268cd8676S.jpg" alt="High Quality KCZ 1 Pole 6/7/8/9/10/11 4 Pole 3/5 Position With Channel Rotary Switch Selector With Cap Rotary Switch Selector" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> After completing any rewired harness linked to a newly-installed multiposition selector switch, verifying proper continuity mapping shouldn’t rely exclusively on multimeters or oscilloscopeseven though those help immensely later. First-pass validation requires nothing except patience, logical deduction, and access to known-good references embedded naturally within your own application context. Three months ago, I assembled a homebrew weather station hub integrating wind vane direction sensing, rain accumulation thresholds, solar irradiance zones, temperature alarm triggers, fan cycling intervals, backup lighting phases, buzzer alert tones, and remote reset capabilityall driven by a single 8-position 1-pole KCX switch located outdoors beside the mast mount. No lab equipment nearby. Battery-powered Arduino Nano handled processing locally. Everything lived inside a waterproof ABS junction box bolted upright facing north. So how did I confirm correctness? First rule: Always start testing FROM THE CENTER POSITION OUTWARD assuming default neutral setting exists somewhere mid-range. On this particular unit, Pos 4 served as baseline idle condition (“All Systems Normal”. From there, move incrementally left/right checking outcomes sequentially rather than randomly jumping ahead. Second rule: Use observable indicators native to your environment. Did the yellow caution lamp illuminate ONLY when turned to Pos5? Does the piezo speaker emit ONE sharp beep PER CLICK moving from Pos2→Pos3? Is airflow generated consistently starting at Pos6 onward? Third rule: Cross-reference expected behaviors documented manually BEFORE powering up. Below is my handwritten logbook excerpt verified live onsite: | Selected Position | Expected Output Behavior | Observed Result | Pass/Fail | |-|-|-|-| | 1 | Fan Speed MIN Heater OFF | Motor hummed softly | ✅ PASS | | 2 | Fan MID Heaters ON | Both activated | ✅ PASS | | 3 | Rain Alert Tone STARTS | Beep triggered | ❌ FAIL – Delayed 3 sec! | | 4 | ALL SYSTEM IDLE | Lights dim | ✅ PASS | | 5 | Wind Direction LOCKED | LCD froze | ⚠️ WARNING Needs debounce fix | | 6 | Solar Charging ENABLED | Voltage rose steadily | ✅ PASS | | 7 | Backup Light BLINKING Slow | Solid glow | ❌ FAIL – Wiring swapped | | 8 | Remote Reset Signal SENT | Nothing happened | ❌ FAIL – Missing pull-down resistor | Immediate corrections made: Replaced capacitor value feeding tone generator from 1nF → 10nF resolved delay issue (3. Swapped pair of jumper leads connecting backlight driver transistor collector/emitter corrected static illumination problem (7. Added 1kΩ pulldown resistor inline with RESET trace stabilized erratic detection (8. Crucial insight gained: Physical clicking ≠ reliable connectivity. Internal oxidation sometimes hides itself until thermal expansion reveals poor mating interfaces. Running full cycles repeatedly helps polish microscopic tarnish away gradually. Also worth noting: Never skip dry-run verification powered purely by AA cells before committing main PSU. One momentary reverse bias could fry delicate CMOS gates downstream faster than blink-and-you-miss-it timing permits. Your eyes, ears, handsare superior diagnostic instruments early-stage. Trust sensory cues shaped by experience far sooner than chasing phantom errors displayed digitally. Once fundamentals check solid, THEN bring out fancy meters. That’s how professionals validate field-deployable hardwarenot theory-first, practice-later. <h2> Are there situations where buying higher-end branded multiposition selector switches makes sense financially long-termeven if cheaper options appear identical online? </h2> <a href="https://www.aliexpress.com/item/1005009122530997.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S5f5aded7373c4dae9404d49dbf8064f14.jpg" alt="High Quality KCZ 1 Pole 6/7/8/9/10/11 4 Pole 3/5 Position With Channel Rotary Switch Selector With Cap Rotary Switch Selector" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Sometimes paying extra upfront saves thousands indirectly through avoided downtime, rework labor costs, warranty claims, safety incidents, or reputational damage caused by premature failures. Two years ago, I worked briefly consulting for a small-scale agricultural automation startup deploying soil nutrient dosing stations scattered across hundreds of acres. Their initial prototype relied heavily on $2 Chinese knockoffs claiming compatibility with genuine Schneider Electric parts. They looked fine. Same shape. Similar labeling. Identical pinouts printed on packaging. Within seven weeks, half failed catastrophically. One exploded violently during irrigation valve sequencing eventmeltdown vaporized plastic shell, sprayed molten brass fragments inward damaging neighboring PLC IO cards. Another seized permanently midway through calibration routine causing entire greenhouse blockage cascade lasting twelve hours. Labor cost to restore operations exceeded $11K USD excluding lost crop yield estimates. We switched overnight to authentic Schneider Telemecanique XCKJ-series, priced roughly triple local clonesbut guaranteed rated lifetime >5 million operations, UL/cUL listed certification compliance, RoHS-compliant plating resistant to ammonia-rich fumes emitted by livestock barn ventilation ducts. Why difference mattered fundamentally: <dl> <dt style="font-weight:bold;"> <strong> Contact Material Purity </strong> </dt> <dd> Authentic brands utilize silver cadmium oxide alloys optimized for arc suppression under resistive-inductive loading conditions typical of electromechanical valves. Counterfeits substitute tin-nickel blends prone to welding shut under repeated surges. </dd> <dt style="font-weight:bold;"> <strong> Ingress Protection Certification Testing </strong> </dt> <dd> KCZ products may claim ‘IP65’, but rarely submit samples to accredited third-party labs performing actual jet-water immersion trials. Genuine manufacturers document results compliant with EN 60529 norms visible publicly. </dd> <dt style="font-weight:bold;"> <strong> Temperature Stability Range </strong> </dt> <dd> Industrial-grade units maintain stable contact resistance -40°C ↔ +85°C; budget types drift significantly beyond ambient range leading to false triggering events. </dd> <dt style="font-weight:bold;"> <strong> Traceability & Batch Records </strong> </dt> <dd> You get serial numbers stamped visibly alongside date codes permitting forensic analysis retroactively. Cheap imports carry batch stickers easily peeled/reprinted arbitrarily. </dd> </dl> Our team conducted accelerated life-cycle simulations comparing both sides head-to-head under simulated farmyard environmental stresses: cyclic heating-cooling ramps mimicking diurnal swings, airborne fertilizer aerosols pumped intermittently, condensation induced nightly dew formation. Result? Knockoff units showed measurable degradation after 120,000 rotations. Original brand remained flawless past 2M+. We ordered replacements en masse. Financial math became obvious fast: | Metric | Budget Clone | Certified Brand | |-|-|-| | Initial Cost | $2.10/unit | $6.40/unit | | Avg Failure Rate (first month) | 42% | 0.3% | | Average Repair Time | 4 hr/event | Negligible (<1 min swap-out) | | Estimated Annual Replacement Qty | 180 pcs/year | 5 pcs/year | | Total TCO Over Three Years | ≈$14,000 | ≈$2,500 | Long story short: Buying cheap isn’t frugalit’s reckless investment management disguised as savings. There comes a tipping point where quality stops being optional and transforms into nonnegotiable infrastructure requirement. Choose wisely. Your future selfwho inherits broken machinery late Friday nightwill thank you profoundly.
