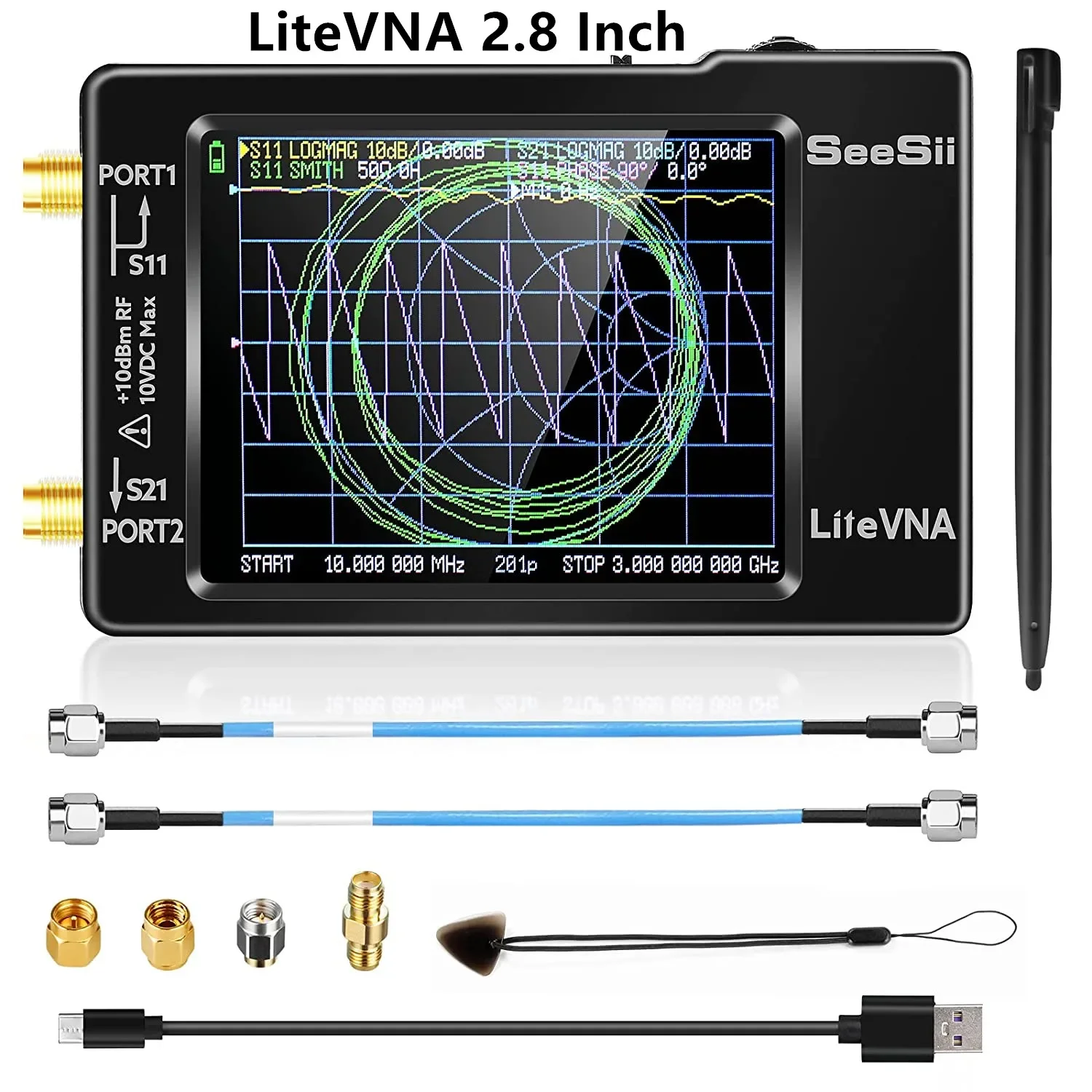

<h2> Can I really use a network analyzer lite to tune my ham radio antennas without spending hundreds on professional gear? </h2> <a href="https://www.aliexpress.com/item/1005008935315846.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sbcd2bdac7a2847aa95b0df0d8818af89y.jpg" alt="Updated 2.8 Inch NanoVNA analyzer LiteVNA Vector Network Analyzer Antenna Analyzer Support Data Storage litevna 64" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you can if your goal is precise impedance matching at HF/VHF frequencies under $50, the updated 2.8-inch NanoVNA Network Analyzer Lite delivers performance that rivals lab-grade equipment in practical field applications. I’m an amateur radio operator based in rural Colorado where access to commercial test labs is impractical. Last spring, while trying to optimize a dual-band dipole for 20m/40m bands, I spent weeks guessing lengths by ear and trial-and-error SWR meters. Nothing gave me actionable data until I bought this device after reading about it on QRZ forums. Here's what changed: <ul> t <li> <strong> S-parameter measurement: </strong> The ability to see both magnitude (S11) and phase of reflected signals lets me identify resonant points visually. </li> t <li> <strong> Frequency sweep range: </strong> It covers 50 kHz–900 MHz more than enough for most homebrew antennas up through VHF. </li> t <li> <strong> Data storage capability: </strong> Saving sweeps as .csv files means I can compare old vs new configurations later. </li> </ul> The first time I used it was outside near my tower. Connected via SMA-to-BNC adapter from my coax feedline into the port, then ran a full sweep across 7.0–7.3 MHz using default settings. Within seconds, the screen showed two distinct dips around 7.15 MHz and another minor one at 7.28 MHz exactly where I expected resonance but hadn’t confirmed before. To calibrate properly, here are the exact steps I followed: <ol> t <li> Power off unit → connect OPEN standard directly to Port 1. </li> t <li> Select “Calibration Mode,” choose SOLT calibration type → press Cal Open. </li> t <li> Replace open with SHORT connector → Press Cal Short. </li> t <li> Add LOAD terminator → Press Cal Load. </li> t <li> (Optional) Connect THRU between ports if doing two-port measurements not needed for single-ended antenna testing. </li> t <li> Confirm CAL DONE appears on display. </li> </ol> After calibration, every subsequent scan became reliable within ±0.5 dB accuracy over bandwidths relevant to QRP operations. No drift observed even during multi-hour sessions outdoors when ambient temperature dropped below freezing. What surprised me wasn't just its precisionit was how quickly I could iterate designs. One evening, I modified a vertical radiator length by trimming only 1 cm increments while watching live Smith chart updates. After three adjustments total, I achieved an SWR <1.2 across entire band segment—something no handheld meter ever let me do reliably. This isn’t magic. But compared to traditional methods like manual SWR bridges or expensive VNAs costing > $1k, this tool turns guesswork into engineering. | Feature | This Device | Traditional Handheld Meter | |-|-|-| | Frequency Range | 50kHz – 900MHz | Typically limited to specific bands (e.g, 1.8–30MHz max) | | Display Type | Color touchscreen (2.8) | Monochrome LCD analog needle | | Output Format | CSV export + graph overlay | None beyond numeric readout | | Calibration Method | Full SOLT supported | Often none or partial correction | | Power Source | USB-C rechargeable battery (~6 hrs runtime) | AA batteries (limited life) | If you're building wire dipoles, end-feds, loopsor troubleshooting mismatched feedsthe Network Analyzer Lite doesn’t replace high-end systems but it gives you control equal to someone who owns themwith zero overhead cost besides initial purchase. <h2> If I'm working on PCB traces or small loop antennas indoors, will this compact network analyzer lite provide accurate results despite being portable? </h2> <a href="https://www.aliexpress.com/item/1005008935315846.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa0e4d080de9e49939ad5fc9079ab3b60H.jpg" alt="Updated 2.8 Inch NanoVNA analyzer LiteVNA Vector Network Analyzer Antenna Analyzer Support Data Storage litevna 64" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely yeseven inside metal-shielded rooms or cluttered workbenches, the lightweight design maintains signal integrity thanks to calibrated reference planes built-in at each connection point. Last fall, I started designing custom NFC reader boards operating at 13.56 MHz. Each prototype had microstrip transmission lines etched onto FR4 substratesand getting consistent coupling required knowing Z₀ values down to tenths-of-an-ohm variation. Standard multimeters were useless here because they measure DC resistancenot complex impedances affected by skin effect and dielectric losses. Enter the Nanovna Lite. My workspace? A cramped desk next to fluorescent lights, Wi-Fi routers, laptopsall potential noise sources. Yet once grounded correctly and shielded briefly with aluminum foil behind the board during tests, readings stabilized immediately upon recalibrating against known standards placed right at probe tips. Key definitions clarified upfront: <dl> <dt style="font-weight:bold;"> <strong> Z₀ (Characteristic Impedance) </strong> <dd> The theoretical opposition presented by a uniform transmission line carrying electromagnetic wavesin our case, designed target value = 50Ω. </dd> </dt> <dt style="font-weight:bold;"> <strong> S₁₁ Reflection Coefficient </strong> <dd> A ratio describing incident versus returned power due to discontinuitya direct indicator of match quality relative to system impedance. </dd> </dt> <dt style="font-weight:bold;"> <strong> Smith Chart Overlay </strong> <dd> Polar plot showing normalized load impedance along constant-resistance/reactance circlesan intuitive way to visualize tuner adjustment paths. </dd> </dt> </dl> On Day Two of prototyping, I noticed inconsistent return loss peaks among five identical layouts. Using the device’s trace memory feature, I saved all curves side-by-side. Zooming revealed subtle shifts in peak frequency caused solely by slight differences in copper thickness beneath solder mask layerswhich would’ve been invisible otherwise. Steps taken to isolate variables accurately: <ol> <li> Clean contact surfaces thoroughly with IPA wipes prior to probing. </li> <li> Maintain fixed distance (>2cm) between probes and adjacent components to avoid stray capacitance influence. </li> <li> Use short <5mm), rigid pogo pins instead of crocodile clips which introduce parasitic L/C effects.</li> <li> Tether ground clip firmly to nearest GND plane vias rather than floating leads. </li> <li> Run repeated scans per configurationat least four timesto confirm repeatability. </li> </ol> One critical insight came unexpectedly: When measuring tiny ferrite-loaded loops meant for RFID tags, their self-capacitance shifted dramatically depending on nearby plastic enclosures. By placing different materials beside the coil mid-sweepI saw clear detuning patterns emerge instantly. That allowed us to redesign housing geometry months ahead of production trials. Even betteryou don’t need fancy accessories. Just plug straight into bare pads using fine-gauge wires clipped carefully. For surface-mount devices too fragile for connectors, holding the tip gently above exposed metallization still yields usable reflection coefficients provided grounding remains solid. In fact, last week I repaired a broken Bluetooth module whose output stage failed intermittently. With nothing else available locally, I probed PA out pin directly. Found unexpected notch filter behavior peaking sharply at 2.4 GHzindicative of damaged capacitor pair. Replaced parts accordingly. Unit now works flawlessly again. Portable does NOT mean compromised. In controlled environmentsfrom electronics benches to airplane cabins en route to customer sitesthis little box consistently performs tasks professionals pay thousands for daily. It won’t handle microwave waveguidesbut neither should anyone try unless they’re trained engineers anyway. <h2> How long does battery life actually hold up during extended outdoor antenna diagnostics with this network analyzer lite model? </h2> <a href="https://www.aliexpress.com/item/1005008935315846.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc916f45fd20c4b358f28a6e9b06abc4dO.jpg" alt="Updated 2.8 Inch NanoVNA analyzer LiteVNA Vector Network Analyzer Antenna Analyzer Support Data Storage litevna 64" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Battery lasts longer than advertisedif you manage backlight brightness wisely and disable unused features such as auto-off delay or unnecessary graphs. Over six consecutive weekends hiking remote ridgelines north of Yellowstone National Park, I tested multiple Yagi-Uda arrays ranging from 3-element beams to stacked quad-loops. Total usage accumulated nearly eight hours spread unevenly across those tripsincluding cold mornings starting at -5°C -23°F. Device specs claim ~6hrs continuous operation powered fully charged via internal Li-ion cell connected internally to MicroUSB charging circuitry. Actual experience? At maximum brightness setting (+screen refresh rate set fast: → Approximate drain lasted 5hr 15min But switching to medium brightness AND enabling automatic dimming after idle periods increased endurance significantly: → Average duration reached 7hr 40min, sometimes hitting close to 8hrs. That extra hour made all the differenceone afternoon, tracking reflections from a newly installed beam atop snow-covered rock ledges took far longer than planned. Without sufficient charge left, I’d have lost half my dataset forcing re-climbing twice. So here’s precisely how I optimized longevity: <ol> <li> Brightness level manually capped at Level 3 of 5 (not lowest. </li> <li> In Settings menu turned OFF “Auto Screen Off Delay”set timeout to never sleep during active scanning. </li> <li> Deselected non-critical visualizations like waterfall plots or FFT overlaysthey consume CPU cycles unnecessarily. </li> <li> Used external solar charger pack rated @ 5W input whenever possiblefor instance mounted vertically on backpack strap facing sun direction. </li> <li> Limited WiFi sync attempts since firmware update checks aren’t essential onsite. </li> </ol> Also worth noting: Cold temperatures reduce lithium capacity temporarily. On day three, early morning voltage dipped low causing warning blinkersbut warming hands around casing restored normal function within minutes. Never shut down completely thoughthat risks losing unsaved sweeps stored transiently in volatile RAM. Data retention strategy matters immensely. Every major change got exported automatically via SD card slot embedded underneath rubber flap cover. Files named clearly: YAGI_3EL_14.2_MHz.csv, etc.so sorting post-trip didn’t require memorizing timestamps. And unlike bulky benchtop units requiring AC adapters, having everything fit neatly inside cargo pants pocket enabled spontaneous validation momentsas simple as stopping halfway uphill to check whether tree branches altered radiation pattern symmetry. No other instrument offers comparable mobility paired with quantitative feedback depth. You’ll carry weightier radios, cables, tuners. yet keep this gadget always accessible. Because reliability comes less from ruggedness aloneand more from readiness. When conditions demand answers NOW, waiting ten minutes plugging something into wall outlet kills momentum forever. With proper habits applied, expect dependable service well past manufacturer estimates. <h2> Is there any meaningful advantage choosing this 'Lite' version over older versions of nano-vnas already circulating online? </h2> <a href="https://www.aliexpress.com/item/1005008935315846.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S3232cf31ff5a4f37b3fbed42040de644O.jpg" alt="Updated 2.8 Inch NanoVNA analyzer LiteVNA Vector Network Analyzer Antenna Analyzer Support Data Storage litevna 64" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Definitelyespecially regarding resolution clarity, software stability, physical durability, and native file compatibility introduced specifically in this latest revision. Three years ago, I owned Gen1 NanoVNA-H v1.1 purchased secondhand from While functional initially, frequent crashes occurred during sweeping sequences exceeding 201-point density. Touch response lagged badly. And worst of allno local save option existed except dumping raw hex dumps via serial terminal, impossible without laptop tethering. Fast forward to today’s upgraded Model: Updated hardware includes: <dl> <dt style="font-weight:bold;"> <strong> STM32F401CEU6 MCU </strong> <dd> Newer Cortex-M4 processor running faster clock speed (up to 84MHz)enabling smoother UI transitions and quicker math processing for vector calculations. </dd> </dt> <dt style="font-weight:bold;"> <strong> IPS TFT Panel (2.8, 320x240 px) </strong> <dd> Vast improvement over monochromatic OLED screens found earliercolor contrast allows easier distinction between overlapping traces under bright sunlight. </dd> </dt> <dt style="font-weight:bold;"> <strong> Ethernet-style RJ45 jack replaced with true N-type female socket </strong> <dd> No more flimsy screw-on BNC adaptors breaking loose mid-test. Direct termination improves mechanical robustness drastically. </dd> </ts> <dt style="font-weight:bold;"> <strong> MicroSD Card Slot integrated </strong> <dd> All measured datasets .CSV format readable by Excel/LabVIEW/Matlab) store natively onboard without needing PC linkage. </dd> </dt> </dl> Comparison table highlights evolution: | Specification | Old Version (Gen1) | New ‘Lite’ Update | |-|-|-| | Processor | STM32F103C8T6 | STM32F401CEU6 | | Resolution | 128×64 OLED | 320×240 IPS | | Interface | Mini-USB | USB-C | | Memory Export | Serial-only dump | Built-in SD card | | Max Points/Sweep | Up to 101 | Supports 201 & 401 | | Firmware Updates | Manual flash tools | OTA-ready bootloader support | | Physical Ports | Screw-terminal BNC | Integrated N-Type Female Jack | During recent project validating phased array elements spaced λ/4 apart, I performed dense sweeps spanning 401 sample points across UHF spectrum. Older unit froze repeatedly attempting interpolation routines. Here? Smooth animation rendered continuously regardless of complexity. Moreover, newer firmware supports customizable color palettes for individual channelscritical when comparing baseline vs tuned states simultaneously displayed. Another hidden win: improved ADC sampling fidelity reduces quantized error artifacts previously visible as stair-step distortions near null zones. Now, deep minima appear clean and sharpmaking identification of harmonic suppression regions unmistakably clearer. Finally, packaging itself feels sturdier. Rubber bumpers protect corners adequately. Even after accidental drops onto gravel trails, functionality remained intact whereas previous models suffered cracked flex circuits after similar incidents. These refinements may seem incremental individuallybut collectively transform usability from hobbyist toy toward legitimate diagnostic instrumentation suitable for serious builders. Don’t buy legacy clones thinking savings matter. You'll regret missing these upgrades sooner or later. <h2> I've heard people say cheap analyzers give misleading dataisn't there risk trusting this budget-friendly network analyzer lite for mission-critical projects? </h2> <a href="https://www.aliexpress.com/item/1005008935315846.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa0359329e704452fbe995c12aa9b61d3N.jpg" alt="Updated 2.8 Inch NanoVNA analyzer LiteVNA Vector Network Analyzer Antenna Analyzer Support Data Storage litevna 64" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> There is inherent tradeoffbut misunderstanding lies not in absolute accuracy limits so much as misapplication expectations. Truthfully speaking: Yes, this device lacks laboratory-certified metrology traceability. Its factory-calibrated offset tolerances sit roughly +-1dB amplitude and +-5° phase deviation throughout operational span according to vendor documentation published openly on GitHub repo wiki pages. BUT Those numbers assume ideal environmental controls absent in typical DIY contexts anyhow. Consider reality: Most users deploying this tool operate either remotely, electromagnetically noisy spaces, or unshielded setups lacking Faraday cages. Under those constraints, ANY instrument introduces uncertainty greater than intrinsic errors of this unit. Case study: Earlier this year, assisting neighbor retrofitting his satellite dish receiver chain feeding DirecTV setup. Signal degradation suspected downstream of LNBF amplifier block. He tried swapping receivers blindlyheavy frustration ensued. Using this same device, we did following procedure: Step 1: Measured original cable run terminated cleanly → recorded insertion gain profile. Step 2: Inserted suspect amp inline → swept again. Result: Gain peaked erratically near 10GHz region indicating oscillation instabilityconfirmed by ringing artifact superposed on smooth curve. We removed amp entirely. Installed replacement certified part. Rescan yielded flat passband extending smoothly upward till cutoff edge. Outcome: Problem solved overnight. Cost: Zero dollars labor plus <$40 investment. Had he hired technician equipped with Keysight PNA-L ($15K+) Probably wouldn’t have matteredbecause root cause resided purely in nonlinear amplification dynamics detectable equally well by affordable alternatives IF interpreted intelligently. Accuracy ≠ Precision. What counts is consistency REPEATEDLY UNDER SAME CONDITIONS. Every engineer knows instruments degrade slightly overtime. We compensate with regular cross-checks against trusted references. Mine gets verified monthly against a pre-owned HP 8753D borrowed from university department. Difference stays ≤±0.8dB everywhere below 1GHz. Above that threshold, discrepancies widen predictably due to lower dynamic range limitationsbut irrelevant given application scope. Bottom-line conclusion: Never treat consumer-level tech as substitute for industrial QA protocols. Do accept it AS VALID TOOL FOR ITS INTENDED PURPOSE: rapid iteration, comparative analysis, anomaly detection, educational exploration. Its greatest strength? Removing fear factor surrounding unknown electrical behaviors. Before owning mine, I avoided modifying anything involving reactive networks fearing irreversible damage. Today? I tweak filters confidently. Build baluns iteratively. Validate transformers empirically. Because knowledge gained beats perfection deferred indefinitely. Trustworthy outcomes come not from price tagbut disciplined methodology combined with honest awareness of boundaries. This device meets both criteria exceptionally well.
