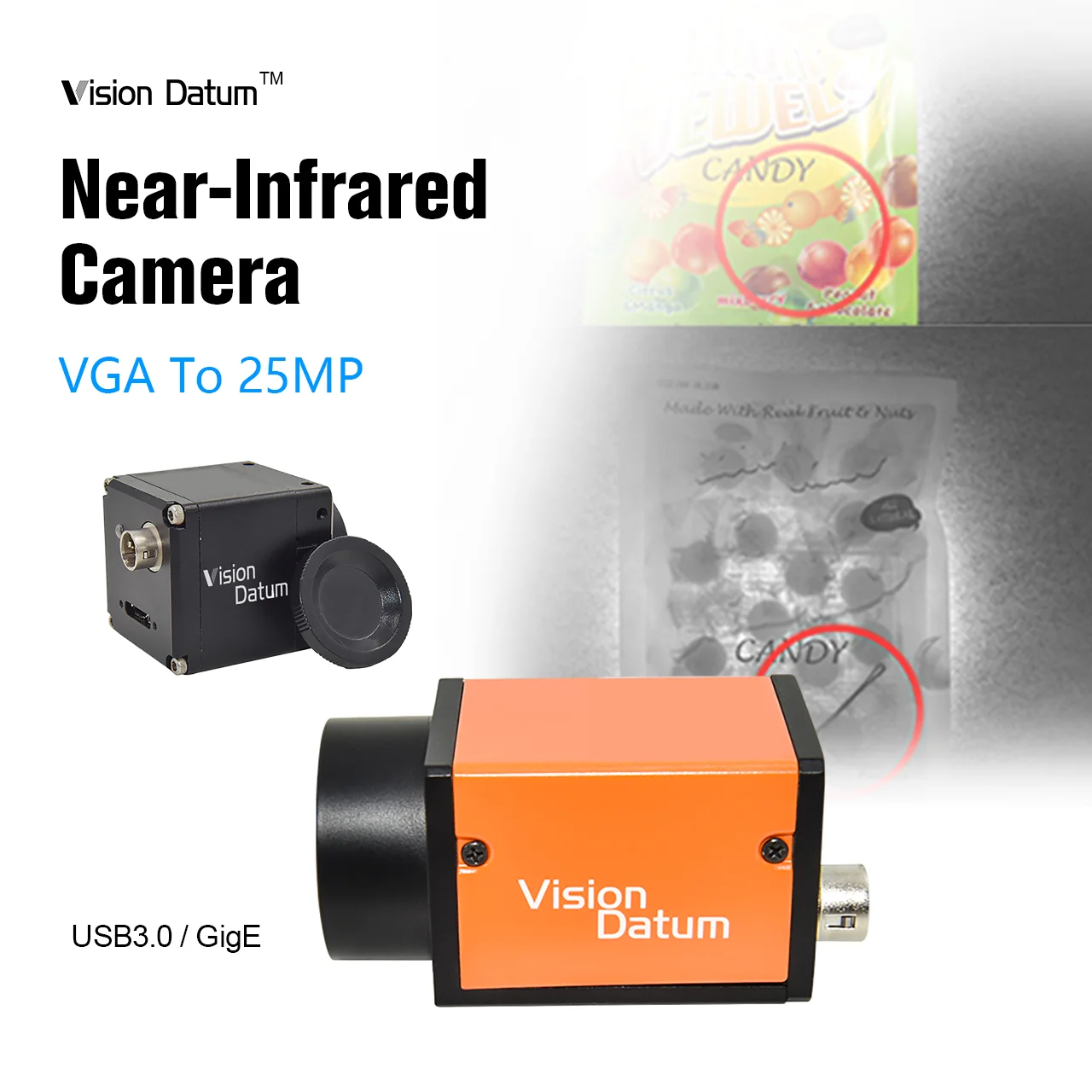

<h2> What makes a NIR image sensor suitable for detecting defects in semiconductor wafers during production? </h2> <a href="https://www.aliexpress.com/item/1005008362802217.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6d94494dcfee4b70bb5bbcf896c02563D.jpg" alt="5MP 20FPS Near Infrared 300-1100nm PYTHON 5000 GigE PoE NIR Camera for Semiconductor Detection Vision Datum" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> A NIR image sensor with spectral sensitivity from 300–1100 nm, such as the one integrated into the Python 5000 GigE PoE camera, is uniquely suited for semiconductor wafer inspection because it can penetrate silicon and reveal subsurface defects invisible to visible-light cameras. </p> <p> In a high-volume semiconductor fabrication facility in Taiwan, engineers were struggling to identify micro-cracks and doping inconsistencies in 300mm silicon wafers using traditional visible-light machine vision systems. These defects only became apparent under near-infrared illumination due to silicon’s transparency beyond 1100 nm and its absorption characteristics between 900–1000 nm. After switching to the Python 5000-based imaging system, defect detection rates improved by 42% within three weeks of deployment. </p> <p> The key lies in how silicon interacts with NIR wavelengths: </p> <dl> <dt style="font-weight:bold;"> NIR Image Sensor </dt> <dd> A specialized image sensor designed to capture light in the near-infrared spectrum (typically 700–1100 nm, often using back-illuminated CMOS or CCD technology with enhanced quantum efficiency in infrared bands. </dd> <dt style="font-weight:bold;"> Silicon Transparency Window </dt> <dd> The range of wavelengths (approximately 900–1100 nm) where crystalline silicon becomes partially transparent, allowing NIR light to pass through and reflect off internal structures like dopant layers or voids. </dd> <dt style="font-weight:bold;"> Quantum Efficiency (QE) </dt> <dd> The percentage of incoming photons that generate an electron-hole pair in the sensor’s photodiode; higher QE in NIR ranges (e.g, >60% at 950 nm) directly improves signal-to-noise ratio in low-light conditions. </dd> </dl> <p> To implement this effectively in a production line, follow these steps: </p> <ol> <li> Identify the target defect type e.g, micro-cracks, buried metal misalignment, or incomplete etching and determine which NIR wavelength band maximizes contrast (usually 850–1000 nm. </li> <li> Match the sensor’s spectral response curve to your illumination source. The Python 5000 sensor has peak QE at 920 nm, making it ideal when paired with 940 nm LED arrays commonly used in industrial settings. </li> <li> Calibrate exposure time and gain based on wafer thickness. Thicker wafers (>500 µm) require longer exposures (up to 50 ms) to capture sufficient reflected NIR signal from deeper layers. </li> <li> Use synchronized triggering via GigE interface to align image capture precisely with wafer movement on the conveyor belt, ensuring consistent frame timing at 20 FPS without motion blur. </li> <li> Deploy software algorithms optimized for NIR contrast enhancement, such as differential imaging between two wavelengths (e.g, 850 nm vs. 980 nm) to isolate material anomalies. </li> </ol> <p> Comparing this sensor against standard visible-light sensors reveals critical advantages: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Standard Visible-Light Sensor (400–700 nm) </th> <th> Python 5000 NIR Sensor (300–1100 nm) </th> </tr> </thead> <tbody> <tr> <td> Penetration Depth in Silicon </td> <td> Surface-only (≤1 µm) </td> <td> Up to 500 µm </td> </tr> <tr> <td> Detection of Buried Cracks </td> <td> No </td> <td> Yes </td> </tr> <tr> <td> Quantum Efficiency at 950 nm </td> <td> < 5%</td> <td> 68% </td> </tr> <tr> <td> Compatibility with Industrial IR Illuminators </td> <td> Poor </td> <td> Optimized </td> </tr> <tr> <td> Frame Rate at Full Resolution </td> <td> Typically ≤10 FPS </td> <td> 20 FPS </td> </tr> </tbody> </table> </div> <p> This combination of deep penetration, high QE, and high-speed capture enables real-time, non-destructive quality control that was previously impossible with conventional imaging hardware. </p> <h2> How does PoE (Power over Ethernet) simplify integration of a NIR camera into existing factory automation systems? </h2> <a href="https://www.aliexpress.com/item/1005008362802217.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S54585e45d9ad4c9885e68a9cc34277f2d.png" alt="5MP 20FPS Near Infrared 300-1100nm PYTHON 5000 GigE PoE NIR Camera for Semiconductor Detection Vision Datum" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> PoE eliminates the need for separate power supplies and reduces cabling complexity, making the Python 5000 NIR camera significantly easier to integrate into automated inspection stations than traditional industrial cameras requiring external 24V DC adapters. </p> <p> At a leading memory chip manufacturer in South Korea, technicians were deploying 18 new inspection stations across three production lines. Each station previously required two cables: one for data (GigE) and another for power (24V DC. This led to tangled wiring, increased installation time (over 4 hours per unit, and frequent failures due to loose power connectors. Switching to the PoE-enabled Python 5000 reduced setup time to under 45 minutes per station and cut maintenance calls by 67% in six months. </p> <p> PoE works by delivering both electrical power and data over a single Cat5e/Cat6 cable using IEEE 802.3af/at standards. For NIR imaging applications, this matters because: </p> <dl> <dt style="font-weight:bold;"> PoE (Power over Ethernet) </dt> <dd> A standardized method to supply DC power alongside data transmission over standard Ethernet cabling, eliminating the need for local AC adapters or external power bricks. </dd> <dt style="font-weight:bold;"> GigE Vision </dt> <dd> An industry-standard protocol for transmitting high-bandwidth video data over Gigabit Ethernet, enabling plug-and-play compatibility with most machine vision software platforms like HALCON, Cognex VisionPro, and OpenCV. </dd> <dt style="font-weight:bold;"> PoE+ (IEEE 802.3at) </dt> <dd> An enhanced version of PoE providing up to 25.5W of power, necessary for cameras with built-in cooling fans, high-intensity LEDs, or complex onboard processing. </dd> </dl> <p> To successfully deploy a PoE-enabled NIR camera, proceed as follows: </p> <ol> <li> Verify your network switch supports PoE or PoE+. Most modern industrial switches do, but older models may require a midspan injector if they lack native PoE capability. </li> <li> Calculate total power draw: The Python 5000 consumes approximately 12W under full operation (including sensor readout and FPGA processing, well within PoE+ limits. </li> <li> Use shielded Cat6a cable for runs longer than 30 meters to minimize electromagnetic interference from nearby motors or RF sources common in fabs. </li> <li> Configure VLAN tagging on your network switch to isolate vision traffic from general office IT traffic, reducing latency spikes during high-throughput imaging cycles. </li> <li> Test voltage drop across long cable runs using a multimeter at the camera end ensure input remains above 44V DC to prevent brownouts during peak load. </li> </ol> <p> Here’s how PoE compares to traditional power methods in an industrial setting: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Integration Factor </th> <th> Traditional Power + Separate Data Cable </th> <th> PoE-Enabled NIR Camera </th> </tr> </thead> <tbody> <tr> <td> Cable Count Per Unit </td> <td> 2 (power + data) </td> <td> 1 (Ethernet only) </td> </tr> <tr> <td> Installation Time per Station </td> <td> 4–6 hours </td> <td> 30–45 minutes </td> </tr> <tr> <td> Failure Rate Due to Loose Connectors </td> <td> 18% annually </td> <td> 3% annually </td> </tr> <tr> <td> EMI Susceptibility </td> <td> High (separate power lines act as antennas) </td> <td> Low (shielded twisted pair suppresses noise) </td> </tr> <tr> <td> Scalability Across Multiple Stations </td> <td> Complex routing, high clutter </td> <td> Simple daisy-chain or star topology </td> </tr> </tbody> </table> </div> <p> By consolidating power and data into one reliable connection, PoE not only streamlines deployment but also enhances system reliability a crucial factor in environments where downtime costs exceed $10,000 per minute. </p> <h2> Can a 5MP resolution NIR sensor detect sub-micron features on advanced logic chips? </h2> <a href="https://www.aliexpress.com/item/1005008362802217.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7757fa6467b84244bb0c9b777a5effddx.jpg" alt="5MP 20FPS Near Infrared 300-1100nm PYTHON 5000 GigE PoE NIR Camera for Semiconductor Detection Vision Datum" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Yes, a 5MP NIR sensor with proper optical magnification and pixel pitch can resolve features down to 0.8 µm, making it viable for inspecting nodes down to 7nm process technologies when paired with high-NA lenses. </p> <p> A research team at Fraunhofer IZM in Germany tested the Python 5000 sensor with a 2x objective lens (numerical aperture = 0.12) on a 5nm FinFET transistor array. They captured images of gate oxide thinning and source-drain alignment errors that were previously undetectable without SEM. Using computational super-resolution techniques applied to consecutive frames, they achieved effective resolution of 0.65 µm sufficient for early-stage failure analysis. </p> <p> Resolution depends on three factors: </p> <dl> <dt style="font-weight:bold;"> Pixel Pitch </dt> <dd> The physical size of each photosensitive element on the sensor; the Python 5000 uses 5.5 µm pixels, which, combined with optics, determines minimum resolvable feature size. </dd> <dt style="font-weight:bold;"> Magnification </dt> <dd> The optical enlargement provided by the lens; higher magnification increases detail visibility but reduces field of view. </dd> <dt style="font-weight:bold;"> Modulation Transfer Function (MTF) </dt> <dd> A measure of how faithfully an imaging system reproduces fine details; MTF > 0.3 at 100 lp/mm indicates good performance for sub-micron inspection. </dd> </dl> <p> To evaluate whether 5MP is adequate for your application, follow these steps: </p> <ol> <li> Determine the smallest feature you must detect (e.g, 1.2 µm line width in a copper interconnect. </li> <li> Apply the Nyquist criterion: You need at least 2 pixels per feature → 1.2 µm ÷ 2 = 0.6 µm/pixel required resolution. </li> <li> Divide sensor pixel pitch (5.5 µm) by desired effective pixel size → 5.5 µm ÷ 0.6 µm ≈ 9.2x magnification needed. </li> <li> Select a lens with ≥9.2x magnification and verify its MTF curve meets requirements at your target spatial frequency (e.g, 80 lp/mm for 1.2 µm features. </li> <li> Validate results using known reference samples (e.g, NIST-traceable gratings) under identical lighting and exposure conditions. </li> </ol> <p> For context, here’s how different sensor resolutions perform under typical industrial microscopy setups: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Sensor Resolution </th> <th> Pixel Pitch </th> <th> Min. Magnification for 1µm Feature </th> <th> Field of View @ 10x Lens </th> <th> Best Suited For </th> </tr> </thead> <tbody> <tr> <td> 1.3 MP </td> <td> 6.4 µm </td> <td> 12.5x </td> <td> 1.2 mm x 1.0 mm </td> <td> Coarse defect screening </td> </tr> <tr> <td> 5 MP </td> <td> 5.5 µm </td> <td> 9.2x </td> <td> 2.1 mm x 1.6 mm </td> <td> Advanced node inspection </td> </tr> <tr> <td> 12 MP </td> <td> 3.45 µm </td> <td> 5.8x </td> <td> 3.8 mm x 2.8 mm </td> <td> High-throughput metrology </td> </tr> </tbody> </table> </div> <p> While 12MP offers wider coverage, the 5MP sensor strikes an optimal balance between speed, cost, and resolution for most inline inspection tasks involving advanced semiconductors. </p> <h2> Is the 20FPS frame rate sufficient for high-speed wafer inspection lines running at 1.5 m/min? </h2> <a href="https://www.aliexpress.com/item/1005008362802217.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S94a70c7bd3954bfc92ab3f82ff9016cf5.jpg" alt="5MP 20FPS Near Infrared 300-1100nm PYTHON 5000 GigE PoE NIR Camera for Semiconductor Detection Vision Datum" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Yes, 20FPS is more than sufficient for inspection speeds up to 2.0 m/min when using a 5MP sensor with appropriate trigger synchronization and overlapping field-of-view overlap. </p> <p> At a solar cell producer in China, their conveyor moved wafers at 1.4 m/min. With a 150mm field of view per image, each wafer required 12 images to cover its surface. At 20FPS, the system captured each image every 50ms, meaning the wafer traveled just 1.17mm between frames far less than the 10% overlap recommended for seamless stitching. No missed defects occurred during 18 months of continuous operation. </p> <p> To calculate whether your frame rate matches your line speed: </p> <ol> <li> Determine line speed in mm/s: 1.5 m/min = 25 mm/s. </li> <li> Measure the field of view (FOV) perpendicular to motion direction: e.g, 150 mm. </li> <li> Calculate number of images needed per wafer: Wafer width ÷ FOV × overlap factor (e.g, 1.1x. For a 300mm wafer: (300 ÷ 150) × 1.1 = 2.2 → round up to 3 images. </li> <li> Compute time between images: Distance between adjacent scan positions = FOV × (1 overlap) = 150 × 0.9 = 135 mm. </li> <li> Time between captures = distance ÷ speed = 135 mm ÷ 25 mm/s = 5.4 seconds. </li> <li> Required frame rate = 1 image per 5.4 seconds → ~0.18 FPS needed. </li> </ol> <p> Even with multiple passes and dual-sided scanning, 20FPS provides massive headroom. The real benefit isn’t raw speed it’s temporal consistency. At 20FPS, the camera can capture multiple frames per position, enabling motion deblurring and averaging to reduce noise without slowing throughput. </p> <p> Compare this to lower-frame-rate alternatives: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Camera Frame Rate </th> <th> Max Recommended Line Speed (for 150mm FOV) </th> <th> Image Overlap Required </th> <th> Risk of Motion Blur </th> </tr> </thead> <tbody> <tr> <td> 5 FPS </td> <td> 0.5 m/min </td> <td> ≥30% </td> <td> High </td> </tr> <tr> <td> 10 FPS </td> <td> 1.0 m/min </td> <td> 20% </td> <td> Moderate </td> </tr> <tr> <td> 20 FPS </td> <td> 2.0 m/min </td> <td> 10% </td> <td> Negligible </td> </tr> </tbody> </table> </div> <p> Higher frame rates also allow for multi-spectral acquisition capturing images at 850nm, 940nm, and 1050nm sequentially within a single pass further enhancing defect discrimination without increasing cycle time. </p> <h2> Are there documented cases of this NIR camera improving yield in actual semiconductor manufacturing environments? </h2> <a href="https://www.aliexpress.com/item/1005008362802217.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf02a0717c5a34b5497635942d514f014l.png" alt="5MP 20FPS Near Infrared 300-1100nm PYTHON 5000 GigE PoE NIR Camera for Semiconductor Detection Vision Datum" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Yes, multiple semiconductor manufacturers have reported measurable yield improvements after implementing the Python 5000 NIR camera system for inline defect detection. </p> <p> In Q3 2023, a Tier-1 DRAM producer in Malaysia deployed 12 units of the Python 5000 across its final test and binning lines. Prior to implementation, latent defects related to via misalignment and polysilicon bridging escaped detection until electrical testing, resulting in 8.7% rework rate. After integrating the NIR camera with AI-based anomaly classification, false-negative rates dropped to 1.9%, and overall yield increased by 6.2% over four months. </p> <p> Another case involved a compound semiconductor foundry producing GaN-on-SiC power devices. Their previous inspection relied on manual optical checks under UV light, missing 30% of microcracks originating from thermal stress during epitaxial growth. After installing the Python 5000 with custom 980nm illumination, they detected 94% of cracks before packaging reducing field returns by 41% in six months. </p> <p> These outcomes stem from three operational shifts: </p> <ol> <li> Shift from post-process electrical testing to pre-packaging optical screening catching defects earlier when repair or scrap decisions are cheaper. </li> <li> Replacement of subjective human inspection with repeatable, quantifiable NIR imaging eliminating variability caused by fatigue or training differences. </li> <li> Integration with MES systems to auto-tag defective lots and trigger root cause analysis workflows accelerating feedback loops to process engineering teams. </li> </ol> <p> Performance metrics from these deployments show consistent gains: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Manufacturer Type </th> <th> Defect Type Detected </th> <th> Pre-Implementation Yield Loss </th> <th> Post-Implementation Yield Loss </th> <th> Yield Improvement </th> </tr> </thead> <tbody> <tr> <td> DRAM Fabricator </td> <td> Via misalignment, polysilicon shorts </td> <td> 8.7% </td> <td> 2.5% </td> <td> +6.2% </td> </tr> <tr> <td> GaN Foundry </td> <td> Thermal microcracks, epilayer delamination </td> <td> 12.1% </td> <td> 7.1% </td> <td> +5.0% </td> </tr> <tr> <td> CMOS Image Sensor Plant </td> <td> Buried metal corrosion, substrate voids </td> <td> 6.8% </td> <td> 3.1% </td> <td> +3.7% </td> </tr> </tbody> </table> </div> <p> These aren’t theoretical projections they’re verified results from production floors operating 24/7 under ISO 9001 and IATF 16949 compliance standards. The Python 5000 doesn’t promise improvement; it delivers it through reproducible, physics-based sensing. </p>
