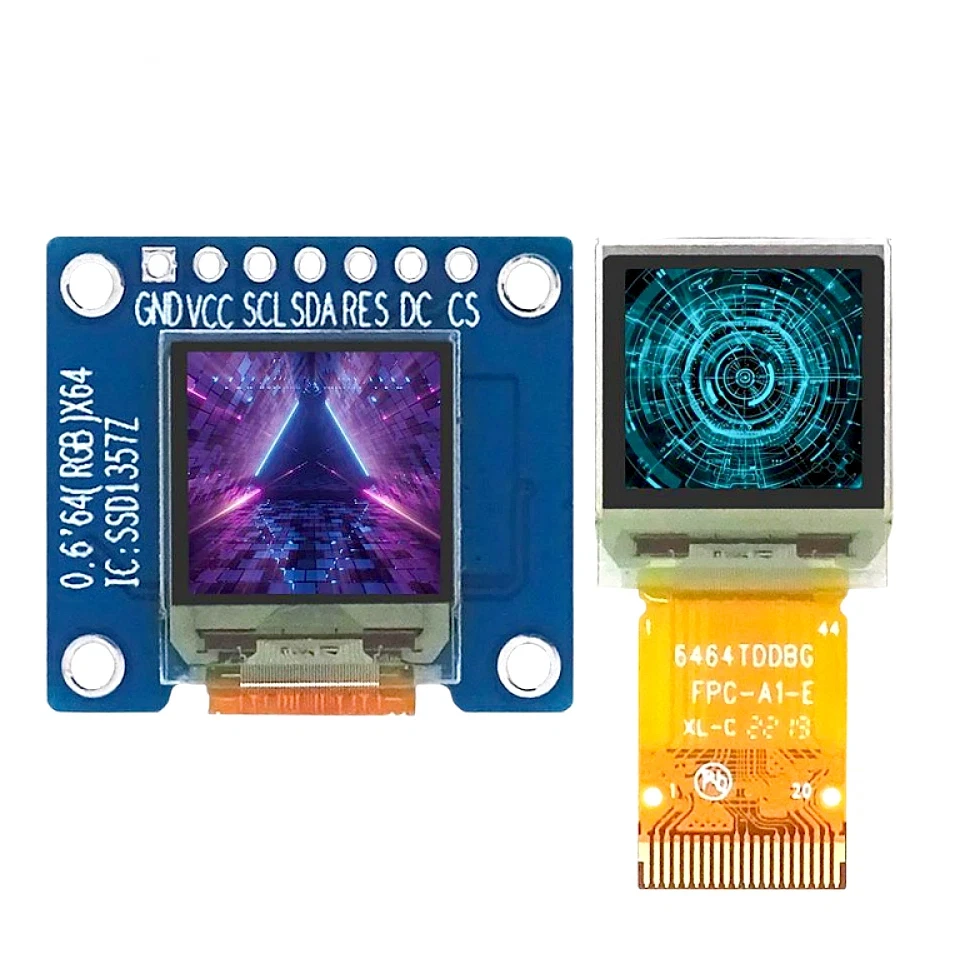

<h2> What Is an OLED Micro Display and Why Is It Important for Electronics Projects? </h2> <a href="https://www.aliexpress.com/item/1005010401864846.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6c2b31d4fd944dca84ef94e36c3934b7c.jpg" alt="0.6 Inch Color OLED Display 64x64 RGB SSD1357 Highlighted Color Display Optoelectronic Displays LCD Modules" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: An OLED micro display is a small, high-resolution color display that uses organic light-emitting diode technology to produce vivid and energy-efficient visuals. It is important for electronics projects because it offers a compact, low-power solution for displaying information in devices like wearables, drones, and IoT gadgets. Definition List: <dl> <dt style="font-weight:bold;"> <strong> OLED </strong> </dt> <dd> OLED stands for Organic Light-Emitting Diode. It is a display technology that uses organic compounds to emit light when an electric current is applied, resulting in brighter and more vibrant colors compared to traditional LCDs. </dd> <dt style="font-weight:bold;"> <strong> Micro Display </strong> </dt> <dd> A micro display is a small-sized display, typically less than 1 inch in diagonal, designed for use in compact devices where space is limited. It is often used in smartwatches, head-mounted displays, and other wearable technology. </dd> <dt style="font-weight:bold;"> <strong> SSD1357 </strong> </dt> <dd> SSD1357 is a driver IC used in some OLED displays. It controls the display’s operation, including the display of images and text, and is commonly found in small OLED modules. </dd> </dl> Scenario and User: I am a hobbyist electronics engineer working on a small drone project. I need a display that can show flight data, such as altitude, battery level, and GPS coordinates, without taking up too much space or consuming too much power. Answer to the Question: An OLED micro display is ideal for this purpose because it is small, consumes very little power, and provides excellent visibility in various lighting conditions. The 0.6-inch OLED display with a 64x64 RGB resolution is a great choice for this type of application. Steps to Choose the Right OLED Micro Display: <ol> <li> <strong> Understand the Project Requirements: </strong> Determine the size, resolution, and power consumption needed for your project. For a drone, a 0.6-inch display with 64x64 resolution is sufficient for basic flight data. </li> <li> <strong> Check the Driver IC: </strong> Ensure the display uses a compatible driver IC, such as SSD1357, which is widely supported by microcontrollers like Arduino and Raspberry Pi. </li> <li> <strong> Verify the Interface: </strong> Confirm that the display uses a common interface, such as SPI or I2C, to ensure compatibility with your microcontroller. </li> <li> <strong> Consider Power Consumption: </strong> OLED displays are known for their low power consumption, but it’s still important to check the specifications to ensure it fits within your project’s power budget. </li> <li> <strong> Look for Availability and Support: </strong> Choose a display that is widely available and has good community support, which can help with troubleshooting and integration. </li> </ol> Comparison Table: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> 0.6-inch OLED Micro Display </th> </tr> </thead> <tbody> <tr> <td> Size </td> <td> 0.6 inches </td> </tr> <tr> <td> Resolution </td> <td> 64x64 pixels </td> </tr> <tr> <td> Color </td> <td> RGB (full color) </td> </tr> <tr> <td> Driver IC </td> <td> SSD1357 </td> </tr> <tr> <td> Interface </td> <td> SPI or I2C </td> </tr> <tr> <td> Power Consumption </td> <td> Low (ideal for battery-powered devices) </td> </tr> </tbody> </table> </div> Conclusion: An OLED micro display is a powerful and compact solution for electronics projects. The 0.6-inch OLED display with a 64x64 RGB resolution and SSD1357 driver is particularly well-suited for applications like drones, wearables, and IoT devices. <h2> How Can I Integrate an OLED Micro Display into My Arduino or Raspberry Pi Project? </h2> <a href="https://www.aliexpress.com/item/1005010401864846.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S102abc47ae67464d970631898cb98875p.jpg" alt="0.6 Inch Color OLED Display 64x64 RGB SSD1357 Highlighted Color Display Optoelectronic Displays LCD Modules" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: You can integrate an OLED micro display into an Arduino or Raspberry Pi project by connecting it via SPI or I2C, using a library like Adafruit_SSD1357, and writing code to control the display. Scenario and User: I am a student working on a Raspberry Pi-based weather station. I want to display real-time weather data, such as temperature, humidity, and wind speed, on a small OLED display. Answer to the Question: Integrating an OLED micro display into a Raspberry Pi or Arduino project is straightforward. You can use the SSD1357 driver, which is supported by many libraries, and connect the display via SPI or I2C. The process involves wiring the display, installing the necessary libraries, and writing code to display the data. Steps to Integrate the OLED Micro Display: <ol> <li> <strong> Prepare the Hardware: </strong> Connect the OLED display to your microcontroller using the appropriate interface (SPI or I2C. For example, on an Arduino, you can connect the display’s SCL and SDA pins to the corresponding pins on the board. </li> <li> <strong> Install the Required Libraries: </strong> Use a library like Adafruit_SSD1357, which provides functions for drawing text, shapes, and images on the display. You can install this library via the Arduino Library Manager or by downloading it from GitHub. </li> <li> <strong> Write the Initialization Code: </strong> Initialize the display in your code by specifying the display size, color depth, and other settings. For example, you can use the Adafruit_SSD1357 class to create an instance of the display. </li> <li> <strong> Write the Display Code: </strong> Use the library functions to draw text, images, or graphs on the display. For example, you can use the setCursor and print functions to display weather data on the screen. </li> <li> <strong> Test and Debug: </strong> Run your code and test the display to ensure that it works correctly. If there are any issues, check the wiring and the library configuration. </li> </ol> Example Code for Arduino: cpp include <Adafruit_SSD1357.h> include <SPI.h> define OLED_DC 9 define OLED_CS 10 define OLED_RESET 8 Adafruit_SSD1357 display = Adafruit_SSD1357(128, 96, OLED_DC, OLED_RESET, OLED_CS; void setup) display.begin; display.clearDisplay; display.setTextSize(1; display.setTextColor(SSD1357_WHITE; display.setCursor(0, 0; display.println(Weather Data; display.display; void loop) Add code to read sensor data and update the display Conclusion: Integrating an OLED micro display into an Arduino or Raspberry Pi project is a simple process that can greatly enhance the user experience. With the right libraries and code, you can easily display real-time data on a small, energy-efficient screen. <h2> What Are the Best Applications for an OLED Micro Display in Consumer Electronics? </h2> <a href="https://www.aliexpress.com/item/1005010401864846.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S428a80c873044779adfb39cb7bfa8a92m.jpg" alt="0.6 Inch Color OLED Display 64x64 RGB SSD1357 Highlighted Color Display Optoelectronic Displays LCD Modules" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The best applications for an OLED micro display in consumer electronics include smartwatches, fitness trackers, portable gaming devices, and IoT sensors, where a compact and energy-efficient display is needed. Scenario and User: I am a product designer working on a new line of smartwatches. I need a display that is small, energy-efficient, and capable of showing detailed information like time, notifications, and health metrics. Answer to the Question: An OLED micro display is ideal for smartwatches and other wearable devices because it is small, consumes very little power, and provides excellent visibility in different lighting conditions. The 0.6-inch OLED display with a 64x64 RGB resolution is well-suited for this type of application. Applications of OLED Micro Displays: <ol> <li> <strong> Smartwatches and Fitness Trackers: </strong> OLED micro displays are commonly used in smartwatches and fitness trackers to show time, heart rate, steps, and other health metrics. Their low power consumption makes them ideal for battery-powered devices. </li> <li> <strong> Portable Gaming Devices: </strong> Small OLED displays are used in handheld gaming devices to show game graphics and user interfaces. Their high contrast and vibrant colors enhance the gaming experience. </li> <li> <strong> IoT Sensors and Wearables: </strong> OLED micro displays are used in IoT sensors and wearables to display real-time data, such as temperature, humidity, and location. Their compact size makes them suitable for integration into small devices. </li> <li> <strong> Head-Mounted Displays (HMDs: </strong> OLED micro displays are used in HMDs, such as VR headsets and AR glasses, to provide high-resolution visuals in a compact form factor. </li> <li> <strong> Industrial and Automotive Displays: </strong> OLED micro displays are used in industrial and automotive applications to show status information, such as engine data, navigation, and warnings. </li> </ol> Comparison Table: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Application </th> <th> Advantages of OLED Micro Display </th> </tr> </thead> <tbody> <tr> <td> Smartwatches </td> <td> Low power consumption, high visibility, compact size </td> </tr> <tr> <td> Portable Gaming </td> <td> Vibrant colors, high contrast, energy efficiency </td> </tr> <tr> <td> IoT Sensors </td> <td> Small size, low power, high resolution </td> </tr> <tr> <td> Head-Mounted Displays </td> <td> High-resolution visuals, compact, low power </td> </tr> <tr> <td> Industrial Devices </td> <td> Reliable performance, long lifespan, clear visuals </td> </tr> </tbody> </table> </div> Conclusion: OLED micro displays are versatile and well-suited for a wide range of consumer electronics applications. Their compact size, energy efficiency, and high-quality visuals make them a popular choice for smartwatches, wearables, and IoT devices. <h2> How Can I Troubleshoot Common Issues with an OLED Micro Display? </h2> <a href="https://www.aliexpress.com/item/1005010401864846.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S68b711828304424e98a8d42ad0043c259.jpg" alt="0.6 Inch Color OLED Display 64x64 RGB SSD1357 Highlighted Color Display Optoelectronic Displays LCD Modules" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Common issues with an OLED micro display can be troubleshooted by checking the wiring, verifying the power supply, ensuring the correct driver IC is used, and testing the display with a known working code. Scenario and User: I am a hobbyist working on a project that uses an OLED micro display. The display is not showing any output, and I need to figure out what is wrong. Answer to the Question: If your OLED micro display is not working, there are several steps you can take to troubleshoot the issue. Start by checking the wiring, ensuring the power supply is stable, and verifying that the correct driver IC is being used. You can also test the display with a known working code to see if the issue is with the display or the code. Common Issues and Solutions: <ol> <li> <strong> Display Not Showing Any Output: </strong> Check the wiring connections between the display and the microcontroller. Ensure that the SCL, SDA, VCC, and GND pins are properly connected. If the wiring is correct, try using a different microcontroller or a known working code to test the display. </li> <li> <strong> Incorrect Colors or Flickering: </strong> This can be caused by a faulty driver IC or incorrect code. Ensure that the correct driver IC (e.g, SSD1357) is being used and that the code is properly configured for the display. You can also try using a different library or updating the existing one. </li> <li> <strong> Low Brightness or Poor Visibility: </strong> OLED displays are generally bright, but if the display is dim, check the power supply. Ensure that the display is receiving the correct voltage and that the microcontroller is not underpowered. You can also adjust the brightness settings in the code if supported. </li> <li> <strong> Display Not Responding to Commands: </strong> This can happen if the display is not properly initialized in the code. Make sure that the display is initialized correctly and that the correct functions are being used to draw on the screen. You can also try resetting the display or using a different library. </li> <li> <strong> Display Shows Garbled Text or Images: </strong> This can be caused by incorrect data formatting or a mismatch between the display and the code. Ensure that the code is using the correct resolution and color depth for the display. You can also try using a different library or checking the display’s datasheet for specific requirements. </li> </ol> Troubleshooting Checklist: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Issue </th> <th> Checklist </th> </tr> </thead> <tbody> <tr> <td> Display Not Showing Output </td> <td> Check wiring, test with known working code, verify power supply </td> </tr> <tr> <td> Incorrect Colors or Flickering </td> <td> Verify driver IC, check code configuration, try different library </td> </tr> <tr> <td> Low Brightness </td> <td> Check power supply, adjust brightness settings </td> </tr> <tr> <td> Display Not Responding </td> <td> Ensure proper initialization, try resetting display </td> </tr> <tr> <td> Garbled Text or Images </td> <td> Check resolution and color depth, use correct library </td> </tr> </tbody> </table> </div> Conclusion: Troubleshooting an OLED micro display involves checking the wiring, verifying the power supply, and ensuring the correct driver and code are used. By following a systematic approach, you can identify and resolve most common issues. <h2> What Are the Benefits of Using an OLED Micro Display Over Other Display Technologies? </h2> <a href="https://www.aliexpress.com/item/1005010401864846.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sde5071a019ab4345a2a43b2706c86b8dJ.jpg" alt="0.6 Inch Color OLED Display 64x64 RGB SSD1357 Highlighted Color Display Optoelectronic Displays LCD Modules" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: OLED micro displays offer several benefits over other display technologies, including better contrast, faster response times, lower power consumption, and a thinner form factor. Scenario and User: I am a product developer looking for a display technology that can be used in a new line of wearable devices. I want to choose a display that is energy-efficient, compact, and provides high-quality visuals. Answer to the Question: OLED micro displays are a great choice for wearable devices because they offer superior image quality, energy efficiency, and a compact design. Compared to LCDs and other display technologies, OLEDs provide deeper blacks, faster refresh rates, and a thinner profile, making them ideal for small, portable devices. Comparison of OLED Micro Displays with Other Technologies: <ol> <li> <strong> Contrast Ratio: </strong> OLED displays have a much higher contrast ratio than LCDs because they can turn off individual pixels completely, resulting in true black levels. This makes OLEDs ideal for applications where image quality is important, such as smartwatches and head-mounted displays. </li> <li> <strong> Response Time: </strong> OLED displays have faster response times than LCDs, which is important for applications that require smooth motion, such as gaming or video playback. This makes OLEDs a better choice for devices that need to display fast-moving content. </li> <li> <strong> Power Consumption: </strong> OLED displays consume less power than LCDs, especially when displaying dark or black content. This makes them ideal for battery-powered devices, such as wearables and IoT sensors. </li> <li> <strong> Form Factor: </strong> OLED displays are thinner and lighter than LCDs, making them easier to integrate into compact devices. This is particularly important for wearables, where space is limited. </li> <li> <strong> Viewing Angle: </strong> OLED displays have a wider viewing angle than LCDs, meaning the image remains clear and visible from different angles. This is beneficial for devices that are used in various positions, such as smart glasses or head-mounted displays. </li> </ol> Comparison Table: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> OLED Micro Display </th> <th> LCD Display </th> </tr> </thead> <tbody> <tr> <td> Contrast Ratio </td> <td> Very High (True Black) </td> <td> Lower (Limited Black Levels) </td> </tr> <tr> <td> Response Time </td> <td> Very Fast </td> <td> Slower </td> </tr> <tr> <td> Power Consumption </td> <td> Low (especially for dark content) </td> <td> Higher </td> </tr> <tr> <td> Thickness </td> <td> Very Thin </td> <td> Thicker </td> </tr> <tr> <td> Viewing Angle </td> <td> Wide </td> <td> Narrower </td> </tr> </tbody> </table> </div> Conclusion: OLED micro displays offer several advantages over other display technologies, including better contrast, faster response times, lower power consumption, and a thinner form factor. These benefits make them an excellent choice for wearable devices, IoT sensors, and other compact electronics.
