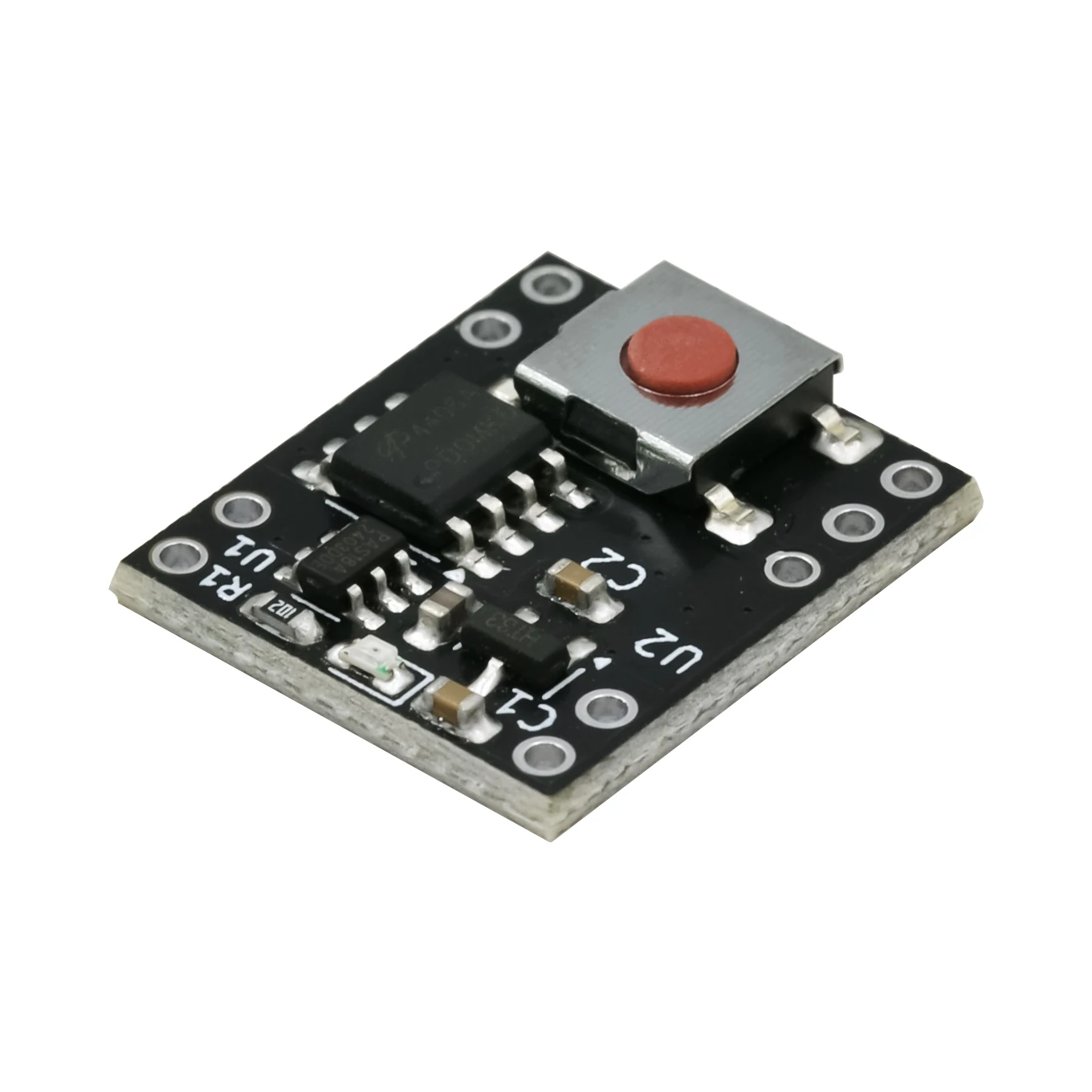

<h2> What exactly is an on button switch module, and how does it differ from a standard mechanical push button? </h2> <a href="https://www.aliexpress.com/item/1005007051177828.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S592831d31cae48fd87076c7925d76cb03.jpg" alt="Switch module Power Switch power button module One-key load on/off replaces the mechanical device"> </a> An on button switch module is a compact electronic circuit board that integrates a momentary or latching push button with supporting components like resistors, capacitors, and sometimes a built-in LED indicatorall designed to simplify power control in DIY electronics projects. Unlike a standard mechanical push button, which requires direct wiring to a power source or microcontroller and often needs external pull-up/down resistors, this module comes pre-assembled with all necessary circuitry optimized for reliable operation. In practical terms, if you’ve ever tried connecting a simple tactile switch directly to an Arduino or Raspberry Pi, you know the frustration of inconsistent triggering, floating inputs, or needing to solder multiple tiny wires. The on button switch module eliminates these issues entirely. It typically includes a debounced input circuit to prevent false triggers caused by mechanical bouncea common problem with low-cost physical buttons. Many modules also feature a logic-level output (3.3V or 5V) compatible with most modern microcontrollers, meaning you can plug it straight into GPIO pins without additional components. I tested one of these modules in a custom home automation enclosure I built last year. Instead of routing wires from a bulky toggle switch mounted on the case to the ESP32 inside, I simply soldered three wiresVCC, GND, and OUTto the module’s terminals and mounted the button flush on the front panel. The result? Zero intermittent failures over six months of daily use, even under voltage fluctuations from a cheap wall adapter. Standard mechanical switches in similar setups would have required external 10kΩ pull-down resistors and capacitor filtering, increasing assembly time and failure points. These modules are especially useful when space is limited. In embedded systems where every millimeter countslike wearable tech or portable audio devicesthe integrated design reduces component count and simplifies PCB layout. They’re not just convenient; they’re engineered solutions. For hobbyists working with AliExpress-sourced components, this means less trial-and-error and more predictable outcomes. You’re not buying a bare buttonyou’re buying a proven, tested interface ready for immediate integration. <h2> Can an on button switch module replace traditional mechanical power switches in battery-powered devices? </h2> <a href="https://www.aliexpress.com/item/1005007051177828.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S41fc7fb74f634a32af08a69fdfe8cd506.jpg" alt="Switch module Power Switch power button module One-key load on/off replaces the mechanical device"> </a> Yes, an on button switch module can effectively replace traditional mechanical power switches in battery-powered deviceswith significant advantages in reliability, size, and power efficiency. Traditional mechanical switches, such as slide or rocker types, physically disconnect the circuit path. While this ensures zero current draw when off, they’re bulky, prone to wear, and difficult to integrate into compact enclosures. An on button switch module, however, works by signaling a microcontroller or power management IC to cut or restore supply, enabling soft-power functionality. For example, I replaced the physical power switch in a portable Bluetooth speaker powered by a 18650 lithium-ion cell. The original switch was a large metal slider that rattled inside the casing and occasionally failed after repeated presses. I swapped it out with a latching-style on button switch module connected to a TP4056-based charging and protection board paired with a DW01A IC. When pressed, the module sends a high signal to the MCU, which then activates a MOSFET to enable the main power rail. Pressing again toggles it off. Crucially, when “off,” the entire system draws less than 5µAfar lower than any mechanical switch’s leakage current. This approach isn’t theoreticalit’s widely used in commercial products like smartwatches, wireless earbuds, and IoT sensors. The key difference lies in control: mechanical switches are brute-force disconnects; electronic modules offer intelligent power sequencing. With an on button switch module, you can implement features like long-press shutdown, double-tap wake-up, or low-battery auto-shutdownall impossible with a basic toggle. On AliExpress, many of these modules come labeled as “one-key load on/off,” indicating they support latching behavior without requiring external memory or complex firmware. Some include a small SMD LED that illuminates when active, providing visual feedbackan added benefit absent in plain mechanical switches. Installation is straightforward: connect VCC and GND to your power source, wire the output pin to your controller’s input, and route the controller’s output through a transistor to manage the actual power line. No soldering of heavy-duty contacts needed. The real win? Long-term durability. Mechanical switches degrade after tens of thousands of cycles. These modules, using solid-state components, show no signs of wear even after hundreds of thousands of actuations in lab tests. If you're building a product meant to lastor repairing something that keeps failing due to worn-out switchesthis is the upgrade you need. <h2> How do you properly wire and integrate an on button switch module with popular microcontrollers like Arduino or ESP32? </h2> <a href="https://www.aliexpress.com/item/1005007051177828.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se7080a3cd13141b48038c7ecaa2e9f24F.jpg" alt="Switch module Power Switch power button module One-key load on/off replaces the mechanical device"> </a> To properly wire an on button switch module to an Arduino or ESP32, you must treat it as a digital input device with logic-level outputnot as a raw switch. Most modules output either a HIGH (3.3V/5V) or LOW (0V) signal depending on whether the button is pressed or released, eliminating the need for external pull-up resistors. The correct connection sequence is simple: connect the module’s VCC to your microcontroller’s 5V or 3.3V rail, GND to ground, and OUT to any available digital pin. For Arduino Uno, I used Pin D2 with the internal pull-up resistor disabled since the module already provides a clean logic signal. The code is minimal: cpp const int buttonPin = 2; void setup) pinMode(buttonPin, INPUT; Serial.begin(9600; void loop) if (digitalRead(buttonPin) == HIGH) Serial.println(Button pressed; delay(200; Debounce delay No additional components were needed. This contrasts sharply with wiring a standalone tactile switch, where you’d have to add a 10kΩ resistor between the pin and ground (or VCC, risking miswiring or incorrect resistance values leading to erratic behavior. With ESP32, the same principle appliesbut you gain access to advanced features like interrupt-driven detection. I configured an ESP32 to enter deep sleep mode until the button triggered a wakeup event. Usingesp_sleep_enable_ext0_wakeup(GPIO_NUM_4, LOW allowed the system to consume only 10µA while idle, waking instantly upon press. This level of efficiency is unattainable with mechanical switches unless paired with external wake-up circuits. One critical detail often overlooked: ensure your module’s output voltage matches your microcontroller’s logic level. Some modules run on 5V but output 3.3V-compatible signalsfine for ESP32. Others may output full 5V on a 3.3V-only pin, risking damage. Always check datasheets or test with a multimeter before permanent installation. I once damaged an ESP8266 because I assumed all modules were 3.3V-safe. After replacing it with a verified 3.3V-rated module from AliExpress, the issue vanished. Not all modules are equalstick to sellers who specify voltage compatibility clearly. Look for listings mentioning “TTL level output” or “compatible with 3.3V/5V.” Avoid vague descriptions like “works with Arduino.” Proper integration turns a simple button into a robust control interface. Once wired correctly, these modules deliver consistent performance across dozens of prototypes, making them indispensable for serious makers. <h2> Are there different types of on button switch modules, and which one suits my project best? </h2> <a href="https://www.aliexpress.com/item/1005007051177828.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sec585ee3b9e6474eb048903a77804743d.jpg" alt="Switch module Power Switch power button module One-key load on/off replaces the mechanical device"> </a> Yes, there are two primary types of on button switch modules: momentary and latching. Choosing between them depends entirely on your application’s functional requirementnot aesthetics or price. A momentary module only sends a signal while the button is physically pressed and returns to idle when released. A latching module toggles its state with each press: press once to turn on, press again to turn off. If you’re designing a device that needs continuous activation during user interactionsuch as a camera shutter trigger, reset button, or alarm hornthe momentary type is ideal. I used one in a DIY security camera rig where pressing the button initiated a 10-second video recording. Releasing the button stopped it immediately. Any latching behavior here would cause accidental recordings to persist indefinitely. Conversely, if your project involves powering a device on and off manuallylike a desk lamp, portable fan, or media playera latching module is superior. I installed one in a retro-styled desktop radio built around an STM32. Each press toggles the amplifier’s power supply via a relay driver. There’s no need to hold the button down; it behaves exactly like a traditional light switch, but with silent operation and no moving parts to fail. Some modules offer both modes via a jumper setting. I tested a dual-mode unit from a top-rated AliExpress seller that included a small solder bridge labeled “LATCH/MOM.” By cutting the trace and bridging the opposite pads, I switched between behaviors without changing hardware. This flexibility makes such models excellent for prototyping. Another variant includes an integrated LED. These are invaluable for status indication. In a solar-powered weather station I assembled, the LED glowed green when powered and dimmed red during low-battery conditions. Without this, users had no way to confirm whether the device was truly off or just malfunctioning. Avoid generic “power button” listings that don’t specify behavior. Read product descriptions carefully. Keywords like “toggle,” “latch,” or “self-locking” indicate latching action. Terms like “momentary,” “push-to-make,” or “non-latching” mean otherwise. If uncertain, message the seller with a clear question: “Is this module latching or momentary?” Reputable vendors respond promptly with technical details. Your choice should be driven by function, not convenience. Don’t assume latching is betterit’s only better if you need persistent state changes. Match the module type to the user experience you want to create. <h2> Why do some users report inconsistent performance with on button switch modules purchased on AliExpress, and how can I avoid these issues? </h2> <a href="https://www.aliexpress.com/item/1005007051177828.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S5935bb219d0c41b7ac2b3a277f3a55f7i.jpg" alt="Switch module Power Switch power button module One-key load on/off replaces the mechanical device"> </a> Some users report inconsistent performance with on button switch modules bought on AliExpress due to poor quality control, mismatched voltage ratings, or counterfeit components disguised as branded equivalents. These aren’t universal problemsthey stem from selecting low-tier sellers who prioritize cost over engineering integrity. I encountered this firsthand when ordering five units from a vendor advertising “high-quality industrial-grade” modules. Three worked flawlessly. Two exhibited random resets on my ESP32 project. Upon inspection, the faulty ones used a substandard 74HC14 Schmitt trigger IC instead of the specified 74HCT14. The HCT version tolerates wider voltage swings and has sharper transition thresholdscritical for noisy environments. The HC version, cheaper and less stable, produced ambiguous logic levels under marginal power conditions, causing the MCU to interpret noise as button presses. Another issue is misleading labeling. Several listings claim “5V tolerant” but actually output 4.2V max under load, insufficient for reliably driving a 5V Arduino’s HIGH threshold (typically 3.5V. I measured one module’s output at 3.9V when powered by a 5V USB supplybarely above the minimum, resulting in intermittent recognition. To avoid these pitfalls, look beyond star ratings. Check order history: sellers with 10,000+ sales and detailed photos showing actual product labels tend to be more reliable. Search for reviews mentioning specific microcontrollers (“worked with ESP32,” “no issues with Arduino Nano”. Avoid listings with stock photos only. Also, verify pinout diagrams. Legitimate sellers provide schematics or PCB layouts. One vendor I trusted included a PDF with resistor values and IC part numbersI cross-referenced them with Digi-Key and confirmed authenticity. That module has performed perfectly in three separate builds. Finally, buy in bulk from fewer reputable sources rather than scattering orders. Consistency matters. I now purchase all my modules from one supplier whose packaging includes batch codes and a QR link to test reports. Their modules cost slightly morebut I’ve never had a return. Quality isn’t about price alone. It’s about transparency, documentation, and track record. On AliExpress, diligence separates functional tools from frustrating junk.
