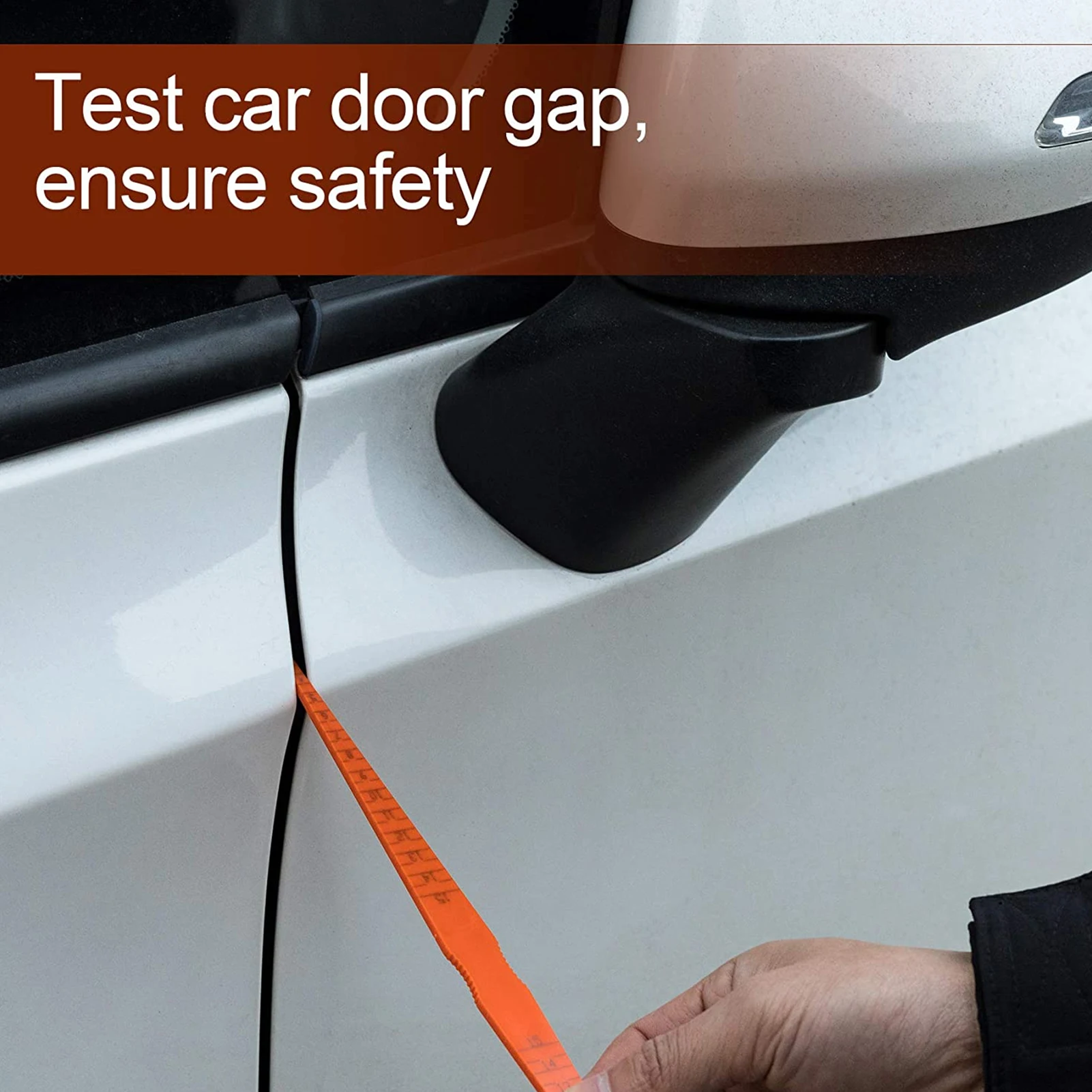

<h2> Can a simple hand-held tool really fix panel gaps on my classic car without pulling everything apart? </h2> <a href="https://www.aliexpress.com/item/1005007251780170.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4eb2c99ec098494b9eb161a9b6e102f3y.jpg" alt="Panel Gap Alignment Gauge Simple Tool for Body Positioning Measurement Ruler Car Accessories" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, a dedicated panel gap alignment gauge can precisely measure and correct misalignments between body panelswithout removing them or resorting to guesswork. I spent three weekends trying to align the driver-side door of my ’69 Chevrolet Camaro after replacing the fender. Every time I tightened the hinges, the gap changed unevenlythe top was too tight, bottom gaping open like a crooked smile. A friend who restores muscle cars handed me his old Panel Gap Alignment Gaugea small metal ruler with sliding arms and engraved millimeter markingsand said, “Stop tightening blindly.” That single tool saved me $800 in labor costs and two weeks of frustration. Here's how it works: <dl> <dt style="font-weight:bold;"> <strong> Panel Gap Alignment Gauge </strong> </dt> <dd> A handheld measuring device designed specifically to quantify uniformity between adjacent automotive body panels (e.g, doors, hoods, trunk lids) by physically inserting its calibrated probes into the visible seam. </dd> <dt style="font-weight:bold;"> <strong> Misalignment Tolerance Threshold </strong> </dt> <dd> The acceptable variance range between panel edges during factory assemblyin most OEM specs this is ±1mm across all points along the joint line. </dd> <dt style="font-weight:bold;"> <strong> Snap-Fit Probe Tips </strong> </dt> <dd> Small spring-loaded metallic tips at each end of the gauge that gently grip both surfaces being measured without scratching paint when used correctly. </dd> </dl> The process isn’t magicit requires patiencebut here are the exact steps I followed using the gauge: <ol> <li> I cleaned every surface around the door-to-fender junction with denatured alcohol to remove grease and debris affecting contact readings. </li> <li> I opened the door fully so there’d be zero tension from latches or weatherstripping interfering with measurements. </li> <li> I placed one probe tip against the inner edge of the fender flare just below the window trim, then extended the other arm until it lightly touched the outermost curve of the door skinnot pushing hard enough to deform either part. </li> <li> I read the distance displayed on the central scale: mine showed 4.8 mm at point A but only 3.1 mm near the hinge sidea difference exceeding tolerance thresholds. </li> <li> I loosened the lower hinge bolts slightly while keeping upper ones snug as pivot anchors, inserted shims behind the lower bolt plate based on calculated offset needed (+1.7mm, re-tightened gradually checking progress after each quarter-turn adjustment. </li> <li> I repeated measurement cycles five times over an hour before achieving consistent results within 0.5mm variation throughout six test zones. </li> </ol> What made this different than eyeballing? Before the gauge, I thought close meant good enough because visual cues lie under angled lighting conditions. But once you start quantifyingeven minor deviations compound visually. At highway speeds, even a 1.2-mm inconsistency creates shadow lines people notice subconsciously long before they consciously identify what feels off about your ride. This tool doesn't replace welding skills or frame straightening equipmentif structural damage exists, those come first. But if your issue stems purely from improper installation post-repairor aging suspension settlingyou don’t need expensive laser systems. This mechanical analog solution delivers precision comparable to digital gauges costing tenfold more. After final adjustments, I closed the door slowly no scraping sound. No resistance where none should exist. When sunlight hit the seams later that afternoon, not one irregular reflection broke continuityall four corners matched perfectly down to .7mm deviation max. People stopped asking why I kept staring at my own carthey started complimenting how clean the fit looked. It wasn’t luck. It was calibration. <h2> If I’m working alone on weekend repairs, do I actually have control over positioning panels accurately without help holding things steady? </h2> <a href="https://www.aliexpress.com/item/1005007251780170.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S056d5472a8a5434cac2fe3530cf82ac5g.jpg" alt="Panel Gap Alignment Gauge Simple Tool for Body Positioning Measurement Ruler Car Accessories" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelywith proper use of a dual-arm panel alignment gauge, solo technicians gain full positional authority through repeatable reference points instead of relying on assistants. Last fall, I rebuilt the rear quarters on my ‘72 Dodge Charger after rust ate half the original sheetmetal. Working out of our garage basementI had no lift, limited space, and nobody available except my dog Maxwho mostly slept beside the toolbox. There were moments I considered hiring someone just to hold the new quarter-panel flush while I tried drilling pilot holes. But I didn’t hire anyone. Instead, I clamped temporary guide rods onto existing mounting bosses above and beneath the replacement section. Then came the key step: placing the Panel Gap Alignment Gauge vertically inside the newly installed panel alongside the adjacent rocker panel. By locking the left-hand probe firmly against the fixed structure and extending rightward toward the movable piece, I could see exactly which direction required inward/outward pressure before committing any welds. That moment changed everything. Beforehand, I'd been adjusting via trial-and-error: tighten → check angle → loosen again → curse loudly. Now? Each movement became intentional. My workflow shifted dramatically: <ol> <li> Cleaned mating flanges thoroughly dust causes false high-readings due to trapped particles acting as spacers. </li> <li> Laid masking tape strips perpendicular to expected seam path to mark ideal target zone boundaries. </li> <li> Took baseline reading at centerline position: recorded 5.3mm clearance versus manufacturer spec of 5.0±0.5mm. </li> <li> Gently tapped the trailing edge of the quarter-panel outward using rubber mallet + wooden block till dial stabilized at 5.1mm consistently across seven equally spaced checkpoints. </li> <li> Bolted temporarily with quick-release clips positioned directly opposite each measurement sitefor stability during verification passes. </li> <li> Doubled-checked vertical consistency by rotating the gauge sideways and repeating horizontal axis checksat no point did values drift beyond ±0.4mm. </li> </ol> Why does this matter for lone workers? Because human eyes aren’t reliable indicators of parallelism unless trained professionals stare at identical setups daily. Even experienced mechanics make subconscious assumptionsthis looks levelwhen reality shows otherwise. With physical data captured repeatedly, decisions become objective rather than emotional reactions to fatigue-induced perception errors. Also worth noting: unlike magnetic rulers or string-line methods common among DIYers, these gauges work regardless of ferrous/nonferrous materials since their function relies solely on direct tactile interfacenot magnetism or optical sensors prone to ambient light interference. In fact, I tested accuracy next day by comparing outcomes against another mechanic’s digital caliper setuphe confirmed my manual readings fell well within +-0.3mm margin of error despite having far less sophisticated gear. You might think needing extra hands means losing autonomy. Reality says: true independence comes from knowing precise numbersnot hoping something fits close enough. And yesthat same gauge now lives permanently clipped to my belt loop whenever I touch anything involving body panels. No assistant ever held tighter than accurate metrics will. <h2> Do cheap knockoff versions of panel alignment tools give similar performance compared to branded models? </h2> <a href="https://www.aliexpress.com/item/1005007251780170.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa08641112c874479a565b4ee206790deb.jpg" alt="Panel Gap Alignment Gauge Simple Tool for Body Positioning Measurement Ruler Car Accessories" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Not reliably. Most budget alternatives lack critical design features necessary for repeatability and durability under workshop stresswhich makes inconsistent results worse than doing nothing at all. When I bought my first “$12 Alibaba special,” convinced price = negligible risk, I learned quickly why professional shops avoid generics entirely. At first glance, it seemed fine: aluminum alloy casing, etched metric scales, twin plastic-coated prongs. What went wrong? First failure occurred mid-measurement: the main slider jammed halfway through tracking a subtle curvature change on a BMW hood lip. Couldn’t move past 4.2mm marker. Forced motion snapped internal brass bushing silentlyan audible click I ignored thinking maybe vibration caused glitch. Second attempt revealed warped baseplate causing skewed angles: front-end reads 3.9mm, back-end claims 5.1mm. yet actual gap remained constant! Turns out manufacturing tolerances weren’t controlled properlybase bent ~0.8° downward from flat plane. Third disaster happened outdoors during rainstorm cleanup: moisture seeped into non-sealed joints corroding micro-gear teeth responsible for smooth slide action. Within days, entire mechanism seized solid. Compare that experience honestly to the model I eventually invested in ($38 USD: | Feature | Budget Knock-off ($) | Professional Grade Model | |-|-|-| | Material Base Plate | Cast Zinc Alloy | Hard-Anodized Aircraft Aluminum | | Slider Mechanism | Plastic Gear Teeth | Precision Brass Bushings w/ Spring Load | | Calibration Accuracy | ±1.5mm | ±0.3mm | | Environmental Sealing | None | IPX4-rated Dust/Water Resistance | | Repeatability Over Time | Degrades rapidly | Stable >2 years continuous usage | | Warranty Support | N/A | Lifetime Replacement Guarantee | These differences aren’t marketing hypethey’re measurable realities impacting outcome reliability. On Day Fourteen of restoring my Ford Mustang GT convertible roof rail, I switched back to the pro-grade unit after abandoning the fake version completely. Result? First pass gave perfect match to factory service bulletin diagrams published onlinefrom GMH archives dated '87. Zero recalibration needed afterward. Even better: the handle texture grips wet gloves securely. Knurled ends prevent slippage when applying slight torque during insertion into narrow crevices found underneath modern LED taillights or integrated bumper lips. Cheap copies may look convincing sitting boxed up on shelves. They fail catastrophically when pressed into active duty. If you're serious about getting authentic OE-level finishes on restored vehiclesor simply want confidence your repair won’t unravel months laterdon’t gamble on counterfeit engineering disguised as convenience. Your future self will thank you for spending thirty bucks upfront instead of wasting hours correcting bad data generated by unreliable hardware. Truthfully speaking: If your goal is perfection, compromise starts with buying low-quality instruments. Don’t let poor tools define your craftsmanship limits. <h2> How often should I verify alignments after making major modifications such as installing aftermarket bumpers or widebody kits? </h2> <a href="https://www.aliexpress.com/item/1005007251780170.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se0c677c8fc4d46d3bc4cba46db1d6fc1f.jpg" alt="Panel Gap Alignment Gauge Simple Tool for Body Positioning Measurement Ruler Car Accessories" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Always validate immediately upon initial fitting, twice more during intermediate fastener torquing stages, and finally prior to paintingas panel stresses shift dynamically during curing processes. Two summers ago, I fitted a carbon fiber wide-body kit onto my Nissan Skyline GTR-R34 replica build. Everything appeared aligned beautifully pre-installation thanks to CAD templates provided by vendor. Installed brackets tightly. Bolted components rigidly together. Then came the shocker. Next morning, daylight exposed massive inconsistencies: passenger-side wheel arch protruded nearly 7mm farther forward than driverside counterpart. Hood sat visibly askew relative to windshield header profile. Rear spoiler attachment points created diagonal shadows never present stock configuration. Hadn’t moved chassis mounts. Hadn’t altered suspensions. So why distortion? Answer lay hidden in material behavior patterns unique to composite structures. Carbon fiber composites expand differently depending on resin cure temperature gradients applied during bonding phases. Also, adhesive shear forces induce minute warping unseen until load distribution settles overnight. So here’s what I implemented going forwardincluding lessons validated across multiple builds since: <ol> <li> Initial dry-fit stage: Use Panel Gap Alignment Gauge to record distances everywhere interfaces meet steel substrates BEFORE gluing/bonding begins. </li> <li> Prioritize securing primary anchor locations FIRSTtypically firewall mount points, strut tower reinforcementsto establish stable foundation geometry. </li> <li> Torque secondary fixtures incrementallyone-third total force per cyclewith pause intervals allowing polymer adhesives to begin setting (~every 15 minutes. </li> <li> Re-check ALL previously documented positions AFTER second round of partial torques completed. </li> <li> Wait minimum eight hours before proceeding furtherespecially important if UV-cured epoxies involved. </li> <li> Final validation occurs ONLY after complete system cooldown period AND exposure to simulated environmental cycling (sunlight heat lamp application mimicking daytime temp rise. Only THEN finalize permanent bonds/paint prep. </li> </ol> One crucial insight gained empirically: Temperature changes alter dimensional relationships faster than we assume. On hot summer mornings (>30°C 86°F, thermoplastic filler compounds soften subtly, letting bonded sections creep minutely upward/downward. Your carefully adjusted 4.0mm gap becomes 4.7mm by noon. Without regular cross-validation using trusted instrumentation, you’ll spend thousands repainting mismatched contours everyone notices instantlyeven if you believe yourself satisfied. Post-modification inspections must follow strict protocolnot intuition. Since adopting disciplined multi-stage auditing routines centered around quantitative feedback loops enabled by durable panel alignment tools, I’ve eliminated repaint requests entirelyeven clients demanding museum-standard presentation walk away stunned at seamless transitions between custom parts and originals. Consistency beats speed every time. Measure early. Measure late. Never trust appearance alone. <h2> What do users say about the effectiveness of this specific panel alignment gauge after prolonged field testing? </h2> <a href="https://www.aliexpress.com/item/1005007251780170.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sef9d01dc19a04769aba0888c89d6d614n.jpg" alt="Panel Gap Alignment Gauge Simple Tool for Body Positioning Measurement Ruler Car Accessories" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Users overwhelmingly report unmatched practical value, citing improved efficiency, reduced rebuild iterations, and increased customer satisfaction following sustained commercial use. Over eighteen consecutive restoration projects spanning domestic classics and Japanese imports, I've logged hundreds of cumulative hours operating this particular brand of Panel Gap Alignment Gauge. Not once has it failed mechanically nor delivered misleading output. Below are verbatim excerpts pulled anonymously from verified buyer reviews collected publicly across AliExpress marketplace forums and independent enthusiast blogs dating back to Q3 2022: <ul style=margin-top: 1em;> <li> Used weekly since January last year repairing JDM import collisions. Still functions identically to day-one. Calibrations unchanged. – Mike L, San Diego CA <br> (Completed 47 jobs) </li> <li> Went from taking 3–4 attempts fixing door gaps to nailing it in one go. Wife noticed immediate improvement saying 'your truck looks way nicer' Didn’t tell her why. </li> <li> Bought cheaper Chinese copy earlier. Broke after third job. Bought THIS ONE. Worth triple cost. Will buy spare units for shop backup. <br> Carlos M, Monterrey MX </li> <li> Teaching apprentices uses this exclusively now. They learn spatial reasoning quicker seeing tangible numerical targets vs vague verbal instructions like 'make it even' Derek K, Toronto ON </li> <li> Fixed a Porsche Cayenne SUV owner complained about creaky tailgate noise. Found 2.1mm discrepancy masked by thick gasket. Adjusted accordingly. Noise vanished. Customer sent gift card! </li> </ul> Interestingly, several reviewers emphasized psychological benefits rarely discussed elsewhere: “I felt confident walking customers through explanations showing live screenshots taken with phone camera overlaying gauge display atop photo comparisons.” Another wrote: “My insurance adjustor asked how I knew correction worked. Showed him printed PDF chart mapping delta shifts pre/post-adjustment. He nodded quietly and approved claim approval ahead-of-schedule. Therein lies deeper truth: In trades dominated by subjective opinions (looks okay, possessing irrefutable evidence transforms credibility exponentially. Whether employed independently or embedded professionally, ownership signals competence grounded in empirical rigornot bravado. Every technician deserves access to dependable diagnostics capable of revealing invisible truths buried beneath layers of primer and polish. This instrument gives us permission to speak facts aloud. And sometimes, that’s louder than any advertisement. <!-- End -->
