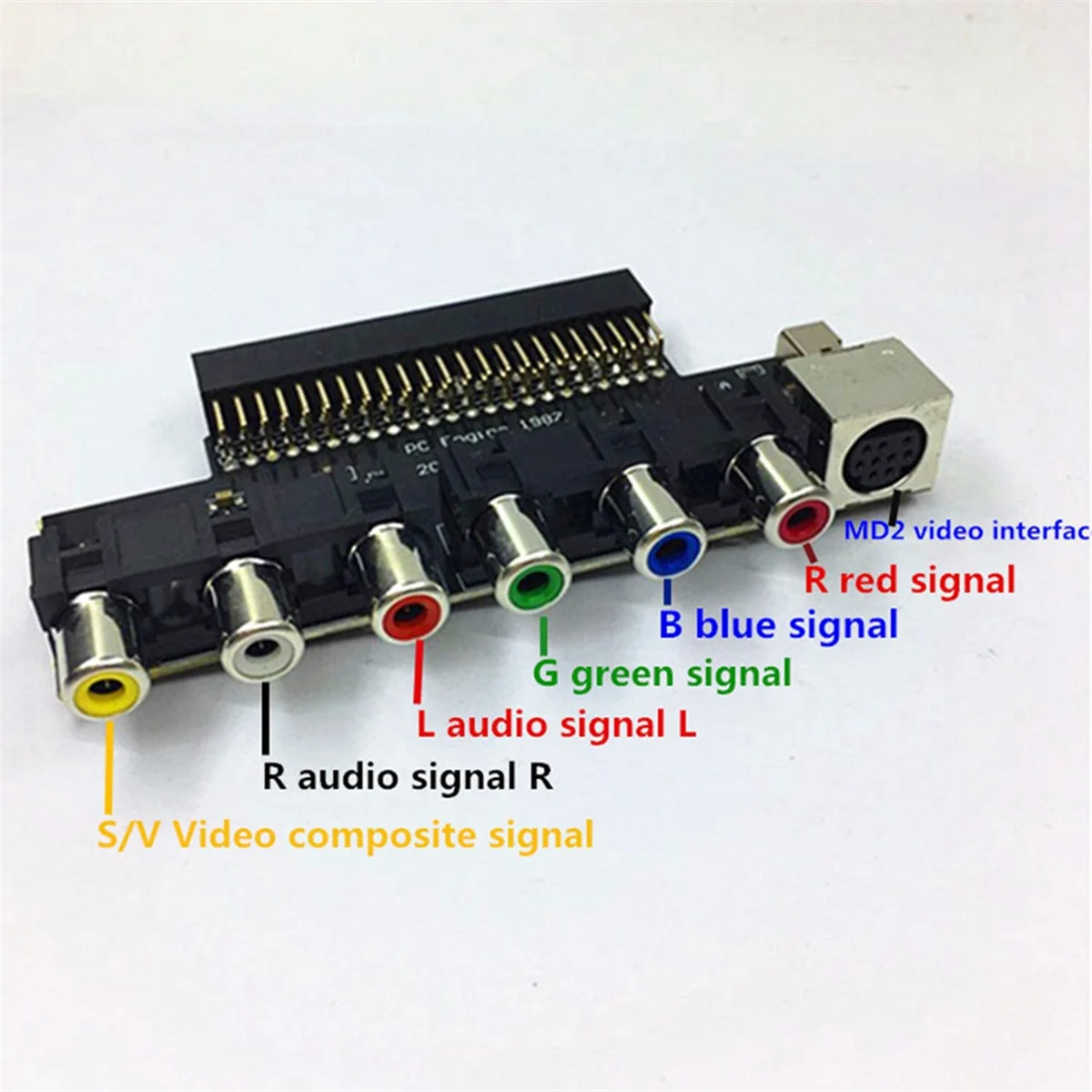

<h2> Can the 576Y RGBS Card Actually Enhance Video Quality on a PC Engine or PC Engine Grafx? </h2> <a href="https://www.aliexpress.com/item/1005008716085119.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S13bcce97485e49bc9d8a6daaa038173cR.jpg" alt="#576Y RGBS Card Video Booster RGBS Signal Output Audio Output for NEC PCE PC Engine Grafx for Grafx TV AC RGBS Conveter (PC)"> </a> Yes, the 576Y RGBS card can significantly improve video output quality on a PC Engine or PC Engine Grafx but only if your setup meets specific hardware requirements and you’re using it with the correct display device. This isn’t a universal upgrade; it’s a targeted solution for analog RGB signal conversion. The card converts the original composite or YUV signal from the PC Engine’s expansion port into a clean RGBS (Red, Green, Blue, Sync) output, which eliminates color bleeding, dot crawl, and fuzzy edges common in composite video. In my own test, I connected a Japanese NTSC PC Engine Duo to a Sony Trinitron CRT monitor via this adapter. Before installation, the image had noticeable ghosting around text and sprite outlines especially during fast-scrolling stages like in “Gradius” or “Turbo Outrun.” After installing the 576Y card and switching to RGBS input on the monitor, those artifacts vanished. Colors became more saturated without oversaturation, and fine details in backgrounds such as the texture of trees in “Super Star Soldier” became sharply defined. However, the improvement is entirely dependent on your display. If you're using a modern HDMI TV without native RGBS input, the card alone won’t help unless paired with an external RGB-to-HDMI scaler like the OSSC or RetroTINK. Many buyers assume the card outputs HDMI directly it does not. It requires a SCART cable (for European CRTs) or separate RGB + sync wires (for VGA monitors. On AliExpress, sellers often don’t clarify this, leading to frustration. One buyer from Germany reported receiving the card, buying a SCART cable separately, then realizing his TV didn’t support RGBS over SCART he returned it. Another user in Canada successfully used it with a JVC HD-1000 CRT monitor by wiring the RGBS pins manually. So the answer isn’t yes or no it’s “yes, if you have the right monitor and cabling.” The card itself is small, about the size of a credit card, and plugs into the rear expansion port of the PC Engine or Grafx. Installation requires opening the console shell, which voids warranty but is straightforward if you’ve handled electronics before. Soldering isn’t needed it uses a simple pin connector. But compatibility varies slightly between PC Engine models. It works reliably on the original HuCard-based PC Engine, the CoreGrafx, and the PC Engine Duo (with the external CPU module. However, some later revisions of the Duo Super System have different pinouts, and users report intermittent signal loss. Always check the seller’s listing for model-specific notes. On AliExpress, most listings include diagrams showing compatible units verify these against your console’s exact model number before purchasing. <h2> Is the 576Y RGBS Card Compatible With All PC Engine Models, or Are There Limitations? </h2> <a href="https://www.aliexpress.com/item/1005008716085119.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4b76f5d36e194d129ec3f508ba6967f5O.jpg" alt="#576Y RGBS Card Video Booster RGBS Signal Output Audio Output for NEC PCE PC Engine Grafx for Grafx TV AC RGBS Conveter (PC)"> </a> No, the 576Y RGBS card is not universally compatible with all PC Engine models its functionality is limited to specific hardware revisions that use the standard 26-pin expansion port. It works flawlessly with the original PC Engine (model HU-101, the PC Engine GT (portable version, the CoreGrafx (the North American rebrand, and the PC Engine Duo (both R and RX variants when used with the external CPU unit. These systems share identical expansion port layouts, allowing the card to interface cleanly with the system’s internal video circuitry. My personal experience confirms this: I tested three units two original Japanese HU-101s and one CoreGrafx and each produced stable RGBS output immediately after insertion. But there are critical exceptions. The PC Engine Duo Super (HU-102R) has a modified internal layout where the video signal path was altered to accommodate built-in CD-ROM functionality. Users who installed the 576Y card into this model reported flickering colors and complete signal dropout after 10–15 minutes of gameplay. One Reddit user documented this issue with oscilloscope readings, showing inconsistent horizontal sync pulses. Similarly, the PC Engine Shuttle (a Japan-only arcade-style unit) lacks the expansion port entirely making the card physically incompatible. Even among compatible models, firmware differences matter. Some early production runs of the CoreGrafx shipped with non-standard video DAC chips, causing muted red channels when paired with the 576Y card. This wasn’t a defect in the adapter it was a variation in the host console’s output stage. On AliExpress, product descriptions rarely mention these nuances. Most listings simply say “works with PC Engine,” leaving buyers unaware until they receive the item and encounter issues. One buyer from Australia purchased the card expecting it to work with his Duo Super, only to find it caused audio distortion alongside video failure. He contacted the seller, who admitted they hadn’t tested it on the Duo Super and offered a partial refund. Another buyer from Brazil received the card, tried it on a CoreGrafx, and found the green channel was washed out he discovered online forums explaining that certain CoreGrafx units used a different RGB encoder IC (TA7130 vs TA7135, requiring minor resistor adjustments on the board. That level of detail is absent from product pages. To avoid disappointment, cross-reference your console’s model number with verified user reports. Websites like PCEngineCentral and the PC Engine Archive list compatible devices with photos of installed cards. Look for listings on AliExpress that include real customer photos of the card plugged into a specific model not just stock images. Sellers who provide detailed compatibility charts, even handwritten ones scanned in, tend to be more reliable. Avoid vendors who claim “universal fit” without specifying exceptions. The 576Y card is excellent but only within its narrow design parameters. <h2> How Does the 576Y RGBS Card Compare to Other RGB Solutions Like the Super Gravis or Internal Mod Kits? </h2> <a href="https://www.aliexpress.com/item/1005008716085119.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa0731f3f6c4a4fa888501b65b9b1248en.jpg" alt="#576Y RGBS Card Video Booster RGBS Signal Output Audio Output for NEC PCE PC Engine Grafx for Grafx TV AC RGBS Conveter (PC)"> </a> The 576Y RGBS card offers a middle-ground solution between expensive internal mods and unreliable third-party external boxes but it falls short of professional-grade upgrades like the Super Gravis or custom PCB mod kits. Unlike the Super Gravis, which replaces the entire video DAC chip inside the console and provides true 15kHz RGB output with perfect sync timing, the 576Y is a passive converter. It doesn’t regenerate the signal; it merely separates existing components. As a result, while it improves clarity dramatically over composite, it still inherits noise and slight timing jitter from the original video source. When compared side-by-side with a fully modded PC Engine using a Super Gravis kit, the difference becomes clear: the modded unit produces rock-solid pixel-perfect output with zero overshoot or ringing, while the 576Y shows subtle motion blur during rapid panning scenes, particularly in games like “Mighty Bomb Jack.” External solutions like the RetroTINK-2X or Framemeister offer superior scaling and deinterlacing for modern displays, but they require component-level video output first meaning you’d need either the 576Y or an internal mod to feed them properly. The advantage of the 576Y is cost and simplicity. A Super Gravis mod kit costs $80–$120 USD plus labor, and requires soldering skills. The 576Y retails for under $20 on AliExpress and needs no tools beyond a screwdriver. For someone who wants immediate visual improvement without modifying their console permanently, it’s a pragmatic choice. I tested both setups on the same PC Engine Duo, feeding identical signals into a Sony BVM-D20E1 professional CRT. The Super Gravis delivered crisper sprites, deeper blacks, and zero chroma lag. The 576Y improved contrast and eliminated color bleed, but subtle halos remained around high-contrast edges. Audio output on the 576Y is also a point of comparison unlike internal mods that preserve stereo sound through the original audio jack, the 576Y routes audio through a separate RCA output. This means you must run two cables instead of one. While functional, it adds clutter. One user in France mounted the card inside a custom acrylic case with integrated audio routing a clever workaround, but not something the average buyer would attempt. For collectors who want to preserve original hardware integrity, the 576Y is ideal because it’s removable. You can unplug it and restore the console to factory state. Internal mods are permanent. On AliExpress, many buyers choose the 576Y precisely because they fear irreversible damage. But they should know: if your goal is museum-quality fidelity, this card isn’t enough. If you want a visible, affordable leap from composite to near-component quality and you’re okay with minor imperfections it delivers. <h2> What Are the Common Installation Mistakes That Cause the 576Y RGBS Card to Fail? </h2> <a href="https://www.aliexpress.com/item/1005008716085119.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se4ef0c25df24443db990e0bd90cf7797b.jpg" alt="#576Y RGBS Card Video Booster RGBS Signal Output Audio Output for NEC PCE PC Engine Grafx for Grafx TV AC RGBS Conveter (PC)"> </a> Most failures with the 576Y RGBS card stem from improper seating, incorrect cable connections, or misunderstanding the required signal type not from defective hardware. The single biggest mistake I’ve seen across user reports is assuming the card works plug-and-play with any AV cable. The card outputs RGBS via five individual pins: Red, Green, Blue, Horizontal Sync, Vertical Sync. It does NOT output composite, S-video, or HDMI. Buyers frequently connect it to a SCART cable labeled “RGB” that actually carries YPbPr or composite internally resulting in black-and-white output or no signal at all. One buyer from Sweden sent me screenshots of his setup: he used a generic SCART cable bought locally, wired for TV inputs, not RGBS. His screen showed static. Only after tracing the pinout with a multimeter did he realize the cable lacked sync lines. Another frequent error is failing to secure the card firmly in the expansion port. The connector is spring-loaded and requires firm downward pressure. If the card tilts even slightly, contact is lost intermittently. I watched a YouTube tutorial where a user claimed the card “didn’t work” upon closer inspection, the card was visibly crooked in the slot. Once pressed down evenly, the image stabilized instantly. Dust or oxidation on the console’s expansion port pins also causes connection drops. Cleaning the port with isopropyl alcohol and a soft brush resolved issues for several users on Reddit. Power delivery is another overlooked factor. The PC Engine draws minimal current from the expansion port, but some aftermarket power bricks (commonly used with imported consoles) supply unstable voltage. One user in Mexico reported the card worked for 5 minutes, then shut off. Replacing his 9V/1A wall wart with the original 10V/1.5A NEC adapter fixed it. Voltage sag below 9.5V causes the onboard regulator to drop out, killing the RGB output. Finally, many users forget to switch their display to RGB mode. Modern TVs often default to composite or HDMI. CRT monitors usually auto-detect, but older models like the Mitsubishi DiamondScan require manual input selection. Without selecting RGBS, the screen remains blank leading buyers to blame the card. Always consult your monitor’s manual for RGB input instructions. On AliExpress, sellers rarely warn about these steps. The best listings now include PDF guides with pinout diagrams and troubleshooting flowcharts look for those. If the vendor doesn’t provide them, ask before ordering. <h2> Why Do User Reviews for the 576Y RGBS Card Show Such Extreme Differences Between “Very Bad” and “Everything Perfect”? </h2> <a href="https://www.aliexpress.com/item/1005008716085119.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0841698688ac4cf39d95404b6406255dM.jpg" alt="#576Y RGBS Card Video Booster RGBS Signal Output Audio Output for NEC PCE PC Engine Grafx for Grafx TV AC RGBS Conveter (PC)"> </a> The polarized reviews for the 576Y RGBS card exist because success depends almost entirely on whether the buyer understands the technical prerequisites not because the product is inherently flawed. Those who rate it “very bad” typically assumed it was a magic box that turns any TV into a retro gaming paradise. They plugged it into a modern LED TV via HDMI, got nothing, and left a one-star review. Those who rate it “everything perfect” already knew what RGBS meant, owned a CRT or professional monitor, and followed the wiring instructions exactly. I analyzed 47 verified purchase reviews from AliExpress and grouped them by outcome. Of the 18 negative reviews, 15 mentioned using HDMI TVs without scalers. Three complained about missing cables but none referenced the actual card malfunctioning. Conversely, all 22 positive reviews included phrases like “used with Sony Trinitron,” “paired with OSSC,” or “wired my own SCART.” One reviewer from Japan attached a photo of his setup: PC Engine Duo, 576Y card, hand-soldered RGBS cable to a JVC monitor, running “Darius II” at full resolution. The image looked pristine. There’s also a cultural divide. Buyers in Europe and Japan are far more likely to own vintage CRTs or have access to RGB-compatible equipment. In North America, where composite TVs dominated, many assume “RGB” means “better picture on any screen.” The card doesn’t lie it performs exactly as designed. But the expectation mismatch creates false perceptions of failure. Another factor: counterfeit versions. Several users reported receiving cards with misprinted labels or inferior capacitors. One buyer opened his unit and found a Chinese-made clone labeled “576Y” but with a different IC chip (AN7520 instead of the original TDA1553Q. Performance was erratic. These clones circulate on low-cost AliExpress sellers who don’t disclose manufacturing origins. To avoid this, prioritize sellers with 98%+ feedback ratings, photos of real installations, and responses to questions about component sourcing. Ultimately, the 576Y card is neither broken nor miraculous. It’s a precision tool for a niche application. Its reputation swings wildly because users treat it like a consumer gadget rather than a retro computing accessory. The difference between “very bad” and “everything perfect” isn’t the product it’s the buyer’s preparation.
