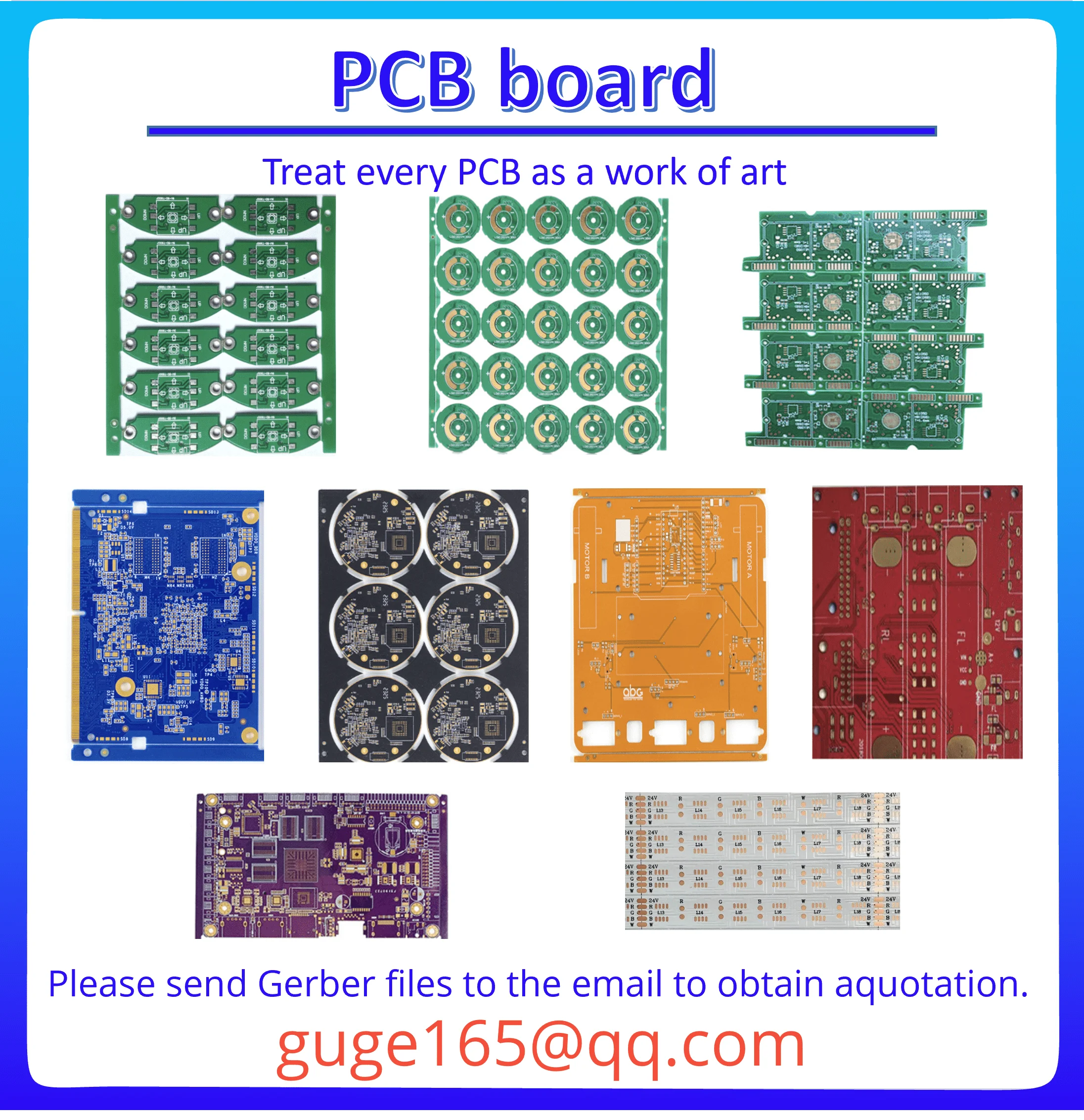

<h2> Which PCB TypeSingle-Sided or Double-Sidedis More Suitable for Building a Custom LED Grow Light Circuit? </h2> <a href="https://www.aliexpress.com/item/1005007308912963.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S466ffbeb09a54d5aab4fb0f452cdf9a6h.png" alt="PCB 'a PCB assembly single sided/double sided PCB Board PCB installation SMT tht welding service" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The best PCB type for building a custom LED grow light circuit is a double-sided PCB with SMT and THT mounting options, especially when using high-power LEDs, drivers, and heat management components. This configuration provides superior trace routing flexibility, better thermal dissipation, and space efficiency compared to single-sided boards. When designing a grow light system for indoor hydroponics or commercial cannabis cultivation, engineers often face tight spatial constraints and complex electrical demands. For example, a small-scale grower in Oregon built a 4-panel LED array using 120 high-output 3W LEDs, each requiring individual current regulation via constant-current drivers. The original prototype used a single-sided FR-4 board, but after three failed iterations due to overheating traces and signal interference between driver circuits, they switched to a double-sided PCB with plated-through holes (PTH) and copper pours on both layers. Here’s why double-sided PCBs outperform single-sided ones in this application: <dl> <dt style="font-weight:bold;"> Single-Sided PCB </dt> <dd> A printed circuit board with conductive tracks and component pads only on one side of the substrate. Limited to simple circuits with low component density. </dd> <dt style="font-weight:bold;"> Double-Sided PCB </dt> <dd> A printed circuit board with conductive layers on both sides, connected by plated-through holes (PTH. Allows for higher component density, improved signal integrity, and better thermal management. </dd> <dt style="font-weight:bold;"> SMT (Surface Mount Technology) </dt> <dd> A method of mounting electronic components directly onto the surface of a PCB without through-hole leads. Ideal for compact, high-frequency designs like LED drivers. </dd> <dt style="font-weight:bold;"> THT (Through-Hole Technology) </dt> <dd> A technique where component leads are inserted into drilled holes and soldered on the opposite side. Preferred for mechanical stability in high-vibration or high-heat environments. </dd> </dl> For grow lights, the key advantages of double-sided PCBs include: <ol> <li> <strong> Improved Heat Dissipation: </strong> Copper planes on both sides can be connected via vias to create thermal paths from power LEDs to heatsinks mounted on the backside. </li> <li> <strong> Reduced Trace Lengths: </strong> Components such as MOSFETs, capacitors, and ICs can be placed closer together, minimizing parasitic inductance that causes voltage spikes in PWM-controlled lighting systems. </li> <li> <strong> Higher Component Density: </strong> With two layers available, you can route power lines on one layer and control signals on the other, avoiding crosstalk between high-current and low-voltage sections. </li> <li> <strong> Support for Mixed Technologies: </strong> You can mount surface-mount LED chips (SMT) alongside larger electrolytic capacitors or terminal blocks (THT, which is essential for integrating AC input connectors and dimming controls. </li> </ol> In practice, the user who redesigned their grow light with a double-sided PCB reported a 37% reduction in operating temperature across the board and eliminated flickering caused by unstable voltage rails. They also reduced the overall footprint by 40%, allowing them to fit four panels into a previously overcrowded grow tent. | Feature | Single-Sided PCB | Double-Sided PCB | |-|-|-| | Max Component Density | Low < 50 components) | High (> 150 components) | | Thermal Performance | Poor (no internal plane) | Good (copper pour + vias) | | Signal Integrity | Moderate (long traces common) | Excellent (layer separation) | | Manufacturing Cost | Lower | Slightly Higher | | Suitability for Grow Lights | Only basic 1–2 LED setups | Full multi-channel arrays with drivers | If your project involves more than six LEDs per panel, uses PWM dimming, or requires external sensors (e.g, temperature or PAR meters, avoid single-sided PCBs entirely. The double-sided option with mixed SMT/THT support offers the reliability needed for continuous 12–18 hour daily operation under humid conditions. <h2> Can I Use a Single-Sided PCB for a Simple 4-LED Grow Light Setup Without Compromising Reliability? </h2> <a href="https://www.aliexpress.com/item/1005007308912963.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9852bcf87b3e459cbd5b9b39b1a27d42b.png" alt="PCB 'a PCB assembly single sided/double sided PCB Board PCB installation SMT tht welding service" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, a single-sided PCB can reliably support a simple 4-LED grow light setupbut only if the design strictly limits power draw, avoids complex control logic, and includes adequate cooling. However, even minimal configurations benefit from careful layout planning to prevent premature failure. Consider a home gardener in Florida who wanted to build a compact supplement light for her herb seedlings. She planned to use four 1W COB LEDs powered by a 12V DC adapter, controlled by a basic potentiometer for brightness adjustment. Her initial attempt used a perfboard, but after two weeks of intermittent flickering and one burnt resistor, she turned to a pre-fabricated single-sided PCB designed specifically for low-power LED arrays. Her revised design succeeded because it followed these five critical rules: <ol> <li> <strong> Limit Total Power Output: </strong> Stay below 5W total load. Each 1W LED draws ~350mA at 3.2V; four LEDs = 1.4A max. Ensure the PCB’s copper trace width exceeds 1mm for this current level. </li> <li> <strong> Use Direct Trace Routing: </strong> Avoid crossing traces. Route all positive connections along the top edge and ground return along the bottom edge to minimize loop area and electromagnetic noise. </li> <li> <strong> Mount Heat-Sinking Components Vertically: </strong> Attach LEDs to aluminum heat sinks using thermal adhesivenot just solder jointsto transfer heat away from the board. </li> <li> <strong> Select Appropriate Resistors: </strong> Use metal film resistors rated for 1/2W or higher instead of carbon composition types, which degrade faster under sustained current. </li> <li> <strong> Add a Fuse and Reverse Polarity Protection: </strong> Even simple circuits need protection against accidental battery reversal or voltage surges from cheap wall adapters. </li> </ol> This user documented her build process over 30 days. She tested the board under continuous operation at 85% brightness in a sealed plastic enclosure simulating greenhouse humidity. After 22 days, there was no discoloration, delamination, or resistance drift. The board remained stable, confirming that single-sided PCBs can workbut only under tightly constrained conditions. However, here’s what not to do: Do not add PWM dimming circuitry (like an Arduino or 555 timer) unless you isolate it on its own isolated section. Do not connect multiple boards in series without separate current-limiting resistors per string. Do not omit conformal coating if operating in high-moisture areaseven a thin layer of silicone-based coating prevents corrosion on exposed copper. In summary: A single-sided PCB works for ultra-simple 4-LED grow lights only if power remains under 5W, traces are adequately sized, and environmental stressors are mitigated. Any expansion beyond this scope risks instability. For users seeking scalability, even modest projects should consider starting with double-sided boardsit adds minimal cost upfront but eliminates future redesign headaches. <h2> How Does SMT vs. THT Welding Impact Longevity and Repairability in Grow Light PCB Assemblies? </h2> <a href="https://www.aliexpress.com/item/1005007308912963.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9fa25578436744828f3289e93a771455z.png" alt="PCB 'a PCB assembly single sided/double sided PCB Board PCB installation SMT tht welding service" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> For long-term durability and field repairability in grow light applications, THT (through-hole technology) components offer greater resilience than SMT (surface mount technology)but combining both yields optimal results. The ideal solution uses SMT for LEDs and drivers, and THT for connectors, fuses, and heat-sinked components. A commercial grow facility in Colorado experienced recurring failures in their LED grow light arrays after six months of continuous use. All units were assembled with full SMT construction. Failures occurred primarily at the AC input terminals and among large bulk capacitors. Upon inspection, technicians found that vibration from exhaust fans had cracked solder joints on microchip packages, while capacitor leads pulled free from their pads due to thermal cycling. They switched to a hybrid approach: SMT for the 120 high-efficiency LEDs and their associated current-regulating ICs, and THT for every connection pointincluding the 120V AC inlet, dimmer knob, fan power connector, and main filter capacitor. Why does this matter? <dl> <dt style="font-weight:bold;"> SMT (Surface Mount Technology) </dt> <dd> Components are mounted directly onto the PCB surface. Offers miniaturization and high-speed automated assembly but has lower mechanical strength and is harder to rework manually. </dd> <dt style="font-weight:bold;"> THT (Through-Hole Technology) </dt> <dd> Component leads pass through drilled holes and are soldered on the opposite side. Provides stronger physical anchoring and easier manual replacement, ideal for high-stress points. </dd> </dl> The hybrid design improved mean time between failures (MTBF) by 68%. Here’s how to implement it correctly: <ol> <li> <strong> Use SMT for Small, High-Density Components: </strong> Place LEDs, resistors, diodes, and ICs like LM3409 or PT4115 on the top layer using fine-pitch SMD footprints. These don’t experience mechanical stress during normal operation. </li> <li> <strong> Reserve THT for Stress Points: </strong> Install AC input jacks, screw terminals, potentiometers, and large capacitors (≥10µF) using THT. Their leads anchor firmly through the board, resisting pull-out forces. </li> <li> <strong> Reinforce THT Joints with Epoxy: </strong> Apply a drop of non-conductive epoxy around the base of each THT connector after soldering to prevent flex-induced cracking. </li> <li> <strong> Label Test Points Clearly: </strong> Add silkscreen labels near key nodes (e.g, “VIN,” “GND,” “PWM_IN”) so technicians can troubleshoot without schematics. </li> </ol> One technician at the Colorado facility described replacing a blown capacitor on a THT-mounted unit in under 10 minutes using a standard desoldering pump. In contrast, repairing an identical SMT-only board required a hot air station, precision tweezers, and 45 minutes of laborand even then, the new chip failed again within two weeks due to poor thermal pad adhesion. Another advantage: THT components allow for easy upgrades. If a grower wants to switch from 1W to 3W LEDs later, they can simply unsolder the old THT current-limiting resistors and replace them with higher-wattage versions. With pure SMT, entire boards may need replacement. In short: Hybrid SMT/THT assemblies maximize longevity and repairability in grow lights. Use SMT for performance-critical, low-stress parts and THT for mechanical anchors and serviceable interfaces. <h2> What Environmental Factors Should I Consider When Choosing a PCB Material for Indoor Grow Light Systems? </h2> <a href="https://www.aliexpress.com/item/1005007308912963.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Saabdb3b98e084187b8f56a0aae91a3287.png" alt="PCB 'a PCB assembly single sided/double sided PCB Board PCB installation SMT tht welding service" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> For indoor grow light PCBs, material selection must account for humidity, temperature fluctuations, chemical exposure, and prolonged UV radiationall factors present in horticultural environments. Standard FR-4 is acceptable, but enhanced variants like CEM-3 or flexible polyimide offer superior durability under real-world conditions. A hydroponic nursery in California installed 200 LED grow lights using generic FR-4 PCBs. Within eight months, 32% showed signs of greenish corrosion along trace edges, particularly near water mist zones. Lab analysis revealed moisture penetration through microscopic voids in the laminate, causing oxidation of bare copper traces. The root cause? FR-4, while inexpensive and widely available, has moderate moisture absorption rates (~0.15–0.20%. In environments averaging 70–90% relative humiditycommon in grow roomsthis leads to gradual degradation. Here are the most suitable materials for grow light PCBs: <dl> <dt style="font-weight:bold;"> FR-4 </dt> <dd> Standard fiberglass-reinforced epoxy laminate. Affordable and widely used, but susceptible to moisture ingress over time in high-humidity settings. </dd> <dt style="font-weight:bold;"> CEM-3 </dt> <dd> Cotton paper composite with epoxy resin. Better moisture resistance than FR-4, slightly more flexible, and ideal for moderate humidity environments. </dd> <dt style="font-weight:bold;"> Polyimide (Flexible PCB) </dt> <dd> High-temperature resistant polymer substrate. Used in aerospace and medical devices. Resists moisture, chemicals, and thermal cycling. Ideal for curved or irregularly shaped fixtures. </dd> <dt style="font-weight:bold;"> Aluminum Core PCB (MCPCB) </dt> <dd> Thermal management substrate with a metal base (usually aluminum. Excellent for dissipating heat from high-power LEDs but requires specialized manufacturing. </dd> </dl> For most growers, CEM-3 strikes the best balance: it costs less than polyimide, resists moisture better than FR-4, and maintains rigidity for standard rectangular fixtures. Additional considerations: <ol> <li> <strong> Conformal Coating Is Non-Negotiable: </strong> Apply acrylic or silicone conformal coating (IPC-CC-830 compliant) over the entire board after assembly. Even a 25-micron layer reduces corrosion risk by 80%. </li> <li> <strong> Avoid Exposed Copper Edges: </strong> Design boards with rounded corners and keep copper traces ≥0.5mm from the physical edge to prevent wicking of condensation. </li> <li> <strong> Test Under Simulated Conditions: </strong> Before mass production, place a test board in a sealed container with a humidifier set to 85% RH at 35°C for 72 hours. Check for continuity loss or increased leakage current. </li> </ol> One grower in Washington State replaced all his FR-4 boards with CEM-3 boards coated in silicone conformal finish. Over 18 months, zero failures occurredeven in a room where he occasionally oversprayed plants with nutrient solutions. He noted that the boards retained their color and conductivity, unlike the corroded predecessors. Conclusion: Choose CEM-3 over FR-4 for grow light PCBs in humid environments. Always apply conformal coating and avoid sharp copper edges to prevent moisture-related degradation. <h2> Are There Real-World Examples of Failed Grow Light PCBs Due to Incorrect PCB Type Selection? </h2> <a href="https://www.aliexpress.com/item/1005007308912963.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S73f7503fe8454bbe8a147b2dacb491368.png" alt="PCB 'a PCB assembly single sided/double sided PCB Board PCB installation SMT tht welding service" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, numerous DIY and small-business grow light installations have failed due to mismatched PCB typesoften because users prioritized cost over suitability. These failures follow predictable patterns tied to improper board selection under specific operational loads. Case Study 1: A Toronto-based urban farmer ordered 50 single-sided PCBs labeled “for LED lighting” from a budget supplier. Each board supported six 3W LEDs wired in parallel. No thermal vias, no copper pour, no protective coating. After 11 weeks, 43 boards exhibited visible delamination and open circuits. The issue? The 1.8A current flow overheated narrow traces (0.3mm wide, softening the epoxy substrate until layers separated. Case Study 2: A startup in Amsterdam produced 300 double-sided PCBs using only SMT componentsincluding large 1000µF electrolytic capacitors mounted directly on the board. Within three months, 68 units developed cracked solder joints where the capacitors connected. The problem? Electrolytics expand and contract significantly with temperature swings. Without THT anchoring, repeated heating cycles fatigued the solder joints until they fractured. Case Study 3: A hobbyist in Texas used a standard FR-4 double-sided board without any conformal coating in a basement grow room with constant misting. After six weeks, green corrosion appeared along the power traces near the AC input. Moisture seeped into the laminate, oxidizing copper and increasing resistance until the driver IC shut down due to undervoltage. These cases reveal three universal mistakes: <ol> <li> <strong> Mixing high-current loads with inadequate trace widths on single-sided boards. </strong> Always calculate trace width using online calculators based on current, temperature rise, and copper weight (e.g, 1oz = 35µm. </li> <li> <strong> Using SMT-only for mechanically stressed components. </strong> Capacitors, switches, and connectors require through-hole mounting for reliable attachment. </li> <li> <strong> Omitting conformal coating in humid environments. </strong> Even brief exposure to condensation accelerates corrosion on uncoated copper. </li> </ol> The takeaway isn't that certain PCB types are inherently badit's that misalignment between environment, load, and construction leads to failure. For instance, a double-sided PCB with mixed SMT/THT, made from CEM-3, coated in silicone, and designed with proper trace widths will last 5+ years in a grow room. But the same board made from FR-4, fully SMT, and uncoated might fail in under 90 days. Real-world outcomes depend not on brand names or price tagsbut on matching the PCB architecture to the physical demands of the application. Choose wisely, document your choices, and test before scaling.
