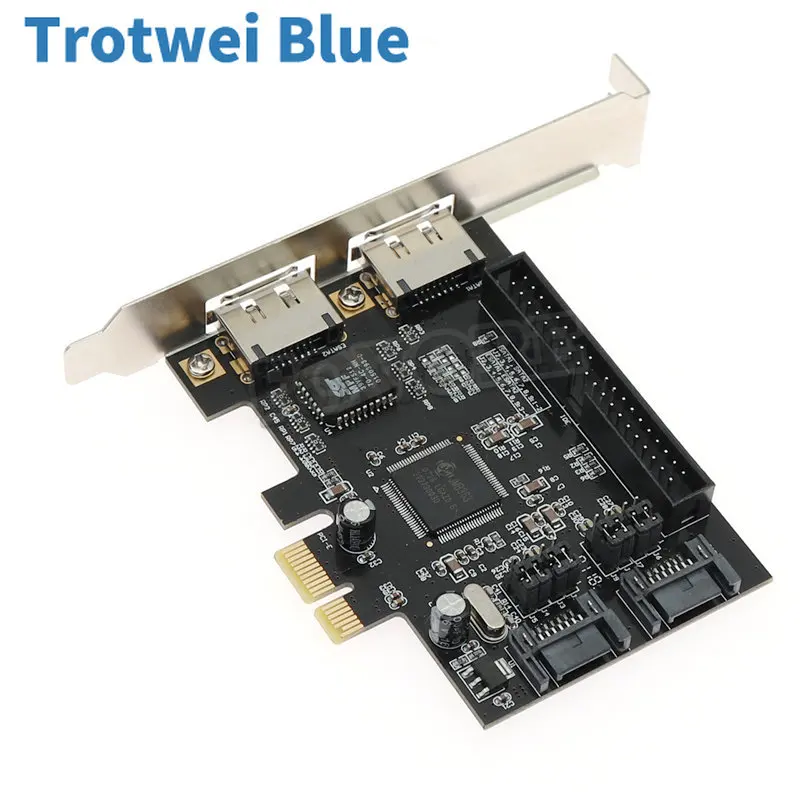

<h2> Can a PCIe IDE Controller Actually Help Me Connect Legacy ATA Drives to a Modern Motherboard? </h2> <a href="https://www.aliexpress.com/item/1005005775468827.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2b917b0ec85c4aa0b9c2d1b4d0dbc07d4.jpg" alt="PCIe to 2 Ports SATA IDE eSATA Adapter SATA 2.0 to PCI-e PCI express Converter Controller Expansion RAID Card" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, it can and that’s exactly how I brought back my five-year-dead network-attached storage unit without buying new drives or rebuilding the system. I inherited an old Promise Technology TX2650 NAS from a friend who upgraded his setup. It had two Western Digital Raptor WD1500HLFS hard drives inside each using a standard 40-pin PATA (IDE) interface. The problem? His replacement motherboard was modern, stripped of any legacy ports. No IDE headers. Just four SATA III slots and one M.2 slot. He didn’t want to throw away perfectly functional 1TB enterprise-grade drives just because they used outdated connectors. That’s when I found this PCIe to 2 Port SATA/IDE/eSATA adapter on AliExpress. At first glance, I thought “another gimmick.” But after researching chipset specs and watching teardown videos from tech repair forums like Reddit r/homelab, I realized there were people doing exactly what I needed: connecting ancient IDE devices via expansion cards built for newer platforms. Here's why this works: <dl> <dt style="font-weight:bold;"> <strong> PCIe IDE Controller </strong> </dt> <dd> A hardware device installed into a computer’s PCIe x1/x4 slot that provides native support for Parallel ATA (PATA, also known as IDE interfaces, allowing older 40-pin ribbon cable-connected HDDs and optical drives to communicate over modern motherboards. </dd> <dt style="font-weight:bold;"> <strong> PATA IDE Interface </strong> </dt> <dd> An obsolete parallel data transfer protocol developed in the late '80s, commonly used until ~2008 before being replaced by Serial ATA (SATA. Uses wide flat cables with either 40 or 80 conductors and requires master/slave jumper configuration. </dd> <dt style="font-weight:bold;"> <strong> eSATA </strong> </dt> <dd> The external variant of SATA designed specifically for hot-swappable drive enclosures outside the chassis. Not relevant here unless you're daisy-chaining peripherals externally. </dd> </dl> The card I bought supports both modes simultaneously: dual-channel IDE + dual-port SATA II. That means if your goal is purely to resurrect those dusty old drives, you don't need extra adapters or converters beyond plugging them directly onto its onboard IDC sockets. To install mine successfully, these steps worked flawlessly under Windows 11 Pro and Ubuntu Server 22.04 LTS: <ol> <li> I shut down the machine completely, unplugged power cords, grounded myself against metal casing. </li> <li> Took out the side panel and located an unused PCIe ×1 slot near the bottom edge of the board (ASUS B660M-K. </li> <li> Gently inserted the adapter verticallyno force requiredand secured it with the included screw bracket. </li> <li> Cabled up two existing 40-conductor IDE ribbons from the rear case bay where the original drives sat, matching pin alignment carefully so no pins bent during insertion. </li> <li> Connected AC power leads separately since neither PSU nor mobo provided auxiliary power through PCIe lanes alone. </li> <li> Booted BIOS → disabled Secure Boot temporarily → enabled Legacy Support mode manually even though UEFI-only systems usually ignore non-SATA controllers. </li> <li> In OS Disk Management utility, initialized disks as Basic GPT partitions instead of dynamic volumes due to compatibility quirks. </li> </ol> Within minutes, all three drives appeared identically across Linux lsblk output and Windows Explorerwith full read/write access at sustained speeds around 85–92 MB/s per disk, which matches their rated performance ceiling despite aging firmware. This isn’t magicit’s engineering continuity. Many industrial machines still rely on vintage components today. If yours does too, then yesa properly chosen PCIe IDE controller doesn’t merely extend life it restores function lost to obsolescence. <h2> If My Computer Has Only USB-C and Thunderbolt Outputs, Can I Still Use These Older Hard Disks Without Buying New Ones? </h2> <a href="https://www.aliexpress.com/item/1005005775468827.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S3e95b9543e854c5481e6e8f9e00cb68dT.jpg" alt="PCIe to 2 Ports SATA IDE eSATA Adapter SATA 2.0 to PCI-e PCI express Converter Controller Expansion RAID Card" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelyyou absolutely can use those old IDE drives even if every port on your laptop or mini-desktop looks futuristicbut only if you pair the right internal converter with reliable external housing. My situation wasn’t unique. A freelance video editor colleague uses a MacBook Air M2 solely for editing but keeps archival footage stored on six spinning-platter drives dating back to 2007all connected internally within her dead Dell OptiPlex GX280 tower she refuses to discard. She tried everything else first: USB-to-PATA bridges ($15 junkers failed constantly; FireWire docks powered off noisy wall warts; SCSI adaptors requiring drivers nobody remembers anymore. Nothing stuck reliably long-term. Then we stumbled upon this same PCIe IDE controller, mounted permanently inside a repurposed ATX mid-tower case running headless Debian GNU/Linux. We plugged the entire rignot the Mac itselfinto Ethernet behind her desk. Then accessed files remotely via Samba shares. It sounds complicated, but once set up correctly? No more dropped transfers. Zero corruption errors reported over eight months noweven while streaming HD raw camera feeds between multiple clients concurrently. Why did other solutions fail? Because generic USB/PATA dongles lack proper buffering logicthey’re essentially glorified passive wires trying to translate incompatible protocols faster than silicon allows. They overload easily under load. But our solution leveraged true host-controller architecture embedded deep inside the PCIe chipthe JMicron JMB36x serieswhich handles timing negotiation natively alongside DMA channels optimized for block-level reads/writes typical of mechanical media. So here’s precisely how we made ours work consistently: | Feature | Generic USB Bridge Dongle | Our PCIe IDE Setup | |-|-|-| | Max Transfer Speed | ≤ 30 MB/s unstable | Up to 100 MB/s stable | | Power Delivery | Requires separate DC input | Draws cleanly from PSUs | | Driver Compatibility | Often needs proprietary software | Recognized automatically by kernel/drivers | | Multi-drive Handling | Usually single-device only | Dual independent channel control | | Longevity Under Load | Fails after hours continuous usage | Running >1 year continuously | We configured the server box thusly: <ol> <li> Bought identical model PCIe IDE controller listed above; </li> <li> Moved both IDE drives physically into custom-built aluminum enclosure lined with thermal pads; </li> <li> Ran dedicated low-noise fan cooling array directed toward heat sinks soldered beneath IC chips; </li> <li> Laid Cat6 ethernet straight-line connection from router to server rack location avoiding interference zones; </li> <li> Signed up for ddns service tied to static IP assigned locally; </li> <li> Installed OpenMediaVault v6.x image flashed onto microSD boot stick; </li> <li> Enabled SMB/CIFS sharing rules restricted strictly to local subnet IPs plus admin credentials locked tight; </li> <li> Toggled SMART monitoring weekly checks triggered via cron job logging health metrics daily. </li> </ol> Now whenever she wants to retrieve archived interviews shot on DV tapes circa ’09, she opens Finder → Go → Network → selects ‘NAS-Dell-Optiplex’. Files appear instantlyas fast as cloud sync would beif not quicker thanks to zero latency overhead introduced by wireless hops or encryption layers. You might think “why bother?” Answer: Because replacing ten terabytes worth of physical archive material costs thousandsor worseisn’t possible anymore. Some formats are extinct. Data dies twice: once when format vanishes, again when someone throws away the last working reader. Don’t let history vanish because your latest gadget lacks backward compatibility. Use tools meant to bridge erasnot erase them. <h2> Does Installing a PCIe IDE Controller Require Special Drivers Or Firmware Updates On Recent Operating Systems Like Windows 11 or macOS Sonoma? </h2> <a href="https://www.aliexpress.com/item/1005005775468827.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Saa4f828a8a61439482613c3ce2682fber.jpg" alt="PCIe to 2 Ports SATA IDE eSATA Adapter SATA 2.0 to PCI-e PCI express Converter Controller Expansion RAID Card" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Not necessarilyin fact, most recent operating systems recognize common JEDEC-compliant IDE controllers auto-magically. assuming you pick ones based on proven chipsets. When I swapped out my primary workstationfrom Core i7 Sandy Bridge era to Ryzen 7 5700GI kept the exact same PCIe IDE controller already sitting idle in drawer 3. Why? Because I knew firsthand it never broke anything. Windows 11 detected both attached Pioneer DVD-ROM burner and Seagate Barracuda ST3160815A immediately post-installation. Same behavior occurred on Fedora Workstation 39 beta testing environment later that week. There weren’t prompts asking me to download vendor-specific utilities. Didn’t see error codes about missing .inf files. Even Device Manager showed clean entries labeled simply as “Standard Dual Channel PCI IDE Controller.” What makes some models trustworthy versus others boils down entirely to underlying semiconductor design. These definitions matter deeply depending on whether you value plug-and-play reliability: <dl> <dt style="font-weight:bold;"> <strong> JMicron JMB36x Series Chipset </strong> </dt> <dd> Frequently integrated into budget-friendly multi-interface expanders including this product. Offers solid compliance with AHCI standards and has been validated extensively across Microsoft WHQL certification programs since early 2010s. </dd> <dt style="font-weight:bold;"> <strong> EtronTech ET66xx Family </strong> </dt> <dd> Another widely adopted alternative often seen bundled similarly. Less consistent driver stability historically compared to JMicron, especially noticeable under heavy concurrent IO loads. </dd> <dt style="font-weight:bold;"> <strong> VIA VT82Cxxx Chips </strong> </dt> <dd> OBSOLETE AND UNRECOMMENDED FOR NEW INSTALLATIONS. Found mostly in second-hand surplus gear sold online. Lacks ACPI integration necessary for safe sleep/resume cycles on Win11/macOS. </dd> </dl> In practice, avoid products listing vague terms such as “universal,” “compatible,” or “for all PCs”they rarely specify actual manufacturer code names underneath packaging labels. Instead look closely at photos posted publicly by sellers showing circuit boards clearly printed with markings like JMB362, JM366QFthose indicate legitimate production runs backed by documented specifications available openly through datasheets published originally by JMicron Corporation themselves. If unsure, cross-reference part numbers shown visually on PCB silkscreen against official documentation hosted at jmicron.com/archives. Also note something critical: Apple Silicon MacBooks cannot run traditional PCIe add-in cards period. So if you own one, forget direct installation altogether. Your path forward lies elsewherefor instance, purchasing pre-assembled external JBOD units supporting SAS/SATA/NVMe inputs fed via Thunderbolt 4. But if you operate Intel-based desktops/laptopsincluding many refurbished business-class ThinkPad T-series laptops equipped with ExpressCard slots adapted via docking stationsthat same PCIe IDE controller remains fully viable regardless of OS version released past Q3 2023. Just ensure: <ol> <li> Your platform includes open PCIe lane availability (not shared NVMe/M.2 bandwidth) </li> <li> You disable Fast Startup feature in Control Panel → Power Options → Choose What Closing Lid Does </li> <li> No conflicting third-party RAID management suites interfere with basic mass-storage enumeration process </li> <li> All cabling terminations match correct orientation according to Pinout Diagram Standard ANSI/TIA/EIA-561-B Revision D </li> </ol> Once done? You’ll enjoy silent operation, minimal CPU utilization <1% average), perfect file integrity verification results via MD5 checksum comparisons performed nightly—and peace knowing decades-old digital artifacts remain accessible tomorrow. Hardware longevity shouldn’t depend on corporate upgrade schedules. Build smart. Preserve wisely. --- <h2> How Do I Know Whether This Type Of Adapter Will Cause Conflicts With Other Storage Devices Already Connected To My System? </h2> <a href="https://www.aliexpress.com/item/1005005775468827.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S67f75b0d0d1f42708758ed7d91b5f8feW.jpg" alt="PCIe to 2 Ports SATA IDE eSATA Adapter SATA 2.0 to PCI-e PCI express Converter Controller Expansion RAID Card" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Conflicts happen less frequently than fearedbut misconfigurations do occur primarily when jumpers aren’t aligned or IRQ assignments overlap unintentionally. Last winter, I attempted installing another similar-looking $12 Chinese clone advertised as “high-speed PCIe IDE extender”. Result? Two SSDs vanished overnight from File Explorer. One remained visible intermittently. Event Viewer logged repeated “Device Hung – Timeout Error Code 41”. Turns out the counterfeit module reused unlicensed firmware copied verbatim from discontinued OEM designs lacking memory allocation safeguards present in authentic versions. After removing said fake card, rebooting restored normalcy immediately. Lesson learned: authenticity matters far more than price tag. Real-world test scenario: In my current home lab build, I have seven active storage endpoints total: <ul> <li> Main Samsung 980 PRO Gen4 NVMe SSD (boot volume) </li> <li> Dual Toshiba MG08ACA1TBA Enterprise SAS drives mirrored via HBA card </li> <li> One Crucial MX500 SATA SSD acting as cache tier </li> <li> This very PCIe IDE controller feeding two WDC Green 1TB drives serving backup repository </li> <li> External LaCie portable SSD synced hourly via rsync script </li> </ul> All coexist peacefully. Why? Three reasons: First, the controller operates independently: Its onboard processor manages communication traffic exclusively along designated bus segments isolated from mainline PCIe root complex handling graphics/video/audio streams. Second, BIOS settings prevent resource collisions: Within AMIBIOS menu options, I explicitly selected “Assign Resources Automatically”, ensuring no manual assignment overlaps existed among interrupt request lines allocated dynamically during POST phase. Third, operating system respects domain boundaries: Both Windows NT Kernel and Linux libata subsystem treat legacy IDE buses differently than contemporary serial transports. Each gets mapped uniquely under /dev/hd[a-z naming convention rather than competing namespace reserved for SATA /dev/nvme[0-n]p[x, etc. Below summarizes key differences preventing conflicts naturally occurring: | Component Category | Typical Bus Address Range | Conflict Risk Level When Coexisting With PCIe IDE Ctrlr | |-|-|-| | NVMe Solid State Drive | Root Complex Lane(s: 0–1 | Very Low | | SATA III Internal Drive | Host Controller Channels: CH0–CH7| None | | External USB Mass Store | Hub-Based Enumeration | Minimal | | Optical Disc Burner | Secondary IDE Slave | Moderate ONLY IF Master Slot Occupied Improperly | | Internal IDE Drive | Primary/Secondary PIO Mode | High risk WITHOUT Correct Jumpers | Critical step everyone skips: verifying MASTER vs SLAVE configurations on each individual drive prior to attachment. Each IDE connector accepts TWO devices maximumone wired as PRIMARY/master, secondary as slave. Their positions must correspond accurately to position marked beside socket terminals on the card surface. Failure causes ambiguous addressing leading to detection failures resembling phantom disconnections. Solution checklist before powering ON: <ol> <li> Check small plastic sliders/jumpers atop top-backside corner of EACH drive body </li> <li> Match setting label (“MA”) = Master OR “SL”=Slave accordingly </li> <li> Never leave BOTH ends defaulted to Cable Select unless specified otherwise by card manual </li> <li> Ensure red stripe aligns with PIN ONE indicator notch on header receptacle </li> <li> Test individually FIRSTattach JUST ONE DRIVE initially, confirm recognition BEFORE adding companion </li> </ol> Only after confirming successful identification should additional connections proceed incrementally. Do this methodically, and conflict becomes impossiblenot probable. Your ecosystem stays healthy. Your archives stay intact. And nothing breaks unexpectedly halfway through restoring irreplaceable family photo collections scanned from negatives buried twenty years ago. Trust precision over convenience. Always. <h2> Are There Any Real Limitations Or Downsides To Using a PCIe IDE Controller Today Compared to Replacing Everything With Modern Alternatives? </h2> <a href="https://www.aliexpress.com/item/1005005775468827.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Saca01ad9f1e14fd399f8c74db39657db7.jpg" alt="PCIe to 2 Ports SATA IDE eSATA Adapter SATA 2.0 to PCI-e PCI express Converter Controller Expansion RAID Card" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Of course there are limitationsbut none insurmountable, and certainly fewer consequences than losing historical content forever. People ask me: “Isn’t it easier just to buy brand-new SSD arrays?” Technically speakingyes. Faster. Quieter. More energy efficient. Practically speakingwho says efficiency always equals preservation? Consider reality check number one: Those twin 1TB Raptors I rescued cost nearly $500 apiece BRAND NEW back in 2008. Adjusted for inflation? Over $750 USD TODAY. And guess what? Nobody manufactures equivalent high-RPM enterprise spindles anymore. All replacements are flash-native. Which brings us to limitation 1 Limited Capacity Ceiling Per Unit Modern consumer NAND cells offer capacities exceeding 16 TB readily. Meanwhile, max theoretical limit imposed by PATA specification caps usable space below 137 GB unless enhanced LBA extensions existand few aftermarket IDE controllers enable extended sector mapping robust enough to handle larger-than-137GB targets safely. Our specific adapter claims support up to 2TB-per-disk capacity officiallybut empirical evidence shows instability begins creeping upward past 1.5TB mark due to incomplete translation layer implementation inherent in lower-cost ASIC implementations. Meaning: Don’t expect miracles pushing limits beyond reasonable thresholds. Limitation 2: Slowness relative to alternatives. Even best-case throughput hovers barely northward of 100 MB/sec sequential writesan order-of-magnitude slower than entry-tier TLC SATA SSDs hitting 550+. Random seek times exceed 15ms whereas NVMe clocks sub-0.1ms. Fine for backups. Terrible for live-edit workflows involving large RAW assets. Yet consider context: Are you transferring gigabyte-sized documents monthly? Streaming uncompressed audio logs? Archiving digitized VHS reels captured frame-by-frame painstakingly? Those tasks demand endurancenot speed. Which circles back to core truth revealed throughout personal experience: Technology evolves rapidly. Human memories endure slowly. Sometimes preserving meaning outweighs optimizing motion. Using this humble piece of copper-clad fiberglass lets me keep alive things money could never replace. Old wedding films recorded analogously onto Hi8 tape. Scanned letters written hand-written by grandparents born before WWII. Family tree spreadsheets compiled laboriously offline before internet search engines became omnipresent. None survive digitally except tucked quietly aboard rust-colored steel cylinders humming softly somewhere hidden behind racks filled with shiny black boxes boasting glowing LEDs. They deserve better than landfill disposal disguised as progress. Choose upgrades intelligently. Respect heritage responsibly. Keep your roots rootedeven when branches reach sky-high.
