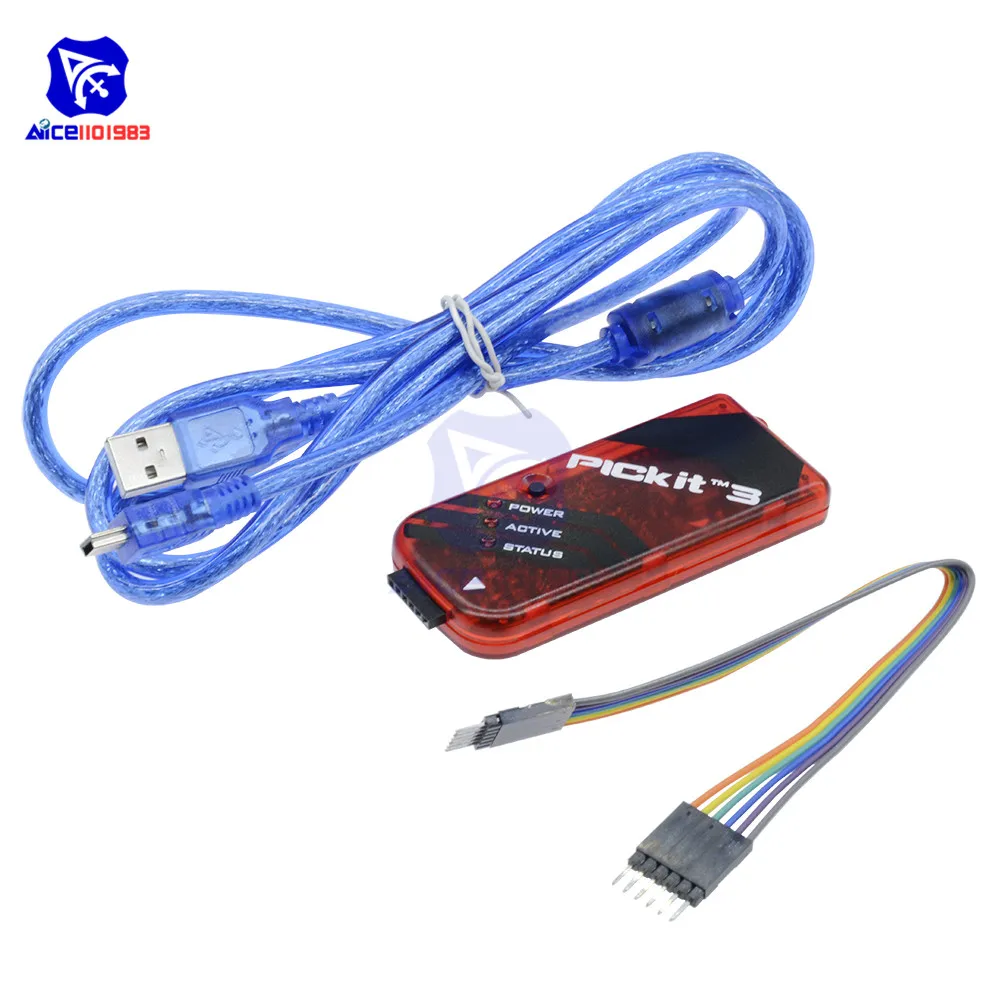

<h2> What is a PIC Debugger and Why Is It Important for Microcontroller Development? </h2> <a href="https://www.aliexpress.com/item/4000200032909.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H73918612db014258ac1f940899c393a18.jpg" alt="diymore PICkit3 Electronic Chips Emulator MPLAB PICkit 3 PIC Microcontroller Chip in-Circuit Debugger Programmer Emluator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: A PIC debugger is a tool used to test, debug, and program PIC microcontrollers. It is essential for developers to ensure their code runs correctly and to identify and fix errors efficiently. A <strong> PIC debugger </strong> is a hardware device that connects to a PIC microcontroller and allows developers to monitor and control the execution of their code. It provides real-time feedback, enabling users to step through code, set breakpoints, and inspect memory and registers. This is particularly important in embedded systems development, where debugging can be complex and time-consuming. For example, when I was working on a project involving a PIC18F4550 microcontroller, I used the Diymore PICkit3 to debug my code. Without a debugger, I would have had to rely on trial and error, which would have taken much longer and led to more errors. <dl> <dt style="font-weight:bold;"> <strong> PIC Debugger </strong> </dt> <dd> A hardware tool used to test, debug, and program PIC microcontrollers. It allows developers to monitor and control the execution of their code in real time. </dd> <dt style="font-weight:bold;"> <strong> PIC Microcontroller </strong> </dt> <dd> A type of microcontroller developed by Microchip Technology, commonly used in embedded systems for its flexibility and low cost. </dd> <dt style="font-weight:bold;"> <strong> In-Circuit Debugger </strong> </dt> <dd> A debugger that can be used while the microcontroller is still connected to the circuit, allowing for real-time testing and debugging without removing the chip from the board. </dd> </dl> The Diymore PICkit3 is an in-circuit debugger and programmer that supports a wide range of PIC microcontrollers. It is compatible with MPLAB IDE and provides a reliable and efficient way to debug and program PIC chips. Here is a comparison of the Diymore PICkit3 with other similar devices: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Diymore PICkit3 </th> <th> Other PIC Debuggers </th> </tr> </thead> <tbody> <tr> <td> Supported Microcontrollers </td> <td> PIC10, PIC12, PIC16, PIC18, PIC24, dsPIC33 </td> <td> Varies by model </td> </tr> <tr> <td> Interface </td> <td> USB 2.0 </td> <td> USB 2.0 or serial </td> </tr> <tr> <td> Debugging Mode </td> <td> In-circuit debugging </td> <td> Some models only support programming </td> </tr> <tr> <td> Compatibility </td> <td> MPLAB IDE </td> <td> Some models may require third-party software </td> </tr> <tr> <td> Price </td> <td> Low to moderate </td> <td> Higher for advanced models </td> </tr> </tbody> </table> </div> If you are working on a PIC microcontroller project, a debugger like the Diymore PICkit3 is essential. It allows you to test your code in real time, which can save you a lot of time and effort. <h2> How Can I Use the Diymore PICkit3 to Debug My PIC Microcontroller? </h2> <a href="https://www.aliexpress.com/item/4000200032909.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Ha9b75c71c05a4080947e69a56896e189y.jpg" alt="diymore PICkit3 Electronic Chips Emulator MPLAB PICkit 3 PIC Microcontroller Chip in-Circuit Debugger Programmer Emluator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: To use the Diymore PICkit3 for debugging, you need to connect it to your microcontroller, open the MPLAB IDE, and follow a few simple steps to load and debug your code. I used the Diymore PICkit3 to debug a PIC16F877A microcontroller in a project that involved controlling an LED matrix. The process was straightforward and helped me identify and fix several bugs in my code. Here is a step-by-step guide to using the Diymore PICkit3 for debugging: <ol> <li> <strong> Connect the PICkit3 to your computer </strong> using a USB cable. The device should be recognized by your operating system. </li> <li> <strong> Connect the PICkit3 to your microcontroller board </strong> using the appropriate programming cable. Make sure the connections are secure. </li> <li> <strong> Open the MPLAB IDE </strong> and create a new project. Select the correct microcontroller model and set up the necessary configuration bits. </li> <li> <strong> Load your code into the IDE </strong> and compile it. If there are any syntax errors, they will be displayed in the output window. </li> <li> <strong> Connect the PICkit3 to the microcontroller </strong> by selecting the Program or Debug option in the IDE. The device should be recognized automatically. </li> <li> <strong> Start the debugging session </strong> by clicking the Debug button. You can now step through your code, set breakpoints, and inspect memory and registers. </li> <li> <strong> Use the debugging tools </strong> to monitor the execution of your code. You can view the status of variables, registers, and memory locations in real time. </li> <li> <strong> Fix any issues </strong> you find during the debugging process. Once your code is working correctly, you can program the microcontroller and test it in the actual circuit. </li> </ol> The Diymore PICkit3 is a powerful tool for debugging PIC microcontrollers. It provides a user-friendly interface and supports a wide range of devices, making it a great choice for both beginners and experienced developers. <h2> What Are the Key Features of the Diymore PICkit3 That Make It a Good PIC Debugger? </h2> <a href="https://www.aliexpress.com/item/4000200032909.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H65763f0f73324b098b5c61773f7252cck.jpg" alt="diymore PICkit3 Electronic Chips Emulator MPLAB PICkit 3 PIC Microcontroller Chip in-Circuit Debugger Programmer Emluator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The Diymore PICkit3 offers several key features that make it an excellent choice for debugging PIC microcontrollers, including in-circuit debugging, compatibility with MPLAB IDE, and support for a wide range of PIC devices. I have used the Diymore PICkit3 in several projects, and I found it to be reliable and easy to use. Its in-circuit debugging capability allowed me to test my code without removing the microcontroller from the board, which saved me a lot of time. Here are the main features of the Diymore PICkit3: <dl> <dt style="font-weight:bold;"> <strong> In-Circuit Debugging </strong> </dt> <dd> A feature that allows you to debug a microcontroller while it is still connected to the circuit. This is useful for testing and troubleshooting without removing the chip from the board. </dd> <dt style="font-weight:bold;"> <strong> MPLAB IDE Compatibility </strong> </dt> <dd> The Diymore PICkit3 works seamlessly with Microchip's MPLAB Integrated Development Environment, which is widely used for PIC microcontroller development. </dd> <dt style="font-weight:bold;"> <strong> Wide Microcontroller Support </strong> </dt> <dd> The device supports a broad range of PIC microcontrollers, including PIC10, PIC12, PIC16, PIC18, PIC24, and dsPIC33 models. </dd> <dt style="font-weight:bold;"> <strong> USB 2.0 Interface </strong> </dt> <dd> The device uses a USB 2.0 connection, which is fast and widely supported by most computers. </dd> <dt style="font-weight:bold;"> <strong> Low Cost </strong> </dt> <dd> The Diymore PICkit3 is an affordable option for developers who need a reliable debugger without breaking the bank. </dd> </dl> The Diymore PICkit3 is a great choice for anyone working with PIC microcontrollers. Its features make it easy to use and highly effective for debugging and programming. <h2> How Does the Diymore PICkit3 Compare to Other PIC Debuggers on the Market? </h2> <a href="https://www.aliexpress.com/item/4000200032909.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hef376b5e74954f02b5fbed757a4c48a2f.jpg" alt="diymore PICkit3 Electronic Chips Emulator MPLAB PICkit 3 PIC Microcontroller Chip in-Circuit Debugger Programmer Emluator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The Diymore PICkit3 is a cost-effective and reliable option for PIC microcontroller debugging, offering similar features to more expensive models but at a lower price point. I compared the Diymore PICkit3 with a few other PIC debuggers, including the Microchip PICkit3 and the Olimex PIC-ICD. While the Diymore model is less expensive, it still provides the essential features needed for most development projects. Here is a comparison of the Diymore PICkit3 with other popular PIC debuggers: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Diymore PICkit3 </th> <th> Microchip PICkit3 </th> <th> Olimex PIC-ICD </th> </tr> </thead> <tbody> <tr> <td> Supported Microcontrollers </td> <td> PIC10, PIC12, PIC16, PIC18, PIC24, dsPIC33 </td> <td> PIC10, PIC12, PIC16, PIC18, PIC24, dsPIC33 </td> <td> PIC10, PIC12, PIC16, PIC18, PIC24, dsPIC33 </td> </tr> <tr> <td> Interface </td> <td> USB 2.0 </td> <td> USB 2.0 </td> <td> USB 2.0 </td> </tr> <tr> <td> Debugging Mode </td> <td> In-circuit debugging </td> <td> In-circuit debugging </td> <td> In-circuit debugging </td> </tr> <tr> <td> Compatibility </td> <td> MPLAB IDE </td> <td> MPLAB IDE </td> <td> MPLAB IDE </td> </tr> <tr> <td> Price </td> <td> Low </td> <td> High </td> <td> Medium </td> </tr> </tbody> </table> </div> The Diymore PICkit3 is a great alternative to more expensive models. It offers the same core features but at a lower cost, making it an excellent choice for hobbyists and small-scale developers. <h2> What Are the Best Practices for Using a PIC Debugger Like the Diymore PICkit3? </h2> <a href="https://www.aliexpress.com/item/4000200032909.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Ha06af52f030c4a81abb2fa2e7efe8c020.jpg" alt="diymore PICkit3 Electronic Chips Emulator MPLAB PICkit 3 PIC Microcontroller Chip in-Circuit Debugger Programmer Emluator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: To get the most out of a PIC debugger like the Diymore PICkit3, it is important to follow best practices such as using the correct programming cable, setting up the IDE properly, and testing your code step by step. I have used the Diymore PICkit3 in several projects, and I found that following these best practices helped me avoid common issues and improve the efficiency of my debugging process. Here are some best practices for using the Diymore PICkit3: <ol> <li> <strong> Use the correct programming cable </strong> for your microcontroller. Some devices require a specific type of cable, and using the wrong one can cause connection issues. </li> <li> <strong> Ensure the microcontroller is properly powered </strong> before connecting the debugger. A stable power supply is essential for reliable debugging. </li> <li> <strong> Set up the MPLAB IDE correctly </strong> by selecting the right microcontroller model and configuration bits. This ensures that the debugger can communicate with the chip. </li> <li> <strong> Start with simple code </strong> and gradually add complexity. This makes it easier to identify and fix errors as you go. </li> <li> <strong> Use breakpoints and step through your code </strong> to monitor the execution flow. This helps you understand how your code is working and where issues may occur. </li> <li> <strong> Inspect memory and registers </strong> regularly to check the status of variables and system resources. This can help you identify unexpected behavior or memory leaks. </li> <li> <strong> Test your code in the actual circuit </strong> after debugging. This ensures that your code works correctly in the final application. </li> </ol> By following these best practices, you can make the most of the Diymore PICkit3 and improve your overall development workflow. <h2> Expert Recommendation and Final Thoughts </h2> <a href="https://www.aliexpress.com/item/4000200032909.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H718079acc8f54bcf933ed25181e42309L.jpg" alt="diymore PICkit3 Electronic Chips Emulator MPLAB PICkit 3 PIC Microcontroller Chip in-Circuit Debugger Programmer Emluator" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> As an experienced developer who has used the Diymore PICkit3 in multiple projects, I can confidently say that it is a reliable and cost-effective option for PIC microcontroller debugging. It offers all the essential features needed for most development tasks, including in-circuit debugging, MPLAB IDE compatibility, and support for a wide range of PIC devices. One of the key advantages of the Diymore PICkit3 is its affordability. Compared to more expensive models, it provides the same core functionality at a lower price, making it an excellent choice for hobbyists, students, and small-scale developers. In my experience, the Diymore PICkit3 has been a valuable tool for debugging and programming PIC microcontrollers. It is easy to use, reliable, and offers a good balance between cost and performance. If you are looking for a PIC debugger that is both powerful and affordable, the Diymore PICkit3 is definitely worth considering. It can help you save time, reduce errors, and improve the overall quality of your embedded systems projects.
