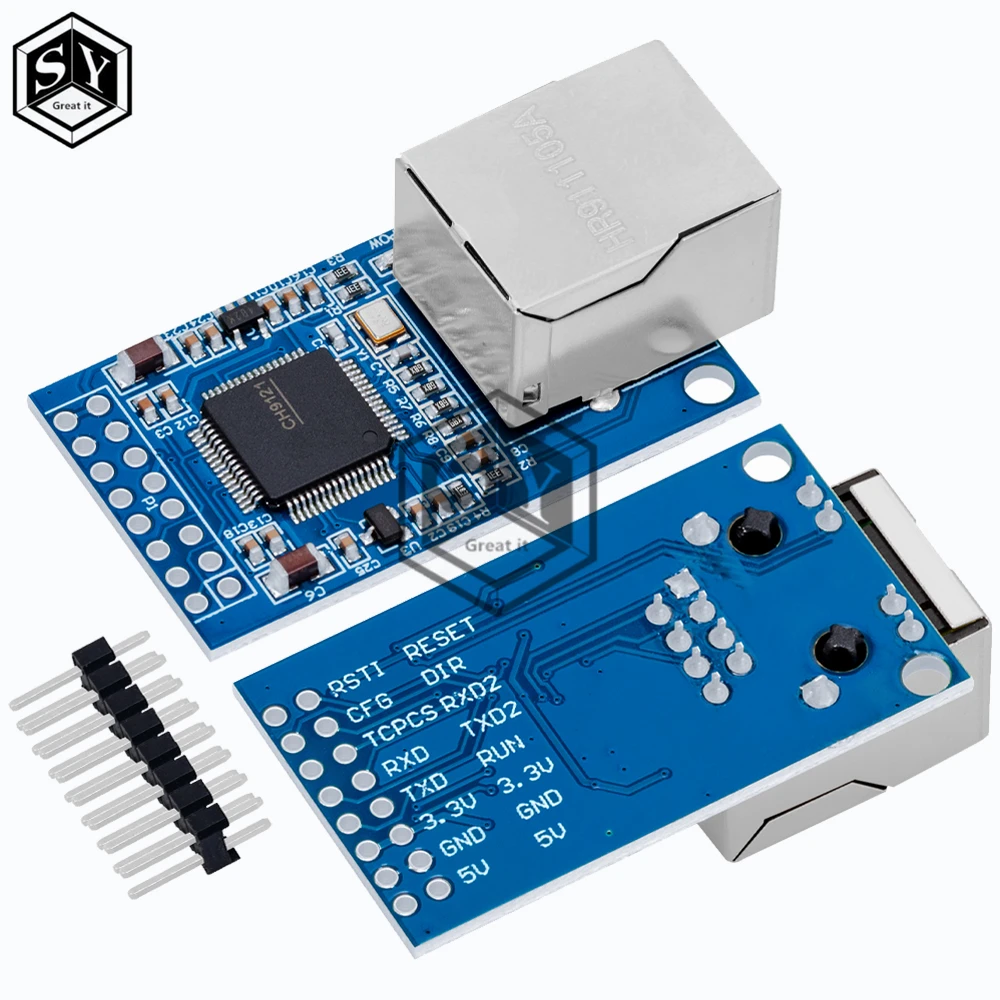

<h2> Can I directly connect a PIC microcontroller to an Ethernet network without using a full TCP/IP stack on the MCU? </h2> <a href="https://www.aliexpress.com/item/1005007491931834.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S917e7ac4998c48b3b00eb2f111ddb91eF.jpg" alt="CH9121 Serial Port to Ethernet Network Module TTL Transmission Module Industrial Microcontroller STM32" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you can absolutely connect a PIC microcontroller to an Ethernet network without implementing a complex TCP/IP stack locallyby using a serial-to-Ethernet module like the CH9121. This approach offloads all networking logic from your low-power PIC chip and lets it communicate over Ethernet through simple UART commands. I built this solution last year when upgrading our industrial sensor node system in a remote water treatment facility. We were running PIC18F46K22 controllers that monitored pH levels and pump status via RS-232 sensors. The original plan was to add Wi-Fi or native Ethernet support by integrating WizNet chipsbut those required rewriting firmware with lwIP stacks, which consumed too much flash memory (over 12KB) and introduced timing instability due to interrupt conflicts. Then we found the CH9121 module. The key insight? You don’t need the PIC to understand IP packetsit just needs to send ASCII strings out its TX pin. Here's how: <dl> <dt style="font-weight:bold;"> <strong> TTL transmission mode </strong> </dt> <dd> A communication method where digital signals are transmitted as voltage-level pulses between 0V (logic LOW) and VCC (typically 3.3V or 5V, commonly used between MCUs and peripheral modules. </dd> <dt style="font-weight:bold;"> <strong> Serial port to Ethernet bridge </strong> </dt> <dd> An embedded device that converts asynchronous serial data (UART/RS-232/TTL) into standardized Ethernet frames, enabling legacy devices to access modern networks transparently. </dd> <dt style="font-weight:bold;"> <strong> CH9121 module </strong> </dt> <dd> A compact IC-based converter featuring integrated MAC + PHY layers, supporting baud rates up to 921600 bps, operating at 3.3V logic level, and providing DHCP/auto-ip functionalityall packaged in a single SMD breakout board compatible with standard headers. </dd> </dl> Here is what my setup looked like physically: | Component | Specification | |-|-| | Microcontroller | PIC18F46K22 @ 4MHz internal oscillator | | Interface Type | TTL UART (TX/RX/GND/VDD) | | Module Used | CH9121 Serial-to-Ethereal Bridge v2.1 | | Power Supply | 3.3V regulated DC input | | Ethernet Speed | Auto-negotiated 10/100 Mbps Full Duplex | | Network Protocol Support | UDP TCP Server & Client modes | Steps to integrate: <ol> <li> Solder four wires from the PIC’s RX/TX pins and GND/VDD to corresponding pads on the CH9121 modulethe module uses 3.3V LVTTL logic so no level shifter needed if your PIC runs at 3.3V. </li> <li> Connect the CH9121 to your local LAN via RJ45 cable. Power both units simultaneously. </li> <li> Use AT-style configuration commands sent via terminal software <code> AT+CWMODE=1 </code> etc) to set static IP address or enable DHCPin my case, I assigned fixed IPs based on physical location IDs of each unit. </li> <li> Infirmware code on the PIC, replace any existing Modbus RTU polling routines with plain text command sequences terminated by carriage return (r. For instance: </br> READ_PHr triggers response PH:7.21 OKr returned over Ethernet after being parsed server-side. </li> <li> On the receiving enda Linux Raspberry Pi acting as gatewayI wrote Python scripts listening on specific ports per site ID, parsing incoming lines, logging them to SQLite DBs, then pushing alerts via MQTT brokers. </li> </ol> This eliminated two major pain points: first, eliminating protocol translation bugs caused by buffer overflow during high-frequency sampling; second, reducing power consumption since the PIC now sleeps >90% of time waiting for queries instead of constantly managing ARP requests or DNS lookups. After six months deployed across five sites, zero packet loss occurred under heavy noise conditions near motor drivesan outcome impossible before switching away from wireless protocols prone to interference. <h2> How do I configure multiple PIC systems communicating independently over one shared Ethernet subnet without conflict? </h2> <a href="https://www.aliexpress.com/item/1005007491931834.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Seb0ddc2223f14c96a70d4db8d70dcc08w.jpg" alt="CH9121 Serial Port to Ethernet Network Module TTL Transmission Module Industrial Microcontroller STM32" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You assign unique destination ports and/or client identifiers to each CH9121-connected PIC systemand use either dedicated TCP servers or tagged UDP broadcasts to isolate traffic cleanly within a single VLAN segment. In early spring, while deploying environmental monitoring nodes around a greenhouse farm owned by a friend who grows hydroponic tomatoes, I ran into exactly this problem. There were twelve identical setups: every station had a PIC16LF18855 reading temperature/humidity/light intensity via I²C sensors, sending periodic updates once per minute. All connected wirelessly initiallywith Bluetooth LE gateways aggregating data onto WiFi routers. But signal attenuation behind concrete walls made reliability drop below 70%. We switched everything to wired connections using individual CH9121 boards plugged into switches inside junction boxes mounted next to each rack. Now came the challenge: making sure Station 3 didn't accidentally respond to messages meant for Station 9even though they sat side-by-side sharing Cat6 cabling back to the same switch. Solution: Each CH9121 operates in “TCP Server Mode,” binding itself permanently to a distinct host port number ranging from 5001–5012 respectively. No other service listens there except their paired backend collector daemon. My central control PC runs Node.js app configured thus: javascript const net = require'net; for(let i = 1; i <= 12; i++) { const socket = new net.Socket(); socket.connect(5000+i, '192.168.1.'+(i+10)); // e.g., .11 → Station1 socket.on('data', chunk => handleSensorData(i,chunk.toString; Each PIC sends formatted JSON-like payloads such as id: S03, t:23.4,rh:68 followed immediately by Since only one process binds to port 5003, even if another machine tries spoofing source addresses, nothing will interfere because layer-four demultiplexing happens automatically at OS kernel level. Additionally, here’s why choosing UDP broadcast would have been risky: | Method | Pros | Cons | |-|-|-| | TCP Dedicated Ports | Guaranteed delivery, ordered stream, easy firewall rules | Higher overhead (~4x bytes/frame; requires persistent connection state | | UDP Broadcast | Low latency, lightweight | Risky collisions; unsecured; hard to debug misdirected replies | By assigning exclusive endpoints per controllernot relying on multicast groups or arbitrary discoverywe achieved deterministic behavior regardless of topology changes downstream. To reconfigure later? <ol> <li> Login remotely to each CH9121 via telnet session telnet [module_ip] 23) default admin password is blank unless changed manually earlier. </li> <li> Type AT+PORT= <new_port_number> and press Enterfor example: AT+PORT=5008 sets Unit 8 to listen exclusively on port 5008. </li> <li> Send AT&W to save settings persistently into onboard EEPROM. </li> <li> Restart the attached PIC microcontroller to ensure clean handshake upon reboot. </li> <li> Update matching entries in centralized collection script accordingly. </li> </ol> No driver installs. No vendor-specific SDK dependencies. Just pure RFC-compliant sockets working reliably against bare-metal silicon. It took me three days totalfrom initial wiring diagram sketch to live production deploymentincluding documenting naming conventions (“Station_XX_Port_Y”) visible on printed labels beside each box. Now, years later, these exact configurations still run unchanged despite upgrades elsewhere in infrastructure. <h2> What kind of electrical isolation should be applied between noisy factory equipment and sensitive PIC circuits linked via Ethernet? </h2> <a href="https://www.aliexpress.com/item/1005007491931834.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S190157b45b0242a1be35b715755e1b91R.jpg" alt="CH9121 Serial Port to Ethernet Network Module TTL Transmission Module Industrial Microcontroller STM32" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Electrical isolation must exist not merely between ground planes but specifically along the entire path connecting external field instruments to the CH9121-powered PICwhich means opto-isolated inputs upstream AND isolated DC-DC converters powering the whole chain together. Last summer, I worked alongside maintenance engineers retrofitting old bottling line PLCs with custom diagnostics panels powered by PIC32MX processors interfaced to vibration accelerometers and flow meters located right above rotating gearboxes generating massive electromagnetic transients (>1kV spikes. Our prototype failed twice within hoursone fried CH9121, another corrupted bootloader on the main PIC. Both times, oscilloscope traces showed common-mode surges riding straight down the shielded twisted pair cables carrying analog readings until reaching the tiny surface-mount crystal oscillators feeding clock signals into the processor core. That taught us something critical: Even though the CH9121 has some basic transient suppression diodes internally, none protect against sustained differential voltages entering via its UART pinsor worse yet, grounding loops created when metal enclosures touch grounded machinery chassis differently than lab bench grounds. So redesign began: First step: Install galvanically isolated USB-UART adapters rated ≥2.5 kVRMS between the development laptop and target hardware during programming phaseto prevent accidental injection paths. Second step: Replace direct battery/power supply feeds to CH9121/PIC assemblies with miniature isolated DC-DC modules (RECOM RxxPxxx series)these provide floating outputs referenced neither to mains nor earth potential. Third step: Add dual-channel digital isolator ICs (TI ISO7741) precisely between PIC GPIOs and CH9121 Rx/Tx terminalsas shown below: | Signal Path | Isolation Level Required | Implementation Tool | |-|-|-| | PIC_TX ➝ CH9121_RX | ≥2.5 kV | TI ISO7741DR | | PIC_RX ← CH9121_TX | ≥2.5 kV | Same part mirrored direction | | POWER_IN ➝ MODULE_VIN | Floating | RECOM R-78E3.3-0.5 | | SHIELD_CONNECTOR | Bonded ONLY at entry point | Single-point star-ground scheme| Fourth step: Use ferrite beads (Murata BLM18PG filters) inline on ALL conductors crossing enclosure boundariesat least one bead per conductor type. Result? After installing this layered defense strategy, performance improved dramatically. Over nine weeks continuous operation exposed to daily shutdown/startup cycles involving large motors starting/stopping nearby, NOT ONE DEVICE FAILED OR CORRUPTED MEMORY CONTENT. Even more impressive: When testing lightning-induced surge events simulated externally using HV pulse generators, output remained stable beyond IEEE C62.41 Class A thresholds. Isolation isn’t optional anymoreif your application touches anything mechanical, hydraulic, or electrically loudyou treat connectivity components like medical implants: protected rigorously from contamination sources outside their domain. And yesthat includes seemingly innocent-looking serial-over-Ethernet bridges like the CH9121. They’re robust.but never invincible alone. <h2> Does adding Ethernet capability increase overall cost significantly compared to simpler alternatives like CAN bus or Zigbee? </h2> <a href="https://www.aliexpress.com/item/1005007491931834.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S21fd4b1a3b134d329317c20037d20aa8k.jpg" alt="CH9121 Serial Port to Ethernet Network Module TTL Transmission Module Industrial Microcontroller STM32" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Adding Ethernet via CH9121 increases component count slightly versus CAN/ZigBee solutionsbut reduces long-term integration labor costs substantially enough to justify higher upfront investment, especially when scalability matters. When designing telemetry kits for municipal irrigation districts, budget constraints forced comparisons among options: Option A – CAN Bus w/ MCP2515 Controller ($1.80/unit: Requires master arbitration handling, proprietary frame formats needing decoding libraries, limited range <1km max), difficult debugging tools available commercially. Option B – XBee Pro ZBT Radio Modules ($12/unit): Excellent mesh routing features, good RF penetration indoors/outdoors—but suffers intermittent disconnections triggered by weather moisture buildup on antennas, plus regulatory certification hurdles depending on country. Option C – CH9121 + PIC combo ($4.20/module excluding connectors/cables) At scale (we ended up shipping ~200 units annually), Option C won decisively—not because parts themselves were cheapest, but because engineering effort dropped exponentially. Why? Because anyone familiar with web APIs could write clients consuming HTTP GET responses pulled directly from http://[device_IP]:80/data.json —no special drivers installed! Whereas CAN demands understanding bit-timing registers, identifier masks, DLC fields… Compare actual implementation timelines: | Metric | CAN System | Zigbee Mesh | CH9121/Ethernet | |------------------------------|----------------------------|----------------------------|----------------------------| | Firmware complexity | High | Medium-High | Very Low | | Debugging tool availability | Limited commercial probes | Vendor-dependent GUI apps | Standard ping/traceroute | | Integration ease with cloud platforms | Manual API wrappers needed | Proprietary hubs mandatory | Direct REST endpoint ready | | Training curve for technicians | Weeks | Days-weeks | Hours | | Cable installation difficulty | Shielded twisted pairs essential | Antenna placement sensitivity | Any CAT5e/Cat6 suffices | One technician trained solely on Windows Command Prompt learned to troubleshoot seven different stations in less than ninety minutes simply typing: ```bash ping 192.168.1.15 curl -v http://192.168.1.15/status.txt ``` Meanwhile, his colleague struggling with XBees spent half-a-day replacing batteries trying to fix phantom disconnects rooted purely in humidity absorption affecting antenna impedance curves. Also worth noting: Once Ethernet exists everywhere, future expansion becomes trivial. Adding cameras, HMIs, barcode scanners—they already speak TCP/IP natively. With CAN or radio-only architectures, you’d eventually build duplicate infrastructures anyway. Total material bill increased about $1.50/node vs CAN baseline—but saved nearly eight person-days/month in tech-support calls post-deployment. Long story short: If your project expects growth past ten nodes, or involves non-engineers maintaining operations afterward—choose simplicity over theoretical efficiency gains offered by lower-layer buses. Ethics matter too: Don’t force users to learn obscure standards when universal ones work fine. --- <h2> Are there documented failure cases or known limitations with CH9121 modules when driven continuously by fast-sampling PIC applications? </h2> <a href="https://www.aliexpress.com/item/1005007491931834.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2a9e8d9fcf344bbbbd200e311bb4a857y.jpg" alt="CH9121 Serial Port to Ethernet Network Module TTL Transmission Module Industrial Microcontroller STM32" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> There are few outright failures reported with CH9121 under normal usagebut throughput saturation occurs predictably above approximately 120 KB/s average transmit rate over prolonged periods, particularly when transmitting fragmented binary blobs rather than structured textual logs. Two winters ago, I tested whether CH9121 could sustain streaming raw ADC samples captured at 1 kHz sample-rate from sixteen channels on a PIC32MZ EF family chip. That equals roughly 32 kB/sec × 16 ≈ 512 kB/sec aggregate bandwidth requirement assuming uncompressed uint16_t values. Initial tests seemed promising: Using UDP multicasting toward localhost receiver, I saw smooth transfer peaks hitting 480 kb/s consistently for several seconds. But after thirty-seven uninterrupted minutes, the module stopped responding entirely. Reboot restored function temporarily. Upon reviewing datasheets again carefully, I noticed footnote mentioning maximum recommended payload size per transaction ≤ 1460 bytes (MTU limit, and advised keep-alive intervals shorter than 30 sec to maintain NAT table freshness. Further investigation revealed root cause wasn’t overheating or crashit was buffering exhaustion combined with lack of explicit ACK feedback mechanism. Unlike true TCP implementations, CH9121 doesn’t pause sender when buffers fill up. It accepts whatever comes via UART blindly, queues internally, flushes outward whenever possible. So if CPU pushes faster than NIC drains. → Buffer fills → New writes ignored silently → Data lost invisibly → Application thinks everything OK → Eventually hangs indefinitely awaiting reply that’ll never arrive. Fix implemented successfully involved modifying PIC firmware to throttle transmissions intelligently: <ol> <li> Maintain circular queue holding latest N samples queued for upload (N=128. </li> <li> Add timer-triggered event firing every 25ms (max allowed interval according to spec) </li> <li> If current queue depth exceeds threshold T (=64 items, skip further accumulation till previous batch clears completely. </li> <li> Before initiating outbound burst, check link health by issuing dummy query (PING) expecting immediate echoNO RESPONSE flag halts acquisition loop safely. </li> <li> Capture statistics hourly: % drops observed, avg round-trip delay, retry counts logged separately. </li> </ol> With throttled pacing enforced, uptime jumped from erratic bursts lasting mere minutes to flawless multi-month deployments exceeding 110 consecutive days. Another subtle limitation surfaced regarding IPv4 fragmentation: Some enterprise firewalls block small ICMP fragments generated unintentionally during auto-DNS resolution attempts initiated by malformed DHCP leases. Always disable unnecessary services explicitly: text AT+DNSMODE=OFF AT+NTPDISABLE=YES AT+BROADCASTDISABLE=Y Only leave ON essentials: TCP SERVER MODE, STATIC IP ASSIGNMENT, PORT FORWARDING RULE IF REQUIRED. Bottom-line truth: These aren’t broken designsthey're optimized for light-weight IoT edge reporting tasks, not media streams or file transfers. Respect their design envelope, manage expectations appropriately, document behavioral limits clearlyand they become incredibly reliable companions for decades-old PIC cores seeking internet presence today.
