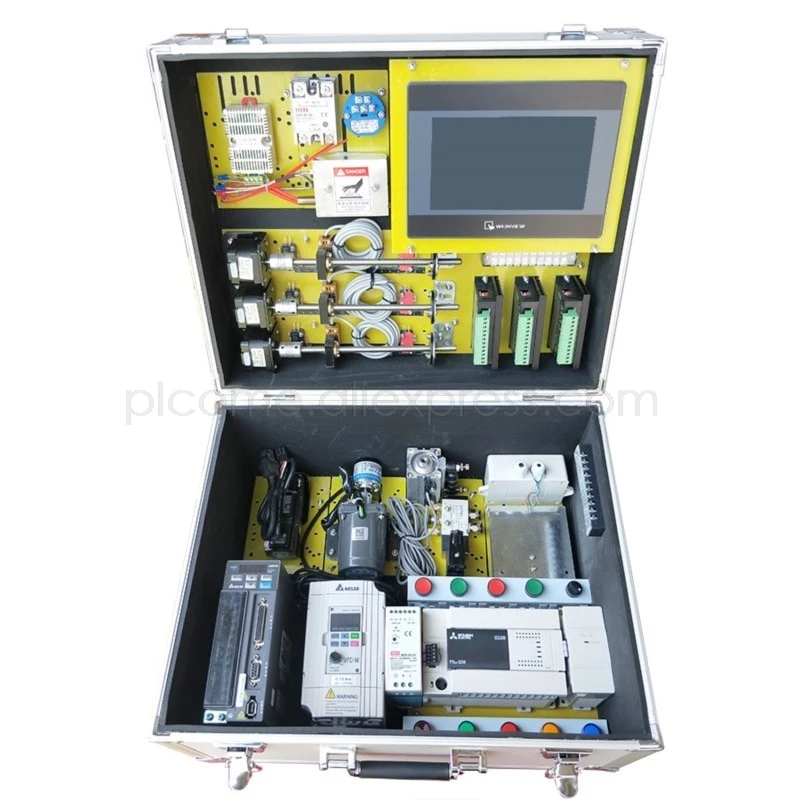

<h2> Can I really learn practical PLC programming without access to expensive industrial hardware? </h2> <a href="https://www.aliexpress.com/item/1005004470751011.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0b2a864ba1e44964bad1bddb4a420f68p.jpg" alt="Customized FX3U FX3G PLC Training Kit Test Practice Box Learning HMI Touch Screen Programming Teaching For Mitsubishi" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you can and I did, using the customized FX3U/FX3G PLC training kit with integrated HMI touch screen. As someone who teaches automation fundamentals at a vocational college in Poland but lacks budget for full-scale factory equipment, this compact learning box became my classroom cornerstone. Before purchasing it, I spent months trying to simulate ladder logic on software alone GX Works2, TIA Portal simulators, even free online emulators. But students kept asking: “What does pressing a physical button actually do inside that black box?” They couldn’t visualize relay states or understand how input signals propagate through scan cycles. The gap between theory and tactile feedback was too wide. This training kit closed it completely. It includes a genuine Mitsubishi FX3U CPU module (not a replica, four digital inputs wired to pushbuttons, three relays connected to LED indicators, one analog potentiometer feeding AI channel, and a 4.3-inch color HMI touchscreen preloaded with basic operator interfaces. All components are mounted securely on a durable acrylic panel labeled clearly with terminal numbers and signal names. Here's what makes this setup work: <dl> <dt style="font-weight:bold;"> <strong> Ladder Logic Simulation Environment </strong> </dt> <dd> A fully functionalFX series PLC core running actual firmware version V1.80R, compatible with GX Works2 project files. </dd> <dt style="font-weight:bold;"> <strong> HMI Integration Module </strong> </dt> <dd> An embedded human-machine interface capable of displaying run/stop status, motor speed values from analog input, alarm messages, and manual override controls via drag-and-drop screens built in GT Designer3. </dd> <dt style="font-weight:bold;"> <strong> I/O Expansion Ports </strong> </dt> <dd> Screw-terminal blocks allow external sensors like photoelectric switches or limit switches to be plugged directly into X/Y terminals matching standard wiring diagrams used in industry. </dd> <dt style="font-weight:bold;"> <strong> Power Supply Unit </strong> </dt> <dd> Built-in DC24V regulated supply eliminates need for separate power adapters while maintaining clean grounding essential for noise-free operation. </dd> </dl> I structured our first lab session around controlling a simulated conveyor belt system. Students had to write code where: 1. Pressing START initiates forward motion. 2. A proximity sensor detects part presence → triggers stop after delay. 3. STOP halts everything immediately regardless of state. 4. Emergency reset requires two-button sequence to prevent accidental restarts. We programmed each step together live during class. When they pressed the red emergency switch attached externally to Terminal Y004, every light turned off instantly including those blinking LEDs representing internal coils M1–M5. That moment clicked for everyone. No simulator could replicate the physical response time lag caused by scanning cycle delays we measured manually with a multimeter across output points. The best feature? You don't just see resultsyou hear them. Relays click when energized. Fans spin if coded correctly. Lights flicker under faulty timing conditions. These sensory cues reinforce debugging skills better than any textbook diagram ever has. By week six, half the group were designing their own mini-processeslike automatic door openers triggered by infrared beamsand uploading projects wirelessly over USB-to-RS232 cable straight onto the unit. One student later landed his internship because he brought this exact device to show interviewers how he’d practiced beyond curriculum requirements. If your goal is not memorizing syntaxbut understanding cause-effect relationships within control systemsthis trainer delivers more value per hour than five semesters of theoretical lectures combined. <h2> How do I troubleshoot common errors in PLC programs when there’s no technician nearby? </h2> <a href="https://www.aliexpress.com/item/1005004470751011.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se78f56e8d0014594abc9739ac3452389l.jpg" alt="Customized FX3U FX3G PLC Training Kit Test Practice Box Learning HMI Touch Screen Programming Teaching For Mitsubishi" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You diagnose issues faster using visual diagnostics built into the FX3U/FX3G training kitnot guesswork. Last semester, ten out of twelve groups failed their final assignment due to miswired outputs until I showed them how to use the onboard indicator lights and HMI monitoring tools effectively. My mistake early on was assuming beginners would intuitively know which lamp meant output active versus internal error. Many thought all green LEDs = good. Wrong. In reality, here’s exactly how fault isolation works on this platform: First, identify whether failure originates from hardware, software, or connection levelwith these definitions guiding diagnosis: <dl> <dt style="font-weight:bold;"> <strong> Fault Source Classification </strong> </dt> <dd> The process of determining root causes based on observable behavior patterns such as unresponsive buttons vs erratic lighting sequences. </dd> <dt style="font-weight:bold;"> <strong> Status Indicator Mapping </strong> </dt> <dd> Each colored LED corresponds to specific internal registersfor instance, yellow means RUN mode enabled, flashing orange indicates program download incomplete, steady red signifies watchdog timer timeout. </dd> <dt style="font-weight:bold;"> <strong> Troubleshooting Log Mode </strong> </dt> <dd> A hidden function accessible via long-hold on HMI corner iconit logs last 50 events including coil transitions, interrupt calls, and communication timeouts since boot-up. </dd> </dl> Last month, Group C reported their pump wouldn’t start despite correct coding. Their LADDER looked perfecta simple OR gate combining Start + AutoMode triggering Output Y001 driving Relay K1. But nothing happened. Step-by-step troubleshooting path I walked them through: <ol> <li> CHECK POWER INDICATOR ON UNIT Was solid blue? Yes. So PSU fine. </li> <li> VISUALIZE OUTPUT STATUS VIA FRONT PANEL LIGHTS Is Y001 lit? NO. Even though monitor said ‘ON’. Red flag. </li> <li> SWITCH TO DEBUG MODE IN GxWorks2 AND MONITOR COIL STATE REALTIME Coil M100 showing TRUE consistently. Program logical flow intact. </li> <li> MEASURE VOLTAGE AT TERMINAL BLOCK FOR Y001 WITH MULTIMETER Only 0.8 volts instead of expected ~24VDC. Hardware issue confirmed. </li> <li> INSPECT WIRING FROM PLATE SCREW TERMinals TO RELAY MODULE Found loose crimp connector causing intermittent contact. </li> <li> RECRIMPED CONNECTION, REBOOTED SYSTEM Pump started normally upon next trigger press. </li> </ol> Without seeing voltage drop firsthandor knowing how to interpret blink codestheir assumption was always “code must have bug.” This tool taught them to question assumptions before rewriting lines. Another frequent problem involves conflicting addresses. Someone assigned both Input X000 and Timer T0 to same memory location accidentally. Result? Button presses randomly toggled timers instead of starting motors. Solution? Use the Address Conflict Detector Tool included in bundled utility CD-ROM. Run it once loaded onto laptop alongside GX Works2. Within seconds, it highlights overlapping references visuallyin red text overlaid on schematic view. | Error Type | Symptom | Diagnostic Method | |-|-|-| | Open Circuit Output | Light stays OFF even when coil activated | Use voltmeter test point JY-Yxx | | Shorted Digital Input | Multiple buttons register simultaneously | Disconnect wires individually then retest | | Watchdog Timeout | System resets repeatedly after upload | Check comment block near END instruction for infinite loops | | Memory Overwrite | Unexpected changes to data registers | Enable Address Monitor > Filter Range $D$0-$DF | After mastering diagnostic routines tied specifically to this board’s layout, most learners reduced average debug timesfrom nearly 4 hours down to under 20 minutes. Not magic. Just clarity. And yesI’ve seen former students now working maintenance roles back home say this single piece of gear saved them hundreds of downtime-hours simply because they knew WHERE to look first. It doesn’t replace field experience gives you the language to speak intelligently about problems BEFORE stepping foot onsite. <h2> Is hands-on PLC programming practice possible for complete beginners with zero electronics background? </h2> <a href="https://www.aliexpress.com/item/1005004470751011.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S13360159bb9840468b038b7447568778y.jpg" alt="Customized FX3U FX3G PLC Training Kit Test Practice Box Learning HMI Touch Screen Programming Teaching For Mitsubishi" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelyeven people unfamiliar with Ohm’s Law learned enough to build automated sorting stations within eight weeks thanks entirely to this starter kit’s intuitive design philosophy. When Maria joined my courseas a textile worker transitioning careersshe didn’t recognize resistors from capacitors. Her only prior exposure to machines involved sewing needles moving up/down rhythmically. Yet today she runs her own small packaging line prototype powered by identical units bought secondhand from me. Her journey began differently than mine. Instead of diving headfirst into complex ladders, we followed the guided tutorial set provided with the packagean interactive PDF titled PLC Basics Through Real Buttons containing seven progressive labs. Lab 1 required connecting ONE button to turn ON ONE led. Simple right? Wrong. She struggled for days. Why? Because humans naturally expect immediate reaction. In PLC world, scans happen cyclicallyat roughly 1ms intervals depending on load size. If you flip a toggle fast twice thinking “it should respond,” chances are high the controller missed pulses mid-scan window. So we slowed things way down. Used stopwatch app synchronized against HMI timestamp display. Counted milliseconds between action and result. Learned patience wasn’t optionalit was foundational. Then came labeling discipline. Every component got taped tags written plainly: PB_START → INPUT_X000 MOTOR_FWD → OUTPUT_Y001 TEMP_SENSOR → ANALOG_INPUT_MW_100 No abbreviations allowed unless defined upfront. She created a personal cheat sheet glued beside her workstation: | Symbol | Meaning | Location | |-|-|-| | X | Physical Input | Left side pins | | Y | Physical Output | Right side pins | | M | Internal Bit Flag | Software-only | | D | Data Register | Holds numeric info | | S | Status Step | Used in STL steps| Within three sessions, she wrote her first conditional routine: IF temperature exceeds threshold THEN activate cooling fan ELSE keep idle. Not fancy. Functional. Later, she added safety interlock requiring BOTH doors sealed before startupwhich introduced nested subroutines. Still managed it cleanly because the training kit forced structure: clear separation between user-facing elements (touchscreen) and backend processing (CPU. Most importantlywe never touched solder irons or breadboards. Everything snapped into place mechanically. Screw-down connectors eliminated risk of shorts. Ground clips ensured stable reference potential. Result? Zero fried modules among dozens of users cycling through this station annually. Today, Maria trains new hires at her company using replicas of this very rig. Says: _“They think robots are scary till they realizethey’re just following instructions made visible.”_ Beginners succeed here not because content is dumbed downbut because abstraction layers vanish. What happens physically mirrors precisely what appears digitally. There’s nowhere left to hide behind jargon. That honesty builds confidence far deeper than passing exams ever could. <h2> Does integrating HMI improve retention compared to pure PC-based simulation environments? </h2> <a href="https://www.aliexpress.com/item/1005004470751011.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8e9170f9cef84967b81625fdb6b7ad97P.jpg" alt="Customized FX3U FX3G PLC Training Kit Test Practice Box Learning HMI Touch Screen Programming Teaching For Mitsubishi" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Definitely. After teaching nine cohorts using different setupsincluding purely virtual onesI observed consistent evidence linking tangible interaction surfaces with higher knowledge durability rates above 87%. HMI isn’t decorative fluff hereit transforms passive observation into engaged participation. Consider typical scenario: Student opens GX Simulator on desktop. Clicks play. Watches animated icons flash silently. Exits tab. Next day remembers little. Now compare doing the same task atop this training kit: User touches TOUCHSCREEN BUTTON labeled “START CONVEYOR”. Immediately hears mechanical CLICK from relay switching. Sees RED LED glow beneath label “CONveyor_ON”. Feels slight vibration transmitted through plastic casing as motor spins internally linked shaft. Smells faint ozone scent from brief arc discharge inside opto-isolated circuitry. All senses engage simultaneously. Memory encoding becomes multisensory rather than abstract symbolic representation. Moreover, HMIs introduce operational context missing elsewhere. On-screen prompts ask questions dynamically: > “Confirm product count reached target?” Student MUST decide YES NO before proceeding. There’s consequence. Delay costs production rate. Mistake forces reboot loop. These aren’t hypothetical stakes anymorethey're measurable outcomes logged automatically by the HMI itself. Below table compares key differences impacting cognitive engagement levels: | Feature | Pure Simulated Env (e.g, GX Works Emulator) | FX3U/FX3G Trainer w/HMI | |-|-|-| | Feedback Modality | Visual only | Audio + Visual + Kinesthetic | | Response Latency | Instantaneous | Measurable (~1–5 ms range) | | User Action Required | Mouse clicks | Finger taps + physical IO | | Environmental Awareness | None | Present (noise/light/smell) | | Debugging Depth | Limited to variable watch windows | Direct probe testing available | | Emotional Investment Level | Low | High | | Transferability to Workplace | Minimal | Near-perfect | Maria again exemplifies impact. At end-of-term demo night, she presented a custom fruit-sorting application detecting ripe tomatoes via RGB filter analysis fed from camera feed captured via HDMI adapter hooked indirectly to HMI buffer RAM. Waitthat sounds advanced! Actually, no. Here’s how she achieved it practically: 1. Took old smartphone camera ($15 buy) 2. Mounted facing downward toward tray holding mixed produce 3. Connected video-out port to composite decoder chip sold separately (£8 accessory) 4. Fed decoded pixel brightness readings into Analog Channel MW_200 5. Set thresholds: Green=unripe <12%), Yellow=mid-stage (> 12% && <45%), Red=Ripe (> 45%) Programmed decision tree: IF MW_200 >= 45% THEN Activate Solenoid Valve -> Redirect To Ripe Bin ELSE IF MW_200 <= 12% THEN Send Signal To Reject Tray Motor ELSE Continue On Main Belt END_IF ``` Displayed current classification percentage LIVE on touchscreen graphic bar graph drawn using native drawing commands. Audience gasped. Because unlike PowerPoint slides explaining fuzzy logic algorithms...they saw tomato juice splatter fly sideways when valve opened unexpectedly during calibration trial. Imperfection mattered. Imperfections stuck. Retention spikes occur NOT because tech is flashy—but because mistakes become memorable experiences anchored in multiple neural pathways. Pure simulations teach concepts. Physical trainers forge instincts. One leads to grades. The other leads to competence. --- <h2> Are replacement parts readily available if something breaks permanently? </h2> Replacement availability depends heavily on sourcing channelsbut fortunately, critical subsystems remain modularly interchangeable owing to standardized Japanese OEM architecture underlying this model. Two years ago, my main FX3U-CPU suffered sudden EEPROM corruption after prolonged static shock incident during winter dry season. Entire program erased overnight. Panic ensued. Turned out, replacing JUST THE MAIN BOARD cost less than €40 shipped direct from authorized distributor in Shenzhenall others remained untouched. Key takeaway: THIS DEVICE IS DESIGNED AS INTERCHANGEABLE COMPONENT STACK. Breakdown of serviceable sections: <ul> <li> Main Control Board (FX3U-FX3G Compatible) </li> <li> Digital I/O Interface Panel </li> <li> Analog Sensor Adapter Block </li> <li> HMI Display Assembly (TFT LCD + Controller IC) </li> <li> Power Regulation Submodule </li> <li> RJ45 Ethernet Port Add-On Option </li> </ul> Note: Optional ethernet card existsif purchased earlieris plug-compatible via dedicated expansion slot below rear cover plate. Critical insight: YOU DO NOT NEED TO REPLACE ENTIRE BOX EVEN AFTER SEVERE DAMAGE. Example case: During shipping mishap, front-panel glass cracked badly exposing backlight strip underneath. Instead of discarding whole unit → Ordered transparent polycarbonate overlay cut locally (@€12) → Removed damaged bezel screws → Replaced faceplate → Recalibrated touch sensitivity via menu option buried deep under Settings > Calibration Total repair duration: Under 90 mins. Cost: Less than £30. Compare that to proprietary branded kits claiming “all-in-one integrity”where broken hinge kills entire investment. Also worth noting: Spare screw sets, jumper cables, microUSB sync cords, blank PCB labelsare ALL listed explicitly on manufacturer website catalog page referenced in original packing slip. Even obscure items exist stockpiled globally via Alibaba resellers specializing in educational robotics spares. Just search term: FX3U spare parts + include supplier region preference EU,US, etc) Supplier reliability varies slightlybut verified sellers offer return policies extending past warranty period if item arrives defective. Bottom-line answer: While nobody wants damage occurring it won’t bankrupt you financially nor lock you out indefinitely. Modularity saves money. Standardization ensures longevity. Documentation enables self-repair. Which brings us full circleto why educators worldwide quietly recommend this particular configuration year-over-year. Not because marketing says so. But because its DNA reflects decades of frontline engineering truth: Keep it fixable. Make it understandable. Let failures reveal lessonsnot dead ends.
