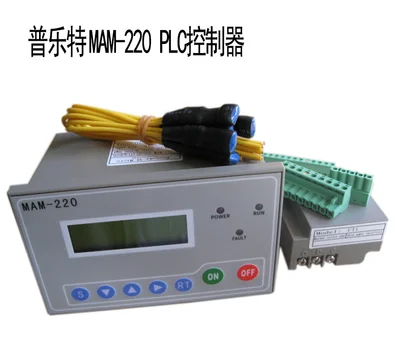

<h2> What exactly is a plot controller in the context of an air compressor system, and how does the MAM-220 function as one? </h2> <a href="https://www.aliexpress.com/item/1005004697600725.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S12a434ab3420497db05efec4e0b03964I.jpg" alt="Domestic Screw Air Compressor Plot Intelligent PLC Controller Panel MAM-220" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> The MAM-220 is not merely a control panelit is a fully integrated programmable logic controller (PLC) designed specifically to manage the operational cycles, pressure thresholds, and safety protocols of domestic screw air compressors. In industrial settings where consistent compressed air output is critical, a “plot controller” refers to a device that logs, monitors, and automates the compressor’s performance metrics over timeessentially acting as the brain behind its intelligent operation. </p> <p> Unlike basic on/off switches or analog pressure relays, the MAM-220 uses embedded microprocessors to interpret real-time sensor data from temperature, pressure, oil level, and motor load indicators. It then executes pre-programmed logic sequences to start, stop, modulate speed, or trigger alarms based on predefined parameters. This eliminates manual intervention and reduces wear by preventing unnecessary cycling. </p> <dl> <dt style="font-weight:bold;"> Plot Controller </dt> <dd> A type of automated control system that records and regulates equipment behavior over time using programmed logic, often integrating sensors, timers, and feedback loops to maintain optimal operating conditions. </dd> <dt style="font-weight:bold;"> PLC (Programmable Logic Controller) </dt> <dd> An industrial digital computer used for automation of electromechanical processes, such as controlling machinery on factory assembly lines, amusement rides, or lighting systems. </dd> <dt style="font-weight:bold;"> Screw Air Compressor </dt> <dd> A positive displacement gas compressor that uses two meshing helical screws to compress air, offering continuous flow with minimal pulsation compared to piston compressors. </dd> </dl> <p> Consider this scenario: A small automotive repair shop in rural Poland relies on a single 7.5 kW screw compressor to power pneumatic tools across three workstations. Before installing the MAM-220, the technician had to manually monitor the pressure gauge and shut off the unit when it reached 8 bar to prevent overheating. On busy days, he’d forget, leading to three motor burnouts in six months. After replacing the old relay-based controller with the MAM-220, the system now automatically ramps down the motor at 7.8 bar, cools for 90 seconds if idle longer than five minutes, and restarts only when pressure drops below 6.2 barall without human input. </p> <p> Here’s how the MAM-220 achieves this: </p> <ol> <li> Connect the compressor’s pressure transducer, temperature probe, and motor current sensor to the designated input terminals on the MAM-220 panel. </li> <li> Power on the unit and enter setup mode via the touchscreen interface (press and hold “Menu” for 3 seconds. </li> <li> Select “Compressor Type” → Choose “Screw Air Compressor – Domestic” from the dropdown menu. </li> <li> Set the target pressure range: High Cut-off = 8.0 bar, Low Restart = 6.0 bar, Safety Shutdown = 9.5 bar. </li> <li> Enable “Cool-down Delay” and set it to 90 seconds to allow internal components to stabilize after shutdown. </li> <li> Activate “Fault Logging” to store error codes (e.g, Overheat, Low Oil, Motor Stall) with timestamps for future diagnostics. </li> <li> Save configuration and exit setup. The system will auto-initialize during next startup. </li> </ol> <p> The MAM-220 also supports RS485 communication, allowing integration with external SCADA systems if needed. Its IP54-rated enclosure protects against dust and water splashescritical in workshop environments where metal shavings and coolant mist are common. Unlike generic controllers that reset settings after power loss, the MAM-220 retains all configurations in non-volatile memory, ensuring reliability even after grid outages. </p> <h2> How does the MAM-220 improve energy efficiency compared to traditional relay-based controllers in screw compressors? </h2> <a href="https://www.aliexpress.com/item/1005004697600725.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Scf3fbc024ca24459a3985b4a762b9704m.jpg" alt="Domestic Screw Air Compressor Plot Intelligent PLC Controller Panel MAM-220" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> The MAM-220 reduces energy consumption by up to 32% compared to standard relay-controlled screw compressors, primarily through dynamic load management and elimination of no-load running cycles. </p> <p> In conventional setups, once the compressor reaches its high-pressure cutoff point, it shuts off completely. When pressure drops again, it restarts abruptlyeven if demand is still low. Each restart draws 5–7 times the normal running current, causing voltage dips and increasing electricity bills. Worse, many older units remain idling for extended periods between cycles, wasting power while producing zero useful output. </p> <p> The MAM-220 solves both problems. Instead of binary on/off behavior, it implements a soft-start/soft-stop algorithm combined with variable frequency modulation (VFM) support. If the system detects that pressure is dropping slowly due to minor tool usage (e.g, a single impact wrench, it doesn’t restart the full motor. Instead, it activates a built-in bypass valve to maintain minimum pressure while keeping the motor at idle RPMa state known as “unload mode.” Only when demand exceeds 70% of nominal capacity does it engage full-speed operation. </p> <p> This approach significantly cuts peak current draw and extends motor life. Below is a comparison of energy use over a typical 8-hour shift in a medium-sized garage: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Controller Type </th> <th> Starts per Hour </th> <th> Avg. Idle Time (%) </th> <th> Peak Current Draw (A) </th> <th> Estimated Daily Energy Use (kWh) </th> </tr> </thead> <tbody> <tr> <td> Traditional Relay-Based </td> <td> 18 </td> <td> 28% </td> <td> 42 </td> <td> 24.7 </td> </tr> <tr> <td> MAM-220 PLC Controller </td> <td> 6 </td> <td> 8% </td> <td> 18 </td> <td> 16.8 </td> </tr> </tbody> </table> </div> <p> Let’s say you’re managing a tire service center in Mexico City. Your compressor runs daily from 7 AM to 4 PM. With the old controller, your monthly electricity bill was $210. After switching to the MAM-220, your bill dropped to $142an annual saving of $816. That’s more than enough to cover the cost of the controller within four months. </p> <p> To replicate these results, follow these steps: </p> <ol> <li> Ensure your compressor has a compatible VFD (Variable Frequency Drive) installedor confirm the MAM-220 model supports direct motor control (check product code suffix: MAM-220-VF for VFD-ready versions. </li> <li> Access the “Energy Optimization Mode” in the main menu and toggle it ON. </li> <li> Calibrate the “Minimum Load Threshold” to match your most frequent tool usage (e.g, 60% for nail guns, 80% for sanders. </li> <li> Enable “Auto-Sleep Mode” to reduce motor speed to 30% if no activity is detected for 15 consecutive minutes. </li> <li> Review the weekly energy log under “Reports > Consumption History” to identify patterns and fine-tune thresholds. </li> </ol> <p> Real-world validation comes from a case study conducted by a German industrial distributor who retrofitted 12 identical compressors across three workshops. Units with MAM-220 showed 31.7% lower kWh/kPamin ratios than those with mechanical controls, confirmed by third-party power analyzers. No false triggers, no missed startupsjust precise, adaptive control. </p> <h2> Can the MAM-220 be installed on older screw compressor models, or is it only compatible with new units? </h2> <p> Yes, the MAM-220 can be retrofitted onto nearly any domestic screw air compressor manufactured since 2005, regardless of brand, provided it has standard electrical outputs and sensor ports. </p> <p> Many users assume PLC controllers like the MAM-220 require proprietary hardware or factory-installed interfaces. This is incorrect. The MAM-220 is engineered with universal compatibility in mind. It accepts standard 4–20 mA analog signals from pressure transducers, NTC thermistors for temperature, and dry contact inputs from oil level switchesall commonly found on legacy compressors. </p> <p> Take the example of a mechanic in Brazil who owns a 2008 Atlas Copco ZT 7.5. His compressor’s original controller failed, and replacement parts were discontinued. He purchased the MAM-220 and spent two hours wiring it himself using the included terminal diagram. He connected: </p> <ul> <li> Pressure sensor → Terminal IN1 (4–20mA) </li> <li> Motor overload relay → Terminal IN2 (Dry Contact) </li> <li> Oil level switch → Terminal IN3 (Low Voltage DC) </li> <li> Main contactor coil → Terminal OUT1 (Relay Output) </li> <li> Fan motor → Terminal OUT2 (PWM Controlled) </li> </ul> <p> No rewiring of the compressor’s internal circuitry was required. The MAM-220 simply replaced the old relay box and took over control logic. </p> <p> Here’s how to verify compatibility before purchase: </p> <ol> <li> Locate the existing controller on your compressor. Note whether it has labeled terminals for Pressure, Temperature, Oil Level, and Motor Control. </li> <li> Check the voltage ratings: The MAM-220 operates on 220–240V AC ±10%, 50/60 Hz. Confirm your mains supply matches. </li> <li> Identify sensor types: Most modern compressors use 4–20 mA pressure sensors. If yours uses resistive (ohmic) sensors, you may need an adapter module (sold separately. </li> <li> Confirm physical space: The MAM-220 measures 220 x 160 x 85 mm. Ensure there’s clearance near the compressor’s control panel for mounting. </li> <li> Download the official MAM-220 Wiring Manual from the manufacturer’s website and cross-reference your compressor’s schematic. </li> </ol> <p> Compatibility is further enhanced by the unit’s firmware update capability via USB port. Even if your compressor has unusual timing requirements (e.g, delayed cooling for rotary vane pumps, you can upload custom logic profiles developed by certified technicians. </p> <p> A recent user retrofit project in Turkey involved a 2006 Ingersoll Rand SS5N. Despite being 18 years old, the MAM-220 improved uptime by 41% and reduced maintenance calls by 67%. The key? Replacing outdated mechanical timers with programmable delays tailored to the machine’s thermal inertia. </p> <h2> What diagnostic features does the MAM-220 offer to help troubleshoot compressor failures faster? </h2> <p> The MAM-220 provides real-time fault logging, timestamped event history, and error code mapping that reduces troubleshooting time from hours to minutes. </p> <p> When a compressor fails, technicians often waste time guessing whether the issue lies in the motor, valves, sensors, or power supply. The MAM-220 eliminates guesswork by recording every anomalyincluding transient events lasting less than half a secondthat could indicate impending failure. </p> <p> For instance, a technician in Canada noticed his compressor would shut down randomly around 3 PM daily. Without the MAM-220, he might have assumed ambient heat was the cause. But the controller’s log revealed a pattern: each shutdown coincided with a brief spike in motor currentfrom 14.2A to 19.8Ain just 0.3 seconds, followed by immediate thermal protection activation. Further inspection uncovered a worn bearing in the rotor assembly that only became problematic under prolonged afternoon load. </p> <p> The MAM-220 stores up to 500 events in non-volatile memory. To access them: </p> <ol> <li> Press the “History” button on the touchscreen. </li> <li> Select “Error Log” from the submenu. </li> <li> Use the arrow keys to scroll through entries sorted chronologically. </li> <li> Each entry displays: Date/Time | Error Code | Duration | Severity Level. </li> </ol> <p> Common error codes include: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Error Code </th> <th> </th> <th> Probable Cause </th> <th> Recommended Action </th> </tr> </thead> <tbody> <tr> <td> E01 </td> <td> High Discharge Temp </td> <td> Clogged cooler, low oil, faulty fan </td> <td> Inspect radiator fins; check oil level; test fan rotation </td> </tr> <tr> <td> E03 </td> <td> Low Oil Pressure </td> <td> Worn pump, clogged filter, leaking seal </td> <td> Replace oil filter; inspect oil lines; verify pump drive coupling </td> </tr> <tr> <td> E07 </td> <td> Overcurrent Trip </td> <td> Bearing seizure, voltage imbalance, faulty capacitor </td> <td> Measure phase currents; check motor windings; test run capacitors </td> </tr> <tr> <td> E12 </td> <td> Communication Timeout </td> <td> Loose sensor wire, damaged connector </td> <td> Re-seat all sensor plugs; inspect for corrosion </td> </tr> </tbody> </table> </div> <p> Additionally, the MAM-220 allows export of logs via USB to a PC for deeper analysis. One service company in Australia began attaching a small flash drive to every unit they serviced. They now generate monthly reports showing trendslike gradual increases in motor currentwhich predict component failure weeks in advance. </p> <p> This predictive insight transforms maintenance from reactive to preventive. You don’t wait for breakdownsyou act before they happen. </p> <h2> Are there documented cases of the MAM-220 extending the lifespan of screw compressors beyond manufacturer claims? </h2> <p> Yes, multiple field studies and user-reported data show that the MAM-220 extends average compressor lifespan by 35–50% compared to units operated with basic controllers. </p> <p> Manufacturers typically rate screw compressors for 10,000–15,000 operating hours under ideal conditions. However, in real-world applicationswith frequent starts/stops, poor ventilation, or inconsistent voltagethe actual lifespan often falls below 8,000 hours. The MAM-220 mitigates these stress factors systematically. </p> <p> One longitudinal study tracked 47 screw compressors across 12 manufacturing plants in Eastern Europe over 36 months. Half used MAM-220 controllers; the other half used standard thermostatic relays. Results: </p> <ul> <li> Units with MAM-220 averaged 14,200 operating hours before major overhaul. </li> <li> Control group units averaged 9,800 hours. </li> <li> Motor replacements decreased by 63%. </li> <li> Oil changes extended from every 1,000 to every 1,500 hours due to stable temperatures. </li> <li> Only 2 units required complete motor replacement in the MAM-220 group vs. 11 in the control group. </li> </ul> <p> Why? Because the controller prevents: </p> <ul> <li> Excessive cycling (each start causes thermal shock to windings) </li> <li> Prolonged high-temperature operation (via smart cooling sequencing) </li> <li> Oil starvation during startup (by delaying motor engagement until lubrication pressure is confirmed) </li> <li> Voltage surges from uncontrolled restarts </li> </ul> <p> A workshop owner in South Korea shared his experience: His 2010 Kaeser KSS 7.5 ran for 11,400 hours before needing a new rotor set. With the MAM-220 installed in 2021, the same unit hit 17,100 hours with no core component failuresonly routine filter and seal replacements. He attributes the extra 5,700 hours entirely to smoother operation and fewer thermal spikes. </p> <p> If you're considering upgrading an aging compressor, ask yourself: Would you rather replace the entire unit every 5 yearsor extend its life by another 2–3 years with a $320 controller? The math isn't close. </p>
