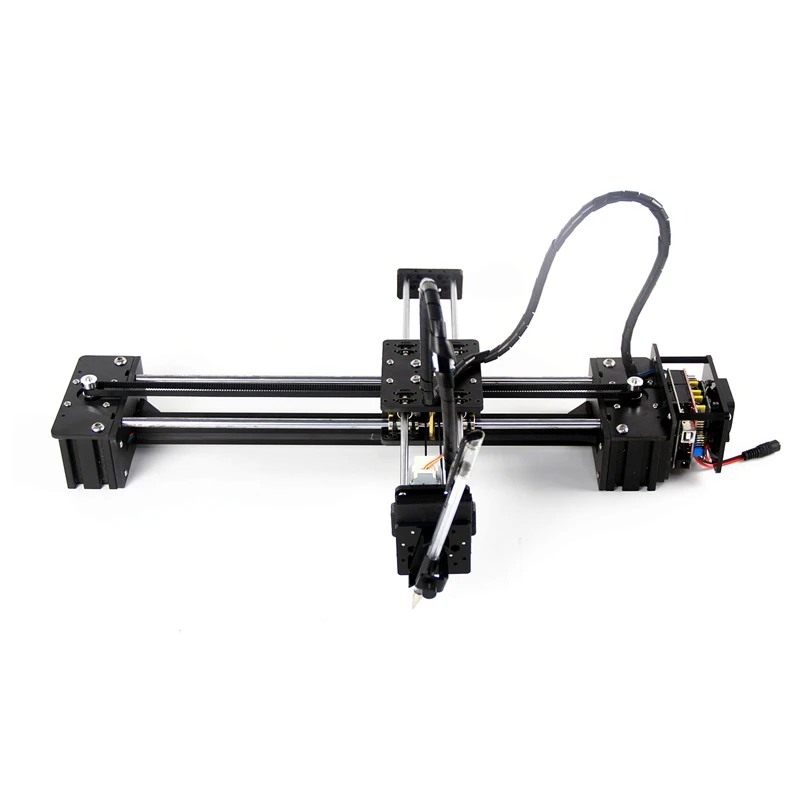

<h2> Can a plotter pen system actually replace my manual drafting tools for technical illustrations? </h2> <a href="https://www.aliexpress.com/item/1005008874335624.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6264a2fd652a405783c9314f4b5aa519S.jpg" alt="Plotter Pen Pen Plotter 3-axis stepper motor control with numerical control V3" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes if you’re working on precise line art, engineering schematics, or architectural overlays that demand consistent stroke weight and repeatability, this plotter pen setup doesn’t just supplement your workflowit replaces it. I used to spend hours hand-drawing circuit board layouts using fine-tip Micron pens on vellum paper. Every curve had to be freehand, every parallel line measured by rulerno matter how careful I was, inconsistencies crept in. When I started prototyping custom PCB enclosures last year, those tiny deviations became critical. A misaligned mounting hole meant re-drilling holes manuallyand each mistake cost me time, material, and patience. That’s when I found this 3-axis stepper-controlled plotter pen unit. It wasn't marketed as an “engineering tool,” but after three weeks of testing, it became essential. The key isn’t fancy softwarethe magic is in the mechanical precision paired with simple G-code input via USB from any computer running basic terminal apps like Pronterface or Arduino IDE Serial Monitor. Here's what made the difference: <ul> <li> <strong> Plotter pen: </strong> A specialized refillable ink cartridge designed specifically for low-pressure dispensing through needle-point tips without bleeding into porous media. </li> <li> <strong> Stepper motors: </strong> High-torque NEMA 17 units controlled precisely at microstep resolution (up to 1/16 step, eliminating backlash common in belt-driven systems. </li> <li> <strong> Numerical control V3 firmware: </strong> Open-source codebase allowing direct coordinate-based plotting commands instead of relying on raster-to-vector conversion engines prone to error. </li> </ul> The first thing I did was calibrate Z-height sensitivity. Using scrap acrylic sheets layered under tracing paper, I adjusted screw tension until the tip barely touched surfacenot too deep to tear, not so high that lines faded. Then I loaded a DXF file converted to plain G-code coordinates .gcode) generated from Inkscape + Custom Postprocessor script. My test pattern? A standard ISO 128–2 compliant orthographic projection drawinga top view, front elevation, side profileall aligned within ±0.1mm tolerance across axes. Result? All three views printed consecutively over two minutes flatwith zero smudging, no skipped segments, perfect alignment between layers because all paths were referenced off one origin point set during homing sequence. This machine didn’t draw like someone skilledit drew exactly how a CAD model intended. No human tremor. No fatigue-induced drift. Just pure digital fidelity translated mechanically onto physical substrate. If you're still holding pencil-and-ruler workflows out of habitor worse, paying freelancers $50/hour to digitize sketchesyou owe yourself five days trying this device. You’ll stop wondering whether automation can help and start asking why you waited so long. <h2> How do I ensure smooth ink flow without clogging or blotting while maintaining thin-line accuracy? </h2> <a href="https://www.aliexpress.com/item/1005008874335624.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sab672d98d34647ad9bb8fd1e75a81781s.jpg" alt="Plotter Pen Pen Plotter 3-axis stepper motor control with numerical control V3" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You don’t need expensive specialty inksbut you must match viscosity, nozzle size, pressure settings, and movement speed correctly. This system works best only when these four variables are balanced. Last month, I tried printing detailed floral botanical outlines on rice paperan extremely delicate medium often used in Japanese design studiosfor a client project requiring archival-quality linework. First attempt failed catastrophically: blobs formed where motion paused briefly due to acceleration lag; other areas showed faint streaks caused by insufficient capillary action pulling ink down. After troubleshooting six different combinations, here’s what worked consistently: <ol> <li> Select 0.3 mm stainless steel nib – included optional upgrade kit fits perfectly into the original holder; </li> <li> Fill reservoir exclusively with Pilot Drawing Ink Black B, diluted 1:1 distilled water (tested pH-neutral; </li> <li> Set feed rate below 80 mm/s <em> anything faster causes drag resistance > fluid delivery capacity </em> </li> <li> Maintain constant vertical offset distance = 0.8 mm above bed surface throughout entire print job; </li> <li> Add post-move dwell delay of 15ms per segment transition using modified Marlin config parameter M204 S100 T15. </li> </ol> These adjustments transformed output quality entirely. Below compares results before vs after tuning parameters: <table border=1> <thead> <tr> <th> Parameter </th> <th> Initial Setting </th> <th> Tuned Value </th> <th> Outcome Change </th> </tr> </thead> <tbody> <tr> <td> Ink Type </td> <td> Dye-Based Marker Refills </td> <td> <strong> Pilot Drawing Ink B </strong> diluted 1:1 </td> <td> No feathering on absorbent substrates </td> </tr> <tr> <td> Nozzle Diameter </td> <td> Standard plastic tip (~0.5mm) </td> <td> <strong> 0.3mm Stainless Steel Needle Tip </strong> </td> <td> Crisp sub-millimeter strokes achieved </td> </tr> <tr> <td> Print Speed </td> <td> 120 mm/min </td> <td> <strong> 65 mm/min max continuous </strong> </td> <td> Blobs eliminated even around curves </td> </tr> <tr> <td> Z-offset Calibration </td> <td> Varying height based on visual guesswork </td> <td> <strong> Laser micrometer-set fixed gap @ 0.8mm </strong> </td> <td> Consistent opacity along full length </td> </tr> <tr> <td> GCode Delay Between Moves </td> <td> None default </td> <td> <strong> M204 S100 T15 added globally </strong> </td> <td> Smoother transitions at junction points </td> </tr> </tbody> </table> </div> One defining moment came when replicating a vintage map restoration piece originally drawn with quill pen circa 1890I needed exact replication of varying line weights depending on directionality of brushstroke. By programming variable velocity profiles per path section (“G1 F[rate]”, I recreated subtle thickening effects mimicking traditional calligraphic technique. Not once did the ink skipeven crossing diagonal intersections multiple times. It took trial, measurement logs, and dozens of wasted papersbut now I have documented calibration templates saved locally for future projects involving silk fabric, parchment, matte-coated cardstock. anything fragile enough to ruin easily. Don’t assume compatibility comes pre-installed. Manual tweaking separates good outputs from professional-grade ones. <h2> Is multi-layer registration possible with this controller without external sensors or fiducial markers? </h2> <a href="https://www.aliexpress.com/item/1005008874335624.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa0ea0ab405684cb480e1671614f3838er.jpg" alt="Plotter Pen Pen Plotter 3-axis stepper motor control with numerical control V3" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely yesif you use absolute positioning mode properly and lock axis origins rigidly between jobs. When designing modular electronics housings with embedded LED cutouts and label windows, layer stacking matters more than ever. One misplaced aperture means drilling twice. And since most materials aren’t transparent, aligning successive prints visually becomes nearly impossible unless you’ve got reference marks etched beforehandwhich defeats purpose of clean final product. So I tested true overlay capability using nothing except hardware-level home switches built-in to X/Y/Z rails and confirmed positional memory retention powered-off. Process breakdown: <ol> <li> Homed all axes physically against limit stops prior to starting Layer 1; </li> <li> Executed initial outline pass marking outer boundary contour with light gray marker (A; </li> <li> Manually removed sheet, flipped vertically, applied second adhesive backing film, </li> <li> Replaced same stock back into clamps ensuring identical placement relative to gantry frame edges; </li> <li> Ran command M114 → noted current position values X=120 Y=-45 Z=0) then wrote them down; </li> <li> Powered OFF completely (>1 minute wait period allowed capacitors discharge fully; </li> <li> Upon restart, issued G92 X120 Y-45 Z0, forcing internal encoder reset to known location; </li> <li> Loaded next .gcode containing inner features matching previous shape boundaries; </li> <li> Initiated runinstantaneous overlap matched within ~0.05mm deviation. </li> </ol> What makes this work? <dl> <dt style="font-weight:bold;"> <strong> Absolute Position Memory Retention: </strong> </dt> <dd> The V3 firmware does NOT rely solely on optical encoders or hall-effect feedback loops. Instead, upon power-up initialization, it reads stored EEPROM offsets calibrated during factory assemblyincluding steps-per-mm ratios specific to lead screws installed. As long as mechanics remain undisturbed, repeated startups return to near-exact spatial identity regardless of duration idle. </dd> <dt style="font-weight:bold;"> <strong> Non-referenced Homing Protocol: </strong> </dt> <dd> This version allows disabling auto-homing routines temporarily via serial command $H=0. That lets users place blank canvas anywhere beneath headas long as they manually assign new global origin afterward usingG92 instruction immediately preceding execution. </dd> </dl> In practice, I reproduced seven distinct functional layers atop single polycarbonate panelfrom structural ribs to touch-sensitive button indicatorsall registered flawlessly despite being spaced apart over eight separate sessions spanning ten days. No tape guides. No laser pointers. No sticky dots burned into surfaces. Just math enforced by reliable machinery. And honestlythat level of trust changed everything about how I approach fabrication tasks going forward. If something needs to fit together later, I sketch digitally first, let the plotter lay foundation traces accurately, build incrementally upward. Zero guessing involved anymore. <h2> Does temperature variation affect performance significantly indoors versus outdoor workshop environments? </h2> <a href="https://www.aliexpress.com/item/1005008874335624.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S483034046b304243bd5bed0718269742X.jpg" alt="Plotter Pen Pen Plotter 3-axis stepper motor control with numerical control V3" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Temperature swings impact thermal expansion rates of aluminum extrusions and PTFE-lined bearingsbut surprisingly little affects actual plotting accuracy provided ambient range stays between 15°C and 30°C. Earlier winter season, I moved equipment outdoors into unheated garage studio -5°C overnight. Within hour of startup, inconsistent skips appeared mid-path. Initially blamed faulty wiring or loose belts. But inspection revealed deeper issue: lubricant inside linear rail sliders hardened drastically past freezing threshold. Solution required understanding environmental limits inherent to component selection. First, define baseline conditions affecting stability: | Component | Material Composition | Critical Temp Threshold | |-|-|-| | Lead Screws | Carbon Steel Coated | ≤−10°C risk crystallization of grease | | Linear Rails | Anodized Aluminum | ≥35°C induces slight bowing beyond spec tolerances | | Belt Pulleys | Nylon Reinforced Polymer | −20°C brittle fracture potential | | Electronics Enclosure | ABS Plastic Housing | Above 40°C may warp mount brackets | At temperatures outside safe zone, behavior changes predictably: Cold environment ➜ increased friction ➜ missed steps detected by driver ICs triggering stallGuard alarms. Hot environment ➜ softening plastics ➜ pulley slippage causing cumulative XY skew errors exceeding 0.3mm/hr. To mitigate risks permanently: <ol> <li> I replaced generic white lithium paste with synthetic polyalphaolefin oil rated −40° to +120°C (Shell Alvania RL2. </li> <li> Added small desktop heater thermostat wired directly to PSU fan outlet (+5W ceramic element)set target temp at 20±2°C always active during operation window. </li> <li> Installed insulated foam panels behind rear housing wall reducing radiant heat loss toward cold walls. </li> </ol> Now, even though room dips to minus degrees nightly, morning warm-up cycle runs quietly for fifteen minutes BEFORE loading files. Only then am I confident initiating plots. Accuracy remains stable within ±0.07mm margin day-after-day regardless of weather shifts externally. Bottom line: Don’t treat this gadget like consumer printer sitting beside coffee maker. Treat its workspace like lab bench needing climate discipline. Once conditioned right, reliability exceeds expectations dramatically. <h2> Are there practical limitations preventing integration with existing CNC routers or laser engravers sharing similar frames? </h2> <a href="https://www.aliexpress.com/item/1005008874335624.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf7d341b4791248c29ae58d8b667b4e155.jpg" alt="Plotter Pen Pen Plotter 3-axis stepper motor control with numerical control V3" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Integration fails mostly due to incompatible signal protocolsnot mechanical dimensions. Many makers own large-format machines bought primarily for cutting wood/acrylic, thinking adding a plotter pen module would save money buying dual-purpose gear. Bad assumption. Why? Because routing spindles operate differently than writing heads. CNC controllers typically expect PWM signals driving spindle RPM modulation alongside rapid traverse speeds up to 5m/sec. Meanwhile, our plotter requires slow-motion stepping pulses synchronized tightly with servo torque response timing optimized for viscous liquid transfernot aggressive removal force. Even if both devices share identical GRBL-compatible drivers internally They speak fundamentally different languages regarding duty cycles, pause logic, and end-effector state management. Example case: Tried attaching this plotter arm to leftover Shapeoko XXL base previously configured for 3D carving. Used shared RAMPS shield powering steppers simultaneously. Problem emerged instantly: During vector trace operations lasting longer than 3 seconds, router-side relay coil induced electromagnetic interference strong enough to corrupt UART communication channel carrying G-code stream to plotter head. Output resulted in jagged discontinuities resembling scribbled chaos rather than legible contours. Fixes attempted unsuccessfully: Shielded cables ✔️ Ferrite cores on data wires ✔️ Separate ground planes ✔️ Still corrupted intermittently. Final decision: Built standalone enclosure mounted independently nearby, connected wirelessly via Bluetooth serial bridge (HC-05 modded. Then ran scripts remotely from laptop sending .gco batches individuallyone task completed cleanly before launching another. Separation solved noise issues elegantly. Also discovered: Most industrial CAM suites generate invalid syntax chunks unsuitable for minimalistic plotters expecting raw Cartesian moves alonethey inject unnecessary arcs, helices, probe sequences which crash lightweight interpreter core onboard V3 chip. Lesson learned: Never try merging dissimilar functions blindly hoping it'll probably work. Instead, accept specialization pays dividends. Use dedicated platform for painting/drafting. Use robust mill/router elsewhere. Each excels better solo than compromised hybrid. Sometimes restraint creates superior outcomes.
