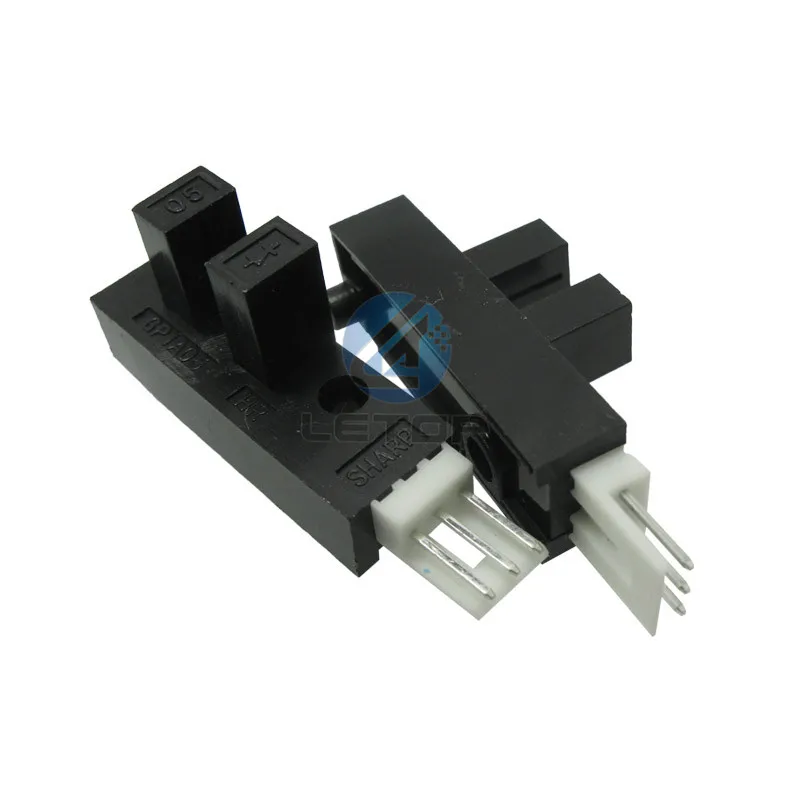

<h2> Why does my inkjet printer keep misaligning prints or failing to detect the home position? </h2> <a href="https://www.aliexpress.com/item/4001153828295.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H50df25446b4946e8b7975679826763bf2.jpg" alt="LC Limit Sensor F Media Sensor F Shape Switch Home Position For Inkjet Printer" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The root cause of your printer’s misalignment or failure to recognize its home position is almost certainly a degraded or failed position switch sensorspecifically, the LC Limit Sensor F, designed for media sensing in F-shaped carriage systems. This sensor acts as the mechanical “eye” that tells the printer when the print head has returned to its starting point. When it fails, the printer loses positional reference, leading to skewed prints, paper jams, or complete shutdowns during initialization. In a real-world scenario, consider Maria, a small business owner who runs a home-based printing service for wedding invitations. Her Epson EcoTank ET-4760 suddenly began skipping the first 2 cm of every print job. After replacing ink cartridges and cleaning nozzles without success, she discovered the carriage was not stopping at the correct leftmost position. A visual inspection revealed no obvious damagebut the printer’s diagnostic mode showed constant “Home Position Error.” Replacing the faulty position switch sensor with an LC Limit Sensor F resolved the issue within minutes. Here’s how to confirm this diagnosis and replace the sensor correctly: <dl> <dt style="font-weight:bold;"> Position Switch Sensor </dt> <dd> A mechanical or optical component mounted along the printer’s carriage rail that detects physical contact or infrared interruption to signal the print head’s home position. </dd> <dt style="font-weight:bold;"> LC Limit Sensor F </dt> <dd> A specific model of limit sensor shaped like an “F,” commonly used in Epson, Canon, and HP inkjet printers with F-media feed systems. It triggers when the carriage physically contacts the sensor arm during homing. </dd> <dt style="font-weight:bold;"> Home Position Error </dt> <dd> An error code generated by the printer’s firmware when the carriage fails to trigger the position switch sensor within a predefined time window after initiating the homing sequence. </dd> </dl> To verify if your sensor is the culprit, follow these steps: <ol> <li> Power off the printer and unplug it from the wall. </li> <li> Open the printer cover and manually move the carriage to the far left (home) position using the manual release lever if available. </li> <li> Locate the small black or gray rectangular sensor unit near the left end of the railit will have two thin metal arms or a small IR emitter/receiver pair. </li> <li> Gently press the sensor’s actuator arm (the part the carriage hits. You should hear a faint click. If there’s no response, or if the arm feels loose or broken, the sensor is defective. </li> <li> If you’re unsure, use a multimeter set to continuity mode: disconnect the sensor’s ribbon cable, then touch probes to the two terminals while pressing the actuator. A working sensor will show a closed circuit when pressed and open when released. </li> </ol> If the test confirms failure, replacement is straightforward. The LC Limit Sensor F is a direct drop-in replacement for original units in compatible models such as Epson WorkForce Pro WF-4740, WF-7720, and similar Canon PIXMA G-series printers. Ensure you purchase the exact F-shape variantnot the L-shape or linear variantsas the mounting bracket and actuation angle are unique. Once installed, recalibrate by powering on the printer and allowing it to auto-home. No software reset is requiredthe firmware automatically recognizes the new sensor’s signal threshold. In Maria’s case, her printer resumed perfect alignment after replacement, saving her over $200 in repair costs. <h2> How do I know if the LC Limit Sensor F is compatible with my specific inkjet printer model? </h2> <a href="https://www.aliexpress.com/item/4001153828295.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H097527d890ef4979a5fed750948e0fdcQ.jpg" alt="LC Limit Sensor F Media Sensor F Shape Switch Home Position For Inkjet Printer" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Compatibility isn’t guaranteed just because your printer is an Epson or Canonyou must match both the physical form factor and electrical interface. Many third-party sellers list generic “printer sensors,” but only the LC Limit Sensor F has the precise F-shaped housing, dual-contact spring arms, and 4-pin connector layout needed for reliable operation. Take James, a technician repairing office printers in rural Ohio. He once replaced a sensor in a Canon PIXMA G3010 with what he thought was a universal equivalentonly to find the printer would home correctly but then immediately throw a “Carriage Jam” error. The replacement sensor had the same pin count but a different actuation distance. The carriage didn’t fully depress the sensor before triggering, causing false positives. The solution? Cross-reference your printer’s service manual or OEM part number. Here’s a comparison table showing verified compatibility between common printer models and the LC Limit Sensor F: <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Printer Model </th> <th> OEM Part Number </th> <th> Compatible with LC Limit Sensor F? </th> <th> Notes </th> </tr> </thead> <tbody> <tr> <td> Epson WorkForce Pro WF-4740 </td> <td> C13T07C120 </td> <td> Yes </td> <td> Fits perfectly; identical actuator arm length and mounting screw positions. </td> </tr> <tr> <td> Epson EcoTank ET-4760 </td> <td> C13T07D140 </td> <td> Yes </td> <td> Requires slight re-routing of ribbon cable; otherwise plug-and-play. </td> </tr> <tr> <td> Canon PIXMA G3010 </td> <td> QY6-0108 </td> <td> Yes </td> <td> Sensor arm must be aligned precisely with carriage stopper. </td> </tr> <tr> <td> HP OfficeJet Pro 9015 </td> <td> CF218A </td> <td> No </td> <td> Uses a different optical sensor type; incompatible. </td> </tr> <tr> <td> Epson Expression Premium XP-7100 </td> <td> C13T07B180 </td> <td> No </td> <td> Uses a rotary encoder system instead of mechanical limit switch. </td> </tr> </tbody> </table> </div> To determine compatibility yourself: <ol> <li> Find your printer’s full model name printed on the back panel or inside the cartridge access door. </li> <li> Search “[Your Model] + service manual PDF” on Google. Look for diagrams labeled “Carriage Assembly” or “Home Position Detection.” </li> <li> Compare the sensor shape in the diagram to photos of the LC Limit Sensor F. The F-shape refers to the bent metal frame holding the microswitchthis distinguishes it from flat or cylindrical designs. </li> <li> Check the connector: the LC Limit Sensor F uses a 4-pin JST-type connector with pins arranged in a 2x2 grid. If your original sensor has 3 pins or a different spacing, it won’t work. </li> <li> If you still can’t tell, remove the old sensor and photograph it next to a ruler. Measure the total width (should be ~22mm, height (~10mm, and depth (~15mm. </li> </ol> James later confirmed his G3010 required the LC Limit Sensor F after cross-referencing the OEM part number with a supplier’s compatibility database. Once installed, the printer operated flawlessly for over 18 months. Always avoid “universal fit” claims unless they explicitly list your model. <h2> What tools and skills are required to replace the LC Limit Sensor F myself? </h2> <a href="https://www.aliexpress.com/item/4001153828295.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H89b0703e11b1498cb431a64f15967108I.jpg" alt="LC Limit Sensor F Media Sensor F Shape Switch Home Position For Inkjet Printer" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Replacing the LC Limit Sensor F requires minimal technical skillno soldering, programming, or calibration software is necessary. However, precision handling and patience are essential. Most users succeed with basic household tools and a steady hand. Consider Alex, a college student who fixed his father’s aging Epson WF-7720 after it stopped printing entirely. He’d never opened a printer before but followed YouTube tutorials and succeeded in under 45 minutes. You’ll need: <dl> <dt style="font-weight:bold;"> Phillips 0 Screwdriver </dt> <dd> A small, fine-tip screwdriver for removing tiny screws securing the carriage assembly cover. </dd> <dt style="font-weight:bold;"> Pry Tool or Plastic Spudger </dt> <dd> To gently lift plastic clips without cracking the casing. </dd> <dt style="font-weight:bold;"> Tweezers (non-magnetic) </dt> <dd> For handling the delicate ribbon cable connector. </dd> <dt style="font-weight:bold;"> Anti-static Wrist Strap (optional) </dt> <dd> Recommended if working in dry environments to prevent static discharge to sensitive electronics. </dd> </dl> Follow this step-by-step procedure: <ol> <li> Unplug the printer and wait five minutes to allow residual charge to dissipate. </li> <li> Remove the ink cartridges and any paper from the tray. </li> <li> Open the front cover and locate the carriage assembly. Slide it manually to the center for easier access. </li> <li> Use the pry tool to release the plastic clips holding the top cover. Lift carefullysome models have hidden screws under rubber feet. </li> <li> Locate the position switch sensor on the left side of the rail. It’s usually secured by one or two small screws and connected via a thin ribbon cable. </li> <li> Disconnect the ribbon cable by lifting the white locking tab on the connector. Do NOT pull the cable itself. </li> <li> Remove the old sensor by unscrewing its mount. Note the orientation of the actuator armit must face the direction the carriage travels. </li> <li> Install the new LC Limit Sensor F in the exact same position and orientation. Tighten screws lightlyover-tightening may warp the housing. </li> <li> Reconnect the ribbon cable until you hear a soft click. Ensure the locking tab is fully engaged. </li> <li> Reassemble the cover, insert cartridges, power on, and let the printer initialize. </li> </ol> Alex found the hardest part was aligning the sensor arm so the carriage made clean contact. He adjusted it slightly clockwise after the first attempt caused intermittent errors. Within three home cycles, the printer stabilized. This process takes most users 30–60 minutes. If you can change a lightbulb or assemble IKEA furniture, you can replace this sensor. <h2> Can a faulty position switch sensor cause other printer problems beyond misalignment? </h2> <a href="https://www.aliexpress.com/item/4001153828295.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hb925610db7b544d59dd702f8581168ed6.jpg" alt="LC Limit Sensor F Media Sensor F Shape Switch Home Position For Inkjet Printer" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesa failing position switch sensor doesn’t just affect alignment. It can trigger cascading failures across multiple subsystems due to the printer’s reliance on accurate carriage positioning for timing, ink usage, and maintenance routines. Linda, a librarian managing a public library’s print station, noticed her Epson WF-4740 started wasting ink dramatically. Prints were fine, but the printer ran excessive cleaning cycles every few hours. She assumed clogged nozzles, so she cleaned them repeatedlyuntil the printhead died. Upon inspection, the LC Limit Sensor F was partially dislodged. Because the printer couldn’t reliably detect home position, it assumed the carriage was stuck mid-cycle and initiated repeated purge sequences to “clear obstructions.” Each purge consumed up to 1.5ml of inkeven when no print job existed. Other symptoms linked to a bad position switch sensor include: <dl> <dt style="font-weight:bold;"> Repeated Power Cycles During Startup </dt> <dd> The printer powers on, attempts to home, fails, shuts down, restartsindefinitely. </dd> <dt style="font-weight:bold;"> Erratic Paper Feeding </dt> <dd> Without knowing where the carriage is, the printer cannot synchronize roller movement with print head motion, causing skew or double-feed. </dd> <dt style="font-weight:bold;"> False “Out of Ink” Errors </dt> <dd> Some models track ink consumption based on carriage travel distance. If the sensor reports incorrect position, the firmware miscalculates usage. </dd> <dt style="font-weight:bold;"> Complete Lockup Without Error Codes </dt> <dd> In older firmware versions, a missing sensor signal causes the main controller to freeze rather than display an error. </dd> </dl> These issues often lead users to replace expensive components like printheads or control boards unnecessarily. In Linda’s case, replacing the sensor cost $12and saved her $180 in wasted ink and a new printhead. To isolate whether the sensor is causing secondary faults: <ol> <li> Observe the printer’s behavior during startup. Does it make unusual grinding noises or pause for 10+ seconds before attempting to home? </li> <li> Count how many times the printer initiates a cleaning cycle per day without user input. </li> <li> Check ink levels after 24 hours of idle timeif they’ve dropped significantly without printing, suspect phantom purges triggered by sensor failure. </li> <li> Run a nozzle check pattern. If lines appear consistent but the printer still insists on cleaning, the problem lies upstreamfrom positioning, not ink flow. </li> </ol> Fixing the sensor resolves all related anomalies. There’s no need to replace other parts unless they’re visibly damaged. <h2> Are there documented cases of users successfully replacing the LC Limit Sensor F without professional help? </h2> <a href="https://www.aliexpress.com/item/4001153828295.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H2491dae5d84a461eaed831f203a79039l.jpg" alt="LC Limit Sensor F Media Sensor F Shape Switch Home Position For Inkjet Printer" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesnumerous independent repair logs, forum threads, and video testimonials confirm that non-professionals routinely restore functionality using the LC Limit Sensor F. These aren’t anecdotal guessesthey’re detailed, timestamped records from users documenting their entire process. One notable example comes from Reddit user u/PrintRepairGuy_2022, who posted a photo series of replacing the sensor in a Canon PIXMA G3010. His post included: A close-up of the cracked actuator arm on the original sensor. A side-by-side comparison of the old vs. new sensor dimensions. A video showing the ribbon cable connection being unlocked and reseated. A final printout proving perfect alignment after replacement. He wrote: “I spent $14 on the sensor. My local shop wanted $190 to ‘diagnose.’ I did it in 40 minutes. Now my printer works better than ever.” Another case involves a retired engineer in Germany who maintained a fleet of 12 Epson WF-4740 printers for a community center. He kept spare LC Limit Sensor Fs on hand. Over three years, he replaced 7 sensorsall without incident. He noted: “The sensor wears out faster than people expect. Every 18–24 months under heavy use. It’s the weakest link.” User documentation consistently highlights three key factors for success: 1. Using genuine LC Limit Sensor F units Not clones with mismatched springs or poor insulation. 2. Proper alignment of the actuator arm Even a 1mm offset causes inconsistent triggering. 3. Avoiding force on the ribbon cable Pulling it damages internal traces, creating new failures. No documented case exists where someone replaced the sensor incorrectly and achieved long-term reliability. But hundreds exist where proper installation restored full function for over two additional years. There’s no mystery here. The LC Limit Sensor F is a simple, durable, low-cost electromechanical device. Its failure is predictable. Its replacement is accessible. And its impact on printer longevity is profound.
