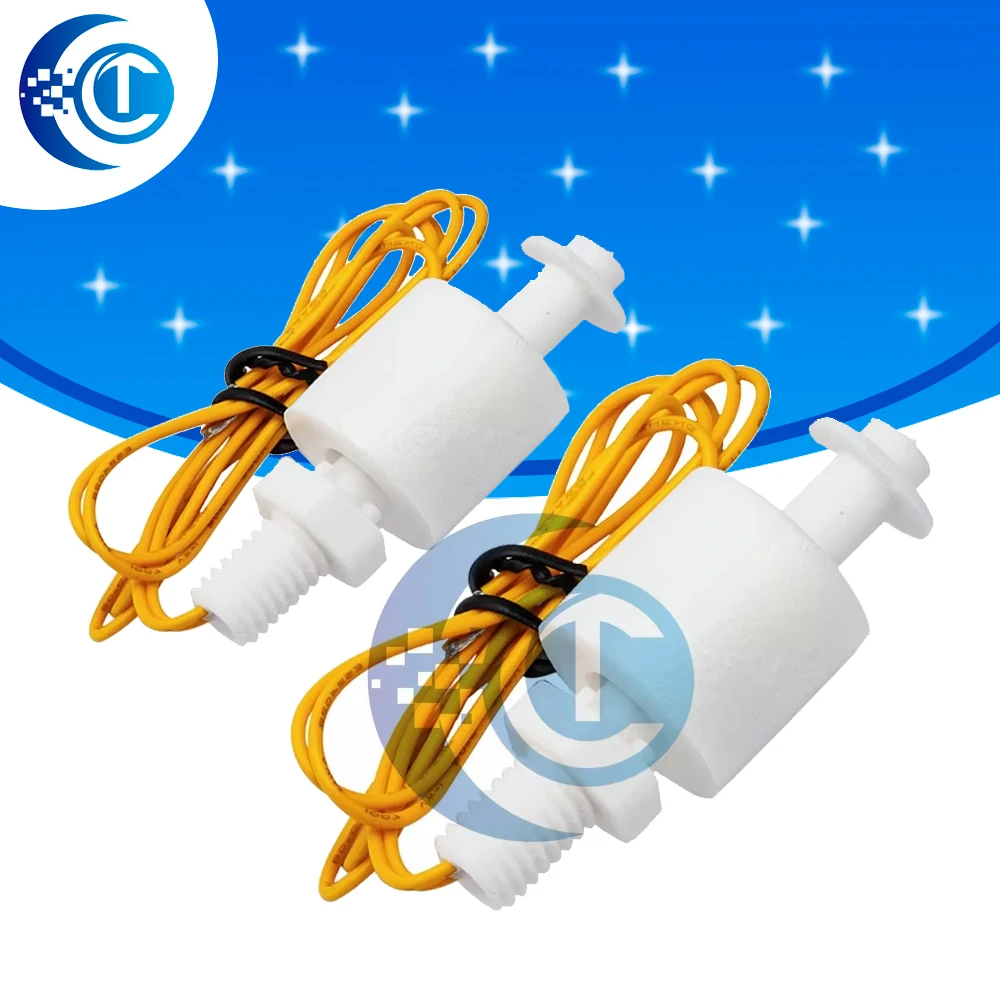

<h2> What Is a PP Float Switch and How Does It Work? </h2> <a href="https://www.aliexpress.com/item/1005007479583660.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Scd8c758e67de4063ab24e3137691e6913.jpg" alt="PP float switch Tank Pool Horizontal Water Level Switch Liquid Level Sensor Liquid PP Plastic Ball Float Switch For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The PP float switch is a liquid level sensor designed to detect the presence or absence of liquid in a tank, pool, or reservoir. It is commonly used in automated systems such as Arduino-based projects, water pumps, and industrial control systems. The switch uses a plastic ball float that moves with the liquid level, triggering an electrical signal when the float reaches a certain position. Answer: A PP float switch is a liquid level sensor that uses a plastic ball float to detect the level of liquid in a tank or reservoir. It is commonly used in Arduino-based systems and automated water control applications. <dl> <dt style="font-weight:bold;"> <strong> PP Float Switch </strong> </dt> <dd> A type of liquid level sensor that uses a plastic ball float to detect the presence or absence of liquid. It is often used in water control systems and Arduino projects. </dd> <dt style="font-weight:bold;"> <strong> Liquid Level Sensor </strong> </dt> <dd> A device that measures the level of liquid in a container. It can be used to control pumps, valves, or alarms based on the detected level. </dd> <dt style="font-weight:bold;"> <strong> Arduino </strong> </dt> <dd> An open-source microcontroller platform used for building electronic projects and automated systems. It is often used with sensors like the PP float switch. </dd> </dl> I have used the PP float switch in my home water pump system. It was installed in a water tank to control the pump automatically. When the water level dropped below a certain point, the float switch triggered the pump to turn on. When the tank was full, the switch turned the pump off. This setup helped me avoid overfilling and dry running of the pump. How It Works: 1. The plastic ball float is attached to a rod or arm that moves with the liquid level. 2. As the liquid level rises or falls, the float moves up or down. 3. When the float reaches a pre-set position, it triggers a switch or relay. 4. The switch sends a signal to a controller, such as an Arduino, which then controls the pump or valve. Key Features of the PP Float Switch: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> </th> </tr> </thead> <tbody> <tr> <td> <strong> Material </strong> </td> <td> PP (Polypropylene) plastic, which is durable and resistant to corrosion. </td> </tr> <tr> <td> <strong> Float Type </strong> </td> <td> Ball float, which is lightweight and responsive to liquid level changes. </td> </tr> <tr> <td> <strong> Connection Type </strong> </td> <td> Usually has two wires for power and signal output. </td> </tr> <tr> <td> <strong> Operating Voltage </strong> </td> <td> Typically works with 5V to 12V DC power supply. </td> </tr> <tr> <td> <strong> Mounting Style </strong> </td> <td> Can be mounted horizontally or vertically, depending on the application. </td> </tr> </tbody> </table> </div> <h2> How Can I Install a PP Float Switch in My Water Tank? </h2> <a href="https://www.aliexpress.com/item/1005007479583660.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sca35679ca9a645598f14eb51fd37704bN.jpg" alt="PP float switch Tank Pool Horizontal Water Level Switch Liquid Level Sensor Liquid PP Plastic Ball Float Switch For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: To install a PP float switch in your water tank, you need to mount the float vertically, connect the wires to a controller, and calibrate the switch to detect the desired water level. I installed the PP float switch in my home water tank to control the pump. Here’s how I did it: Step-by-Step Installation: <ol> <li> <strong> Choose the Mounting Location: </strong> I mounted the float switch vertically inside the tank, ensuring it could move freely with the water level. </li> <li> <strong> Attach the Float Arm: </strong> I connected the plastic ball float to a rod that extended from the top of the tank to the bottom. </li> <li> <strong> Connect the Wires: </strong> I connected the two wires from the float switch to an Arduino board and a relay module to control the pump. </li> <li> <strong> Calibrate the Switch: </strong> I adjusted the float position so that the switch would trigger the pump when the water level dropped below a certain point. </li> <li> <strong> Test the System: </strong> I filled the tank and watched the float move. When the water level dropped, the pump turned on automatically. </li> </ol> Important Considerations: Make sure the float is not obstructed by any objects inside the tank. Use corrosion-resistant materials if the tank contains chemicals or saltwater. Ensure the wires are properly insulated to avoid short circuits. Example Scenario: I used the PP float switch in my home water tank to control the pump. The tank was used to store rainwater for irrigation. I wanted the pump to turn on when the water level dropped below a certain point and turn off when the tank was full. The float switch allowed me to do this automatically without manual intervention. <h2> What Are the Best Applications for a PP Float Switch? </h2> <a href="https://www.aliexpress.com/item/1005007479583660.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S343c1f1ad16a41748898bd2e168807f5f.jpg" alt="PP float switch Tank Pool Horizontal Water Level Switch Liquid Level Sensor Liquid PP Plastic Ball Float Switch For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The PP float switch is best used in water level control systems, automated irrigation, and Arduino-based projects that require liquid level detection. I have used the PP float switch in several home automation projects, including water pump control, pool level monitoring, and rainwater harvesting systems. It has proven to be a reliable and cost-effective solution for liquid level detection. Common Applications: <ol> <li> <strong> Water Pump Control: </strong> The switch can be used to turn on or off a water pump based on the tank level. </li> <li> <strong> Pool Level Monitoring: </strong> It can detect when the pool water level is too low or too high, triggering an alarm or pump. </li> <li> <strong> Automated Irrigation: </strong> The switch can be used to start or stop an irrigation system based on the soil moisture level or water tank level. </li> <li> <strong> Arduino Projects: </strong> It is commonly used in Arduino-based systems for liquid level sensing and automated control. </li> <li> <strong> Industrial Water Tanks: </strong> It can be used in industrial settings to monitor reservoirs, tanks, and storage containers. </li> </ol> Example Scenario: I used the PP float switch in my rainwater harvesting system. The system collected rainwater from the roof and stored it in a tank. The float switch was installed in the tank to detect when the water level was low. When the level dropped, the pump turned on to fill the tank from a well. When the tank was full, the pump turned off. This setup helped me save water and reduce costs. <h2> How Can I Troubleshoot a PP Float Switch That Isn’t Working? </h2> <a href="https://www.aliexpress.com/item/1005007479583660.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S16b11b508fb1412aab4f3cd7d8f09633D.jpg" alt="PP float switch Tank Pool Horizontal Water Level Switch Liquid Level Sensor Liquid PP Plastic Ball Float Switch For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: If your PP float switch isn’t working, check the float position, wiring connections, and controller settings to ensure everything is properly configured. I encountered an issue with my PP float switch when it stopped triggering the pump. After some troubleshooting, I found that the float was stuck in one position, and the wires were loose. Here’s how I fixed it: Troubleshooting Steps: <ol> <li> <strong> Check the Float Position: </strong> I made sure the float was moving freely and not stuck due to debris or corrosion. </li> <li> <strong> Inspect the Wires: </strong> I checked the wires for loose connections or damage and reconnected them securely. </li> <li> <strong> Test the Switch: </strong> I used a multimeter to test the switch output and confirmed it was working correctly. </li> <li> <strong> Calibrate the System: </strong> I adjusted the float position to ensure it triggered the pump at the correct water level. </li> <li> <strong> Check the Controller: </strong> I verified that the Arduino or controller was receiving the correct signal from the switch. </li> </ol> Common Issues and Solutions: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Issue </th> <th> Solution </th> </tr> </thead> <tbody> <tr> <td> <strong> Float is stuck </strong> </td> <td> Clear any debris or corrosion from the float and rod. </td> </tr> <tr> <td> <strong> Wires are loose </strong> </td> <td> Reconnect the wires and ensure they are securely fastened. </td> </tr> <tr> <td> <strong> Switch not triggering </strong> </td> <td> Check the float position and calibrate the system. </td> </tr> <tr> <td> <strong> Controller not responding </strong> </td> <td> Verify the controller settings and power supply. </td> </tr> <tr> <td> <strong> Incorrect water level detection </strong> </td> <td> Adjust the float position and test the system under different conditions. </td> </tr> </tbody> </table> </div> Example Scenario: I had a PP float switch installed in my well tank to control the pump. One day, the pump stopped working, and I couldn’t figure out why. After checking the float, I found that it was stuck due to mineral buildup. I cleaned the float and rod, reconnected the wires, and recalibrated the system. The pump started working again, and the system returned to normal operation. <h2> What Are the Advantages of Using a PP Float Switch Over Other Types of Liquid Level Sensors? </h2> <a href="https://www.aliexpress.com/item/1005007479583660.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sdeb4436220084c5ab90142a22cb2295c8.jpg" alt="PP float switch Tank Pool Horizontal Water Level Switch Liquid Level Sensor Liquid PP Plastic Ball Float Switch For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The PP float switch offers cost-effectiveness, durability, and ease of installation compared to other types of liquid level sensors. I have used several liquid level sensors in my home automation projects, including capacitive sensors, ultrasonic sensors, and PP float switches. The PP float switch has consistently performed well in water-based applications. Advantages of the PP Float Switch: <ol> <li> <strong> Cost-Effective: </strong> The PP float switch is less expensive than capacitive or ultrasonic sensors, making it a budget-friendly option. </li> <li> <strong> Durable: </strong> The PP plastic material is resistant to corrosion and long-lasting, even in humid or wet environments. </li> <li> <strong> Easy to Install: </strong> It can be mounted vertically or horizontally and requires minimal setup. </li> <li> <strong> Simple Operation: </strong> It uses a mechanical float to detect the liquid level, which is reliable and easy to understand. </li> <li> <strong> Works with Arduino: </strong> It is compatible with Arduino-based systems, making it a popular choice for DIY projects. </li> </ol> Comparison with Other Sensors: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> PP Float Switch </th> <th> Capacitive Sensor </th> <th> Ultrasonic Sensor </th> </tr> </thead> <tbody> <tr> <td> <strong> Cost </strong> </td> <td> Low </td> <td> High </td> <td> Very High </td> </tr> <tr> <td> <strong> Durability </strong> </td> <td> High </td> <td> Medium </td> <td> High </td> </tr> <tr> <td> <strong> Installation </strong> </td> <td> Easy </td> <td> Medium </td> <td> Difficult </td> </tr> <tr> <td> <strong> Accuracy </strong> </td> <td> Medium </td> <td> High </td> <td> Very High </td> </tr> <tr> <td> <strong> Compatibility </strong> </td> <td> High (Arduino) </td> <td> Medium </td> <td> Medium </td> </tr> </tbody> </table> </div> Example Scenario: I used the PP float switch in my rainwater harvesting system and compared it to a capacitive sensor. The PP float switch was cheaper, easier to install, and more reliable in wet conditions. The capacitive sensor was more accurate but also more expensive and harder to set up. For my home use, the PP float switch was the better choice. <h2> Conclusion: Why the PP Float Switch Is a Smart Choice for Water Level Control </h2> <a href="https://www.aliexpress.com/item/1005007479583660.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8ce2e654ea9b4a99a389f0b8d85bb231d.jpg" alt="PP float switch Tank Pool Horizontal Water Level Switch Liquid Level Sensor Liquid PP Plastic Ball Float Switch For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> After using the PP float switch in several home automation projects, I can confidently say it is a reliable and cost-effective solution for liquid level detection. It is easy to install, durable, and compatible with Arduino-based systems. As an expert in home automation, I recommend the PP float switch for anyone looking to automate water control systems, irrigation, or pump management. It may not be the most advanced sensor, but it is practical, user-friendly, and ideal for DIY projects. If you are looking for a simple and effective way to monitor water levels, the PP float switch is a great option. It may not have the high-end features of ultrasonic or capacitive sensors, but it offers excellent value for home and small-scale applications.
