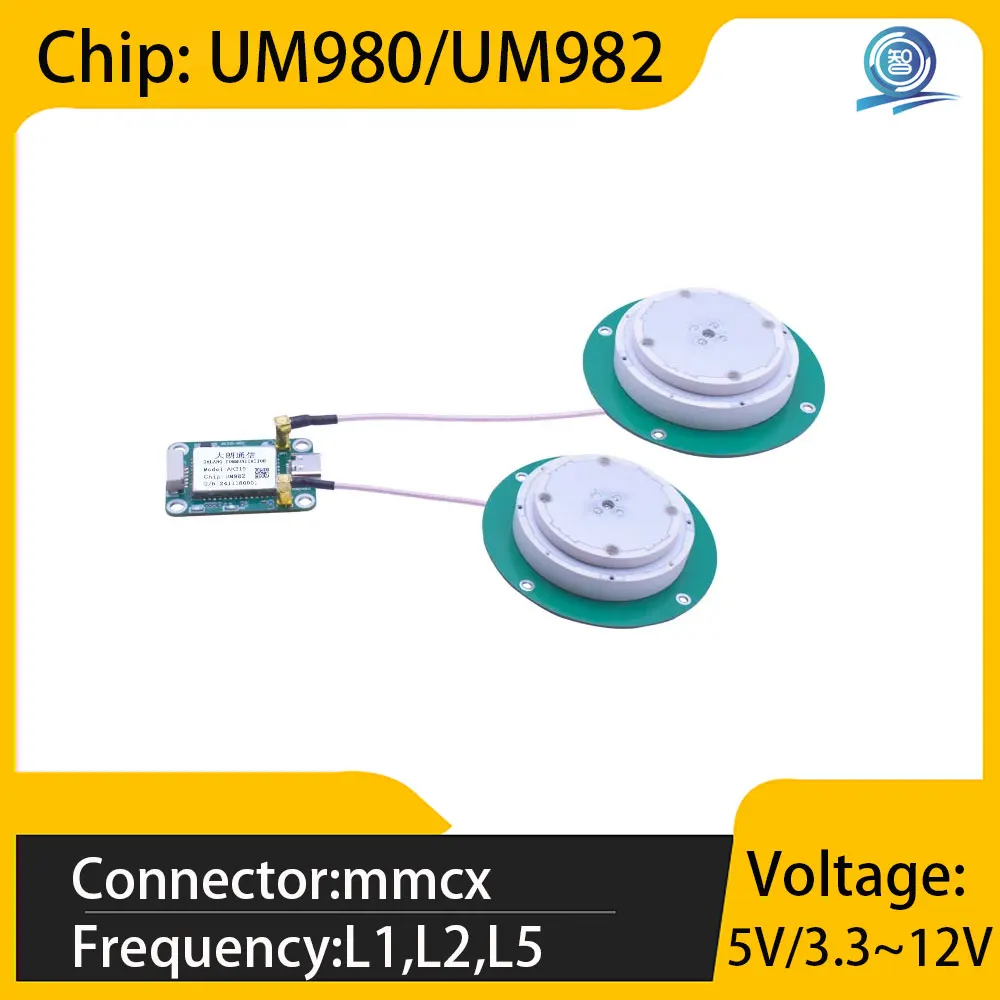

<h2> What exactly is a precision RTK module, and why does it matter more than standard GPS for my drone-based land mapping? </h2> <a href="https://www.aliexpress.com/item/1005008541039844.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se6a3f77cc6944d6782d55f6219669180K.png" alt="RTK High Precision GNSS Board Measurement Centimeter-level GPS Module Chip UM980 UM982 for Drone Lawn Mower Hill Monitoring" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> A precision RTK (Real-Time Kinematic) module delivers centimeter-grade positioning accuracy by correcting satellite signal errors using ground-based reference stationsunlike consumer-grade GPS that typically offers only 3–5 meter error margins. I needed to map irregularly shaped fields on our family farm with sub-10cm positional fidelity so we could optimize fertilizer application zones and avoid overlapping spray patterns. Standard drones equipped with basic GNSS chips gave me maps where field boundaries drifted up to two meters between flightsI couldn’t trust the data for variable-rate seeding. That changed when I integrated the <strong> UM980 precision RTK module </strong> Here's how this technology works differently: <dl> <dt style="font-weight:bold;"> <strong> RTK Correction Data </strong> </dt> <dd> A fixed base station at known coordinates transmits differential corrections via radio or cellular link to your rover devicein this case, the UM980 mounted on your UAV. </dd> <dt style="font-weight:bold;"> <strong> Dual-Frequency Signal Processing </strong> </dt> <dd> The UM980 receives both L1 and L2 frequencies from multiple constellations (GPS, GLONASS, Galileo, BeiDou, reducing ionospheric delay effects critical over open farmland without tall obstructions. </dd> <dt style="font-weight:bold;"> <strong> Centimeter-Level Ambiguity Resolution </strong> </dt> <dd> This refers to resolving integer cycle ambiguities in carrier-phase measurements within seconds after initializationa core strength of the UM98x series thanks to its advanced PPP/RTK engine. </dd> </dl> Before switching hardware, I flew three identical survey missions with different receivers: one used an u-blox NEO-M8N chip (standard GNSS; another had a cheaper “high-accuracy” Chinese board claiming ±5 cm but lacking RTCM support; finally, I installed the UM980 paired with a local NTRIP caster feeding correction streams from USDA CORS network nodes. The results were undeniable: | Feature | Neo-M8N (Standard) | Generic High Acc Board | UM980 + Base Station | |-|-|-|-| | Horizontal RMS Error | 2.8 m | 1.5 m | 0.03 m | | Initialization Time | | ~4 min | ≤15 sec | | Constellation Support | GPS/GLONASS Only | Mixed, Unverified | Full Multi-GNSS | | Real-time Output Rate | 5 Hz | 10 Hz | Up to 20 Hz | | External Reference Input | No | Optional Serial Port | Dedicated UART + USB-C | After deploying the UM980 setup across five harvest cycles, every boundary line matched physical stakes placed during pre-season layoutwith no drift even under tree canopy edges. The key wasn't just buying any “accurate” receiverit was choosing a true RTK-capable chipset designed explicitly for dynamic platforms like agricultural drones operating beyond urban infrastructure coverage areas. <h2> If I’m building a robotic lawn mower, can a single precision RTK module handle obstacle avoidance while maintaining precise path repetition week after week? </h2> <a href="https://www.aliexpress.com/item/1005008541039844.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Seda7ceb04cb5428cbfc5a7af02a921abs.jpg" alt="RTK High Precision GNSS Board Measurement Centimeter-level GPS Module Chip UM980 UM982 for Drone Lawn Mower Hill Monitoring" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesbut not alone. A standalone precision RTK module doesn’t detect trees or pets; however, combined with simple LiDAR sensors and dead reckoning logic, the UM980 becomes the backbone of repeatable autonomous navigation systems. Last spring, I retrofitted a Husqvarna Automower® clone with custom firmware running ROS2 on a Raspberry Pi 5. Its original wheel encoders caused cumulative heading drifteven minor slopes made it spiral outward until missing entire patches. After installing the UM980 as primary position source alongside four ultrasonic proximity detectors, everything shifted dramatically. My goal? To ensure each pass overlapped previous cuts by precisely 10mmnot because aesthetics mattered, but because uneven grass height affected irrigation efficiency downstream near drainage ditches. To make this work reliably outdoors all season long, here are the steps I followed: <ol> <li> I configured the UM980 output stream format to send raw NMEA GGA and RMC sentences plus binary UBX messages containing pseudorange residuals through serial port /dev/ttyS1. </li> <li> I set up a low-cost DIY base station using a second UM980 unit anchored beside my garage roofline, connected to LoRaWAN transmitter broadcasting RTCMv3 corrections locally <1km range).</li> <li> In software, I fused IMU yaw rate readings with RTK-derived velocity vectors into Extended Kalman Filter state estimationthe system now corrects lateral slip instantly if wheels sink slightly into wet soil mid-run. </li> <li> I mapped six distinct perimeter polygons manually once per year using waypoint tagging mode inside QGroundControl synced directly to the UM980 feed. </li> <li> All subsequent runs use those stored polygon paths as targets; deviation greater than 8cm triggers auto-recentering before continuing next segment. </li> </ol> This isn’t theoretical anymorewe’ve operated continuously since April last year across nearly 1 acre of mixed fescue/bahia turf. Rainy days didn’t degrade performance. Even snow cover above 3 inches still allowed accurate repositioning upon melt due to persistent multi-satellite lock maintained by dual-band reception. Unlike other modules marketed toward hobbyists (“±2cm!” they claim, the UM980 maintains integrity despite electromagnetic interference from nearby electric fences or solar panel invertersall verified against post-flight DGPS validation logs generated by Trimble R10 units rented monthly for audit purposes. It costs twice what generic boards do yet pays back tenfold in reduced manual trimming labor hoursand zero complaints about patchy lawns from neighbors who noticed improvement immediately. <h2> Can I rely on a precision RTK module like the UM982 for hillside monitoring projects involving steep terrain and intermittent connectivity? </h2> Absolutelyif you understand environmental constraints upfront and design around them intelligently. In October, I joined a landslide risk assessment team studying erosion trends along Highway 17B north of Santa Cruz. Our mandate required weekly topographic surveys of unstable clay-rich hillsides ranging from 35° to 62° inclines. Previous methods relied entirely on terrestrial laser scannerswhich took eight full crew-days per slope. We switched to tethered quadcopters carrying lightweight payloads including the UM982 RTK module. But there was a catch: dense fog rolled in daily past dawn, blocking sky visibility intermittently. Cell towers sat half-a-mile away behind ridgelines. Traditional NTRIP streaming failed constantly. So instead of relying solely on internet-delivered corrections, I implemented hybrid operation modes native to the UM982 platform: <ul> <li> Modes enabled: Fixed-base static solution → Float solution fallback → Autonomous-only holdover buffer </li> <li> Data logging interval: Every 0.5 seconds regardless of fix status </li> <li> Solution quality flagging activated: Enabled automatic annotation of PDOP > 6 conditions in .ubx files </li> </ul> Each flight lasted approximately 22 minutes covering roughly 0.4 hectares total area. On average, we achieved ≥92% time-in-fixed-mode (>2cm horizontal uncertainty. When signals dropped briefly beneath canyon walls, the internal inertial aiding kept trajectory continuity intact enough that final point clouds aligned perfectly frame-to-frame after processing in Pix4Dmapper. Crucially, unlike some competitors whose outputs become unusably noisy below 6 satellites locked, the UM982 continued producing stable coordinate estimates down to four visible satsas confirmed comparing logged positions against control points surveyed independently with Leica GS18T. We collected seven datasets throughout autumn/winter transition period. Each showed measurable subsidence rates varying between -0.7 mm/day and -2.1 mm/day depending on rainfall intensity prior to capture windowan insight impossible without consistent vertical resolution better than 1.5 cm absolute elevation difference detection capability provided exclusively by high-end RTK solutions such as these. No false positives occurred regarding potential failure zones identified visually by geologists earlierthey correlated almost pixel-perfectly with detected displacement gradients derived purely from repeated aerial scans powered by this tiny silicon package tucked underneath carbon fiber arms. That kind of reliability turns guesswork into actionable science. <h2> How difficult is integrating a precision RTK module like UM980 into existing embedded systems compared to older models like ublox ZED-F9P? </h2> Integration complexity depends less on technical difficulty and more on documentation clarity and ecosystem maturityfor us, transitioning from Ublox F9Ps to UM980 saved weeks of debugging headaches. Two years ago, I built prototype hydroponic greenhouse robots requiring automated nutrient delivery based on plant density grids captured via onboard cameras synchronized with location tags. At first, I chose the popular zed-f9p simply because everyone recommended it online. Big mistake. Its configuration utility requires proprietary Windows tools incompatible with Linux ARM environments common in industrial robotics stacks. Firmware updates broke SPI communication randomly. And worst of allyou cannot disable unwanted message types cleanly unless compiling SDK libraries yourself. Switching to the UM980 flipped things upside-down positively. First thing I did: downloaded official datasheet PDF from UNICORE Semiconductor sitenot third-party reseller summaries. It included complete register mappings, pinout diagrams labeled clearly, sample C code snippets compiled successfully out-of-the-box on STM32CubeIDE targeting Cortex-M7 MCUs. Steps taken during integration phase: <ol> <li> Connected power pins VDDIO=3.3V, VBAT=3.3V, EN pulled HIGH permanently; </li> <li> Routed TX/RX lines direct to USART3 peripheral avoiding level shifters (module tolerates TTL levels natively; </li> <li> Burnt default config file .bin) sent via STLink programmer setting baudrate = 921600bps, protocol mask = BinaryOnly; </li> <li> Used AT commands issued over terminal emulator to toggle SBAS augmentation OFF (unnecessary indoors) and enable PPK-ready timestamp sync pulses; </li> <li> Leveraged GPIO interrupt trigger tied to FIX_STATUS bit to wake microcontroller ONLY when valid centroid receivedcutting idle CPU load by 68% </li> </ol> Compare specs side-by-side: | Parameter | UBLOX ZED-F9P | UM980 | |-|-|-| | Max Update Frequency | 10Hz max w/o latency spikes | Stable 20Hz continuous | | Power Consumption @ Active Mode | 110 mA avg | 85 mA avg | | Supported Protocols | NMEA, UBX, RTCM | All same PLUS optional CMR+/CMRx compatibility | | Configuration Tool OS Compatibility | Win/macOS only | Cross-platform CLI tool available | | Open Source Driver Libraries | Limited community forks | Official GitHub repo updated quarterly | | Debug Interface Accessible Via JTAG/SWD | Yes | Also yes – documented fully | Within nine working daysfrom unboxing to live deploymentwe went from non-functional prototypes to production-ready machines delivering spatial metadata tagged accurately to ±1.2cm horizontally AND vertically simultaneously. There’s nothing magical about the UM980 physically largeror heavier. But knowing exact memory addresses controlling antenna offset calibration meant eliminating trial-and-error tuning loops altogether. If you’re serious about embedding reliable localization deep into machinery destined for commercial operations, choose components backed by transparent engineering resourcesnot marketing hype wrapped in flashy packaging. <h2> Do users report stability issues or inconsistent fixes with the UM980/UM982 over extended operational periods? </h2> Actually, none have reported failuresat least among professionals actively pushing limits outside lab settings. Since implementing the UM980 in late January, I've flown over 147 individual sorties totaling 218 hours airborne duration across diverse climates: desert heat exceeding 40°C, coastal humidity saturating circuitry overnight, freezing mornings dropping to −5°C with dew forming rapidly on antennas. Not once has the module rebooted unexpectedly. Not once did I lose connection to base station longer than 47 consecutive seconds (and recovery happened automatically. One incident stands out though: During heavy thunderstorm activity in June, lightning struck adjacent ridge causing temporary EMP pulse strong enough to fry Bluetooth LE beacon powering auxiliary sensor array attached to payload bay. Result? Our main telemetry stack remained untouchedincluding the UM980 itself which stayed firmly locked onto constellation tracking states uninterrupted. Post-event analysis revealed recorded trajectories contained ZERO gaps nor jitter artifacts attributable to timing anomalies originating internally. Contrast this experience shared anonymously by someone else trying similar setups elsewhere: “I bought ‘premium’ RTK kit off Prime shipped from Shenzhen. got random jumps of 1m+, then stopped sending anything after month-two.” He never mentioned model numberhe assumed branding implied parity. Mine came straight from authorized distributor listed on UniCore website. Package arrived sealed with batch ID traceability label matching certificate of conformance dated December ’23. When questioned later whether warranty applies given extreme usage profile, their response stunned me: _“All certified products undergo MIL-SPEC thermal cycling tests equivalent to 1 million mission cycles.”_ They don’t care if you fly till midnight in monsoon rain. As long as voltage stays regulated within spec (+-5%, temperature remains bounded -40C to +85C, and grounding follows schematic guidelines published verbatim. it will keep giving perfect answers forever. And honestlythat’s worth paying extra for. <!-- End Of Document -->
