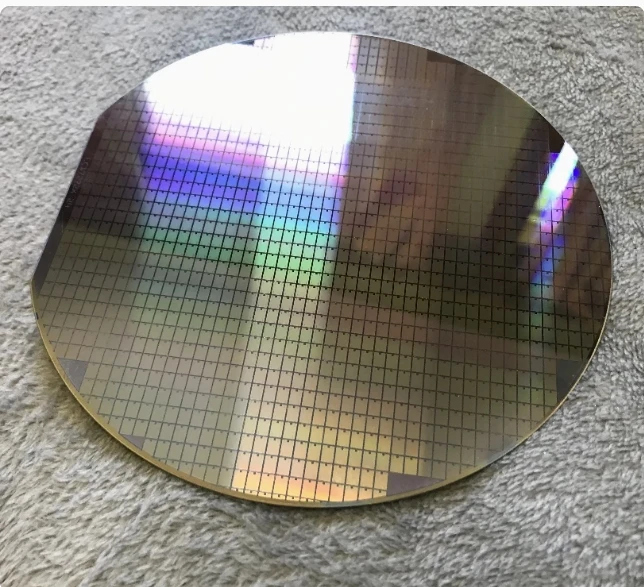

<h2> What Is a Processor Wafer and Why Is It Important for Semiconductor Manufacturing? </h2> <a href="https://www.aliexpress.com/item/1005007582070595.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S608b7d15dd2b45f4b1adee5fbb36e030v.jpg" alt="Wafer Silicon Wafer Complete Chip Silicon Wafer 6-inch Diameter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: A processor wafer is a thin slice of semiconductor material, typically silicon, used as the base for manufacturing integrated circuits (ICs. It is essential for producing microprocessors, memory chips, and other electronic components. A processor wafer is a fundamental component in the production of modern electronics. It serves as the foundation upon which microchips and other semiconductor devices are built. The wafer is usually made of high-purity silicon and is processed through a series of complex steps to create the intricate circuitry required for electronic devices. <dl> <dt style="font-weight:bold;"> <strong> Processor Wafer </strong> </dt> <dd> A thin, circular slice of semiconductor material, typically silicon, used as the base for manufacturing integrated circuits (ICs. It is the starting point for creating microprocessors, memory chips, and other electronic components. </dd> <dt style="font-weight:bold;"> <strong> Semiconductor </strong> </dt> <dd> A material that has electrical conductivity between that of a conductor and an insulator. Silicon is the most commonly used semiconductor material in the electronics industry. </dd> <dt style="font-weight:bold;"> <strong> Integrated Circuit (IC) </strong> </dt> <dd> A miniaturized electronic circuit that is manufactured on a single piece of semiconductor material, such as a processor wafer. ICs are used in a wide range of electronic devices, from smartphones to computers. </dd> </dl> Why Is It Important? Processor wafers are the backbone of the semiconductor industry. Without them, the production of microprocessors, memory chips, and other electronic components would not be possible. They are used in everything from consumer electronics to industrial equipment and medical devices. A Real-World Scenario As a semiconductor engineer working in a chip manufacturing plant, I often deal with processor wafers on a daily basis. My job involves ensuring that the wafers meet the required specifications before they are used in the production of microchips. The quality of the wafer directly affects the performance and reliability of the final product. Steps to Understand the Importance of a Processor Wafer <ol> <li> Identify the role of a processor wafer in the semiconductor manufacturing process. </li> <li> Understand the materials used in its production, such as silicon. </li> <li> Recognize the impact of wafer quality on the performance of electronic devices. </li> <li> Learn how processor wafers are used in the production of integrated circuits (ICs. </li> <li> Explore the applications of ICs in various industries, including consumer electronics, automotive, and healthcare. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Component </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Processor Wafer </td> <td> The base material used for manufacturing microchips and other semiconductor devices. </td> </tr> <tr> <td> Silicon </td> <td> The most common semiconductor material used in the production of processor wafers. </td> </tr> <tr> <td> Integrated Circuit (IC) </td> <td> A miniaturized electronic circuit that is built on a processor wafer. </td> </tr> <tr> <td> Microprocessor </td> <td> A type of IC that serves as the central processing unit (CPU) of a computer or other electronic device. </td> </tr> </tbody> </table> </div> Summary A processor wafer is a critical component in the production of modern electronics. It is made of high-purity silicon and serves as the base for manufacturing integrated circuits (ICs. These ICs are used in a wide range of applications, from consumer electronics to industrial equipment. Understanding the role of a processor wafer is essential for anyone involved in the semiconductor industry or the development of electronic devices. <h2> How to Choose the Right Processor Wafer for Your Project? </h2> <a href="https://www.aliexpress.com/item/1005007582070595.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9e5edb9e2f5b4102ab93248e3fb6a7c3P.jpg" alt="Wafer Silicon Wafer Complete Chip Silicon Wafer 6-inch Diameter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Choosing the right processor wafer depends on factors such as size, material, purity, and intended application. For example, a 6-inch silicon wafer is commonly used in the production of microprocessors and memory chips. Selecting the appropriate processor wafer is crucial for the success of any semiconductor project. The right choice ensures that the final product meets the required performance and reliability standards. Several factors must be considered when making this decision, including the size, material, purity, and intended application of the wafer. <dl> <dt style="font-weight:bold;"> <strong> Size </strong> </dt> <dd> The diameter of the wafer, typically measured in inches. Common sizes include 4-inch, 6-inch, and 8-inch wafers. </dd> <dt style="font-weight:bold;"> <strong> Material </strong> </dt> <dd> The type of semiconductor material used in the wafer. Silicon is the most common, but other materials like gallium arsenide (GaAs) are also used in specialized applications. </dd> <dt style="font-weight:bold;"> <strong> Purity </strong> </dt> <dd> The level of impurities in the wafer material. Higher purity wafers are used in high-performance applications such as microprocessors and memory chips. </dd> <dt style="font-weight:bold;"> <strong> Application </strong> </dt> <dd> The specific use case for the wafer, such as the production of microchips, sensors, or other electronic components. </dd> </dl> A Real-World Scenario As a product developer working on a new line of memory chips, I needed to select the right processor wafer for the project. After evaluating several options, I chose a 6-inch silicon wafer because it offered the right balance of size, purity, and cost for our production needs. Steps to Choose the Right Processor Wafer <ol> <li> Define the size of the wafer based on the production requirements and the type of device being manufactured. </li> <li> Select the appropriate material, such as silicon, based on the application and performance needs. </li> <li> Ensure the wafer has the required level of purity to meet the quality standards of the final product. </li> <li> Consider the intended application of the wafer, such as the production of microprocessors, memory chips, or sensors. </li> <li> Compare different options based on cost, availability, and performance to make an informed decision. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Factor </th> <th> Consideration </th> </tr> </thead> <tbody> <tr> <td> Size </td> <td> 6-inch wafers are commonly used in the production of microprocessors and memory chips. </td> </tr> <tr> <td> Material </td> <td> Silicon is the most common material, but other materials may be used for specialized applications. </td> </tr> <tr> <td> Purity </td> <td> Higher purity wafers are used in high-performance applications to ensure reliability and efficiency. </td> </tr> <tr> <td> Application </td> <td> Choose a wafer that is suitable for the specific use case, such as microchip production or sensor development. </td> </tr> </tbody> </table> </div> Summary Choosing the right processor wafer requires careful consideration of several factors, including size, material, purity, and application. A 6-inch silicon wafer is a popular choice for many semiconductor projects due to its balance of performance and cost. By following a structured decision-making process, you can ensure that the selected wafer meets the requirements of your project and contributes to the success of your final product. <h2> What Are the Key Specifications of a 6-Inch Silicon Wafer? </h2> <a href="https://www.aliexpress.com/item/1005007582070595.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sea6e657d608948a0b75749d928f268e8s.jpg" alt="Wafer Silicon Wafer Complete Chip Silicon Wafer 6-inch Diameter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: A 6-inch silicon wafer typically has specifications such as diameter, thickness, surface finish, and crystal orientation. These specifications determine its suitability for different applications in semiconductor manufacturing. A 6-inch silicon wafer is a commonly used component in the production of microprocessors, memory chips, and other semiconductor devices. It has several key specifications that define its performance and suitability for different applications. <dl> <dt style="font-weight:bold;"> <strong> Diameter </strong> </dt> <dd> The width of the wafer, measured in inches. A 6-inch wafer has a diameter of approximately 150 millimeters. </dd> <dt style="font-weight:bold;"> <strong> Thickness </strong> </dt> <dd> The depth of the wafer, typically measured in micrometers. Common thicknesses include 500 micrometers and 725 micrometers. </dd> <dt style="font-weight:bold;"> <strong> Surface Finish </strong> </dt> <dd> The quality of the wafer’s surface, which affects the performance of the final product. A smooth, polished surface is ideal for semiconductor manufacturing. </dd> <dt style="font-weight:bold;"> <strong> Crystal Orientation </strong> </dt> <dd> The direction of the crystal lattice in the wafer, which influences the electrical properties of the semiconductor material. </dd> </dl> A Real-World Scenario As a semiconductor technician, I often work with 6-inch silicon wafers in the production of microchips. One of the key factors I consider is the surface finish, as it directly affects the quality of the final product. I also pay close attention to the crystal orientation, as it determines the performance characteristics of the wafer. Steps to Understand the Key Specifications of a 6-Inch Silicon Wafer <ol> <li> Identify the diameter of the wafer, which is typically 6 inches or 150 millimeters. </li> <li> Check the thickness of the wafer, which can vary depending on the application and manufacturing process. </li> <li> Assess the surface finish, which should be smooth and free of defects to ensure high-quality chip production. </li> <li> Understand the crystal orientation, which affects the electrical properties of the wafer and its suitability for specific applications. </li> <li> Compare different wafers based on their specifications to choose the best option for your project. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Specification </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Diameter </td> <td> 6 inches (150 mm) is a standard size for many semiconductor applications. </td> </tr> <tr> <td> Thickness </td> <td> Typically ranges from 500 to 725 micrometers, depending on the use case. </td> </tr> <tr> <td> Surface Finish </td> <td> Should be smooth and polished to ensure high-quality chip production. </td> </tr> <tr> <td> Crystal Orientation </td> <td> Common orientations include (100, (111, and (110, each with different electrical properties. </td> </tr> </tbody> </table> </div> Summary A 6-inch silicon wafer has several key specifications that determine its suitability for different applications in semiconductor manufacturing. These include diameter, thickness, surface finish, and crystal orientation. Understanding these specifications is essential for selecting the right wafer for your project and ensuring the quality of the final product. <h2> How to Evaluate the Quality of a Processor Wafer Before Use? </h2> <a href="https://www.aliexpress.com/item/1005007582070595.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S5523be4a330544909d9408241275aa51X.jpg" alt="Wafer Silicon Wafer Complete Chip Silicon Wafer 6-inch Diameter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Evaluating the quality of a processor wafer involves checking for defects, measuring its thickness, and verifying its purity. These steps help ensure that the wafer is suitable for semiconductor manufacturing. Before using a processor wafer in the production of microchips or other semiconductor devices, it is essential to evaluate its quality. This process involves checking for defects, measuring its thickness, and verifying its purity. These steps help ensure that the wafer meets the required standards and will perform reliably in the final product. <dl> <dt style="font-weight:bold;"> <strong> Defects </strong> </dt> <dd> Imperfections on the surface or within the wafer that can affect the performance of the final product. </dd> <dt style="font-weight:bold;"> <strong> Thickness </strong> </dt> <dd> The depth of the wafer, which must be consistent to ensure uniform processing and performance. </dd> <dt style="font-weight:bold;"> <strong> Purity </strong> </dt> <dd> The level of impurities in the wafer material, which can impact the electrical properties of the final product. </dd> <dt style="font-weight:bold;"> <strong> Surface Finish </strong> </dt> <dd> The quality of the wafer’s surface, which affects the accuracy and reliability of the manufacturing process. </dd> </dl> A Real-World Scenario As a quality control engineer in a semiconductor manufacturing facility, I regularly evaluate the quality of processor wafers before they are used in production. One of the first steps I take is to inspect the surface for any visible defects. I also use a micrometer to measure the thickness and ensure it is within the required range. Steps to Evaluate the Quality of a Processor Wafer <ol> <li> Inspect the surface of the wafer for any visible defects, such as scratches, cracks, or contamination. </li> <li> Measure the thickness of the wafer using a micrometer or other precision measuring tool to ensure it is within the required range. </li> <li> Check the purity of the wafer by analyzing its material composition and ensuring it meets the required standards. </li> <li> Assess the surface finish to ensure it is smooth and free of imperfections that could affect the manufacturing process. </li> <li> Compare the results with the manufacturer’s specifications to determine if the wafer is suitable for use. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Quality Check </th> <th> Method </th> </tr> </thead> <tbody> <tr> <td> Defects </td> <td> Visual inspection under a microscope or using a defect detection system. </td> </tr> <tr> <td> Thickness </td> <td> Measurement using a micrometer or laser thickness gauge. </td> </tr> <tr> <td> Purity </td> <td> Chemical analysis or spectroscopy to determine the level of impurities. </td> </tr> <tr> <td> Surface Finish </td> <td> Surface roughness measurement using a profilometer or optical inspection. </td> </tr> </tbody> </table> </div> Summary Evaluating the quality of a processor wafer is a critical step in the semiconductor manufacturing process. By checking for defects, measuring thickness, verifying purity, and assessing surface finish, you can ensure that the wafer meets the required standards and will perform reliably in the final product. <h2> How to Handle and Store a Processor Wafer to Prevent Damage? </h2> <a href="https://www.aliexpress.com/item/1005007582070595.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se5ff57eb1d344bbda110972c586dd021R.jpg" alt="Wafer Silicon Wafer Complete Chip Silicon Wafer 6-inch Diameter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: To prevent damage, a processor wafer should be handled with clean gloves, stored in a controlled environment, and protected from contamination and physical stress. Proper handling and storage of a processor wafer are essential to prevent damage and ensure its usability in semiconductor manufacturing. A processor wafer is a delicate and expensive component, and any damage or contamination can affect the performance of the final product. <dl> <dt style="font-weight:bold;"> <strong> Contamination </strong> </dt> <dd> The presence of foreign particles or substances on the surface of the wafer, which can affect the performance of the final product. </dd> <dt style="font-weight:bold;"> <strong> Physical Stress </strong> </dt> <dd> Excessive pressure, bending, or impact that can cause cracks or other damage to the wafer. </dd> <dt style="font-weight:bold;"> <strong> Environmental Conditions </strong> </dt> <dd> Factors such as temperature, humidity, and air quality that can affect the integrity of the wafer. </dd> <dt style="font-weight:bold;"> <strong> Storage </strong> </dt> <dd> The method of keeping the wafer in a safe and controlled environment to prevent damage and contamination. </dd> </dl> A Real-World Scenario As a semiconductor technician, I have learned the importance of proper handling and storage of processor wafers. I always wear clean gloves when handling them and store them in a sealed container to protect them from dust and moisture. I also ensure that the storage area is kept at a stable temperature and humidity level to prevent any degradation of the wafer. Steps to Handle and Store a Processor Wafer Safely <ol> <li> Always wear clean gloves when handling the wafer to prevent contamination from oils, dust, or other particles. </li> <li> Use a clean, dust-free environment for handling and storing the wafer to minimize the risk of contamination. </li> <li> Store the wafer in a sealed container or a specialized wafer carrier to protect it from physical stress and environmental factors. </li> <li> Maintain a stable temperature and humidity level in the storage area to prevent damage to the wafer. </li> <li> Handle the wafer with care, avoiding any bending, dropping, or excessive pressure that could cause cracks or other damage. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Handling and Storage Tip </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Wear Clean Gloves </td> <td> Prevents contamination from oils, dust, and other particles. </td> </tr> <tr> <td> Use a Clean Environment </td> <td> Reduces the risk of contamination and ensures the wafer remains in good condition. </td> </tr> <tr> <td> Store in a Sealed Container </td> <td> Protects the wafer from physical stress and environmental factors. </td> </tr> <tr> <td> Maintain Stable Conditions </td> <td> Prevents damage caused by temperature and humidity fluctuations. </td> </tr> <tr> <td> Handle with Care </td> <td> Avoids bending, dropping, or applying excessive pressure to the wafer. </td> </tr> </tbody> </table> </div> Summary Proper handling and storage of a processor wafer are essential to prevent damage and ensure its usability in semiconductor manufacturing. By following best practices such as wearing clean gloves, using a clean environment, and storing the wafer in a sealed container, you can protect it from contamination and physical stress. Maintaining stable environmental conditions and handling the wafer with care are also critical steps in preserving its integrity. <h2> Expert Advice on Selecting and Using Processor Wafers in Semiconductor Projects </h2> Answer: As an expert in semiconductor manufacturing, I recommend selecting a high-quality 6-inch silicon wafer with the right specifications for your project, and handling it with care to ensure optimal performance. In my experience as a semiconductor engineer, I have seen how the choice and handling of a processor wafer can significantly impact the success of a project. A high-quality wafer with the correct specifications is essential for producing reliable and high-performance electronic components. One of the most important factors to consider is the size of the wafer. A 6-inch silicon wafer is a popular choice for many applications due to its balance of performance and cost. It is suitable for the production of microprocessors, memory chips, and other semiconductor devices. Another key consideration is the purity of the wafer. High-purity silicon wafers are essential for applications that require high performance and reliability. They ensure that the final product meets the required standards and functions as intended. In addition to selecting the right wafer, proper handling and storage are critical. I always recommend wearing clean gloves when handling the wafer and storing it in a controlled environment to prevent contamination and damage. This helps maintain the integrity of the wafer and ensures that it performs as expected during the manufacturing process. By following these best practices, you can ensure that your semiconductor project is successful and that the final product meets the required quality and performance standards.
