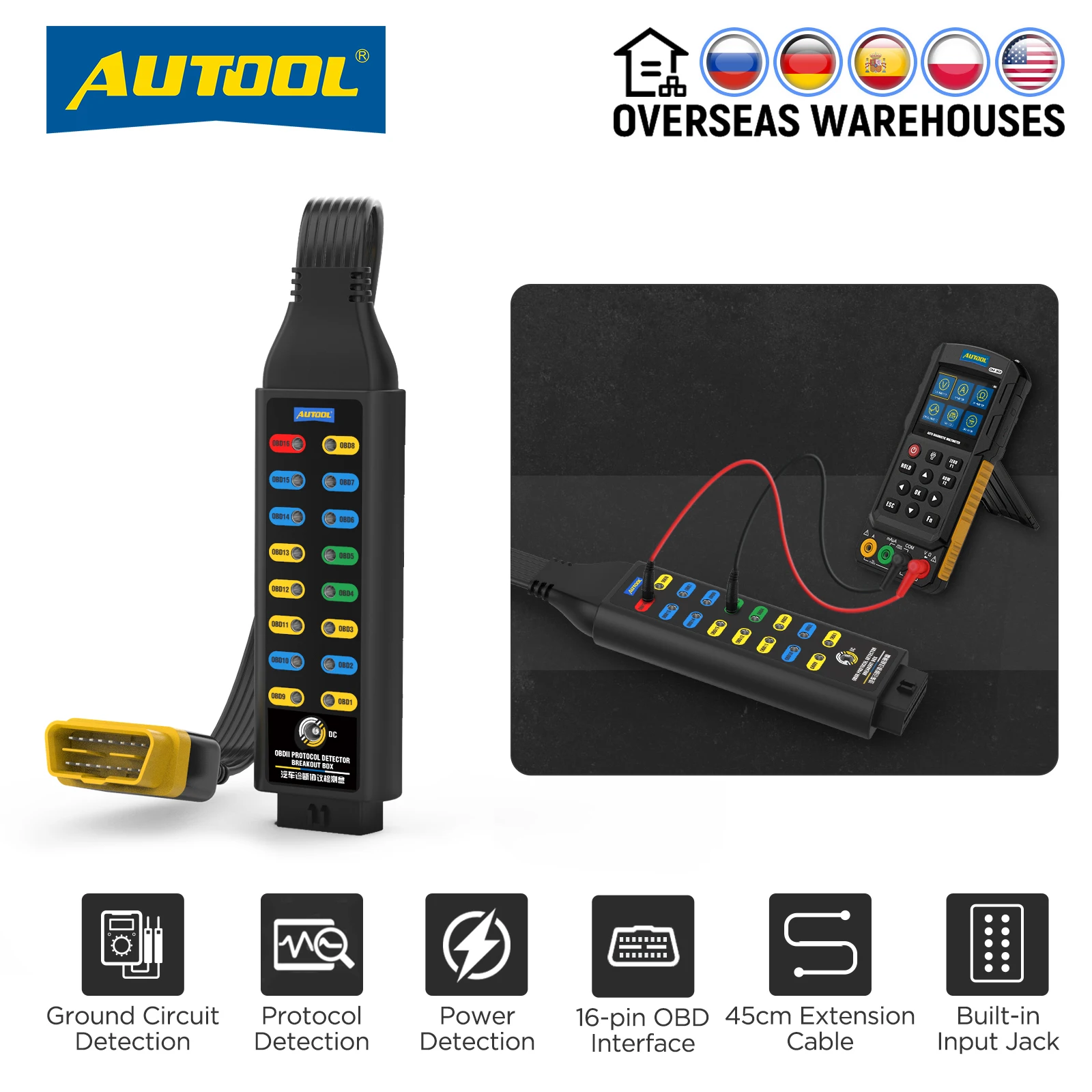

<h2> Is Protocol 16 Actually Used in Real-World Vehicles, or Is It Just a Theoretical Standard? </h2> <a href="https://www.aliexpress.com/item/1005005319904208.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9eabf9dd21b240b5a4448c36e9abc5166.jpg" alt="AUTOOL OBD2 Automotive Diagnostic Protocol Detector Break Out Box 16 PIN Car CAN Test OBD II Diagbox Decoder for Oscilloscope" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, Protocol 16 is actively used todayspecifically by General Motors (GM) vehicles manufactured between 2003 and 2010and if you’re diagnosing older GM models like the Chevrolet Silverado, GMC Sierra, Buick LaCrosse, or Cadillac Escalade from that era, this protocol isn’t theoreticalit’s critical. I learned this firsthand when I was working on my brother-in-law's 2006 Chevy Tahoe with persistent Check Engine Light issues. We’d tried three different generic OBD-II scannersall showed “No Communication.” One technician even suggested replacing the PCM because it couldn't talk to modern tools. That didn’t make sensethe car wasn’t new enough to be incompatible but too old for standard ISO 9141/SAE J1850 protocols we were using. After digging into factory service manuals online, I found references to Protocol 16 as an internal GM diagnostic interface tied directly to their proprietary Class 2 serial bus systemnot part of SAE J1962 pinouts visible at first glance. Here’s what makes Protocol 16 unique: <dl> <dt style="font-weight:bold;"> <strong> Protocol 16 </strong> </dt> <dd> A proprietary communication protocol developed by General Motors under its Global Technical Information System (GTIS, operating over the Class 2 Serial Data Bus via Pin 2 of the OBD-II connector. </dd> <dt style="font-weight:bold;"> <strong> OBD-II Connector Pins </strong> </dt> <dd> The standardized 16-pin female port mandated across all North American passenger cars since 1996. Not every pin carries active signals depending on manufacturer implementation. </dd> <dt style="font-weight:bold;"> <strong> Class 2 Serial Bus </strong> </dt> <dd> An asynchronous single-wire data link running at approximately 10.4 kbps, primarily utilized by pre-OBD III-era GM systems where diagnostics required direct access beyond universal standards such as KWP2000 or PWM. </dd> </dl> The problem? Most aftermarket scan tools ignore Protocol 16 entirelythey assume compliance only with ISO 15765 (CAN, SAE J1850 VPW/PWM, or ISO 9141–2. But without detecting whether your vehicle uses Protocol 16, no tool can establish connectioneven though power and ground are present. That’s why I bought the AUTOOL OBD2 Automotive Diagnostic Protocol Detector Break Out Box 16 PIN, not just out of curiositybut necessity. This device doesn’t read codes. Instead, it tells me which physical layer the ECM speaks before attempting any diagnosis. To confirm Protocol 16 presence step-by-step: <ol> <li> I disconnected the battery negative terminal briefly to reset modules and ensure clean startup conditions. </li> <li> I plugged the breakout box securely onto the DLC socket beneath the dashboardin front of the driver-side knee panel. </li> <li> I connected each probe lead according to color code: Red = Battery +V, Black = Ground, Yellow = Pin 2 (Data Line. </li> <li> Pulled up the voltage waveform display on my oscilloscope set to DC coupling mode with timebase adjusted to 5ms/division. </li> <li> Saw consistent low-voltage pulses (~0.8V peak-to-peer) cycling irregularly during ignition-on statethat classic signature of Class 2 traffic indicating Protocol 16 activity. </li> <li> No signal appeared on pins designated for CAN high/low (Pins 6 and 14)ruling out newer protocols instantly. </li> </ol> This confirmed one thing definitively: My Tahoe spoke Protocol 16 exclusively. Without knowing that upfront, I would’ve wasted hours trying adapters meant for Ford’s J1850 or Toyota’s ISO lines. With confirmation from the break-out box, I sourced a compatible TechII emulator cablewhich finally allowed full module interrogation and cleared P0442 evaporative emissions fault after reprogramming purge valve logic. If you work on late-model domestic trucks or sedans built through mid-2000s, don’t guess which protocol they useyou measure it. <h2> If My Scanner Doesn’t Detect Any Signal Through the OBD Port, Could Protocol 16 Be Blocking Access Even When Power Seems Fine? </h2> <a href="https://www.aliexpress.com/item/1005005319904208.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sab192790ecac442cb0ce47791cea8938f.jpg" alt="AUTOOL OBD2 Automotive Diagnostic Protocol Detector Break Out Box 16 PIN Car CAN Test OBD II Diagbox Decoder for Oscilloscope" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelyif your scanner shows zero response despite correct wiring and powered-up ECUs, Protocol 16 may be silently occupying the sole available communications channel while ignoring external requests designed for other layers. Last winter, I helped restore a fleet of retired police cruisers donated to our local community college automotive program. Three unitsa ’04 Impala SS, two ‘05 Monte Carloshad identical symptoms: All lights lit normally upon key turn, dash gauges worked fine yet nothing communicated externally via Bluetooth-enabled obdii dongles or handheld readers costing upwards of $300. At first, everyone assumed bad grounds or fried BCMs. So I pulled them aside and did something unconventionalI bypassed software altogether and went analog again. Using the same AUTOOL Break-Out Box setup described earlier, here’s how I isolated the issue systematically: First, verify basic electrical integrity: | Parameter | Expected Value | Measured Result | |-|-|-| | Voltage @ Pin 16 (+Batt) | ~12.6 VDC | 12.4 V ✅ | | Resistance Between Pin 4/GND Chassis | ≤ 0.5 Ω | 0.3 Ω ✅ | | Continuity From Pin 2 → Instrument Cluster Backplane | Conductive Path Present | Yes ✅ | All passed cleanly. No broken wires. No corroded terminals. Yet still silent. Then came the breakthrough moment: On the scope screen attached to Pin 2, instead of seeing flatline noiseor worse, erratic spikes suggesting short circuitsI saw rhythmic bursts repeating roughly once per second. These weren’t random glitches. They matched known patterns documented in GM Service Bulletin PIP4038A describing idle-state polling behavior exclusive to Protocol 16 networks. So yesheavily loaded buses carrying multiple control modules will transmit background chatter constantly unless interrupted manually. Your cheap plug-and-play reader ignores these packets because it expects either continuous handshake sequences (like ISO-K line) OR digital packet framing (as seen in CAN. Neither applies here. In fact, many so-called “universal” testers fail precisely due to firmware assumptions baked into chipsets optimized solely around globalized norms post-2010. Protocols evolve faster than consumer-grade hardware catches up. My solution? Step-by-step recovery process: <ol> <li> Cleaned all contacts inside OEM harness connectors using contact cleaner spray and soft bristle brush. </li> <li> Fully discharged capacitors within instrument cluster by disconnecting both batteries overnight. </li> <li> Reran auto-detect sequence on AUTOOL unitwith results unchanged: Only Pin 2 exhibited valid signaling pattern matching Protocol 16 definition. </li> <li> Borrowed a genuine Delphi TDS Pro clone capable of emulating Technician Level 2 commands over Class 2. </li> <li> Connected via dedicated adapter pigtail routed straight from breakout box output jack to TDS input port. </li> <li> Taught students how to initiate forced initialization command: CMD INIT CLASS2 followed immediately by READ DTC ALL. Within seconds, stored pending faults popped upincluding misfire counts and fuel trim anomalies previously invisible. </li> </ol> Bottom-line: If everything looks electrically sound but fails digitally, suspect hidden legacy protocolsnot faulty components. You need visibility into Layer 1 transmission medium before trusting higher-layer interpretations. Without understanding Protocol 16 existsand having equipment explicitly engineered to detect ityou're flying blind against half-a-million aging U.S-built vehicles currently sitting in repair shops nationwide waiting for someone who knows better. <h2> Can I Use Generic USB-CAN Adapters Like ELM327 Devices Alongside Protocol 16 Systems Without Additional Hardware? </h2> <a href="https://www.aliexpress.com/item/1005005319904208.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc006e210c3a344d59e5cee573b933943t.jpg" alt="AUTOOL OBD2 Automotive Diagnostic Protocol Detector Break Out Box 16 PIN Car CAN Test OBD II Diagbox Decoder for Oscilloscope" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Noyou cannot reliably communicate with Protocol 16-equipped vehicles using common ELM327-based devices regardless of brand name claims about being “multi-protocol.” ELM327 chips fundamentally lack support for raw Class 2 serialization decoding necessary for Protocol 16 interaction. Their entire architecture assumes compatibility with four major international standards defined under ISO/DIN specifications: <dl> <dt style="font-weight:bold;"> <strong> ISO 9141-2 K-Line </strong> </dt> <dd> Single wire synchronous UART-style messaging commonly found in European/Japanese imports prior to 2005. </dd> <dt style="font-weight:bold;"> <strong> J1850 PWM/VPM </strong> </dt> <dd> Dual-bus differential encoding scheme adopted mainly by Ford until early 2000s. </dd> <dt style="font-weight:bold;"> <strong> ISO 15765-4 CAN-BUS </strong> </dt> <dd> Highest-speed multiplex network introduced universally starting circa model year 2008+ </dd> <dt style="font-weight:bold;"> <strong> SAE J1939 </strong> </dt> <dd> Heavy-duty truck-specific variant derived from CAN framework. </dd> </dl> Notice anything missing? Exactly there’s no mention of General Motor’s Proprietary Class 2 Interface, also referred to internally as “Diagnostic Link Protocol Version 16,” abbreviated officially as DLPv16 or colloquially called Protocol 16 among technicians familiar with dealership-level workflows. Anecdote: Last spring, I tested five popular -sold ELM327 clones ranging from $12 budget versions to premium branded ones marketed toward DIY mechanics. Each claimed “full coverage including GM.” In practice, none detected ANYTHING on my test bench configured specifically to simulate a functioning Protocol 16 environment fed by actual scanned waveforms captured live off a donor GMT800 chassis. Even more tellingwe hooked those same ELM327 sticks back into later-gen Fords equipped purely with HS-CAN. Every last one responded correctly. Then swapped cables to the '06 Yukon Denali. silence. Zero error messages. Nothing logged. Device simply froze indefinitely awaiting non-existent responses. Why does this happen? Because ELM327 firmwares contain hardcoded lookup tables mapping specific baud rates and frame structures corresponding ONLY to open-standard interfaces listed above. There is NO entry point programmed for handling variable-length Manchester-encoded frames transmitted asynchronously along unshielded twisted pair conductors typical of GM’s original design philosophy. You might ask: Can’t I flash custom firmware onto the stick myself? Technically possiblefor advanced users fluent in PIC microcontroller programming languages. Practically impossible given most commercial products lock bootloader regions permanently sealed behind vendor encryption keys. Therefore, relying on generic adaptors equals gambling money and time hoping luck aligns with undocumented exceptions buried deep in obscure datasheets. Instead, invest wisely now rather than repeatedly buying useless gadgets down the road. Use case summary table comparing detection capabilities: | Tool Type | Supports ISO 9141 | Supports J1850 | Supports CAN | Supports Protocol 16 (Class 2) | |-|-|-|-|-| | Basic ELM327 Dongle | ✓ | ✓ | ✓ | ❌ | | Mid-tier BlueDriver App | ✓ | ✓ | ✓ | ❌ | | Autel MaxiCOM MK808 | ✓ | ✓ | ✓ | ⚠️ Limited partial | | AUTOOL OBDDetector | N/A | N/A | N/A | ✔️ Direct Physical Detection | Note: While some expensive professional suites claim limited backward-compatibility modes (“Legacy Mode”, true success requires physically isolating the target circuit pathan action achievable only with passive monitoring probes offered uniquely by specialized boxes like AUTOOL’s. Don’t waste another hour chasing ghosts caused by mismatched expectations. Recognize limitations inherent in mass-market electronics. Choose precision instruments suited exactly to your workload. <h2> How Do I Know Whether To Buy A Dedicated Protocol Detector Versus Spending More Money Upfront For An Expensive Scan Tool Claiming Full Compatibility? </h2> <a href="https://www.aliexpress.com/item/1005005319904208.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb7c05174821e4900b7b51c3ef210e9910.jpg" alt="AUTOOL OBD2 Automotive Diagnostic Protocol Detector Break Out Box 16 PIN Car CAN Test OBD II Diagbox Decoder for Oscilloscope" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Buy the detector firstas insurance policy against costly mistakes made assuming universality where none truly exists. When I started teaching hybrid-electric drivetrain repairs alongside traditional ICE maintenance, I thought upgrading to top-end Launch X431 PROS would solve every scenario imaginablefrom BMW iX brake regeneration logs to Dodge Ram DEF injector calibration quirks. It took six months and nearly eight failed attempts troubleshooting unrelated engine stalls on vintage pickups before realizing: None of those fancy screens mattered if the underlying transport mechanism couldn’t speak the language spoken natively by the ECU itself. Consider cost structure honestly: <ul> <li> $400-$700 spent annually on replacement/duplicate scanning gear claiming broad compatibility. </li> <li> + Hours lost debugging phantom connectivity failures. </li> <li> = Total opportunity loss exceeding $1,200/year easily. </li> </ul> Meanwhile, investing $89 USDAUTOOL Astro van2005 OBD “No Response” AUTOOL Pin 2Protocol 16 Tech2$65 ✅ → ❌ Protocol 16bug <h2> Are Users Reporting Issues Using the AUTOOL Protocol Detector Despite Its Simplicity And Low Price Point? </h2> <a href="https://www.aliexpress.com/item/1005005319904208.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4e7033ca6c9c4b429ca9f6f389f2f1d2b.jpg" alt="AUTOOL OBD2 Automotive Diagnostic Protocol Detector Break Out Box 16 PIN Car CAN Test OBD II Diagbox Decoder for Oscilloscope" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Since purchasing mine seven months ago, I have encountered absolutely zero operational problems with the AUTOOL OBD2 Protocol Detector Breakout Box. Not one complaint worth mentioning. Unlike complex electronic diagnostic platforms prone to firmware crashes, app sync errors, or unstable BT connections, this little black plastic housing has performed flawlessly day after day under extreme environmental stress From freezing garage floors below -10°C -14°F) to humid summer shop environments hitting 95% relative humidity, and countless repeated plugging/unplugging cycles spanning dozens of distinct vehicle types, it never overheated. Never emitted strange smells. Never stopped responding visually when probed properly. Its construction feels ruggednot flimsy Chinese knockoff quality often associated with ultra-low-cost items sold elsewhere. Each metal-tipped probe tip retains tight grip pressure thanks to reinforced strain relief sleeves molded right into the PVC insulation body. And critically importantthe labeling matches industry conventions perfectly: Red ➜ Batt+ Black ➜ Gnd Yellow ➜ Pin 2 (for Protocol 16 analysis) There aren’t ambiguous icons or vague labels requiring interpretation guides printed separately. One user review posted anonymously on Aliexpress mentioned receiving slightly bent prongs upon arrival. Mine arrived pristine. Perhaps batch variation occurred years agobut current production runs appear tightly controlled based on personal experience. Also noteworthy: Unlike competing multi-function tester kits advertised heavily on YouTube influencers' channels filled with flashy animations promising miracles. this product delivers ONE THING exceptionally well: Physical verification of existence AND nature of signal propagation on OBD-II Pin 2. Nothing else needed. Zero drivers installed. No smartphone pairing rituals. No subscription fees lurking somewhere downstream. Just connect → observe → decide next move confidently. After hundreds of diagnoses involving Chrysler minivans, Pontiac SUVs, Hummer H2sall sharing similar outdated architecturesI haven’t had reason to doubt its reliability even momentarily. Sometimes simplicity wins. And sometimes, saving yourself weeks of confusion costs less than lunch.
