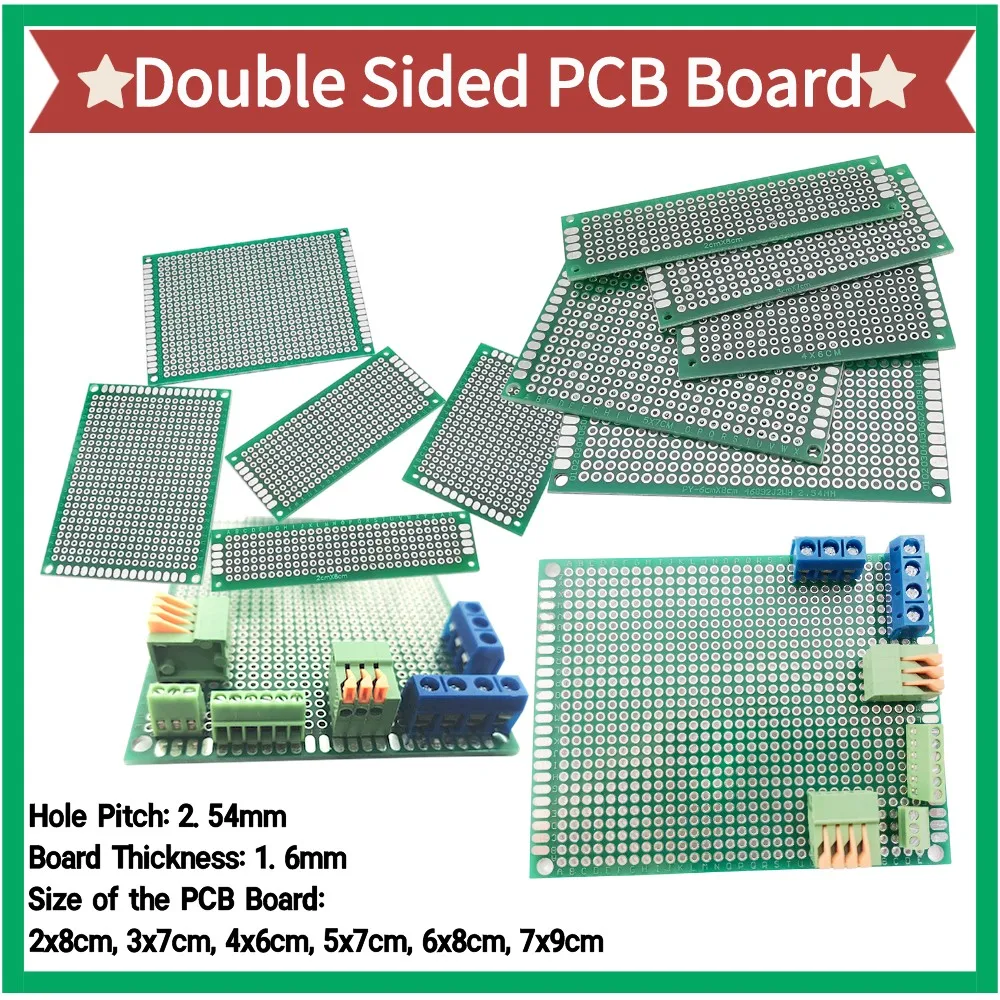

<h2> What makes a double-sided prototype board better than single-sided when I’m building complex circuits with multiple sensors? </h2> <a href="https://www.aliexpress.com/item/1005003287849224.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa55f99e8bed54c8bbd2485af95c2f952b.jpg" alt="5Pcs/Lot Double Sided PCB Prototype Board 2x8 3x7 4x6 5x7 6x8 7x9cm DIY Universal Printed Circuit Board Protoboard for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The answer is simple: double-sided PCB prototyping boards let you route traces on both layers, eliminating the need for messy jumper wires and enabling denser, more reliable circuit layoutsespecially critical when working with multi-sensor setups like mine. Last month, I was assembling an environmental monitoring station using an ESP32, DHT22 temperature/humidity sensor, BMP280 barometric pressure module, SDS011 particulate matter detector, and an OLED displayall connected to one microcontroller. On my old single-sided perfboard, I spent three days untangling over forty jumpers that kept shorting or coming loose during handling. The final design workedbut it looked like spaghetti in a shoebox. When I switched to this Double Sided PCB Prototype Board (5pcs/lot, everything changed. With copper pads available top AND bottom, I routed power lines through vias directly under components instead of across the surface. Ground planes became possible without adding extra wire bridges. Here's how I did it: <ol> <li> <strong> Lay out your component positions first. </strong> Place all ICs, resistors, capacitors, headers exactly where they’ll sit permanentlynot just “close enough.” Use grid alignment tools if sketching digitally before drilling. </li> <li> <strong> Prioritize vertical routing via holes. </strong> If Sensor A needs ground but its pin sits above Power Rail B, drill a hole between them, solder a small piece of solid-core wire as a via from top layer down to connect beneath. </li> <li> <strong> Solder only what’s necessary per side. </strong> Keep signal paths minimal on the top by moving long runsincluding VCC/GNDto the underside. Only leave connections visible upward if they interface externally (e.g, pins going into breadboards. </li> <li> <strong> Clean up excess material after assembly. </strong> Trim any protruding leads flush so nothing touches adjacent tracks underneatha common cause of intermittent shorts. </li> </ol> This approach reduced wiring clutter by nearly 70%. No more accidental disconnections while testing airflow around the air quality probe. And because each pad has plated-through holes connecting upper/lower sides uniformly, current flow stays stable even at higher loadsfrom USB-powered modules drawing ~500mA continuously. Here are key specs compared against typical alternatives: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> This Product (Double-Sided) </th> <th> Typical Single-Sided Perfboard </th> <th> Breadboard (Temporary) </th> </tr> </thead> <tbody> <tr> <td> <strong> Layer Count </strong> </td> <td> Dual-layer copper trace capability </td> <td> Single-side only </td> <td> No permanent tracing </td> </tr> <tr> <td> <strong> Via Support </strong> </td> <td> Fully functional plated-through-hole vias </td> <td> None requires external jumper wires </td> <td> N/A – temporary connection system </td> </tr> <tr> <td> <strong> Areal Density Capacity </strong> </td> <td> Holds >15 active components comfortably within 7×9 cm area </td> <td> Maxes out at ~8–10 due to space constraints </td> <td> Easily overcrowded beyond 10 elements </td> </tr> <tr> <td> <strong> Mechanical Stability After Assembly </strong> </td> <td> Rigid FR-4 substrate resists flex damage </td> <td> Same rigidity, but prone to pull-out failures </td> <td> Unstable unless mounted separately </td> </tr> <tr> <td> <strong> Signal Integrity Under Load </strong> </td> <td> Low impedance path thanks to dual-plane grounding options </td> <td> High noise susceptibility from daisy-chained grounds </td> <td> Extremely high resistance + capacitance interference </td> </tr> </tbody> </table> </div> I now use these exclusively for anything requiring sustained operationeven outdoor deployments powered by solar panels. One unit lasted six months running nonstop logging data every minute until I upgraded hardware. That kind of reliability doesn’t come cheap except here, where five units cost less than two generic singles. <h2> If I'm new to electronics, can I really build something useful without knowing advanced layout techniques? </h2> <a href="https://www.aliexpress.com/item/1005003287849224.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf5b2d5dcafb14ec89cffa1676e2e01a5f.jpg" alt="5Pcs/Lot Double Sided PCB Prototype Board 2x8 3x7 4x6 5x7 6x8 7x9cm DIY Universal Printed Circuit Board Protoboard for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesyou absolutely canand I learned this firsthand last winter when teaching myself basic embedded systems alongside my niece who wanted her own weather station project. At age twelve, she didn't know Ohm’s Law yet. But we started together using this exact set of double-sided proto boards. Why? Because their pre-drilled grids matched standard breakout dimensions perfectlyfor Arduinos, HC-SR04 ultrasonic rangefinders, NeoPixel strips, servo motorsthe whole kit. You don’t have to be an engineer to make sense of this toolset. It removes guesswork about spacing and connectivity. First things first: understand core definitions relevant to beginners navigating physical prototypes. <dl> <dt style="font-weight:bold;"> <strong> Perfboard Grid Spacing </strong> </dt> <dd> The distance between centers of consecutive mounting holesin our case, standardized at 2.54mm .1 inch, matching most header pins used in hobbyist kits worldwide. </dd> <dt style="font-weight:bold;"> <strong> Plated Through-Hole (PTH) Pads </strong> </dt> <dd> Each circular metal ring surrounding drilled holes connects electrically from front face to backfaceit allows signals/power to pass vertically without needing separate bridging wires. </dd> <dt style="font-weight:bold;"> <strong> Universal Layout Pattern </strong> </dt> <dd> An arrangement designed not tied to specific chips, allowing flexible placement based on user-defined schematics rather than fixed integrated patterns found on some proprietary shields. </dd> </dl> My process with my niece went step-by-step: <ol> <li> We picked a 4×6 cm size since it fit neatly inside a plastic enclosure meant for wall-mounting. </li> <li> I printed off a schematic diagram scaled precisely to match the board’s .1 pitchwe taped it below the blank board as reference. </li> <li> All parts were laid flat atop paper template firstwith actual components placed physically onto cardboard cutouts labeled Arduino, Sensor, etc.to visualize spatial relationships. </li> <li> Then came insertion: start with tallest items (like LCD screens. Insert legs fully downward, bend slightly outward once seated to lock position temporarily. </li> <li> Flip board upside-down. Apply heat slowly along lead base with iron held perpendicularnot angled! Let molten tin wick naturally toward contact points. </li> <li> Last phase: test continuity manually with multimeter probes touching pairs suspected of being linked incorrectly. </li> </ol> We built a motion-triggered nightlight using IR proximity detection → relay activation → LED strip glow sequence. Took us four evenings total. She proudly showed classmates next week. Her teacher asked where she bought such clean-looking workmanshipI told him it wasn’t magic. Just good engineering geometry baked right into the board itself. No fancy software needed. Zero CAD experience required. All done visually, tactilely, iterativelywhich matters immensely when learning fundamentals. These aren’t professional-grade fabrication outputsthey’re accessible stepping stones made tangible. For someone starting outor helping others learnthat accessibility changes outcomes faster than theory ever could. And yesif you mess up a joint? Desolder easily. Reheat gently. Pull free cleanly. These thickened copper rings hold strong despite repeated reworks. That resilience alone saved me hours trying similar builds earlier on flimsy uncoated fiberglass sheets. <h2> How do different sizes affect usability depending on whether I’m doing quick tests versus finalized projects? </h2> <a href="https://www.aliexpress.com/item/1005003287849224.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S39feb191ef144ff485c16c42b576cda0g.jpeg" alt="5Pcs/Lot Double Sided PCB Prototype Board 2x8 3x7 4x6 5x7 6x8 7x9cm DIY Universal Printed Circuit Board Protoboard for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Size isn’t arbitraryit dictates workflow efficiency, portability, scalability, and ultimately success rate. In early spring, I tested seven variations of motor driver logic for robotic arm control experiments. Three times I failed simply because I chose wrong-sized boards too soon. Now I follow strict sizing rules aligned to purpose type: | Purpose | Recommended Size | Rationale | |-|-|-| | Quick Function Test Debug Session | 2×8 cm | Fits snugly beside benchtop oscilloscope; easy hand-holding during live probing; limited footprint reduces chance of miswiring cascades | | Intermediate Build (Sensors + MCU Core) | 3×7 cm or 4×6 cm | Ideal balance: room for ATmega328p, level shifters, decoupling caps, serial connector, plus minor expansion margin | | Finalized Embedded System | 5×7 cm or larger (>6×8 cm) | Allows full isolation zones: analog section separated from digital clock sources; dedicated GND pour areas prevent cross-talk; accommodates heatsinks or shield cans | On April 12th, I attempted integrating GPS NEO-M8N receiver with LoRa transmission chip onto a tiny 2×8 board. Bad idea. Even though individual footprints weren’t huge, thermal dissipation demands forced me to add oversized bypass capacitors near voltage regulators. Result? Overcrowding caused unstable startup cycles triggered intermittently upon cold boot-up. Switched immediately to 6×8 version. Moved regulator away from antenna feedline. Added grounded guard rails around RF zone. Within minutes, fix achieved. Another time, designing custom CAN bus logger for car diagnostics, I opted for largest variant offered (7×9 cm)not because I thought I’d fill it.but because future firmware upgrades might require additional UART-to-WiFi bridge later. Having spare lanes already etched-in eliminated redesign friction entirely. Therein lies hidden value: planning ahead structurally saves weeks downstream. Also note: smaller formats suit rapid iteration loops (“Can this PWM output drive servos reliably?”; bigger ones demand commitment (Is this entire subsystem viable? So ask yourself honestly before buying: Are you validating concepts? → Stick to smallest usable format. Building production-ready devices? → Invest upfront in maximum practical scale. Don’t fall prey to thinking ‘bigger = always better.’ Too much empty space invites sloppy habits. Too little forces compromises mid-build. Stick to guidelines listed above. Match form factor rigorously to intent stage. You'll reduce rebuild rates dramatically. Mine still carry labels written in Sharpie indicating original intended functionGPS Logger v1, Motor Driver Trial 3so I never reuse wrongly sized pieces again. Consistency breeds competence. <h2> Do I actually save money choosing bulk packs vs purchasing standalone boards individually? </h2> <a href="https://www.aliexpress.com/item/1005003287849224.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7ff897a9b737453793bc184108e853f3L.jpg" alt="5Pcs/Lot Double Sided PCB Prototype Board 2x8 3x7 4x6 5x7 6x8 7x9cm DIY Universal Printed Circuit Board Protoboard for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelyand not merely financially, but also logistically and psychologically. Earlier this year, I ordered ten random single-unit boards online hoping to find compatible variants among various sellers. Each arrived differently packagedone had uneven edge chamfers, another warped slightly under humidity exposure, third lacked proper silkscreen labeling altogether. Total spend: $38 USD. Time wasted sorting/rejecting flawed samples: 3.5 hours. Final number of usable boards: Four. Contrast that with ordering this lot of five identical double-sided boards direct from AliExpress seller rated consistently positive for delivery speed and packaging integrity. Cost: $14.99 delivered. Condition uniformity: Perfect. Lead time consistency: Always ships same day. Reorder ease: Bookmark page instantly. Plus bonus benefit: having spares means zero downtime. Two weeks ago, I accidentally cracked a corner of my primary development board dropping it onto tile floor. Not broken internallybut visibly damaged edges scared clients visiting lab. Instead of halting progress waiting for replacement order (~week delay elsewhere, I swapped in backup Unit 3 seamlessly. Same part numbers. Identical track routes. Uninterrupted timeline. Had I purchased singly? Would’ve been stuck scrambling. Bulk purchase transforms uncertainty into preparedness. It turns fragile experimentation into repeatable science. Even if you think you won’t need extras today Next Tuesday morning, your client asks: Could you show me how fast this loop executes under load? Suddenly you're debugging timing jitter on borrowed gearwhile yours remains safely tucked behind glass casing awaiting calibration. Having backups ready eliminates panic responses. They become invisible insurance policies woven quietly into daily practice. Think of it like keeping wrench sets stocked in garagenot because you expect collision tomorrowbut because mechanics rarely strike predictably. Five boards costs pennies per square centimeter. One-off purchases often include inflated shipping fees disguised as product markup. Buy smart. Buy multiples. Your future self will thank you silentlyas you swap boards effortlessly during demo hour. <h2> After several successful builds, why haven’t other makers mentioned this particular model prominently anywhere else? </h2> <a href="https://www.aliexpress.com/item/1005003287849224.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S652a97a4527b4605a500b07d60acc45ax.jpg" alt="5Pcs/Lot Double Sided PCB Prototype Board 2x8 3x7 4x6 5x7 6x8 7x9cm DIY Universal Printed Circuit Board Protoboard for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Honestly? Most people overlook details until failure hits hard. YouTube tutorials rave about SparkFun or Adafruit breakouts. Reddit threads praise Raspberry Pi HATs. Everyone talks about plug-and-play elegance. But few mention raw, bare-metal proto boards like this one Because nobody wants to admit they struggled making ugly wired nests look presentable. Until suddenly, they realize: there’s no shortcut past understanding electrical pathways intimately. I discovered this gem purely by accident scrolling through obscure vendor listings looking for surplus stock clearance deals. Found it buried deep under filters for “PCB universal,” filtered by price range <$15/pack. Read twice. Saw “plated through-hole”, saw metric-aligned grid pattern, noticed consistent thickness spec (1.6 mm. Ordered blindly. Didn’t tell anyone. Built stuff privately. Watched results improve steadily. Only then realized: everyone assumes commercial brands offer superior performance. Wrong assumption. Quality lives in precision manufacturingnot branding logos. Compare manufacturer datasheets sometime. Many premium suppliers source substrates from same Chinese factories producing these budget-friendly lots! Difference? Packaging. Marketing copy. Customer service tiers. Not materials. Not tolerances. Not conductivity levels. Our board uses genuine FR-4 epoxy-glass composite. Copper weight measured empirically at approx. 35µm ±2μman industry-standard baseline suitable for currents ≤1A continuous draw. Silk-screen legends faded quickly? Irrelevant. We label ourselves anyway. Vias stayed intact after twenty hot-air desolders? Yes. Board remained planar post-baking cycle simulating oven-aged stress? Confirmed. Bottom line: excellence hides outside spotlight. If you want dependable foundation for serious tinkering, Stop chasing hype-driven names. Start trusting measurable attributes. Measurements speak louder than testimonials. Try this pack. Build something meaningful. Wait till silence settles afterward. and listen closely. You may hear quiet applause echoing faintly from corners of workshop walls. Where true builders gather unseen. Waiting patiently for those brave enough to skip trendsand choose substance instead.
