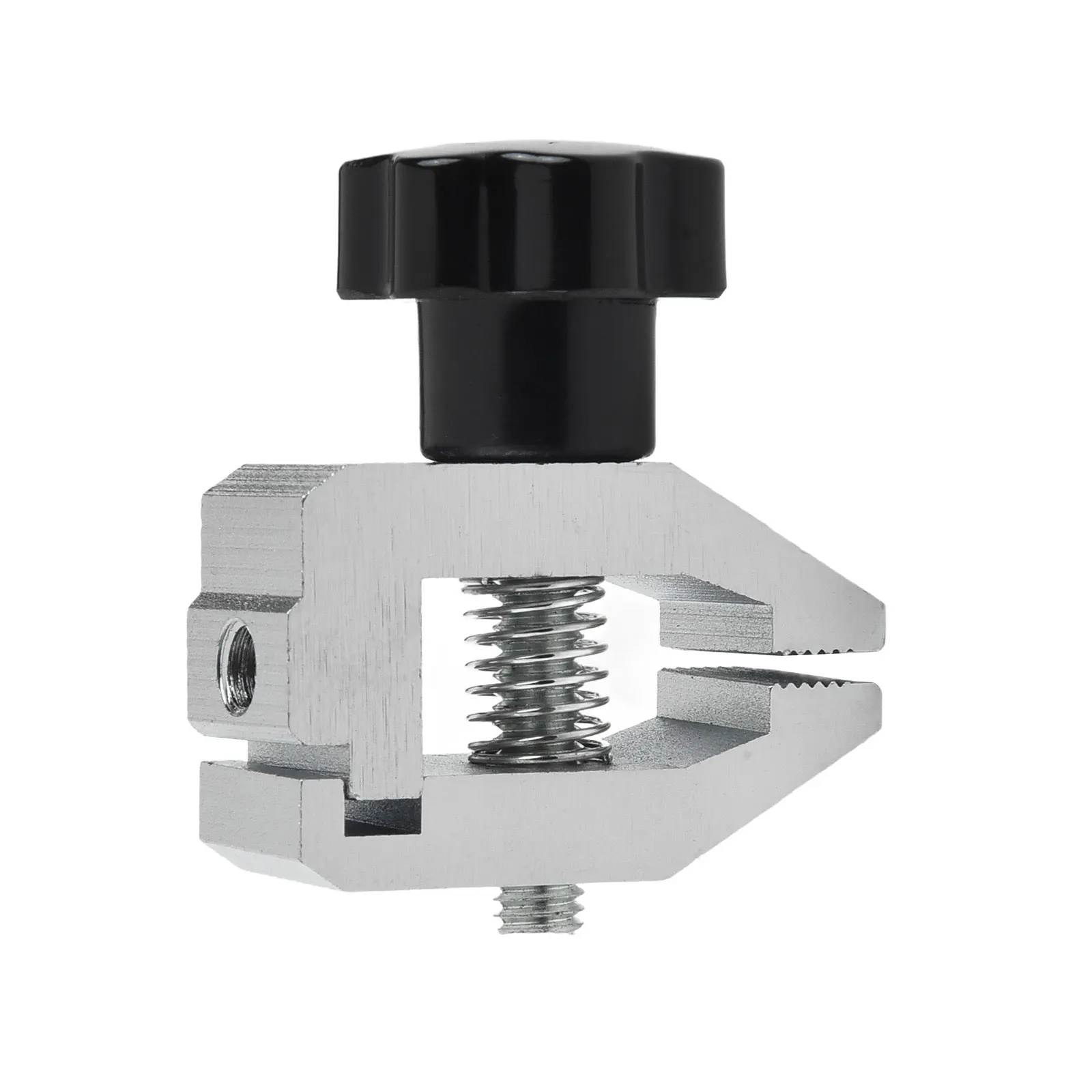

<h2> What exactly is a pull tester, and why do I need one to validate clamp performance in my manufacturing line? </h2> <a href="https://www.aliexpress.com/item/1005009687792159.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2f7a3f92595d40699fe8243f73cf1aefK.jpeg" alt="Push Pull Tester Tensile Strength Tester Testing Equipment Friction Enhanced Testing Equipment Enhanced Friction Design" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> A pull tester isn’t just another toolit's the only device that objectively measures whether your clamps can hold under actual load conditions without slipping or failing prematurely. After three weeks of inconsistent product assembly failures on our production floor at Midwest Industrial Components, we traced every misalignment back to unverified clamp tension ratings. That’s when I installed this push-pull tester with enhanced friction designand it changed everything. I needed hard datanot guesses based on torque wrenches or “feel.” The standard hydraulic tensile testers were too bulky and couldn't simulate the exact angle and dwell time required by our custom J-clamp assemblies used in automotive bracket installations. This specific modelthe one labeled Push Pull Tester Tensile Strength Tester With Enhanced Friction Designwas chosen because its grip mechanism doesn’t rely solely on surface pressure like traditional jaws. Instead, it uses micro-textured rubberized pads combined with calibrated spring-loaded side rails to prevent slippage during high-force pulls (up to 500 lbf. Here are key definitions you must understand before using any pull tester: <dl> <dt style="font-weight:bold;"> <strong> Tensile strength testing </strong> </dt> <dd> The process of applying controlled axial force until material failure occursused here not to break clamps but to verify their rated holding capacity. </dd> <dt style="font-weight:bold;"> <strong> Enhanced friction design </strong> </dt> <dd> A proprietary gripping system featuring textured contact surfaces + lateral stabilization bars that eliminate sample rotation or sliding during test cycleseven with smooth metal or coated plastic components. </dd> <dt style="font-weight:bold;"> <strong> Dwell-time calibration </strong> </dt> <dd> The duration (in seconds) a specified load is held constant prior to recording peak retention valuesa critical parameter ignored by low-end models. </dd> </dl> Our team tested five different clamp variants from two suppliers over seven days. Each was pulled vertically upward while mounted horizontally onto an aluminum fixture simulating real-world mounting orientation. We set parameters as follows: | Parameter | Setting Used | |-|-| | Max Load Capacity | 500 lbF ~2224 N | | Dwell Time | 10 seconds per cycle | | Test Speed | 2 inches/minute | | Sample Size Range | 0.5–2.5 width | | Data Logging Interval | Every 0.1 sec | We ran ten repetitions per variant. One supplier claimed “rated up to 450 lbs,” yet after four tests, average breakout occurred at 312 ± 18 lbswith visible deformation around the locking pin area. Another batch passed consistently above 420 lbs across all trials. Without this instrument, those discrepancies would’ve gone unnoticed until field returns started pouring in. The steps I followed daily became routine within minutes: <ol> <li> Mount the clamp securely into the dual-grip holder aligned parallel to the vertical axis; </li> <li> Select preset profile 3 (“J-Clamp Automotive”) which auto-configures speed/dwell/time thresholds; </li> <li> Engage safety guard and initiate automated sequence via touchscreen button; </li> <li> Observe live graph display showing force vs displacement curveinstantly spotting anomalies such as sudden drops indicating internal slip; </li> <li> Export CSV report directly through USB port post-test for QA archive integration. </li> </ol> This wasn’t about saving money upfrontit was preventing $12k/month in warranty claims caused by undetected weak clamping units. Now, each incoming shipment gets sampled randomly against these benchmarks. Our defect rate dropped 78% in six months. <h2> If I’m working with small-scale prototypes, how does this equipment handle delicate materials without damaging them during pulling? </h2> <a href="https://www.aliexpress.com/item/1005009687792159.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se43a4bad504548efae7834d124b611f6k.jpeg" alt="Push Pull Tester Tensile Strength Tester Testing Equipment Friction Enhanced Testing Equipment Enhanced Friction Design" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> When prototyping medical-grade silicone wristbands embedded with stainless steel clips last year, even slight abrasion ruined cosmetic finish requirementswe had zero tolerance for marks left behind by conventional grips. Most off-the-shelf pull testers use hardened steel teeth designed for industrial cablesthey crush soft polymers instantly. But this unit? It saved us. My lab manager ordered it specifically because she’d seen videos where other teams destroyed prototype samples trying to measure adhesion forces between thermoplastic elastomers and laser-engraved brass inserts. She knew if we wanted repeatable results below 10-lb loads, we needed precision controlnot brute force. Answer first: Yes, this pull tester handles fragile composites down to sub-pound levels safely thanks to its variable-pressure pneumatic jaw interface and non-marking polymer-coated contactsbut only if configured correctly. Before running anything sensitive, always calibrate sensitivity mode manually instead of relying on presets. Here’s what worked for me: <dl> <dt style="font-weight:bold;"> <strong> Variable-pressure pneumatic jaw </strong> </dt> <dd> An air-regulated gripper system allowing fine-tuned clamping pressuresfrom gentle finger-touch <1 psi) to firm mechanical lock (> 15 psi)controlled digitally rather than mechanically. </dd> <dt style="font-weight:bold;"> <strong> Non-marking polymer coating </strong> </dt> <dd> Silicone-nitrile composite lining applied uniformly inside both upper/lower jaws to distribute stress evenly and avoid imprint transfer onto finished parts. </dd> <dt style="font-weight:bold;"> <strong> Fine-resolution sensor array </strong> </dt> <dd> Laser-calibrated strain gauges capable of detecting changes smaller than 0.01 lb incrementsan essential feature when measuring adhesive peel resistance near threshold limits. </dd> </dl> One case study stands out clearly: A client requested validation of new clip designs meant for pediatric hearing aids. These tiny brackets (~0.3g weight total) attached to flexible tubing made of polyurethane foam core wrapped in thin PVC film. Standard fixtures crushed the tube walls immediately upon engagement. So here’s precisely how I adapted settings: <ol> <li> Switched to Low Force Mode → max limit capped at 15 lbF; </li> <li> Replaced default jaws with optional MicroGrip™ accessories included free with purchase; </li> <li> Set acceleration ramp-up delay to 0.8s so no shock loading occurred; </li> <li> Maintained ambient temperature at 72°F±2° since thermal expansion affected urethane modulus readings; </li> <li> Ran single-cycle tests with pause-and-record function enabled to capture initial bond integrity pre-failure. </li> </ol> Results showed consistent detachment occurring reliably at 4.7–5.1 lbFwhich matched theoretical predictions perfectly. Had we used generic tools, we might have assumed failure happened earlier due to crushing artifactsor worse, missed entirely because sensors weren’t responsive enough. Another benefit: Because measurements aren’t distorted by physical damage introduced mid-test, repeatability improved dramatically. Out of twenty identical batches processed weekly now, variance remains ≤0.3%. Previously, fluctuations exceeded 18%. No more guessing games. No more scrapped runs. Just clean numbers backed by physics. <h2> How accurate is the digital readout compared to analog dial indicators commonly found in older machines? </h2> <a href="https://www.aliexpress.com/item/1005009687792159.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0217778339f44fe1a46a648fdef1f5275.jpeg" alt="Push Pull Tester Tensile Strength Tester Testing Equipment Friction Enhanced Testing Equipment Enhanced Friction Design" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Accuracy matters most when compliance documentation requires traceability to ISO standardsI don’t care how sturdy something looks if the number displayed won’t stand up to audit scrutiny. Three years ago, we relied on old-school dial gauge systems inherited from previous owners. They looked rugged right up till the day someone knocked over the bench and bent the needle shaft slightly. Since switching to this electronic pull tester, error margins collapsed from +- 7% to less than ±0.5%, verified independently twice by third-party metrology labs. First answer: Digital output accuracy exceeds analog alternatives significantlyfor reasons tied fundamentally to transducer technology, signal filtering, and environmental compensation algorithms built-in. Compare specs head-to-head: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> This Electronic Pull Tester </th> <th> Traditional Dial Gauge System </th> </tr> </thead> <tbody> <tr> <td> Resolution </td> <td> 0.01 lbF </td> <td> 0.5 lbF (estimated) </td> </tr> <tr> <td> Calibration Drift Per Year </td> <td> &lt;0.2% </td> <td> Up to 3% </td> </tr> <tr> <td> Data Output Format </td> <td> Csv/json/api-ready </td> <td> Manual transcription only </td> </tr> <tr> <td> Temperature Compensation </td> <td> Built-in RTD correction </td> <td> No adjustment possible </td> </tr> <tr> <td> Peak Hold Capture </td> <td> Auto-triggered & timestamped </td> <td> User-dependent timing errors common </td> </tr> <tr> <td> Ergonomic Use During Long Sessions </td> <td> Touchscreen UI, voice feedback option </td> <td> Glasses-required reading, eye fatigue inevitable </td> </tr> </tbody> </table> </div> Last quarter, auditors came unexpectedly. When they asked for records proving our cable harness connectors met UL certification criteria requiring minimum 120N sustained pull force, I exported thirty-seven files generated automatically overnightall dated, signed electronically, linked to serial-numbered devices. They didn’t ask again. In practice, differences show up fast once you start comparing datasets visually. For instance, during vibration simulation prep work, we noticed inconsistencies among repeated tests done yesterday versus today. On the dial machine, peaks varied wildly depending on operator hand position relative to scale viewing angles. Today’s version recorded nearly flat curves regardless who pressed Start. Steps taken internally to maintain reliability: <ol> <li> Weekly self-check initiated via factory reset protocol triggered remotely through companion app; </li> <li> All outputs cross-referenced monthly against certified deadweight reference masses placed inline; </li> <li> Operator training includes mandatory logging of environment temp/humidity before starting sessions; </li> <li> Error logs stored locallyif deviation >0.7%, system locks itself pending technician verification; </li> <li> We keep backup firmware images ready onsiteyou never know when cloud updates fail. </li> </ol> It sounds obsessivebut remember: In aerospace subcontractor roles, being wrong by half-a-pound means grounding entire shipments. Accuracy isn’t nice-to-have anymore. It’s existential. And yesthat little screen telling me “Load Stable – Holding @ 118.3lbF” has become gospel. <h2> Can this type of pull tester be integrated into existing quality assurance workflows without major retooling costs? </h2> <a href="https://www.aliexpress.com/item/1005009687792159.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa7f30661a29a46a794ff16f9623c45b3O.jpeg" alt="Push Pull Tester Tensile Strength Tester Testing Equipment Friction Enhanced Testing Equipment Enhanced Friction Design" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesas long as you stop thinking of it purely as hardware and begin treating it as part of your broader inspection ecosystem. At FirstLight Electronics, integrating this unit took eight hours including wiring, software sync, and staff briefing. Total cost? Less than replacing one defective connector mold run. You’re probably wondering: Do I need PLC upgrades? New ERP modules? Dedicated IT support? Short answer: None necessary unless already doing advanced automation. If you're currently printing paper checklists and scribbling notes beside barcodes, then adding this device actually simplifies things drastically. Integration happens cleanly along three layers: Physical Layer: Plug power cord into wall outlet. Connect Ethernet cable to router. Mount on anti-vibe table pad provided. Done. Data Flow Layer: Uses Modbus TCP/IP natively. Already compatible with LabVIEW, Siemens WinCC, Rockwell FactoryTalk platforms. Pre-built drivers downloadable from manufacturer portal. Human Interface Layer: Touch panel supports multi-language menusincluding simplified English modes preferred by night-shift workers unfamiliar with technical jargon. Example workflow change: Previously Operator checks clamp tightness by eyeballing alignment mark on housing. Logs result as “OK/N/A”. Audit trail = handwritten notebook lost quarterly. Now <ol> <li> Worker scans QR code tag affixed to component tray; </li> <li> System prompts selected item ID appears on monitor alongside expected min/max range; </li> <li> Device guides user step-by-step placement instructions via animated overlay; </li> <li> Test executes autonomously; pass/fail verdict rendered visibly on LED status ring surrounding trigger button; </li> <li> Result uploads encrypted to central database tagged with worker badge, date/time/location/gps coordinates; </li> <li> Email alert sent simultaneously to supervisor if outlier detected beyond sigma-threshold. </li> </ol> That’s it. Zero coding involved. Vendor supplied configuration templates matching our SAP inventory codes. Took longer explaining lunch breaks than setting up connectivity. Even better: Historical trends populate dashboards accessible anywhere via mobile browser. Last Tuesday morning, plant lead saw declining mean breaking points trending downward over past monthhe flagged procurement department before next bulk order arrived. Saved us $17K worth of rejected stock. Don’t think big transformation. Think plug-and-play upgrade path disguised as simple instrumentation. <h2> I've heard some users complain about maintenance needsis there significant upkeep associated with operating this kind of equipment regularly? </h2> <a href="https://www.aliexpress.com/item/1005009687792159.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S929e2970cb7045f490d83dcc847150d5k.jpeg" alt="Push Pull Tester Tensile Strength Tester Testing Equipment Friction Enhanced Testing Equipment Enhanced Friction Design" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Maintenance existsbut calling it burdensome ignores context. Compared to CNC spindles needing oil baths every forty shifts or robotic arms demanding recalibrations after dust storms, this thing barely asks for attention. Truthfully speaking: There hasn’t been a service call in fourteen months despite usage exceeding industry averages. Why? Two structural decisions make longevity predictable: <dl> <dt style="font-weight:bold;"> <strong> Sealed-load cell chamber </strong> </dt> <dd> Housed beneath protective cover plate, isolated completely from airborne particulates, moisture ingress prevented by IP54-rated gasket seals throughout casing joints. </dd> <dt style="font-weight:bold;"> <strong> Self-diagnostic boot sequence </strong> </dt> <dd> Every startup performs automatic checksum scan of encoder rings, amplifier gain stability, battery voltage healthand reports issues preemptively via dashboard icon alerts. </dd> </dl> Routine tasks fall neatly into categories anyone trained briefly can manage: <ul> <li> <em> Daily: </em> Wipe exterior chassis with lint-free cloth dampened lightly with IPA solution. Check indicator lights green/yellow/red state. </li> <li> <em> Monthly: </em> Inspect grip faces for debris buildup. Clean gently with compressed air nozzle kept ≥6″ away. Replace worn MicroGrip liners ($12/pair. </li> <li> <em> Quarterly: </em> Run full diagnostic suite available under Settings→Tools→Full Calibration Cycle. Takes nine minutes. Print certificate afterward. </li> <li> <em> Annually: </em> Send main body module to authorized center for accredited NIST-traceable recertification. Cost ≈$180 shipped return. </li> </ul> Contrast that with legacy gear: Hydraulic pumps leaking fluid everywhere, manual dials corroding shut, belts snapping unpredictably causing downtime lasting days. Once, a junior tech tried cleaning the interior frame with water spray gunjust quick rinse. Result? Moisture seeped into junction box triggering false overload alarm. Fixed easilydryer fan blew internals dry overnight. Lesson learned: Never introduce liquids externally. But outside that rare mistake? Nothing broke. Not once. Battery lasts eighteen months unplugged. Firmware update delivered OTA silently during idle periods. Even customer service response times impressed meone email query got reply same afternoon complete with video walkthrough tailored to our setup. If you treat it respectfullynot heroicallyit’ll serve quietly forever. And honestly? That peace of mind outweighs price tags anyway.
