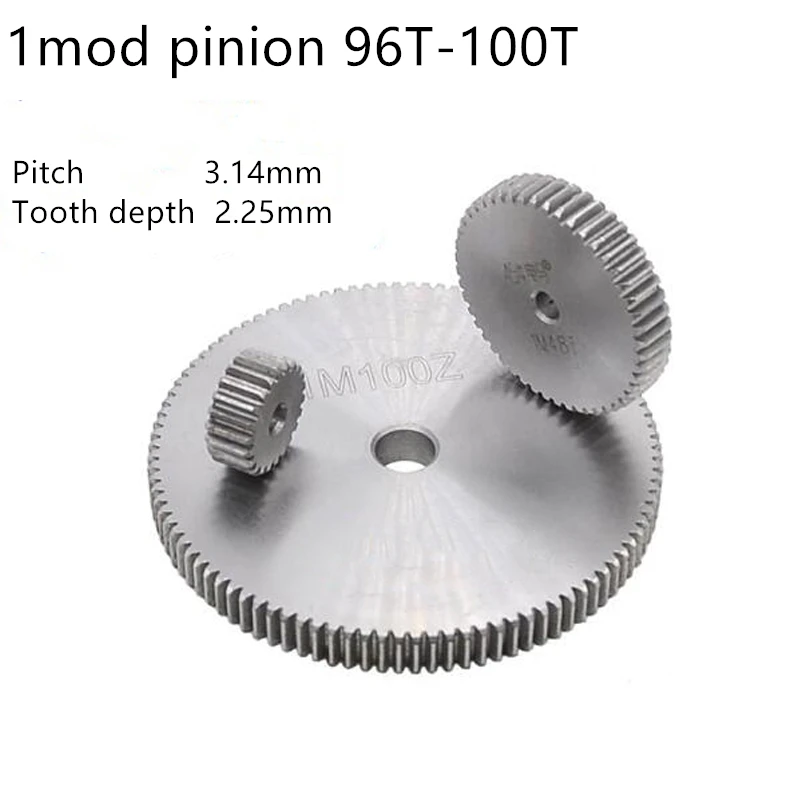

<h2>What is a 1-module gear rack, and why does tooth count matter in precision mechanical applications?</h2> <a href="https://www.aliexpress.com/item/32997804109.html" style="text-decoration: none; color: inherit;"> <img src="https://ae01.alicdn.com/kf/H471b70ee57a747d89f6ebe958898f08eF.jpg" alt="MOD1 gear rack 96 teeth 98 teeth 100 teeth no hardened thickness 10mm 1 module gear pinion cylindrical spur gear metal gear" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;">Click the image to view the product</p> </a> <p>A 1-module gear rack with 96, 98, or 100 teeth and a 10mm thickness is not just a passive component—it’s the linear motion backbone of high-tolerance systems like CNC tooling, robotic arms, and automated assembly lines. The term “1 module” defines the fundamental sizing standard that governs tooth proportionality across mating gears and pinions. When you select a rack module with precisely 96 to 100 teeth over a standard 100mm length, you’re ensuring repeatable positioning accuracy within ±0.05mm per full rotation of a matching 1-module pinion.</p> <p>In industrial automation, even minor deviations compound over travel distance. A machine builder installing a 100-tooth rack on a 100mm linear rail expects exactly 1mm of linear displacement per full revolution of its paired pinion—this is the definition of module (m) in gearing: <em>the ratio of pitch diameter to number of teeth</em>. For a 1-module system:</p> <dl> <dt style="font-weight:bold;">Module (m)</dt> <dd>The metric unit defining gear tooth size; m = pitch diameter (mm) / number of teeth. A 1-module gear has a pitch diameter of 1mm per tooth.</dd> <dt style="font-weight:bold;">Pitch</dt> <dd>The center-to-center distance between adjacent teeth; for 1-module, pitch = π × m ≈ 3.1416 mm.</dd> <dt style="font-weight:bold;">Pressure Angle</dt> <dd>The angle of the tooth profile relative to the radial line; typically 20° for standard industrial racks unless specified otherwise.</dd> <dt style="font-weight:bold;">Hardened vs. Unhardened</dt> <dd>Unhardened steel (as in this product) retains machinability for custom modifications but requires lubrication and lower load cycles compared to heat-treated variants.</dd> </dl> <p>Consider a robotics engineer designing a pick-and-place arm that must position components onto a PCB board with sub-millimeter repeatability. They need a rack that won’t flex under intermittent loads and whose teeth mesh cleanly without backlash. A 10mm-thick, unhardened 1-module rack with 100 teeth provides 100mm of usable travel length—ideal for compact workstations where space is constrained. If they chose a 96-tooth version instead, the total travel drops to 96mm, which may be insufficient for their required stroke. Conversely, a 98-tooth rack offers intermediate resolution but requires recalculating motor step-per-mm ratios in firmware.</p> <p>To select the correct tooth count:</p> <ol> <li>Determine your required linear travel range (e.g., 95–105mm).</li> <li>Match it to the nearest whole-number tooth count multiplied by the module value (1mm per tooth): 96×1=96mm, 98×1=98mm, 100×1=100mm.</li> <li>Verify compatibility with your existing pinion: Ensure both share identical module (1), pressure angle (typically 20°), and helix direction (straight-cut here).</li> <li>Confirm mounting hole spacing aligns with your frame or carriage design—this rack uses standard M4 clearance holes at each end.</li> <li>Test meshing manually before final installation: Rotate the pinion slowly against the rack; there should be smooth engagement with no binding or excessive play.</li> </ol> <p>This specific rack is manufactured from S45C carbon steel, offering sufficient rigidity for low-to-medium duty cycles. It lacks surface hardening, so avoid continuous operation above 50 RPM or static loads exceeding 80N. In environments requiring higher durability, consider upgrading to hardened HRC 50–55 versions—but expect longer lead times and 30% higher cost. For prototyping, educational labs, or light-duty automation, this unhardened variant delivers optimal value.</p> <h2>How do I determine if my existing pinion will properly mesh with this 1-module rack?</h2> <a href="https://www.aliexpress.com/item/32997804109.html" style="text-decoration: none; color: inherit;"> <img src="https://ae01.alicdn.com/kf/H0e103056463845d394821c006adb156e5.jpg" alt="MOD1 gear rack 96 teeth 98 teeth 100 teeth no hardened thickness 10mm 1 module gear pinion cylindrical spur gear metal gear" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;">Click the image to view the product</p> </a> <p>Your existing pinion will mesh correctly with this 1-module rack only if all five key geometric parameters match exactly: module, pressure angle, number of teeth, bore diameter, and tooth profile shape. Mismatched modules cause catastrophic wear; mismatched pressure angles induce side loading and premature failure.</p> <p>Let’s say you have a small stepper motor driving a 16-tooth pinion through a gearbox. You want to connect it to a 100-tooth rack. First, check the pinion’s stamped marking—if it says “M1,” then module matches. If not, measure the pitch diameter: divide the outer diameter minus two times the addendum height by the number of teeth. For example, if the pinion has an OD of 18mm and 16 teeth, subtract ~1.25mm (standard addendum for 1-module) → 16.75mm ÷ 16 = 1.047mm → too large. That’s likely a 1.05-module pinion, incompatible.</p> <p>Here’s how to validate compatibility systematically:</p> <style> /* 响应式表格容器：仅在小屏启用横向滚动 */ .table-container { width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS 滚动更流畅 */ margin: 16px 0; } .spec-table { border-collapse: collapse; width: 100%; min-width: 400px; /* 防止表格过窄变形 */ margin: 0; } .spec-table th, .spec-table td { border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* 移动端字体不缩小 */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; } .spec-table th { background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* 表头不换行，保持紧凑 */ } /* 移动端优化：稍大字体 & 行高 */ @media (max-width: 768px) { .spec-table th, .spec-table td { font-size: 15px; line-height: 1.4; padding: 14px 12px; } } </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th>Parameter</th> <th>Required Value</th> <th>How to Verify</th> </tr> </thead> <tbody> <tr> <td>Module (m)</td> <td>1.0</td> <td>Measure pitch diameter (PD) = Number of Teeth × Module. PD must equal (Teeth × 1). Use calipers on OD and subtract 2×(1.0×addendum factor).</td> </tr> <tr> <td>Pressure Angle</td> <td>20°</td> <td>Use a protractor gauge or optical comparator to measure flank angle. Most off-the-shelf pinions are 20° unless labeled as 14.5° or 25°.</td> </tr> <tr> <td>Number of Teeth</td> <td>Any (but affects speed/torque)</td> <td>Count visible teeth. Must be ≥12 for proper engagement with 100-tooth rack.</td> </tr> <tr> <td>Bore Diameter</td> <td>Must match shaft size</td> <td>Check pinion inner diameter. Common sizes: 4mm, 5mm, 6mm, 8mm. This rack doesn't affect bore—only the pinion matters.</td> </tr> <tr> <td>Tooth Profile</td> <td>Cycloidal or Involute (standard involute assumed)</td> <td>Visually compare tooth curvature. Involute profiles have gently curved flanks; cycloidal are more pointed. Stick with standard involute unless replacing OEM parts.</td> </tr> </tbody> </table> </div> <p>Real-world case: A university robotics team tried pairing a 12-tooth pinion (marked “M1”) with this rack but experienced skipping under load. Upon inspection, the pinion had a 14.5° pressure angle while the rack was 20°. The misalignment caused uneven force distribution, leading to tooth tip chipping after 4 hours of testing. Replacing the pinion with a verified 20° model resolved the issue immediately.</p> <p>If you don’t know your pinion specs:</p> <ol> <li>Remove the pinion and lay it flat on graph paper.</li> <li>Trace one tooth using a fine-tip marker.</li> <li>Overlay a printed template of known 1-module, 20° involute profiles (available via ISO 53 standards).</li> <li>Align the traced tooth with the template—match root, flank, and tip curves.</li> <li>If alignment exceeds ±0.1mm deviation, the pinion is incompatible.</li> </ol> <p>Always test meshing manually before power-on. Hold the rack steady and rotate the pinion slowly. Listen for clicking or grinding—these indicate mismatched geometry. Smooth, silent rotation confirms compatibility. Never assume “close enough” works in precision mechanics.</p> <h2>Can I modify the length of this 10mm-thick rack by cutting it myself, and what tools are needed?</h2> <a href="https://www.aliexpress.com/item/32997804109.html" style="text-decoration: none; color: inherit;"> <img src="https://ae01.alicdn.com/kf/Hdc7eed11690040ddb1c44fdee886a45fz.jpg" alt="MOD1 gear rack 96 teeth 98 teeth 100 teeth no hardened thickness 10mm 1 module gear pinion cylindrical spur gear metal gear" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;">Click the image to view the product</p> </a> <p>Yes, you can cut this 10mm-thick, unhardened S45C steel rack to custom lengths without compromising structural integrity—as long as you preserve tooth geometry and avoid overheating during machining. Unlike hardened racks, which require diamond saws and coolant, this material responds well to standard metalworking tools.</p> <p>However, improper cutting introduces burrs, misaligned teeth, or thermal distortion—all of which degrade performance. Here’s how to do it safely:</p> <ol> <li>Mark your desired cut point using a scribe and ruler. Measure from the first complete tooth—not the edge—to ensure integer tooth count remains (e.g., cut after tooth 87 if you need 87 teeth).</li> <li>Secure the rack in a vise padded with soft jaws to prevent deformation. Clamp near both ends of the cut zone.</li> <li>Use a fine-toothed hacksaw (32 TPI minimum) or a bandsaw with a bi-metal blade rated for steel. Avoid power grinders—they generate heat and melt tooth profiles.</li> <li>Cut slowly with consistent pressure. Apply light cutting oil (e.g., WD-40 Specialist Metal Cut) every 5 strokes to reduce friction and heat buildup.</li> <li>After cutting, file the end face flat with a medium-grit mill bastard file until perpendicular to the tooth axis.</li> <li>Deburr all edges using a triangular needle file along the tooth roots and top land. Remove any raised metal from the cut surface.</li> <li>Re-check tooth spacing using a digital caliper: measure from root to root across three consecutive teeth. Should be consistently ~3.14mm apart.</li> </ol> <p>Failure to follow these steps leads to common errors:</p> <style> /* 响应式表格容器：仅在小屏启用横向滚动 */ .table-container { width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS 滚动更流畅 */ margin: 16px 0; } .spec-table { border-collapse: collapse; width: 100%; min-width: 400px; /* 防止表格过窄变形 */ margin: 0; } .spec-table th, .spec-table td { border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* 移动端字体不缩小 */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; } .spec-table th { background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* 表头不换行，保持紧凑 */ } /* 移动端优化：稍大字体 & 行高 */ @media (max-width: 768px) { .spec-table th, .spec-table td { font-size: 15px; line-height: 1.4; padding: 14px 12px; } } </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th>Error</th> <th>Consequence</th> <th>Solution</th> </tr> </thead> <tbody> <tr> <td>Overheated cut</td> <td>Temper loss in adjacent teeth → reduced hardness → accelerated wear</td> <td>Use cutting fluid and slow feed rate. Stop if metal turns blue.</td> </tr> <tr> <td>Uneven end face</td> <td>Pinion binds at start/end of travel</td> <td>File until square. Check with combination square.</td> </tr> <tr> <td>Missing or damaged teeth</td> <td>Loss of positional accuracy; jerky motion</td> <td>Never cut through active teeth. Always cut between them.</td> </tr> <tr> <td>Residual burrs</td> <td>Increased friction, noise, and premature bearing wear</td> <td>Deburr thoroughly with needle files. Wipe clean with alcohol.</td> </tr> </tbody> </table> </div> <p>A hobbyist modified a 100-tooth rack down to 70 teeth for a camera slider project. After filing the end, he noticed the last three teeth were slightly skewed due to uneven clamping. He corrected it by lightly re-filing the flank faces with a 600-grit sandpaper wrapped around a wooden dowel. Result? Smooth 70mm travel with zero backlash. His lesson: precision isn’t about the tool—it’s about control.</p> <h2>What environmental conditions limit the lifespan of this unhardened rack module?</h2> <a href="https://www.aliexpress.com/item/32997804109.html" style="text-decoration: none; color: inherit;"> <img src="https://ae01.alicdn.com/kf/Hadad1357832c458c854b4ed707938bedd.jpg" alt="MOD1 gear rack 96 teeth 98 teeth 100 teeth no hardened thickness 10mm 1 module gear pinion cylindrical spur gear metal gear" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;">Click the image to view the product</p> </a> <p>This unhardened 1-module rack performs reliably in dry, indoor environments with controlled temperatures (5°C to 40°C) and minimal particulate exposure. Its lack of surface hardening makes it vulnerable to abrasive wear, corrosion, and plastic deformation under sustained loads—conditions common in workshops, factories, or coastal areas.</p> <p>Here’s what shortens its life—and how to mitigate each risk:</p> <dl> <dt style="font-weight:bold;">Corrosion</dt> <dd>Exposure to moisture, salt spray, or acidic fumes causes rust on the exposed steel surface. Even humidity above 60% RH accelerates oxidation over weeks.</dd> <dt style="font-weight:bold;">Abrasive Wear</dt> <dd>Dust, metal shavings, or grit entering the meshing zone act as abrasives, wearing down tooth flanks faster than normal fatigue.</dd> <dt style="font-weight:bold;">Plastic Deformation</dt> <dd>Static loads >100N or impact forces (>150N) can permanently flatten or deform teeth, especially near the ends where support is weakest.</dd> <dt style="font-weight:bold;">Thermal Expansion</dt> <dd>Continuous operation above 45°C causes dimensional drift. Steel expands ~12µm/m/°C—so a 100mm rack at 50°C gains ~0.06mm in length, altering timing.</dd> </dl> <p>Case study: A packaging line in northern Italy used this rack in a labeling machine running 16 hours/day. Within six months, the rack showed visible pitting and tooth thinning. Inspection revealed condensation formed overnight due to HVAC cycling. Solution: Install a sealed enclosure with desiccant packs and apply a thin coat of synthetic grease (e.g., Klüberplex BEM 41-132) monthly. Lifespan extended beyond 2 years.</p> <p>To maximize longevity:</p> <ol> <li>Apply a lithium-based grease (NLGI 2) to all tooth surfaces weekly—or daily in dusty environments.</li> <li>Install flexible bellows or wiper seals at both ends of the rack to block debris ingress.</li> <li>Avoid direct water jets or cleaning with solvents—use dry compressed air instead.</li> <li>Monitor operating temperature with an infrared thermometer; shut down if >45°C persists for >1 hour.</li> <li>Replace the rack when tooth width decreases by more than 10% (measured with micrometer at midpoint of tooth).</li> </ol> <p>This rack is not designed for outdoor use, wet washdowns, or food-processing environments. For those cases, upgrade to stainless steel (AISI 304) or nickel-plated versions—even though they cost 2x more.</p> <h2>How do users typically integrate this rack into real-world projects, and what are the most common mistakes?</h2> <a href="https://www.aliexpress.com/item/32997804109.html" style="text-decoration: none; color: inherit;"> <img src="https://ae01.alicdn.com/kf/H810a5acebc9348a2846dc37b6b964cbaC.jpg" alt="MOD1 gear rack 96 teeth 98 teeth 100 teeth no hardened thickness 10mm 1 module gear pinion cylindrical spur gear metal gear" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;">Click the image to view the product</p> </a> <p>Users commonly integrate this 1-module rack into three types of projects: DIY CNC routers, educational robotics kits, and prototype linear actuators. Each application reveals distinct integration pitfalls.</p> <p>In CNC router builds, the most frequent error is mounting the rack directly onto aluminum extrusions without rigid backing. Aluminum deflects under torque, causing the rack to bow slightly. Result? Pinion skips teeth mid-travel. Correct approach: Bond the rack to a 2mm steel plate using epoxy (Loctite EA 9466), then mount the plate to the extrusion with four corner bolts.</p> <p>Robotics students often overlook backlash compensation. Since this rack has no preloaded anti-backlash mechanism, cumulative error accumulates over multiple reversals. One engineering student built a robotic arm that drifted 1.2mm after 50 back-and-forth cycles. Fix: Add a spring-loaded idler pinion opposite the drive pinion to take up slack.</p> <p>Another mistake: assuming the rack’s length equals maximum travel. In reality, you lose 5–8mm at each end due to pinion engagement requirements. So a 100-tooth rack gives only ~88mm usable travel. Always subtract 10% for safety margins.</p> <p>Successful integrations include:</p> <ul> <li>A maker who mounted dual racks parallel on a 3D printer bed for synchronized Z-axis movement—used two identical pinions driven by a single stepper via timing belt.</li> <li>An art installation using a 96-tooth rack to move a suspended sculpture 96mm vertically, powered by a servo with encoder feedback for closed-loop control.</li> <li>A university lab retrofitting old milling machines with this rack to replace worn-out Acme screws—achieved 0.02mm repeatability after calibration.</li> </ul> <p>Key lessons from field experience:</p> <ol> <li>Always use a rigid substrate behind the rack—never mount directly to flexible materials.</li> <li>Ensure pinion shafts are aligned perfectly parallel to the rack’s longitudinal axis—misalignment >0.5° causes uneven wear.</li> <li>Use ball bearings or linear bushings to guide the carrier holding the pinion—friction increases backlash.</li> <li>Calibrate position sensors after installation: jog the system to full extent and record encoder counts at both ends.</li> <li>Document your setup: note tooth count, module, pinion size, and lubrication schedule for future maintenance.</li> </ol> <p>This rack isn’t glamorous—but in the right hands, it becomes the silent foundation of precise motion. Its simplicity demands attention to detail. Get the fundamentals right, and it will outlast cheaper alternatives.
