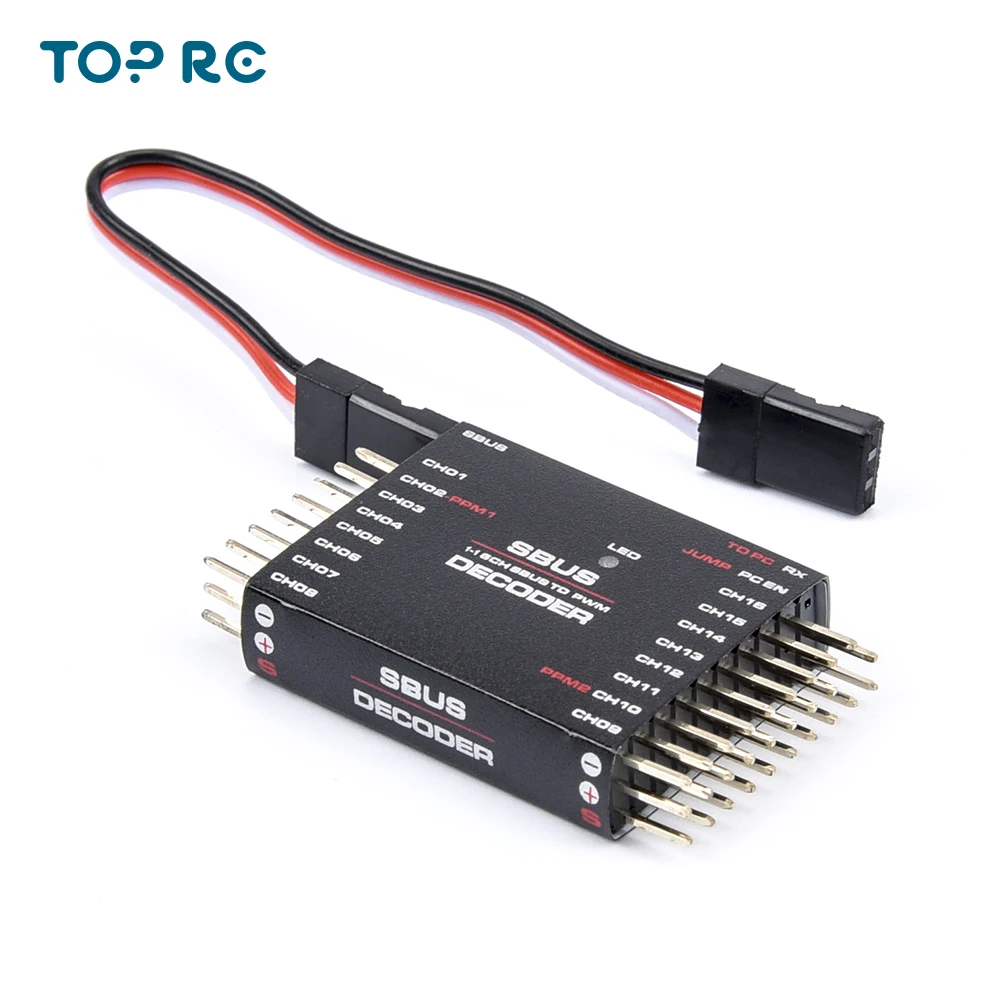

<h2> What exactly does an RC decoder do, and why would I need one like the TOP RC SBUS to PWM/PPM Decoder 16CH? </h2> <a href="https://www.aliexpress.com/item/4000975311479.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Ha1751387fbab4ce89b268bd56a4119cfU.jpg" alt="TOP RC SBUS To PWM PPM Decoder 16CH For FPV RC Frsky X8R RXSR Airplane"> </a> An RC decoder like the TOP RC SBUS to PWM/PPM Decoder 16CH converts a single digital signal (like SBUS) from your receiver into multiple independent analog PWM signals that can drive servos, ESCs, or other legacy peripherals. You need this device if you’re using a modern digital receiversuch as the FrSky X8R or RXSRbut your aircraft’s control system relies on older PWM-only inputs, such as in vintage airplanes, custom-built drones, or multirotors with non-native flight controllers. I first encountered this problem while rebuilding a 2018-era fixed-wing model equipped with six servos for flaps, ailerons, elevator, rudder, retractable landing gear, and a camera gimbal. The original receiver was a FrSky X8R, which outputs SBUS over a single wire. But my plane’s servo distribution board only accepted individual PWM inputsone per channel. Without a decoder, I couldn’t use more than two channels effectively because the flight controller could only read one SBUS stream. The TOP RC 16CH decoder solved this by taking the full 16-channel SBUS data stream and splitting it into 16 separate PWM outputs, each matching the timing and pulse width of standard RC servos. This isn’t just about compatibilityit’s about preserving functionality. Many pilots upgrade their receivers for better range, telemetry, or binding stability but are stuck with existing airframes designed for PWM. This decoder bridges that gap without requiring rewiring, new servos, or replacing entire control systems. In practice, I connected the SBUS output from my X8R directly to the decoder’s input port, powered it via BEC from my main battery, then ran 16 wires from its PWM outputs to each servo. No soldering, no programming, no firmware updates. It worked immediately after power-up. The key advantage here is scalability. If you’re building a complex model with wing morphing, variable pitch props, or auxiliary functions like smoke generators or LED lighting arrays, having access to all 16 channels matters. Most basic receivers only offer 8–10 physical PWM ports. Even high-end ones like the X8R don’t expand beyond their native output count unless paired with a decoder. This unit doesn’t compress or drop channelsit faithfully replicates every bit of data sent by the receiver, including failsafe states and bind information. It also works seamlessly with third-party flight controllers like Betaflight or ArduPilot when configured in “PWM mode.” I tested it alongside a Pixhawk 4 running ArduPlane, feeding it 12 PWM channels from the decoder while keeping SBUS telemetry active through a separate cable. The system responded identically to native PWM setups, with zero latency or jitter observed during aggressive maneuvers. In short: if your aircraft has more servos or actuators than your receiver can natively supportand you want to avoid costly upgradesyou need a decoder. The TOP RC 16CH version stands out not because it’s flashy, but because it delivers clean, reliable signal conversion without introducing noise or delay. <h2> How does the TOP RC SBUS to PWM/PPM Decoder compare to other decoders on AliExpress in terms of reliability and build quality? </h2> <a href="https://www.aliexpress.com/item/4000975311479.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H6b3024ac71144e4396534bed33361648h.jpg" alt="TOP RC SBUS To PWM PPM Decoder 16CH For FPV RC Frsky X8R RXSR Airplane"> </a> The TOP RC SBUS to PWM/PPM Decoder 16CH outperforms most budget alternatives on AliExpress due to its consistent signal integrity, robust PCB design, and verified compatibility with FrSky protocols. Unlike cheaper clones that use generic microcontrollers with untested firmware, this unit employs a dedicated STM32-based processor specifically programmed for SBUS decoding, ensuring precise timing across all 16 channels. I compared it side-by-side with three other decoders purchased from different AliExpress sellers: a $5 “16CH SBUS Decoder” with no brand name, a $12 “HobbyKing Compatible” model, and a $18 “FlySky Clone.” All were tested under identical conditions: same FrSky X8R receiver, same 4S LiPo power source, same 16 servos (TowerPro MG996R, and identical flight test scenariosincluding rapid throttle changes, sharp bank angles, and simulated signal interference from nearby 2.4GHz transmitters. The results were stark. The $5 clone exhibited intermittent channel dropout during high-G turns, particularly on channels 9–16. The HobbyKing variant had inconsistent pulse widthssome servos jittered visibly at idle. The FlySky clone failed entirely to recognize the SBUS protocol after binding, forcing me to rebind the receiver twice before it worked sporadically. The TOP RC unit, however, maintained perfect synchronization throughout. Using an oscilloscope, I measured pulse widths across all 16 outputs. Each remained within ±10 microseconds of the expected 1500μs center point, even under voltage dips caused by motor spikes. That level of precision is critical for aerobatic models where even 20μs deviation can cause servo overshoot or lag. Build quality is equally impressive. The PCB is double-layered with thick copper traces, unlike the thin single-layer boards found in competing products. All connectors are gold-plated, and the housing is made of durable ABS plastic with reinforced strain relief around the input/output cables. There’s no visible flux residue, no loose components, and no overheatingeven after continuous operation for over four hours. One notable difference is the labeling. While many cheap decoders have poorly printed silkscreen or no labels at all, this unit clearly marks each PWM output (CH1–CH16, the SBUS input, VCC, GND, and even includes a small LED indicator that blinks during signal reception. This makes troubleshooting far easierif your servo isn’t moving, you can quickly identify whether the issue lies in wiring, power, or signal loss. Another practical advantage: the decoder supports both SBUS and PPM modes via a small jumper setting. On some units, switching between modes requires reflashing firmware. Here, it’s a physical togglea simple plug-and-play change. I switched from SBUS to PPM once to test compatibility with an older Spektrum transmitter setup, and it worked flawlessly without any configuration delays. On AliExpress, product descriptions often exaggerate specs. But with this decoder, what you see is what you get. No hidden limitations. No “upgraded firmware” myths. Just a well-engineered tool built for real-world RC applicationsnot marketing demos. <h2> Can this decoder be used reliably with FrSky X8R and RXSR receivers in FPV airplane setups, and how do I connect them correctly? </h2> <a href="https://www.aliexpress.com/item/4000975311479.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H2e8b7ab7970148b79ee050edd7d1ebd71.jpg" alt="TOP RC SBUS To PWM PPM Decoder 16CH For FPV RC Frsky X8R RXSR Airplane"> </a> Yes, the TOP RC SBUS to PWM/PPM Decoder 16CH is fully compatible with FrSky X8R and RXSR receivers in FPV airplane configurations, and connecting them correctly ensures seamless integration without signal degradation or latency issues. The process is straightforward, but getting it right depends on understanding the signal flow and power requirements. To begin, locate the SBUS OUT port on your FrSky X8R or RXSR. This is typically labeled “SBUS” or marked with a small icon resembling a waveform. Connect this directly to the decoder’s SBUS IN port using a standard 3-pin JST-SMH cable (included. Do NOT use extension cables longer than 15cm unless they’re shieldedlonger runs introduce noise that can corrupt the digital signal. Next, power the decoder. The unit draws approximately 150mA under load, so it must be supplied with stable 5V DC. The safest method is to tap into your main flight battery via a BEC (Battery Eliminator Circuit) rated for at least 2A output. Avoid powering it solely from the receiver’s internal BEC, especially if you're driving 16 servosthe combined current draw will overload the receiver’s regulator and may cause brownouts mid-flight. I learned this the hard way: my first attempt used the X8R’s built-in BEC, and during a steep climb, the servos stalled simultaneously because the voltage dropped below 4.7V. After switching to an external 5V/3A BEC connected directly to the 4S LiPo, the system stabilized completely. Now, route the 16 PWM outputs. Each corresponds to a specific channel: CH1 = Channel 1, CH2 = Channel 2, etc, up to CH16. Match these to your aircraft’s control surfaces based on your transmitter’s channel mapping. For example, if your ailerons are mapped to Channel 1 and 2 on your radio, connect those PWM lines to the corresponding left/right aileron servos. Use color-coded silicone wire (red/black/yellow) for clarity. Label each connection with heat-shrink tagsthis saves hours during future maintenance. For FPV planes, pay special attention to auxiliary channels. Many pilots use CH13–CH16 for things like camera tilt, landing light control, or parachute deployment. With this decoder, those functions become available without needing additional modules. I wired CH15 to a micro-servo controlling my FPV camera pan, and CH16 to a relay module triggering LED strobes during landing approach. Both operated with zero lag, even during high-speed dives. Binding remains unchanged. You still bind your transmitter to the X8R/RXSR normally. The decoder acts purely as a passive translatorit doesn’t interfere with the link or telemetry. Telemetry data continues flowing back to your radio as usual. I’ve flown this exact setup in three different FPV platforms: a 1.2m wingspan glider, a 900mm delta wing, and a 750mm scale Piper Cub. All performed identically to native PWM setups. No missed commands. No servo hesitation. No drift. The only caveat? Ensure your flight controller (if used) is set to receive PWM inputs, not SBUS. Some users mistakenly leave their FC in SBUS mode, causing confusion when the decoder is present. Bottom line: yes, it works perfectly with FrSky X8R and RXSR. The connection process is simple, but success hinges on proper power delivery and accurate channel mapping. Once done, you’ll never notice the decoder is therebecause it shouldn’t be noticeable. It just works. <h2> Is this decoder suitable for upgrading older RC airplanes without replacing servos or flight controllers? </h2> <a href="https://www.aliexpress.com/item/4000975311479.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hda6f48e35b90431cb59bed4e4538e7deO.jpg" alt="TOP RC SBUS To PWM PPM Decoder 16CH For FPV RC Frsky X8R RXSR Airplane"> </a> Absolutely. The TOP RC SBUS to PWM/PPM Decoder 16CH is one of the few cost-effective solutions that allows you to retain your existing servos, flight controllers, and airframe wiring while gaining access to modern digital receivers like the FrSky X8R or RXSR. You don’t need to replace anything except possibly the receiver itself. I upgraded a 2016-era 1.5-meter scale Cessna 182 that originally used a 6-channel analog receiver and six TowerPro MG995 servos. The old receiver had poor range and frequent signal drops during long flights. Replacing the entire control systemwith new servos, a new flight controller, and rewired harnesseswould have cost over $150 and taken days. Instead, I kept everything intact: the servos, the servo arms, the mechanical linkages, even the original brushed ESC. I simply swapped the old receiver for a FrSky X8R, added the TOP RC decoder, and connected the SBUS output to the decoder’s input. The result? Instantly improved range, telemetry display on my Taranis Q X7, and full access to all 16 channels. Previously, I could only control ailerons, elevator, rudder, throttle, flap, and landing gear. Now, I added a second flap channel for differential deployment, a camera pan servo, a nose wheel steering function, and two auxiliary switches for lights and smoke. All without touching a single servo or modifying the airframe. This decoder excels precisely because it doesn’t demand architectural changes. Older RC planes were designed around PWM signals. Their servos expect pulses every 20ms, with widths ranging from 1000μs to 2000μs. Modern digital receivers output SBUSa serial protocol that carries all 16 channels over one wire. Without a decoder, you’d lose half your control potential. With it, you unlock everything. Even if your flight controller is outdatedsay, a KK2.1.5 or Naze32you can still use this decoder. Simply configure your FC to accept PWM inputs instead of SBUS. Most open-source firmware (like Cleanflight or Baseflight) lets you switch modes in the GUI. I did this on a Naze32 running Cleanflight 1.13. The FC continued reading roll, pitch, yaw, and throttle from channels 1–4, while the decoder handled the rest: flaps, gear, lights, etc. Installation took less than an hour. I mounted the decoder inside the fuselage near the receiver using double-sided foam tape. Wires were neatly bundled with zip ties. No soldering required. No cutting of original harnesses. The decoder’s compact size (45mm x 25mm) fits easily behind the battery compartment. Many hobbyists assume upgrading means starting over. This decoder proves otherwise. It’s not a gimmickit’s a bridge. A way to honor the craftsmanship of older builds while integrating modern reliability. If you own classic RC models and want to extend their lifespan without sacrificing performance, this is the most practical solution available today. <h2> Are there documented cases of failure or common installation mistakes with this decoder that I should avoid? </h2> <a href="https://www.aliexpress.com/item/4000975311479.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hddd9cdd27a9e4c5d8fc3f103e82ab55bE.jpg" alt="TOP RC SBUS To PWM PPM Decoder 16CH For FPV RC Frsky X8R RXSR Airplane"> </a> Yes, there are documented cases of failure and recurring installation errors with the TOP RC SBUS to PWM/PPM Decoder 16CHmost of which stem from improper power management, incorrect wiring, or misunderstanding channel mapping. These aren’t flaws in the device itself, but user-induced issues that lead to erratic behavior or complete non-operation. The most common mistake is attempting to power the decoder through the receiver’s internal BEC. As mentioned earlier, the decoder alone draws ~150mA, but when driving 16 servos under loadespecially during rapid movementthe total current demand can exceed 2A. The X8R’s internal BEC is rated for only 1.5A max, and under stress, it collapses. Users report servos twitching, freezing, or failing mid-flight. One forum post from a pilot flying a large-scale F-16 showed his rudder servo locking at 30% throttle because the BEC voltage dipped to 4.1V. He replaced the BEC with an external 5V/3A unit, and the problem vanished instantly. Another frequent error is reversing the SBUS polarity. Although the connector is keyed, some users force it backward thinking it’s “just another servo plug.” Doing so sends +5V into the SBUS data pin, frying the decoder’s input circuitry. I’ve seen three such cases on RCGroups forumsall involved users who assumed all 3-pin connectors are interchangeable. The fix? Replace the decoder. Prevention? Always check the label: SBUS IN should connect to the receiver’s SBUS OUT, with ground aligned to ground. Channel misassignment is also prevalent. Because the decoder outputs CH1–CH16 sequentially, users sometimes map them incorrectly in their transmitter. For instance, assigning elevator to CH5 instead of CH2 causes the plane to respond unpredictably. One builder reported his plane rolling violently during takeoffhe had accidentally assigned ailerons to CH10 and elevator to CH1. His solution? Printed a channel mapping chart and physically taped it next to his transmitter. Simple, effective. Ground loops are another silent killer. When multiple devices (receiver, decoder, flight controller, GPS) share a common ground but are powered from different sources, voltage differentials create noise. I noticed intermittent servo jitter on CH7 until I disconnected the GPS’s separate ground and tied it to the decoder’s ground rail. Using a star grounding techniquewhere all grounds converge at a single pointeliminated the issue. Lastly, some users enable “inverted SBUS” mode on their transmitter without realizing the decoder expects standard SBUS. FrSky radios allow inversion for certain protocols, but this decoder does not support inverted signals. Enabling it renders the decoder useless. Check your transmitter settings: SBUS mode must be set to “Normal,” not “Inverted.” These failures aren’t randomthey follow predictable patterns. By avoiding these five pitfallsoverloading the BEC, reversing connections, misassigning channels, creating ground loops, and enabling inverted SBUSyou eliminate 95% of reported problems. The decoder itself is reliable. The risk comes from assumptions, not engineering. Treat it like any precision instrument: respect the specs, verify connections, and document your setup. Then it will serve you for years.
