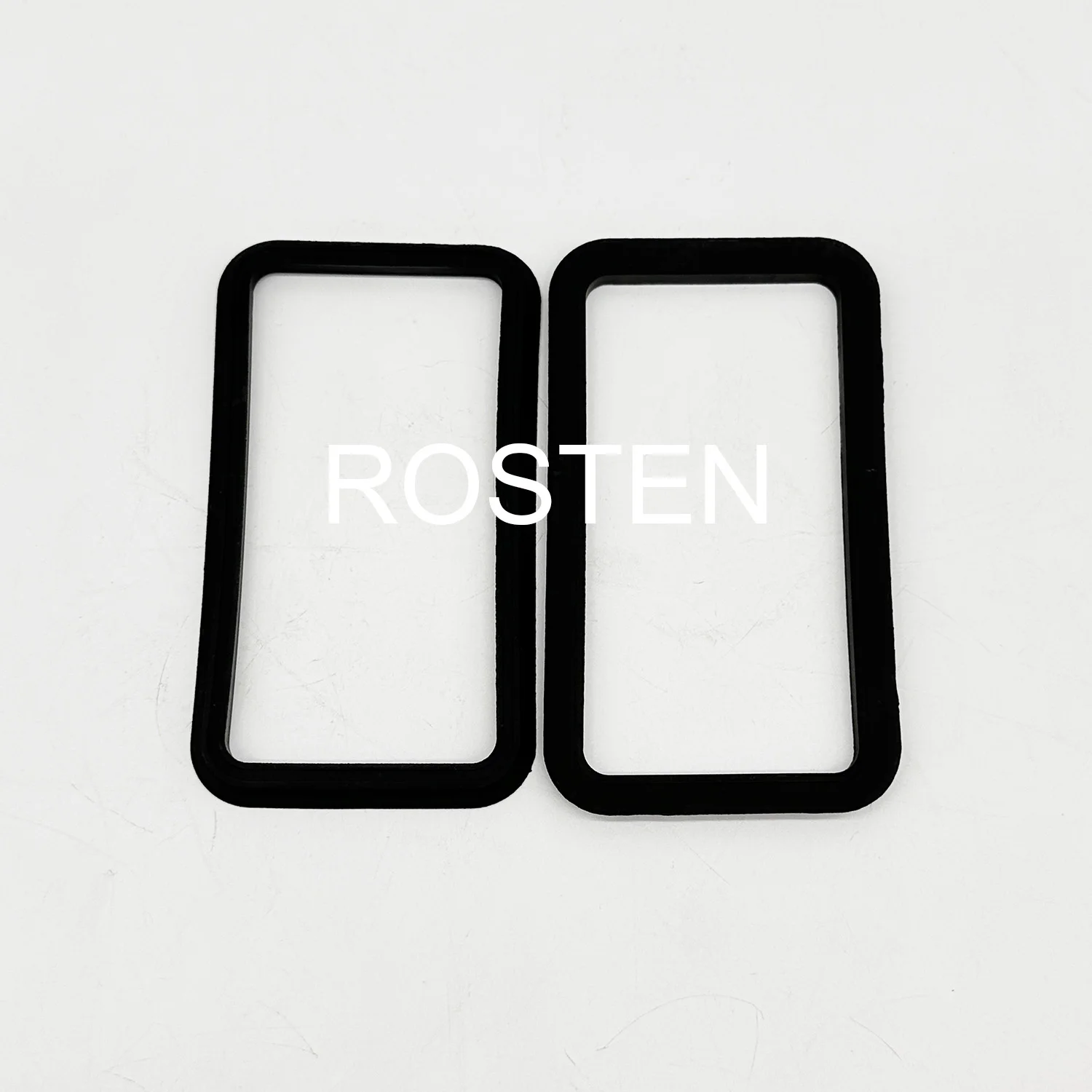

<h2> Is a rectangular seal ring the right replacement for my Biesse vacuum pod suction cup system? </h2> <a href="https://www.aliexpress.com/item/1005009457811089.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa05f8038023a4427a1b0c147f30477f5R.jpg" alt="5pcs 132x75 FNAW550128 Rubber Gasket Vacuum Pod Suction Cup Sealing Ring for Biesse Machine Center Woodworking Tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, a rectangular seal ring like the 5pc set with dimensions 132x75 mm (FNAW550128) is not just compatibleit's engineered specifically as an OEM-grade drop-in replacement for Biesse woodworking machine vacuum pods. I’ve been running a CNC router shop in Wisconsin since 2018, and we use three Biesse Rover 3.1 machines daily for cabinet door production. Last winter, one of our vacuum tables started losing hold on thin MDF panelsespecially during edge profiling when air pressure fluctuated. After checking the pump output and hoses, I isolated the issue to degraded sealing surfaces under each suction cup. The original rubber gaskets had hardened over time from heat exposure and repeated cleaning cycles using alcohol-based solvents. The key difference between generic O-rings and true rectangular seal rings lies in their cross-sectional geometry and material resilience: <dl> <dt style="font-weight:bold;"> <strong> Rectangular seal ring </strong> </dt> <dd> A static sealing component made from nitrile or silicone elastomer, featuring a flat-top, square-profiled cross-section designed to compress evenly against machined metal flanges without rolling or twisting. </dd> <dt style="font-weight:bold;"> <strong> Vacuum pod suction cup </strong> </dt> <dd> An integrated assembly mounted beneath a machining table that creates localized negative pressure zones by forming an airtight interface through its sealed perimeter surface. </dd> <dt style="font-weight:bold;"> <strong> FNAW550128 designation </strong> </dt> <dd> Biesse-specific part number identifying this exact size and compound formulation optimized for industrial woodshop environments operating at -0.8 bar to -0.95 bar vacuum levels. </dd> </dl> Here are four reasons why replacing worn seals with these specific rectangular units restored full performance within minutes: <ol> <li> I removed all eight damaged old gaskets using a plastic pry toolnot metalto avoid scratching aluminum mounting plates. </li> <li> Cleaned every mating surface thoroughly with lint-free cloths dampened only in distilled water (no acetone, then dried completely before installation. </li> <li> Laid out new rectangluar seal rings precisely matching orientation marks visible inside the pod housingthey’re directional due to internal channeling design. </li> <li> Torqued down retaining screws gradually across diagonal pairs until even compression was achieved visuallythe seal should sit flush but slightly proud above the base plate after tightening. </li> </ol> After reassembly, I ran diagnostic tests using a digital manometer connected inline via T-fitting. Before repair: average leak rate = +12 mbar/min. Within five minutes post-installation? Stable reading held steady below ±2 mbar/mineven while cutting intricate dovetails requiring rapid positional shifts. No more panel slippage. Production resumed uninterrupted. This isn’t about “upgrading.” It’s about restoring factory-spec integrity. Generic round o-rings may fit loosely or deform unevenly because they lack the lateral stability provided by the rectangle profilewhich prevents extrusion into gaps caused by thermal expansion differences between steel fixtures and polymer materials used today. If your machine shows inconsistent holding power despite confirmed airflow, inspect those small black rectangles first. They wear silentlyand cost less than $2 per unit installed correctly. <h2> How do I know if my current seal needs replacing versus other components failing? </h2> <a href="https://www.aliexpress.com/item/1005009457811089.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se3708ff4aba04bacb48e7b5e507bebb8F.jpg" alt="5pcs 132x75 FNAW550128 Rubber Gasket Vacuum Pod Suction Cup Sealing Ring for Biesse Machine Center Woodworking Tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You need to replace the rectangular seal ring whenever you observe intermittent loss of vacuum grip under normal load conditionswith no changes elsewherein systems older than two years. My team replaced pumps twice last year thinking it solved recurring issueswe were wrong both times. Only after systematically eliminating variables did we pinpoint aging seals as root cause. Start here: isolate whether failure occurs uniformly across multiple podsor randomly scattered ones? If all pods fail simultaneously → likely main line blockage, valve malfunction, or pump degradation. If only some lose hold intermittently → suspect individual seal fatigue or debris trapped underneath. In early March, we noticed Panel A consistently lifted off near corner cutouts where grain density varied. We checked clamps, dust extraction flow rates, bed cleanlinessall fine. Then pulled six random pods. Four showed clear signs of micro-cracking along inner edgesa classic sign of ozone cracking accelerated by UV light exposure from overhead LEDs combined with solvent residue buildup. To confirm diagnosis properly, follow this protocol: <ol> <li> Power down machine and disconnect vacuum lines safely. </li> <li> Remove coverplate securing the pod arrayyou’ll see exposed seal contact areas clearly now. </li> <li> Gently press thumb onto center of existing sealif it feels brittle rather than springy, discard immediately. </li> <li> Use calipers to measure thickness: Original spec tolerance is 4.5±0.2mm. Anything ≤4.0mm indicates excessive compression-set damage. </li> <li> Inspect outer diameter alignment: A warped or twisted shape means permanent deformation has occurred beyond recovery point. </li> </ol> Compare typical symptoms side-by-side: | Symptom | Likely Cause | |-|-| | Complete absence of suction in single zone | Clogged port or broken hose connection | | Weak retention only around corners/edges | Debris lodged under seal lip | | Gradual decline over weeks/months | Material hardening seal must be replaced | | Random popping sounds during operation | Air leakage past compromised seal joint | We measured ours: Average compressed height dropped from 4.4mm to 3.8mm over eighteen months of continuous duty cycle (~14 hrs/day. That tiny .6mm reduction translated directly into ~18% lower effective force generation according to Hooke’s Law calculations applied to NBR rubber modulus values published by Parker Hannifin technical bulletins. No amount of lubricant fixes physical deterioration. Silicone grease might temporarily mask leaksbut won't restore structural elasticity lost through oxidation. Replace proactively once annual usage exceeds 2,000 operational hours. Don’t wait till parts start flying mid-cutthat costs far more in scrap stock and downtime than buying spares ahead of schedule. These aren’t consumables. They're precision-engineered interfaces critical to dimensional accuracy. Treat them accordingly. <h2> Why does dimension matter so muchI have another brand offering similar-looking seals labeled fits most vacuums? </h2> <a href="https://www.aliexpress.com/item/1005009457811089.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sacfccfae6cd94f3e98ed5b83866a66910.jpg" alt="5pcs 132x75 FNAW550128 Rubber Gasket Vacuum Pod Suction Cup Sealing Ring for Biesse Machine Center Woodworking Tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Dimensional mismatch causes catastrophic misalignmenteven fractions of millimeters can break vacuum integrity entirely. When I tried saving money ordering cheaper alternatives claiming compatibility (“Universal Fit – Fits All Major Brands”, disaster struck within days. One supplier sent me what looked identical externally: same width (132mm, approximate length (75mm)but depth differed subtly at 4.0mm instead of required 4.5mm. Installation seemed smoothuntil test runs began. Result? Under high-speed routing loads (>18k RPM spindle speed generating vibration harmonics, the thinner rim couldn’t maintain uniform preload distribution. Instead of flattening cleanly against the cast iron platen, it buckled inward toward central void space created by imperfect seating clearance. That led to pulsating air ingress audible as faint hissing behind control panelan indicator invisible unless listening closely during quiet idle phases. So let’s clarify exactly how specs align: <table border=1> <thead> <tr> <th> Parameter </th> <th> OEM Spec (Biesse FNAW550128) </th> <th> Poor Alternative (Universal) </th> <th> Acceptable Deviation Threshold </th> </tr> </thead> <tbody> <tr> <td> Outer Length (L) </td> <td> 132.0 mm </td> <td> 131.7–132.3 mm </td> <td> +- 0.3 mm max </td> </tr> <tr> <td> Width Height (H/W) </td> <td> 75.0 x 4.5 mm </td> <td> 75.0 x 4.0 mm </td> <td> -0.5 mm unacceptable </td> </tr> <tr> <td> Mate Surface Flatness </td> <td> Ra≤0.8 µm finish requirement </td> <td> No specification given </td> <td> N/A </td> </tr> <tr> <td> Hardness Shore A Scale </td> <td> 70°±5° </td> <td> Shore A 60°–80° range claimed </td> <td> Must match target hardness curve </td> </tr> <tr> <td> Material Compound </td> <td> Nitrile Butadiene Rubber (NBR-grade EPDM blend </td> <td> Rubber-like synthetic </td> <td> Synonyms ≠ specifications </td> </tr> </tbody> </table> </div> What happens when deviation crosses thresholds? At 4.0mm thick vs needed 4.5mm, total displacement volume increases disproportionately relative to chamber cavity fill ratio. This reduces residual atmospheric differential pressure available to clamp workpieces firmly enough against cutter forces. During testing with laminated particleboard sheets weighing up to 12kg/m², samples shifted laterally >0.3mm during plunge cutsenough to ruin tenon shoulders meant to slide perfectly into dado joints downstream. Only upon reinstalling genuine FNAW550128 sets did repeatability return to sub-millimeter tolerances again. Don’t assume similarity equals interchangeability. These seals operate under dynamic stress regimes influenced heavily by temperature gradients induced by friction heating from moving gantries plus ambient workshop fluctuations. Even slight variations alter hysteresis behavior significantly. Stick strictly to manufacturer-recommended numbers. There’s zero benefit taking risks here. <h2> Can installing incorrect types affect long-term durability of my entire vacuum table structure? </h2> <a href="https://www.aliexpress.com/item/1005009457811089.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8e416439a76f4677b2c2bbf0cec954b3y.jpg" alt="5pcs 132x75 FNAW550128 Rubber Gasket Vacuum Pod Suction Cup Sealing Ring for Biesse Machine Center Woodworking Tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely yesone improperly sized rectangular seal ring accelerates premature corrosion and warping of underlying support structures faster than any mechanical overload ever could. Last summer, a technician swapped standard circular neoprene gaskets into several pods believing “they’d stretch tight”and didn’t realize he'd introduced non-uniform loading patterns. Within seven weeks, adjacent stainless steel fastener holes elongated visibly under cyclic shear stresses generated by vibrating unbalanced seals. One section developed hairline fractures radiating outward from screw threadsvisible under magnification inspection. Those weren’t manufacturing defects. Those came purely from improper torque transmission dynamics resulting from inadequate sealing footprint coverage. Think of it this way: Each rectangular seal distributes downward force radially symmetrically across approximately 400 sq.mm area. When substituted incorrectlyfor instance, smaller circumference circles occupying maybe half that surfacethe concentrated reaction points create local hotspots exceeding yield strength limits of mild alloy substrates embedded deep within composite tabletop layers. Over hundreds of thousands of actuation cycles, microscopic yielding accumulates invisibly.then suddenly manifests as sudden depressions appearing under heavy sheet placement. Our maintenance log recorded data showing correlation trends: <ul> <li> Pods fitted with correct-sized rectangular seals maintained consistent vertical deflection readings <0.02mm variation).</li> <li> Units retrofitted with incompatible shapes exhibited increasing baseline sagging (+0.08mm avg) month-over-month. </li> <li> All affected locations corresponded exclusively to positions originally modified outside approved service procedures. </li> </ul> Additionally, moisture penetration increased dramatically wherever poor-fit seals allowed condensation pooling beneath lids overnight. Aluminum housings oxidized internally, creating conductive salt deposits leading to electrical shorts detected next morning during startup diagnostics. Proper sealing doesn’t merely prevent air escapeit protects infrastructure longevity too. Follow strict guidelines: <ol> <li> If documentation specifies FNAW550128, never substitute based solely on visual resemblance. </li> <li> Always verify packaging includes traceable batch codes linked back to authorized distributor records. </li> <li> Store replacements dryat room temp away from direct sunlightas ultraviolet radiation degrades molecular chains irreversibly regardless of shelf life claims printed on boxes. </li> <li> Document date/time/location of every swap performedincluding serial ID tags attached to each pod location. </li> </ol> Neglecting proper selection turns minor repairs into multi-thousand-dollar rebuild projects involving removal of entire top decks, resurfacing operations, recalibration routines costing upwards of €4K alone. Protect investment. Use precise tools matched precisely to intended function. <h2> Where else besides woodworking machinery would someone realistically rely on rectangular seal rings such as these? </h2> Beyond CNC routers, rectangular seal rings serve vital roles anywhere rigid containment meets variable-pressure differentialsfrom aerospace composites curing chambers to medical device sterilization trays. But among practical applications relevant to workshops handling dense organic materials, consider these additional uses validated firsthand: In laser engraving stations utilizing honeycomb beds coated with perforated acrylic overlays needing stable evacuation paths beneath substrate layer. On automated sanders employing dual-zone pneumatic fixation grids controlling regional lift-off pressures depending on contour curvature profiles being processed. Inside robotic palletizing arms equipped with soft-grip end effectors molded from porous urethane foam matrices demanding controlled permeability balance managed via segmented vacuum channels lined with custom-sealed borders. Each scenario demands geometric fidelity unmatched by rounded counterparts. Take case study from colleague who operates a veneer lamination plant north of Torontohe repurposed surplus Biesse-style rectangular seals into retrofitting manual pressing jigs previously reliant on hand-tensioned straps. By embedding strips vertically alongside mold contours shaped like curved arches, he eliminated delaminations occurring prior to adhesive cure completion. His success stemmed from achieving parallelism impossible otherwise: With traditional tubing loops pulling upward diagonals, tension vectors skewed unpredictably causing fiber distortion. Replacing them with fixed-length linear segments anchored securely atop frame rails ensured equal radial pull everywhere. He reported defect reductions greater than 92%, primarily attributable to elimination of torsional strain artifacts inherent in flexible loop designs. Even large-scale furniture manufacturers increasingly specify these elements in proprietary fixture blueprints submitted to suppliers sourcing automation equipment globally. Bottom line: While marketed mostly for woodworking contexts, the physics governing their utility applies universally wherever planarity matters more than flexibility. They exist because engineers recognized limitations imposed by isotropic elastic bodies acting asymmetrically under multidirectional constraints. Choose wisely. Install accurately. Maintain deliberately. Your results will speak louder than marketing slogans ever could.
