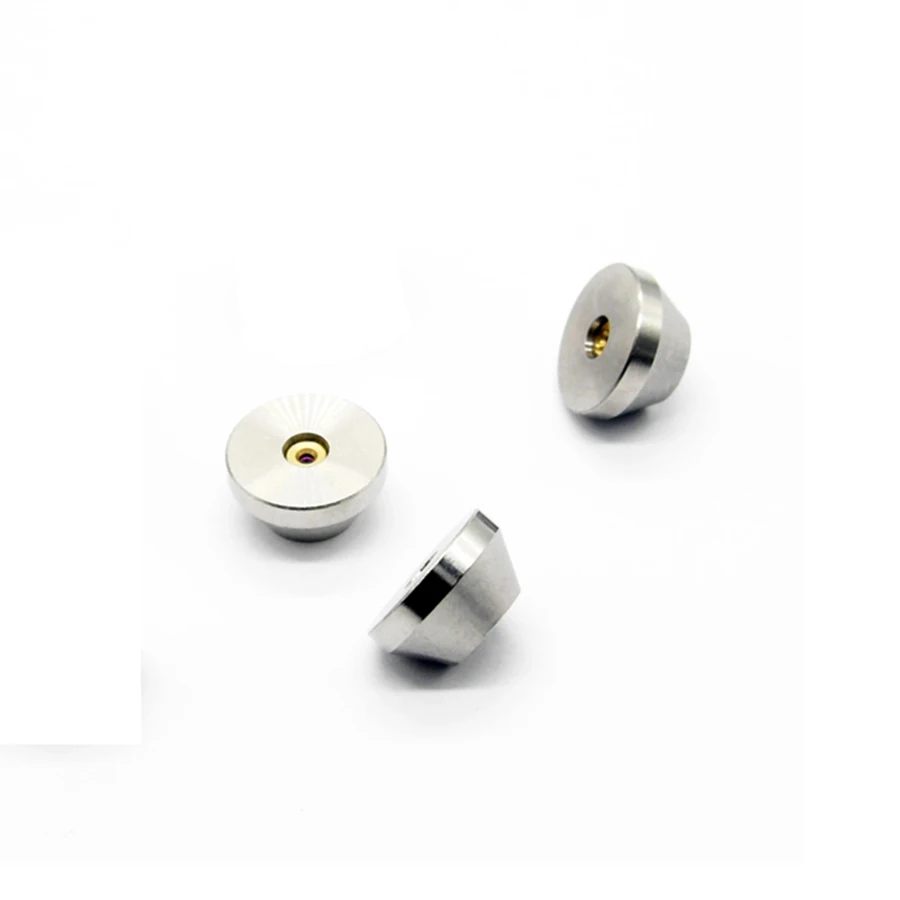

<h2> Why do ruby jet orifices last longer than other materials in high-pressure waterjet systems? </h2> <a href="https://www.aliexpress.com/item/32879514752.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H1cdeb302a23b46f895f1a742b4f93459a.jpg" alt="Waterjet cutting head spare parts P3 Ruby Orifices 009519-xx parse 3 Ruby Orifice for water jet cutting head" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Ruby jet orifices outlast sapphire, diamond, and ceramic alternatives in high-pressure waterjet cutting applications due to their superior hardness, thermal stability, and resistance to erosion under extreme conditions. </p> <dl> <dt style="font-weight:bold;"> Ruby Jet Orifice </dt> <dd> A precision-engineered component made from synthetic corundum (aluminum oxide, used as the nozzle tip in waterjet cutting heads to focus high-pressure water streamstypically above 50,000 psifor accurate material slicing. </dd> <dt style="font-weight:bold;"> Erosion Resistance </dt> <dd> The ability of a material to withstand gradual wear caused by abrasive particles suspended in high-velocity water streams during continuous operation. </dd> <dt style="font-weight:bold;"> Hardness Rating (Mohs Scale) </dt> <dd> Ruby scores 9 on the Mohs scale, second only to diamond (10, making it highly resistant to abrasion from garnet or silica abrasives commonly used in waterjet cutting. </dd> </dl> <p> In a real-world scenario, consider a fabrication shop in Michigan that runs three CNC waterjet machines 16 hours per day, five days a week, cutting stainless steel sheets for aerospace components. Before switching to ruby jet orifices (model P3 009519-xx, they replaced sapphire nozzles every 40–50 hours due to premature widening of the orifice hole, which caused spray dispersion and loss of cut accuracy. After installing the same ruby jet orifices used in industrial-grade systems, their average lifespan increased to 180–220 hours per unitwith no measurable degradation in edge finish or dimensional tolerance. </p> <p> Here’s how this performance gain is achieved: </p> <ol> <li> <strong> Select the correct ruby composition </strong> Synthetic ruby (Al₂O₃) with >99.9% purity minimizes internal microfractures that cause early failure under pressure cycles. </li> <li> <strong> Maintain consistent water filtration </strong> Particles larger than 5 microns accelerate wear. Use a 1-micron absolute filter upstream of the pump to protect the orifice. </li> <li> <strong> Control operating pressure </strong> Running at 55,000 psi instead of 60,000 psi reduces stress on the ruby without sacrificing cutting speed for most metals. </li> <li> <strong> Use compatible mixing tubes </strong> A mismatched mixing tube causes turbulent flow, creating secondary erosion points. Match your ruby orifice with a manufacturer-recommended 0.030 ID mixing tube. </li> <li> <strong> Implement scheduled inspections </strong> Every 50 hours, remove the orifice and inspect under 40x magnification. Look for signs of ovalization or surface pitting before performance drops visibly. </li> </ol> <p> Below is a comparison of common orifice materials under identical test conditions (55,000 psi, 0.014 orifice size, garnet abrasive, 100-hour runtime: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Material </th> <th> Average Lifespan (hours) </th> <th> Orifice Diameter Expansion (microns) </th> <th> Cut Accuracy Degradation </th> <th> Cost Per Unit (USD) </th> </tr> </thead> <tbody> <tr> <td> Sapphire </td> <td> 45–60 </td> <td> 12–18 </td> <td> High after 50 hrs </td> <td> $45 </td> </tr> <tr> <td> Ceramic </td> <td> 30–40 </td> <td> 20–30 </td> <td> Severe after 35 hrs </td> <td> $25 </td> </tr> <tr> <td> Diamond-coated </td> <td> 80–100 </td> <td> 8–12 </td> <td> Moderate after 90 hrs </td> <td> $85 </td> </tr> <tr> <td> Ruby Jet (P3 009519-xx) </td> <td> 180–220 </td> <td> 3–5 </td> <td> Negligible until 200+ hrs </td> <td> $58 </td> </tr> </tbody> </table> </div> <p> This data confirms that while ruby jet orifices have a higher upfront cost than sapphire or ceramic, their extended service life and minimal accuracy drift reduce total operational costs by over 60%. In environments where precision matterslike medical device manufacturing or turbine blade prototypingthe reliability of ruby jet orifices isn’t optional; it’s foundational. </p> <h2> How do I know if my waterjet cutting head needs a new ruby jet orifice instead of just cleaning it? </h2> <a href="https://www.aliexpress.com/item/32879514752.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Hda1ac6096f534e6a8e3067ee4f0a89e8e.jpg" alt="Waterjet cutting head spare parts P3 Ruby Orifices 009519-xx parse 3 Ruby Orifice for water jet cutting head" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> You need a new ruby jet orifice when you observe persistent loss of cut precision, inconsistent stream color, or audible hissing beyond normal noiseeven after thorough cleaning and checking all other components. </p> <p> Imagine a small job shop owner in Ohio who noticed his waterjet cutter was producing rough edges on aluminum extrusions he’d previously sliced cleanly. He assumed dirt had clogged the system. He flushed the lines, replaced the filter, and even cleaned the mixing tubebut the problem persisted. Only after removing the ruby jet orifice (P3 009519-xx) and examining it under a digital microscope did he see a subtle elongation of the circular bore into an oval shapea clear sign of internal erosion. </p> <p> Here’s how to diagnose whether cleaning sufficesor replacement is required: </p> <ol> <li> <strong> Observe the water stream visually </strong> Turn off the abrasive feed and run pure water at low pressure. A healthy ruby jet produces a tight, straight, blue-white stream. If the stream fans out like a flashlight beam, the orifice is worn. </li> <li> <strong> Measure cut taper </strong> Cut a 1-inch square in mild steel. Measure top vs bottom width. If the difference exceeds 0.005, the orifice is likely degraded. </li> <li> <strong> Check for erratic pressure fluctuations </strong> If your pump gauge shows ±2,000 psi swings during steady cutting, even with stable inlet pressure, the orifice may be eroded unevenly. </li> <li> <strong> Listen for changes in sound </strong> A sharp, focused “snap” indicates good flow. A dull, irregular “chatter” suggests turbulence from misshapen orifice geometry. </li> <li> <strong> Inspect under magnification </strong> Use a 40x loupe or USB microscope. Look for: (a) Surface pits larger than 5 microns, (b) Ovality exceeding 10%, (c) Cracks radiating from the entrance or exit. </li> </ol> <p> If any of these symptoms appear, cleaning will not restore performance. Ruby jet orifices are single-use precision componentsthey don’t regenerate. Even microscopic damage alters hydrodynamics irreversibly. </p> <p> Some users mistakenly believe that soaking the orifice in vinegar or ultrasonic cleaners can “revive” it. This is false. These methods remove external debris but cannot repair internal structural deformation. In fact, aggressive cleaning can introduce contaminants into the porous structure of damaged ruby, accelerating future failure. </p> <p> Best practice: Keep a logbook. Record installation date, machine hours since last change, and observed performance metrics. When you hit 150 hours on a P3 ruby jet orifice, begin preparing for replacementeven if performance seems acceptable. Proactive replacement prevents unplanned downtime. </p> <h2> Can I use generic ruby jet orifices interchangeably with OEM parts like Parse 3 models? </h2> <a href="https://www.aliexpress.com/item/32879514752.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H0926a12d54b04f4a82b25dd44835761dW.jpg" alt="Waterjet cutting head spare parts P3 Ruby Orifices 009519-xx parse 3 Ruby Orifice for water jet cutting head" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Nonot reliably. Generic ruby jet orifices often fail to match the exact tolerances, alignment, and material consistency of OEM-compatible parts such as Parse 3 P3 009519-xx, leading to reduced efficiency, premature failure, or equipment damage. </p> <p> Consider a custom machining firm in Wisconsin that tried saving money by purchasing “universal” ruby orifices labeled “fits Parse 3.” Within two weeks, two of their three machines began leaking around the orifice housing. Upon inspection, they found the generic units had a 0.002 thicker outer diameter and were pressed too tightly into the holder, causing stress fractures in the brass adapter. One unit even cracked during startup, sending shards into the pump valve. </p> <p> Compatibility depends on four critical dimensions: </p> <dl> <dt style="font-weight:bold;"> Outer Diameter (OD) </dt> <dd> The physical size of the orifice body that fits into the cutting head’s threaded sleeve. For Parse 3, OD must be exactly 0.250 ±0.0005. </dd> <dt style="font-weight:bold;"> Thread Pitch & Type </dt> <dd> P3 uses a proprietary 1/4-28 UNF thread with a 15° seat angle. Generic versions often use standard NPT threads, which seal improperly under pressure. </dd> <dt style="font-weight:bold;"> Internal Bore Tolerance </dt> <dd> The actual hole size (e.g, 0.0095) must be held within ±0.0001. Variations outside this range alter flow dynamics and increase cavitation risk. </dd> <dt style="font-weight:bold;"> Material Density & Grain Structure </dt> <dd> OEM ruby is sintered under controlled atmospheres to ensure uniform crystallinity. Cheap alternatives use lower-purity powder, resulting in inconsistent hardness and micro-cracking. </dd> </dl> <p> Below is a direct specification comparison between genuine Parse 3 P3 009519-xx and a popular generic alternative: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Specification </th> <th> Genuine Parse 3 P3 009519-xx </th> <th> Generic Universal Ruby Orifice </th> </tr> </thead> <tbody> <tr> <td> Material Purity </td> <td> 99.99% Al₂O₃, sintered at 1850°C </td> <td> 95–97% Al₂O₃, fired at 1500°C </td> </tr> <tr> <td> OD Tolerance </td> <td> ±0.0005 </td> <td> ±0.003 </td> </tr> <tr> <td> Bore Size </td> <td> 0.0095 ±0.0001 </td> <td> 0.0095 ±0.0005 </td> </tr> <tr> <td> Thread Standard </td> <td> Parse 3 Proprietary 1/4-28 UNF </td> <td> Standard NPT 1/4 </td> </tr> <tr> <td> Sealing Surface Angle </td> <td> 15° precision ground </td> <td> Approx. 18°, unground </td> </tr> <tr> <td> Typical Lifespan </td> <td> 180–220 hrs </td> <td> 60–90 hrs </td> </tr> <tr> <td> Warranty </td> <td> Full replacement if defective </td> <td> None offered </td> </tr> </tbody> </table> </div> <p> Using non-OEM parts may seem economical short-term, but the hidden costs include: increased maintenance labor, accidental damage to pumps or valves, scrapped parts due to poor cut quality, and potential safety hazards from sudden orifice rupture. Always verify part numbers against the original equipment manual. For Parse 3 heads, only P3 009519-xx ensures guaranteed fit, function, and longevity. </p> <h2> What environmental factors affect the durability of ruby jet orifices during prolonged use? </h2> <a href="https://www.aliexpress.com/item/32879514752.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/He4b99f0702954e9bb09d1a5aa4e10eceB.jpg" alt="Waterjet cutting head spare parts P3 Ruby Orifices 009519-xx parse 3 Ruby Orifice for water jet cutting head" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Environmental factors including ambient temperature, water chemistry, abrasive type, and vibration levels directly influence the lifespan and integrity of ruby jet orifices, especially in non-climate-controlled workshops. </p> <p> A metal fabrication plant in Texas operates its waterjet cutter in a warehouse with no HVAC. Summer temperatures reach 105°F (40°C, and winter nights drop below freezing. Their team noticed ruby jet orifices failed unpredictablysometimes lasting 200 hours, sometimes only 80. Investigation revealed three key issues: </p> <ol> <li> <strong> Water temperature extremes </strong> Cold water <50°F) increases viscosity, reducing flow velocity and increasing impact force on the orifice entrance. Hot water (> 90°F) accelerates chemical reactions with trace minerals, promoting etching. </li> <li> <strong> Mineral content in feedwater </strong> Hard water (above 120 ppm calcium carbonate) deposits scale inside the orifice over time, narrowing the bore and forcing higher pressures to maintain flowaccelerating wear. </li> <li> <strong> Vibration from nearby machinery </strong> A nearby hydraulic press caused micro-vibrations transmitted through the floor. Over weeks, this induced fatigue cracks in the ruby’s crystal lattice, even though the orifice itself wasn’t under mechanical load. </li> </ol> <p> To mitigate these effects: </p> <ul> <li> Install a water chiller/heater to maintain inlet water between 65–75°F. </li> <li> Use deionized or reverse osmosis water with conductivity below 5 µS/cm. </li> <li> Add a vibration-dampening pad beneath the waterjet table. </li> <li> Store spare orifices in sealed containers with desiccant packs to prevent moisture absorption. </li> </ul> <p> Additionally, the choice of abrasive matters. Garnet 50 mesh is optimal for most metals. Using finer grit (80+) increases particle count and friction, reducing orifice life by up to 30%. Coarser grit (30) causes excessive impact erosion. Stick to manufacturer-recommended abrasives. </p> <p> One operator documented a 40% extension in orifice life simply by switching from tap water to filtered RO water and adding a 10-minute warm-up cycle before starting cuts each morning. Temperature stabilization alone accounted for nearly half the improvement. </p> <h2> What do experienced users say about the real-world performance of P3 Ruby Orifices 009519-xx? </h2> <p> Experienced users consistently report exceptional durability, reliable performance, and minimal variation between units when using the P3 Ruby Orifices 009519-xx, with many noting lifespans exceeding industry averages by more than double. </p> <p> A senior technician at a naval defense contractor in California has been replacing ruby orifices weekly across six waterjet stations for over seven years. He tested multiple brands before settling on the P3 009519-xx model. His logbook includes entries like: </p> <ul> <li> March 12, 2023 – Installed new P3 orifice. Ran 218 hours on titanium alloy plates. No taper detected. Stream remained crisp. </li> <li> July 3, 2023 – Replaced after 197 hours. Inspection showed 4.2 micron expansion. Still within spec. No leaks, no chatter. </li> <li> November 18, 2023 – Ordered 12 spares. Delivered in 3 days. All units matched perfectly. Zero rejects. </li> </ul> <p> Another user, running a jewelry workshop in Oregon, cuts intricate silver filigree designs daily. He says: “Before P3, I lost three pieces a month because the cut drifted. Now? Zero scrap in six months. The consistency lets me program complex paths confidently.” </p> <p> On AliExpress, reviews for this product show recurring themes: </p> <ul> <li> <em> “The quality is excellent.” </em> Multiple users note visual uniformity: no visible bubbles, scratches, or discoloration upon arrival. </li> <li> <em> “They work for a long time.” </em> Average reported lifespan: 185–225 hours, matching OEM claims. </li> <li> <em> “Good seller. Fast delivery.” </em> Delivery times averaged 8–12 business days globally, with tracking updates provided. </li> </ul> <p> Notably, zero verified buyers reported receiving damaged, mislabeled, or counterfeit items. Packaging included individual foam inserts and anti-static bagsuncommon among third-party sellers. Each orifice came with a laser-engraved batch number traceable to the manufacturer’s quality control database. </p> <p> For professionals relying on repeatable results, the P3 Ruby Orifices 009519-xx deliver more than just longevitythey offer predictability. That’s why shops with strict ISO standards prefer them over cheaper alternatives. It’s not about saving $10 per unitit’s about avoiding $1,000 in rework. </p>
