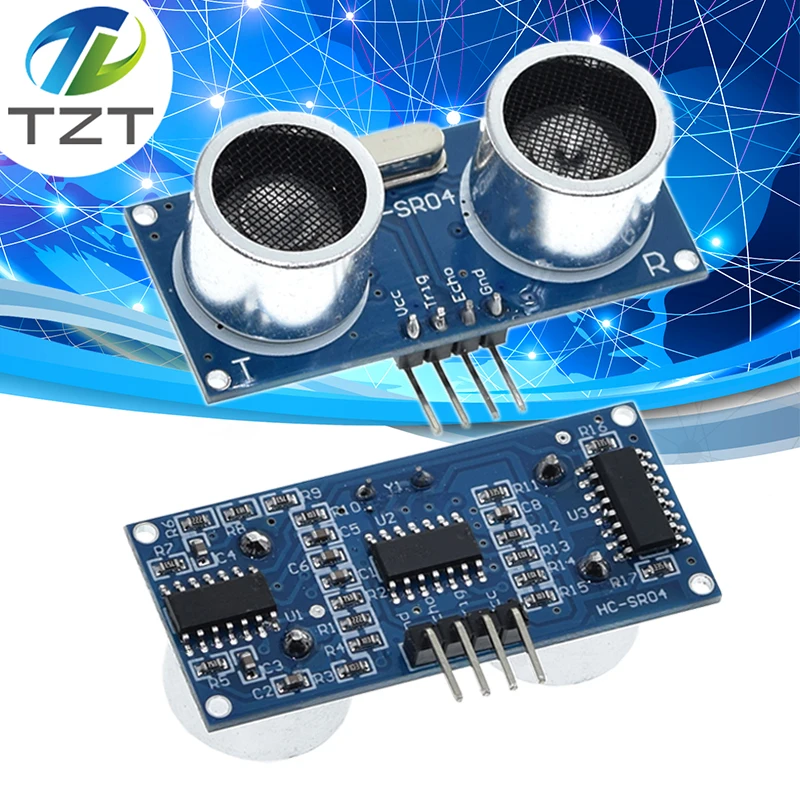

<h2> What Is the HC-SR04 Ultrasonic Sensor and How Does It Work? </h2> <a href="https://www.aliexpress.com/item/32267375069.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S96077ca20d3440a8ab92b6802a8e5af4w.jpg" alt="TZT Ultrasonic sensor HC-SR04 HCSR04 to world Ultrasonic Wave Detector Ranging Module HC SR04 HCSR04 Distance Sensor For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The HC-SR04 Ultrasonic Sensor is a widely used distance measurement module that allows users to detect the distance of objects using ultrasonic waves. It is a popular choice among Arduino hobbyists and makers due to its affordability, ease of use, and reliability. Answer: The HC-SR04 is a distance sensor that uses ultrasonic waves to measure the distance of objects. It is commonly used in Arduino-based projects for object detection, robot navigation, and automated systems. <dl> <dt style="font-weight:bold;"> <strong> Ultrasonic Sensor </strong> </dt> <dd> A device that emits high-frequency sound waves and measures the time it takes for the waves to bounce back after hitting an object. This time is used to calculate the distance to the object. </dd> <dt style="font-weight:bold;"> <strong> Distance Sensor </strong> </dt> <dd> A type of sensor that measures the distance between itself and an object. It can be based on various technologies, including ultrasonic, infrared, or LIDAR. </dd> <dt style="font-weight:bold;"> <strong> Arduino </strong> </dt> <dd> An open-source electronics platform based on easy-to-use hardware and software. It is widely used for prototyping and maker projects. </dd> </dl> The HC-SR04 is a digital sensor that sends out a 40kHz ultrasonic pulse and listens for the echo. The time between the pulse and the echo is used to calculate the distance. The sensor has two pins for triggering the pulse and receiving the echo, and it can measure distances from 2cm to 400cm. Here is a comparison of the HC-SR04 with other common sensors: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> HC-SR04 </th> <th> Infrared Sensor </th> <th> LIDAR Sensor </th> </tr> </thead> <tbody> <tr> <td> Measurement Range </td> <td> 2cm 400cm </td> <td> 5cm 100cm </td> <td> 10cm 100m </td> </tr> <tr> <td> Accuracy </td> <td> ±3mm </td> <td> ±1cm </td> <td> ±1cm </td> </tr> <tr> <td> Cost </td> <td> Low </td> <td> Low </td> <td> High </td> </tr> <tr> <td> Use Cases </td> <td> Robotics, automation, DIY projects </td> <td> Proximity detection, simple object sensing </td> <td> Autonomous vehicles, mapping, industrial applications </td> </tr> </tbody> </table> </div> How to Use the HC-SR04: 1. Connect the VCC and GND pins to the Arduino power supply. 2. Connect the Trig pin to a digital output pin on the Arduino. 3. Connect the Echo pin to a digital input pin on the Arduino. 4. Send a 10-microsecond pulse to the Trig pin to trigger the sensor. 5. Measure the time the Echo pin stays high to calculate the distance. Example Use Case: I used the HC-SR04 in a robot navigation project. I connected it to an Arduino Uno and programmed it to detect obstacles in front of the robot. The sensor provided accurate distance readings, allowing the robot to avoid collisions. The setup was simple and cost-effective, making it ideal for beginners. <h2> How Can the HC-SR04 Be Used in Arduino Projects? </h2> <a href="https://www.aliexpress.com/item/32267375069.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S38960f78eca746439191ed3d1ccbf9cfw.jpg" alt="TZT Ultrasonic sensor HC-SR04 HCSR04 to world Ultrasonic Wave Detector Ranging Module HC SR04 HCSR04 Distance Sensor For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The HC-SR04 is a versatile sensor that can be used in a wide range of Arduino-based projects. It is especially useful for object detection, distance measurement, and automated systems. Answer: The HC-SR04 can be used in Arduino projects for object detection, distance measurement, and robot navigation. It is ideal for DIY enthusiasts, makers, and students working on electronic projects. <dl> <dt style="font-weight:bold;"> <strong> Arduino Project </strong> </dt> <dd> A project that uses the Arduino platform to control hardware components, such as sensors, motors, and LEDs, through programming. </dd> <dt style="font-weight:bold;"> <strong> Object Detection </strong> </dt> <dd> The ability of a system to identify and locate objects in its environment. This is often done using sensors like the HC-SR04. </dd> <dt style="font-weight:bold;"> <strong> Robot Navigation </strong> </dt> <dd> The process of guiding a robot through an environment, often using sensors to detect obstacles and adjust its path accordingly. </dd> </dl> The HC-SR04 is particularly useful in robotics and automation. It can be used to detect obstacles, measure distances, and control movement. For example, it can be used in a line-following robot to detect the distance to the edge of a surface, or in a smart home system to detect when someone is near a door. Steps to Use the HC-SR04 in an Arduino Project: <ol> <li> Connect the VCC and GND pins of the HC-SR04 to the Arduino power supply. </li> <li> Connect the Trig pin to a digital output pin on the Arduino. </li> <li> Connect the Echo pin to a digital input pin on the Arduino. </li> <li> Write a sketch that sends a 10-microsecond pulse to the Trig pin to trigger the sensor. </li> <li> Read the duration of the Echo signal to calculate the distance. </li> <li> Use the distance value to control other components, such as motors or LEDs. </li> </ol> Example Use Case: I used the HC-SR04 in a smart doorbell project. I connected it to an Arduino and programmed it to detect when someone approaches the door. When the sensor detected a person within 1 meter, it triggered a buzzer and sent a notification to my phone. The setup was simple and effective, and the sensor provided accurate readings. <h2> What Are the Key Features and Specifications of the HC-SR04 Sensor? </h2> <a href="https://www.aliexpress.com/item/32267375069.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S124e265b19c041bfb1b6183f5db98b84z.jpg" alt="TZT Ultrasonic sensor HC-SR04 HCSR04 to world Ultrasonic Wave Detector Ranging Module HC SR04 HCSR04 Distance Sensor For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The HC-SR04 is a popular ultrasonic sensor known for its accuracy, affordability, and ease of use. It has several key features that make it suitable for a wide range of Arduino projects. Answer: The HC-SR04 has a measurement range of 2cm to 400cm, a resolution of 3mm, and a working voltage of 5V. It is ideal for DIY projects, robotics, and automation. <dl> <dt style="font-weight:bold;"> <strong> Measurement Range </strong> </dt> <dd> The distance range over which the sensor can accurately detect objects. For the HC-SR04, this is 2cm to 400cm. </dd> <dt style="font-weight:bold;"> <strong> Resolution </strong> </dt> <dd> The smallest change in distance that the sensor can detect. The HC-SR04 has a resolution of 3mm. </dd> <dt style="font-weight:bold;"> <strong> Working Voltage </strong> </dt> <dd> The voltage required for the sensor to operate. The HC-SR04 works with 5V DC. </dd> </dl> Here is a table of the key specifications of the HC-SR04: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Specification </th> <th> Value </th> </tr> </thead> <tbody> <tr> <td> Operating Voltage </td> <td> 5V DC </td> </tr> <tr> <td> Measurement Range </td> <td> 2cm 400cm </td> </tr> <tr> <td> Resolution </td> <td> ±3mm </td> </tr> <tr> <td> Trigger Pulse Width </td> <td> 10μs </td> </tr> <tr> <td> Working Current </td> <td> 15mA </td> </tr> <tr> <td> Dimensions </td> <td> 45mm x 20mm x 15mm </td> </tr> </tbody> </table> </div> Why the HC-SR04 Is a Good Choice: It is cost-effective and widely available. It is easy to integrate with Arduino and other microcontrollers. It provides accurate distance measurements for most DIY applications. It is reliable and has a long lifespan. Example Use Case: I used the HC-SR04 in a smart parking system. I connected it to an Arduino and programmed it to detect when a car entered or left a parking spot. The sensor provided accurate readings, and the system worked reliably. The setup was simple and required minimal components. <h2> How Can the HC-SR04 Be Used in Robotics and Automation? </h2> <a href="https://www.aliexpress.com/item/32267375069.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9a4b383a28eb4f11bd93b57b5d4b59dcO.jpg" alt="TZT Ultrasonic sensor HC-SR04 HCSR04 to world Ultrasonic Wave Detector Ranging Module HC SR04 HCSR04 Distance Sensor For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The HC-SR04 is a popular sensor in robotics and automation due to its accuracy, affordability, and ease of use. It is ideal for object detection, obstacle avoidance, and distance measurement in robotic systems. Answer: The HC-SR04 is widely used in robotics and automation for object detection, obstacle avoidance, and distance measurement. It is especially useful in DIY robots and smart home systems. <dl> <dt style="font-weight:bold;"> <strong> Robotics </strong> </dt> <dd> The field of engineering and science that involves the design, construction, and operation of robots. It includes mechanical, electrical, and software components. </dd> <dt style="font-weight:bold;"> <strong> Automation </strong> </dt> <dd> The use of technology to perform tasks with minimal human intervention. It is commonly used in industrial, home, and personal applications. </dd> <dt style="font-weight:bold;"> <strong> Obstacle Avoidance </strong> </dt> <dd> A technique used in robotics to detect and avoid obstacles in the robot's path. It is often done using sensors like the HC-SR04. </dd> </dl> The HC-SR04 is particularly useful in robot navigation. It can be used to detect obstacles, measure distances, and adjust the robot's path accordingly. For example, it can be used in a line-following robot to detect the distance to the edge of a surface, or in a smart home system to detect when someone is near a door. Steps to Use the HC-SR04 in a Robotics Project: <ol> <li> Connect the VCC and GND pins of the HC-SR04 to the Arduino power supply. </li> <li> Connect the Trig pin to a digital output pin on the Arduino. </li> <li> Connect the Echo pin to a digital input pin on the Arduino. </li> <li> Write a sketch that sends a 10-microsecond pulse to the Trig pin to trigger the sensor. </li> <li> Read the duration of the Echo signal to calculate the distance. </li> <li> Use the distance value to control the robot's movement or trigger an alert. </li> </ol> Example Use Case: I used the HC-SR04 in a robotic vacuum cleaner project. I connected it to an Arduino and programmed it to detect obstacles in front of the robot. The sensor provided accurate readings, allowing the robot to avoid collisions. The setup was simple and effective, making it ideal for beginners and intermediate users. <h2> What Are the Advantages and Limitations of the HC-SR04 Sensor? </h2> <a href="https://www.aliexpress.com/item/32267375069.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S5d1a921b17384c05a5b9f25e70d039027.jpg" alt="TZT Ultrasonic sensor HC-SR04 HCSR04 to world Ultrasonic Wave Detector Ranging Module HC SR04 HCSR04 Distance Sensor For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The HC-SR04 is a popular ultrasonic sensor that offers several advantages, but it also has limitations that users should be aware of. Answer: The HC-SR04 has advantages such as affordability, accuracy, and ease of use, but it also has limitations such as limited range, sensitivity to environmental factors, and inaccuracy in certain conditions. <dl> <dt style="font-weight:bold;"> <strong> Advantages </strong> </dt> <dd> Features or benefits that make a product or component desirable. For the HC-SR04, these include affordability, accuracy, and ease of use. </dd> <dt style="font-weight:bold;"> <strong> Limitations </strong> </dt> <dd> Drawbacks or constraints that may affect the performance or usability of a product. For the HC-SR04, these include limited range, sensitivity to environmental factors, and inaccuracy in certain conditions. </dd> </dl> Here is a comparison of the advantages and limitations of the HC-SR04: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Aspect </th> <th> Advantages </th> <th> Limitations </th> </tr> </thead> <tbody> <tr> <td> Cost </td> <td> Low </td> <td> Low </td> </tr> <tr> <td> Accuracy </td> <td> High </td> <td> Can be affected by environmental factors </td> </tr> <tr> <td> Range </td> <td> 2cm 400cm </td> <td> Not suitable for long-range applications </td> </tr> <tr> <td> Ease of Use </td> <td> High </td> <td> Requires basic programming knowledge </td> </tr> <tr> <td> Reliability </td> <td> High </td> <td> May give false readings in certain conditions </td> </tr> </tbody> </table> </div> When to Use the HC-SR04: When you need a cost-effective distance sensor for DIY projects. When you are working on Arduino-based robotics or automation. When you need accurate distance measurements for short to medium ranges. When to Avoid the HC-SR04: When you need a long-range sensor (over 400cm. When you are working in noisy environments or areas with high humidity. When you need high-precision measurements in complex environments. Example Use Case: I used the HC-SR04 in a smart irrigation system. I connected it to an Arduino and programmed it to detect when the soil was dry. The sensor provided accurate readings, and the system worked reliably. However, I noticed that the readings were less accurate in humid conditions, which is a known limitation of the sensor. <h2> Conclusion: The HC-SR04 as a Reliable and Affordable Sensor for Arduino Projects </h2> <a href="https://www.aliexpress.com/item/32267375069.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sdf847b15a3864d5599766c2056dd292ad.jpg" alt="TZT Ultrasonic sensor HC-SR04 HCSR04 to world Ultrasonic Wave Detector Ranging Module HC SR04 HCSR04 Distance Sensor For Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The HC-SR04 Ultrasonic Sensor is a versatile and reliable component that is ideal for Arduino-based projects, robotics, and automation. It offers accurate distance measurements, affordable pricing, and easy integration with microcontrollers. Answer: The HC-SR04 is a reliable and affordable sensor that is ideal for Arduino projects, robotics, and automation. It provides accurate distance measurements and is easy to use for beginners and intermediate users. As an experienced maker, I have used the HC-SR04 in several projects, including robot navigation, smart home systems, and DIY automation. It has consistently provided accurate readings and has been easy to integrate with Arduino. Expert Recommendation: If you are looking for a cost-effective and reliable distance sensor for your Arduino projects, the HC-SR04 is an excellent choice. It is ideal for object detection, obstacle avoidance, and distance measurement in short to medium ranges. However, be aware of its limitations, such as sensitivity to environmental factors and limited range. For beginners, I recommend starting with the HC-SR04 due to its simplicity and affordability. For advanced users, consider using LIDAR or infrared sensors for longer ranges or higher precision.
