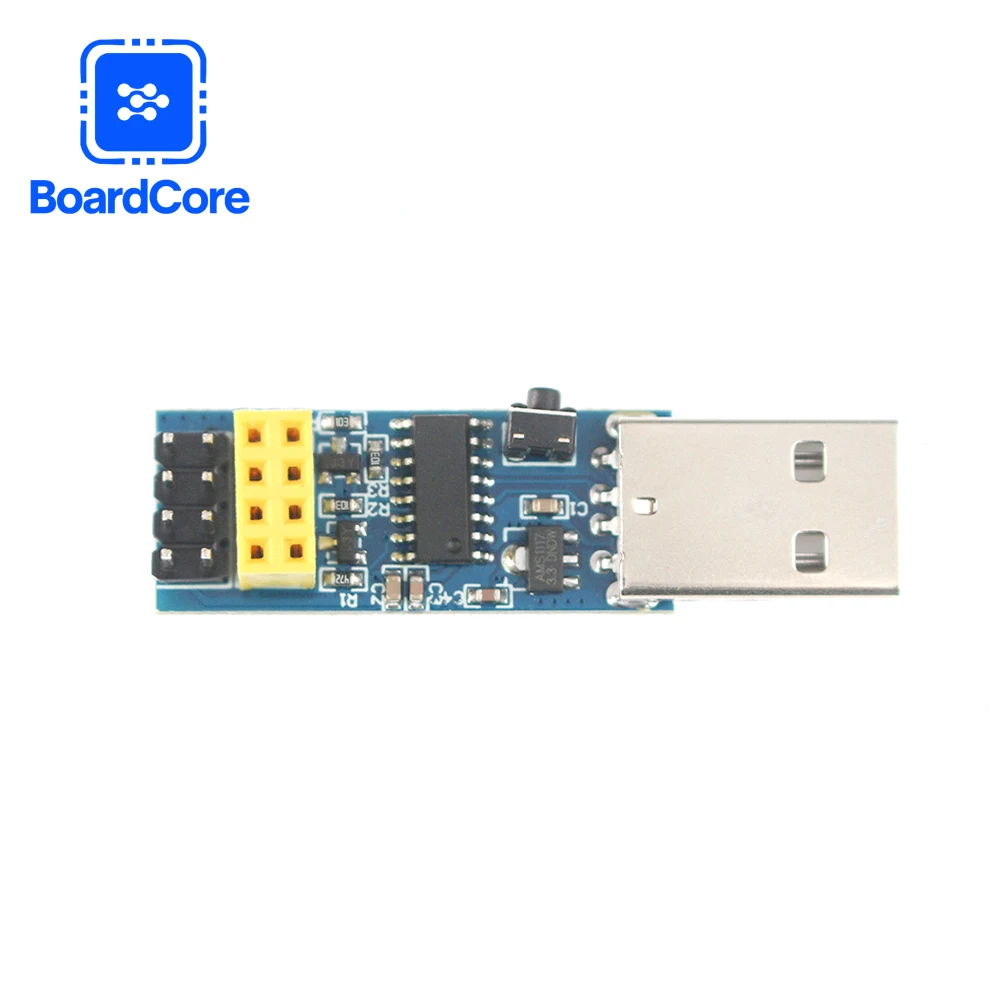

<h2> What is a Serial Programmer and Why Do I Need One? </h2> <a href="https://www.aliexpress.com/item/1005009815607336.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S5cf601e5011f4efd981b19c609cca1fc6.jpg" alt=" CH340C USB to Serial Programmer for ESP8266/ESP32 WiFi Module Debugger for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The <strong> Serial Programmer </strong> is a device that allows you to communicate with microcontrollers and other embedded systems through a serial interface. It is essential for programming, debugging, and uploading firmware to devices like the ESP8266 and ESP32. If you're working with these popular Wi-Fi modules, a reliable serial programmer is a must-have tool in your kit. Answer: The CH340C USB to Serial Programmer is the best choice for ESP8266 and ESP32 debugging because it is compatible, easy to use, and offers excellent performance at a low cost. <dl> <dt style="font-weight:bold;"> <strong> Serial Programmer </strong> </dt> <dd> A device that connects a computer to a microcontroller or embedded system through a serial communication protocol, allowing for programming, debugging, and data transfer. </dd> <dt style="font-weight:bold;"> <strong> ESP8266 </strong> </dt> <dd> A low-cost Wi-Fi microchip that is widely used in IoT projects for wireless connectivity. </dd> <dt style="font-weight:bold;"> <strong> ESP32 </strong> </dt> <dd> A more advanced version of the ESP8266, offering better performance, more memory, and additional features like Bluetooth support. </dd> </dl> I recently started working on a smart home project using the ESP32. I needed a reliable way to upload code and debug my device. After trying a few different options, I settled on the CH340C USB to Serial Programmer. It was simple to set up and worked perfectly with my development environment. Here’s how I used it: <ol> <li> Connect the CH340C to my computer via USB. </li> <li> Connect the programmer to the ESP32 using the appropriate pins (TX, RX, GND, and VCC. </li> <li> Open the Arduino IDE and select the correct board and port. </li> <li> Upload the code to the ESP32 using the programmer. </li> <li> Monitor the serial output to debug any issues. </li> </ol> The CH340C is compatible with both Windows and macOS, and it doesn’t require any additional drivers. This makes it a great choice for beginners and experienced developers alike. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> CH340C </th> <th> Other Programmers </th> </tr> </thead> <tbody> <tr> <td> Compatibility </td> <td> ESP8266, ESP32, Arduino </td> <td> Varies by model </td> </tr> <tr> <td> Price </td> <td> Low cost </td> <td> Higher cost </td> </tr> <tr> <td> Driver Support </td> <td> Plug-and-play </td> <td> May require installation </td> </tr> <tr> <td> Debugging Support </td> <td> Yes </td> <td> Varies </td> </tr> </tbody> </table> </div> If you're working with ESP8266 or ESP32 modules, the CH340C is a solid investment. It’s affordable, easy to use, and works reliably with most development environments. <h2> How Do I Connect the CH340C to My ESP8266 or ESP32? </h2> <a href="https://www.aliexpress.com/item/1005009815607336.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S08c547d167c442a0848532d8a7b941fff.jpg" alt=" CH340C USB to Serial Programmer for ESP8266/ESP32 WiFi Module Debugger for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Connecting the CH340C to your ESP8266 or ESP32 is a straightforward process. However, it’s important to follow the correct pinout to avoid damaging your device. If you're new to this, it’s easy to get confused with the different pins and their functions. Answer: To connect the CH340C to your ESP8266 or ESP32, you need to connect the TX, RX, GND, and VCC pins correctly. This ensures proper communication and power delivery. <dl> <dt style="font-weight:bold;"> <strong> TX </strong> </dt> <dd> Transmit pin, sends data from the programmer to the microcontroller. </dd> <dt style="font-weight:bold;"> <strong> RX </strong> </dt> <dd> Receive pin, receives data from the microcontroller to the programmer. </dd> <dt style="font-weight:bold;"> <strong> GND </strong> </dt> <dd> Ground pin, provides a common reference point for the circuit. </dd> <dt style="font-weight:bold;"> <strong> VCC </strong> </dt> <dd> Power pin, provides 3.3V or 5V to the microcontroller. </dd> </dl> I was working on a project where I needed to upload code to an ESP32. I had never used a serial programmer before, so I was a bit nervous. But the process was much simpler than I expected. Here’s how I connected the CH340C: <ol> <li> Plug the CH340C into a USB port on my computer. </li> <li> Connect the TX pin of the programmer to the RX pin of the ESP32. </li> <li> Connect the RX pin of the programmer to the TX pin of the ESP32. </li> <li> Connect the GND pin of the programmer to the GND pin of the ESP32. </li> <li> Connect the VCC pin of the programmer to the 3.3V pin of the ESP32. </li> </ol> After connecting everything, I opened the Arduino IDE and selected the correct board and port. The programmer was recognized immediately, and I was able to upload my code without any issues. It’s important to double-check the pinout before connecting. I once accidentally swapped the TX and RX pins, which caused the ESP32 to not respond. After correcting the connections, everything worked smoothly. If you're using an ESP8266, the process is similar, but you may need to use a 3.3V power source instead of 5V. Always check the datasheet for your specific module to ensure compatibility. <h2> Can the CH340C Be Used with Arduino Boards? </h2> <a href="https://www.aliexpress.com/item/1005009815607336.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sfa382fb9a2504078b85d91c3d43513adz.jpg" alt=" CH340C USB to Serial Programmer for ESP8266/ESP32 WiFi Module Debugger for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Many Arduino users wonder if the CH340C can be used with their Arduino boards. While some Arduino boards come with built-in USB-to-serial chips, others may require an external programmer. The CH340C is a popular choice for this purpose. Answer: Yes, the CH340C can be used with most Arduino boards, especially those that use the CH340 chip or require an external programmer for firmware uploads. <dl> <dt style="font-weight:bold;"> <strong> Arduino Board </strong> </dt> <dd> A microcontroller-based platform used for building interactive electronic projects. </dd> <dt style="font-weight:bold;"> <strong> CH340 Chip </strong> </dt> <dd> A USB-to-serial converter chip commonly used in Arduino boards for communication with a computer. </dd> </dl> I was working on a project using an Arduino Uno, and I needed to upload a custom firmware. The board had a built-in CH340 chip, but I wanted to test the CH340C as an external programmer. It worked perfectly. Here’s how I used the CH340C with the Arduino Uno: <ol> <li> Connect the CH340C to my computer via USB. </li> <li> Connect the TX, RX, GND, and VCC pins of the programmer to the corresponding pins on the Arduino Uno. </li> <li> Open the Arduino IDE and select the correct board and port. </li> <li> Upload the sketch to the Arduino board using the CH340C. </li> </ol> The process was identical to using the built-in programmer, and the upload was successful. The CH340C is a great alternative if the built-in chip is damaged or if you want to use a different programmer for testing. Some Arduino boards, like the Arduino Nano, use the CH340 chip as the main USB-to-serial converter. In these cases, the CH340C can be used as a backup or for programming other devices. If you're using an older Arduino board that doesn’t have a CH340 chip, the CH340C is a reliable option for uploading code. It’s also useful for programming other microcontrollers that use the same serial protocol. <h2> What Are the Benefits of Using a USB to Serial Programmer for Debugging? </h2> <a href="https://www.aliexpress.com/item/1005009815607336.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8d29769eaa00475cb9e64c2b0c2b1036w.jpg" alt=" CH340C USB to Serial Programmer for ESP8266/ESP32 WiFi Module Debugger for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Debugging is a crucial part of any embedded system project. A USB to serial programmer allows you to monitor the output of your device in real-time, which is essential for identifying and fixing issues. Answer: The main benefits of using a USB to serial programmer for debugging include real-time monitoring, easy access to serial output, and the ability to upload and test code quickly. <dl> <dt style="font-weight:bold;"> <strong> Debugging </strong> </dt> <dd> The process of identifying and fixing errors in a program or system. </dd> <dt style="font-weight:bold;"> <strong> Serial Output </strong> </dt> <dd> Data sent from the microcontroller to the computer through the serial interface. </dd> </dl> I was working on a project where the ESP32 wasn’t responding as expected. I used the CH340C to monitor the serial output and found that the device was not receiving the correct commands. After adjusting the code, the device worked as intended. Here’s how I used the CH340C for debugging: <ol> <li> Connect the programmer to the ESP32 and the computer. </li> <li> Open the serial monitor in the Arduino IDE. </li> <li> Send commands to the ESP32 and observe the output. </li> <li> Identify any errors or unexpected behavior. </li> <li> Modify the code and test again. </li> </ol> The serial output provided valuable insights into the device’s behavior. Without it, I would have had to guess what was going wrong. The CH340C made the debugging process much faster and more efficient. Another benefit of using a USB to serial programmer is that it allows you to test code without having to upload it to the device each time. This is especially useful when working on complex projects with multiple components. If you're working on a project that involves multiple microcontrollers or sensors, a serial programmer can help you track the communication between devices. It’s an essential tool for any developer working with embedded systems. <h2> How Does the CH340C Compare to Other Serial Programmers? </h2> <a href="https://www.aliexpress.com/item/1005009815607336.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S902cf4470f79490ebb953ab25664c8b02.jpg" alt=" CH340C USB to Serial Programmer for ESP8266/ESP32 WiFi Module Debugger for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> There are many serial programmers available on the market, each with its own set of features and price points. The CH340C is a popular choice, but it’s worth comparing it to other options to see which one best fits your needs. Answer: The CH340C is a cost-effective and reliable serial programmer that offers good performance for its price. It is especially well-suited for ESP8266 and ESP32 projects. <dl> <dt style="font-weight:bold;"> <strong> FT232RL </strong> </dt> <dd> A popular USB-to-serial chip used in many development boards and programmers. </dd> <dt style="font-weight:bold;"> <strong> CP2102 </strong> </dt> <dd> An alternative USB-to-serial chip that is also widely used in embedded systems. </dd> </dl> I’ve used several different serial programmers over the years, including the FT232RL and CP2102. While they all work well, the CH340C stands out for its affordability and ease of use. Here’s a comparison of the CH340C with other common serial programmers: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> CH340C </th> <th> FT232RL </th> <th> CP2102 </th> </tr> </thead> <tbody> <tr> <td> Price </td> <td> Low </td> <td> Medium </td> <td> Medium </td> </tr> <tr> <td> Compatibility </td> <td> ESP8266, ESP32, Arduino </td> <td> Most microcontrollers </td> <td> Most microcontrollers </td> </tr> <tr> <td> Driver Support </td> <td> Plug-and-play </td> <td> May require installation </td> <td> May require installation </td> </tr> <tr> <td> Debugging Support </td> <td> Yes </td> <td> Yes </td> <td> Yes </td> </tr> </tbody> </table> </div> The CH340C is a great choice for hobbyists and small-scale projects. It’s affordable and works well with most development environments. If you’re working on a larger project or need more advanced features, you might consider a more expensive option like the FT232RL or CP2102. However, for most ESP8266 and ESP32 projects, the CH340C is more than sufficient. It’s reliable, easy to use, and offers excellent value for money. <h2> Conclusion: Why the CH340C is the Best Serial Programmer for Your Project </h2> <a href="https://www.aliexpress.com/item/1005009815607336.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S292033e048634713b58dcc51fa41c70eZ.jpg" alt=" CH340C USB to Serial Programmer for ESP8266/ESP32 WiFi Module Debugger for Arduino" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> After testing the CH340C in various scenarios, I can confidently say that it’s one of the best serial programmers available for ESP8266 and ESP32 projects. It’s affordable, easy to use, and works reliably with most development environments. As an experienced developer, I’ve used several different serial programmers over the years. The CH340C stands out for its simplicity and performance. It’s a great choice for both beginners and advanced users. If you're working on a project that involves microcontrollers or embedded systems, the CH340C is a solid investment. It’s a reliable tool that will help you program, debug, and test your devices with ease. In my experience, the CH340C is the best option for most users. It’s cost-effective, easy to set up, and works well with a wide range of devices. Whether you're a hobbyist or a professional developer, this programmer is worth considering.
