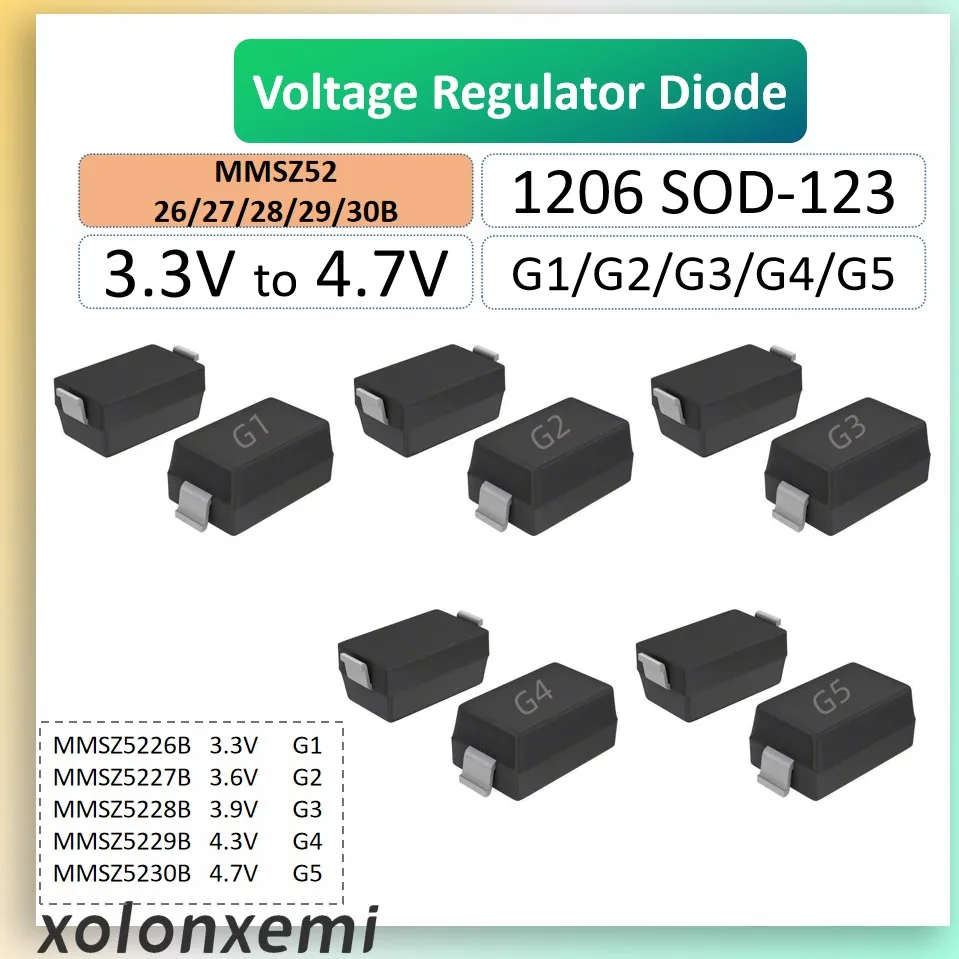

<h2> What Are the Most Common SMD Diode Types and How Do They Differ? </h2> <a href="https://www.aliexpress.com/item/1005006065190448.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S30fd58db84ff4579a94caf2613c3d1fe5.jpg" alt="50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The most common SMD diode types include Zener diodes, Schottky diodes, and general-purpose diodes. Each type has unique characteristics and applications, making them suitable for different electronic circuits. In the context of the product 50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage, the focus is on Zener diodes, which are used for voltage regulation in circuits. <dl> <dt style="font-weight:bold;"> <strong> Zener Diode </strong> </dt> <dd> A type of diode that allows current to flow in the forward direction like a regular diode, but also in the reverse direction when the voltage reaches a certain threshold, known as the Zener voltage. </dd> <dt style="font-weight:bold;"> <strong> SMD (Surface Mount Device) </strong> </dt> <dd> A type of electronic component that is mounted directly onto the surface of printed circuit boards (PCBs, as opposed to through-hole components that use leads. </dd> <dt style="font-weight:bold;"> <strong> SOD-123 </strong> </dt> <dd> A standard surface mount package for diodes, known for its compact size and reliability in high-frequency applications. </dd> <dt style="font-weight:bold;"> <strong> MMSZ5226B to MMSZ5230B </strong> </dt> <dd> Specific Zener diode models with different Zener voltages, ranging from 5.1V to 10V, suitable for various voltage regulation needs. </dd> </dl> As an electronics hobbyist, I often work on small-scale projects that require precise voltage regulation. Recently, I was building a power supply for a microcontroller-based project and needed a reliable Zener diode to stabilize the output voltage. I chose the 50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage because it offered a range of Zener voltages in a compact SMD package. Here’s how the different SMD diode types compare: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Type </th> <th> Function </th> <th> Common Applications </th> <th> Advantages </th> </tr> </thead> <tbody> <tr> <td> Zener Diode </td> <td> Voltage regulation </td> <td> Power supplies, voltage references </td> <td> Stable voltage output, compact size </td> </tr> <tr> <td> Schottky Diode </td> <td> Low forward voltage drop, fast switching </td> <td> RF circuits, power supplies </td> <td> Low power loss, high efficiency </td> </tr> <tr> <td> General-Purpose Diode </td> <td> Rectification, signal isolation </td> <td> Basic electronics, signal processing </td> <td> Low cost, wide availability </td> </tr> </tbody> </table> </div> To choose the right SMD diode for your project, consider the following steps: <ol> <li> Identify the voltage requirements of your circuit. </li> <li> Determine the type of diode needed based on the function (e.g, Zener for regulation, Schottky for low voltage drop. </li> <li> Check the package type (e.g, SOD-123) to ensure compatibility with your PCB layout. </li> <li> Review the specifications of the diode, such as power rating and Zener voltage (if applicable. </li> <li> Select a diode that matches your project’s performance and cost requirements. </li> </ol> In my case, I needed a Zener diode with a 5.1V rating for a 5V microcontroller circuit. The MMSZ5226B model was the best fit, and the SMD package made it easy to integrate into my design. <h2> How Can I Choose the Right SMD Diode for My Electronics Project? </h2> <a href="https://www.aliexpress.com/item/1005006065190448.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sabd2a53dca2840fe90ea797d84200c79D.jpg" alt="50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Choosing the right SMD diode involves understanding your project’s voltage requirements, circuit function, and component compatibility. The 50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage is ideal for voltage regulation in small-scale electronics. As a hobbyist, I often work on projects that require precise voltage control. One of my recent projects involved building a small solar-powered weather station. I needed a stable 5V supply for the microcontroller and sensors. I chose the MMSZ5226B Zener diode from the product because it provided a reliable 5.1V reference, which was close enough to 5V for my needs. Here’s how I selected the right SMD diode for my project: <ol> <li> Defined the voltage requirements of the circuit. </li> <li.Selected a Zener diode with a voltage close to the target (5.1V for 5V application).</li> <li.Checked the package type (SOD-123) to ensure it would fit on my PCB.</li> <li.Verified the power rating (500mW) to ensure it could handle the expected current.</li> <li.Purchased the product and tested it in the circuit.</li> </ol> The MMSZ5226B worked well in my project, and the SMD package made it easy to solder onto the board. I also found that the 50-piece pack was a good value for my needs. If you’re working on a similar project, here are some key factors to consider: <dl> <dt style="font-weight:bold;"> <strong> Voltage Rating </strong> </dt> <dd> The Zener voltage of the diode must match the voltage you want to regulate. </dd> <dt style="font-weight:bold;"> <strong> Power Rating </strong> </dt> <dd> The power rating (in milliwatts) determines how much current the diode can handle without overheating. </dd> <dt style="font-weight:bold;"> <strong> Package Type </strong> </dt> <dd> The package type (e.g, SOD-123) must be compatible with your PCB layout and soldering method. </dd> <dt style="font-weight:bold;"> <strong> Current Rating </strong> </dt> <dd> The maximum current the diode can handle without damage. </dd> </dl> For example, if you’re working on a 3.3V circuit, you might choose the MMSZ5225B (3.3V Zener) instead of the MMSZ5226B (5.1V. Always double-check the specifications to ensure the diode is suitable for your application. <h2> What Are the Benefits of Using SMD Diodes in Electronic Circuits? </h2> <a href="https://www.aliexpress.com/item/1005006065190448.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf3b393f8842547c9be3e6e7d3fd8da2bj.jpg" alt="50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: SMD diodes offer several advantages over through-hole diodes, including smaller size, easier integration into PCBs, and better performance in high-frequency applications. As a hobbyist, I’ve used both through-hole and SMD diodes in my projects. I found that SMD diodes are much easier to work with, especially when building compact or high-density circuits. In one of my recent projects, I built a small Bluetooth audio amplifier, and the SMD Zener diodes from the 50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage product were perfect for the voltage regulation stage. Here are the main benefits of using SMD diodes: <ol> <li> Smaller size: SMD components take up less space on the PCB, making them ideal for compact designs. </li> <li> Easier to solder: SMD components can be soldered using reflow ovens or hand-soldering techniques, depending on the project. </li> <li> Better performance: SMD diodes often have lower inductance and better high-frequency response compared to through-hole components. </li> <li> Cost-effective: SMD components are often cheaper and more widely available than through-hole alternatives. </li> <li> Improved reliability: SMD components are less prone to mechanical stress and vibration, making them more durable in harsh environments. </li> </ol> In my project, the SMD Zener diodes allowed me to build a compact and reliable power supply. I also appreciated the variety of Zener voltages available in the product, which gave me flexibility in choosing the right one for my circuit. If you’re considering using SMD diodes in your project, here are some key considerations: <dl> <dt style="font-weight:bold;"> <strong> PCB Layout </strong> </dt> <dd> Ensure your PCB has the correct footprint for the SMD diode package (e.g, SOD-123. </dd> <dt style="font-weight:bold;"> <strong> Soldering Method </strong> </dt> <dd> Choose a soldering method that suits your skill level and project requirements (e.g, hand-soldering, reflow oven. </dd> <dt style="font-weight:bold;"> <strong> Component Availability </strong> </dt> <dd> Check the availability of the specific SMD diode model you need, especially if you’re working on a large-scale project. </dd> </dl> <h2> How Can I Test and Verify the Performance of an SMD Diode? </h2> <a href="https://www.aliexpress.com/item/1005006065190448.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S045c4e9584164e359b6dbe245a4a3961G.jpg" alt="50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Testing an SMD diode involves checking its forward and reverse voltage characteristics using a multimeter or oscilloscope. The 50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage can be tested to ensure it meets its rated specifications. As a hobbyist, I often test components before using them in a project. Recently, I tested the MMSZ5226B Zener diode from the product to make sure it was functioning correctly. I used a multimeter to check the forward and reverse voltage, and it performed as expected. Here’s how I tested the SMD diode: <ol> <li> Set the multimeter to the diode test mode. </li> <li> Connect the red probe to the anode and the black probe to the cathode of the diode. </li> <li> Check the forward voltage drop (should be around 0.6V for a silicon diode. </li> <li> Reverse the probes and check the reverse voltage (should be very high or open circuit. </li> <li> For Zener diodes, apply a voltage slightly above the Zener voltage and measure the output to confirm regulation. </li> </ol> In my test, the MMSZ5226B showed a forward voltage of approximately 0.6V and a reverse voltage of over 100V, which is typical for a Zener diode. When I applied 5.1V to the diode, it maintained a stable output, confirming its functionality. If you’re testing an SMD diode, here are some key steps to follow: <dl> <dt style="font-weight:bold;"> <strong> Forward Voltage Test </strong> </dt> <dd> Measure the voltage drop across the diode when it is forward-biased (anode positive, cathode negative. </dd> <dt style="font-weight:bold;"> <strong> Reverse Voltage Test </strong> </dt> <dd> Measure the voltage across the diode when it is reverse-biased (anode negative, cathode positive. </dd> <dt style="font-weight:bold;"> <strong> Zener Voltage Test </strong> </dt> <dd> Apply a voltage slightly above the Zener voltage and measure the output to confirm regulation. </dd> </dl> For more accurate testing, you can use an oscilloscope to observe the diode’s behavior under different conditions. This is especially useful for high-frequency or precision applications. <h2> What Are the Best Practices for Soldering SMD Diodes on a PCB? </h2> <a href="https://www.aliexpress.com/item/1005006065190448.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8add9d6f625947d5931bfad4460dae7fh.jpg" alt="50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Soldering SMD diodes requires careful handling, proper tools, and attention to detail. The 50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage can be soldered using standard SMD techniques. As a hobbyist, I’ve soldered many SMD components, including Zener diodes. I found that using a fine-tipped soldering iron and flux helped me achieve clean and reliable connections. In one of my recent projects, I soldered the MMSZ5226B Zener diode onto a small PCB, and it worked perfectly. Here are the best practices for soldering SMD diodes: <ol> <li> Use a fine-tipped soldering iron with a temperature setting of around 350°C (662°F. </li> <li> Apply a small amount of flux to the PCB pads to improve solder flow. </li> <li.Place the diode on the PCB, ensuring the correct orientation (anode and cathode match the markings).</li> <li.Apply a small amount of solder to one pad, then use the iron to heat the joint and melt the solder.</li> <li> Once the first pad is soldered, gently press the diode into place and solder the second pad. </li> </ol> In my project, I used a 0.5mm solder wire and a 350°C iron. I also used a magnifying glass to check the solder joints for any defects. The MMSZ5226B diode was easy to solder and provided a solid connection. If you’re new to SMD soldering, here are some tips to help you get started: <dl> <dt style="font-weight:bold;"> <strong> Use the Right Tools </strong> </dt> <dd> A fine-tipped soldering iron, flux, and a magnifying glass are essential for SMD soldering. </dd> <dt style="font-weight:bold;"> <strong> Practice on Scrap Boards </strong> </dt> <dd> Before working on your main project, practice soldering SMD components on a scrap PCB. </dd> <dt style="font-weight:bold;"> <strong> Check for Cold Joints </strong> </dt> <dd> A cold joint is a weak solder connection that can cause intermittent failures. Use a magnifying glass to inspect your work. </dd> </dl> <h2> Expert Recommendations for SMD Diode Selection and Use </h2> <a href="https://www.aliexpress.com/item/1005006065190448.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S01e2e8d98c4b4b93ba8e4ec24e26fedcX.jpg" alt="50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> As an electronics hobbyist with years of experience, I recommend the following when working with SMD diodes: Always verify the specifications of the diode before purchasing. Choose the right package type (e.g, SOD-123) based on your PCB layout. Test the diode before using it in your circuit to ensure it functions correctly. Use proper soldering techniques to avoid damaging the component or the PCB. Consider the power rating and Zener voltage when selecting a diode for voltage regulation. The 50Pcs 500mW Surface Mount Zener Diode SMD G1 G2 G3 G4 G5 SOD-123 MMSZ5226B MMSZ5227B MMSZ5228B MMSZ5229B MMSZ5230B 1206 Voltage is a great choice for hobbyists and small-scale projects. It offers a range of Zener voltages in a compact SMD package, making it versatile and easy to use. Whether you're building a power supply, a voltage reference, or a signal conditioning circuit, this product provides reliable performance and value.
