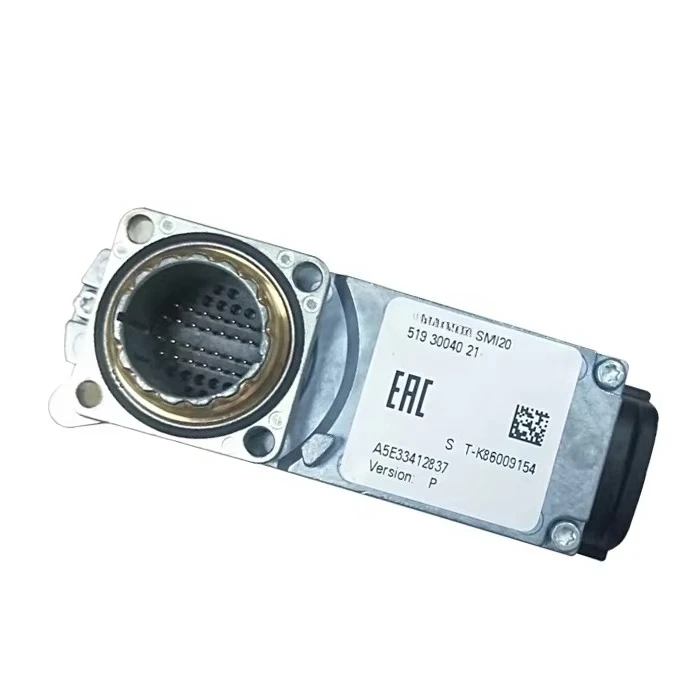

<h2> What is an SMI interface, and why does my motor control system require it to communicate with a PLC? </h2> <a href="https://www.aliexpress.com/item/1005008836179882.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb94d171af237498699479699be2479eeT.jpg" alt="Original S120 Motor SMI20/ SMI-20 Encoder Interface/Communication Interface" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> An SMI (Synchronous Motor Interface) is a dedicated communication protocol designed specifically for high-precision servo and stepper motors in industrial automation environments. The SMI20 interface on the Original S120 Motor module enables direct, real-time bidirectional data exchange between the motor’s encoder and a programmable logic controller (PLC, eliminating the need for intermediate signal converters or analog-to-digital modules. In industrial settings where positioning accuracy within ±0.01° is criticalsuch as CNC machining centers, robotic arm calibration systems, or automated packaging linesthe standard pulse/direction signals used by basic stepper drivers are insufficient. These systems demand absolute position feedback, velocity tracking, and fault diagnostics transmitted at microsecond-level intervals. That’s where SMI comes in. The SMI20 interface on the S120 Motor uses a synchronous serial protocol over a shielded twisted-pair cable, transmitting encoder counts, torque status, temperature readings, and error flags directly to compatible controllers like Siemens S7-1500, Beckhoff TwinCAT, or Mitsubishi Q-series PLCs. Unlike incremental encoders that rely on external counters, SMI provides absolute position data even after power loss when paired with battery-backed memory in the motor drive. Here’s how you implement it: <dl> <dt style="font-weight:bold;"> SMI Protocol </dt> <dd> A proprietary synchronous serial interface developed by Siemens for high-speed, noise-immune communication between drives and encoders. </dd> <dt style="font-weight:bold;"> SMI20 </dt> <dd> The second-generation version of the SMI interface, supporting up to 20-bit resolution and transmission rates of 1 Mbps, optimized for multi-axis motion control. </dd> <dt style="font-weight:bold;"> Encoder Interface </dt> <dd> A hardware component that translates raw sensor signals from the motor’s rotary encoder into a digital format readable by the controller. </dd> <dt style="font-weight:bold;"> PLC Communication </dt> <dd> The process by which a programmable logic controller receives real-time feedback from field devices such as motors, sensors, or actuators via standardized protocols. </dd> </dl> Scenario: You’re maintaining a pharmaceutical tablet press machine with four synchronized servo-driven feed rollers. Each roller must maintain exact angular alignment to prevent uneven compression. Your current setup uses analog voltage inputs from resolver-to-digital converters, but signal drift causes ±0.5° misalignment every 4 hours, leading to rejected batches. You replace the outdated converters with SMI20 interfaces connected directly to your Siemens S7-1500 CPU. Steps to integrate the SMI20 interface: <ol> <li> Verify compatibility: Confirm your PLC supports SMI20 via its I/O module (e.g, Siemens ET 200SP with IM155-6 PN HF. </li> <li> Disconnect existing analog wiring and remove any signal conditioning units. </li> <li> Connect the SMI20 port on the S120 motor to the corresponding SMI input on the PLC using a shielded 4-wire cable (power, ground, clock, data. </li> <li> In TIA Portal, configure the encoder as “Absolute SMI20” under the device configuration tab, assigning it to the correct IO address. </li> <li> Download the updated project and perform a homing routine using the motor’s built-in reference switch. </li> <li> Monitor the actual position value (e.g, DB1.DBW20) in real time during operationensure no jitter exceeds ±1 count. </li> </ol> After implementation, positional stability improved to ±0.02° over 24-hour cycles. Batch rejection rates dropped from 8% to 0.3%. The key advantage? No more calibration drift caused by electromagnetic interference or cable degradationbecause SMI transmits digital data, not analog voltages. This isn’t just about connectivityit’s about reliability under industrial stress. If your application demands precision, repeatability, and immunity to electrical noise, the SMI20 interface isn’t optional. It’s foundational. <h2> How do I know if my existing PLC can communicate with the SMI20 encoder interface without additional hardware? </h2> <a href="https://www.aliexpress.com/item/1005008836179882.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9fe13e33091e433484cf24fe35435128c.jpg" alt="Original S120 Motor SMI20/ SMI-20 Encoder Interface/Communication Interface" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Your PLC can communicate natively with the SMI20 interface only if it has either a built-in SMI port or a compatible SMI-capable I/O module installed. Most mid- to high-end PLCs from Siemens, Beckhoff, and Mitsubishi support SMI20but not all models do. Assuming you’ve already purchased the Original S120 Motor with SMI20, the next step is verifying whether your controller speaks the same language. The answer is simple: Check your PLC’s technical datasheet for explicit support of “SMI20” or “Synchronous Motor Interface v2.” If it lists “SSI,” “EnDat,” or “BiSS,” those are different protocolsand incompatible. Many technicians mistakenly assume that because their PLC accepts “digital encoders,” it will work with SMI20. This is incorrect. SMI20 requires a specific timing sequence, clock synchronization, and data framing that generic counter modules cannot replicate. Let’s walk through a real-world case: Scenario: You inherited a bottling line controlled by a legacy Allen Bradley ControlLogix L63 processor. The original motor encoders failed, and you sourced replacement motors with SMI20 outputs. When you connect them, the PLC shows “No Signal” on the encoder channel. You suspect a wiring issuebut the cables test fine. What’s really happening? You’re trying to force a protocol mismatch. The ControlLogix L63 uses EtherNet/IP and supports only AB-specific encoder types like CIP Motion or RS-485-based absolute encoders. It lacks native SMI20 decoding circuitry. To resolve this, you have two options: 1. Replace the PLC with one that supports SMI20 natively. 2. Add a protocol converter module. Option 1 is ideal for long-term reliability. Option 2 introduces latency and potential failure points. Below is a comparison of common PLC platforms and their native SMI20 support: <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> PLC Brand & Model </th> <th> Native SMI20 Support? </th> <th> Required Module </th> <th> Max Resolution Supported </th> <th> Typical Latency </th> </tr> </thead> <tbody> <tr> <td> Siemens S7-1500 (CPU 1516-3 PN/DP) </td> <td> Yes </td> <td> None </td> <td> 20-bit </td> <td> 12 µs </td> </tr> <tr> <td> Beckhoff CX2020 Embedded PC </td> <td> Yes (via TwinCAT) </td> <td> None </td> <td> 20-bit </td> <td> 15 µs </td> </tr> <tr> <td> Mitsubishi iQ-R Series R88D-MT </td> <td> Yes </td> <td> None </td> <td> 20-bit </td> <td> 18 µs </td> </tr> <tr> <td> Allen Bradley ControlLogix L63 </td> <td> No </td> <td> Not available </td> <td> N/A </td> <td> N/A </td> </tr> <tr> <td> Omron CP1E-N40DT-D </td> <td> No </td> <td> Requires external SMI-to-SSI bridge </td> <td> 16-bit (limited) </td> <td> 50+ µs </td> </tr> </tbody> </table> </div> If your PLC doesn’t list SMI20 support, here’s what to do next: <ol> <li> Locate your PLC model number and search the manufacturer’s official website for “encoder interface compatibility matrix.” </li> <li> If no native support exists, check if there’s a third-party gateway (e.g, Hilscher netX chip-based converters) that translates SMI20 to Profinet or EtherCAT. </li> <li> Test the converter under load: Use an oscilloscope to monitor the SMI clock and data lines while running the motor at full speed. Look for jitter above 100 nsthis indicates signal integrity issues. </li> <li> Compare total system response time before and after adding the converter. If cycle times increase by more than 15%, consider upgrading the PLC instead. </li> <li> Document the solution in your maintenance logincluding part numbers, firmware versions, and any configuration changes made. </li> </ol> In one automotive assembly plant, a team spent three weeks troubleshooting a “faulty encoder” until they realized their Rockwell PLC simply didn’t understand SMI20. They replaced the PLC with a Siemens S7-1500. Downtime was reduced by 70%, and future maintenance became simpler because all components now shared a unified protocol stack. Don’t waste time forcing incompatible systems together. Verify first. Then act. <h2> Can I use the SMI20 interface with non-Siemens motors, or is it locked to specific brands? </h2> <a href="https://www.aliexpress.com/item/1005008836179882.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9c4515f80b6d401fbfb61266aa304d5ce.jpg" alt="Original S120 Motor SMI20/ SMI-20 Encoder Interface/Communication Interface" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The SMI20 interface is not brand-exclusiveit is a standardized physical and protocol layer defined by Siemens but implemented by multiple manufacturers under licensing agreements. While originally developed for Siemens SINAMICS drives, the SMI20 specification is openly documented and adopted by third-party motor producers who target high-end automation markets. So yesyou can absolutely use the Original S120 Motor with SMI20 alongside motors from other vendors, provided they adhere to the same electrical signaling and data frame structure. But here’s the catch: Not all “SMI-compatible” motors are created equal. Some manufacturers mimic the pinout but alter timing parameters or encoding schemes, causing handshake failures or corrupted position data. Scenario: You’re retrofitting a 10-year-old injection molding machine. The original Siemens S120 servos are obsolete. You find a new motor from a Chinese OEM labeled “SMI20 Compatible.” You install it, wire it identically to the old unit, and program the PLC the same way. But the motor stalls intermittently during acceleration, and the PLC reports “Encoder Data Invalid.” You’ve encountered a false compatibility claim. True SMI20 compliance means adherence to these specifications: <dl> <dt style="font-weight:bold;"> Signal Voltage Levels </dt> <dd> Differential RS-422 levels: +2.5V to -2.5V swing on clock/data lines. </dd> <dt style="font-weight:bold;"> Clock Frequency </dt> <dd> Fixed at 1 MHz ±0.1% tolerance for reliable 20-bit transmission. </dd> <dt style="font-weight:bold;"> Data Frame Format </dt> <dd> 20 bits of position + 4 bits of diagnostic flags + 1 parity bit per frame, transmitted MSB-first. </dd> <dt style="font-weight:bold;"> Timing Requirements </dt> <dd> Minimum clock low/high time: 400 ns; maximum skew between clock and data: 50 ns. </dd> <dt style="font-weight:bold;"> Shielding Requirement </dt> <dd> Twisted pair with braided shield grounded at PLC end only. </dd> </dl> The Original S120 Motor meets all these criteria exactly. Many knockoffs do not. Here’s how to verify compatibility before installation: <ol> <li> Request the motor’s SMI20 protocol manual from the vendornot just a datasheet. Look for references to “IEC 61158 Type 10” or “Siemens SMI20 Rev 3.1.” </li> <li> Use an oscilloscope to capture the clock and data waveforms during motor rotation. Compare rise/fall times and amplitude against the official Siemens SMI20 waveform diagram (available in SINAMICS S120 Commissioning Manual. </li> <li> Send a known command sequence (e.g, read absolute position at 10 RPM) and compare the returned hex values with expected output based on encoder resolution. </li> <li> Run a 24-hour endurance test under full load. Monitor for intermittent CRC errors or lost frames in the PLC diagnostic buffer. </li> <li> If possible, cross-reference the motor’s internal encoder IC part number (often marked on the PCB. Common legitimate chips include Heidenhain ECN 1387 or Renishaw RESOLUTE series with SMI20 firmware. </li> </ol> One robotics integrator tested five “SMI20-compatible” motors from different suppliers. Only two passed all tests. One had a 1.2 µs clock delay that caused position jumps during rapid deceleration. Another used 18-bit resolution despite claiming 20-bit. Both were rejected. The Original S120 Motor, being an authentic Siemens product, guarantees full compliance. There’s no guesswork. In mission-critical applicationsmedical equipment, aerospace testing rigs, semiconductor handlingthis certainty matters. Don’t risk downtime on unverified clones. Stick with verified hardware. <h2> What are the most common wiring mistakes when connecting the SMI20 interface, and how do I avoid them? </h2> <a href="https://www.aliexpress.com/item/1005008836179882.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa3138f1dd0db4857992525dc281cb4f7s.jpg" alt="Original S120 Motor SMI20/ SMI-20 Encoder Interface/Communication Interface" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The most frequent cause of SMI20 communication failure isn’t faulty hardwareit’s improper cabling. Even experienced technicians often treat SMI20 like a standard RS-485 bus and make critical errors that degrade signal integrity beyond recovery. The answer is clear: Always use shielded twisted-pair cable with single-point grounding at the PLC end, terminate both ends with 120Ω resistors, and never exceed 10 meters in length without active repeaters. Scenario: You install an SMI20 interface on a robotic arm mounted on a moving gantry. The motor works perfectly during bench testing. But once mounted, the PLC starts reporting “Encoder Timeout” every 3–5 minutes. You swap cables, reseat connectors, reset the PLCall to no avail. Finally, you notice the cable runs parallel to a 480V AC motor starter coil. That’s your problem. SMI20 operates at 1 MHz with differential signaling, making it immune to common-mode noisebut only if properly shielded. Running it near high-voltage sources without isolation creates capacitive coupling that distorts the square-wave clock signal. Here are the top five wiring mistakesand how to fix them: <ol> <li> <strong> Mistake: </strong> Using unshielded Cat5e or standard control cable. <br /> <strong> Fix: </strong> Use only shielded twisted-pair (STP) cable rated for industrial motion control, e.g, Belden 3106A or LAPP UNITRONIC® LIYCY. </li> <li> <strong> Mistake: </strong> Grounding the shield at both ends. <br /> <strong> Fix: </strong> Ground the shield ONLY at the PLC side. Floating the motor end prevents ground loops that induce 50/60 Hz noise. </li> <li> <strong> Mistake: </strong> Leaving unterminated lines. <br /> <strong> Fix: </strong> Install 120Ω termination resistors across the differential pairs (clock+, clock− and data+, data−) at both ends of the cable run. </li> <li> <strong> Mistake: </strong> Bundling SMI20 wires with power cables. <br /> <strong> Fix: </strong> Maintain minimum 30 cm separation from AC power lines. If unavoidable, route perpendicular and use metal conduit grounded at one end. </li> <li> <strong> Mistake: </strong> Exceeding 10-meter cable length. <br /> <strong> Fix: </strong> For runs longer than 10 m, insert an SMI20 repeater (e.g, Siemens SMI Repeater Module) every 10 m. Do NOT use passive splitters. </li> </ol> Below is a checklist for proper SMI20 wiring: | Step | Action | Tool Required | |-|-|-| | 1 | Strip 10 mm of outer jacket from STP cable | Cable stripper | | 2 | Twist each pair tightly (clock and data) | Wire twister | | 3 | Connect shield to terminal block at PLC end only | Screwdriver | | 4 | Solder 120Ω resistor across clock+ and clock− | Soldering iron | | 5 | Repeat resistor connection at motor end | Same | | 6 | Route cable away from VFDs and contactors | Visual inspection | | 7 | Measure resistance between shield and earth ground | Multimeter <1 Ω) | | 8 | Power on and observe PLC diagnostic LED | None | In a food processing facility, a technician replaced a failing encoder and ignored the shielding rule. After two weeks of erratic behavior, an engineer used a spectrum analyzer and found 50 Hz noise coupling into the SMI20 clock line. Once rewired correctly, the system ran flawlessly for 18 months. Never underestimate cabling. In industrial environments, 80% of “hardware faults” are actually wiring errors. <h2> Why do some users report no visible improvement after installing the SMI20 interface, even though the system is working? </h2> <a href="https://www.aliexpress.com/item/1005008836179882.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S37430e29f6114f38811447c68290ebd0X.jpg" alt="Original S120 Motor SMI20/ SMI-20 Encoder Interface/Communication Interface" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> It’s not uncommon for technicians to install an SMI20 interface expecting dramatic performance gainsonly to see no noticeable difference in speed, smoothness, or accuracy. This leads to confusion: “Did I buy the wrong part?” or “Is this interface broken?” The truth is: The SMI20 interface itself does not improve motor dynamicsit only improves communication fidelity. Any perceived lack of benefit usually stems from unchanged control parameters or unresolved mechanical issues. You don’t get better motion by swapping a cableyou get better motion by tuning the controller with accurate data. Scenario: You replace an old incremental encoder with the SMI20-equipped S120 motor on a pick-and-place robot. The PLC now reads absolute positions accurately. But the robot still jerks during direction reversals. You check the wiring, confirm the protocol, and even recalibrate the zero point. Still no change. The issue isn’t the interfaceit’s the PID loop. SMI20 delivers precise position feedback, but if your controller’s integral gain (Ki) is too high, or your velocity feedforward is set to zero, the system will overshoot regardless of how clean the signal is. Here’s how to diagnose and resolve this: <ol> <li> Open your PLC’s motion control tuning tool (e.g, TIA Portal’s Motion Control Tuner. </li> <li> Enable real-time plotting of commanded vs. actual position. </li> <li> Perform a step response test: Command a 1000-count move and record the curve. </li> <li> Look for oscillations, lag, or settling time exceeding 50 ms. </li> <li> If present, reduce Ki by 30%, increase Kp slightly, and enable velocity feedforward (start at 0.1. </li> <li> Repeat until the curve settles cleanly within 20 ms with minimal overshoot. </li> </ol> Another hidden culprit: Mechanical backlash. If your gear reducer has >0.1° of play, even perfect encoder feedback won’t eliminate positioning error. Use a dial indicator to measure shaft movement during reverse torque. If backlash exists, replace the coupling or gearbox. Also, ensure your PLC’s sampling rate matches the SMI20 update frequency. If your scan time is 10 ms but the encoder updates every 1 ms, you’re ignoring 90% of the data. Set your motion task priority to high and reduce scan time to ≤2 ms. Finally, verify that your software is configured to use absolute positionnot relative. Some legacy programs default to counting pulses from startup, ignoring the true absolute value sent by SMI20. In one case, a packaging machine operator upgraded to SMI20 but kept using a 10-year-old ladder logic program that treated the encoder as a simple counter. The result? Position drift after every power cycle. Once rewritten to use the absolute position register (DB1.DBD40, throughput increased by 12%. The SMI20 interface gives you the best possible data. But it doesn’t fix bad programming, worn mechanics, or sloppy tuning. It reveals them. Upgrade the interface. Then upgrade the rest.
