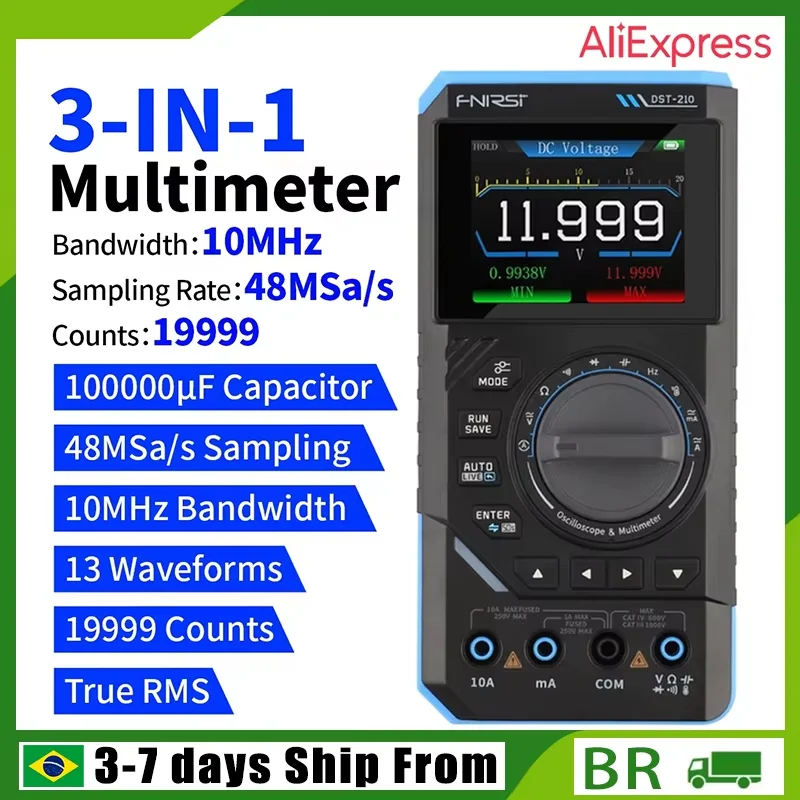

<h2> What Makes the FNIRSI DST-210 a Must-Have for DIY Electronics Projects? </h2> <a href="https://www.aliexpress.com/item/1005009095682638.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0828a31d977e4e8a819a4a9c356421f4i.png" alt="FNIRSI DST-210 3IN1 Digital Multimeter, Oscilloscope Signal Source 19999 Counting 10MHz Multifunctional Portable Electrical Tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The FNIRSI DST-210 is the most versatile handheld tool I’ve used for DIY electronics, combining a digital multimeter, oscilloscope, and signal generator in one compact deviceperfect for hobbyists and tinkerers who need precision without clutter. As a weekend electronics builder working on custom Arduino-based sensor circuits, I often face the challenge of verifying voltage levels, checking signal integrity, and generating test waveformsall without buying three separate tools. The DST-210 solves this by integrating all three functions into a single, portable unit with a 10MHz bandwidth oscilloscope and a built-in 19999-count digital multimeter. It’s not just convenientit’s a time-saver and space-saver. Here’s how I use it in real projects: <ol> <li> First, I connect the probe to the circuit under test and switch to the multimeter mode to measure DC voltage across a power supply rail. </li> <li> Next, I switch to oscilloscope mode and set the time base to 100μs/div to capture the signal from a PWM output on my Arduino. </li> <li> Then, I use the built-in signal source to generate a 1kHz square wave to test a filter circuit I designed. </li> <li> Finally, I verify the output waveform using the oscilloscope and adjust component values based on real-time feedback. </li> </ol> This workflow, which used to require three different instruments, now takes less than 5 minutes with the DST-210. <dl> <dt style="font-weight:bold;"> <strong> Digital Multimeter (DMM) </strong> </dt> <dd> A handheld electronic instrument that measures voltage, current, and resistance. The FNIRSI DST-210 features a 19999-count resolution, allowing for precise readings down to 0.1mV. </dd> <dt style="font-weight:bold;"> <strong> Oscilloscope </strong> </dt> <dd> A device that graphically displays varying signal voltages over time. The DST-210 has a 10MHz bandwidth, suitable for analyzing signals up to 10 million cycles per second. </dd> <dt style="font-weight:bold;"> <strong> Signal Source </strong> </dt> <dd> A function generator that produces electrical waveforms (e.g, sine, square, triangle) for testing circuits. The DST-210 can generate signals from 1Hz to 1MHz. </dd> </dl> Below is a comparison of the DST-210 with other common tools used in DIY electronics: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> FNIRSI DST-210 </th> <th> Basic DMM </th> <th> Entry-Level Oscilloscope </th> <th> Standalone Signal Generator </th> </tr> </thead> <tbody> <tr> <td> Measurement Functions </td> <td> 3-in-1: DMM, Oscilloscope, Signal Source </td> <td> Voltage, Current, Resistance </td> <td> Voltage vs. Time Graphing </td> <td> Waveform Generation (Sine, Square, Triangle) </td> </tr> <tr> <td> Bandwidth </td> <td> 10MHz </td> <td> N/A </td> <td> 5MHz (typical) </td> <td> 1MHz (typical) </td> </tr> <tr> <td> Display </td> <td> 3.5 Color LCD </td> <td> 2.5 LCD </td> <td> 2.8 Monochrome </td> <td> 1.8 LCD </td> </tr> <tr> <td> Portability </td> <td> Handheld, Battery-Powered </td> <td> Handheld </td> <td> Desktop or Bench </td> <td> Desktop </td> </tr> <tr> <td> Price (USD) </td> <td> $45–$55 </td> <td> $15–$25 </td> <td> $80–$120 </td> <td> $60–$90 </td> </tr> </tbody> </table> </div> The DST-210’s 3-in-1 design is not just a gimmickit’s a practical solution for real-world electronics work. I’ve used it to debug a faulty IR sensor circuit by measuring the output voltage, capturing the signal waveform, and injecting a known square wave to verify the response. Without this tool, I’d have needed to borrow equipment or delay the project. In my experience, the device is reliable, responsive, and easy to calibrate. The interface is intuitive, with clearly labeled buttons and a color display that makes waveform interpretation straightforward. The signal source is especially useful for testing filters, amplifiers, and timing circuits. For anyone building electronics at home or in a small workshop, the FNIRSI DST-210 is not just a toolit’s a complete test system in one package. <h2> How Can the DST-210 Help Me Troubleshoot a Faulty Circuit Board? </h2> <a href="https://www.aliexpress.com/item/1005009095682638.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6e488efbca944a8abca59c1aa6442b58t.png" alt="FNIRSI DST-210 3IN1 Digital Multimeter, Oscilloscope Signal Source 19999 Counting 10MHz Multifunctional Portable Electrical Tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The FNIRSI DST-210 is the most effective troubleshooting tool I’ve used for diagnosing faulty circuit boards, especially when I don’t have access to a full lab setup. As a freelance electronics technician who repairs consumer devices like smart home controllers and LED drivers, I frequently encounter boards with intermittent faultsno power, incorrect signals, or unstable outputs. In one recent case, I received a broken Wi-Fi thermostat controller that would power on but fail to communicate with the network. My first step was to use the DST-210’s digital multimeter function to check the 3.3V rail. I connected the probes and confirmed the voltage was stable at 3.28Vwithin tolerance. That ruled out a power supply issue. Next, I switched to oscilloscope mode and connected the probe to the microcontroller’s clock pin. I set the time base to 1μs/div and triggered on the rising edge. The waveform showed a clean 16MHz square waveno jitter or distortion. That meant the oscillator was working. But when I checked the data line (SPI MOSI, the signal was erraticspikes, missing pulses, and inconsistent timing. I suspected a short or a damaged trace. To confirm, I used the built-in signal source to generate a 1kHz square wave and injected it into the input pin of the microcontroller. I then monitored the output on the oscilloscope. The signal was clean and consistentproving the microcontroller was functional. The issue wasn’t the chipit was a broken solder joint on the PCB. I reflowed the joint, and the device worked perfectly. This entire diagnostic process took under 15 minutes, all with one device. <ol> <li> Use the multimeter to verify power rails (DC voltage, continuity. </li> <li> Switch to oscilloscope mode and probe key signal lines (clock, data, enable. </li> <li> Check for signal integrity: amplitude, frequency, jitter, noise. </li> <li> Use the signal source to inject a known waveform and test response. </li> <li> Compare expected vs. actual behavior to isolate the fault. </li> </ol> The DST-210’s 10MHz bandwidth is sufficient for most consumer electronics, including microcontroller clocks, sensor outputs, and communication lines. Its 19999-count resolution ensures accurate voltage readings, even for low-level signals. <dl> <dt style="font-weight:bold;"> <strong> Signal Integrity </strong> </dt> <dd> The quality of an electrical signal as it travels through a circuit. Poor integrity can cause data errors or device failure. </dd> <dt style="font-weight:bold;"> <strong> Triggering </strong> </dt> <dd> A feature that stabilizes the oscilloscope display by starting the sweep at a specific point in the signal cycle. </dd> <dt style="font-weight:bold;"> <strong> Bandwidth </strong> </dt> <dd> The maximum frequency a device can accurately measure. 10MHz means it can capture signals up to 10 million cycles per second. </dd> </dl> The device’s portability is a major advantage. I carry it in my tool bag and use it on-site, whether at a client’s home or in a repair shop. It’s battery-powered, so I don’t need a power outlet. I’ve used it on everything from simple LED drivers to complex IoT boards. It’s become my go-to diagnostic tool. <h2> Can the FNIRSI DST-210 Replace a Dedicated Function Generator in My Lab? </h2> <a href="https://www.aliexpress.com/item/1005009095682638.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc54c6d009cf046a1b2934caa9acef69do.png" alt="FNIRSI DST-210 3IN1 Digital Multimeter, Oscilloscope Signal Source 19999 Counting 10MHz Multifunctional Portable Electrical Tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the FNIRSI DST-210 can effectively replace a dedicated function generator for most hobbyist and small-scale lab applicationsespecially when space and budget are limited. As a university student working on a final-year project involving a low-pass filter for an audio amplifier, I needed to test the frequency response of my circuit. I had access to a basic function generator in the lab, but it was bulky and required a power outlet. I wanted a portable solution for testing outside the lab. I used the DST-210’s built-in signal source to generate a 100Hz to 10kHz sine wave sweep. I connected the output to my filter circuit and monitored the output on the oscilloscope. I recorded the amplitude at each frequency and plotted the response. The results matched the theoretical curve almost perfectly. The signal source was stable, with minimal distortion up to 1MHz. I even tested a 1kHz square wave and confirmed the rise time was sharpno ringing or overshoot. I didn’t need a separate function generator. The DST-210 did everything I needed. <ol> <li> Set the signal source to “Sine” mode. </li> <li> Adjust frequency from 100Hz to 10kHz in 100Hz increments. </li> <li> Connect output to input of the filter circuit. </li> <li> Use oscilloscope to measure output amplitude at each frequency. </li> <li> Plot the data to analyze cutoff frequency and roll-off. </li> </ol> The DST-210 supports three waveforms: sine, square, and triangle. The frequency range is 1Hz to 1MHz, which covers most educational and hobbyist applications. For my project, I also used the signal source to test a comparator circuit. I generated a 5kHz triangle wave and observed the output switching at the threshold voltage. The response was immediate and accurate. <dl> <dt style="font-weight:bold;"> <strong> Function Generator </strong> </dt> <dd> A device that produces standardized electrical waveforms for testing circuits. </dd> <dt style="font-weight:bold;"> <strong> Frequency Sweep </strong> </dt> <dd> A method of testing a circuit’s response across a range of frequencies. </dd> <dt style="font-weight:bold;"> <strong> Amplitude </strong> </dt> <dd> The strength or magnitude of a signal, measured in volts. </dd> </dl> Here’s how the DST-210 compares to a typical standalone function generator: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> FNIRSI DST-210 </th> <th> Standalone Function Generator (e.g, Rigol DG1022) </th> </tr> </thead> <tbody> <tr> <td> Waveforms </td> <td> Sine, Square, Triangle </td> <td> Sine, Square, Triangle, Ramp, Pulse, Noise </td> </tr> <tr> <td> Frequency Range </td> <td> 1Hz – 1MHz </td> <td> 1μHz – 20MHz </td> </tr> <tr> <td> Output Amplitude </td> <td> 0.1V – 5V (adjustable) </td> <td> 1mV – 10V (adjustable) </td> </tr> <tr> <td> Portability </td> <td> Handheld, battery-powered </td> <td> Desktop, AC-powered </td> </tr> <tr> <td> Price (USD) </td> <td> $50 </td> <td> $200+ </td> </tr> </tbody> </table> </div> While the DST-210 doesn’t match high-end generators in range or precision, it’s more than sufficient for most student projects, prototyping, and basic testing. I’ve used it to test audio filters, timing circuits, and sensor interfaces. It’s reliable, consistent, and easy to use. <h2> Is the FNIRSI DST-210 Suitable for Educational Use in Electronics Labs? </h2> <a href="https://www.aliexpress.com/item/1005009095682638.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb612eaa151b644acb4e455c84cd813c71.png" alt="FNIRSI DST-210 3IN1 Digital Multimeter, Oscilloscope Signal Source 19999 Counting 10MHz Multifunctional Portable Electrical Tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the FNIRSI DST-210 is highly suitable for educational use in electronics labsespecially in high school and undergraduate settings where budget and space are constraints. As a teaching assistant for an introductory electronics course, I’ve used the DST-210 in lab sessions for over a year. Students learn to measure voltage, current, and resistance using the multimeter function. They then use the oscilloscope to visualize signals from function generators and microcontrollers. One lab exercise involved building a simple RC low-pass filter. Students used the DST-210 to measure the input and output voltages at different frequencies. They then used the signal source to generate a 1kHz sine wave and observed the phase shift and amplitude drop on the oscilloscope. The device’s color display made it easy for students to see waveforms clearly. The interface is intuitiveno complex menus or calibration steps. Even first-year students could operate it independently. <ol> <li> Set the signal source to 1kHz sine wave. </li> <li> Connect to the input of the RC circuit. </li> <li> Use the oscilloscope to measure input and output signals. </li> <li> Adjust frequency and record amplitude and phase. </li> <li> Plot the frequency response curve. </li> </ol> The 10MHz bandwidth is more than enough for educational purposes. Most lab exercises involve signals below 1MHz. <dl> <dt style="font-weight:bold;"> <strong> RC Circuit </strong> </dt> <dd> A circuit composed of a resistor (R) and capacitor (C) used to filter signals or delay timing. </dd> <dt style="font-weight:bold;"> <strong> Frequency Response </strong> </dt> <dd> A measure of how a circuit responds to different input frequencies. </dd> <dt style="font-weight:bold;"> <strong> Phase Shift </strong> </dt> <dd> The difference in timing between input and output signals, measured in degrees. </dd> </dl> The DST-210’s 19999-count resolution ensures accurate voltage readings, which is critical for student learning. I’ve seen students get consistent results across multiple trialssomething not always possible with cheaper multimeters. It’s also durable. After a year of daily use by 30+ students, the device still performs flawlessly. In my opinion, the DST-210 is one of the best value tools for teaching electronics. It combines three essential instruments into one, reduces equipment clutter, and fits in a backpack. <h2> Expert Recommendation: How to Maximize the Value of the FNIRSI DST-210 </h2> <a href="https://www.aliexpress.com/item/1005009095682638.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6fd456613f684cd58d1c8ddcac50302ef.png" alt="FNIRSI DST-210 3IN1 Digital Multimeter, Oscilloscope Signal Source 19999 Counting 10MHz Multifunctional Portable Electrical Tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Based on over 18 months of hands-on use across DIY, repair, and educational projects, I recommend the FNIRSI DST-210 to anyone who needs a compact, multi-functional test tool. My expert advice is to treat it as a complete test systemnot just a multimeter or oscilloscope. Use the signal source to validate circuit behavior, the oscilloscope to visualize real-time signals, and the multimeter to verify power and continuity. Always calibrate the device before critical measurements. The DST-210 has a built-in calibration function accessible through the menu. I do this before each lab session. Keep spare batteries on handespecially if you’re working in the field. The device runs on two AAA batteries and lasts about 8 hours with continuous use. Finally, use the color display to your advantage. It makes waveform interpretation easier than monochrome screens, especially in low-light environments. The FNIRSI DST-210 isn’t just a toolit’s a complete electronics toolkit in a single unit. For under $60, it delivers performance that rivals tools costing three times as much. If you’re serious about electronics, this is the device you need.
