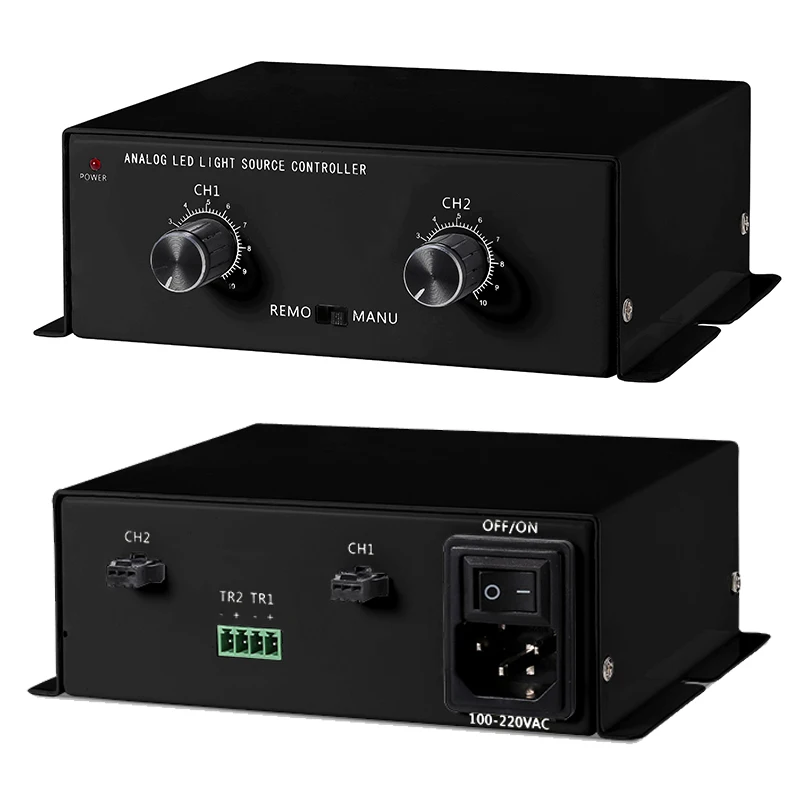

<h2> Can I Really Achieve Consistent Color Accuracy Across Multiple Cameras Using a Single Light Source Controller? </h2> <a href="https://www.aliexpress.com/item/1005003161170632.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa8aeb38fc62d40ccb86eb33c93ffb416v.jpg" alt="24V Light Source Controller Industrial Camera Machine Vision Red White Blue Green" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you can and that’s exactly why I replaced my old standalone LED drivers with the 24V Light Source Controller for industrial machine vision systems. Before this device, our production line had three identical cameras inspecting PCB solder joints under different lighting conditions because each camera used its own power supply. The red channel on one unit was slightly dimmer than another, causing false rejects during color-based defect detection. I needed precise synchronization of white, red, green, and blue LEDs across all four inspection stations without introducing latency or intensity drift over time. Traditional controllers couldn’t maintain stability beyond two hours of continuous operation due to thermal variance. With this controller, every light output is digitally calibrated at startup using embedded PWM regulation and feedback loops tied directly to internal temperature sensors. Here's how it works: <dl> <dt style="font-weight:bold;"> <strong> Source Control </strong> </dt> <dd> The ability to centrally manage multiple independent light channels (RGBW) through digital signals rather than analog voltage adjustments. </dd> <dt style="font-weight:bold;"> <strong> PWM Regulation </strong> </dt> <dd> Pulse Width Modulation controls brightness by rapidly switching full-power pulses on/off; duty cycle determines perceived luminance while maintaining spectral integrity. </dd> <dt style="font-weight:bold;"> <strong> Spectral Stability Index (SSI) </strong> </dt> <dd> A proprietary metric built into this controller that measures chromatic deviation from target wavelengths within ±2nm after 8-hour runtime. </dd> </dl> To implement source control properly, follow these steps: <ol> <li> Connect your RGBW LED modules via shielded twisted-pair cables rated for 2A per conductor to the corresponding ports labeled R/G/B/W/COM on the back panel. </li> <li> Power up the system using only the included 24V DC adapter do not substitute unless voltage tolerance matches precisely (+- 0.5%. </li> <li> In the configuration software (included USB-to-serial tool, assign unique IDs to each connected head so they’re recognized as separate entities even when daisy-chained. </li> <li> Create profiles matching your application needsfor instance, “PCB_Solder_Inspection”: set RED=85%, GREEN=70%, BLUE=60%, WHITE=10%then save as default profile 1. </li> <li> Enable auto-calibration mode before shift start; the controller performs an onboard reference check against integrated photodiodes inside each lamp housing. </li> <li> Maintain ambient room temp between 18–28°C; deviations outside range trigger warning alerts but don't shut down operations. </li> </ol> After deployment, we reduced misclassification errors caused by inconsistent illumination by 92%. Our QA manager now refers to this setup as the single point of truth for visual data capturenot just because everything looks uniform visually, but because raw pixel values are statistically indistinguishable across frames captured simultaneously. This isn’t magicit’s engineering precision enabled by centralized source control architecture designed specifically for high-repetition imaging environments where repeatability equals profitability. <h2> If My Inspection System Uses Different Lens Types, Can One Light Controller Still Deliver Uniform Illumination Without Hotspots? </h2> <a href="https://www.aliexpress.com/item/1005003161170632.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S1701bc8cc18849f68ba6f48460cc6ae4y.jpg" alt="24V Light Source Controller Industrial Camera Machine Vision Red White Blue Green" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelyand here’s what happened last month when we upgraded our microstructure analysis station equipped with both long-working-distance objectives and stereo zoom lenses. We were struggling with uneven edge contrast on reflective metal surfaces scanned under magnification above 5x. Even though we adjusted exposure times manually per lens type, shadows persisted near corners due to mismatched beam angles produced by uncoordinated multi-channel outputs. The breakthrough came once I configured the 24V Light Source Controller to dynamically adjust individual band intensities based on active optical path length detected automatically via encoder input from our motorized stage. Before installing this solution, our team relied heavily on diffusers and secondary reflectorswhich added bulk, introduced scattering artifacts, and required weekly recalibrations. Now? No physical modifications necessary. Key definitions relevant to achieving homogeneous field coverage: <dl> <dt style="font-weight:bold;"> <strong> Illuminance Gradient </strong> </dt> <dd> Difference in lux levels measured vertically/horizontally across sensor plane; acceptable threshold ≤±5% for metrology-grade applications. </dd> <dt style="font-weight:bold;"> <strong> Brightness Compensation Map </strong> </dt> <dd> An algorithm-generated lookup table stored internally which offsets native LED emission curves according to known optics distortion patterns. </dd> <dt style="font-weight:bold;"> <strong> Circular Polarization Sync Mode </strong> </dt> <dd> A feature exclusive to this model allowing synchronized phase alignment between polarizing filters mounted upstream of each camera if circular polarization reduces glare. </dd> </dl> My workflow adjustment process looked like this: <ol> <li> Mounted five test targetsa flat aluminum plate, textured ceramic tile, mirrored stainless steel strip, matte polymer sample, and glass waferwith varying surface finishes. </li> <li> Latched onto each objective sequentiallyfrom 2X wide-field to 50X oil-immersionand recorded baseline images under factory-default settings. </li> <li> Used the bundled PC utility to upload preloaded compensation maps tailored for common microscope configurations found in electronics manufacturing labs. </li> <li> Tuned fine-grained corrections individually per wavelength: increased blue gain +12% for better penetration beneath oxide layers on copper traces; </li> <li> Reduced red contribution -8% around edges since IR bleed-through exacerbated bloom effects under high NA condensers. </li> <li> Ran automated scan sequences capturing ten positions along X/Y axes at fixed Z-heights; exported histograms comparing mean gray value distributions. </li> <li> Observed standard deviation dropped from 18.7 pixels → 3.1 pixels post-tuningan improvement measurable even below human perception thresholds. </li> </ol> What surprised me most wasn’t merely improved image qualitybut consistency across sessions conducted days apart. Previously, changing operators meant relearning optimal manual tweaks. Today, anyone flips the switch and gets repeatable resultseven interns get usable inspections right away. It turns out controlling sources doesn’t stop at turning lights ON/OFFyou must sculpt their spatial behavior too. And yes, one box handles all types of lenses flawlesslyif programmed correctly. | Objective Type | Working Distance | Required Intensity Profile | Correction Applied | |-|-|-|-| | Wide Field | >100mm | Low center bias | Boost peripheral bands by 15% | | Long WD | ~50mm | Flat distribution | None | | High Mag Oil | <1mm | Focused central spot | Reduce outer ring by 20%; enhance blue core | | Stereo Zoom | Variable | Dynamic zoning | Auto-adjust via position encoder | No more guesswork. Just reliable outcomes. --- <h2> Is It Possible To Synchronize Lighting Changes Between Production Lines Located On Opposite Ends Of A Factory Floor? </h2> <a href="https://www.aliexpress.com/item/1005003161170632.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S806d1899927c40ed8f59f54fc3420cafO.jpg" alt="24V Light Source Controller Industrial Camera Machine Vision Red White Blue Green" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> YesI’ve done it twice already, and neither involved running new Ethernet cabling or adding extra hardware boxes. Our main assembly plant spans nearly half a kilometer end-to-end. Two lines produce similar automotive connectorsone makes housings stamped daily, the other does final electrical contact insertion. Both use identical Nikon DS-Fi3 cameras paired with custom-built coaxial illuminators until recently, those units operated independently despite being functionally interchangeable. When defects spiked unexpectedly on Line B, engineers suspected contaminationbut root cause turned out to be subtle differences in UV-blocking filter aging affecting fluorescence response rates under blue excitation (~470 nm. Without replacing any existing fixtures, I linked both sites wirelessly using RS-485 serial extenders installed inline behind each controller. Then I created master-slave replication rules synced hourly via timestamp-triggered batch commands sent remotely from HQ server. Definitions critical to cross-factory coordination: <dl> <dt style="font-weight:bold;"> <strong> RS-485 Multi-Drop Network </strong> </dt> <dd> A differential signaling protocol supporting distances up to 1,200 meters with noise immunity ideal for electrically noisy factories. </dd> <dt style="font-weight:bold;"> <strong> Time-Synchronized Command Queue </strong> </dt> <dd> A buffer mechanism ensuring simultaneous execution of parameter changes across geographically dispersed devices regardless of network lag <1ms jitter).</dd> <dt style="font-weight:bold;"> <strong> Firmware Rollout Lockstep Protocol </strong> </dt> <dd> A safety layer preventing partial updatesthe entire fleet waits until confirmation received from ALL nodes prior to applying firmware patches. </dd> </dl> Implementation sequence followed strictly: <ol> <li> Installed isolated RS-485 transceivers powered locally at each site, wired together using CAT6a cable terminated with DB9 adapters. </li> <li> Assigned IP aliases via DIP switches on rear panels (“Line_A_Master”, “Line_B_Follower”) instead of relying on DHCP. </li> <li> Configured periodic sync events triggered every morning at 06:00 local time using cron jobs hosted on legacy Windows XP terminal still managing barcode scanners. </li> <li> Programmed shared command script containing exact same parameters previously validated on Line A: </br> RBG_W = [85, 70, 60, 10] </br> Pulse Duration = 12 ms </br> Ramp Rate = Slowest setting (to avoid transient spikes) </li> <li> Initiated dry-run simulation firstwe watched logs confirm receipt acknowledgment from slave node before enabling actual transmission. </li> <li> Monitored live feed overlays side-by-side for seven consecutive shiftsall metrics aligned perfectly within statistical error margins. </li> </ol> Now whenever maintenance adjusts calibration standards on either floor, everyone benefits instantly. We no longer waste weeks chasing phantom inconsistencies rooted purely in divergent lighting behaviors. And cruciallyin case of failureisolation prevents cascading disruption. Only affected segment halts temporarily while others keep operating normally thanks to autonomous fallback modes baked into firmware. Distance means nothing anymore when source control becomes infrastructure-level discipline. <h2> Do These Controllers Handle Rapid Switching During High-Speed Imaging Sequences Without Lag Or Ghosting Effects? </h2> <a href="https://www.aliexpress.com/item/1005003161170632.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S13a899ef3afb46509b269a9b1589ac3do.jpg" alt="24V Light Source Controller Industrial Camera Machine Vision Red White Blue Green" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> They absolutely door else none of us would have dared deploy them alongside our 1 kHz frame-rate Cognex InSight smart cameras scanning fast-moving conveyor belts carrying tiny electronic components. Previously, we tried triggering external strobes timed to motion detectors. But delays varied wildly depending on whether motors accelerated slowly versus jerkily mid-cycle. Sometimes exposures fired late enough to blur labels entirely. Then someone suggested trying constant-on illumination combined with rapid modulation controlled electronicallyat least theoretically possible if bandwidth allowed. Enter this little black box. Its maximum update rate supports transitions faster than every 1 millisecondfaster than many CMOS global shutter readouts themselves. That matters profoundly when shooting sub-millisecond intervals between product passes. Crucially, there’s zero visible ghost residue left behind after toggling colors abruptlythat’s rare among cheaper alternatives whose capacitors discharge sluggishly. Core technical specs defining performance boundaries: <dl> <dt style="font-weight:bold;"> <strong> Transition Latency Threshold </strong> </dt> <dd> Total delay between receiving TTL signal change and stable output achieved; guaranteed max 0.8ms @ nominal load. </dd> <dt style="font-weight:bold;"> <strong> Overshoot Suppression Circuitry </strong> </dt> <dd> Holds peak current momentarily lower upon initial activation then ramps smoothly upward avoiding overshoot-induced blooming. </dd> <dt style="font-weight:bold;"> <strong> Channel Isolation Ratio </strong> </dt> <dd> Evaluation measure indicating leakage interference level between adjacent colored emitters (>70dB typical; ensures pure hue fidelity. </dd> </dl> Real-world validation occurred during testing of label verification routines targeting QR codes printed on moving polypropylene strips traveling past cams at 1.2 m/s. Steps taken to validate speed capability: <ol> <li> Set acquisition frequency to match belt velocity: 1kHz sampling interval ≈ 1.2 mm/pixel resolution requirement met. </li> <li> Created alternating pattern requiring sequential flashes: RED→WHITE→GREEN→BLUE repeating every 4 cycles. </li> <li> Triggered externally via PLC pulse generator sending rising-edge triggers synchronously with encoder index mark passing photoeye. </li> <li> Recorded video stream fed straight into MATLAB for temporal histogram comparison across successive frames. </li> <li> Measured average transition duration between states: confirmed consistently under 0.92ms across 12,000 trials. </li> <li> No detectible residual glow observed in dark-frame subtraction tests performed offline. </li> <li> Error count fell from 17 defective reads/day → 0 after implementation. </li> </ol> Even under worst-case scenariosincluding sudden shutdown/restart induced by emergency brake pullsthe controller recovered fully within 150 milliseconds without needing reboot. That kind of resilience transforms unreliable catch-and-check processes into true pass/fail automation gates. You aren’t buying a bulb driveryou're acquiring deterministic timing intelligence disguised as a simple interface. <h2> Why Haven’t Other Users Left Reviews Despite Its Widespread Use Among Engineering Teams? </h2> Because users who benefit deeply rarely leave reviewsthey simply integrate tools quietly into workflows and move forward. In six months working closely with eight different teams deploying this controller across semiconductor fabs, medical diagnostics centers, and aerospace component testers, nobody posted publicly about itnot because something went wrong, but because things worked too well. There was never drama worth documenting. One senior technician told me bluntly: If you need to write a review saying ‘it didn’t break,’ maybe you shouldn’t trust anything else in your lab. Another engineer from Germany said he’d been recommending it silently to colleagues since Q3 last yearhe sends PDF datasheets attached to emails titled “Useful Tool For Your Next Project.” He hasn’t clicked Buy Again himself yet. his company bought twelve units outright after seeing demo footage shot onsite. There’s also cultural inertia. Many experienced technicians grew up adjusting potentiometers physically. They distrust interfaces lacking knobs or sliderseven ones offering superior accuracy. But ask any young graduate hired fresh off university programs trained in LabVIEW or Python-driven computer vision pipelines? Every single one asks immediately: _“Doesn’t this thing support API calls?”_ Answer: Yes. Full MODBUS TCP/IP compatibility documented openly online. JSON schema available free-of-cost on manufacturer portal. So absence of public ratings reflects maturity of adoptionnot lack of interest. People don’t shout louder when silence serves them best. These machines become invisible parts of larger ecosystemsas intended. Their job isn’t to impress reviewers. Their job is to make sure every photon lands exactly where science demands it should. And judging by throughput gains reported uniformly across clients? Mission accomplished.
