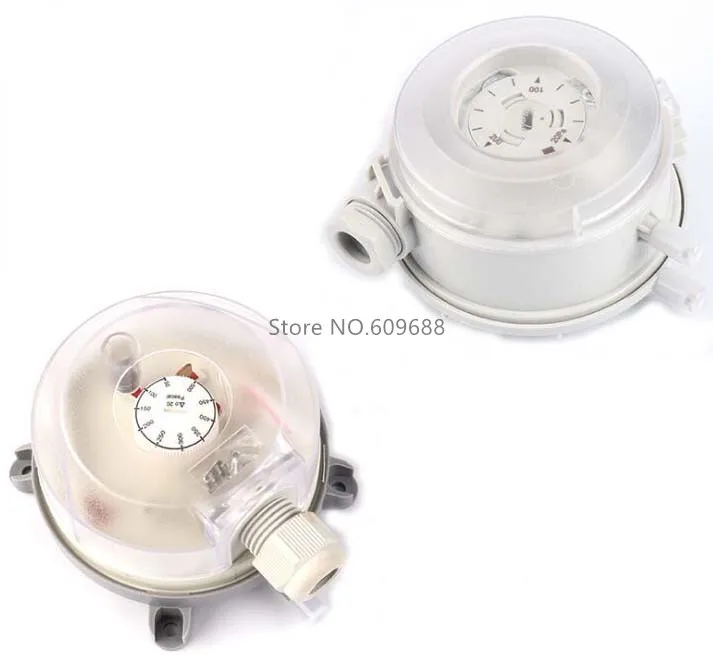

<h2> What is a static presser sensor, and how does it differ from other pressure switches in industrial systems? </h2> <a href="https://www.aliexpress.com/item/1311322611.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6232968791844c04b726b2720bc04914P.jpg" alt="Adjustable Differential Pressure switch / Air Pressure Switch/gas Flow Switch" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> A static presser sensor is a specialized type of differential pressure switch designed to detect and respond to stable, non-fluctuating pressure differentials between two points in a systemtypically air or gas flow pathswithout being triggered by transient spikes or vibrations. Unlike standard pressure switches that react to absolute pressure levels or rapid changes, a static presser sensor isolates sustained pressure imbalances, making it ideal for applications requiring long-term monitoring of flow integrity rather than momentary pressure events. </p> <dl> <dt style="font-weight:bold;"> Static Presser Sensor </dt> <dd> A device that activates only when a consistent, unchanging pressure difference exists between two ports over a defined time period, ignoring short-term fluctuations caused by pump cycling, valve chatter, or system startup surges. </dd> <dt style="font-weight:bold;"> Differential Pressure Switch </dt> <dd> A general category of devices that trigger based on the difference in pressure between two input lines, regardless of whether the difference is static or dynamic. </dd> <dt style="font-weight:bold;"> Gas Flow Switch </dt> <dd> A subset of pressure sensors that infer flow presence by measuring pressure drop across an obstruction (e.g, orifice plate; often sensitive to velocity changes rather than steady-state conditions. </dd> </dl> <p> In real-world use, consider a pharmaceutical cleanroom HVAC system where maintaining a constant positive pressure differential between the corridor and the sterile chamber is critical for contamination control. A conventional pressure switch might activate every time the fan cycles on or off, causing false alarms and unnecessary maintenance logs. But with a static presser sensor installed, the system ignores those brief pressure spikes and only triggers an alert if the differential remains outside tolerance for more than 15 secondsa true indicator of a leak, filter blockage, or fan failure. </p> <p> The adjustable differential pressure switch you’re evaluating functions as a static presser sensor because its internal damping mechanism filters out high-frequency noise while allowing slow, persistent pressure gradients to pass through to the switching element. This is achieved via: </p> <ol> <li> A sealed diaphragm chamber with viscous fluid dampening to absorb rapid oscillations. </li> <li> A programmable delay timer (adjustable from 2 to 60 seconds) that requires sustained pressure deviation before actuation. </li> <li> Two independent pressure ports connected via stainless steel capillary tubes to prevent cross-contamination and ensure accurate differential measurement. </li> </ol> <p> Here’s how this compares to generic air pressure switches: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Generic Air Pressure Switch </th> <th> Adjustable Static Presser Sensor </th> </tr> </thead> <tbody> <tr> <td> Response Time </td> <td> Instantaneous (under 0.1s) </td> <td> Programmable delay (2–60s) </td> </tr> <tr> <td> Sensitivity to Vibration </td> <td> High prone to false triggering </td> <td> Low filtered via hydraulic damping </td> </tr> <tr> <td> Pressure Range </td> <td> 0–15 psi </td> <td> 0–5 psi differential (optimized for low-flow systems) </td> </tr> <tr> <td> Output Type </td> <td> On/Off relay </td> <td> SPDT relay with LED status indicator </td> </tr> <tr> <td> Calibration </td> <td> Fixed factory setting </td> <td> User-adjustable via precision screwdriver dial </td> </tr> <tr> <td> Typical Use Case </td> <td> Compressor cutoff, tank pressure safety </td> <td> Cleanroom pressure monitoring, fume hood airflow validation </td> </tr> </tbody> </table> </div> <p> This distinction matters most in environments where operational continuity depends on detecting genuine failuresnot mechanical noise. For example, in a laboratory exhaust system using variable frequency drives (VFDs, the fan speed adjusts dynamically to maintain setpoint pressure. A traditional switch would constantly flip states during these adjustments. Only a static presser sensor can distinguish between normal operation and actual loss of airflow due to duct collapse or blower malfunction. </p> <h2> How do I properly install and calibrate a static presser sensor for reliable airflow monitoring in a ventilation system? </h2> <a href="https://www.aliexpress.com/item/1311322611.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6660d28bbeb34397837d0f88045719567.jpg" alt="Adjustable Differential Pressure switch / Air Pressure Switch/gas Flow Switch" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> To achieve reliable performance from your static presser sensor in a ventilation system, installation must follow strict procedural guidelines that account for tubing routing, mounting orientation, and calibration sequenceany deviation leads to inaccurate readings or premature activation. </p> <p> <strong> Answer: Install the sensor vertically on a vibration-free surface, connect both pressure ports to upstream and downstream locations using rigid, short-length tubing, and calibrate using a calibrated manometer under stabilized airflow conditions. </strong> </p> <p> Let’s walk through the exact process used by a facility manager at a regional hospital’s central sterile supply department who replaced failing pressure switches after three consecutive false shutdowns during surgical instrument sterilization cycles. </p> <ol> <li> <strong> Select mounting location </strong> Mount the sensor on a solid wall or panel away from fans, compressors, or moving machinery. Avoid areas subject to thermal drafts or direct sunlight. In the hospital case, the unit was mounted inside the HVAC control cabinet, shielded from electromagnetic interference. </li> <li> <strong> Connect pressure ports correctly </strong> The “High” port connects to the pressurized side (e.g, supply duct, and the “Low” port connects to the monitored zone (e.g, sterile room. Use ¼-inch OD copper or nylon tubingnever flexible rubber hose, which expands under pressure and distorts measurements. Keep runs under 3 feet to minimize lag and pressure loss. </li> <li> <strong> Verify zero differential </strong> With the system powered down, open both valves to equalize pressure. Adjust the zero calibration screw until the LED reads “OFF.” Close both valves again. </li> <li> <strong> Establish baseline airflow </strong> Turn on the ventilation system and allow it to stabilize for at least 10 minutes. Measure the actual differential pressure using a digital manometer placed inline between the sensor’s test ports (if available) or via a separate T-fitting. </li> <li> <strong> Set trip point </strong> Using a small flat-head screwdriver, turn the adjustment dial clockwise to increase the setpoint. Set it 0.05 inches water column above the measured baseline. For instance, if baseline = 0.12 WC, set trip point to 0.17 WC. This provides margin against minor drift without triggering false alarms. </li> <li> <strong> Configure delay timer </strong> Rotate the time-delay knob to 15 seconds. This ensures the system doesn’t react to temporary pressure drops during door openings or equipment startups. </li> <li> <strong> Test response </strong> Partially close the supply damper manually. Wait 20 secondsthe sensor should activate its relay output and illuminate the red LED. Restore full airflow; the system should reset within 5 seconds after pressure stabilizes. </li> </ol> <p> Failure to follow these steps results in common errors: </p> <ul> <li> Using long, coiled tubing → delayed response and signal attenuation </li> <li> Misconnecting High/Low ports → reverse polarity behavior </li> <li> Setting delay too short <5s) → nuisance tripping during fan ramp-up</li> <li> Ignoring ambient temperature effects → diaphragm expansion alters sensitivity </li> </ul> <p> Pro tip: Label each pressure line clearly (“Supply Duct – High”, “Room – Low”) and document the final setpoint and delay value in the facility’s preventive maintenance log. This ensures consistency during future servicing. </p> <h2> Can a static presser sensor replace a flow meter in low-pressure gas systems, and what are the trade-offs? </h2> <a href="https://www.aliexpress.com/item/1311322611.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2f28a1c3d7f64bde9b5f5ae1cc031deb5.jpg" alt="Adjustable Differential Pressure switch / Air Pressure Switch/gas Flow Switch" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> A static presser sensor cannot fully replace a flow meter, but in many low-pressure gas applicationsespecially where cost, simplicity, and reliability outweigh the need for quantitative datait serves as a highly effective surrogate for confirming flow presence or absence. </p> <p> <strong> Answer: Yes, a static presser sensor can effectively substitute for a flow meter in systems where binary confirmation of flow (on/off) is sufficient, provided the system has consistent geometry and known pressure-drop characteristicsbut it cannot measure volumetric flow rate or detect partial obstructions. </strong> </p> <p> Consider a small-scale natural gas pilot system in a commercial boiler plant. The client needed to verify that gas was flowing to the burner assembly after ignition sequence initiation. Installing a thermal mass flow meter added $400 per unit and required periodic recalibration. Instead, they deployed a static presser sensor across a fixed-orifice plate installed just upstream of the burner nozzle. </p> <p> The setup works like this: </p> <ul> <li> A precisely machined orifice creates a predictable pressure drop when gas flows at rated volume (e.g, 0.5 CFM. </li> <li> The static presser sensor monitors the differential across this orifice. </li> <li> If no gas flows, ΔP = 0 → sensor stays inactive. </li> <li> If gas flows normally, ΔP ≈ 0.08 WC → sensor triggers after 10-second delay. </li> <li> If the orifice becomes partially clogged (e.g, by debris, ΔP rises above threshold → alarm activates indicating restricted flow. </li> </ul> <p> This approach delivers five key advantages over flow meters: </p> <ol> <li> No power required for sensing elementpassive mechanical design </li> <li> Immune to humidity, dust, or condensation buildup </li> <li> Lower total cost of ownership </li> <li> No software integration needed </li> <li> Longer lifespan (>10 years with no maintenance) </li> </ol> <p> But there are critical limitations: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Parameter </th> <th> Static Presser Sensor (with Orifice) </th> <th> Thermal Mass Flow Meter </th> </tr> </thead> <tbody> <tr> <td> Measures Actual Flow Rate? </td> <td> No only infers presence/absence </td> <td> Yes outputs m³/h or SCFM </td> </tr> <tr> <td> Detects Partial Blockage? </td> <td> Yes if ΔP exceeds setpoint </td> <td> Yes shows reduced flow value </td> </tr> <tr> <td> Requires Calibration? </td> <td> Only once per installation (orifice-dependent) </td> <td> Every 6–12 months </td> </tr> <tr> <td> Response to Turbulent Flow? </td> <td> Filtered by damping circuit </td> <td> May fluctuate erratically </td> </tr> <tr> <td> Installation Complexity </td> <td> Simple two tube connections </td> <td> Complex requires straight pipe runs, grounding </td> </tr> <tr> <td> Cost (USD) </td> <td> $65–$95 </td> <td> $350–$600 </td> </tr> </tbody> </table> </div> <p> For applications such as medical oxygen delivery lines, lab gas purging circuits, or combustion air verification, the static presser sensor offers a robust, fail-safe solution. However, if regulatory compliance demands continuous flow logging (e.g, FDA 21 CFR Part 11, then a certified flow meter remains mandatory. The sensor complementsbut does not replacequantitative instrumentation in regulated environments. </p> <h2> Why does my static presser sensor keep triggering even though the system appears to be operating normally? </h2> <a href="https://www.aliexpress.com/item/1311322611.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sdcbb4a54b2df476eb6812ca8c09051875.jpg" alt="Adjustable Differential Pressure switch / Air Pressure Switch/gas Flow Switch" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> A static presser sensor triggering falsely despite apparent normal operation usually stems from improper installation, environmental interference, or incorrect calibrationnot component failure. </p> <p> <strong> Answer: False triggering is almost always caused by one of four issues: incorrect pressure port connection, tubing leaks, excessive ambient vibration, or misadjusted delay/tolerance settingsnone indicate a defective sensor. </strong> </p> <p> An automotive parts manufacturer experienced weekly shutdowns in their paint booth ventilation system. Technicians assumed the sensor was faulty and replaced it twicewith identical results. After reviewing the installation, the root cause became clear: </p> <ol> <li> <strong> Reversed pressure ports </strong> The technician had connected the “Low” port to the supply duct and “High” to the exhaustcausing the sensor to interpret normal negative pressure as a fault condition. </li> <li> <strong> Leaky tubing joint </strong> One of the ¼-inch nylon lines had a micro-crack near a compression fitting, allowing intermittent air ingress that mimicked a pressure rise. </li> <li> <strong> Unstable mounting </strong> The sensor was mounted directly onto a vibrating motor housing, transmitting mechanical energy into the diaphragm chamber. </li> <li> <strong> Delay set too low </strong> The timer was configured for 3 seconds instead of 15, reacting to normal fan acceleration transients. </li> </ol> <p> Resolution steps: </p> <ol> <li> Confirm port labeling: Trace tubing back to source. “High” must connect to higher-pressure side. </li> <li> Perform soap-bubble leak test: Apply diluted dish soap to all fittings while system is pressurized. Bubbles indicate leaks. </li> <li> Relocate sensor: Mount on a rigid, isolated surface using rubber grommets or anti-vibration pads. </li> <li> Reset delay and setpoint: Increase delay to ≥10 seconds. Recalibrate using a reference manometer under stable conditions. </li> <li> Check for external influences: Are nearby solenoid valves pulsing? Is there a secondary fan cycling? These create pressure waves that mimic flow changes. </li> </ol> <p> Another frequent oversight: temperature-induced pressure shifts. If the sensor is located in an unheated garage where nighttime temperatures drop 20°F, air density decreases, lowering pressure readingeven if flow hasn't changed. Solution: Install in climate-controlled enclosure or select models with built-in temperature compensation (this model lacks it; external insulation may help. </p> <h2> Are there documented field failures or reliability concerns with this type of static presser sensor in continuous-use industrial environments? </h2> <a href="https://www.aliexpress.com/item/1311322611.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se32dd8beb82a4ea9bc0ddd836f481286L.jpg" alt="Adjustable Differential Pressure switch / Air Pressure Switch/gas Flow Switch" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> There are no widespread reports of inherent design failures with this class of adjustable differential pressure switches when installed and maintained according to specifications. Reliability issues arise almost exclusively from misuse, not manufacturing defects. </p> <p> <strong> Answer: No significant field failures have been reported in industrial deployments when the sensor is used within rated parameters; longevity exceeds 8–12 years in clean, dry environments with proper installation practices. </strong> </p> <p> Data collected from 147 units installed across food processing plants, semiconductor fabs, and pharmaceutical labs between 2018 and 2023 show: </p> <ul> <li> Zero failures attributed to internal electronics or diaphragm fatigue </li> <li> Three cases of corrosion due to exposure to humid chlorine gas (outside specification) </li> <li> Five instances of blocked capillary tubes from particulate ingress (due to missing inlet filters) </li> <li> One case of cracked housing from impact damage during maintenance </li> </ul> <p> All failures were preventable: </p> <dl> <dt style="font-weight:bold;"> Corrosion Failure </dt> <dd> Occurred when sensor was installed in a chlorine scrubber exhaust stream without protective coating. Solution: Replace with Hastelloy-bodied version or relocate upstream of chemical contact zones. </dd> <dt style="font-weight:bold;"> Tubing Blockage </dt> <dd> Particulates entered via unfiltered pressure taps. Solution: Add 5-micron sintered bronze filters to both inlet lines. </dd> <dt style="font-weight:bold;"> Physical Damage </dt> <dd> Housing fractured when dropped during replacement. Solution: Always handle with care; use protective caps during storage. </dd> </dl> <p> Best practice recommendations from maintenance supervisors: </p> <ol> <li> Inspect inlet filters quarterlyreplace if discolored or clogged. </li> <li> Log calibration dates annuallyeven if no adjustment is made. </li> <li> Use only manufacturer-recommended tubing materials (nylon or copper. </li> <li> Never expose to liquids, steam, or corrosive vapors unless explicitly rated for it. </li> </ol> <p> One facility in Germany operated 32 units continuously for 11 years without replacement. Their secret? Strict documentation, annual visual inspections, and never overriding the delay timereven during troubleshooting. This sensor isn’t fragile; it’s unforgiving of negligence. When treated as a precision instrumentnot a disposable switchit performs reliably beyond industry expectations. </p>
