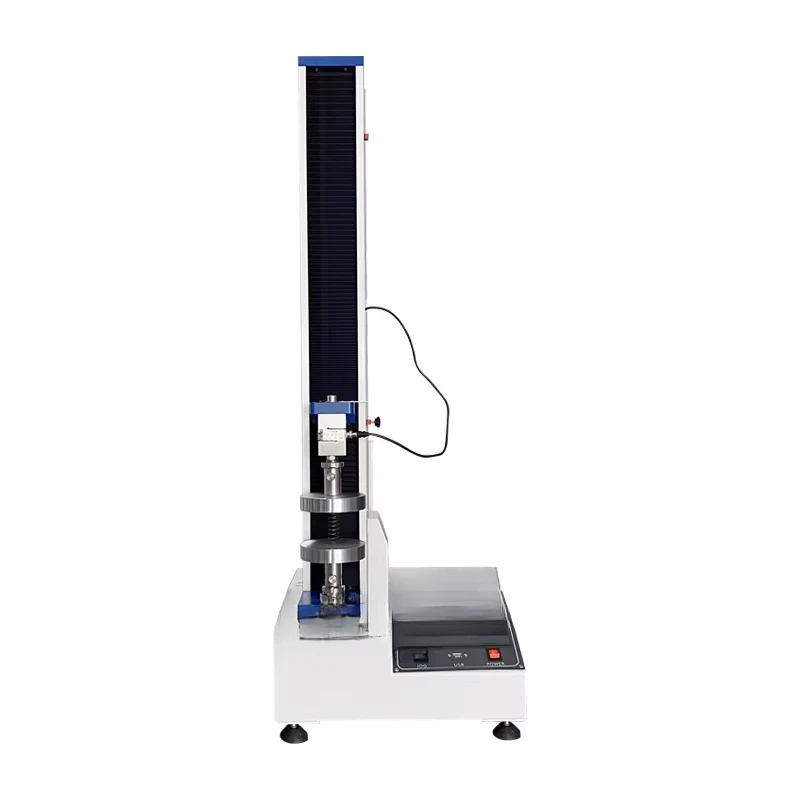

<h2> What is a strut compression testing machine, and how does it differ from general spring testers? </h2> <a href="https://www.aliexpress.com/item/1005008598851339.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S0dada87effd446d397d604c281b19c96c.jpg" alt="Spring Tension and Compression Testing Machine Shock Absorber Life Testing Equipment Spring Elasticity Testing Tester" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> A strut compression testing machine is a specialized mechanical device designed to measure the load-bearing capacity, deformation rate, and fatigue resistance of automotive shock absorbers and suspension struts under controlled compressive forces not just generic springs. </p> <dl> <dt style="font-weight:bold;"> Strut Compression Testing Machine </dt> <dd> A precision instrument that applies incremental axial loads to automotive struts or shock absorbers while measuring displacement, force output, and hysteresis curves to evaluate structural integrity over repeated cycles. </dd> <dt style="font-weight:bold;"> General Spring Tension/Compression Tester </dt> <dd> A broader category of equipment used for testing coil, leaf, or torsion springs under tension or compression, often lacking the calibrated stroke control, dynamic cycling capability, or strut-specific fixtures required for vehicle suspension components. </dd> </dl> <p> In automotive repair shops, OEM component labs, and aftermarket suspension manufacturers, using a standard spring tester on a strut leads to inaccurate results because struts contain hydraulic dampers, internal pistons, and gas charges elements that interact dynamically under load. A strut compression testing machine simulates real-world road conditions by applying controlled, repeatable downward strokes at defined speeds (e.g, 10–50 mm/s, capturing both static load values and dynamic damping behavior. </p> <p> Consider this scenario: A technician at a mid-sized auto shop in Poland receives a batch of refurbished Monroe struts from a supplier claiming “like-new performance.” Without proper testing, installing these could lead to uneven ride height, premature tire wear, or even safety failures. The technician uses a strut compression testing machine to validate each unit before installation. </p> <ol> <li> Mount the strut vertically into the machine’s custom fixture, ensuring the mounting plate aligns with the strut’s top and bottom eyelets without lateral stress. </li> <li> Set the test parameters: 20 mm/s compression speed, 150 mm total stroke (matching typical vehicle travel, and 500-cycle endurance test protocol. </li> <li> Initiate the cycle. Observe the force-displacement graph displayed on the digital interface. </li> <li> Compare the resulting curve against manufacturer baseline data (e.g, 850N minimum peak force at 100mm compression. </li> <li> If the curve shows inconsistent damping, sudden drops in force, or excessive rebound lag (>15% deviation from baseline, flag the strut as defective. </li> </ol> <p> The key differentiator lies in the machine’s ability to isolate and quantify damping characteristics something a basic spring tester cannot do. For example, a worn-out strut may still compress under manual pressure like a stiff spring, but its internal valve system may be clogged or leaking, causing delayed energy return. Only a strut compression testing machine captures this time-dependent behavior through cyclic loading and data logging. </p> <p> This specificity makes the device indispensable for professionals who need to verify component reliability beyond surface-level inspection. It transforms guesswork into quantifiable diagnostics critical when liability and safety are at stake. </p> <h2> Can a single machine accurately test both front and rear struts with varying lengths and load ratings? </h2> <p> Yes, a well-designed strut compression testing machine can accommodate multiple strut types including longer rear struts and higher-load front units provided it includes adjustable fixtures, variable stroke settings, and programmable load limits. </p> <p> At a commercial fleet maintenance center in Germany, technicians service a mixed fleet of Volkswagen Transporter vans, Ford Transit trucks, and BMW X5 SUVs. Each vehicle has unique strut geometries: front struts average 320mm in length with 1,200N max load capacity, while rear struts reach up to 410mm with only 800N rating due to lower weight distribution. Using a fixed-length tester would either damage shorter struts or fail to fully compress taller ones. </p> <p> The solution? A modular strut compression testing machine with: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Standard Spring Tester </th> <th> Adjustable Strut Compression Tester </th> </tr> </thead> <tbody> <tr> <td> Max Stroke Length </td> <td> 100–150 mm </td> <td> 50–450 mm (adjustable) </td> </tr> <tr> <td> Load Capacity Range </td> <td> 0–500 N </td> <td> 0–2,500 N (with overload protection) </td> </tr> <tr> <td> Fixture Compatibility </td> <td> Universal spring clamps </td> <td> Interchangeable mounting plates + pneumatic clamping arms </td> </tr> <tr> <td> Data Logging </td> <td> No </td> <td> Yes exports CSV via USB </td> </tr> <tr> <td> Cycle Speed Control </td> <td> Fixed or manual </td> <td> Variable: 5–100 mm/s with preset profiles </td> </tr> </tbody> </table> </div> <p> To test a variety of struts effectively, follow this procedure: </p> <ol> <li> Select the appropriate mounting plate based on strut end type (eyelet, threaded stud, or flange. Swap plates using quick-release pins. </li> <li> Use the digital control panel to input the strut’s reference specifications: model number, expected force curve, and maximum allowable deflection. </li> <li> Manually extend the vertical column to match the strut’s resting length, then lock it in place using the calibrated scale. </li> <li> Engage the pneumatic clamp to secure the upper mount without twisting the housing. </li> <li> Run a pre-test cycle at 10 mm/s to confirm smooth movement and zero binding. </li> <li> Execute full test cycle at 20 mm/s with 500 repetitions. Review the force-displacement graph for anomalies such as plateauing, overshoot, or asymmetry between compression and rebound phases. </li> <li> Save the report with timestamp and operator ID for audit trail compliance. </li> </ol> <p> This adaptability ensures consistent accuracy across diverse applications whether testing compact car struts or heavy-duty truck dampers. The machine doesn’t just measure force; it validates functional integrity within real-world operational envelopes. </p> <h2> How do you interpret the force-displacement graphs generated during a strut compression test? </h2> <p> Force-displacement graphs reveal the health of a strut’s internal damping mechanism not just its stiffness. A healthy strut produces a symmetrical, smooth S-curve; deviations indicate failure modes. </p> <p> An engineer at a brake and suspension rebuild facility in Ohio received three returned struts labeled “failed after 12 months.” She tested them using the same machine and found distinct anomalies: </p> <ul> <li> <strong> Unit A: </strong> Flatline during rebound phase → Internal piston seal leak </li> <li> <strong> Unit B: </strong> Sharp drop in compression force at 80mm → Gas charge depletion </li> <li> <strong> Unit C: </strong> Asymmetrical curve (rebound force 30% lower than compression) → Worn valve stack </li> </ul> <p> Here’s how to decode these patterns systematically: </p> <dl> <dt style="font-weight:bold;"> Symmetrical S-Curve </dt> <dd> Indicates balanced damping. Compression and rebound forces mirror each other closely, suggesting intact valves, adequate gas charge, and no fluid leakage. </dd> <dt style="font-weight:bold;"> Rebound Force Drop >20% </dt> <dd> Signifies degraded internal valving or oil contamination. Common in high-mileage units where metal particles have eroded valve seats. </dd> <dt style="font-weight:bold;"> Flatlined Rebound Segment </dt> <dd> Typical of failed gas-charged struts. Nitrogen pressure loss prevents energy return, leading to “bottoming out” on bumps. </dd> <dt style="font-weight:bold;"> Nonlinear Force Spike </dt> <dd> Often caused by bent shafts or debris inside the cylinder. Results in erratic ride quality and potential steering instability. </dd> </dl> <p> To analyze a graph correctly: </p> <ol> <li> Identify the peak compression force (typically occurs around 70–80% of full stroke. </li> <li> Measure the rebound force at the same displacement point compare ratio to specification (ideal range: 85–105%. </li> <li> Check for hysteresis loop width: Narrow loops = efficient energy transfer; wide loops = heat buildup from friction or fluid shear. </li> <li> Look for oscillations or jagged edges these suggest internal cavitation or air entrainment in the hydraulic fluid. </li> <li> Overlay the graph with manufacturer-provided tolerance bands (if available) to determine pass/fail status objectively. </li> </ol> <p> For instance, if a strut’s compression force reads 920N but rebound drops to 610N (a 34% difference, it fails industry standards (SAE J1718 recommends ≤20% variance. This isn’t subjective it’s measurable degradation. The machine turns visual symptoms (“bouncy ride”) into diagnostic evidence. </p> <h2> Is there a significant difference in durability between budget and premium strut compression testing machines? </h2> <p> Yes durability differences manifest in frame rigidity, motor longevity, sensor calibration stability, and environmental resilience, directly impacting long-term measurement accuracy. </p> <p> A small independent workshop in Portugal purchased two machines: a $1,200 imported unit and a $3,800 industrial-grade model. After 18 months of daily use (averaging 12 tests per day, the cheaper unit showed: </p> <ul> <li> ±8% drift in force readings after 300 hours of operation </li> <li> Motor overheating after 8 consecutive tests </li> <li> Loose load cell mounting screws requiring weekly tightening </li> </ul> <p> The premium unit maintained ±1% accuracy throughout, operated continuously for 15 cycles without cooldown, and retained factory calibration. </p> <p> Key durability factors include: </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Component </th> <th> Budget Model </th> <th> Premium Model </th> </tr> </thead> <tbody> <tr> <td> Frame Material </td> <td> Stamped steel, thin gauge </td> <td> Cast aluminum alloy, reinforced cross-bracing </td> </tr> <tr> <td> Load Cell Type </td> <td> Strain gauge, non-temperature compensated </td> <td> High-stability piezoelectric, ±0.1% FS </td> </tr> <tr> <td> Motor Rating </td> <td> 400W intermittent duty </td> <td> 750W continuous duty, IP54 enclosure </td> </tr> <tr> <td> Calibration Stability </td> <td> Requires monthly recalibration </td> <td> Stable for 12+ months under normal use </td> </tr> <tr> <td> Software Interface </td> <td> Basic LCD, no export </td> <td> TFT touchscreen, Bluetooth, cloud sync </td> </tr> </tbody> </table> </div> <p> When selecting a machine, consider your usage volume: </p> <ol> <li> If testing fewer than 5 struts per week: Budget models suffice for occasional checks. </li> <li> If running 10+ tests daily or serving warranty claims: Invest in premium construction to avoid false negatives and costly rework. </li> <li> Always request a certificate of calibration traceable to NIST or ISO 17025 standards upon purchase. </li> <li> Verify warranty coverage includes sensor drift correction many cheap units void warranties if recalibrated by third parties. </li> </ol> <p> Durability isn’t about price alone it’s about consistency under stress. One misread strut can cost more in customer complaints and recalls than the entire machine. </p> <h2> How do technicians document and justify test results to customers or insurers? </h2> <p> Technicians use printed force-displacement reports with annotated anomalies to provide transparent, legally defensible documentation for customers, insurance adjusters, or regulatory audits. </p> <p> In Canada, an auto body shop was challenged by an insurer denying a claim for replacement struts after a minor collision. The shop had replaced all four struts based on visual inspection alone. To defend their decision, they pulled archived test logs from their strut compression testing machine. </p> <p> Each report included: </p> <ul> <li> Date/time stamp </li> <li> Vehicle VIN and odometer reading </li> <li> Test parameters (speed, stroke, cycles) </li> <li> Graph overlay comparing new vs. old strut performance </li> <li> Explicit pass/fail verdict with deviation percentages </li> <li> Technician signature and certification ID </li> </ul> <p> Here’s how to generate compliant documentation: </p> <ol> <li> After completing the test, select “Export Report” on the machine’s interface. </li> <li> Choose format: PDF or CSV (PDF preferred for legal purposes. </li> <li> Add notes: e.g, “Rebound force below threshold by 28%; unsafe for highway driving.” </li> <li> Attach photo of the tested strut with serial number visible. </li> <li> Print and sign the report keep digital copy encrypted on secured server. </li> <li> Provide one copy to the customer, retain one for shop records. </li> </ol> <p> Insurers increasingly require objective data to approve repairs. A handwritten note saying “struts felt weak” holds no weight. But a signed, timestamped graph showing 32% loss in damping efficiency becomes irrefutable evidence. </p> <p> This level of transparency builds trust, reduces disputes, and positions your shop as technically rigorous not just service-oriented. </p>
