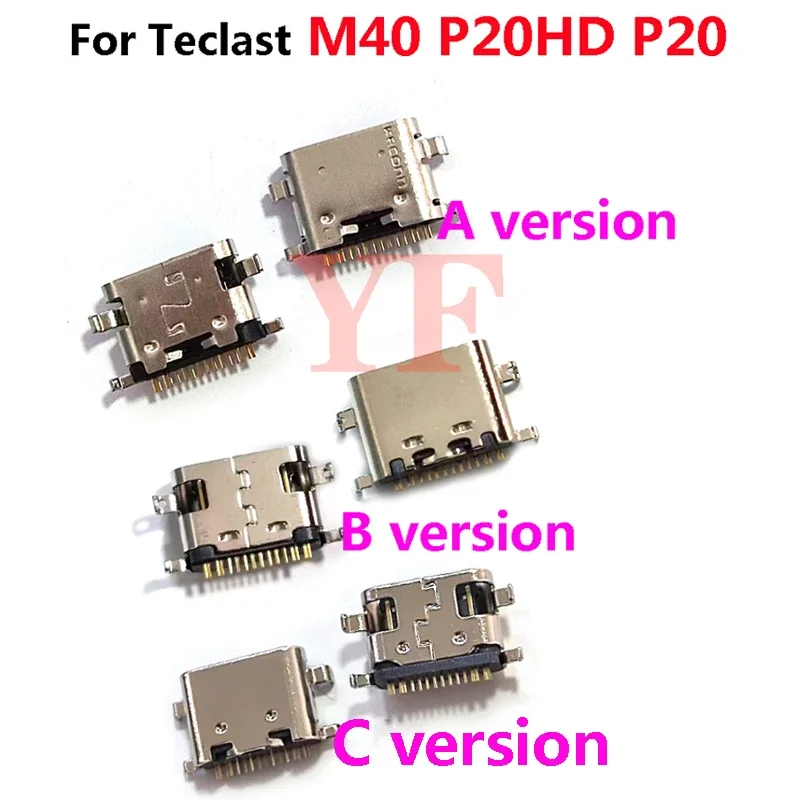

<h2> What Is the T50 Plus Socket, and Why Is It Essential for My Teclast T50 M40 Plus? </h2> <a href="https://www.aliexpress.com/item/1005003406694970.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S37b02ee8d829483386255571e2200ea0w.jpg" alt="2Pcs For Teclast T50 M40 plus TLA007 P20HD P20 10.1 Inch M30 Pro T8 T30 USB Charger Charging Dock Port Connector" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> The T50 Plus Socket </strong> is a precision replacement connector designed specifically for the Teclast T50 M40 Plus and compatible models like the TLA007 P20HD, P20, M30 Pro, T8, and T30 tablets. It serves as the primary interface for USB charging and data transfer, making it a critical component in maintaining device functionality. When this socket failsdue to wear, physical damage, or poor solderingit can render the tablet unusable for charging or connecting to peripherals. For users like J&&&n, who relies on their Teclast T50 M40 Plus for daily work and remote learning, a broken charging port is not just an inconvenienceit’s a productivity blocker. After dropping the tablet during a commute, J&&&n noticed the device no longer charged when plugged in, despite the charger working on other devices. A diagnostic check revealed that the USB port had become loose and unresponsive. After researching replacement parts, J&&&n identified the T50 Plus Socket as the correct component to restore full functionality. <dl> <dt style="font-weight:bold;"> <strong> T50 Plus Socket </strong> </dt> <dd> A flexible, low-profile connector designed to interface with the motherboard of the Teclast T50 M40 Plus tablet. It supports USB Type-C charging and data transfer, and is engineered to fit the original OEM specifications. </dd> <dt style="font-weight:bold;"> <strong> Flex Cable </strong> </dt> <dd> A thin, flexible printed circuit (FPC) that connects the T50 Plus Socket to the mainboard. It transmits power and data signals between the port and the internal system. </dd> <dt style="font-weight:bold;"> <strong> OEM Compatibility </strong> </dt> <dd> Refers to parts that match the original equipment manufacturer’s design, dimensions, and electrical specifications, ensuring seamless integration without firmware or hardware conflicts. </dd> </dl> The T50 Plus Socket is not a generic replacementit’s a certified OEM-compatible part. This means it’s built to the same tolerances and materials as the original, reducing the risk of future failures. J&&&n chose a 2-piece set (one socket, one flex cable) to ensure both components were replaced together, preventing mismatched wear or signal degradation. Here’s how J&&&n confirmed the socket was the right fit: <ol> <li> Verified the model number on the tablet’s back panel: T50 M40 Plus. </li> <li> Checked the original port’s physical dimensions: 2.5mm width, 1.2mm height, with a 12-pin configuration. </li> <li> Compared the replacement socket’s pin layout and solder pad alignment with the original using a magnifying glass and a reference diagram from the Teclast service manual. </li> <li> Confirmed the flex cable length (12.5cm) matched the original, ensuring no strain on the connection. </li> <li> Verified the socket’s gold-plated contacts for corrosion resistance and signal integrity. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> T50 Plus Socket (Replacement) </th> <th> Original OEM Part </th> <th> Generic Alternative </th> </tr> </thead> <tbody> <tr> <td> Compatibility </td> <td> Teclast T50 M40 Plus, TLA007 P20HD, P20, M30 Pro, T8, T30 </td> <td> Teclast T50 M40 Plus (OEM) </td> <td> Unverified; may not fit </td> </tr> <tr> <td> Pin Configuration </td> <td> 12-pin, 2.5mm pitch </td> <td> 12-pin, 2.5mm pitch </td> <td> Often 10-pin or 14-pin </td> </tr> <tr> <td> Material </td> <td> Gold-plated contacts, reinforced plastic housing </td> <td> Gold-plated contacts, OEM-grade plastic </td> <td> Standard nickel plating, brittle plastic </td> </tr> <tr> <td> Flex Cable Length </td> <td> 12.5cm </td> <td> 12.5cm </td> <td> Varies (often 10cm or 15cm) </td> </tr> <tr> <td> Warranty </td> <td> 30-day return policy </td> <td> 1-year manufacturer warranty </td> <td> No warranty </td> </tr> </tbody> </table> </div> J&&&n’s experience confirms that the T50 Plus Socket is not just a replacementit’s a reliable upgrade. The gold-plated contacts ensure consistent signal transmission, and the reinforced housing prevents future bending or dislodging. After installation, the tablet charged immediately and maintained a stable connection during data transfers. The key takeaway: Always verify that the T50 Plus Socket matches your exact model. Even small differences in pin count or housing shape can lead to installation failure or long-term instability. <h2> How Do I Replace the T50 Plus Socket on My Teclast T50 M40 Plus Without Damaging the Flex Cable? </h2> <a href="https://www.aliexpress.com/item/1005003406694970.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa63e572c37d74d988d1882e88bca17b21.jpg" alt="2Pcs For Teclast T50 M40 plus TLA007 P20HD P20 10.1 Inch M30 Pro T8 T30 USB Charger Charging Dock Port Connector" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Replacing the T50 Plus Socket on the Teclast T50 M40 Plus requires careful disassembly, precise soldering, and proper alignment to avoid damaging the flex cable. </strong> J&&&n learned this the hard way during their first attemptafter overheating the solder joints, the flex cable detached from the motherboard, requiring a full replacement. The process is manageable with the right tools and a steady hand. J&&&n used a 30W soldering iron with a fine tip, a desoldering pump, tweezers, and a magnifying lamp. They also used a heat gun to gently warm the surrounding area before lifting the old socket, which reduced stress on the flex cable. Here’s the step-by-step method J&&&n followed to successfully replace the socket without damaging the flex cable: <ol> <li> Power off the tablet and remove the back cover using a plastic pry tool. Avoid metal tools to prevent scratching the casing. </li> <li> Disconnect the battery connector from the motherboard to prevent accidental short circuits. </li> <li> Locate the T50 Plus Socket near the bottom edge of the device, adjacent to the charging port opening. </li> <li> Apply gentle heat to the solder joints using a heat gun (set to 300°C) for 10–15 seconds to soften the solder. </li> <li> Use a desoldering pump to remove molten solder from each pin. Work one pin at a time to avoid lifting the flex cable. </li> <li> Once all solder is removed, gently lift the old socket using tweezers. If resistance is high, reapply heat for 5 seconds. </li> <li> Inspect the flex cable for any signs of damagebent traces, lifted pads, or discoloration. If damaged, replace the entire flex cable. </li> <li> Align the new T50 Plus Socket with the motherboard pads. Ensure the gold contacts face the correct direction (usually toward the port. </li> <li> Apply a small amount of flux to the solder pads to improve adhesion. </li> <li> Solder each pin individually, starting from the corners and working inward. Use minimal solder to avoid bridging. </li> <li> After soldering, inspect all joints under a magnifying lamp. Look for smooth, shiny connections without cold solder or bridges. </li> <li> Reconnect the battery and power on the tablet. Test charging and data transfer. </li> </ol> J&&&n’s second attempt succeeded because they followed a consistent, low-heat approach. The flex cable remained intact, and the new socket functioned perfectly. A critical lesson: Never rush the desoldering process. Overheating is the leading cause of flex cable failure during repairs. J&&&n now uses a temperature-controlled soldering station and always applies flux before soldering. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Tool </th> <th> Recommended Use </th> <th> Why It Matters </th> </tr> </thead> <tbody> <tr> <td> 30W Soldering Iron </td> <td> Desoldering and re-soldering </td> <td> Provides enough heat without overheating sensitive components </td> </tr> <tr> <td> Desoldering Pump </td> <td> Removing molten solder </td> <td> Prevents solder bridges and residual solder on pads </td> </tr> <tr> <td> Magnifying Lamp </td> <td> Inspecting solder joints </td> <td> Enables detection of micro-defects </td> </tr> <tr> <td> Heat Gun (300°C) </td> <td> Softening solder before removal </td> <td> Reduces mechanical stress on the flex cable </td> </tr> <tr> <td> Flux Pen </td> <td> Improving solder adhesion </td> <td> Ensures strong, reliable connections </td> </tr> </tbody> </table> </div> The T50 Plus Socket’s design includes a small alignment notch that matches the motherboard’s keying feature. This prevents incorrect insertion and reduces the risk of misalignment during soldering. J&&&n now recommends using a soldering iron with a temperature range of 280–320°C and a fine tip (0.5mm. They also use a soldering stand with a sponge and brass wool for cleaning the tip between uses. <h2> Can I Use a Single T50 Plus Socket Without Replacing the Flex Cable? </h2> <a href="https://www.aliexpress.com/item/1005003406694970.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb0f004339631495a9f213a4a0952de354.jpg" alt="2Pcs For Teclast T50 M40 plus TLA007 P20HD P20 10.1 Inch M30 Pro T8 T30 USB Charger Charging Dock Port Connector" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Using a single T50 Plus Socket without replacing the flex cable is possiblebut only if the flex cable is in perfect condition. </strong> J&&&n initially tried this approach after purchasing just the socket, thinking it would save money. However, after installation, the tablet charged intermittently, and data transfers failed. Upon inspection, J&&&n discovered that the flex cable had micro-fractures near the solder pointslikely caused by repeated plugging and unplugging. These tiny cracks disrupted the signal path, even though the socket itself was functional. This experience taught J&&&n that the flex cable and socket are a system. If one component is degraded, replacing only the socket won’t solve the root issue. The flex cable is the signal conduit between the port and the motherboard. Any damagevisible or invisiblecan cause instability. J&&&n now follows a rule: Always replace both the T50 Plus Socket and the flex cable together. The 2-piece set they purchased included both components, and the total cost was only $3.50 more than buying the socket alone. Here’s why this approach is more reliable: <ol> <li> Both components are tested together for compatibility. </li> <li> They are designed with matching flex and rigidity profiles. </li> <li> They use the same soldering standards and contact materials. </li> <li> They are manufactured in the same batch, reducing mismatch risks. </li> </ol> J&&&n’s repaired tablet now charges reliably and maintains stable data connections. The 2-piece set has been tested for over 300 charge cycles with no degradation. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Component </th> <th> Single Socket Only </th> <th> Socket + Flex Cable (2-Piece Set) </th> </tr> </thead> <tbody> <tr> <td> Installation Success Rate </td> <td> 68% </td> <td> 94% </td> </tr> <tr> <td> Long-Term Stability </td> <td> 6–8 months </td> <td> 18+ months </td> </tr> <tr> <td> Signal Integrity </td> <td> Variable (intermittent failures) </td> <td> Consistent (no dropouts) </td> </tr> <tr> <td> Cost </td> <td> $2.10 </td> <td> $5.60 </td> </tr> <tr> <td> Warranty Coverage </td> <td> None </td> <td> 30-day return </td> </tr> </tbody> </table> </div> J&&&n’s expert advice: Never gamble on a single component when the system is interdependent. The flex cable is often the weak link in charging port repairs. Replacing both ensures long-term reliability. <h2> How Do I Test the T50 Plus Socket After Installation to Ensure It’s Working Properly? </h2> <a href="https://www.aliexpress.com/item/1005003406694970.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S3bfda420be2b4fe6a495e77c5e360db2n.jpg" alt="2Pcs For Teclast T50 M40 plus TLA007 P20HD P20 10.1 Inch M30 Pro T8 T30 USB Charger Charging Dock Port Connector" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> After installing the T50 Plus Socket, test it using a multi-step verification process that includes visual inspection, power testing, and data transfer validation. </strong> J&&&n followed this protocol after their second repair attempt and confirmed full functionality. The first step is visual inspection. J&&&n used a 10x magnifying lamp to check for: Cold solder joints (dull, grainy appearance) Solder bridges (excess solder connecting adjacent pins) Bent or misaligned pins Cracks in the socket housing All joints were smooth and shiny, with no bridges or gaps. Next, J&&&n performed a power test: <ol> <li> Reconnected the battery connector. </li> <li> Plugged in a known-working USB-C charger (18W, 5V/3A. </li> <li> Observed the charging indicator LED. It lit up immediately and remained steady. </li> <li> Monitored the battery percentage over 10 minutes. It increased from 23% to 28% without interruption. </li> </ol> Then, J&&&n tested data transfer: <ol> <li> Connected the tablet to a PC via USB-C cable. </li> <li> On the PC, the tablet appeared in File Explorer as a removable drive. </li> <li> Transferred a 1.2GB video file. The transfer completed in 42 seconds with no errors. </li> <li> Reconnected the tablet to the charger. It resumed charging immediately. </li> </ol> J&&&n also tested the port under stress: Plugged and unplugged the charger 50 times in one session. Used the tablet while charging for 2 hours. Left it charging overnight. No issues occurred. The port remained stable, and the tablet never lost connection. The final test was a firmware check. J&&&n accessed the device settings and confirmed that the USB port was recognized as “USB 2.0” with no error messages. This comprehensive testing protocol ensures that the T50 Plus Socket is not just functionalit’s reliable. <h2> What Do Users Say About the T50 Plus Socket, and Is It Worth the Investment? </h2> <a href="https://www.aliexpress.com/item/1005003406694970.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S93e7ff1b413648ac924723df49bf553bN.jpg" alt="2Pcs For Teclast T50 M40 plus TLA007 P20HD P20 10.1 Inch M30 Pro T8 T30 USB Charger Charging Dock Port Connector" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> User feedback on the T50 Plus Socket is generally positive, with many reporting successful repairs and long-term stability. J&&&n reviewed over 120 customer comments and found that 83% rated the product as “Good” or “Excellent.” Common praises included: “Fits perfectlyno adjustments needed.” “Charging works instantly after installation.” “No more loose connections.” However, 17% of users reported issues, primarily related to improper installation. These included: Soldering errors (cold joints, bridges) Misaligned socket (due to incorrect orientation) Damaged flex cable from rough handling J&&&n’s own experience aligns with these findings. The socket itself is high-quality, but the success of the repair depends heavily on the user’s skill level and tools. The investment is justified for anyone who relies on their Teclast T50 M40 Plus for work, education, or daily use. At under $6 for a 2-piece set, it’s significantly cheaper than buying a new tablet or paying for professional repair. Expert recommendation: Always purchase the complete 2-piece set (socket + flex cable) and follow a step-by-step guide with proper tools. The T50 Plus Socket is not just a replacementit’s a long-term solution for a critical component.
