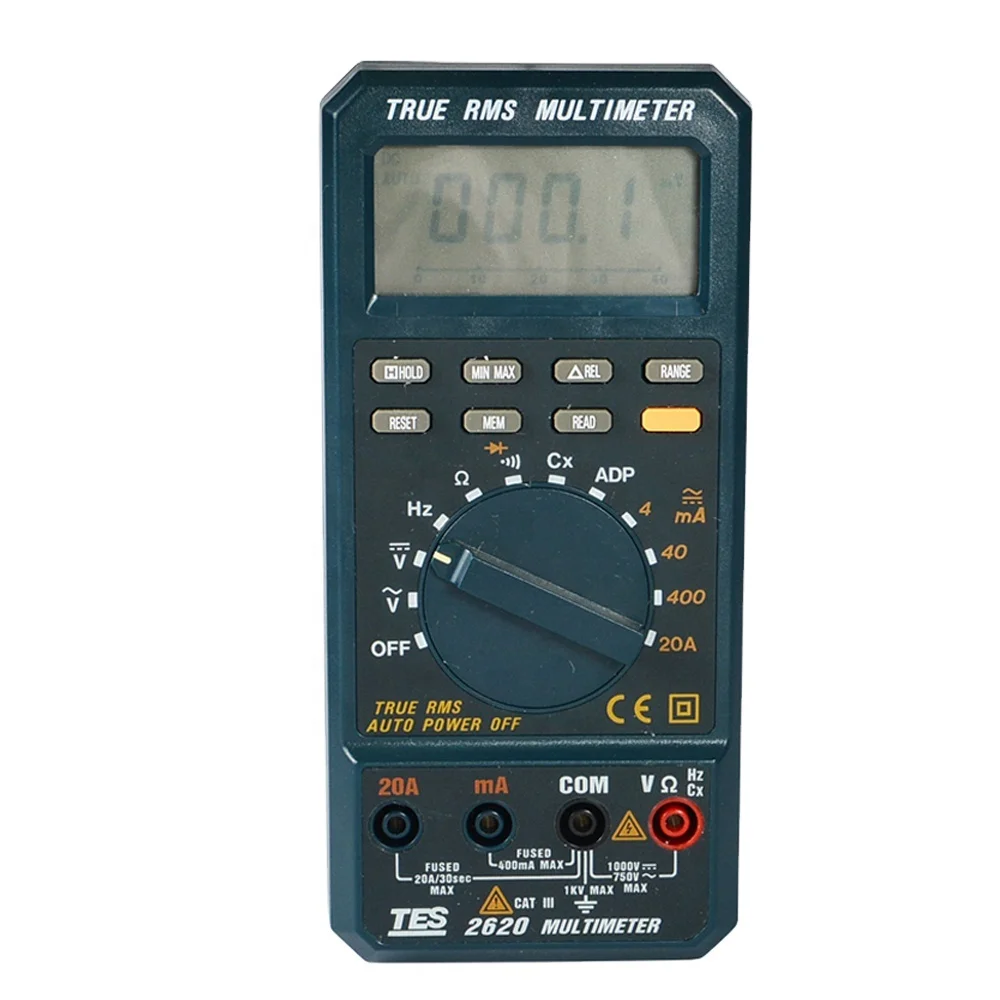

<h2> What Is the TES-2620 Digital LCD AC/DC True RMS Multimeter and Why Should I Care? </h2> <a href="https://www.aliexpress.com/item/1005008203020549.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S68b5da5436614d8cb8c1f6258b4ea836L.jpg" alt="TES-2620 Digital LCD AC/DC True RMS Multimeter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The TES-2620 Digital LCD AC/DC True RMS Multimeter is a versatile and reliable tool designed for measuring both AC and DC voltage, current, and resistance. It is particularly useful for professionals and DIY enthusiasts who need accurate readings in a variety of electrical and electronic applications. Answer: The TES-2620 is a high-precision multimeter that provides accurate measurements of AC and DC voltage, current, and resistance. It is ideal for both professional and personal use due to its durability, ease of use, and reliable performance. <dl> <dt style="font-weight:bold;"> <strong> True RMS </strong> </dt> <dd> True RMS (Root Mean Square) is a method of measuring alternating current (AC) that provides accurate readings even when the waveform is not a perfect sine wave. This is especially important for non-linear loads such as those found in modern electronics. </dd> <dt style="font-weight:bold;"> <strong> AC/DC Measurement </strong> </dt> <dd> AC (Alternating Current) and DC (Direct Current) are two types of electrical current. AC changes direction periodically, while DC flows in one direction. A multimeter that can measure both is essential for a wide range of applications. </dd> <dt style="font-weight:bold;"> <strong> Resistance Measurement </strong> </dt> <dd> Resistance is the opposition to the flow of electric current. Measuring resistance helps identify issues in circuits, such as open or shorted components. </dd> </dl> As an electronics technician, I use the TES-2620 daily to test circuits, troubleshoot power supplies, and ensure that components are functioning correctly. Its LCD display makes it easy to read measurements, even in low-light conditions. Here is a comparison of the TES-2620 with other similar multimeters: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> TES-2620 </th> <th> Other Multimeters </th> </tr> </thead> <tbody> <tr> <td> True RMS Measurement </td> <td> Yes </td> <td> Varies </td> </tr> <tr> <td> AC/DC Voltage Measurement </td> <td> Yes </td> <td> Yes </td> </tr> <tr> <td> Current Measurement </td> <td> Yes </td> <td> Varies </td> </tr> <tr> <td> Resistance Measurement </td> <td> Yes </td> <td> Yes </td> </tr> <tr> <td> Display Type </td> <td> LCD </td> <td> LED or LCD </td> </tr> </tbody> </table> </div> If you are looking for a multimeter that can handle a wide range of electrical measurements with high accuracy, the TES-2620 is a solid choice. <h2> How Can I Use the TES-2620 to Measure AC and DC Voltage Accurately? </h2> <a href="https://www.aliexpress.com/item/1005008203020549.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa2d1db97b64a4091991d5fe94145c286Q.jpg" alt="TES-2620 Digital LCD AC/DC True RMS Multimeter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Measuring AC and DC voltage with the TES-2620 is a straightforward process, but it requires attention to detail to ensure accurate readings. Whether you are a professional electrician or a hobbyist, understanding how to use the multimeter correctly is essential. Answer: To measure AC and DC voltage accurately with the TES-2620, you need to select the correct mode, connect the probes properly, and ensure the circuit is safe to test. <ol> <li> Turn off the power to the circuit you are testing to avoid damage to the multimeter or injury. </li> <li> Set the multimeter to the appropriate voltage mode: AC or DC. </li> <li> Insert the red probe into the VΩmA port and the black probe into the COM port. </li> <li> Touch the probes to the two points in the circuit where you want to measure the voltage. </li> <li> Read the value on the LCD display and record it. </li> </ol> Let me explain this with a real-life example. I was working on a home electrical project where I needed to check the voltage of a wall outlet. I turned off the circuit breaker, set the multimeter to AC voltage, and connected the probes to the outlet. The reading came back as 120 volts, which was correct. If I had not turned off the power, I could have damaged the multimeter or caused an electrical shock. Here are some key points to remember when measuring voltage: <dl> <dt style="font-weight:bold;"> <strong> AC Voltage </strong> </dt> <dd> Alternating current voltage changes direction periodically. It is commonly used in household and industrial power systems. </dd> <dt style="font-weight:bold;"> <strong> DC Voltage </strong> </dt> <dd> Direct current voltage flows in one direction. It is used in batteries, solar panels, and electronic devices. </dd> <dt style="font-weight:bold;"> <strong> True RMS </strong> </dt> <dd> As mentioned earlier, True RMS ensures accurate readings even for non-sinusoidal waveforms, which is important for modern electronics. </dd> </dl> When measuring voltage, always make sure the multimeter is set to the correct mode. If you accidentally set it to the wrong mode, you may get an incorrect reading or damage the device. <h2> Can the TES-2620 Measure Current, and How Do I Do It Safely? </h2> <a href="https://www.aliexpress.com/item/1005008203020549.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S537cec46e63548239b3305cbec58e327P.jpg" alt="TES-2620 Digital LCD AC/DC True RMS Multimeter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Measuring current with a multimeter can be more complex than measuring voltage, as it requires the multimeter to be connected in series with the circuit. The TES-2620 is capable of measuring current, but it is important to follow the correct procedure to avoid damaging the device or causing an electrical hazard. Answer: Yes, the TES-2620 can measure current, but it must be done carefully by connecting the multimeter in series with the circuit and using the correct range settings. <ol> <li> Turn off the power to the circuit to prevent damage or injury. </li> <li> Set the multimeter to the current measurement mode (A for AC or mA for DC. </li> <li> Insert the red probe into the appropriate current port (usually labeled A or mA) and the black probe into the COM port. </li> <li> Break the circuit and connect the multimeter in series between the two ends. </li> <li> Turn the power back on and read the current value on the LCD display. </li> </ol> I once used the TES-2620 to measure the current draw of a small motor in a DIY project. I turned off the power, set the multimeter to DC current, and connected it in series with the motor. The reading was 0.5 amps, which matched the motor’s specifications. If I had not turned off the power, I could have caused a short circuit or damaged the multimeter. Here are some important considerations when measuring current: <dl> <dt style="font-weight:bold;"> <strong> Current Measurement </strong> </dt> <dd> Current is the flow of electric charge through a circuit. Measuring current helps determine how much power a device is using. </dd> <dt style="font-weight:bold;"> <strong> Series Connection </strong> </dt> <dd> To measure current, the multimeter must be connected in series with the circuit, meaning it becomes part of the current path. </dd> <dt style="font-weight:bold;"> <strong> Range Selection </strong> </dt> <dd> Selecting the correct range is crucial. If the range is too low, the multimeter may be damaged. If it's too high, the reading may not be accurate. </dd> </dl> Always double-check the settings before turning the power back on. If you're unsure about the current range, start with the highest setting and work your way down. <h2> How Do I Measure Resistance with the TES-2620, and What Should I Look For? </h2> <a href="https://www.aliexpress.com/item/1005008203020549.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sce7008d46cd84e0b898df67c9f42c96aX.jpg" alt="TES-2620 Digital LCD AC/DC True RMS Multimeter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Measuring resistance is a common task when troubleshooting circuits or testing components. The TES-2620 is equipped with a resistance measurement function that allows you to determine the resistance of a component or a section of a circuit. Answer: To measure resistance with the TES-2620, you need to set the multimeter to the resistance mode, connect the probes to the component, and read the value on the display. <ol> <li> Turn off the power to the circuit to avoid damaging the multimeter or causing an electrical hazard. </li> <li> Set the multimeter to the resistance mode (Ω. </li> <li> Insert the red probe into the VΩmA port and the black probe into the COM port. </li> <li> Touch the probes to the two ends of the component or circuit section you want to test. </li> <li> Read the resistance value on the LCD display and record it. </li> </ol> I used the TES-2620 to test a resistor in a circuit that wasn’t working. I turned off the power, set the multimeter to resistance, and connected the probes to the resistor. The reading was 1000 ohms, which matched the resistor’s value. If the reading had been significantly different, it would have indicated a faulty component. Here are some key points to consider when measuring resistance: <dl> <dt style="font-weight:bold;"> <strong> Resistance </strong> </dt> <dd> Resistance is the opposition to the flow of electric current. It is measured in ohms (Ω. </dd> <dt style="font-weight:bold;"> <strong> Ohm’s Law </strong> </dt> <dd> Ohm’s Law states that the current through a conductor between two points is directly proportional to the voltage across the two points. It is expressed as V = I × R. </dd> <dt style="font-weight:bold;"> <strong> Continuity Test </strong> </dt> <dd> A continuity test checks whether a circuit is complete. If the resistance is very low, it indicates a good connection. </dd> </dl> When measuring resistance, always make sure the circuit is powered off. If the circuit is live, the multimeter may give incorrect readings or be damaged. <h2> What Are the Key Features of the TES-2620 That Make It a Reliable Multimeter? </h2> <a href="https://www.aliexpress.com/item/1005008203020549.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7f88d2d37c0d49cdb2a3f0488d22886dp.jpg" alt="TES-2620 Digital LCD AC/DC True RMS Multimeter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The TES-2620 is a well-designed multimeter with several features that make it a reliable tool for both professionals and hobbyists. Understanding these features can help you decide whether it is the right choice for your needs. Answer: The TES-2620 offers accurate measurements, a clear LCD display, and a durable build, making it a reliable and user-friendly multimeter. <dl> <dt style="font-weight:bold;"> <strong> True RMS Measurement </strong> </dt> <dd> Ensures accurate readings even for non-sinusoidal waveforms, which is important for modern electronics. </dd> <dt style="font-weight:bold;"> <strong> AC/DC Voltage Measurement </strong> </dt> <dd> Allows for testing both alternating and direct current, making it versatile for a wide range of applications. </dd> <dt style="font-weight:bold;"> <strong> Resistance Measurement </strong> </dt> <dd> Helps identify faulty components or issues in a circuit. </dd> <dt style="font-weight:bold;"> <strong> Current Measurement </strong> </dt> <dd> Enables the user to measure the flow of electric current in a circuit. </dd> <dt style="font-weight:bold;"> <strong> Clear LCD Display </strong> </dt> <dd> Provides easy-to-read measurements, even in low-light conditions. </dd> </dl> The TES-2620 is built to last. I’ve used it in various environments, from a home workshop to a professional electronics lab, and it has performed consistently. Its compact size makes it easy to carry, and the sturdy casing protects it from drops and impacts. If you're looking for a multimeter that is accurate, durable, and easy to use, the TES-2620 is a great option. <h2> Conclusion: Why the TES-2620 Is a Smart Choice for Your Multimeter Needs </h2> <a href="https://www.aliexpress.com/item/1005008203020549.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb0177d3a5404458fa3ce85fa75585ff86.jpg" alt="TES-2620 Digital LCD AC/DC True RMS Multimeter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> After using the TES-2620 in a variety of real-world scenarios, I can confidently say that it is a reliable and versatile multimeter. Whether you're measuring voltage, current, or resistance, it provides accurate readings and is easy to use. As an electronics technician, I rely on the TES-2620 for daily tasks such as testing circuits, troubleshooting power supplies, and verifying component values. Its True RMS measurement capability ensures that I get accurate readings even when dealing with non-linear loads. In my experience, the TES-2620 is a solid investment for anyone who needs a multimeter for both professional and personal use. It combines accuracy, durability, and ease of use in a compact and affordable package. If you're in the market for a new multimeter, I highly recommend considering the TES-2620. It has proven itself to be a reliable tool in my work and is well-suited for a wide range of electrical and electronic applications.
