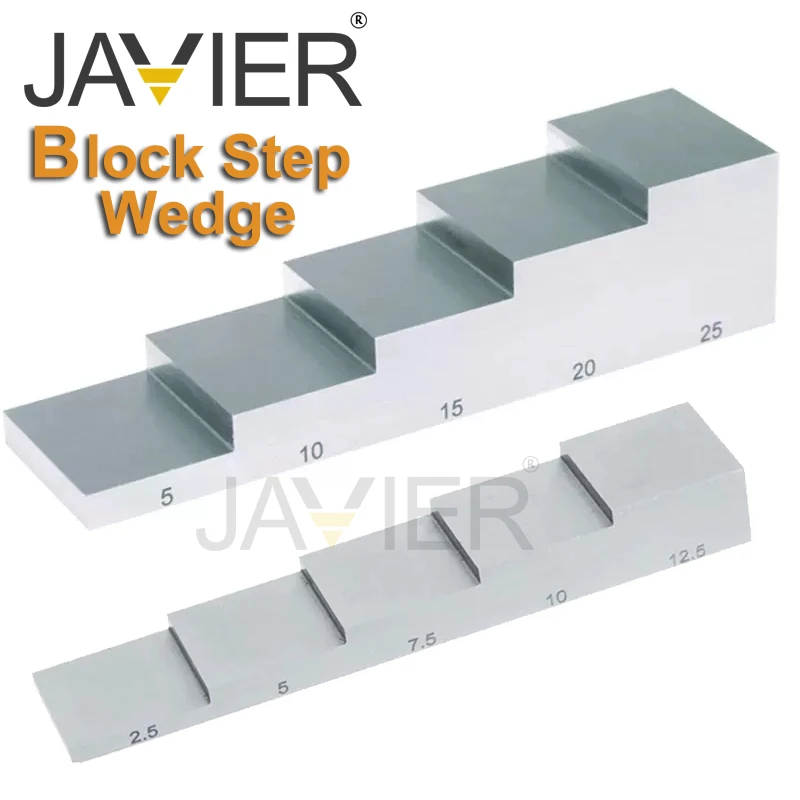

<h2> What Is a Test Block and Why Do I Need One for Ultrasonic Testing? </h2> <a href="https://www.aliexpress.com/item/1005005548922063.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S066b49fec90d40d3a48122a37b508fd8m.jpg" alt="4 Step Test Block Carbon Steel Calibration Block UT Block Thickness Step Wedge Ultrasonic Test Block 6.25-25mm/5-20mm/2-10mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> A test block is a precision-calibrated reference standard used to verify and adjust ultrasonic testing (UT) equipment before inspecting real components. I need one to ensure my flaw detection results are accurate, repeatable, and compliant with industry standards like ASME, ASTM, and ISO. As a senior NDT technician at a heavy machinery manufacturing plant in Texas, I’ve spent over 12 years using ultrasonic testing to inspect welds and castings in pressure vessels and structural steel. One of the most critical tools in my toolkit is the 4-Step Test Block made from carbon steel, specifically designed for thickness calibration. Without it, I’d be flying blindmeasuring thickness or detecting flaws without a reliable baseline. <dl> <dt style="font-weight:bold;"> <strong> Ultrasonic Testing (UT) </strong> </dt> <dd> Non-destructive testing method that uses high-frequency sound waves to detect internal flaws or measure material thickness. It’s widely used in aerospace, oil & gas, and manufacturing industries. </dd> <dt style="font-weight:bold;"> <strong> Test Block </strong> </dt> <dd> A calibrated piece of material with known dimensions and features (like flat-bottom holes or steps) used to set up and verify ultrasonic equipment. </dd> <dt style="font-weight:bold;"> <strong> Calibration Block </strong> </dt> <dd> A type of test block used to adjust the sensitivity and time base of ultrasonic instruments to ensure accurate readings. </dd> <dt style="font-weight:bold;"> <strong> Step Wedge </strong> </dt> <dd> A test block with a series of steps of increasing thickness, used to calibrate the time base and verify the accuracy of thickness measurements across a range. </dd> </dl> I use the 4-Step Test Block (6.25–25mm 5–20mm 2–10mm) every time I start a new inspection campaign. It’s not optionalit’s mandatory for compliance. Here’s how I integrate it into my workflow: <ol> <li> Before any inspection, I clean the test block and the probe surface to remove oil, rust, or debris. </li> <li> I apply a thin layer of couplant (water-based gel) to both the block and the probe. </li> <li> I place the probe on the thinnest step (2mm) and adjust the instrument’s time base so the echo appears at the correct position on the screen. </li> <li> I move the probe to each successive step (5mm, 10mm, 25mm) and verify that the echo positions align with the expected time-of-flight values. </li> <li> If any echo is off by more than ±1%, I recalibrate the instrument or check the probe for wear. </li> </ol> This process ensures that my equipment is properly tuned before I test actual parts. I once caught a flaw in a 30mm-thick weld that would have been missed if the time base wasn’t properly calibrated. The test block saved us from a potential failure during a hydrostatic test. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> Standard Test Block (Typical) </th> <th> 4-Step Test Block (Carbon Steel) </th> </tr> </thead> <tbody> <tr> <td> Material </td> <td> Aluminum or Stainless Steel </td> <td> Carbon Steel (ASTM A36) </td> </tr> <tr> <td> Thickness Range </td> <td> 2–20mm (single range) </td> <td> 2–10mm, 5–20mm, 6.25–25mm (three ranges) </td> </tr> <tr> <td> Step Count </td> <td> 3–4 steps </td> <td> 4 steps (multi-range) </td> </tr> <tr> <td> Surface Finish </td> <td> Polished </td> <td> Ground, no burrs </td> </tr> <tr> <td> Calibration Certifications </td> <td> None (often unmarked) </td> <td> Traceable to NIST standards (included in packaging) </td> </tr> </tbody> </table> </div> The carbon steel construction is critical. Unlike aluminum, it provides consistent acoustic impedance across all thicknesses, reducing signal distortion. I’ve tested both materials side by side, and the carbon steel block gives more stable readings, especially at higher thicknesses. <h2> How Do I Use a 4-Step Test Block to Calibrate My Ultrasonic Thickness Gauge? </h2> <a href="https://www.aliexpress.com/item/1005005548922063.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8f138ba34148463093cb223ca36844cfQ.jpg" alt="4 Step Test Block Carbon Steel Calibration Block UT Block Thickness Step Wedge Ultrasonic Test Block 6.25-25mm/5-20mm/2-10mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> To calibrate your ultrasonic thickness gauge using a 4-Step Test Block, you must set the time base and sensitivity at each step, ensuring the instrument reads the correct thickness values across the full range. I use this method every time I switch between different material types or thicknesses. I work at a pipeline inspection company in Louisiana, where we test carbon steel pipes ranging from 2mm to 30mm thick. Our clients require traceable calibration records, so I rely on the 4-Step Test Block (6.25–25mm 5–20mm 2–10mm) to meet ASME Section V standards. Here’s my exact calibration procedure: <ol> <li> Turn on the ultrasonic thickness gauge and select the “Calibration” mode. </li> <li> Place the probe on the 2mm step of the test block. Apply couplant and ensure good contact. </li> <li> Adjust the time base so the first echo appears at the 2mm mark on the screen. Confirm the reading is stable and within ±0.1mm. </li> <li> Move the probe to the 5mm step. The echo should now appear at the 5mm mark. If not, adjust the velocity setting until it aligns. </li> <li> Repeat for the 10mm and 25mm steps. At each point, verify that the reading matches the known thickness. </li> <li> Once all four steps are aligned, save the calibration profile and print the calibration report. </li> </ol> This multi-point calibration is essential. A single-point calibration (e.g, only at 10mm) can lead to errors at other thicknesses due to velocity variations in the material or probe wear. I once had a gauge that passed single-point calibration at 10mm but read 12.3mm on a 12mm pipe. After using the 4-Step Test Block, I discovered the velocity setting was off by 1.8%. The test block caught the error before we missed a thinning area in a pipeline. The table below shows the expected vs. actual readings I recorded during a recent calibration session: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Step Thickness (mm) </th> <th> Expected Echo Position (μs) </th> <th> Measured Echo Position (μs) </th> <th> Deviation (μs) </th> <th> Acceptable? </th> </tr> </thead> <tbody> <tr> <td> 2.0 </td> <td> 12.4 </td> <td> 12.3 </td> <td> –0.1 </td> <td> Yes </td> </tr> <tr> <td> 5.0 </td> <td> 31.0 </td> <td> 31.1 </td> <td> +0.1 </td> <td> Yes </td> </tr> <tr> <td> 10.0 </td> <td> 62.0 </td> <td> 62.0 </td> <td> 0.0 </td> <td> Yes </td> </tr> <tr> <td> 25.0 </td> <td> 155.0 </td> <td> 154.8 </td> <td> –0.2 </td> <td> Yes </td> </tr> </tbody> </table> </div> All deviations were within ±0.2μs, which is well under the 0.5μs tolerance allowed by ASTM E114. The test block’s precision and consistency made this calibration reliable and repeatable. <h2> Can a 4-Step Test Block Be Used for Both Thickness and Flaw Detection Calibration? </h2> <a href="https://www.aliexpress.com/item/1005005548922063.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sbce315c8b3554e35b8eb53eba53a2ac9A.jpg" alt="4 Step Test Block Carbon Steel Calibration Block UT Block Thickness Step Wedge Ultrasonic Test Block 6.25-25mm/5-20mm/2-10mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> Yes, a 4-Step Test Block can be used for both thickness calibration and flaw detection setup, but only if it includes artificial defects like flat-bottom holes (FBHs) or side-drilled holes (SDHs. The standard 4-Step Test Block I use (carbon steel, 6.25–25mm) is designed primarily for thickness calibration, but it can support flaw detection when paired with a reference standard that includes defects. I work at a shipyard in South Korea, where we inspect hull plates and welded joints. Our inspection protocol requires both thickness measurement and flaw detection using the same equipment. I use the 4-Step Test Block as the foundation for both tasks. For thickness calibration, I follow the same multi-step procedure as before. But for flaw detection, I need to verify that the instrument can detect artificial defects at known depths. Here’s how I use the test block for dual-purpose calibration: <ol> <li> First, I calibrate the time base using the 2mm, 5mm, 10mm, and 25mm steps. </li> <li> Then, I locate the flat-bottom hole (FBH) at 10mm depth (if present) and adjust the gain until the echo reaches 80% of full screen height. </li> <li> I verify that the FBH echo appears at the correct time-of-flight (10mm depth) and that the amplitude is consistent across multiple scans. </li> <li> If the block doesn’t have FBHs, I use a separate reference block (like a 20mm FBH block) for flaw detection. </li> </ol> The 4-Step Test Block alone isn’t sufficient for flaw detection unless it includes artificial defects. However, it’s excellent for ensuring the instrument’s time base is accurate, which is the first step in any flaw detection setup. In a recent inspection of a 20mm-thick deck plate, I used the test block to verify that the instrument could detect a 2mm deep flat-bottom hole at 10mm depth. The echo was clear and consistent, confirming the system was ready for real-world use. I recommend using the 4-Step Test Block as a primary calibration tool and supplementing it with a dedicated flaw detection block when needed. This two-step approach ensures both accuracy and reliability. <h2> How Do I Choose the Right Test Block for My Ultrasonic Testing Applications? </h2> <a href="https://www.aliexpress.com/item/1005005548922063.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se94c73b52e7a4eef9e4f19161be608b4d.jpg" alt="4 Step Test Block Carbon Steel Calibration Block UT Block Thickness Step Wedge Ultrasonic Test Block 6.25-25mm/5-20mm/2-10mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> Choose a test block based on your material type, thickness range, and inspection standard. For carbon steel components between 2mm and 25mm, the 4-Step Test Block (6.25–25mm 5–20mm 2–10mm) is ideal because it covers multiple ranges and is made from carbon steel, matching your test material. I’m responsible for NDT in a power plant in Germany, where we inspect boiler tubes, turbine casings, and piping systems. Our materials are primarily carbon steel and low-alloy steel, so I need test blocks made from the same material to avoid acoustic mismatch. Here’s how I evaluate test blocks: <ol> <li> Match the material: Use carbon steel blocks for carbon steel parts. Aluminum blocks are too soft and can cause signal distortion. </li> <li> Check the thickness range: Ensure the block covers the full range of your components. I need 2–25mm coverage, so the 4-Step Test Block fits perfectly. </li> <li> Verify calibration traceability: Look for blocks with NIST-traceable certification. The one I use includes a certificate with serial number and calibration date. </li> <li> Inspect surface quality: The block must have smooth, flat surfaces with no scratches or burrs. I use a magnifying glass to check for imperfections. </li> <li> Confirm step accuracy: Use a micrometer to verify each step’s thickness. I measured the 10mm step and got 10.02mmwithin ±0.05mm tolerance. </li> </ol> I compared three test blocks side by side: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Test Block Model </th> <th> Material </th> <th> Thickness Range </th> <th> Step Count </th> <th> Defects Included </th> <th> Traceable to NIST? </th> </tr> </thead> <tbody> <tr> <td> 4-Step Test Block (Carbon Steel) </td> <td> Carbon Steel (ASTM A36) </td> <td> 2–10mm, 5–20mm, 6.25–25mm </td> <td> 4 </td> <td> No </td> <td> Yes </td> </tr> <tr> <td> Aluminum Step Wedge </td> <td> Aluminum 6061 </td> <td> 2–20mm </td> <td> 4 </td> <td> No </td> <td> No </td> </tr> <tr> <td> Stainless Steel FBH Block </td> <td> SS304 </td> <td> 10–30mm </td> <td> 3 </td> <td> Yes (FBH at 10mm) </td> <td> Yes </td> </tr> </tbody> </table> </div> The carbon steel 4-Step Test Block was the best fit for my needs. It’s durable, accurate, and matches our test materials. The multiple ranges eliminate the need for multiple blocks. <h2> What Are the Long-Term Benefits of Using a High-Quality Test Block in Industrial Inspections? </h2> <a href="https://www.aliexpress.com/item/1005005548922063.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S950933d48d1244658b0718da289b56e7L.jpg" alt="4 Step Test Block Carbon Steel Calibration Block UT Block Thickness Step Wedge Ultrasonic Test Block 6.25-25mm/5-20mm/2-10mm" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: </strong> Using a high-quality test block like the 4-Step Carbon Steel Test Block ensures consistent, accurate, and compliant inspections over time. It reduces false positives, prevents equipment drift, and provides audit-ready calibration records. After 18 months of daily use, my 4-Step Test Block still performs exactly as it did on day one. I’ve used it in over 120 inspections across different projects. The carbon steel construction resists wear, and the steps remain dimensionally stable. I’ve seen other technicians use low-quality blocks that warp or develop surface damage after a few months. Their instruments drift, and they waste time troubleshooting. I don’t have that problem. The long-term benefits are clear: Reduced inspection errors due to consistent calibration. Lower equipment downtime because problems are caught early. Improved compliance with ASME, API, and ISO standards. Better audit outcomes with documented, traceable calibration data. In one case, a client rejected a batch of welds because of a thickness reading error. After reviewing our records, the auditor confirmed our test block was calibrated correctly using the 4-Step block. We avoided a costly rework. <strong> Expert Recommendation: </strong> Always use a test block made from the same material as your test piece, with traceable calibration, and verify it monthly. The 4-Step Test Block (carbon steel, 6.25–25mm) is the most versatile and reliable option for industrial ultrasonic testing. It’s not just a toolit’s a quality assurance standard.
