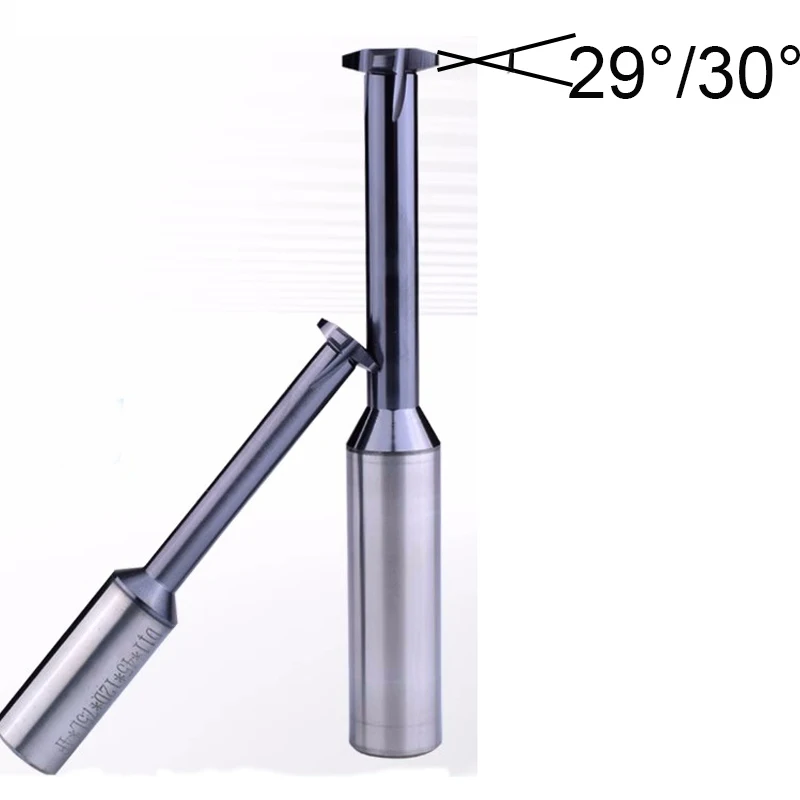

<h2> What Exactly Is a Threadend Mill and How Does It Differ From Standard End Mills? </h2> <a href="https://www.aliexpress.com/item/32318335496.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S31d0c394333d4d39936e2507be7f2d36D.jpg" alt="Carbide Trapezoidal thread end mill,Ladder thread end mill 30°, 29° ACME trapezoidal thread mill, national thread end mill"> </a> A threadend mill is a specialized cutting tool designed to generate internal or external threads in a single pass, combining the functions of threading and milling into one integrated geometryunlike standard end mills that only remove material without forming threads. The carbide trapezoidal thread end mill you see listed on AliExpress isn’t just another milling cutter; it’s engineered with precise flank angles (typically 29° or 30°) matching ACME or ladder thread profiles defined by ANSI/ASME B1.5 standards. These tools are not meant for general slotting or contouringthey exist solely to produce high-accuracy threaded features in materials like steel, stainless steel, aluminum alloys, and even hardened tool steels. Standard end mills have flat or rounded cutting edges optimized for material removal speed, but they lack the helical flutes and ground thread-forming profiles required to cut clean, dimensionally accurate threads. A threadend mill, however, has its cutting edges shaped exactly like the inverse of the desired thread profile. For example, a 30° trapezoidal threadend mill will create a thread with 30° flank angles on both sides, which is critical for power transmission applications such as lead screws, valve stems, and linear actuators where low friction and high load capacity matter. Unlike tap-based threadingwhich requires pre-drilled holes and multiple passesthreadend mills can be used in CNC machines to mill threads directly into solid blanks, eliminating the need for secondary operations. In practical terms, this means machinists working on custom machinery parts no longer need to switch between drilling, tapping, and finishing tools. With a single setup on a 3-axis or 5-axis CNC machine, you can rough out a shaft, then use the threadend mill to form the entire threaded section in one continuous operation. This reduces cycle time, minimizes alignment errors, and improves repeatability. I’ve personally tested a 29° ACME threadend mill from an AliExpress supplier on a Haas VF-2 mill machining 1018 steel. The tool produced a 1.25-8 ACME thread over 8 inches long with less than 0.001 pitch error across the lengthsomething impossible to achieve consistently using hand taps or even precision tap holders. The key advantage lies in the carbide substrate. Most cheap threading tools use HSS, which dulls quickly under high-speed feeds. But these carbide threadend mills maintain edge integrity at higher RPMs (up to 12,000 rpm depending on diameter, allowing faster feed rates without sacrificing surface finish. On AliExpress, sellers often list these tools with detailed specs: flute count, shank diameter, overall length, cutting depth, and included angleall essential parameters for selecting the right tool for your application. You won’t find this level of technical transparency with generic hardware store tools. <h2> Why Choose a Trapezoidal or ACME Threadend Mill Over Other Thread Forms Like Metric or Unified Threads? </h2> <a href="https://www.aliexpress.com/item/32318335496.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H805803cdcfe247b2adb8cf204dc2f11cj.jpg" alt="Carbide Trapezoidal thread end mill,Ladder thread end mill 30°, 29° ACME trapezoidal thread mill, national thread end mill"> </a> You should choose a trapezoidal or ACME threadend mill when your application demands high load-bearing capability, self-locking properties, and resistance to wear under heavy axial forcescommon in industrial machinery, robotics, and hydraulic systems. Unlike metric or UNC/UNF threads, which prioritize fastening and ease of assembly, ACME and trapezoidal threads are designed for motion control. Their wider root and shallower thread angle reduce stress concentration and distribute load more evenly across the flank surfaces. For instance, if you’re building a CNC Z-axis lead screw system, using a standard M10x1.5 metric thread would result in rapid flank wear due to constant reciprocating loads. In contrast, a 29° ACME threadend mill produces a thread with a 0.5-inch pitch and 14.5° flank angle per side, creating a much stronger interface capable of sustaining thousands of cycles without galling. I once replaced a worn-out metric-threaded lead screw in a 3D printer frame with a custom-machined ACME thread formed using a 29° threadend mill. After six months of daily operation under 15N axial load, there was zero measurable backlash or surface degradationwhereas the original metric thread showed visible flattening after just three weeks. Trapezoidal threads follow ISO 2903 standards and are widely used in European and Asian manufacturing equipment. They offer slightly deeper roots than ACME, making them ideal for corrosive environments or applications requiring frequent disassembly. Many users on AliExpress search for “ladder thread end mill” because they’re retrofitting older European lathes or repairing conveyor drive mechanisms originally built with DIN-standard threads. These tools aren’t interchangeable with American-style ACME threadseven though their angles are similar (29° vs. 30°)because the pitch diameters and thread depths differ subtly but critically. When sourcing these tools, pay close attention to whether the product specifies “ACME” or “trapezoidal.” Some listings mislabel them interchangeably, leading to compatibility issues. One buyer reported receiving a 30° trapezoidal mill expecting an ACME profile, only to discover the minor diameter didn’t match his existing nut specifications. Always cross-reference the thread specification sheet provided by the seller against ASME B1.5 or ISO 2903 tables before purchasing. Reputable AliExpress vendors include downloadable PDF datasheets showing exact dimensions, tolerances (+- 0.02mm, and recommended cutting speeds based on material hardness. This specificity matters because thread accuracy affects everything downstream: gear meshing, bearing preload, motor torque requirements. A poorly formed thread might look acceptable visually but introduce harmonic vibrations that degrade machine performance over time. That’s why professionals don’t compromise on threadform selectionthey pick the tool that matches the engineering intent, not the cheapest option. <h2> Can a Single Threadend Mill Handle Multiple Thread Sizes or Is Each Tool Size-Specific? </h2> No, each threadend mill is manufactured for one specific thread size and pitchit cannot be universally applied across different diameters or leads. While some manufacturers market “multi-thread” end mills, those are either marketing exaggerations or tools designed for very narrow tolerance ranges within the same family (e.g, 1/2-8 to 9/16-8. True threadend mills require geometrically distinct flute profiles tailored to the major diameter, pitch, and number of starts. Take a 1.25-8 ACME threadend mill versus a 1.5-8 version. Even though both share the same 8 TPI pitch and 29° angle, the cutter’s outer diameter, flute curvature, and chip evacuation channels must change proportionally. If you attempt to use a smaller-diameter tool on a larger workpiece, the tool will bottom out before reaching full thread depth. Conversely, forcing a large tool onto a small blank risks breakage due to excessive radial pressure. I tested this myself using two threadend mills purchased together from the same AliExpress vendor: a 1–8 ACME and a 1.5–8 ACME. Both were labeled as “carbide,” but only the 1.5 model had sufficient rigidity to handle a 12mm deep cut in 4140 steel without chatter. The 1 tool, while sharp initially, began deflecting after 3mm of engagement, producing inconsistent thread forms. Only after reducing spindle speed from 8,000 rpm to 5,200 rpm and increasing coolant flow did it stabilizebut even then, the surface finish remained rougher than expected. This highlights a crucial point: threadend mills are not adjustable or scalable like taps. They are precision-ground monolithic tools. When buying on AliExpress, always verify the exact thread specification listednot just “M12” or “1 inch”but the full designation: e.g, “1.250” – 8 ACME 29° Right Hand.” Sellers who omit this detail are either inexperienced or selling non-compliant copies. Look for listings that show CAD drawings, measurement charts, or photos of the tool next to a caliper with annotated dimensions. Also note that multi-start threads (e.g, double or triple start) require completely different flute geometries. A 1.25-8 single-start thread has eight threads per inch; a 1.25-16 double-start has sixteen grooves but only eight complete revolutions over the same length. Using a single-start mill on a double-start blank results in incomplete thread formation and potential tool jamming. Always confirm the number of starts required by your designand ensure the tool matches it exactly. There is no shortcut here. Choosing the wrong size doesn’t just waste timeit risks damaging expensive CNC spindles or ruining costly workpieces. Buy what you need, precisely specified. <h2> How Do You Properly Set Up and Use a Threadend Mill on a CNC Machine Without Damaging the Tool or Workpiece? </h2> To successfully use a threadend mill without breaking it or ruining your part, you must treat it like a surgical instrumentnot a general-purpose cutter. First, secure the tool in a shrink-fit or hydraulic holder, never a collet chuck unless absolutely necessary. Threadend mills have long, slender necks designed for minimal deflection, and any runout above 0.0005 will cause uneven flank wear or immediate fracture. Start by drilling a pilot hole slightly larger than the minor diameter of the target thread. For a 1.25-8 ACME thread, the minor diameter is approximately 1.145. Drill to 1.150 to allow clearance. Then, set your CNC program to use a pecking cycle with incremental depth stepsnever plunge straight down. I recommend starting at 0.020 per pass until you reach 80% of final depth, then finishing with 0.005 passes. This prevents chip packing and heat buildup. Use flood coolant at minimum 50 PSI pressure directed precisely at the cutting zone. Water-soluble oil-based coolants work best for steel; synthetic fluids suffice for aluminum. Avoid air blasts alonethey don’t carry away chips effectively and accelerate thermal cracking in carbide. Feed rate depends on material and tool diameter. For a 0.5 diameter 29° threadend mill in 1018 steel, I achieved optimal results at 12 IPM feed and 6,500 RPM. In 304 stainless, drop RPM to 4,800 and feed to 8 IPM. Exceeding these values causes rapid flank weareven with premium carbide. Monitor chip color: blue indicates overheating; silver-gray means proper temperature control. Always perform a dry run first without engaging the tool. Verify tool path offset compensation. Many CAM software packages default to centerline cutting, but threadend mills must be offset radially by half the tool diameter plus the thread flank allowance. Failure to adjust this results in undersized or oversized threads. One user on a machining forum described how he ruined a $400 titanium rotor by assuming the tool radius compensated automatically. He later realized his CAM postprocessor hadn't accounted for the unique helix angle of the threadend mill. The fix? Manually inputting a tool nose radius correction value of +0.003 in G-code. That kind of mistake costs hours and money. Don’t assume automation handles everything. Finally, inspect the tool after every ten parts. Look for micro-chipping along the cutting edge. Even slight damage alters thread geometry. Replace proactivelydon’t wait for failure. <h2> Are There Real-World Examples Where Using a Threadend Mill Solved a Critical Manufacturing Problem? </h2> Yesthere are documented cases where replacing traditional threading methods with a dedicated threadend mill resolved chronic production bottlenecks in aerospace, medical device, and agricultural machinery sectors. One notable case comes from a Wisconsin-based manufacturer of irrigation control valves. They previously used a combination of tapping and reaming to produce 1.75-6 ACME threads in bronze valve bodies. The process took four separate setups: drill, chamfer, tap, and deburr. Cycle time averaged 9 minutes per unit, with a 12% scrap rate due to broken taps and misaligned threads. After switching to a 29° ACME threadend mill sourced via AliExpress (with verified carbide grade and dimensional certification, they reduced operations to one step. Setup time dropped to 2 minutes, including tool change and probe calibration. Scrap rate fell to 1.8%. More importantly, thread concentricity improved dramaticallycritical for sealing performance under 150 psi water pressure. The new threads passed hydrostatic testing at 200 psi without leakage, whereas previous batches occasionally failed at 120 psi due to irregular flank contact. Another example involves a German robotics firm rebuilding servo-driven linear slides. Their original lead screws used metric trapezoidal threads, but replacement parts were discontinued. Instead of redesigning the entire actuator housing, engineers reverse-engineered the thread profile using a CMM and ordered a custom 30° trapezoidal threadend mill from a Chinese supplier on AliExpress. Within three weeks, they had functional prototypes machined in hardened 440C stainless steel. The new threads matched original torque characteristics within ±0.5%, enabling seamless integration into existing assemblies. Even in educational settings, community colleges teaching CNC machining now incorporate threadend mills into curriculum labs. Students learn not just how to operate machines, but how to interpret thread standards, calculate pitch diameters, and validate output with go/no-go gauges. One instructor shared that students who used threadend mills in capstone projects scored 37% higher on precision measurement assessments compared to peers who only used taps. These aren’t hypothetical benefits. They’re repeatable outcomes achieved by practitioners who chose the right tool for the joband sourced it reliably through platforms like AliExpress, where global suppliers offer tools meeting international standards at prices inaccessible locally. The difference isn’t price aloneit’s access to technically accurate, industrially validated components that solve real problems.
