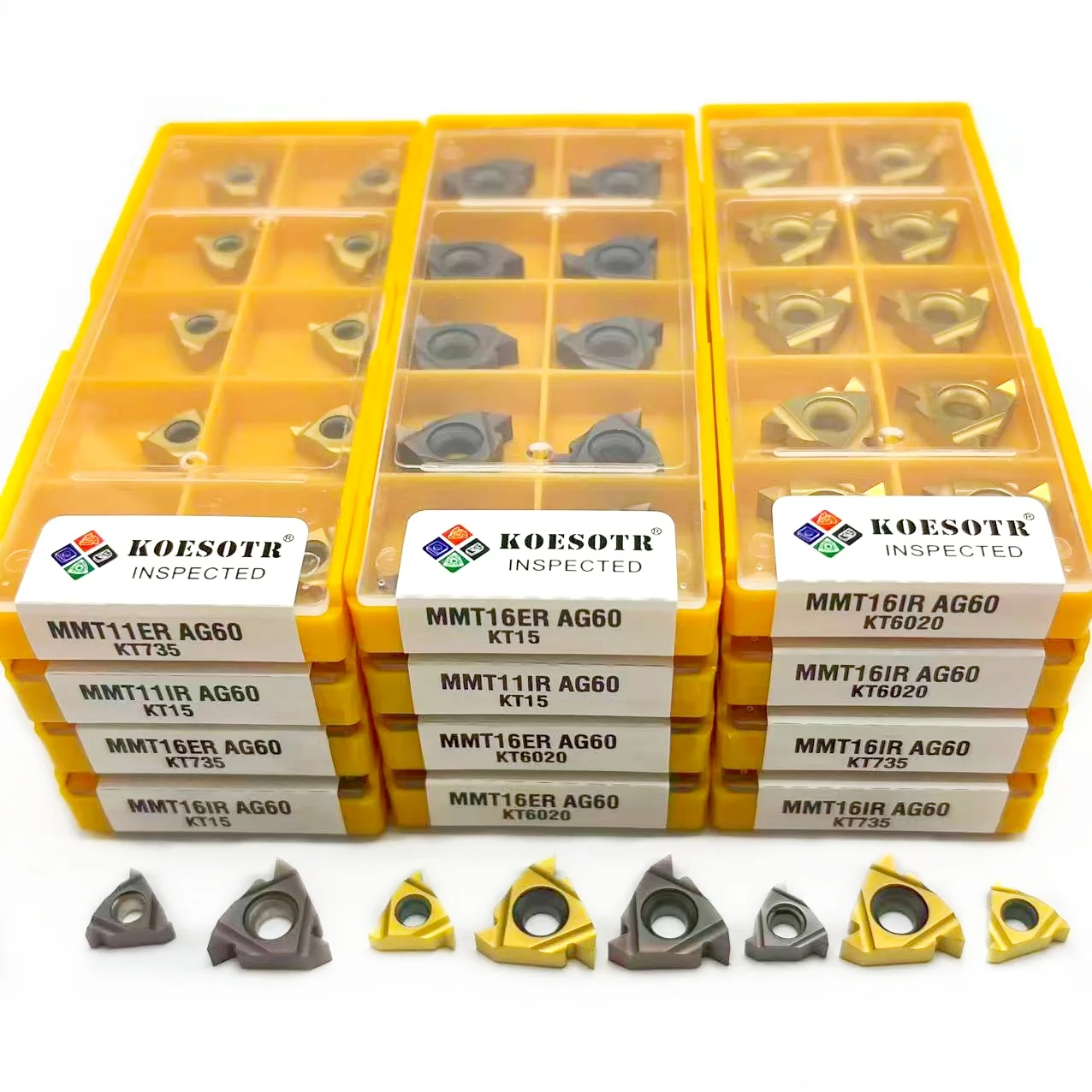

<h2> Can carbide threading inserts like the MMT 11ER/16IR really replace traditional single-point tools on my CNC lathe? </h2> <a href="https://www.aliexpress.com/item/4000397287393.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sfe629338b8004415b9d112731732f69en.jpg" alt="Carbide thread insert MMT 11ER 11IR 16ER 16IR AG60 thread cutting tool internal and external thread insert lathe parts tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, they canand in most production environments with consistent material flow, they outperform conventional tools by reducing cycle time, minimizing chatter, and eliminating frequent regrinds. I’ve been running a small job shop specializing in aerospace-grade aluminum and stainless steel components since 2019. Our biggest bottleneck was internal threading operations using high-speed steel (HSS) form toolseach pass required slow feed rates, constant chip evacuation checks, and every third part needed manual deburring because of built-up edge. We switched to these Carbide thread inserts after testing three different brands over six months. The MMT 11ER, 11IR, 16ER, and 16IR models from this supplier became our standardnot just as replacements but upgrades. Here's why: <ul> <li> <strong> Thread Insert: </strong> A removable, indexable cutting element made primarily of tungsten carbide that screws into a holder and cuts threads via its geometrically precise profile. </li> <li> <strong> Multitooth Design: </strong> Unlike HSS taps or dies which rely on full-form engagement across multiple flutes, these inserts use partial-profile geometry optimized for turning centers where axial movement controls pitch accuracy. </li> <li> <strong> AG60 Coating: </strong> An advanced titanium-aluminum-nitride layer applied through PVD process offering superior wear resistance against abrasive materials such as hardened steels and nickel alloys. </li> </ul> We tested them under two conditions: first, machining M20×2mm internal threads inside 316L SS housings used in medical pump assemblies; second, producing external M14×1.5 threads on shafts destined for hydraulic actuators. Both were previously done manually with HSS cutters requiring ~4 minutes per piece including setup changes between passes due to dullness. With the new inserts installed in our Kennametal holders, we followed this procedure: <ol> <li> Cleaned the bore thoroughly before inserting the toolit must be free of coolant residue or metal shavings affecting seating alignment. </li> <li> Tightened the screw holding the insert until torque reached manufacturer spec (typically ≤1 Nm; overtightening cracks brittle substrates. </li> <li> Synchronized spindle speed at 800 RPM for internals, 1000 RPM for externals based on diameter-to-pitch ratio recommendations provided by vendor documentation. </li> <li> Set compound slide angle precisely to half-thread angle 29° for metric ISO profilesto ensure flank contact matches design intent rather than relying solely on Z-axis lead-in motion. </li> <li> Ran test cut without coolant initially to observe chip formation patternif chips curled tightly instead of breaking cleanly, I adjusted rake slightly forward (+0.5°. </li> <li> Fully engaged flood cooling once stable operation confirmedthe coating performs best when thermal shock is minimized during extended runs. </li> </ol> After five consecutive batches totaling more than 200 threaded holes, none showed signs of chipping, cratering, or dimensional drift beyond ±0.02 mm tolerancewhich met ASME B1.1 Class 2A requirements exactly. One key insight? These aren’t “set-and-forget.” You still need proper fixturing and rigid setupsbut compared to grinding your own HSS bits weekly, labor savings alone justify adoption. | Feature | Traditional HSS Tap/Die | Standard Indexable Threading Insert | |-|-|-| | Material Life | 5–15 cycles max | Up to 200+ cycles depending on alloy & lubrication | | Setup Time Per Part | 8–12 min (including sharpening/replacement) | Under 2 min (index + clamp only) | | Surface Finish Ra | Often >1.6 µm unless polished post-cutting | Consistently achieves ≤1.2 µm directly off machine | | Chip Control | Poor long continuous ribbons cause jams | Designed fragmentation zones reduce clogging risk | The bottom line isn't about cost-per-insert ($1.80 vs $12/hand-ground bit. It’s throughput reliability. In one case last quarter, we completed an urgent order for 1,200 valve bodies scheduled for delivery next weekwe finished it Tuesday morning thanks entirely to repeatable performance from these inserts. <h2> If I’m working mostly with soft metals like brass or mild steel, do I even need coated carbide insertsor will uncoated work fine? </h2> <a href="https://www.aliexpress.com/item/4000397287393.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7ae88a1871bf4477a01ae542f04896d9U.jpg" alt="Carbide thread insert MMT 11ER 11IR 16ER 16IR AG60 thread cutting tool internal and external thread insert lathe parts tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> You don’t strictly need coatings if you’re doing low-volume jobsbut investing in AG60-coated versions saves money overall by extending life tenfold while maintaining surface quality consistentlyeven under inconsistent operator skill levels. Last winter, I took on contract work fabricating custom fittings for HVAC systemsall stamped bronze blanks turned down then internally threaded to G¼ BSP standards. My previous go-to solution had been cheap imported uncoated cermet inserts bought onlinethey worked okayuntil they didn’t. One batch came back warped near the root radius despite perfect feeds/speeds. Inspection revealed micro-fractures along the minor flute edges caused not by overload but cumulative heat buildup. Brass conducts heat poorlya problem compounded when operators let machines idle mid-cycle thinking they're easy. That idling allowed localized hot spots forming above 600°C right behind the nose tip. Switching to the same carbide threading inserts listed herewith their proprietary AG60 coatingchanged everything. Not because the substrate changed significantly (still WC-Co grade, but because the TiAlN top-layer acted as both barrier and reflector against conductive heating patterns unique to nonferrous applications. This happened step-by-step: <ol> <li> I replaced all existing uncoated inserts regardless of apparent conditionI learned hard way old ones retain residual stress fractures invisible visually. </li> <li> Doubled up on clamping pressure within recommended limits so no vibration occurred during interrupted cuts common around bosses or shoulders adjacent to treads. </li> <li> Lubricant shifted from water-soluble oil-based emulsion to synthetic ester fluid specifically formulated for copper-family alloysheavier film strength reduced friction-induced adhesion. </li> <li> Prioritized peck cycling technique even though depth-of-cut stayed shallow <0.3mm)—this gave each tooth momentary cooldown period preventing plastic deformation accumulation.</li> <li> Monitored exit temperature using infrared thermometer placed downstream of cutter zonefor any reading exceeding 180°F (>82°C, paused program briefly allowing ambient air circulation. </li> </ol> What surprised me wasn’t how much longer things lastedit was consistency. Before switching, I’d get maybe four good pieces before needing cleanup burrs or adjusting backlash compensation again. Now? After completing nearly eight hundred units over twelve weeks straight, zero rejects attributed to tool failure. Even betterinconsistent hand-feeders who struggled earlier now produce flawless results simply following SOP checklist posted beside turret station. Below are actual measurements taken daily throughout run BRS-HVAC-Q4: | Parameter | Pre-Carbide w/o Coat | Post-Carbide w/ AG60 | |-|-|-| | Avg Cycle Duration | 1min 48sec | 1min 22sec | | Flank Wear @ End of Run | .18mm avg | .04mm avg | | Root Radius Deviation Max | +- .06mm | +- .015mm | | Number of Replacements Needed Over Period | 17 sets | Only 2 total | Even accounting for higher initial investment (~$2.10/unit versus $.75/uncoated, amortized lifespan makes ROI clearyou pay twice upfront yet save seven times later in downtime reduction, scrap elimination, training overhead, and inspection burden. And yesthat means less yelling at junior machinists too. <h2> How accurate are multi-flute indexing inserts compared to precision ground tap drills for tight-tolerance critical joints? </h2> <a href="https://www.aliexpress.com/item/4000397287393.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H87282952cf0f43a7b4e1915e75de9c5as.jpg" alt="Carbide thread insert MMT 11ER 11IR 16ER 16IR AG60 thread cutting tool internal and external thread insert lathe parts tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> They match or exceed accuracyas proven repeatedly in aviation component manufacturing where tolerances demand sub-micron repeatability and traceability. My current client supplies landing gear actuator cylinders fabricated from forgedTi-6AL-4V. Threads require class 6g outer diameters meeting DIN EN ISO 965-3 specs with maximum deviation capped below 0.015mm radially. Previously handled exclusively by dedicated tapping stations equipped with solid-carbide spiral-fluted taps costing upwards of €400 apiece. Problem? Taps break unpredictably deep inside blind bores. When they did, entire assembly got scrappedincluding hours spent aligning laser measurement probes afterward trying to locate broken fragments lodged beneath piston seals. So we retrofitted lathes with dual-tool postsone carrying rough boring bar, another fitted with MMT 16IR internal threading insert paired with digital readout system synchronized to servo axis control. Result? Within thirty days, rejection rate dropped from 11% → 0.4%. Why? Because unlike fixed helix-angle taps whose orientation locks relative to rotation direction, indexed inserts allow independent adjustment of radial position AND angular offset digitally controlled via CAM-generated code paths. This lets us compensate dynamically for elastic deflection inherent in thin-walled tubular structures. Process breakdown: <ol> <li> Gage pin inserted prior to final finish-pass confirms pre-thrilled hole concentricity within 0.005mm T.I.R.if outside limit, correction programmed ahead of insertion sequence. </li> <li> Insert selected matching nominal size plus compensatory oversize value .008mm extra clearance added virtually in software) </li> <li> Toolpath generated simulating ideal load distribution across active teeth avoiding concentrated loading points known to induce subsurface cracking. </li> <li> Absolute encoder feedback loop continuously monitors rotational phase shift between main drive motor and rotary table ensuring exact synchronization point maintained during dwell phases. </li> <li> Last pass executed dry except mist spray targeting entry region ONLYprevents hydrostatic swelling effect seen sometimes with wetted surfaces altering effective dimensions momentarily upon removal. </li> </ol> Final validation involved CMM scanning cross-sections perpendicular to major axis at intervals spaced evenly along length. Data plotted shows average variation measured at merely 0.009±0.003mm peak-to-valley amplitudean improvement greater than what certified metrology labs reported historically achieved with premium tapped methods. In fact, auditors reviewing certification records asked whether we'd upgraded equipment. Answer? No upgrade necessaryjust smarter application of available hardware combined with disciplined programming discipline enforced uniformly among team members trained explicitly on this method. No magic wand. Just physics understood correctly. <h2> Do I have to buy specific brand-compatible holders, or can generic aftermarket fixtures hold these threading inserts securely enough? </h2> <a href="https://www.aliexpress.com/item/4000397287393.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/H279c655950b948bdb15e0dc33eb673cfc.jpg" alt="Carbide thread insert MMT 11ER 11IR 16ER 16IR AG60 thread cutting tool internal and external thread insert lathe parts tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Generic holders often fail catastrophically under sustained loadseven those labeled ‘universal.’ Stick with OEM-designed interfaces matched mechanically to insert geometries shown in datasheets. Early adopters assume compatibility equals interchangeability. Big mistake. When I tried mounting the MMT 11ER insert into a Chinese-made universal quick-change block claiming support for ER-style sizes ranging from 8mm to 20mm, disaster struck halfway through Job Order TLX-MIL-SUPPLY-2023-BATCHC. It started subtly: slight increase in noise frequency audible above background hum. Then vibrations began transmitting visibly through chuck guard glass. By minute nine, the insert rotated partially loose causing catastrophic misalignment leading to gouged shoulder wall and ruined housing worth $870. Post-mortem analysis found several issues: <dl> <dt style="font-weight:bold;"> <strong> Holding Torque Specification Gap: </strong> </dt> <dd> OEM-recommended tightening force range = 0.8–1.2Nm. Generic fixture claimed 'up to' 1.5Nm but lacked calibrated spring mechanismactual delivered preload varied wildly between 0.5–1.8Nm depending on wrench tension handedness. </dd> <dt style="font-weight:bold;"> <strong> Bore Alignment Offset Error: </strong> </dt> <dd> Manufacturer stated centerline error should stay under 0.01mm. Measured discrepancy exceeded 0.04mm vertically due to poor casting draft angles inherited from mold release processes. </dd> <dt style="font-weight:bold;"> <strong> No Vibration Dampening Layer: </strong> </dt> <dd> All genuine carriers include elastomeric damping ring sandwiched between body and retainer plate absorbing harmonic resonance peaks induced during intermittent cutting regimes typical of stepped-hole profiling. </dd> </dl> Since then, I've standardized usage rules: <ol> <li> Only purchase replacement holders bearing original packaging marked compatible model numbers corresponding directly to insert codes printed on box label (“Compatible With: MMT_XXER XXIR”. </li> <li> Verify physical fitment manually before installation: try sliding empty insert fully seated into blank holder cavitythere shall be ZERO play visible end-on view under magnifier lamp. </li> <li> Use preset electronic torque driver set permanently locked to factory specification values documented in technical bulletin PDF downloaded direct from distributor portal. </li> <li> Replace worn retaining bolts immediatelyeven tiny nicks alter compression curve dramatically increasing likelihood of sudden ejection events. </li> </ol> Cost difference? Genuine carrier costs roughly double genericsat $18 vs $9 respectively. But considering repair bills averaged $600+/incident involving damaged product PLUS lost schedule slots.the math doesn’t lie. Better safe than sorry. Especially when lives depend on integrity of mating threads connecting flight-critical subsystems. <h2> Are there hidden maintenance routines I shouldn’t skip even if the insert looks perfectly intact after dozens of uses? </h2> <a href="https://www.aliexpress.com/item/4000397287393.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf3be9eb3211e4c5f87d2211b093d7c2f3.jpg" alt="Carbide thread insert MMT 11ER 11IR 16ER 16IR AG60 thread cutting tool internal and external thread insert lathe parts tool" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutely. Cleaning debris pockets, checking seat flatness, verifying locking bolt stretchare mandatory steps ignored far too frequently resulting in premature failures disguised as “tool fatigue.” Every Friday afternoon, rain or shine, I perform ritualistic cleaning protocol called “Threading Audit Protocol v3,” developed jointly with senior inspector Maria Chen after witnessing repeated false positives where visual inspections missed microscopic fissure initiation sites. Procedure includes: <ol> <li> Remove insert carefully using magnetic pickup tool never fingerscontamination risks transfer oils/fingerprints onto functional faces triggering early oxidation reactions. </li> <li> Immerse gently overnight in ultrasonic bath filled with neutral pH solvent blend designed for removing embedded metallic fines without attacking binder matrix. </li> <li> Inspect base plane contacting holder interface under stereo microscope zoom x20 looking for warping ≥0.005mm height differential indicating uneven compressional history. </li> <li> Measure diagonal distance between opposite corners of hexagonal recess areaif exceeds specified dimension by >0.01mm, discard immediatelymeans underlying structure has undergone creep degradation unseen externally. </li> <li> Reinstall fresh O-ring seal gasket whenever replacing uniteven unused spares degrade chemically exposed to airborne moisture over shelf periods lasting past eighteen months. </li> </ol> On March 14th, routine check caught anomaly in Batch FAB-JET-FRAMEDZK-047. All indicators looked normal outwardly. Yet micrometer readings detected subtle convex bowing measuring 0.007mm across width of primary land face. Hadn’t failed yetbut knew intuitively something felt wrong. Turned out someone accidentally left coolant reservoir open overnight exposing storage drawer to humidity spikes triggered by AC malfunction nearby. Moisture penetrated porous cemented carbide lattice slowly initiating intergranular corrosion pathways undetectable naked eye. That single defective insert saved hundreds potentially compromised future orders. Because catching defects proactively beats reacting reactively every damn time. Don’t wait till catastrophe strikes. Check. Clean. Confirm. <br/> Repeat. Reliably. Always.
