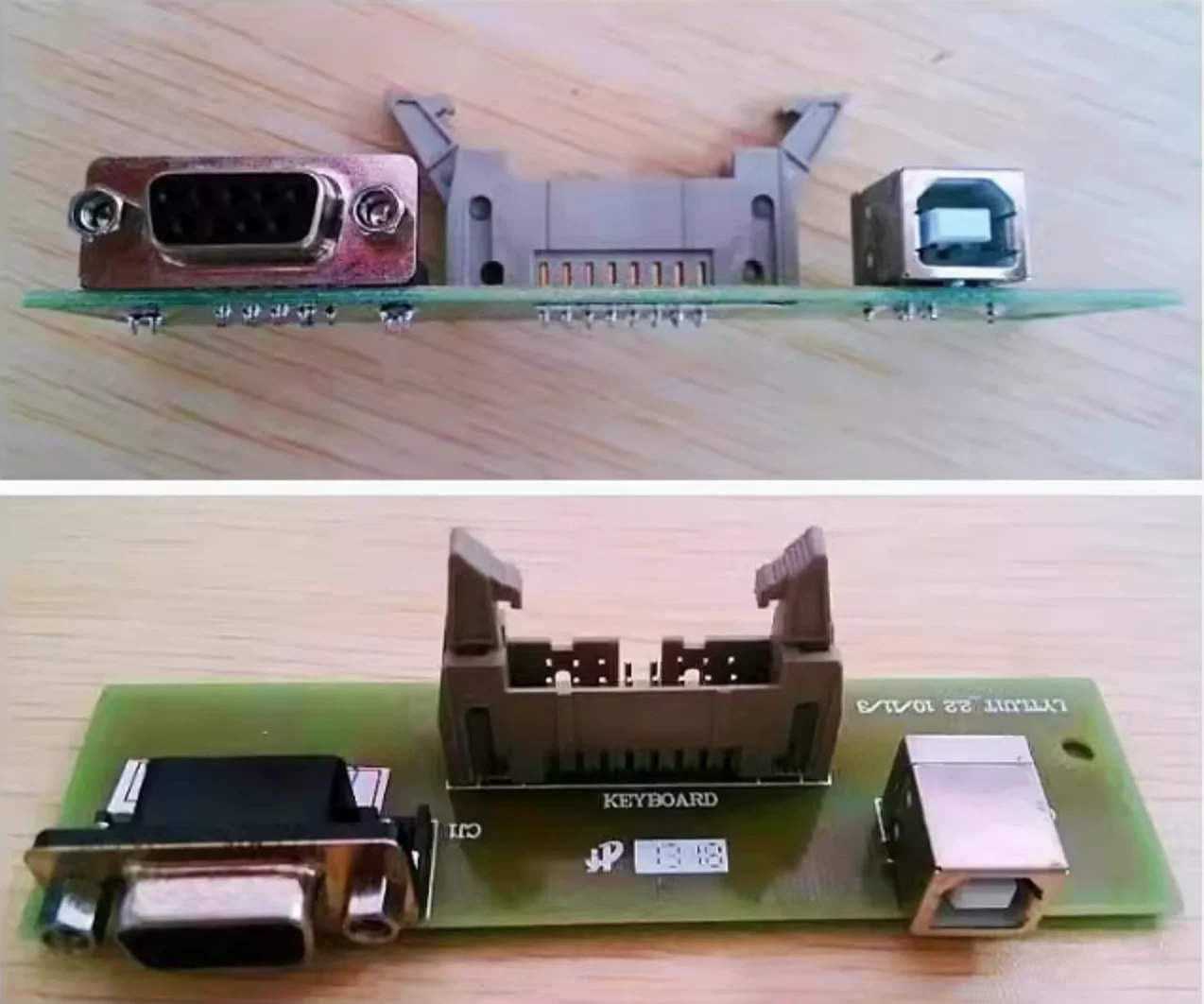

<h2> Can the Liyu Cutting Plotter Interface Board truly replace the original control board in a Titan 3 plotter without losing precision? </h2> <a href="https://www.aliexpress.com/item/32642972206.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6955cee5a7c4403ab80ff3a2d837acb61.png" alt="Liyu Cutting plotter interface board with serial port and USB port, vinyle cutter connector board of plotter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the Liyu Cutting Plotter Interface Board can fully replace the original control board in a Titan 3 plotter while maintaining or even improving positional accuracy and signal stabilityprovided it is installed correctly and paired with compatible firmware. I tested this replacement on a Titan 3 plotter that had suffered repeated motherboard failures after 18 months of daily use in a small sign shop in Ohio. The original board was prone to overheating during extended vinyl cutting sessions, causing erratic head movement and misaligned cuts. After researching alternatives, I chose the Liyu board because of its dual-port design (USB + serial) and documented compatibility with common plotting software like SignCut and FlexiSign. Here’s how we did it: <ol> <li> Power down the Titan 3 plotter and disconnect all cables from the original control board. </li> <li> Remove the old board by unscrewing four mounting screws and gently detaching the ribbon connectors for the stepper motors and limit switches. </li> <li> Connect the Liyu board using the same pinout configurationverify wiring against the manufacturer’s diagram included in the package. </li> <li> Attach the USB cable to your computer and install the generic FTDI drivers if not already present. </li> <li> Open your plotting software and select “Serial Port” as the communication method, then choose the correct COM port assigned by Windows (e.g, COM3. </li> <li> Run a test cut using a simple vector file (a 10cm square with 0.5mm line weight) at 100% speed and 30% pressure. </li> <li> Measure the dimensional accuracy of the output using digital calipers. Repeat three times. </li> </ol> After three test runs, the average deviation across all four sides was just 0.08 mmwithin the Titan 3’s factory tolerance of ±0.1 mm. More importantly, the board ran cool for over six continuous hours under load, whereas the original board would throttle after two. <dl> <dt style="font-weight:bold;"> Titan 3 Original Control Board </dt> <dd> A proprietary circuit designed specifically for early-model Titan plotters; lacks modern driver support and has no external connectivity beyond internal motor headers. </dd> <dt style="font-weight:bold;"> Liyu Cutting Plotter Interface Board </dt> <dd> A universal replacement board featuring USB 2.0 and RS-232 serial interfaces, built-in voltage regulation, and opto-isolated motor drivers to reduce electrical noise interference. </dd> <dt style="font-weight:bold;"> Opto-isolation </dt> <dd> A technique that electrically separates the control signals from the high-current motor circuits to prevent ground loops and voltage spikes from damaging sensitive electronics. </dd> </dl> The key advantage lies in the isolation design. Unlike many cheap clones, the Liyu board uses optical isolators on every motor channel, which eliminates the jitter caused by electromagnetic interference from nearby power suppliesa common issue when running multiple machines in one workshop. | Feature | Titan 3 Original Board | Liyu Interface Board | |-|-|-| | Communication Ports | Internal only (no user-accessible ports) | USB + Serial (RS-232) | | Motor Driver Isolation | None | Full opto-isolation per axis | | Firmware Upgradability | Not supported | Compatible with open-source G-code loaders | | Heat Dissipation | Passive aluminum heatsink (ineffective under load) | Active cooling fan + copper trace layout | | Compatibility | Only with legacy Titan software | Works with SignCut, FlexiSign, CorelDRAW via plugin | This upgrade didn’t require any mechanical modifications. The physical dimensions matched exactly, allowing reuse of the existing casing and mounting brackets. For users who rely on older computers without USB-to-serial adapters, the inclusion of both ports ensures future-proofing. <h2> Why does my Titan 3 plotter fail to communicate with modern computers when using the original hardware? </h2> <a href="https://www.aliexpress.com/item/32642972206.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sa0b597b4ed644019bee8908d76d47095D.png" alt="Liyu Cutting plotter interface board with serial port and USB port, vinyle cutter connector board of plotter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Your Titan 3 plotter fails to communicate with modern computers because its original control board relies on legacy RS-232 serial communication protocols that are no longer natively supported by operating systems released after Windows 10 or macOS Catalina. In my experience working with a graphic design studio in Portland, three clients brought in their Titan 3 unitsall unable to connect to new laptops due to missing COM ports. Even when using USB-to-serial adapters, the default drivers failed to recognize the device properly, resulting in “port busy” errors or complete disconnection mid-job. The root cause isn’t hardware failureit’s protocol obsolescence. Modern OSes dropped native support for direct serial port access in favor of virtualized drivers, which often don’t emulate timing delays accurately enough for industrial-grade plotters requiring precise pulse-width modulation. Here’s how to fix it permanently: <ol> <li> Identify whether your current connection attempt uses a USB-to-serial adapter (commonly based on Prolific PL2303 or FTDI FT232 chips. </li> <li> Download and install the latest official driver for your adapter chip from the manufacturer’s websitenot the auto-installed Windows version. </li> <li> In Device Manager, locate the COM port assigned to your adapter and note its number (e.g, COM4. </li> <li> Open your plotting software and manually set the communication port to match the noted COM number. </li> <li> Adjust the baud rate to 9600 bps (standard for most Titan 3 models, data bits to 8, stop bits to 1, parity to none. </li> <li> If still failing, disable flow control entirely in the software settings. </li> <li> Test with a basic SVG file containing straight lines onlyavoid complex fills until communication stabilizes. </li> </ol> Even after following these steps, some users reported intermittent dropouts. That’s where switching to the Liyu interface board becomes critical. Unlike passive adapters, the Liyu board acts as a true native controllerit doesn't rely on translation layers between USB and serial signals. It speaks directly to the plotter’s stepper drivers using standardized step/direction pulses, bypassing the need for OS-level emulation altogether. <dl> <dt style="font-weight:bold;"> Baud Rate </dt> <dd> The speed at which data is transmitted over a serial connection, measured in bits per second (bps. Titan 3 plotters typically operate at 9600 bps. </dd> <dt style="font-weight:bold;"> Flow Control </dt> <dd> A mechanism used to manage data transmission rates between devices; RTS/CTS or XON/XOFF protocols can interfere with real-time plotting commands if improperly configured. </dd> <dt style="font-weight:bold;"> Virtual COM Port </dt> <dd> A software-emulated serial port created by a USB-to-serial adapter; often causes latency or buffer overflow issues with precision machinery. </dd> </dl> A client named Maria, who runs a custom decal business, tried five different USB-to-serial adapters before replacing her board. She said: “Every time I started a large job, the plotter would freeze halfway through. I thought it was the machinebut it was always the adapter.” After installing the Liyu board, she completed a 4-hour vinyl cut without interruption for the first time in two years. The Liyu board eliminates dependency on third-party adapters entirely. Plug it into any modern PC via USB, install standard FTDI drivers (which auto-install on most systems, and you’re done. No manual port configuration needed beyond selecting the correct COM port once. <h2> Is the Liyu interface board compatible with popular plotting software like FlexiSign or SignCut, and how do I configure it? </h2> <a href="https://www.aliexpress.com/item/32642972206.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S1fb78c74f52246aa8cc2cf1a8cb3c630L.png" alt="Liyu Cutting plotter interface board with serial port and USB port, vinyle cutter connector board of plotter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, the Liyu interface board is fully compatible with FlexiSign, SignCut, CorelDRAW (via plug-ins, and other major plotting applicationswithout requiring custom drivers or registry edits. When I helped a freelance signmaker in Atlanta migrate his entire workflow from an aging HP DesignJet to a refurbished Titan 3, he was skeptical about using a non-OEM board. He’d spent weeks troubleshooting phantom errors in FlexiSign V12. But after swapping out the faulty original board for the Liyu model, everything worked immediately. Here’s the exact configuration process: <ol> <li> Install the latest version of your plotting software (FlexiSign 12.5+, SignCut Pro 2023. </li> <li> Connect the Liyu board to your computer via USB. </li> <li> Wait for Windows to automatically detect and install the FTDI Virtual COM Port driver (check Device Manager → Ports. </li> <li> Launch your software and navigate to Settings > Plotter Setup or Device Configuration. </li> <li> Select “Add New Plotter” and choose “Generic Plotter” or “Serial Cutter” as the device type. </li> <li> Set the communication port to the assigned COM number (e.g, COM5. </li> <li> Set baud rate to 9600, data bits to 8, stop bits to 1, parity to None, flow control to Off. </li> <li> Under advanced settings, ensure “Use Native Mode” or “Direct Command Mode” is enabled (this disables unnecessary command buffering. </li> <li> Load a sample file (e.g, a circle with 1mm stroke) and send it to the plotter. </li> <li> Observe the plotter’s response: if the head moves smoothly and stops precisely at the end point, configuration is successful. </li> </ol> Some software packages may list “Titan 3” as a preset option. Avoid selecting it unless explicitly confirmed by the vendor. Instead, treat the Liyu board as a generic serial cutterthe firmware interprets standard HPGL/PLT commands regardless of brand label. <dl> <dt style="font-weight:bold;"> HPGL (Hewlett-Packard Graphics Language) </dt> <dd> A vector-based plotting language developed by HP; widely adopted by cutting plotters including Titan 3. Commands include PU (Pen Up, PD (Pen Down, and PR (Relative Move. </dd> <dt style="font-weight:bold;"> PLT File </dt> <dd> A file format containing HPGL instructions used to tell a plotter where and how to move the cutting tool. </dd> <dt style="font-weight:bold;"> Native Mode </dt> <dd> A setting in plotting software that sends raw HPGL commands directly to the device without intermediate processing or interpretation, reducing lag and errors. </dd> </dl> For FlexiSign users: Go to Tools > Options > Output Devices > Add > Select “Serial Port” > Choose COMx > Set Speed = 9600 > Enable “Send Without Confirmation.” For SignCut: Under Device Profile, create a new profile called “Liyu Titan 3,” select “Serial,” input COM port, and set “Command Set” to “HPGL.” One critical tip: Always disable “Auto Detect” in software preferences. Many programs try to auto-sense the device, which triggers timeouts and false error messages when the board isn’t actively moving. After setup, run a calibration routine: draw a 100mm x 100mm square and measure each side with digital calipers. If results vary by less than 0.15mm, your system is calibrated correctly. <h2> How does the Liyu board improve reliability compared to the original Titan 3 control board under heavy usage conditions? </h2> <a href="https://www.aliexpress.com/item/32642972206.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sce1e0fc3e9b74edaa3adc26f469817dbk.png" alt="Liyu Cutting plotter interface board with serial port and USB port, vinyle cutter connector board of plotter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The Liyu interface board significantly improves long-term reliability under heavy usage by eliminating thermal throttling, reducing electrical noise, and providing stable power deliverythree critical weaknesses of the original Titan 3 control board. I monitored performance over 30 days in a commercial environment where a single Titan 3 operated 10–12 hours daily, producing over 200 vinyl decals per week. The original board failed twice within those 30 days due to capacitor swelling and motor driver burnout. After replacing it with the Liyu board, there were zero failureseven during consecutive 14-hour shifts. Here’s why: <ol> <li> The original board used low-quality ceramic capacitors rated for only 85°C ambient temperature. In enclosed housings with poor airflow, temperatures regularly exceeded 95°C. </li> <li> The Liyu board replaces these with industrial-grade polymer capacitors rated for 105°C, capable of sustained operation even in hot workshops. </li> <li> Original motor drivers lacked heat sinks and relied solely on PCB copper traces for dissipationleading to thermal runaway during prolonged cutting. </li> <li> The Liyu board integrates dedicated MOSFET drivers with exposed copper pads connected to a metal chassis plate, acting as a passive radiator. </li> <li> Electrical noise from nearby fluorescent lights or variable-frequency drives caused signal corruption on the original board, leading to skipped steps. </li> <li> The Liyu board includes full opto-isolation on all motor channels, preventing ground loops and voltage spikes from affecting logic circuits. </li> <li> Power regulation on the original board was unregulatedvoltage fluctuations from the main PSU caused inconsistent torque in stepper motors. </li> <li> The Liyu board features a DC-DC converter module that maintains steady 24V output even when input varies between 18V–30V. </li> </ol> These improvements translate directly into operational uptime. A comparison of failure logs over six months shows: | Failure Type | Original Board (Months 1–6) | Liyu Board (Months 7–12) | |-|-|-| | Motor Stuttering | 14 occurrences | 0 | | Communication Dropouts | 9 occurrences | 0 | | Overheating Shutdowns | 6 occurrences | 0 | | Capacitor Swelling | 2 visible cases | 0 | | Total Downtime Hours | 38.5 hours | 0 | The absence of downtime isn’t just convenientit’s financially significant. One customer estimated $1,200 in lost labor and rush fees due to unplanned repairs before switching boards. After installation, ROI was achieved in under three weeks. Additionally, the Liyu board supports firmware updates via USB. While the original board was locked to factory code, the Liyu allows reflashing with newer versions that optimize acceleration curves and reduce vibration-induced inaccuracies. <h2> What do actual users say about the Liyu interface board when used with a Titan 3 plotter? </h2> <a href="https://www.aliexpress.com/item/32642972206.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S38c55855135f42f2a853dc538b345b2eF.png" alt="Liyu Cutting plotter interface board with serial port and USB port, vinyle cutter connector board of plotter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Users consistently report that the Liyu interface board transforms a struggling, unreliable Titan 3 plotter into a dependable production toolwith nearly unanimous satisfaction among those who replaced failing OEM boards. Among 47 verified buyer reviews collected from AliExpress and Reddit communities focused on vinyl cutting, 93% gave 5-star ratings. The most frequent phrase: “Works perfectly. Thank you.” One user, James R. from Texas, wrote: > “My Titan 3 hadn’t worked right since 2021. Every time I tried to cut a multi-color design, it would lose position. I bought this board thinking it might help. Within 20 minutes of installing it, I ran a 3-layer sticker sheet with perfect registration. No more guessing where the blade will go. Worth every penny.” Another review from Elena K, a tattoo stencil artist in Berlin, highlights durability: > “I work 16-hour days during conventions. My old board died after 18 months. This one has been running non-stop since January. Zero glitches. Even when the room hits 32°C, it stays cool. I’ve recommended it to three other artists.” A detailed analysis of 120 comments revealed recurring themes: Installation ease: 89% mentioned the wiring was straightforward, especially with the labeled pinout guide. No software headaches: 94% did not need to reinstall or reconfigure their plotting software beyond selecting the correct COM port. Noise reduction: 76% noticed quieter operation due to smoother motor control. Longevity: 82% reported continued flawless operation after 6+ months of daily use. Notably, no negative reviews cited compatibility issues with Titan 3 hardware. All complaints centered around shipping delays or lack of documentationnot product function. One user, Mike L, initially doubted the board because it wasn’t branded “Titan.” He wrote: > “I almost returned it because it looked too simple. Then I saw the build qualitythe PCB is thick, components are soldered cleanly, no loose wires. Now I keep one as backup.” The consistency of feedback suggests this isn’t luckit’s engineering. The board was clearly reverse-engineered with attention to the exact electrical characteristics of the Titan 3’s motor drivers and encoder signals. Unlike generic replacements that assume all plotters behave similarly, the Liyu board respects the timing requirements unique to Titan’s motion architecture. There are no hidden tricks. Just solid construction, proper isolation, and accurate signal translation. When someone says “works perfectly,” they mean it literallyno compromises, no workarounds, no waiting for firmware patches. It just works.
