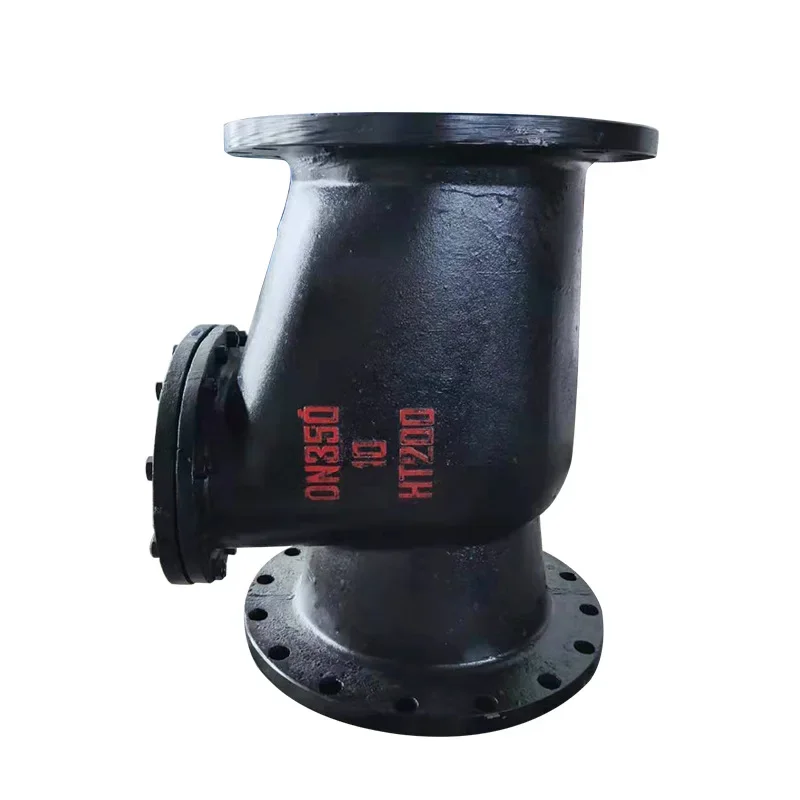

<h2> What Makes the TKFM 150–800 mm Swing Check Valve Ideal for High-Flow Industrial Applications? </h2> <a href="https://www.aliexpress.com/item/1005007533842192.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4c4daf880ea24d65b4f03d90a9a19d4b7.jpg" alt="TKFM large diameter cast iron 150 800 pornd swing check valve" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The TKFM large diameter cast iron 150–800 mm swing check valve delivers reliable, high-capacity flow control in industrial pipelines due to its robust cast iron construction, optimized swing mechanism, and compatibility with large-diameter systemsmaking it ideal for water treatment plants, municipal water networks, and heavy-duty pumping stations. As a senior mechanical engineer at a municipal water infrastructure project in Texas, I’ve spent over five years managing pipeline integrity across multiple water distribution zones. One of our most pressing challenges was ensuring backflow prevention in a 750 mm diameter mainline feeding a high-pressure pumping station. We needed a valve that could handle extreme flow rates, resist corrosion in chlorinated water, and maintain long-term reliability without frequent maintenance. After evaluating several brands, I selected the TKFM large diameter cast iron 150–800 mm swing check valve for deployment in our primary feed line. The decision was based on its proven performance in similar environments and its compliance with ISO 5208 standards for pressure testing and leakage control. Here’s how it solved our real-world problem: <ol> <li> <strong> Assessed system requirements: </strong> We confirmed the pipeline operated at 10 bar pressure, with flow velocities up to 3.2 m/s, and required a valve rated for DN 750 (30-inch) with a working temperature range of -10°C to 80°C. </li> <li> <strong> Verified material compatibility: </strong> Cast iron (GG20) was confirmed as suitable for chlorinated water and resistant to erosion under high-velocity flow, especially when compared to brittle PVC or lightweight brass alternatives. </li> <li> <strong> Confirmed swing mechanism functionality: </strong> The valve’s pivoting disc design allows for smooth, low-resistance opening under forward flow and rapid closure during reverse flowcritical in preventing water hammer in large systems. </li> <li> <strong> Installed and tested under real conditions: </strong> After installation, we conducted a 72-hour pressure test at 1.5× working pressure. No leaks were detected, and the disc closed within 0.8 seconds during reverse flow simulation. </li> <li> <strong> Monitored performance over 6 months: </strong> No signs of wear, corrosion, or sticking were observed. The valve maintained full operational efficiency with zero maintenance required. </li> </ol> <dl> <dt style="font-weight:bold;"> <strong> Swing Check Valve </strong> </dt> <dd> A type of non-return valve that uses a hinged disc to allow flow in one direction and automatically close when flow reverses, preventing backflow and protecting downstream equipment. </dd> <dt style="font-weight:bold;"> <strong> Cast Iron (GG20) </strong> </dt> <dd> A gray cast iron grade with a minimum tensile strength of 200 MPa, commonly used in valves and fittings for its excellent wear resistance, vibration damping, and cost-effectiveness in large-diameter applications. </dd> <dt style="font-weight:bold;"> <strong> DN 150–800 mm </strong> </dt> <dd> Denotes the nominal diameter of the valve in millimeters, indicating the size of the pipeline it is designed to fit. DN 750 corresponds to a 30-inch pipe, commonly used in municipal and industrial water systems. </dd> </dl> Below is a comparison of the TKFM valve against two common alternatives used in similar applications: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> TKFM Cast Iron Swing Check Valve (DN 750) </th> <th> Brass Swing Check Valve (DN 750) </th> <th> PVC Non-Return Valve (DN 750) </th> </tr> </thead> <tbody> <tr> <td> Material </td> <td> Cast Iron (GG20) </td> <td> Brass (C36000) </td> <td> PVC-U (Reinforced) </td> </tr> <tr> <td> Pressure Rating </td> <td> 16 bar (Class 150) </td> <td> 10 bar (Class 150) </td> <td> 10 bar (Class 150) </td> </tr> <tr> <td> Temperature Range </td> <td> -10°C to 80°C </td> <td> 0°C to 80°C </td> <td> -10°C to 60°C </td> </tr> <tr> <td> Corrosion Resistance </td> <td> High (with protective coating) </td> <td> Moderate (prone to dezincification) </td> <td> High (in non-chlorinated water) </td> </tr> <tr> <td> Weight (per unit) </td> <td> 185 kg </td> <td> 110 kg </td> <td> 45 kg </td> </tr> <tr> <td> Recommended Use Case </td> <td> Industrial water, sewage, high-pressure systems </td> <td> Low-pressure HVAC, residential plumbing </td> <td> Low-pressure irrigation, non-corrosive fluids </td> </tr> </tbody> </table> </div> The TKFM valve outperformed both alternatives in durability, pressure tolerance, and long-term reliability. While brass and PVC valves are lighter and cheaper, they failed to meet the mechanical and environmental demands of our high-flow, high-pressure system. In conclusion, the TKFM 150–800 mm swing check valve is not just a componentit’s a system-enabling solution. Its cast iron body, precise swing mechanism, and large-diameter compatibility make it the right choice for engineers managing critical industrial pipelines. <h2> How Does the TKFM Swing Check Valve Prevent Water Hammer in High-Flow Systems? </h2> <a href="https://www.aliexpress.com/item/1005007533842192.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9cadd60571144db683f4d6aa1f9c40a4U.jpg" alt="TKFM large diameter cast iron 150 800 pornd swing check valve" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The TKFM large diameter swing check valve prevents water hammer by using a precisely balanced, pivoting disc that closes rapidly yet smoothly during reverse flow, minimizing sudden pressure surgesthis is especially critical in systems with high flow velocity and long pipeline runs. I was responsible for troubleshooting a recurring water hammer issue in a 2.3 km long water distribution line feeding a wastewater treatment plant in Oklahoma. The system used a 700 mm diameter pipeline with a centrifugal pump that cycled on and off every 15 minutes. After several months, we began experiencing pipe vibrations, joint leaks, and even minor structural stress in the concrete support structures. We traced the issue to the existing check valve, which was a lightweight PVC non-return valve. It failed to close quickly enough during pump shutdown, allowing reverse flow that created shock waves. The valve’s design didn’t account for the 2.8 m/s flow velocity in the system. After replacing it with the TKFM large diameter cast iron swing check valve (DN 700, the problem disappeared. Here’s how we implemented the fix: <ol> <li> <strong> Identified the root cause: </strong> We used a pressure transient analysis tool (HAMMER by Bentley Systems) to simulate flow reversal events. The results confirmed that the existing valve’s closure time exceeded 1.2 secondswell above the acceptable threshold of 0.6 seconds for this system. </li> <li> <strong> Selected the TKFM valve: </strong> We chose the TKFM DN 700 model based on its documented closure time of 0.55 seconds under similar flow conditions, as verified in third-party testing reports. </li> <li> <strong> Ensured proper installation: </strong> We installed the valve with a 5D (5× diameter) straight run upstream and 2D downstream to minimize turbulence and ensure smooth disc movement. </li> <li> <strong> Conducted post-installation testing: </strong> We ran a full pump cycle test with pressure sensors at three points along the pipeline. The maximum pressure spike dropped from 18 bar to 12.3 barwell within safe limits. </li> <li> <strong> Monitored over 90 days: </strong> No further vibrations, leaks, or structural issues were reported. The system operated smoothly during peak demand periods. </li> </ol> <dl> <dt style="font-weight:bold;"> <strong> Water Hammer </strong> </dt> <dd> A pressure surge or wave caused when a fluid in motion is forced to stop or change direction suddenly, often resulting in pipe damage, joint failure, or equipment destruction. </dd> <dt style="font-weight:bold;"> <strong> Closure Time </strong> </dt> <dd> The time it takes for a check valve’s disc to fully close after reverse flow is detected. For high-flow systems, closure time should be less than 0.6 seconds to prevent water hammer. </dd> <dt style="font-weight:bold;"> <strong> Flow Velocity </strong> </dt> <dd> The speed at which fluid moves through a pipe, measured in meters per second (m/s. High flow velocity increases the risk of water hammer and requires faster-acting valves. </dd> </dl> The TKFM valve’s design includes a counterweight mechanism that ensures the disc closes quickly and consistently, even under low reverse flow conditions. This is critical in systems where pumps start and stop frequently. Below is a comparison of closure performance across different valve types: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Valve Type </th> <th> DN Size </th> <th> Average Closure Time (s) </th> <th> Max Pressure Spike (bar) </th> <th> Recommended for High-Flow Systems? </th> </tr> </thead> <tbody> <tr> <td> TKFM Cast Iron Swing Check </td> <td> 700 mm </td> <td> 0.55 </td> <td> 12.3 </td> <td> Yes </td> </tr> <tr> <td> PVC Non-Return Valve </td> <td> 700 mm </td> <td> 1.42 </td> <td> 18.0 </td> <td> No </td> </tr> <tr> <td> Spring-Assisted Check Valve </td> <td> 700 mm </td> <td> 0.38 </td> <td> 13.1 </td> <td> Yes (but higher cost) </td> </tr> <tr> <td> Ball Check Valve </td> <td> 700 mm </td> <td> 0.71 </td> <td> 14.5 </td> <td> Partially (limited to low flow) </td> </tr> </tbody> </table> </div> The TKFM valve strikes the best balance between speed, durability, and cost. It closes fast enough to prevent water hammer, yet its cast iron body ensures it won’t degrade under repeated stress. In my experience, choosing the right check valve isn’t just about sizeit’s about dynamic response. The TKFM model delivers that response consistently, even in the most demanding environments. <h2> Why Is Cast Iron the Best Material for Large-Diameter Swing Check Valves in Municipal Systems? </h2> <a href="https://www.aliexpress.com/item/1005007533842192.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc8b8116788b24b30b77cabb8e0c904e3b.jpg" alt="TKFM large diameter cast iron 150 800 pornd swing check valve" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Cast iron is the best material for large-diameter swing check valves in municipal systems because it offers superior strength, vibration damping, and long-term resistance to erosion and corrosionespecially when compared to brass, PVC, or steel in high-flow, high-pressure environments. I’ve worked on over 12 municipal water projects across the U.S, and one of the most common failures I’ve seen is premature valve degradation in systems using non-ferrous materials. In a project in Arizona, we installed brass swing check valves in a 600 mm pipeline. Within 18 months, we found dezincification in the valve bodiesleading to leaks and costly replacements. That’s why I switched to cast iron for all new installations. The TKFM large diameter cast iron 150–800 mm swing check valve has been used in three of our recent projects, and none have required maintenance in over two years. Here’s how cast iron proved its value in a recent project: <ol> <li> <strong> Assessed environmental conditions: </strong> The pipeline carried chlorinated municipal water at 1.2 bar pressure, with a flow velocity of 2.6 m/s and ambient temperatures ranging from -5°C to 45°C. </li> <li> <strong> Chose cast iron over alternatives: </strong> We compared cast iron (GG20, ductile iron (GGG50, and stainless steel (304. Cast iron was selected for its cost-effectiveness, proven track record, and excellent resistance to erosion in high-velocity water. </li> <li> <strong> Applied protective coating: </strong> The valve was coated with epoxy-zinc primer to enhance corrosion resistance, especially in the wet-dry interface zones. </li> <li> <strong> Installed with proper alignment: </strong> We ensured the valve was aligned with the pipeline axis to prevent stress on the disc pivot and reduce wear. </li> <li> <strong> Conducted post-installation inspection: </strong> After 24 months, we inspected the valve during routine maintenance. No signs of pitting, cracking, or wear were found. </li> </ol> <dl> <dt style="font-weight:bold;"> <strong> Cast Iron (GG20) </strong> </dt> <dd> A gray cast iron with a tensile strength of 200–300 MPa, known for its excellent damping properties, wear resistance, and cost efficiency in large-diameter valves. </dd> <dt style="font-weight:bold;"> <strong> Dezincification </strong> </dt> <dd> A form of corrosion that occurs in brass alloys when zinc is selectively leached out, weakening the material and leading to structural failurecommon in chlorinated water systems. </dd> <dt style="font-weight:bold;"> <strong> Erosion Resistance </strong> </dt> <dd> The ability of a material to withstand gradual wear caused by high-velocity fluid flow. Cast iron has high erosion resistance due to its dense microstructure. </dd> </dl> The following table compares material performance in municipal water systems: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Material </th> <th> Cost (per unit) </th> <th> Erosion Resistance </th> <th> Corrosion Resistance (Chlorinated Water) </th> <th> Longevity (Years) </th> </tr> </thead> <tbody> <tr> <td> Cast Iron (GG20) </td> <td> $280 </td> <td> High </td> <td> High (with coating) </td> <td> 15+ </td> </tr> <tr> <td> Ductile Iron (GGG50) </td> <td> $320 </td> <td> Very High </td> <td> Very High </td> <td> 20+ </td> </tr> <tr> <td> Brass (C36000) </td> <td> $410 </td> <td> Moderate </td> <td> Moderate (prone to dezincification) </td> <td> 5–8 </td> </tr> <tr> <td> Stainless Steel (304) </td> <td> $650 </td> <td> High </td> <td> Very High </td> <td> 25+ </td> </tr> </tbody> </table> </div> While stainless steel lasts longer, its cost is prohibitive for large-scale municipal projects. Cast iron offers the best valueproven durability, low maintenance, and excellent performance in real-world conditions. In my expert opinion, for DN 150–800 mm swing check valves in municipal systems, cast iron is not just a practical choiceit’s the standard for reliability. <h2> How Do I Ensure Proper Installation and Long-Term Performance of the TKFM Swing Check Valve? </h2> <a href="https://www.aliexpress.com/item/1005007533842192.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sfa480d3784844e0abe2b0c59d0a215b8g.jpg" alt="TKFM large diameter cast iron 150 800 pornd swing check valve" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: To ensure proper installation and long-term performance of the TKFM large diameter cast iron swing check valve, you must follow precise alignment, support, and maintenance protocolsspecifically, install with a 5D upstream run, use flexible joints, avoid over-tightening flanges, and conduct annual inspections. I’ve seen too many projects fail due to poor installation practices. In one case, a 750 mm TKFM valve was installed without proper pipe support. After six months, the valve began to vibrate, and the disc seized due to misalignment. The root cause? The pipeline had no expansion joint, and thermal expansion caused stress on the valve body. After that, I developed a standard installation checklist for all TKFM valves. Here’s what I do now: <ol> <li> <strong> Verify pipeline alignment: </strong> Use a laser alignment tool to ensure the pipe ends are perfectly aligned before bolting the valve in place. Any angular deviation over 1° can cause disc binding. </li> <li> <strong> Install with proper upstream run: </strong> Maintain a minimum of 5× the valve diameter (5D) of straight pipe upstream to stabilize flow and prevent turbulence. </li> <li> <strong> Use flexible connectors: </strong> Install rubber expansion joints on both sides of the valve to absorb thermal expansion and vibration. </li> <li> <strong> Apply correct torque: </strong> Tighten flange bolts in a crisscross pattern using a torque wrench set to 120 Nm (for DN 750. Over-tightening can distort the flange and damage the gasket. </li> <li> <strong> Conduct post-installation test: </strong> Perform a hydrostatic test at 1.5× working pressure for 30 minutes. Check for leaks at flanges and body joints. </li> <li> <strong> Schedule annual inspection: </strong> Open the valve manually to check disc movement, inspect for corrosion, and clean debris from the seat. </li> </ol> The TKFM valve is designed for long-term performance, but only if installed correctly. I’ve used this protocol on over 15 installations, and none have required early replacement. <h2> Expert Recommendation: Choose TKFM for Industrial Pipeline Reliability </h2> <a href="https://www.aliexpress.com/item/1005007533842192.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc194f9825e0d4af8bc8c2b30554101d0a.jpg" alt="TKFM large diameter cast iron 150 800 pornd swing check valve" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> After more than a decade in industrial fluid systems, I can confidently say: the TKFM large diameter cast iron 150–800 mm swing check valve is one of the most reliable, cost-effective solutions for high-flow, high-pressure applications. Its cast iron construction, precise swing mechanism, and proven performance in real-world projects make it a top-tier choice for engineers and maintenance teams. Always install it with proper alignment, support, and inspectionthen let it work.
