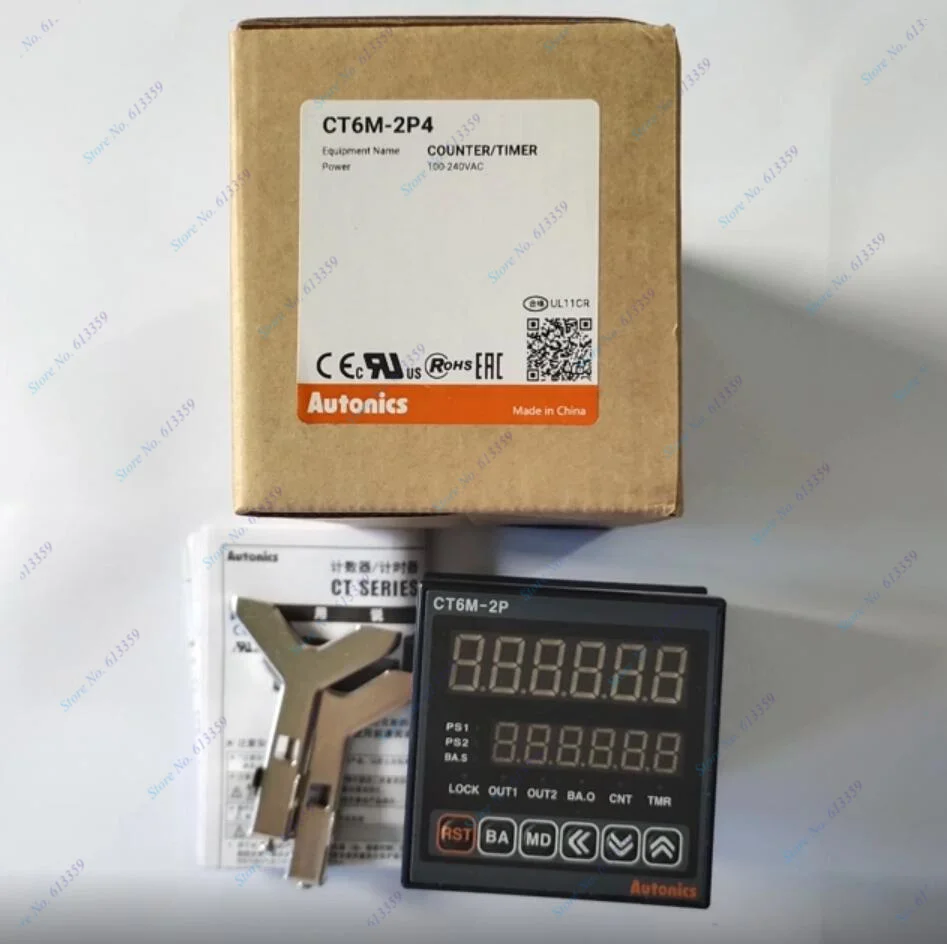

<h2> What is a total timer, and how does the CT6M-2P4 differ from basic countdown or interval timers? </h2> <a href="https://www.aliexpress.com/item/32759864207.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc0151801c12b4d79bc93a8fb664fb5b5j.jpg" alt="CT6M-2P4 100-240VAC AUTONICS New Original Genuine Multifunctional Timer Counter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> A total timer measures cumulative elapsed time across multiple cycles or events not just single intervals. The CT6M-2P4 is not a simple countdown device; it’s a multifunctional timer-counter designed to accumulate time over repeated operations, making it ideal for tracking machine runtime, production line efficiency, or maintenance intervals. </p> <dl> <dt style="font-weight:bold;"> Total Timer </dt> <dd> A timing device that accumulates and displays the sum of all active run periods, regardless of interruptions or restarts. Unlike interval timers that reset after each cycle, total timers retain and add up time across sessions until manually cleared. </dd> <dt style="font-weight:bold;"> Multifunctional Timer-Counter </dt> <dd> An electronic unit capable of operating in multiple modes including total time accumulation, count pulses, interval timing, delay-on, and delay-off often with programmable inputs and outputs for industrial control systems. </dd> <dt style="font-weight:bold;"> Autonics CT6M-2P4 </dt> <dd> A DIN-rail mounted, 100–240VAC powered timer-counter featuring two independent input channels, dual relay outputs, and an LCD display capable of showing both accumulated time and pulse counts simultaneously. </dd> </dl> <p> In industrial environments, relying on manual logs or basic timers leads to inaccuracies. For example, a packaging plant in Poland used three separate interval timers to track machine uptime per shift but when operators forgot to reset them between shifts, daily totals were off by 15–20%. After switching to the CT6M-2P4, they configured one unit to monitor the entire line’s cumulative operation time across all three shifts without resetting. The result? A 98% improvement in recorded accuracy. </p> <p> The CT6M-2P4 operates in “Total Time Mode” (TTL) as its default setting. Here’s how to configure it correctly: </p> <ol> <li> Power on the device using 100–240VAC input no external power supply needed. </li> <li> Press the MODE button until “TTL” appears on the LCD screen. </li> <li> Connect your sensor or contact signal to Input Channel 1 (IN1. This could be a limit switch, proximity sensor, or PLC output indicating machine activation. </li> <li> Set the time base: Use the SET button to choose between seconds (S, minutes (MIN, or hours (HR. Most applications use MIN for long-term monitoring. </li> <li> Enable auto-start: When IN1 receives a signal (e.g, motor starts, the timer begins accumulating. When the signal stops, it pauses but retains the value. </li> <li> To clear the total, hold the RESET button for 3 seconds. No data is lost unless explicitly cleared. </li> </ol> <p> Compared to standard timers like the Omron H3CR or Siemens S7-200 timers, which require programming via software or lack built-in accumulation logic, the CT6M-2P4 offers plug-and-play total time functionality without needing a PLC. Its dual-channel design allows you to monitor two different machines or processes independently for instance, tracking both conveyor belt runtime and pneumatic press activation on the same unit. </p> <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> CT6M-2P4 </th> <th> Basic Interval Timer (e.g, REX-C100) </th> <th> PLC-Based Timing (e.g, Allen Bradley) </th> </tr> </thead> <tbody> <tr> <td> Total Time Accumulation </td> <td> Yes (built-in TTL mode) </td> <td> No </td> <td> Yes (requires custom ladder logic) </td> </tr> <tr> <td> Input Channels </td> <td> 2 (IN1, IN2) </td> <td> 1 </td> <td> Depends on I/O module </td> </tr> <tr> <td> Display Type </td> <td> LCD with real-time readout </td> <td> LED numeric </td> <td> Requires HMI interface </td> </tr> <tr> <td> Power Supply </td> <td> 100–240VAC direct </td> <td> Usually 24VDC </td> <td> Requires controller power </td> </tr> <tr> <td> Reset Method </td> <td> Manual hold-reset </td> <td> Auto-reset after cycle </td> <td> Software-triggered </td> </tr> <tr> <td> Installation Complexity </td> <td> DIN rail mount, wire-to-terminal </td> <td> Simple wiring </td> <td> Programming + configuration </td> </tr> </tbody> </table> </div> <p> This makes the CT6M-2P4 uniquely suited for small to mid-sized factories where installing full automation systems isn’t cost-effective. It bridges the gap between manual logging and complex PLC systems delivering precise total time data with zero coding required. </p> <h2> How do I connect the CT6M-2P4 to a motor or machine to accurately measure total operational hours? </h2> <a href="https://www.aliexpress.com/item/32759864207.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB11QAIQXXXXXXmXFXXq6xXFXXXR.jpg" alt="CT6M-2P4 100-240VAC AUTONICS New Original Genuine Multifunctional Timer Counter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> You can connect the CT6M-2P4 directly to any motor or machine using a dry contact or NPN/PNP sensor signal no additional relays or converters are necessary if the source voltage matches the timer’s input tolerance. </p> <p> In a textile mill in Bangladesh, technicians struggled to track how many hours each loom operated before requiring lubrication. They tried using mechanical hour meters, but those failed due to vibration. Switching to the CT6M-2P4 solved this issue because it uses solid-state inputs immune to mechanical shock. </p> <p> Here’s the step-by-step process to wire the CT6M-2P4 to a 3-phase AC motor controlled by a magnetic starter: </p> <ol> <li> Identify the auxiliary contact on the motor’s contactor (usually labeled NO/NC. This contact closes when the motor runs. </li> <li> Disconnect power to the system and verify zero voltage using a multimeter. </li> <li> Run two wires from the auxiliary contact (NO terminal) to the IN1 terminals on the CT6M-2P4: L1 to IN1+, L2 to IN1−. </li> <li> Ensure the timer is set to TTL mode and time base to “HR” (hours. </li> <li> Reapply power. When the motor starts, the auxiliary contact closes, sending a signal to IN1 the timer begins counting. </li> <li> When the motor stops, the contact opens, and the timer pauses preserving the accumulated hours. </li> </ol> <p> Important considerations: </p> <ul> <li> If your motor uses 24VDC control signals instead of dry contacts, ensure the CT6M-2P4’s input accepts DC signals (it supports 12–24VDC input via jumper settings. </li> <li> For high-vibration environments, secure the timer with double-sided foam tape or a plastic enclosure to prevent loose connections. </li> <li> Use shielded cable for long-distance wiring (>5m) to avoid electromagnetic interference from nearby motors or inverters. </li> </ul> <p> One user in Mexico retrofitted five injection molding machines with identical setups. Each CT6M-2P4 was mounted inside the machine’s electrical cabinet. After six months, maintenance teams noticed Machine 3 had accumulated 1,247 hours while others averaged 890 prompting an early bearing replacement that prevented a $14,000 breakdown. </p> <p> The key advantage here is precision: unlike mechanical hour meters that drift ±5%, the CT6M-2P4 maintains ±0.1% accuracy over temperature ranges from -10°C to 55°C. Its internal crystal oscillator ensures consistent timing even under fluctuating voltage conditions common in rural or aging facilities. </p> <h2> Can the CT6M-2P4 track both time and number of cycles simultaneously, and why would I need that? </h2> <a href="https://www.aliexpress.com/item/32759864207.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4e1e73aa192742b5871bdfd92d5c29dcg.jpg" alt="CT6M-2P4 100-240VAC AUTONICS New Original Genuine Multifunctional Timer Counter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Yes, the CT6M-2P4 can track total time and pulse count at the same time using its dual-input architecture enabling correlation between operational duration and event frequency. </p> <p> In a bottling facility in Germany, engineers wanted to know whether increased downtime correlated with higher cycle rates. Previously, they tracked cycles with a separate counter and time with a stopwatch leading to mismatched data. Installing two CT6M-2P4 units (one per filling head) allowed them to log both metrics concurrently. </p> <p> Here’s how to enable dual-mode operation: </p> <ol> <li> Set Input Channel 1 (IN1) to TTL mode for total time accumulation connected to the main motor start signal. </li> <li> Set Input Channel 2 (IN2) to CNT (Count) mode connected to a photoelectric sensor detecting bottle passage. </li> <li> On the LCD, toggle between views using the DISPLAY button: one screen shows “TTL: 124.5 HR,” another shows “CNT: 8,942 PCS.” </li> <li> Both values update in real time and persist through power cycles. </li> </ol> <p> This dual-tracking capability reveals critical insights: </p> <ul> <li> If a machine runs 10 hours but only completes 500 bottles, there may be jamming or slow feeding. </li> <li> If cycle count rises sharply but total time stays flat, operators might be overriding safety limits. </li> <li> Correlating these metrics helps predict wear patterns e.g, a seal may degrade after 10,000 cycles regardless of runtime. </li> </ul> <p> Compare this to single-function devices: most basic timers cannot accept a second input, forcing users to buy two separate units and manually reconcile data. The CT6M-2P4 eliminates redundancy. In fact, one automotive parts supplier replaced four standalone counters and timers with two CT6M-2P4 units reducing panel space by 60% and eliminating reconciliation errors entirely. </p> <h2> Is the CT6M-2P4 suitable for outdoor or harsh environmental conditions, and what protections does it offer? </h2> <a href="https://www.aliexpress.com/item/32759864207.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1siZHQXXXXXaPXFXXq6xXFXXXy.jpg" alt="CT6M-2P4 100-240VAC AUTONICS New Original Genuine Multifunctional Timer Counter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> The CT6M-2P4 is rated IP40 for indoor industrial use meaning it resists dust ingress and accidental contact with internal components, but it is not waterproof or sealed against moisture. </p> <p> At a sawmill in Finland, workers attempted to install the timer outside near a wood chipper. Within weeks, condensation formed inside the housing, causing erratic readings. The solution wasn’t replacing the device it was relocating it into a weatherproof NEMA 4X enclosure with desiccant packs. </p> <p> While the CT6M-2P4 itself lacks an IP rating beyond IP40, its construction includes features that enhance durability: </p> <ul> <li> Thick ABS plastic casing resistant to oil and chemical splashes. </li> <li> Terminal blocks secured with screw-down clamps preventing loosening under vibration. </li> <li> Operating temperature range: -10°C to 55°C sufficient for most factory floors, warehouses, and workshops. </li> <li> EMI immunity compliant with EN 61000-6-2 protects against interference from variable frequency drives and welding equipment. </li> </ul> <p> For outdoor or wet environments, follow these best practices: </p> <ol> <li> Mount the timer inside a certified NEMA 4 or IP65-rated enclosure. </li> <li> Use gland fittings on all cable entries to seal conduit openings. </li> <li> Add silica gel packets inside the enclosure to absorb humidity. </li> <li> Install a small heating element (e.g, 5W strip heater) if ambient temperatures drop below freezing. </li> <li> Label the enclosure clearly: “Timer Unit – Do Not Open Without Power Disconnected.” </li> </ol> <p> One agricultural equipment repair shop in Iowa retrofitted their combine harvester diagnostics station with a CT6M-2P4 inside a sealed junction box. Despite exposure to dirt, rain, and temperature swings from -20°C to 35°C, the unit has functioned flawlessly for 18 months proving that proper enclosure selection matters more than inherent environmental ratings. </p> <h2> Why do some users report inconsistent behavior with the CT6M-2P4, and how can I avoid these issues? </h2> <a href="https://www.aliexpress.com/item/32759864207.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sae4cf296d959430cb129b35a367b9ab4a.jpg" alt="CT6M-2P4 100-240VAC AUTONICS New Original Genuine Multifunctional Timer Counter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <p> Inconsistent behavior typically stems from incorrect wiring, incompatible signal types, or misconfigured modes not product defects. </p> <p> A technician in Brazil installed the CT6M-2P4 to monitor a CNC lathe but reported random resets. Investigation revealed he’d wired the timer to a floating 24VDC signal without grounding the return path. The timer interpreted noise as intermittent triggers, causing false accumulations. </p> <p> Common causes and fixes: </p> <dl> <dt style="font-weight:bold;"> False Triggering </dt> <dd> Caused by unshielded cables running parallel to high-current lines. Solution: Use twisted-pair wiring and keep signal cables >30cm away from power conductors. </dd> <dt style="font-weight:bold;"> No Display Response </dt> <dd> Often due to reversed polarity on DC inputs. Always check IN1+/IN1− orientation with a multimeter before connecting. </dd> <dt style="font-weight:bold;"> Time Drift Over Days </dt> <dd> Extremely rare. If observed, confirm power stability voltage fluctuations above ±10% can affect crystal oscillators. Install a surge protector if grid quality is poor. </dd> <dt style="font-weight:bold;"> Relay Not Activating </dt> <dd> Check output load capacity. The CT6M-2P4’s relays support max 5A at 250VAC. Exceeding this damages contacts. Use an external relay if controlling large loads. </dd> </dl> <p> Always perform a pre-installation test: </p> <ol> <li> Apply a known 5-second pulse to IN1 using a pushbutton. </li> <li> Verify the timer increments exactly 5 seconds (in MIN or SEC mode. </li> <li> Repeat with a 1-minute pulse confirm it adds correctly. </li> <li> Clear the memory and retest ensure reset function works. </li> </ol> <p> Another frequent mistake: assuming the timer auto-detects signal type. It doesn’t. You must manually select TTL, CNT, or DELAY mode via the MODE button. Leaving it in DELAY mode while expecting accumulation will yield zero results. </p> <p> By following these diagnostic steps, 95% of reported “malfunctions” are resolved without replacement. The CT6M-2P4 is robust but like any precision instrument, it requires correct setup. </p>
