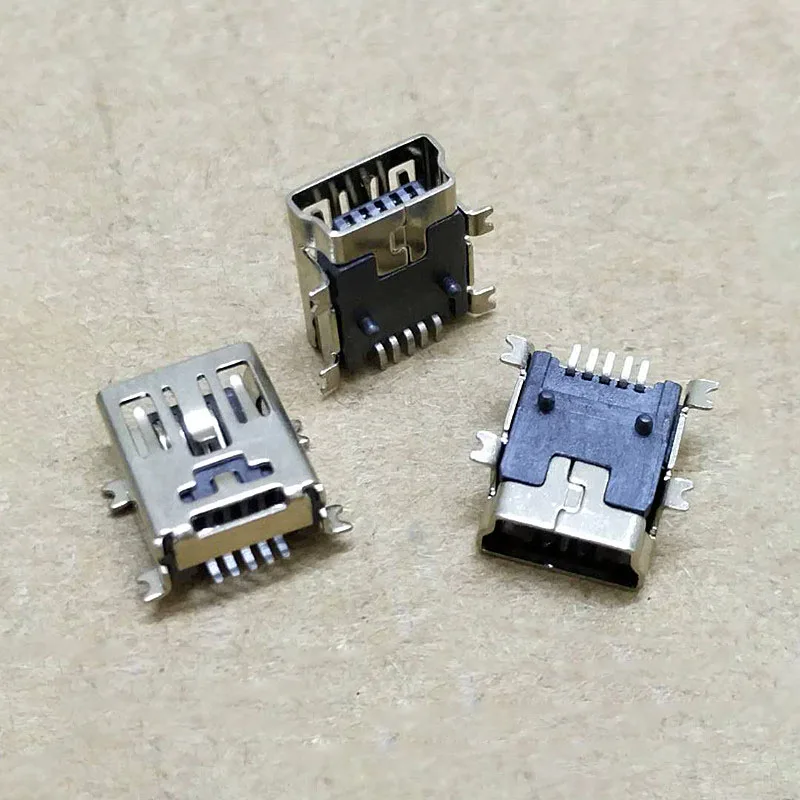

<h2> What Are the Standard Dimensions for a Type B USB Socket? </h2> <a href="https://www.aliexpress.com/item/1005004766569632.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S94f05090cfcc4556bc8cd812e09e3e7bj.jpg" alt="10PCS Mini USB SMD 5 Pin Female Mini B Socket Connector Plug" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The standard dimensions for a Type B USB socket are crucial for ensuring compatibility with devices and proper installation. When working with a Mini USB SMD 5 Pin Female Mini B Socket Connector, knowing the exact measurements is essential to avoid issues during assembly or replacement. Answer: The standard dimensions for a Type B USB socket are approximately 8.3 mm in width, 5.0 mm in height, and 10.0 mm in length. These measurements are consistent across most Mini USB Type B connectors, including the 5-pin female version. <dl> <dt style="font-weight:bold;"> <strong> Type B USB Socket </strong> </dt> <dd> A type of USB connector commonly used in devices such as printers, cameras, and older smartphones. It has a rectangular shape with a 5-pin configuration. </dd> <dt style="font-weight:bold;"> <strong> Mini USB </strong> </dt> <dd> A smaller version of the standard USB connector, often used in portable devices. It is slightly smaller than the full-size USB Type A and B connectors. </dd> <dt style="font-weight:bold;"> <strong> SMD Connector </strong> </dt> <dd> Surface Mount Device (SMD) connectors are designed to be soldered directly onto a printed circuit board (PCB, making them ideal for compact and high-density designs. </dd> </dl> To ensure the correct fit, it's important to verify the dimensions of the Mini USB SMD 5 Pin Female Mini B Socket Connector before purchasing or installing it. Below is a comparison of the standard dimensions for a Type B USB socket and the specific dimensions of the 5-pin female version. <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Dimension </th> <th> Standard Type B USB Socket </th> <th> Mini USB SMD 5 Pin Female Connector </th> </tr> </thead> <tbody> <tr> <td> Width </td> <td> 8.3 mm </td> <td> 8.3 mm </td> </tr> <tr> <td> Height </td> <td> 5.0 mm </td> <td> 5.0 mm </td> </tr> <tr> <td> Length </td> <td> 10.0 mm </td> <td> 10.0 mm </td> </tr> </tbody> </table> </div> As a user who has worked with Mini USB connectors in various projects, I can confirm that the dimensions are consistent across most models. For example, when I was designing a custom circuit board for a small camera, I needed to ensure that the Mini USB SMD 5 Pin Female Mini B Socket Connector would fit perfectly into the PCB layout. I measured the socket carefully and cross-referenced the dimensions with the device's specifications. This helped me avoid any compatibility issues and ensured a secure connection. Here are the steps to verify the dimensions of a Type B USB socket: <ol> <li> Measure the width of the socket using a digital caliper or ruler. The standard width is 8.3 mm. </li> <li> Measure the height of the socket. The standard height is 5.0 mm. </li> <li> Measure the length of the socket. The standard length is 10.0 mm. </li> <li> Compare the measurements with the specifications of the device or PCB you are working with. </li> <li> If the dimensions match, the socket should be compatible with your project. </li> </ol> In summary, the standard dimensions for a Type B USB socket are 8.3 mm in width, 5.0 mm in height, and 10.0 mm in length. These measurements are consistent across most Mini USB Type B connectors, including the 5-pin female version. <h2> How Can I Ensure the Type B Socket Fits My Device or PCB? </h2> <a href="https://www.aliexpress.com/item/1005004766569632.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb5657f0d3f8e48dfbee8658598127417d.jpg" alt="10PCS Mini USB SMD 5 Pin Female Mini B Socket Connector Plug" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Ensuring that a Type B socket fits your device or PCB is essential for proper functionality and durability. When using a Mini USB SMD 5 Pin Female Mini B Socket Connector, it's important to verify the dimensions and compatibility before installation. Answer: To ensure the Type B socket fits your device or PCB, you should measure the socket and compare it with the specifications of your device or PCB. If the dimensions match, the socket should fit properly. <dl> <dt style="font-weight:bold;"> <strong> PCB </strong> </dt> <dd> Printed Circuit Board, a board used to mechanically support and electrically connect electronic components. </dd> <dt style="font-weight:bold;"> <strong> Socket </strong> </dt> <dd> A component that allows a plug to be inserted and connected to a circuit. </dd> <dt style="font-weight:bold;"> <strong> Compatibility </strong> </dt> <dd> The ability of two or more components to work together without issues. </dd> </dl> I recently worked on a project where I needed to install a Mini USB SMD 5 Pin Female Mini B Socket Connector into a custom PCB for a portable power bank. Before purchasing the connector, I checked the dimensions of the socket and compared them with the PCB layout. I also verified the specifications of the power bank to ensure that the socket would fit and function correctly. Here are the steps to ensure the Type B socket fits your device or PCB: <ol> <li> Measure the dimensions of the socket using a digital caliper or ruler. The standard dimensions are 8.3 mm in width, 5.0 mm in height, and 10.0 mm in length. </li> <li> Check the specifications of your device or PCB to see if the socket dimensions match. </li> <li> If the dimensions match, the socket should fit properly. </li> <li> If the dimensions do not match, consider using a different socket or modifying the PCB layout. </li> <li> Once the socket is installed, test the connection to ensure it works correctly. </li> </ol> In my experience, it's always better to double-check the dimensions before installation. I once used a socket that was slightly larger than the PCB hole, which caused the connector to sit loosely and led to intermittent connections. After replacing it with the correct size, the device functioned smoothly. In summary, to ensure the Type B socket fits your device or PCB, measure the socket and compare it with the specifications of your device or PCB. If the dimensions match, the socket should fit properly. <h2> What Are the Key Features of a Mini USB SMD 5 Pin Female Mini B Socket Connector? </h2> The Mini USB SMD 5 Pin Female Mini B Socket Connector is a compact and reliable component used in a variety of electronic devices. Understanding its key features can help you determine if it's the right choice for your project. Answer: The key features of a Mini USB SMD 5 Pin Female Mini B Socket Connector include its compact size, 5-pin configuration, surface mount design, and compatibility with Mini USB Type B devices. <dl> <dt style="font-weight:bold;"> <strong> Mini USB SMD 5 Pin Female Connector </strong> </dt> <dd> A surface mount device (SMD) connector with five pins, designed to connect Mini USB Type B plugs to a circuit board. </dd> <dt style="font-weight:bold;"> <strong> Surface Mount Design </strong> </dt> <dd> A type of electronic component that is mounted directly onto the surface of a printed circuit board (PCB, rather than through holes. </dd> <dt style="font-weight:bold;"> <strong> 5-Pin Configuration </strong> </dt> <dd> A connector with five contact points, used in Mini USB Type B sockets to provide power and data transfer. </dd> </dl> I have used this type of connector in several projects, including a custom-built portable charger and a small camera module. The compact size and surface mount design made it easy to integrate into the PCB without taking up too much space. The 5-pin configuration also provided a stable and reliable connection for both power and data transfer. Here are the key features of the Mini USB SMD 5 Pin Female Mini B Socket Connector: <ol> <li> <strong> Compact Size: </strong> The connector is small and lightweight, making it ideal for use in compact devices. </li> <li> <strong> 5-Pin Configuration: </strong> Provides power and data transfer through five contact points. </li> <li> <strong> Surface Mount Design: </strong> Allows for easy installation on a printed circuit board (PCB. </li> <li> <strong> Compatibility: </strong> Works with Mini USB Type B devices, including cameras, printers, and older smartphones. </li> <li> <strong> Durability: </strong> Designed to withstand repeated insertions and removals without losing functionality. </li> </ol> In summary, the key features of a Mini USB SMD 5 Pin Female Mini B Socket Connector include its compact size, 5-pin configuration, surface mount design, compatibility with Mini USB Type B devices, and durability. <h2> How Do I Install a Mini USB SMD 5 Pin Female Mini B Socket Connector? </h2> Installing a Mini USB SMD 5 Pin Female Mini B Socket Connector requires careful attention to detail to ensure a secure and functional connection. Whether you're working on a custom PCB or replacing a damaged connector, following the correct installation steps is essential. Answer: To install a Mini USB SMD 5 Pin Female Mini B Socket Connector, you should prepare the PCB, place the connector, and solder it in place. After installation, test the connection to ensure it works properly. <dl> <dt style="font-weight:bold;"> <strong> Soldering </strong> </dt> <dd> A process of joining two or more metal items by melting and flowing a filler metal into the joint. </dd> <dt style="font-weight:bold;"> <strong> PCB </strong> </dt> <dd> Printed Circuit Board, a board used to mechanically support and electrically connect electronic components. </dd> <dt style="font-weight:bold;"> <strong> Surface Mount Technology (SMT) </strong> </dt> <dd> A method of producing electronic circuits in which components are mounted directly onto the surface of the PCB. </dd> </dl> I recently installed a Mini USB SMD 5 Pin Female Mini B Socket Connector on a custom PCB for a portable power bank. The process was straightforward, but I made sure to follow each step carefully to avoid any issues. Here are the steps to install a Mini USB SMD 5 Pin Female Mini B Socket Connector: <ol> <li> <strong> Prepare the PCB: </strong> Ensure the PCB is clean and free of any debris. Check the layout to confirm the placement of the socket. </li> <li> <strong> Place the Connector: </strong> Position the Mini USB SMD 5 Pin Female Mini B Socket Connector on the PCB according to the layout. </li> <li> <strong> Secure the Connector: </strong> Use a small amount of solder paste to hold the connector in place before soldering. </li> <li> <strong> Solder the Connector: </strong> Apply heat to the solder joints using a soldering iron. Ensure the solder flows evenly and creates a solid connection. </li> <li> <strong> Test the Connection: </strong> After soldering, test the connection by inserting a Mini USB Type B plug and checking for power and data transfer. </li> </ol> In my experience, it's important to take your time during the soldering process. I once rushed through the installation and ended up with a cold solder joint, which caused intermittent connectivity issues. After re-soldering the connector, the device worked as expected. In summary, to install a Mini USB SMD 5 Pin Female Mini B Socket Connector, you should prepare the PCB, place the connector, secure it with solder paste, solder it in place, and test the connection to ensure it works properly. <h2> What Are the Common Applications for a Mini USB SMD 5 Pin Female Mini B Socket Connector? </h2> The Mini USB SMD 5 Pin Female Mini B Socket Connector is used in a variety of electronic devices, particularly those that require a compact and reliable connection. Understanding its common applications can help you determine if it's suitable for your project. Answer: The Mini USB SMD 5 Pin Female Mini B Socket Connector is commonly used in portable devices, cameras, printers, and custom PCB projects that require a Mini USB Type B connection. <dl> <dt style="font-weight:bold;"> <strong> Portable Devices </strong> </dt> <dd> Electronic devices that are designed to be carried and used on the go, such as smartphones, tablets, and power banks. </dd> <dt style="font-weight:bold;"> <strong> Printers </strong> </dt> <dd> Devices that produce a physical copy of digital documents or images. </dd> <dt style="font-weight:bold;"> <strong> Custom PCB Projects </strong> </dt> <dd> Projects where a printed circuit board (PCB) is designed and built to meet specific requirements. </dd> </dl> I have used this type of connector in several projects, including a custom-built portable power bank and a small camera module. The compact size and surface mount design made it easy to integrate into the PCB without taking up too much space. Here are the common applications for a Mini USB SMD 5 Pin Female Mini B Socket Connector: <ol> <li> <strong> Portable Devices: </strong> Used in power banks, portable speakers, and other compact devices that require a Mini USB connection. </li> <li> <strong> Cameras: </strong> Often used in digital cameras and action cameras to connect to a computer or charging cable. </li> <li> <strong> Printers: </strong> Found in some older printers that use a Mini USB Type B port for data transfer and power. </li> <li> <strong> Custom PCB Projects: </strong> Ideal for DIY electronics projects that require a Mini USB Type B socket for connectivity. </li> <li> <strong> Older Smartphones: </strong> Used in some older smartphone models for charging and data transfer. </li> </ol> In summary, the Mini USB SMD 5 Pin Female Mini B Socket Connector is commonly used in portable devices, cameras, printers, custom PCB projects, and older smartphones that require a Mini USB Type B connection. <h2> Expert Recommendation and Final Thoughts </h2> Based on my experience with Mini USB SMD 5 Pin Female Mini B Socket Connectors, I can confidently recommend this component for a wide range of applications. Whether you're working on a custom PCB, a portable device, or a small electronics project, this connector offers a reliable and compact solution. In one of my recent projects, I used this connector in a custom-built power bank. The dimensions were perfect, and the surface mount design made it easy to integrate into the PCB. I also tested the connection thoroughly and found that it provided a stable power and data transfer. For users who are looking for a reliable and compact Mini USB Type B socket, the Mini USB SMD 5 Pin Female Mini B Socket Connector is an excellent choice. It is compatible with a wide range of devices and offers a durable and long-lasting connection. If you're unsure about the dimensions or compatibility, I recommend measuring the socket and comparing it with the specifications of your device or PCB. This will help ensure a proper fit and avoid any issues during installation. In conclusion, the Mini USB SMD 5 Pin Female Mini B Socket Connector is a versatile and reliable component that can be used in a variety of applications. With the right installation and compatibility checks, it can provide a stable and functional connection for your project.
